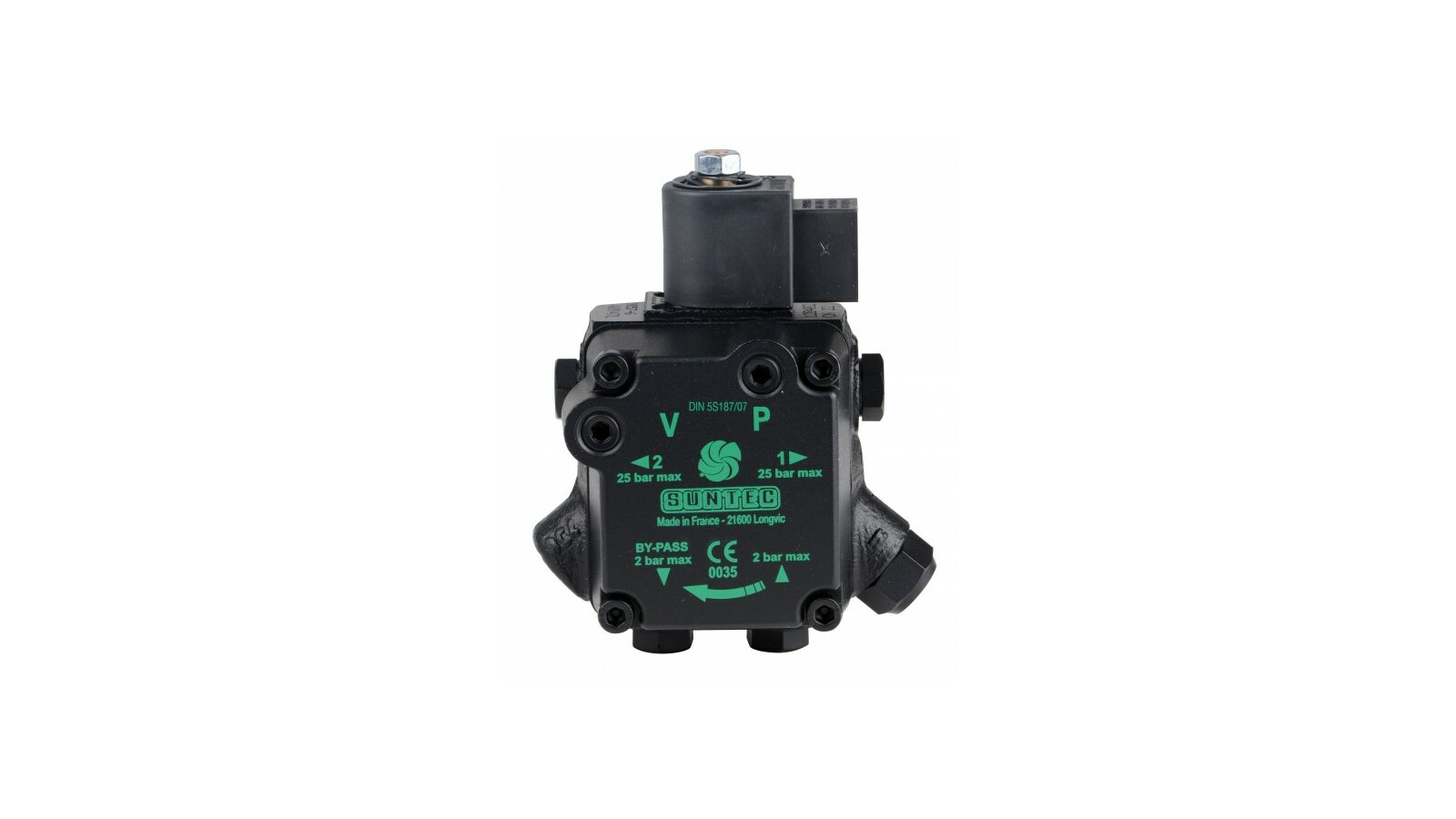

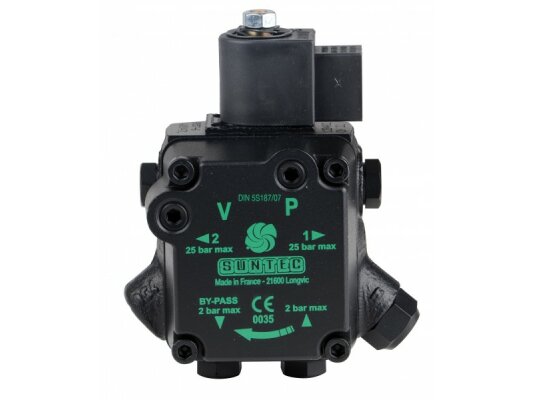

Burner Pump Suntec AU 47 L 9853 6P 0500

Suntec
  • Discontinued
Oil Burner Pumps
Products code: 1213

Description

The single-stage liquid fuel pump for diesel burners AU 47 L 9853 6P 0500, presented by the French company Suntec, is service equipment. The model is actively used by installation and repair teams for temporary replacement of pumps of the AS 47 and AL 35 series. The device is designed for both supplying diesel fuel and kerosene to the nozzle line of Lamborghini, Baltur, Weishaupt, Elco and other burners.

The official supplier of the European manufacturer, the company "ANKAS", offers to buy a heating burner pump at an affordable price. Our specialists will answer you by phone or online on the website and will help you choose the best option to solve your problem.

Design features

  • Before being fed to the nozzle line, the fuel is cleaned by passing through a pre-filter with an open area of ​​6 cm². It requires regular disassembly and cleaning from mechanical particles retained by the mesh insert. For more efficient fuel preparation and extension of the injector service life, it is recommended to install a fine filter after the device along the liquid flow.

  • To protect the internal parts of the unit from water and dust penetration, the outer casing is sealed using gaskets, seals and sealant. The AU 47 L 9853 6P 0500 liquid fuel pump is assigned a casing protection rating of IP54.

  • The device can be mounted in single-pipe and double-pipe fuel pipeline systems. In this case, the bypass and return line plugs must be removed or installed according to the instructions. The model is mounted to the electric drive using a sleeve connection with a landing diameter of 32 mm.

Advantages of the model:

  • instantaneous cessation of liquid supply, implemented by a shut-off electromagnetic valve;

  • press fit of the gear pair on the shaft, which eliminates wear of parts when pumping kerosene;

  • work with various types of fuel - kerosene and diesel fuel;

  • the ability to connect a pressure gauge and vacuum gauge to ports with standard threads;

  • easy air release when starting the device.

The single-stage gear pump model AU 47 L 9853 6P 0500 is high-quality equipment from the European company Suntec, adapted to harsh climatic conditions and long-term operation at home and in production.

Characteristics

Strainer: Open area: 6 cm²Direction of rotation (looking at the drive shaft): L: counterclockwise rotationNominal rotation speed: 2850 rpmVacuum gauge port: ⅛ inchPressure gauge port: ⅛ inchSolenoid valve consumption: 9 WPerformance for stage 2 at 11 bar and 5 cSt viscosity: 44 l/h2nd stage performance at 11 bar and 1.8 cSt viscosity for Kerosene: 24 l/hPump series: AU: replaces most AS 47 and AL 35 models. It has an integrated solenoid valve (type AL) withSolenoid valve voltage: 220-240 or 110-120 or 24 VStrainer: Opening size: 150 µmOil temperature: from 0 to 60 °C in the pumpModel type: 1 stage with electromagnetic valveInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemValve function: pressure regulatingOperating viscosity: from 1 to 12 mm²/sPerformance at 11 bar pressure and 5 cSt viscosity: 44 l/hPerformance at 11 bar and 1.8 cSt viscosity for Kerosene: 24 l/hInstallation method: sleeve ∅ 32 mmTorque: 0.1 N·mSuction and return line: ¼ inch NPTF (taper thread)Suction height: 0.45 bars max. vacuum to prevent air separation from oilNozzle outlet: ⅛ inchInlet pressure: 2 barReturn pressure: 2 barShaft diameter: 8 mmNozzle pressure range: from 4 to 25 barFactory pressure setting: 9 barBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withShaft design: one cavityMaximum rotation speed: 3600 rpmMaximum pressure of the solenoid valve: 25 barDegree of protection: IP54Type of pumped liquid: kerosene, diesel
