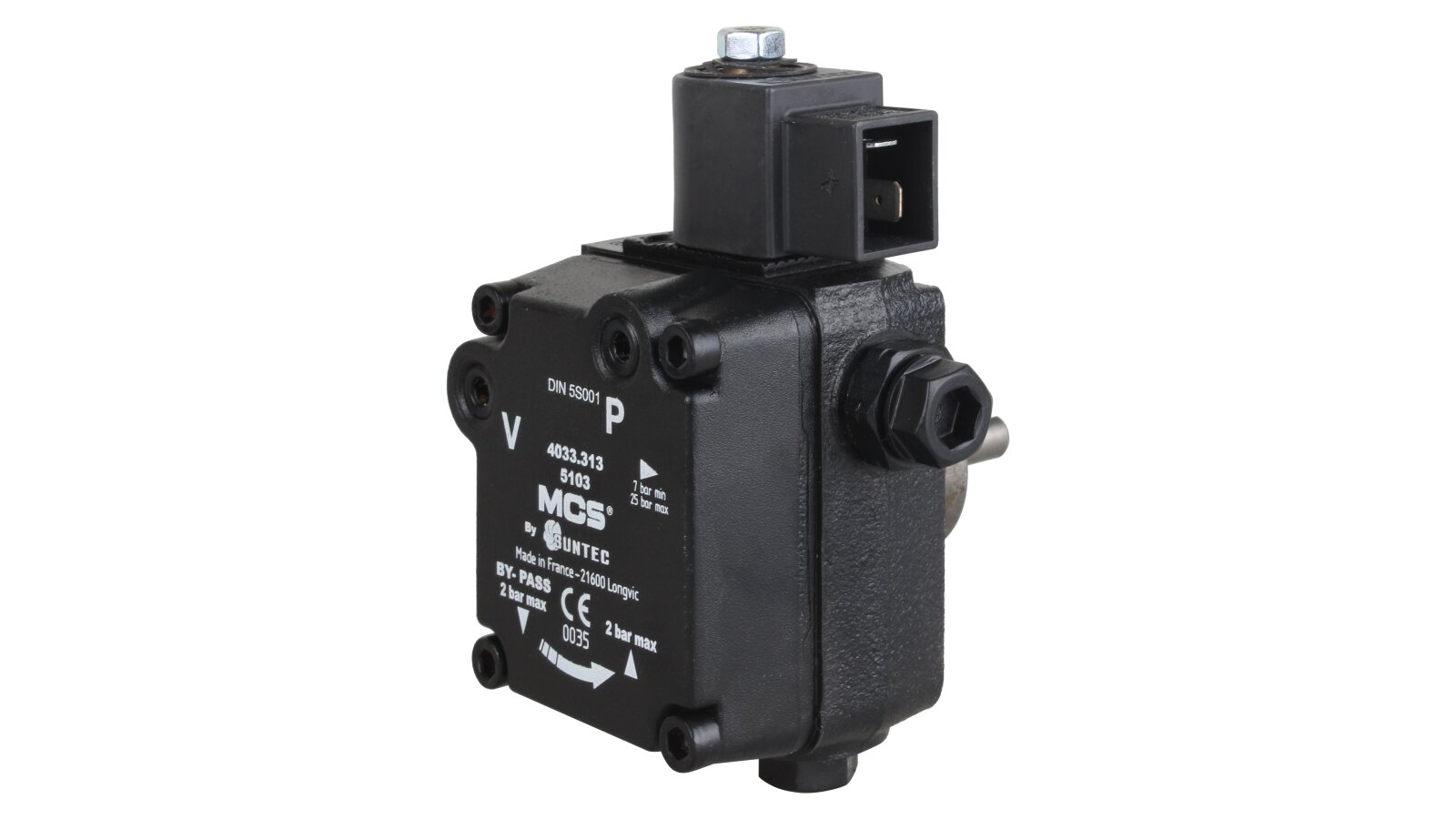

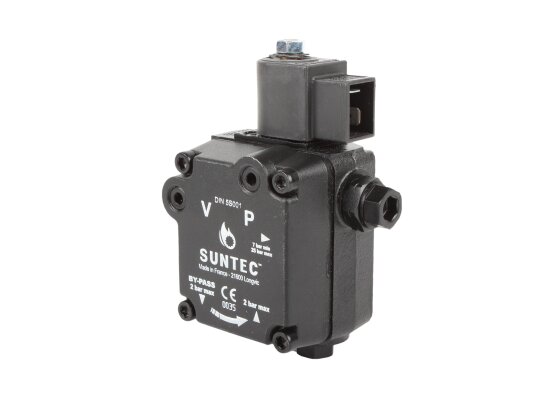

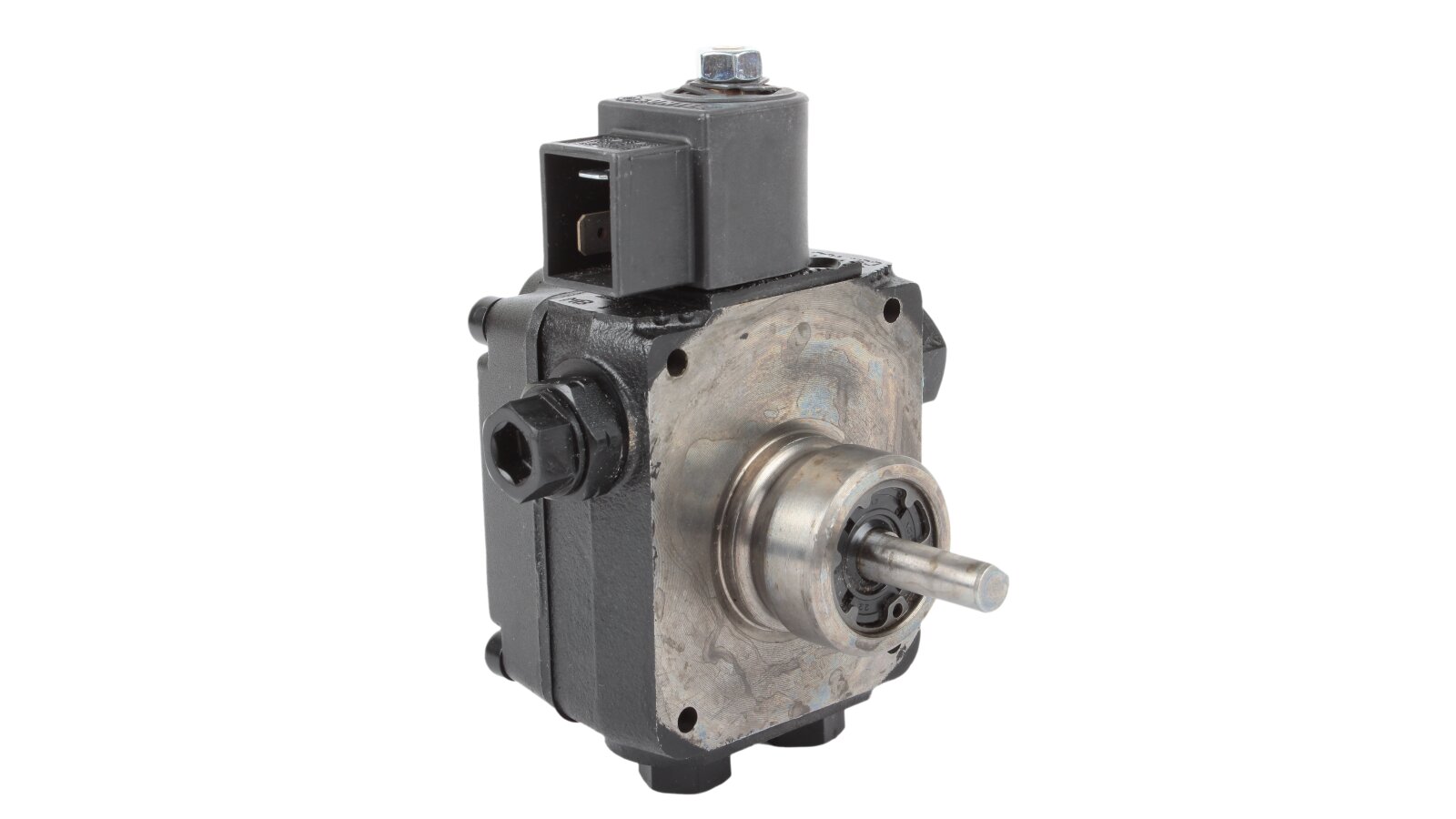

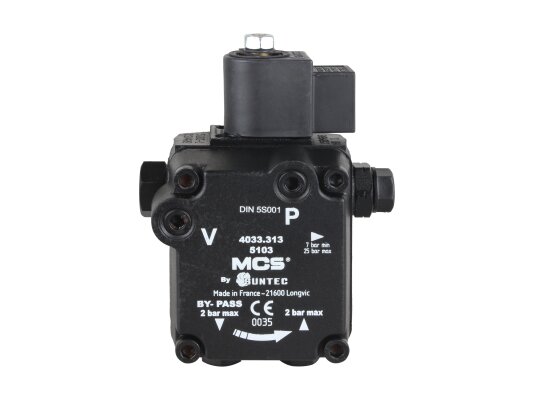

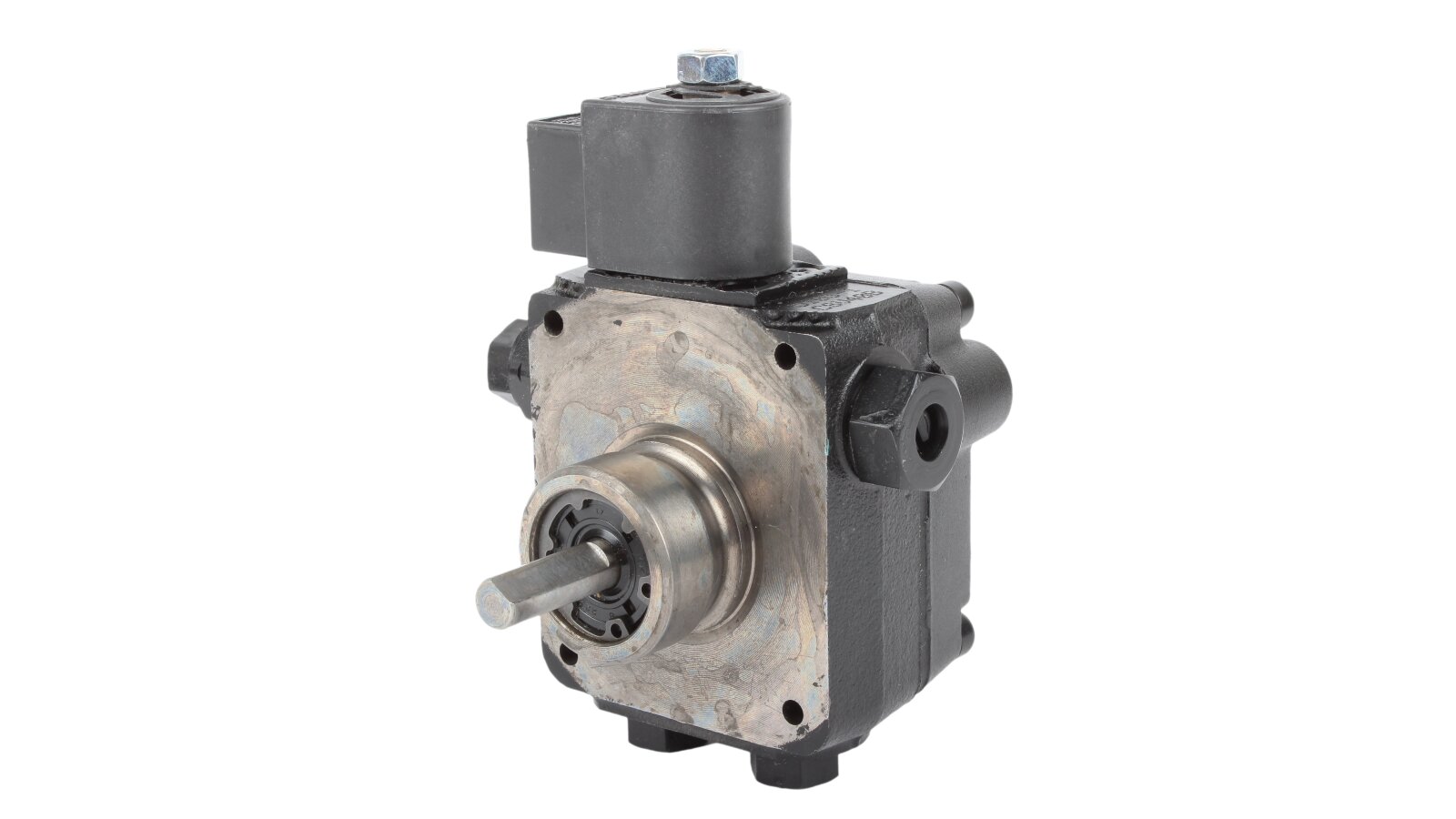

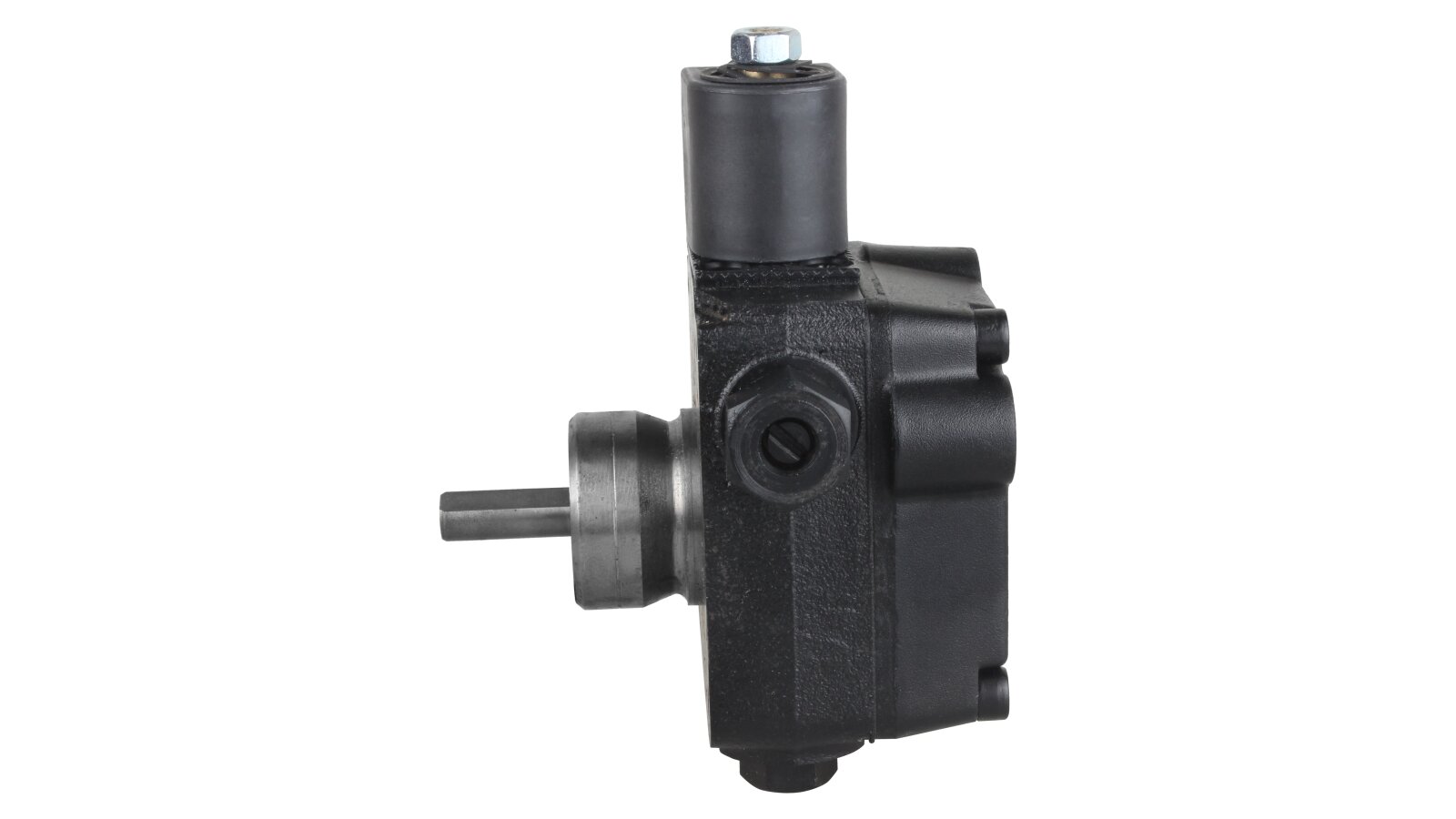

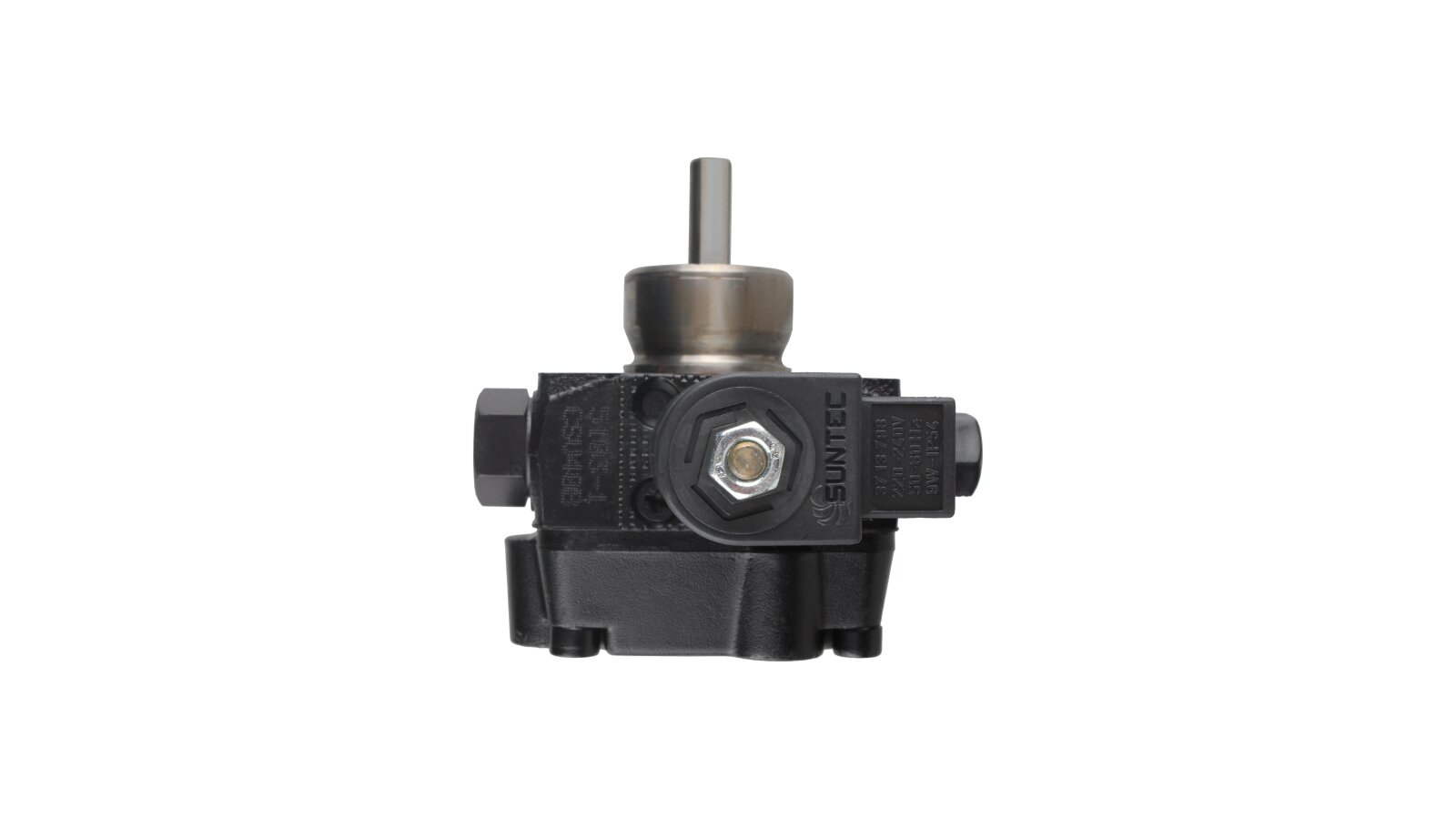

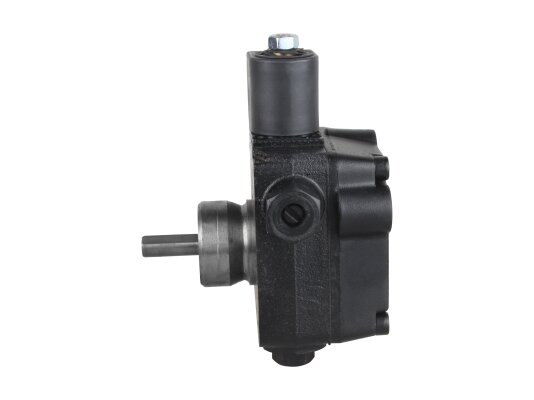

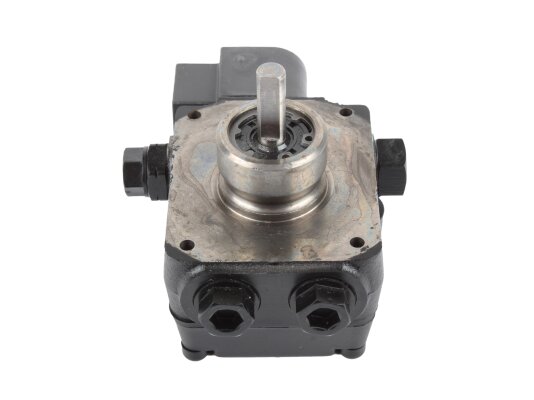

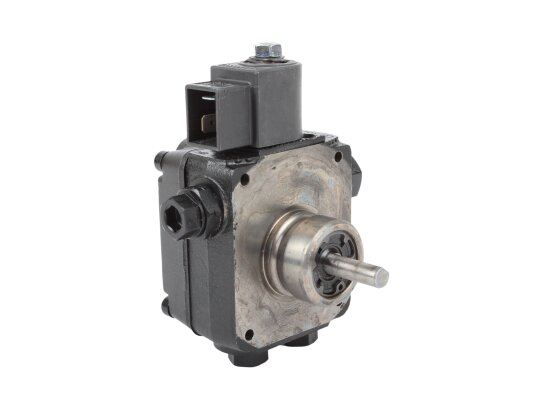

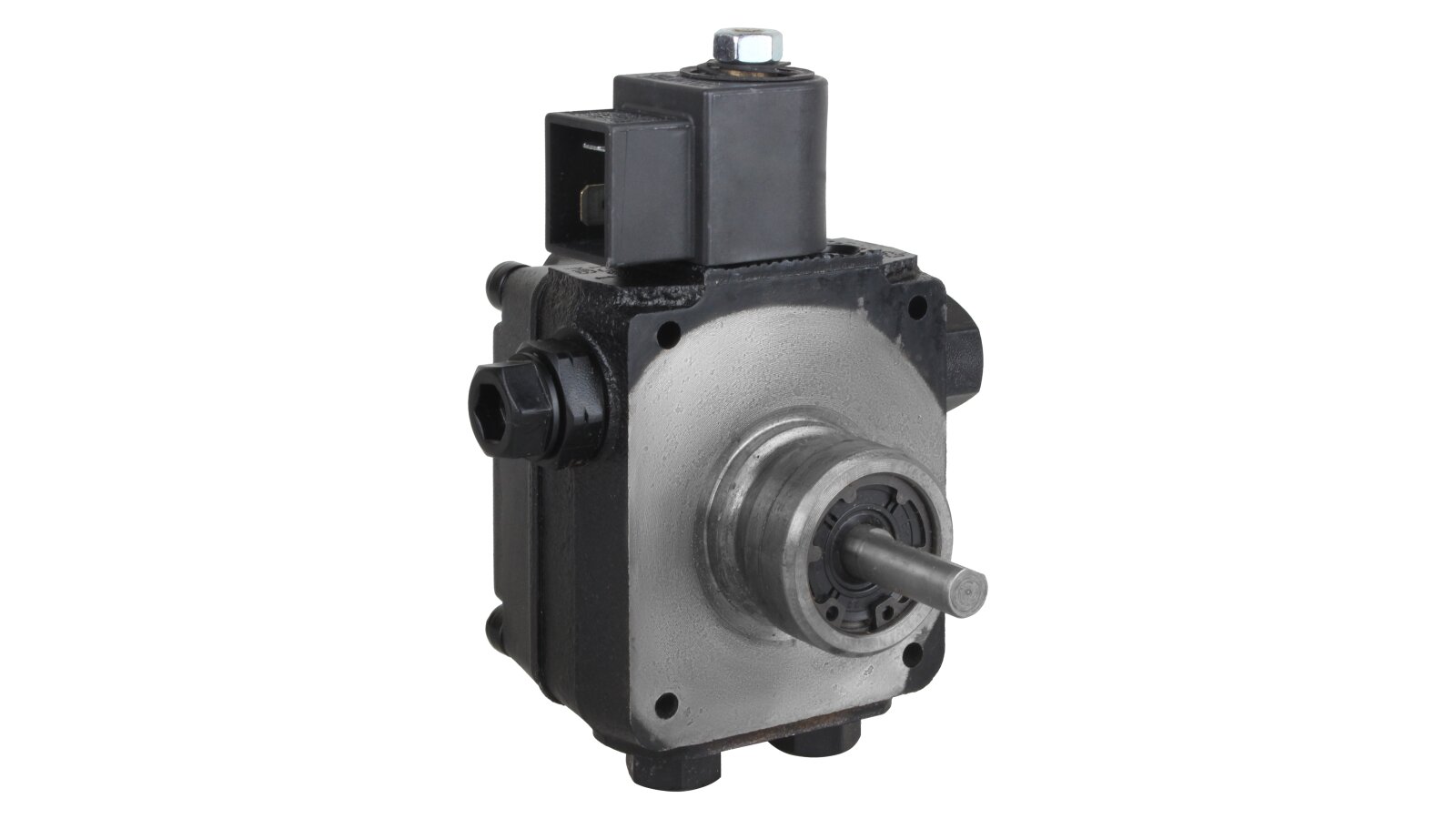

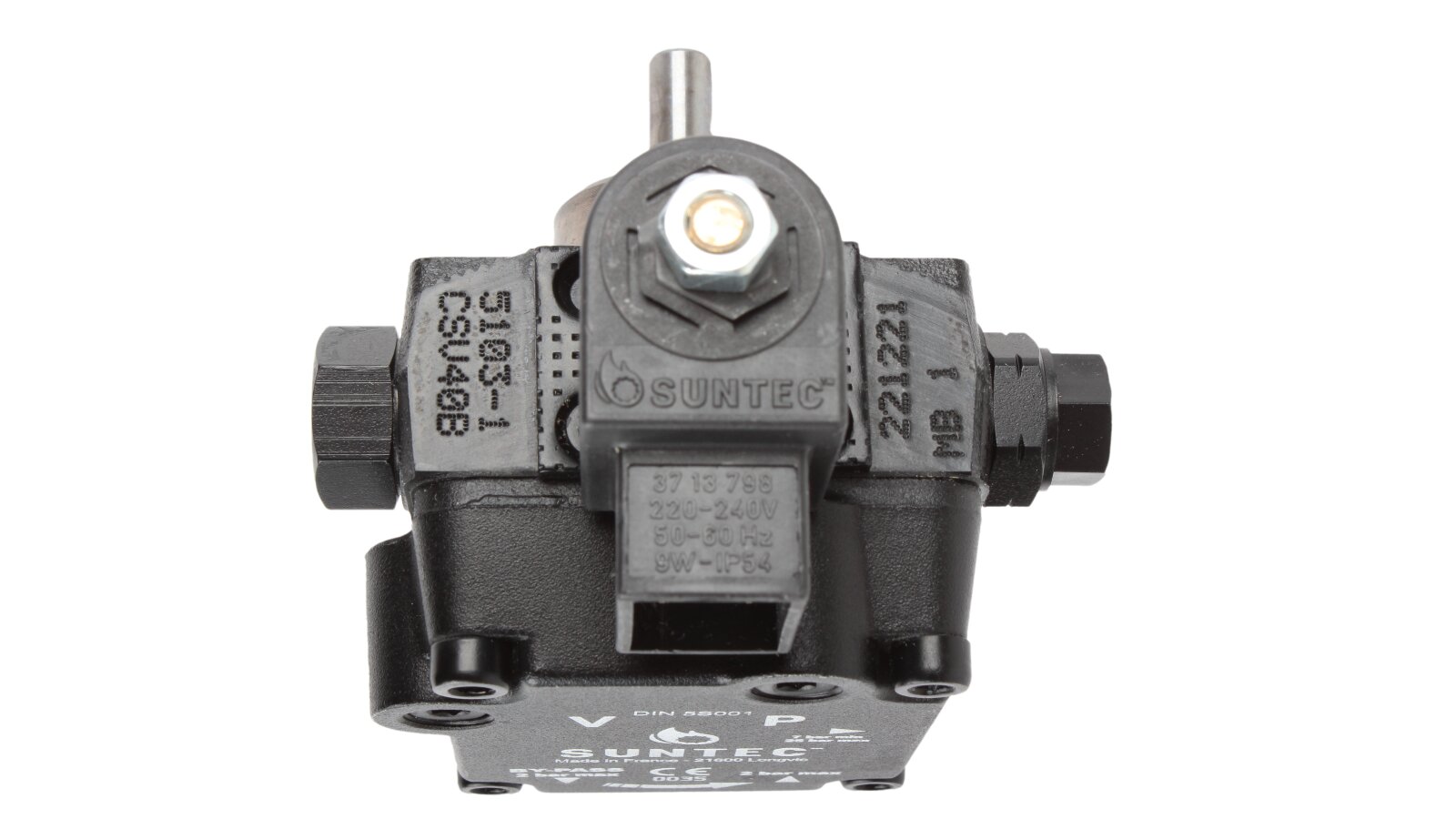

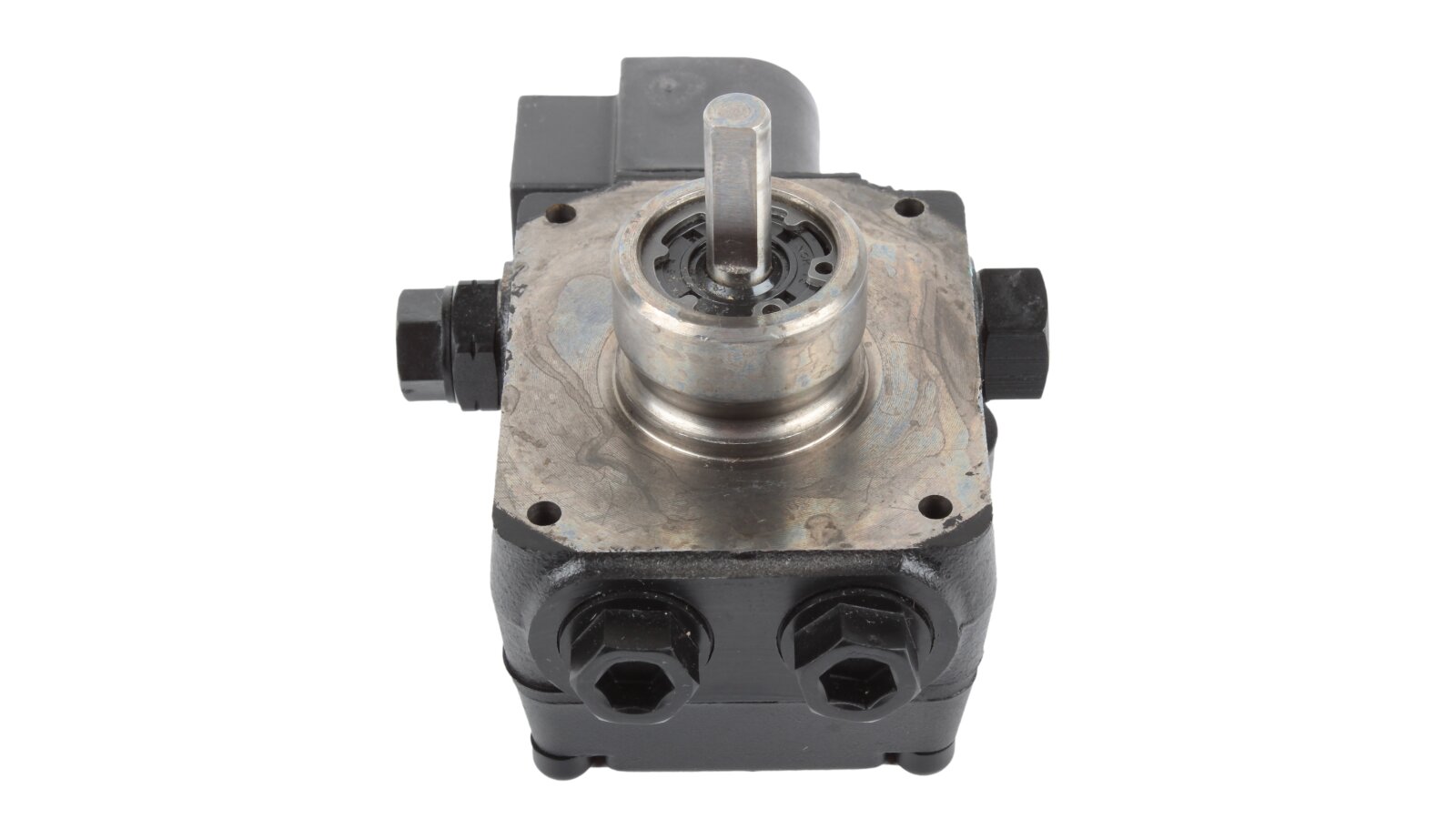

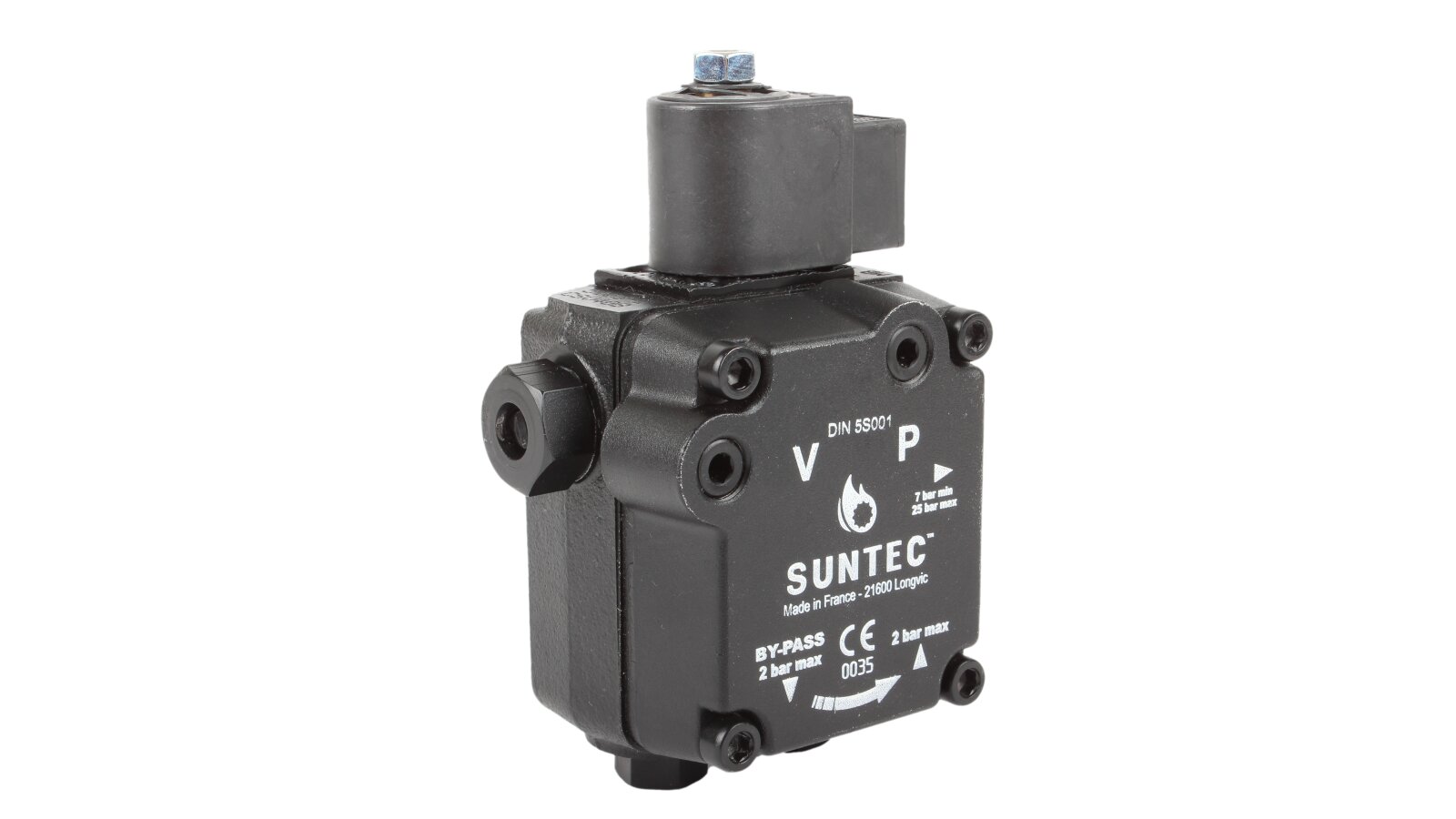

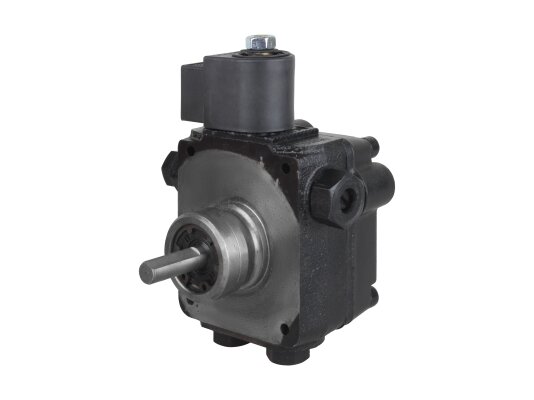

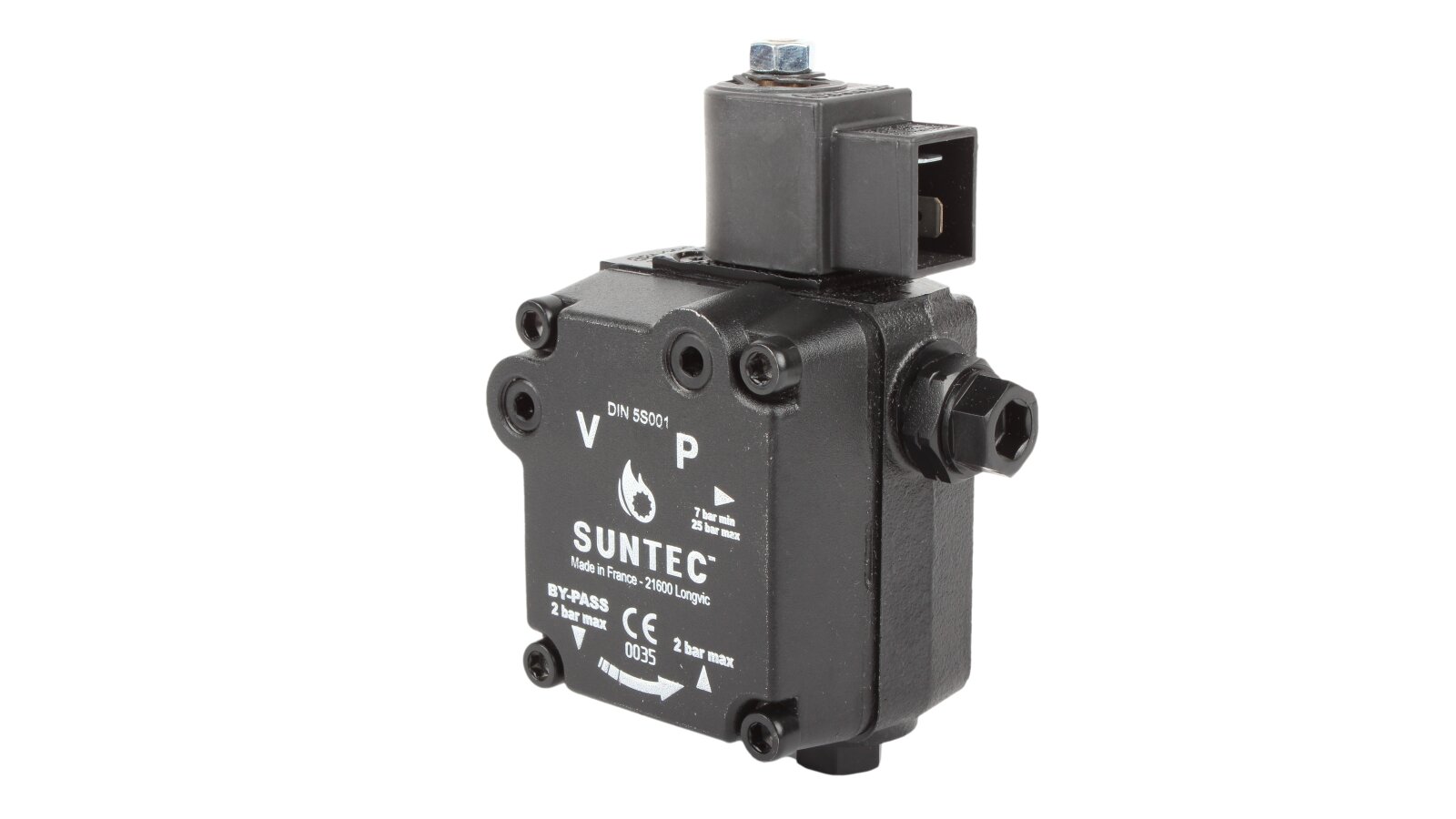

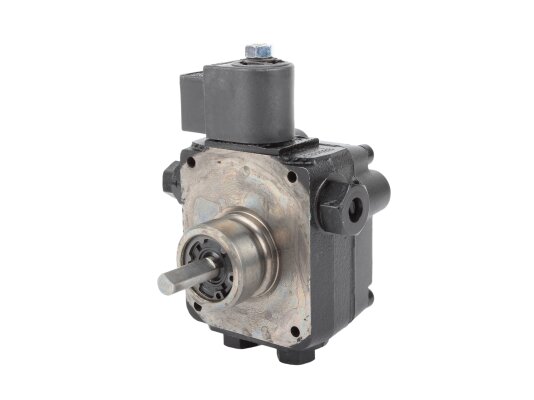

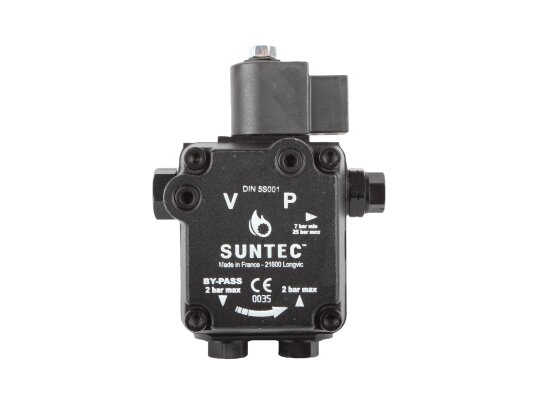

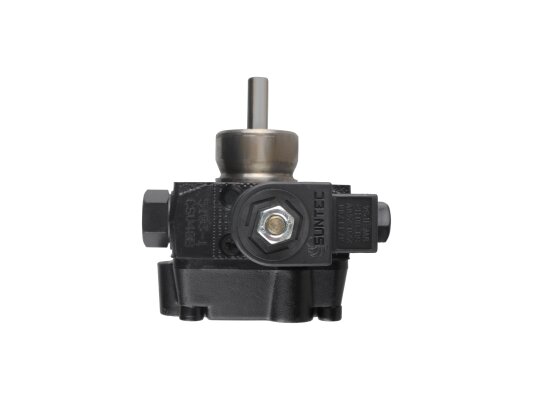

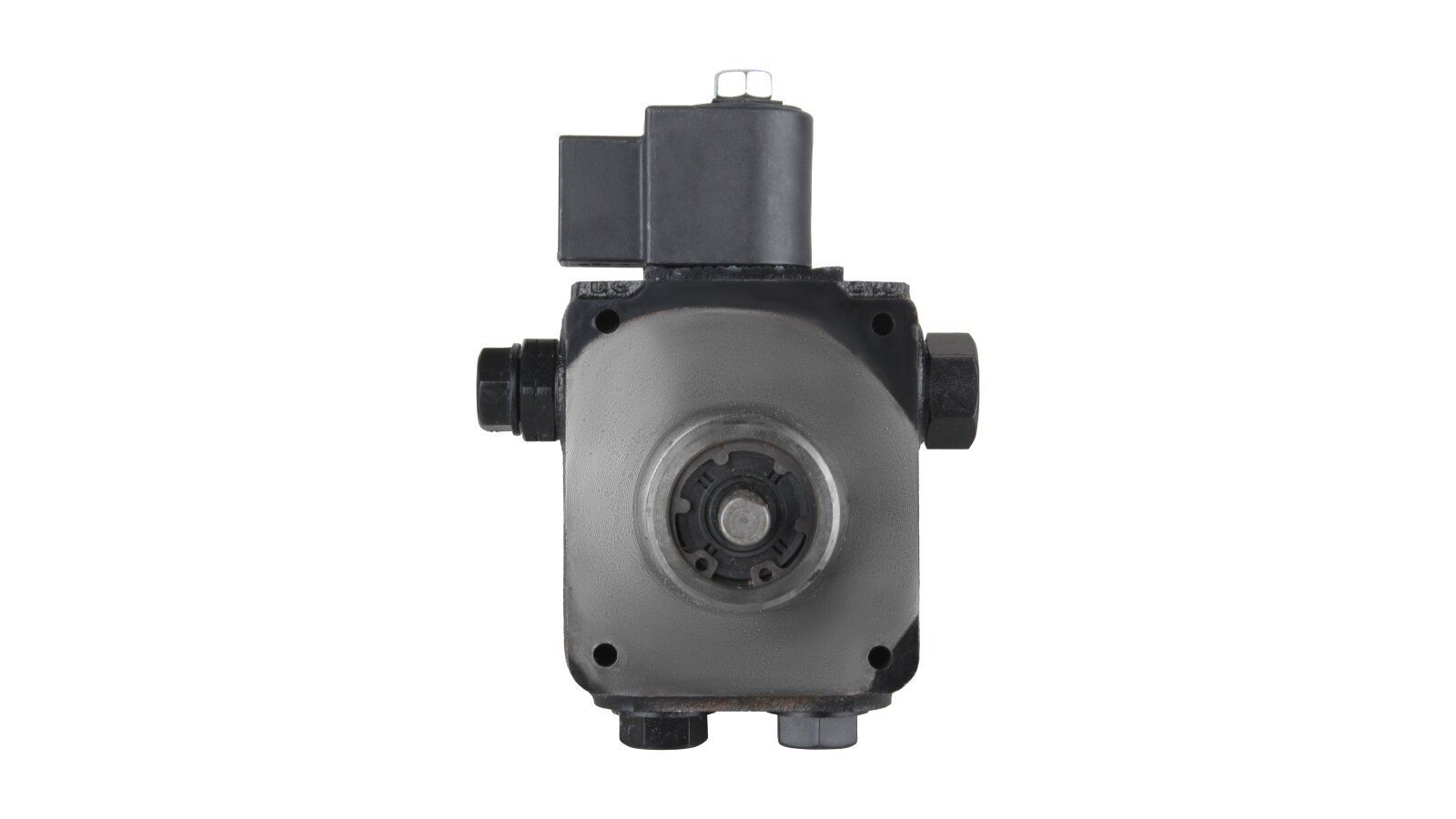

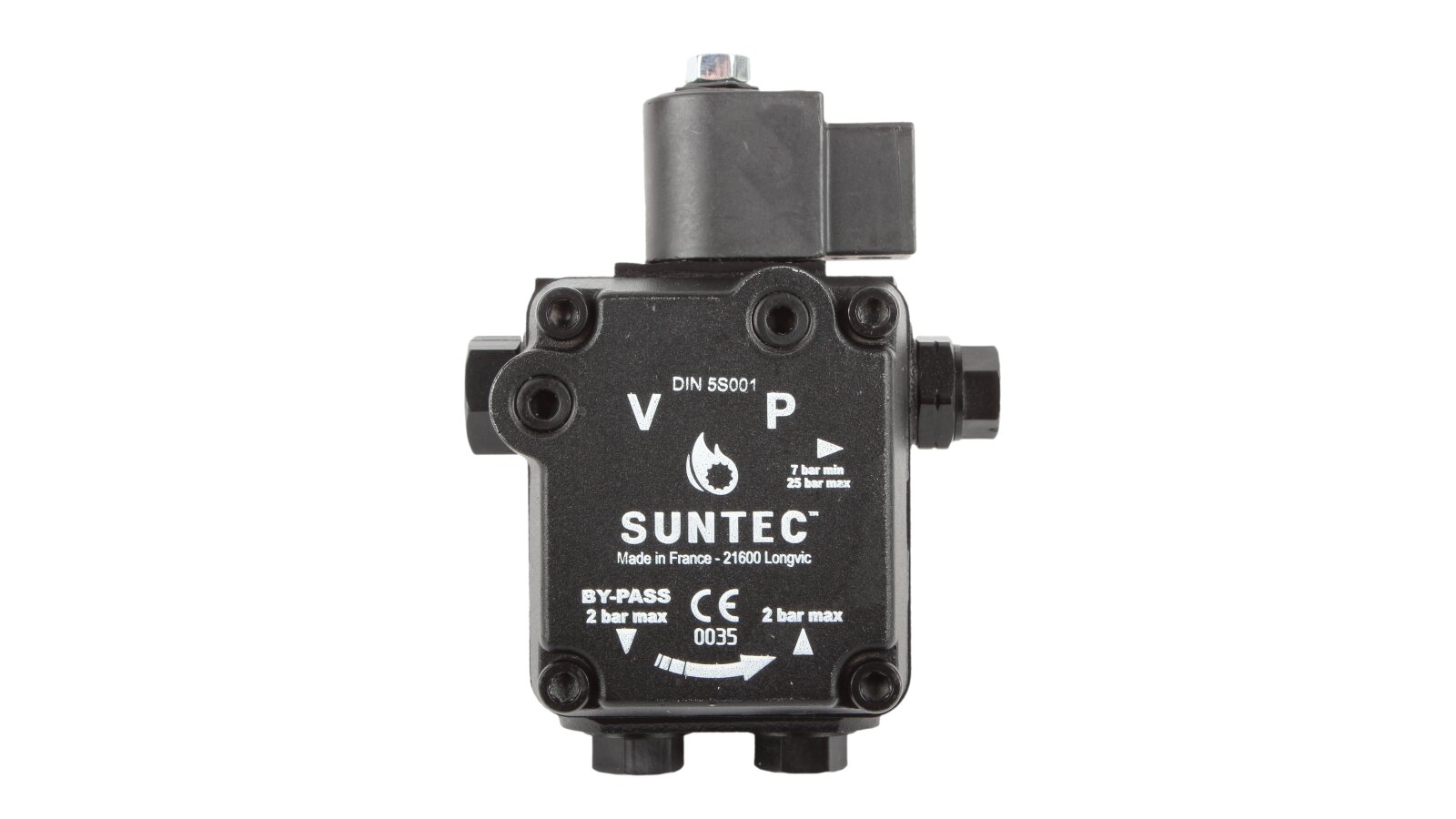

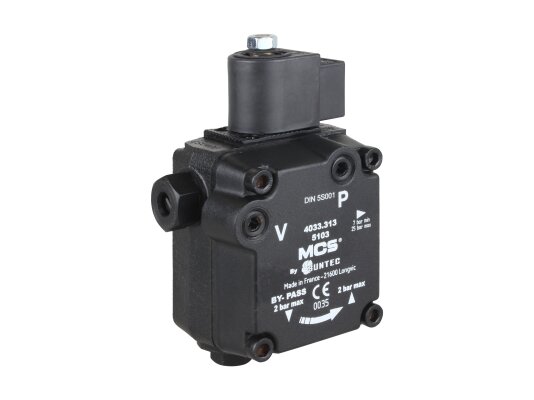

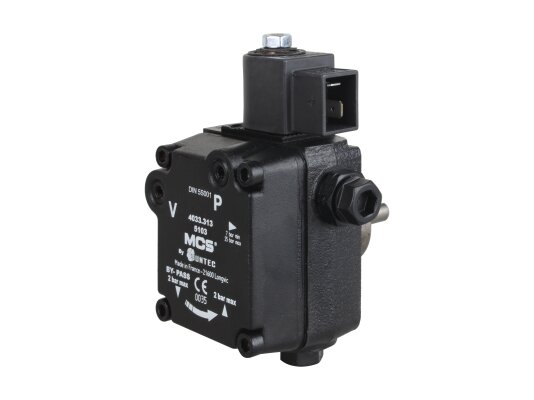

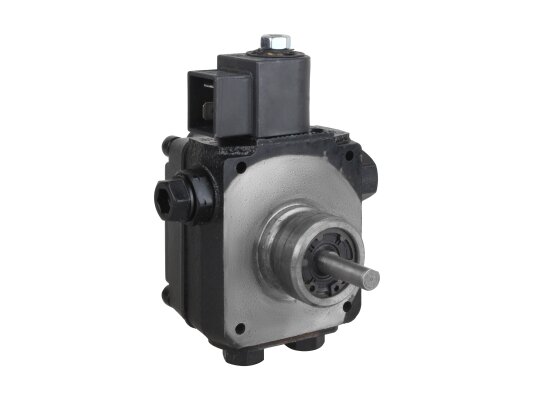

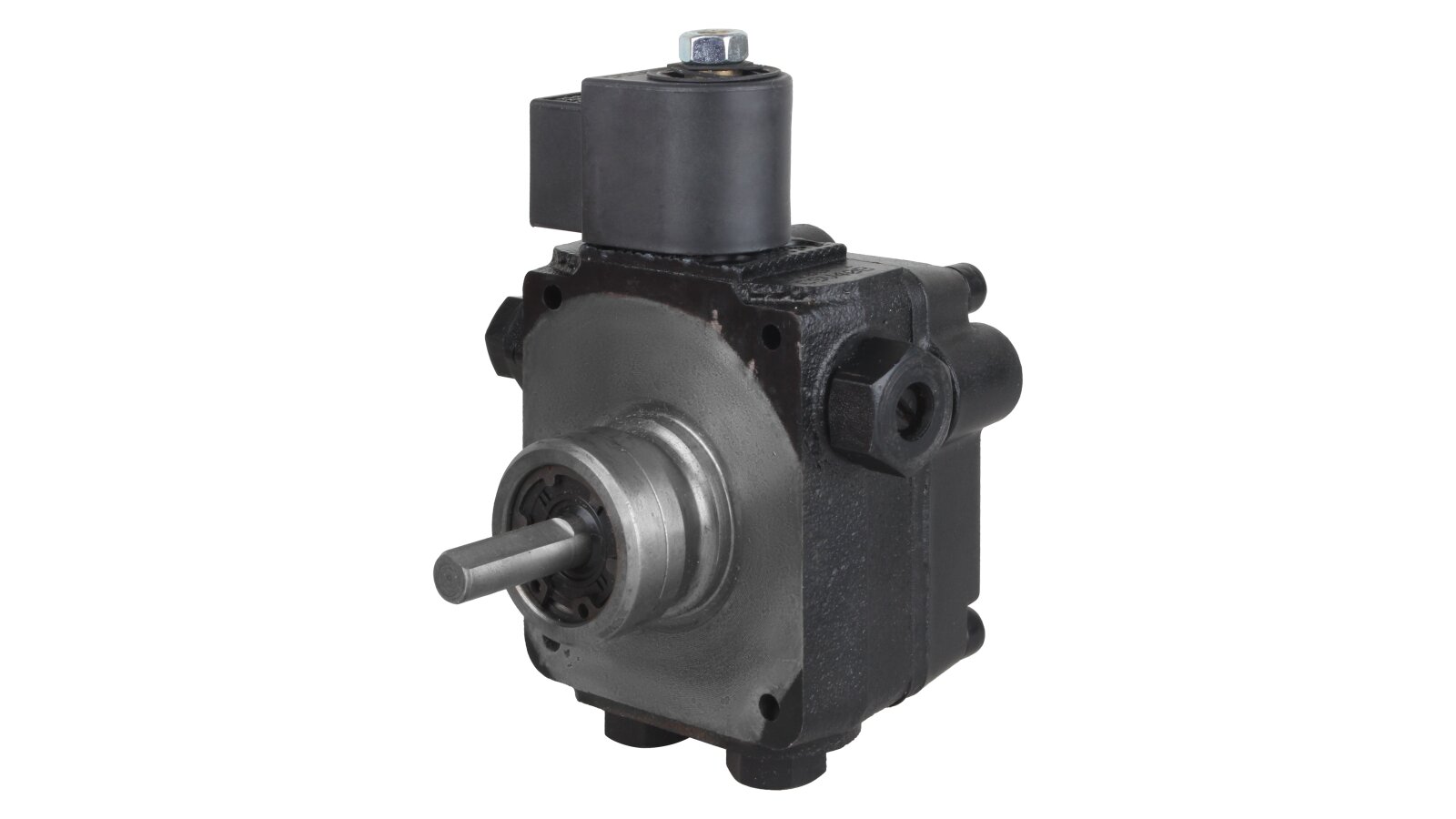

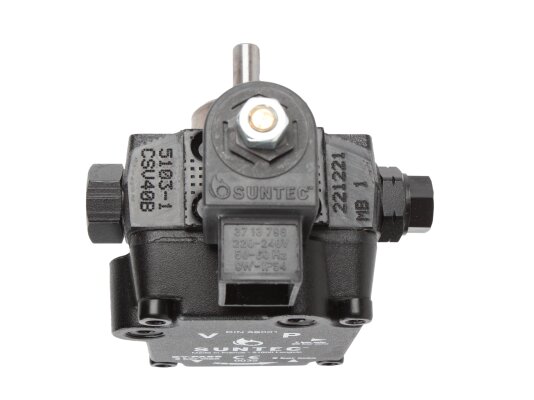

Burner Pump Suntec CSV 40B 5103 IP05111
Suntec
About product
Go to descriptionMaximum rotation speed 3450 rpmFuel consumption 49 l/hOperating viscosity from 1.3 to 12 mm²/sModel type 1 stage with electromagnetic valveStrainer: Opening size 200 µmStrainer: Open area 11 cm²
AED 675
Description
The Suntec CSV 40B 5103 IP05111 burner pump is widely popular among consumers due to its reliability, durability, and stable operation during operation. The compact design is made of high-quality components and is distinguished by reliable assembly. The pump is completely ready for use, comes with a factory warranty and a package of technical documentation for installation and maintenance. You can find out detailed information about the product from ANKAS online consultants.
Characteristics
Maximum rotation speed: 3450 rpmFuel consumption: 49 l/hOperating viscosity: from 1.3 to 12 mm²/sModel type: 1 stage with electromagnetic valveStrainer: Opening size: 200 µmStrainer: Open area: 11 cm²Solenoid valve consumption: 9 WPressure gauge port: ⅛ inchVacuum gauge port: ⅛ inchNominal rotation speed: 1400 rpmSolenoid valve voltage: 220-240V~, 50-60HzDirection of rotation (looking at the drive shaft): B: clockwise rotation / nozzle on the leftInstallation method: sleeve ∅ 32 mmShaft design: one cavityFactory pressure setting: 10 barNozzle pressure range: from 7 to 20 barShaft diameter: 8 mmReturn pressure: 2 barInlet pressure: 2 barNozzle outlet: ⅛ inchSuction and return line: ¼ inchTorque: 0.12 N·mType of pumped liquid: diesel, gasoline, keroseneConnection type: Rp 1/4"Degree of protection: IP40
Information about the technical characteristics, appearance and color of the product is for reference only and is based on the latest information available at the time of publication
