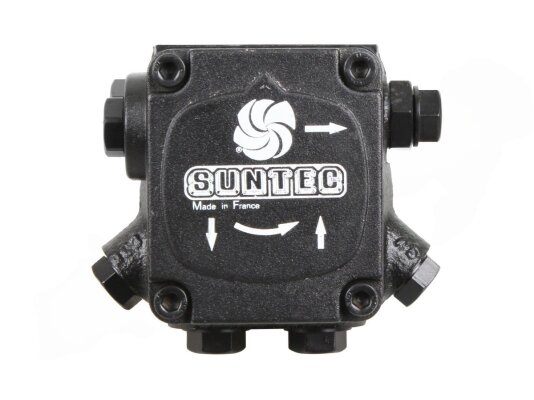

Burner Pump Suntec D 45 B 7347 3P

Suntec

AED 1,325

Oil Burner Pumps
Products code: 36546

Description

The Suntec D 45 B 7347 3P burner pump is designed for pumping fuel oil and is designed to withstand high temperatures, up to +90 ºC. It is equipped with a pressure regulating valve without a shut-off function. An external electromagnetic valve, purchased separately, is used to shut off the flow. The pumped flow rate reaches 49 l/h at a pressure of 14 bar and a viscosity of 75 cSt.

Features:

  • wear-resistant, heat-resistant design;

  • fuel injection under pressure of 10-28 bar, factory parameters - 14 bar;

  • built-in pressure regulating valve;

  • pumped medium temperature 0…+90 °C;

  • cavity in the piston to prevent pressure build-up (due to expansion of heated fuel) in the nozzle line and suction line when the pump is stopped;

  • flange connection, ∅ 54 mm;

  • mesh filter with a cleaning area of ​​12 cm² for removing abrasive inclusions larger than 530 µm from fuel;

  • ready for a two-pipe connection scheme, when placing in installations with one pipe, it is necessary to unscrew the bypass plug, close the drain hole with a plug and washer;

  • ports for a pressure gauge and vacuum gauge;

  • for fuel oil, diesel fuel, medium-viscosity fuel;

  • version without a shut-off solenoid valve;

  • automatic removal of excess air in two-pipe installations.

The Suntec D 45 B 7347 3P burner pump can be equipped with an external solenoid valve and an additional filter in the discharge line (upon a separate request).

Characteristics

Shaft design: one cavityModel type: without electromagnetic valveOil temperature: from 0 to 90 °C in the pumpStrainer: Opening size: 530 µmStrainer: Open area: 12 cm²Pump series: D: pressure adjustment without locking functionPerformance at 14 bar pressure and 75 cSt viscosity: 49 l/hPerformance at 14 bar pressure and 20 cSt viscosity: 44 l/hPressure gauge port: ⅛ inchVacuum gauge port: ⅛ inch or ¼ inchNominal rotation speed: 2850 rpmDirection of rotation (looking at the drive shaft): B: clockwise rotation / nozzle on the leftInstallation method: sleeve ∅ 32 mmMaximum rotation speed: 3600 rpmBy-pass plug: It is installed in the port of the vacuum gauge for a two-pipe system and is removed with a hexagonaFactory pressure setting: 14 barInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemNozzle pressure range: from 10 to 28 barShaft diameter: 8 mmReturn pressure: 2 barInlet pressure: 2 barNozzle outlet: ⅛ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilTorque: 0.1 N·mOperating viscosity: from 2 to 75 mm²/sSuction and return line: ¼ inch NPTF (taper thread)Type of pumped liquid: diesel, sea ​​water
