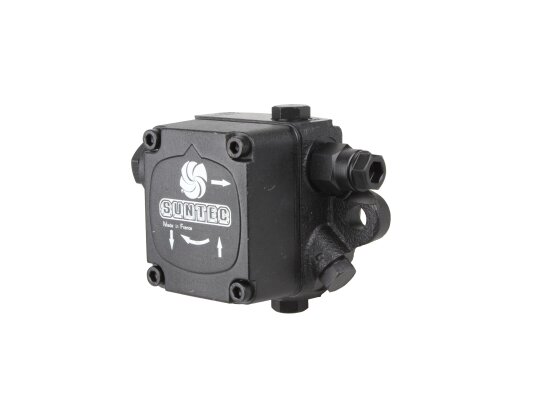

Burner Pump Suntec D 45 C 7281 3P

Suntec

AED 975

Oil Burner Pumps
Products code: 1269

Description

Suntec D 45 C 7281 3P is a liquid fuel gear pump made in France. It is used to complete medium-power forced-draft heating burners. The unit pumps fuel with a kinematic viscosity of 2 to 75 cSt, and is suitable for working with fuel oil. The model does not have a shut-off function; this task is solved by a separately installed electromagnetic valve.

Suntec burner pumps are distinguished by a long service life and optimal performance at an affordable price. You can buy a Suntec fuel pump on the ANKAS website in one click.

Design features

The nozzle outlet is located on the left, the shaft rotates counterclockwise.

A detachable filter for cleaning fuel with an open area of ​​12 mm² is provided.

The weight of the device is no more than 2 kg, which facilitates its installation and maintenance.

The model is equipped with a piston with a special cavity, which provides a decrease in pressure in the nozzle and suction lines during a break in the pump operation.

The design of the unit is suitable for use in a single-pipe system along with a two-pipe system. In the first case, you need to remove the bypass plug from the return line. A 4 mm Allen key will come in handy. The return line is blocked with a threaded plug. When operating in a two-pipe system, a bypass plug is installed on the return line.

Air venting is provided:

through the nozzle line at the time of start-up in a single-pipe system;

automatically - with a two-pipe configuration of fuel lines.

Advantages of the model

  • The fuel pressure settings of the presented model are 14 bar (set by the manufacturer). They can be changed manually in the range of 10-28 bar.

  • The operating viscosity of the working fluid is 2-75 mm²/s. The pump can also be used for more viscous fuel if it is preheated to liquefy it.

  • The device pumps fuel at a rate of 44 l/h with factory settings of pressure and liquid viscosity of 20 mm²/s.

  • The equipment is adapted to work with liquid at a temperature of up to +90°C.

The installation dimensions correspond to the European standard EN 225, the installation method is flanged, the bushing diameter is 54 mm. Cylindrical threads are made according to the ISO 228/1 standard.

The D 45 C 7281 3P liquid fuel pump is manufactured by Suntec, one of the leading manufacturers of boiler equipment.

Characteristics

Shaft design: one cavityModel type: without electromagnetic valveOil temperature: from 0 to 90 °C in the pumpStrainer: Opening size: 530 µmStrainer: Open area: 12 cm²Pump series: D: pressure adjustment without locking functionPerformance at 14 bar pressure and 75 cSt viscosity: 49 l/hPerformance at 14 bar pressure and 20 cSt viscosity: 44 l/hPressure gauge port: ⅛ inchVacuum gauge port: ⅛ inch or ¼ inchNominal rotation speed: 2850 rpmDirection of rotation (looking at the drive shaft): C: counterclockwise rotation / nozzle on the leftInstallation method: flange ∅ 54 mmMaximum rotation speed: 3600 rpmBy-pass plug: It is installed in the port of the vacuum gauge for a two-pipe system and is removed with a hexagonaFactory pressure setting: 14 barInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemNozzle pressure range: from 10 to 28 barShaft diameter: 8 mmReturn pressure: 2 barInlet pressure: 2 barNozzle outlet: ⅛ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilTorque: 0.1 N·mOperating viscosity: from 2 to 75 mm²/sSuction and return line: ¼ inch NPTF (taper thread)Type of pumped liquid: sea ​​water, diesel
