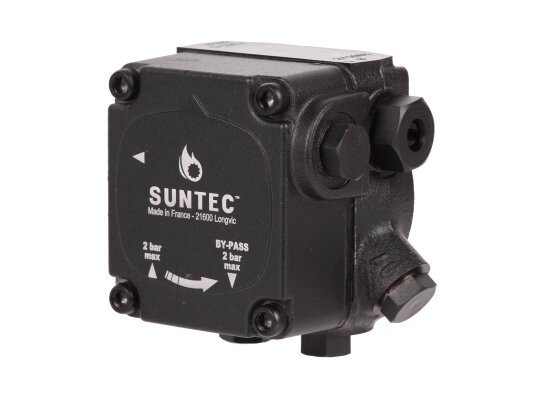

Burner Pump Suntec D 47 A 7383 3P

Suntec

AED 900

Oil Burner Pumps
Products code: 1271

Description

The liquid fuel gear pump D 47 A 7383 3P is manufactured by the French concern Suntec. The device specializes in pumping fuel oil and diesel fuel with a kinematic viscosity of up to 75 cSt. This is a basic model, the locking function is not provided here. To solve this problem, a special electromagnetic valve is required, installed additionally.

In the online store of the company "ANKAS" you have the opportunity to buy a pump for Suntec burners at an attractive price.

Design features

The nozzle is located on the right, the shaft rotation in the presented model is clockwise.

Installation method - sleeve, with a connection diameter of 32 mm and a shaft diameter of 8 mm. Comply with the European standard EN 225.

The manufacturer has provided a detachable mesh pre-filter with an open area of ​​12 cm². The cells have a size of 530 microns.

Actual weight — 1.8 kg.

The equipment can be installed in both a single-pipe and a two-pipe system. For a single-pipe system, the bypass plug is unscrewed with a 4 mm Allen key, and the return line is blocked with a plug and washer.

In a single-pipe system, air is released through the pressure line coupling during startup. With a two-pipe configuration, air is released automatically.

The D 47 A 7383 3P model has a special piston with a cavity. It controls the pressure in the pressure and suction lines during a pause in pump operation.

The main advantages of the model:

  • Fuel pressure in the injector line from 10 to 28 bar. The manufacturer sets the model to an average value of 14 bar. It can be changed manually.

  • The unit pumps liquids with an operational viscosity within 2-75 mm²/s. It is possible to use fuel with a higher viscosity if it is preheated to reduce the indicator to working numbers.

  • Threaded connections for connecting fuel lines comply with ISO 228/1.

  • The model works with fuel at a temperature of up to +90°C.

  • The capacity when pumping fuel oil is 44 l/h, subject to a fuel pressure of 14 bar and a viscosity of 20 mm²/s.

The pump for burners D 45 A 7383 3P is made in France by Suntec. This is a leading manufacturer of equipment and components for diesel burners. When buying fuel equipment "Santek" - you choose reliability and durability at minimal costs.

Characteristics

Shaft design: one cavityModel type: without electromagnetic valveOil temperature: from 0 to 90 °C in the pumpStrainer: Opening size: 530 µmStrainer: Open area: 12 cm²Pump series: D: pressure adjustment without locking functionPerformance at 14 bar pressure and 75 cSt viscosity: 49 l/hPerformance at 14 bar pressure and 20 cSt viscosity: 44 l/hPressure gauge port: ⅛ inchVacuum gauge port: ⅛ inch or ¼ inchNominal rotation speed: 2850 rpmDirection of rotation (looking at the drive shaft): A: clockwise rotation / nozzle on the rightInstallation method: sleeve ∅ 32 mmMaximum rotation speed: 3600 rpmBy-pass plug: It is installed in the port of the vacuum gauge for a two-pipe system and is removed with a hexagonaFactory pressure setting: 14 barInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemNozzle pressure range: from 10 to 28 barShaft diameter: 8 mmReturn pressure: 2 barInlet pressure: 2 barNozzle outlet: ⅛ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilTorque: 0.1 N·mOperating viscosity: from 2 to 75 mm²/sSuction and return line: ¼ inch NPTF (taper thread)Type of pumped liquid: sea ​​water, diesel
