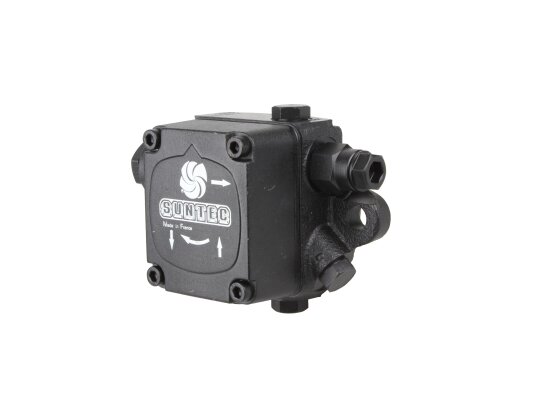

Burner Pump Suntec D 57 A 7271 3P

Suntec

Alternative Part Number

Ecoflam

P111

Lamborghini

04032550

AED 1,075

Oil Burner Pumps
Products code: 1272

Description

The pump for the diesel burner D 57 A 7271 3P, developed by the French company Suntec, is used to pump liquid fuel and fuel oil with a temperature from 0 to +90 ° C. The working process is carried out using a gear pair located in the unit body. Before entering the pump cavity, the liquid passes through a mesh filter with a cell size of 530 µm.

The gear pump D 57 A 7271 3P is simple, reliable and has a long service life. The company "ANKAS" offers to buy European equipment for liquid fuel heating burners at a market price.

Design features

  • The pump shaft rotates clockwise, the outlet to the nozzle line is located on the right. These parameters should be compared with the characteristics of the heating burner.

  • The model is adapted for installation in various configurations of fuel lines - single-pipe and double-pipe.

  • The liquid enters the equipment cavity through a cleaning filter. The open area is 12 cm².

  • Installation method is flanged, with a bushing diameter of 54 mm.

  • The weight of the structure is 1.8 kg.

  • For installation in a single-pipe system, the bypass plug is removed with a hex key (size 4 mm). And the return line is blocked with a plug with a washer.

  • The model does not have a shut-off function. Its function is performed by an additionally installed electromagnetic valve.

  • Air in a single-pipe system is discharged through the bypass hole of the pressure line coupling. In a two-pipe system, this process occurs automatically.

Advantages of the model

  • The unit is capable of pumping liquid with different kinematic viscosity - from 2 to 75 mm² / s.

  • The fuel pressure in the pump is manually adjusted by the operator in the range from 10 to 28 bar. The model is supplied with a set pressure of 14 atm.

  • The device capacity is 72 l/h at the standard pressure setting and viscosity of the pumped liquid of 20 mm²/s. This value is achieved at the nominal speed of the electric drive (2850 rpm).

  • The pump design includes a special piston with a cavity, which prevents the increase in fuel pressure during a pause in operation.

The liquid fuel pump D 57 A 7271 3P is manufactured by Suntec, which specializes in the production of equipment and components for boiler houses. The country of origin is France, the connection dimensions correspond to modern standards EN 225 and ISO 228/1 (for threaded connections).

Characteristics

Shaft design: one cavityModel type: without electromagnetic valveOil temperature: from 0 to 90 °C in the pumpStrainer: Opening size: 530 µmStrainer: Open area: 12 cm²Pump series: D: pressure adjustment without locking functionPerformance at 14 bar pressure and 75 cSt viscosity: 76 l/hPerformance at 14 bar pressure and 20 cSt viscosity: 72 l/hPressure gauge port: ⅛ inchVacuum gauge port: ⅛ inch or ¼ inchNominal rotation speed: 2850 rpmDirection of rotation (looking at the drive shaft): A: clockwise rotation / nozzle on the rightInstallation method: flange ∅ 54 mmMaximum rotation speed: 3600 rpmBy-pass plug: It is installed in the port of the vacuum gauge for a two-pipe system and is removed with a hexagonaFactory pressure setting: 14 barInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemNozzle pressure range: from 10 to 28 barShaft diameter: 8 mmReturn pressure: 2 barInlet pressure: 2 barNozzle outlet: ⅛ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilTorque: 0.1 N·mOperating viscosity: from 2 to 75 mm²/sSuction and return line: ¼ inch NPTF (taper thread)Type of pumped liquid: diesel, sea ​​water
