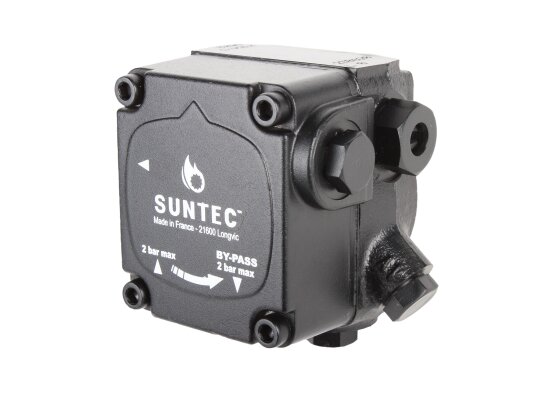

Burner Pump Suntec D 57 A 7354 3P

Suntec

Alternative Part Number

P111/1

400010114800

Ecoflam

65074417

AED 1,175

Oil Burner Pumps
Products code: 1273

Description

D 57 A 7354 3P is a basic model of a gear pump for diesel burners, working with various types of liquid fuel. The unit is manufactured in France by Suntec, a European leader in the production of modern boiler equipment. The design of the liquid fuel pump meets international standards, is reliable and repairable. The shut-off function is not provided in the presented model, it is performed by an external electromagnetic valve.

When buying a pump for burners D 57 A 7354 3P on the website of the official dealer "ANKAS", you acquire European quality at an affordable price.

Design features

  • Location of the nozzle outlet on the right. The shaft rotates clockwise.

  • Mounting method - sleeve, connection diameter - 32 mm.

  • Fuel enters the burner pump through a cleaning filter with a hole size of 530 microns.

  • The weight of the model does not exceed 2 kg.

Connection to a single-pipe system:

The bypass plug is removed from the return line (the line itself must be closed with a threaded plug). You will need a 4 mm Allen key.

Air is released through the bypass hole of the nozzle line coupling with the regulating valve closed.

Connection to a two-pipe system:

The bypass plug closes the return line;

Air is released automatically.

Advantages of the model

  • The pump is adapted for medium-viscosity fuel (2-75 mm²/s) and fuel oil. It is also possible to work with a more viscous liquid by preheating it to reduce the kinematic viscosity.

  • It is possible to change the pressure in the nozzle line manually (10-28 bar). The default settings are 14 bar.

  • The pumping speed of fuel with a viscosity of 20 mm²/s is 72 l/hour (at default pressure settings and a nominal drive speed of 2850 rpm).

  • The maximum speed of rotation of the drive shaft is 3600 rpm.

  • The unit operates with liquid whose temperature is in the range from 0 to +90°C.

  • In the event of a pump stop, there will be no sharp increase in pressure due to the expansion of heated fuel. This parameter is regulated by a special piston with a cavity.

The D 57 A 7354 3P burner pump is a worthy choice from the French company Suntec, which produces equipment and various components for boiler houses.

Characteristics

Shaft design: one cavityModel type: without electromagnetic valveOil temperature: from 0 to 90 °C in the pumpStrainer: Opening size: 530 µmStrainer: Open area: 12 cm²Pump series: D: pressure adjustment without locking functionPerformance at 14 bar pressure and 75 cSt viscosity: 76 l/hPerformance at 14 bar pressure and 20 cSt viscosity: 72 l/hPressure gauge port: ⅛ inchVacuum gauge port: ⅛ inch or ¼ inchNominal rotation speed: 2850 rpmDirection of rotation (looking at the drive shaft): A: clockwise rotation / nozzle on the rightInstallation method: sleeve ∅ 32 mmMaximum rotation speed: 3600 rpmBy-pass plug: It is installed in the port of the vacuum gauge for a two-pipe system and is removed with a hexagonaFactory pressure setting: 14 barInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemNozzle pressure range: from 10 to 28 barShaft diameter: 8 mmReturn pressure: 2 barInlet pressure: 2 barNozzle outlet: ⅛ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilTorque: 0.1 N·mOperating viscosity: from 2 to 75 mm²/sSuction and return line: ¼ inch NPTF (taper thread)Type of pumped liquid: sea ​​water, diesel
