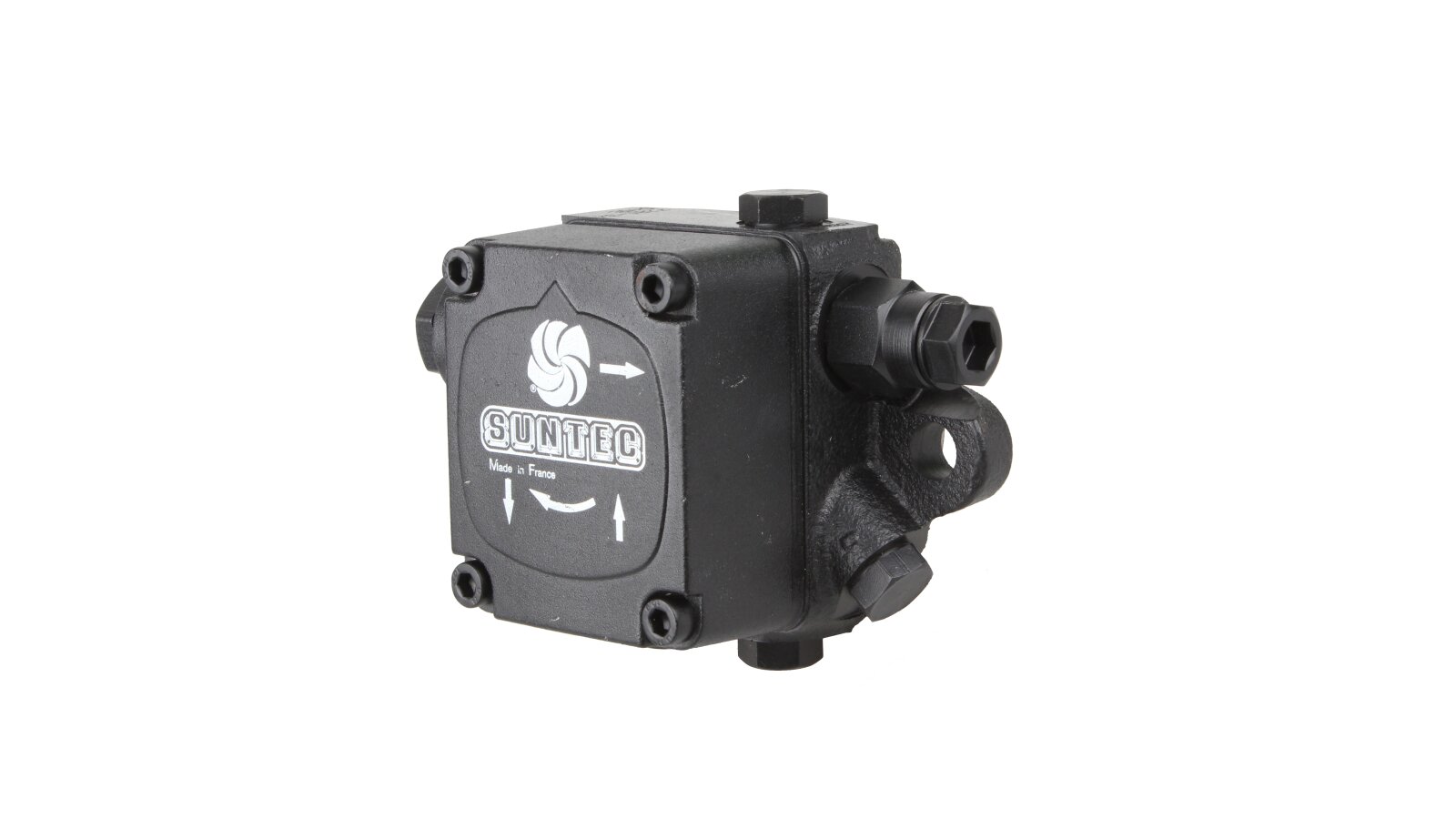

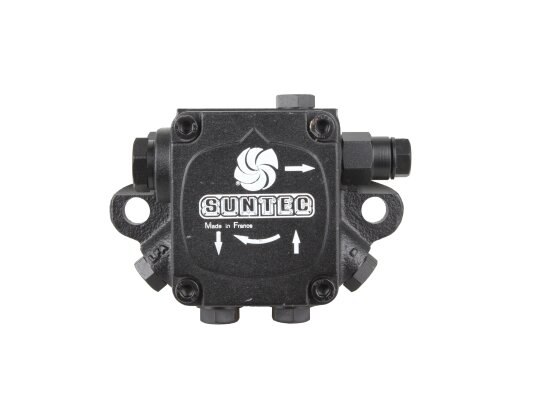

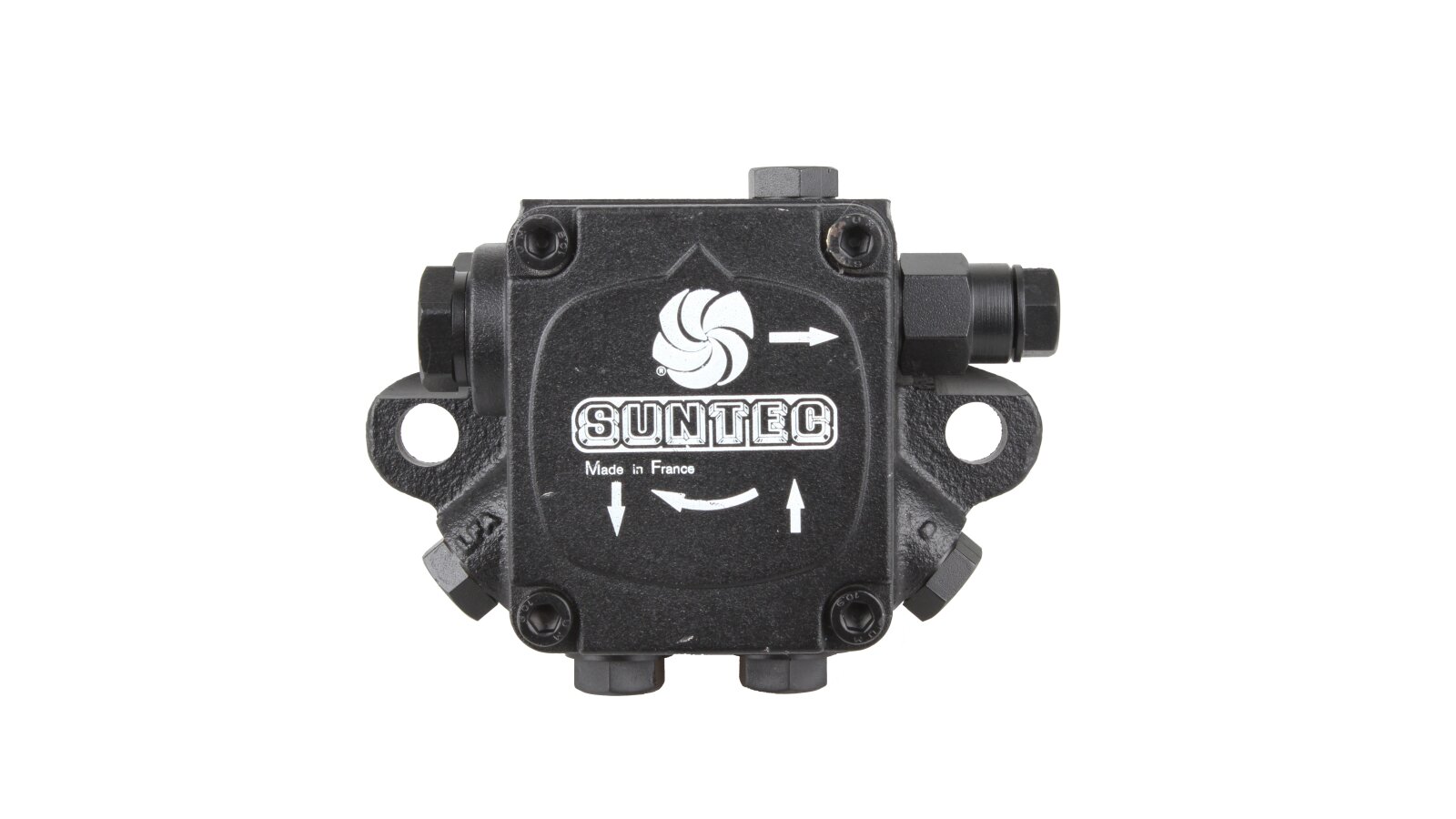

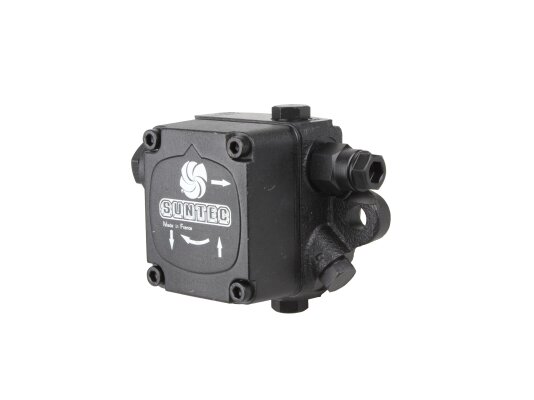

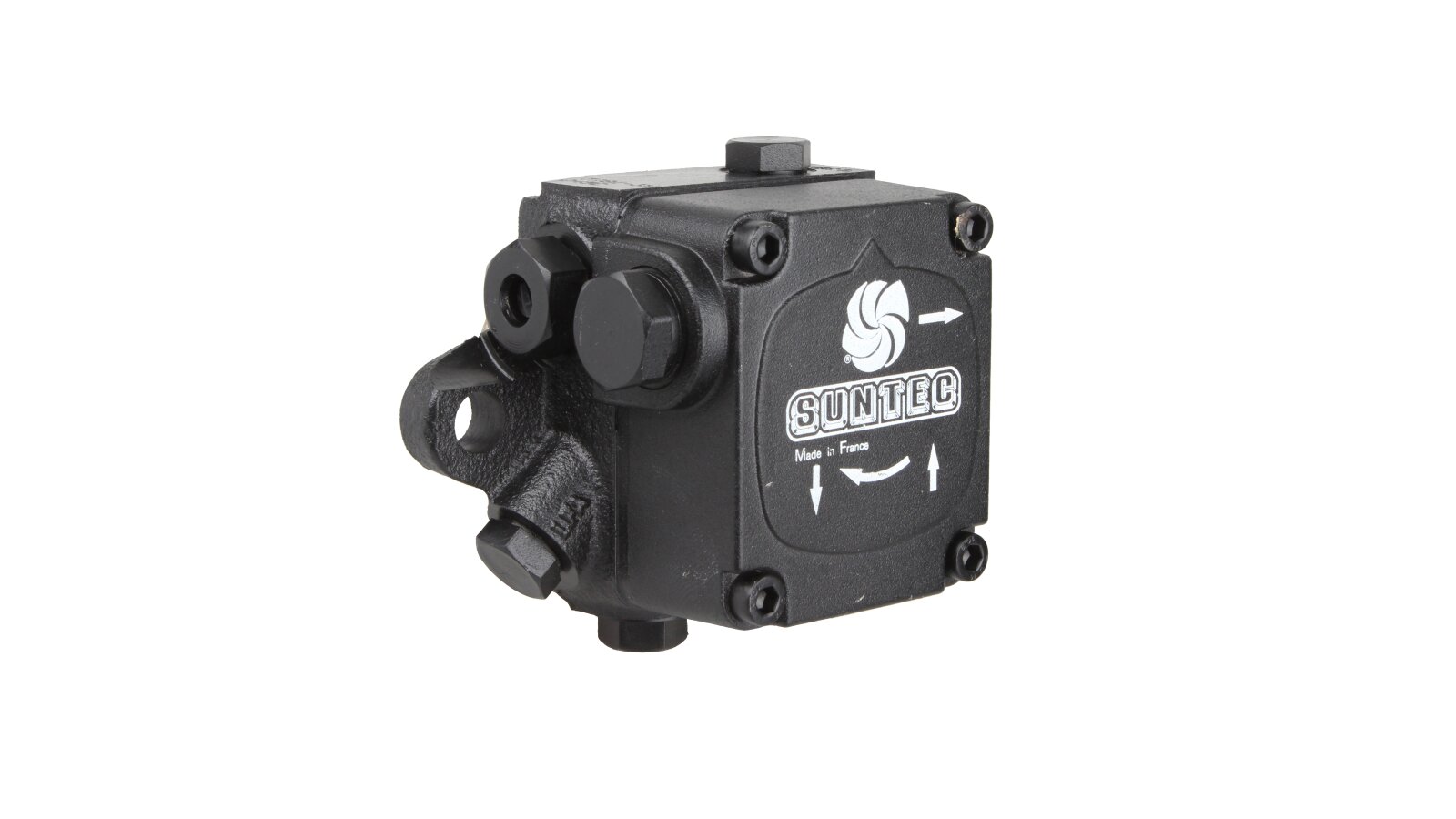

Burner Pump Suntec D 57 C 7273 3P

Suntec

AED 1,450

Oil Burner Pumps
Products code: 1385

Description

D 57 C 7273 3P is a gear pump for operation in a two-pipe and single-pipe system, developed by the French concern Suntec. Fuel is sucked in by rotating the gear pair in the cavity of the unit. There is no shut-off function; to ensure this, it is recommended to connect an external electromagnetic valve.

You can order a D 57 C 7273 3P diesel burner pump at an affordable price in the online store of the ANKAS company. Here you will find only high-quality equipment from European manufacturers.

Design features

  • The outlet to the nozzle is located on the left.

  • The unit is mounted using a sleeve method with a connection diameter of 54 mm.

  • The shaft diameter is 8 mm, rotates counterclockwise.

  • The fuel entering the pump passes through a special filter with an open area of ​​12 cm².

  • The weight of the equipment does not exceed 2 kg.

When operating in a single-pipe system:

Using a 4 mm Allen key, remove the bypass plug from the return line and close it with a threaded plug;

Air is released through the bypass hole in the pressure line.

In a two-pipe system:

The bypass plug is used to close the return line;

Air is released automatically.

Advantages of the model

  • The equipment operates with fuel with a kinematic viscosity in the range of 2-75 mm²/s. Thicker liquid should be preheated to reduce the value of this parameter. The model is also adapted for pumping fuel oil.

  • The manufacturer sets the pressure in the pressure line at 14 bar. During operation, it can be reduced or increased independently within the range from 10 to 28 bar.

  • Liquid with a viscosity of 20 mm²/s is pumped at a speed of 72 l/hour. The value is valid at an average drive speed of 2850 rpm.

  • The pump is designed to move fuel with a high operating temperature (up to +90°C).

  • The liquid pressure during a break in the pump's operation is controlled by a piston with a special cavity.

The D 57 C 7273 3P model is made in France by Suntec. It produces various pumps and other equipment for boiler houses. The products comply with EN 225 and ISO 228/1 standards.

Characteristics

Shaft design: one cavityModel type: without electromagnetic valveOil temperature: from 0 to 90 °C in the pumpStrainer: Opening size: 530 µmStrainer: Open area: 12 cm²Pump series: D: pressure adjustment without locking functionPerformance at 14 bar pressure and 75 cSt viscosity: 76 l/hPerformance at 14 bar pressure and 20 cSt viscosity: 72 l/hPressure gauge port: ⅛ inchVacuum gauge port: ⅛ inch or ¼ inchNominal rotation speed: 2850 rpmDirection of rotation (looking at the drive shaft): C: counterclockwise rotation / nozzle on the leftInstallation method: sleeve ∅ 54 mmMaximum rotation speed: 3600 rpmBy-pass plug: It is installed in the port of the vacuum gauge for a two-pipe system and is removed with a hexagonaFactory pressure setting: 14 barInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemNozzle pressure range: from 10 to 28 barShaft diameter: 8 mmReturn pressure: 2 barInlet pressure: 2 barNozzle outlet: ⅛ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilTorque: 0.1 N·mOperating viscosity: from 2 to 75 mm²/sSuction and return line: ¼ inch NPTF (taper thread)Type of pumped liquid: sea ​​water, diesel
