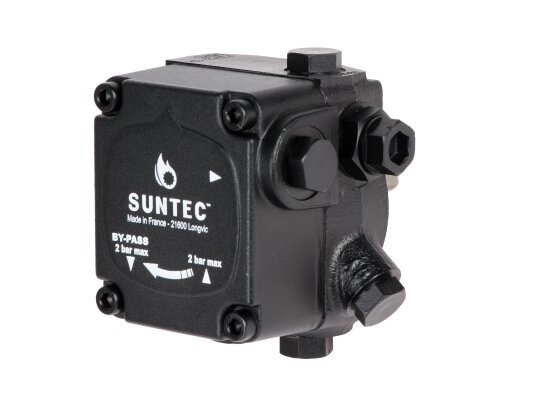

Burner Pump Suntec D 57 C 7372 3P

Suntec

AED 750

Oil Burner Pumps
Products code: 1274

Description

D 57 C 7372 3P is a gear-type liquid fuel pump developed by the European leader in the production of boiler equipment - Suntec. The model is designed to pump a medium with a temperature in the range from 0 to +90 ° C. The design of the unit does not have a locking function, it is recommended to connect an external shut-off electromagnetic valve. The model can be used in both a two-pipe and a single-pipe system.

To buy a Suntec D 57 C 7372 3P diesel burner pump, leave your contact information on the ANKAS website. We will answer your questions and select the optimal model.

Design features

  • The drive shaft rotates counterclockwise. The outlet to the pressure line is located on the left.

  • The equipment is installed in the heating burner using a sleeve method with a connection diameter of 32 mm. The installation dimensions comply with the EN 225 standard.

  • The pumped liquid is cleaned using a detachable filter installed on the suction line. The diameter of the mesh insert holes is 530 µm.

  • The weight of the unit is 1.8 kg.

Features of the pump operation in a single-pipe system:

The bypass plug must be removed from the return line. To do this, you will need a 4 mm Allen key. The drain line is blocked with a steel plug with a washer.

Air is removed through the pressure line.

The unit operates in a two-pipe system:

  • The pump is ready for operation with the factory configuration - the bypass plug is installed, the return line is blocked.

  • Air removal is automatic.

  • Advantages of the model

  • The pump is designed to work with medium-viscosity liquid (2-75 mm²/s), including fuel oil. If the fuel is thicker, it must be preheated to reduce the viscosity to working values.

  • Manual adjustment of the nozzle pressure is provided within the range of 10-28 bar. The pressure value preset by the manufacturer is 14 bar.

  • The capacity of the D 57 C 7372 3P model is 72 l/hour at a pressure in the nozzle line of 14 bar (the value is indicated for a liquid with a viscosity of 20 mm²/s, the drive rotation speed is 2850 rpm).

  • The connecting threads are made according to the ISO 228/1 standard.

The equipment manufacturer is the French company Suntec. This is a recognized leader in the production of pumps and other equipment for liquid fuel burners.

Characteristics

Shaft design: one cavityModel type: without electromagnetic valveOil temperature: from 0 to 90 °C in the pumpStrainer: Opening size: 530 µmStrainer: Open area: 12 cm²Pump series: D: pressure adjustment without locking functionPerformance at 14 bar pressure and 75 cSt viscosity: 76 l/hPerformance at 14 bar pressure and 20 cSt viscosity: 72 l/hPressure gauge port: ⅛ inchVacuum gauge port: ⅛ inch or ¼ inchNominal rotation speed: 2850 rpmDirection of rotation (looking at the drive shaft): C: counterclockwise rotation / nozzle on the leftInstallation method: sleeve ∅ 32 mmMaximum rotation speed: 3600 rpmBy-pass plug: It is installed in the port of the vacuum gauge for a two-pipe system and is removed with a hexagonaFactory pressure setting: 14 barInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemNozzle pressure range: from 10 to 28 barShaft diameter: 8 mmReturn pressure: 2 barInlet pressure: 2 barNozzle outlet: ⅛ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilTorque: 0.1 N·mOperating viscosity: from 2 to 75 mm²/sSuction and return line: ¼ inch NPTF (taper thread)Type of pumped liquid: diesel, sea ​​water
