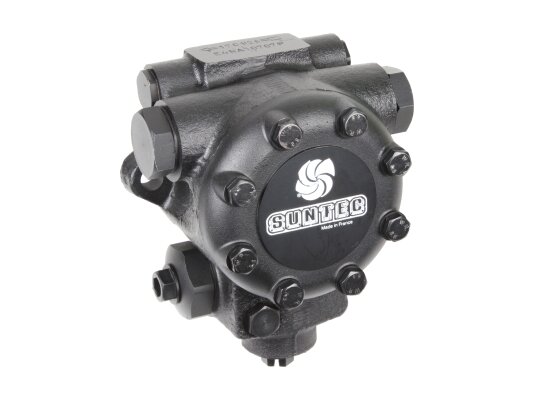

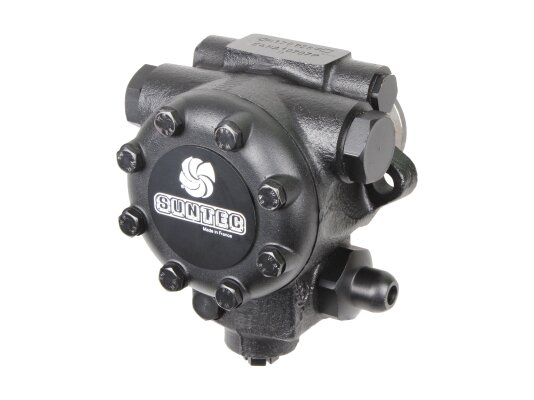

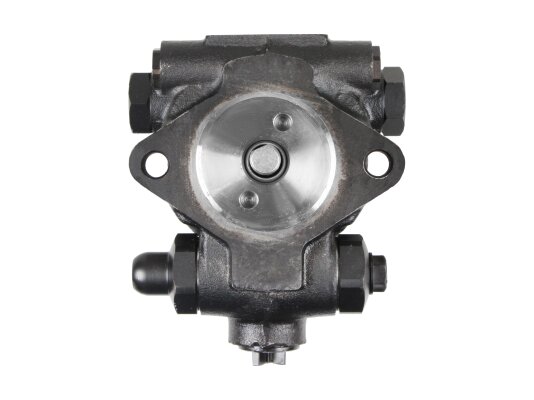

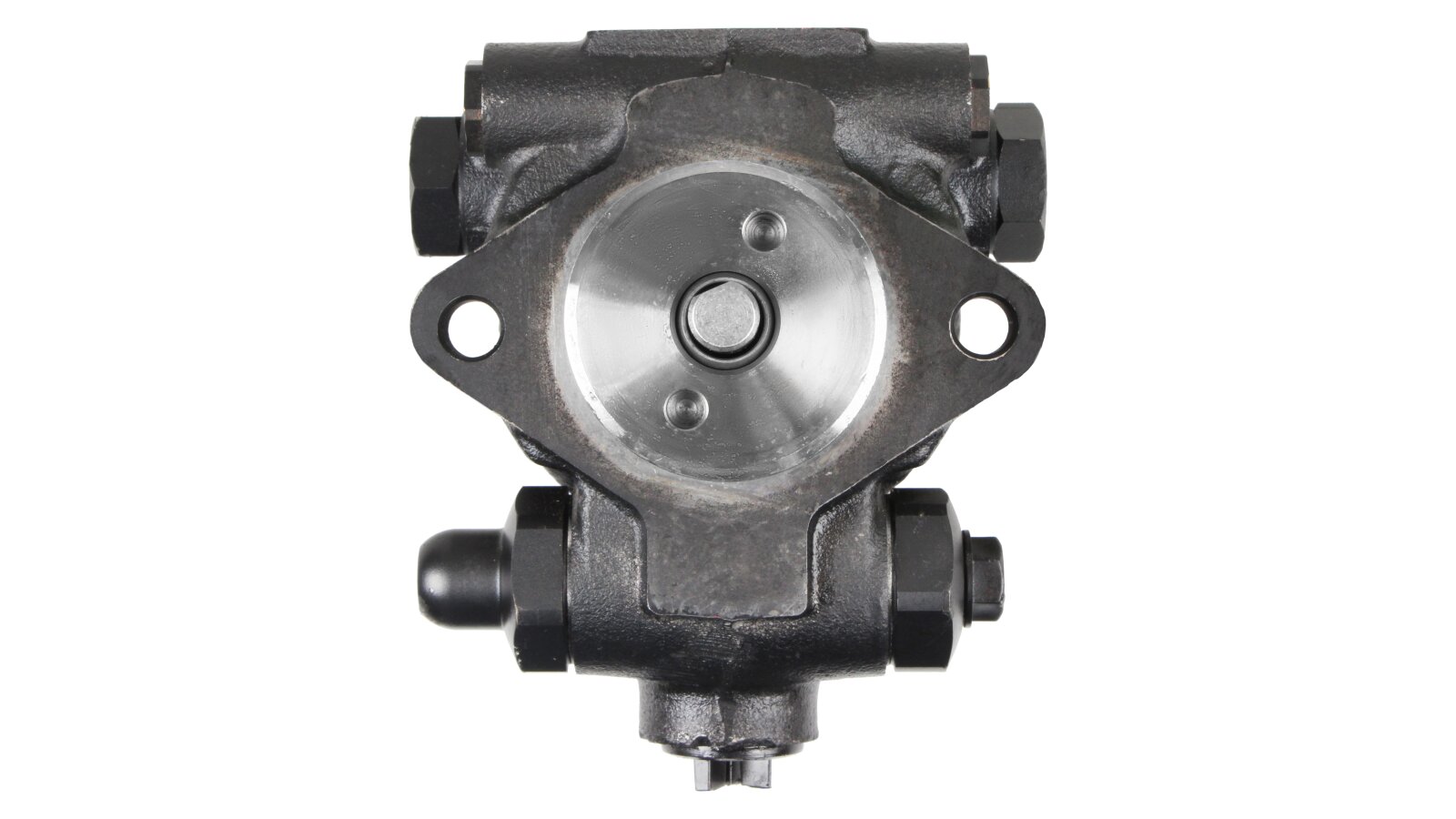

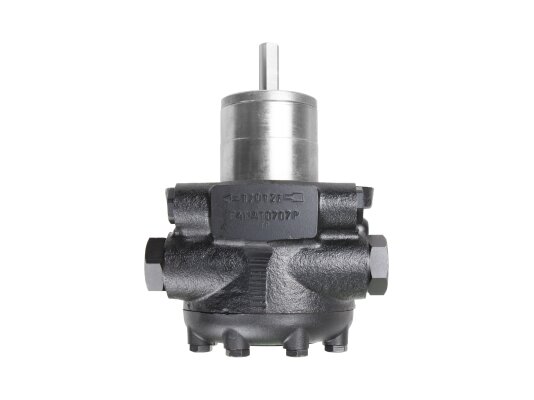

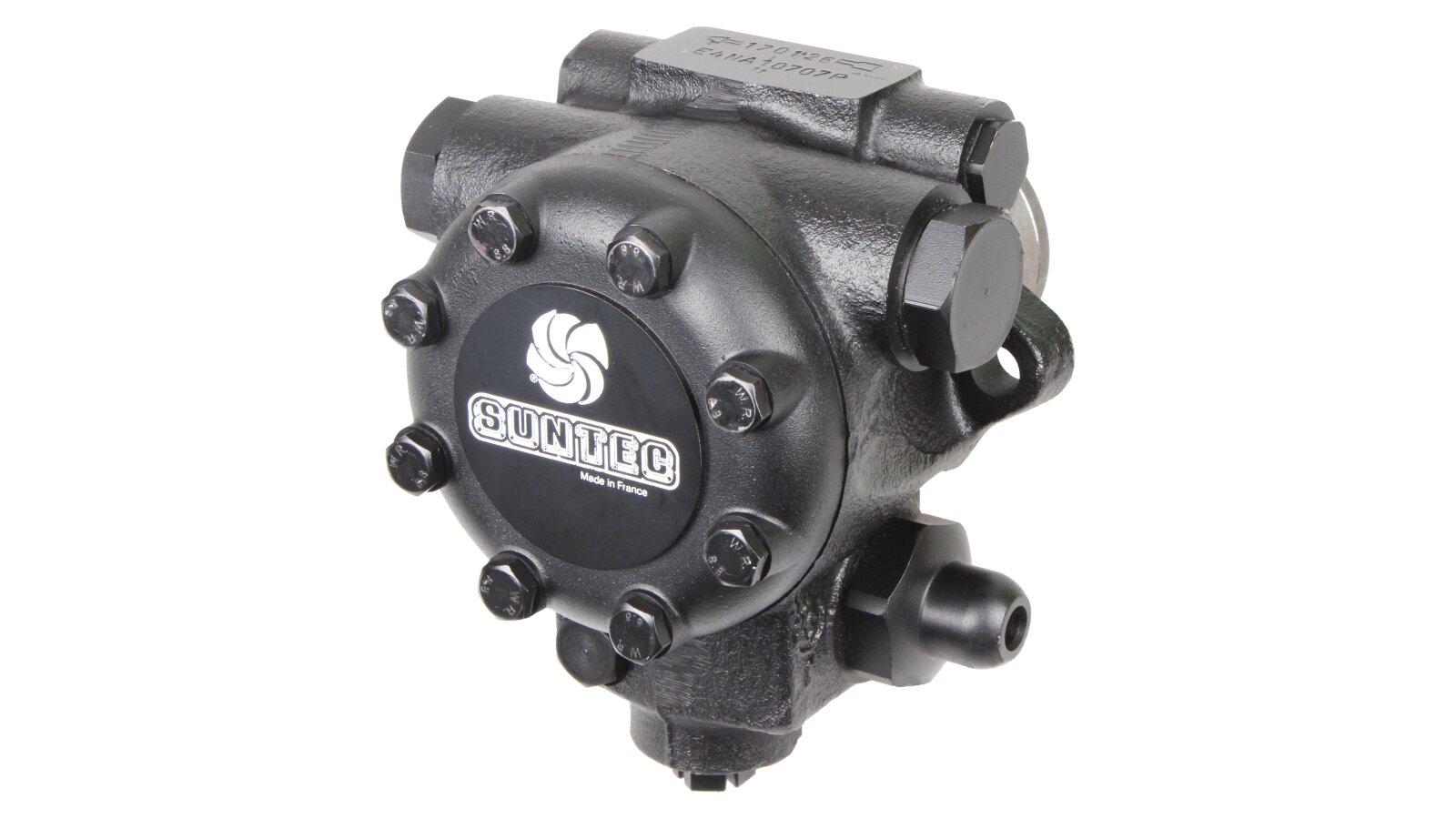

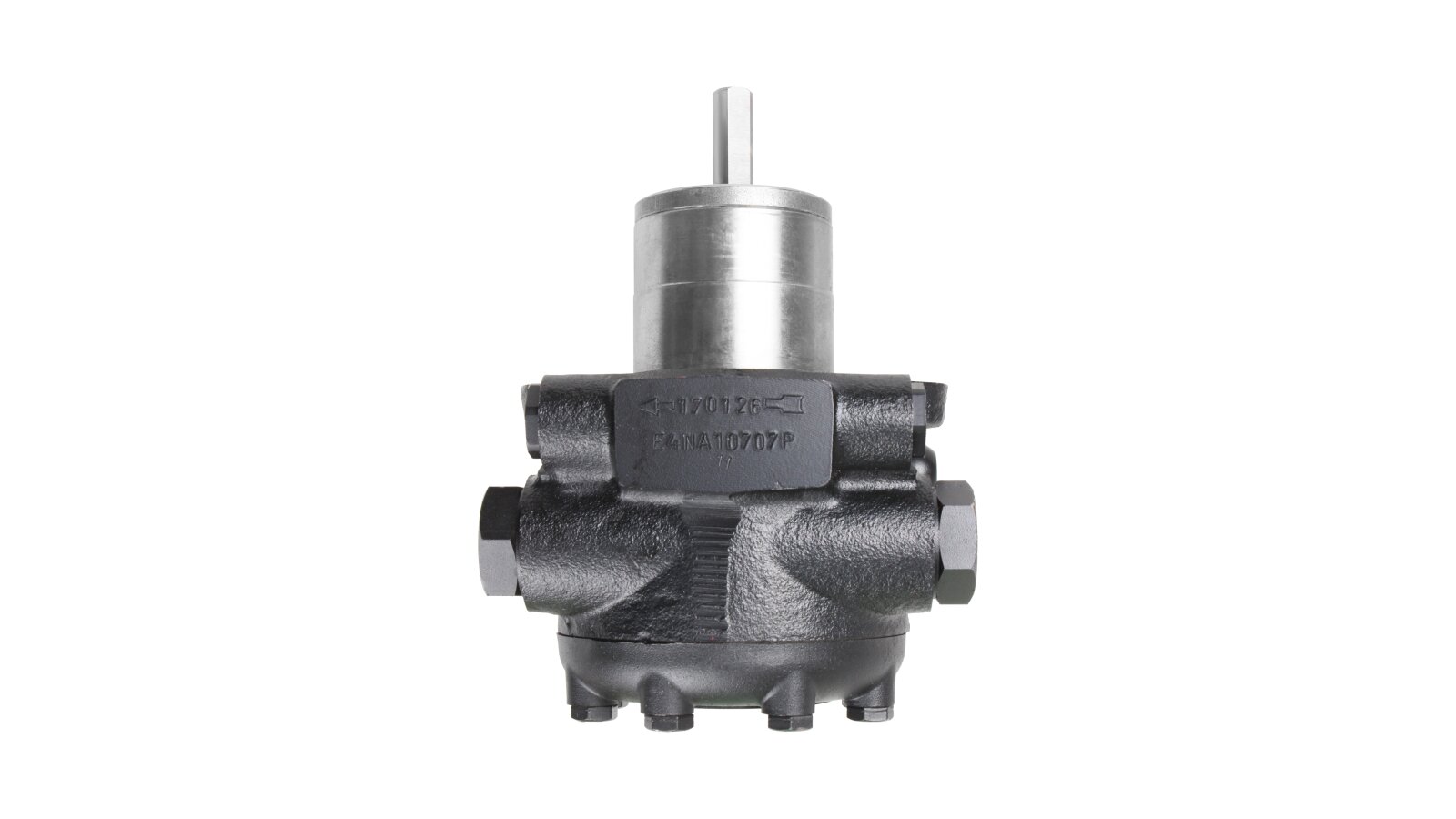

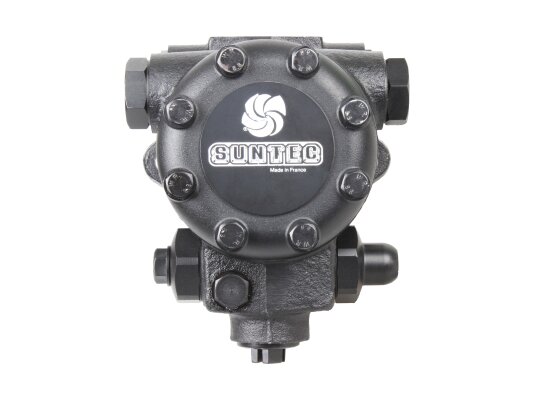

Burner Pump Suntec E 4 NA 1070 7P

Suntec

Alternative Part Number

FBR 258512
  • Discontinued
  1. Oil Burner Pumps

Description

The Suntec E 4 NA 1070 7P fuel pump is designed to equip medium-power burners used in heating systems for large residential, industrial and commercial facilities. The highly reliable design allows pumping not only diesel fuel, but also fuel oil. Permissible viscosity: 3-75 cSt. A cold start can be simplified by installing an electric heater, for which a seat is provided.

Design and features

  • The pump is supplied complete with a valve that performs a locking function and regulates the fuel supply under a given pressure. The basic setting (20 bar) can be changed by turning the screw on the device body to the right / left. Range: 14-30 bar.

  • The use of heat-resistant materials and special shaft seals allows working with fuel oil and high fuel temperatures, up to +130 ºC.

  • The 12 mm diameter hole for mounting the heating device, made according to the EN 50262 standard, is located in the most convenient place - the best heat transfer is achieved and contact with the fuel is excluded.

  • It is important that the heater is switched on in advance so that the working fluid heats up to the required temperature. Otherwise, the load on the gears increases, which leads to premature wear.

  • To protect the gear pair from the negative impact of abrasive particles, a 550 μm filter is installed at the working fluid inlet. It must be cleaned periodically using diesel fuel and a soft brush. The cover gasket should be changed each time.

Main advantages:

  • pumping fuel with a viscosity of 3-75 cSt;

  • optimal performance;

  • extended filtration area of ​​the pumped fuel, up to 45 cm²;

  • standard installation in the system;

  • increased reliability of the design for fuel oil and high temperatures;

  • built-in valve locking function;

  • place for placing an electric heater;

  • the ability to adjust the pressure in the range of 14-30 atm.;

  • ports and outlets with Eurostandard threads according to ISO 228/1.

On our website you can buy a Suntec E 4 NA 1070 7P fuel pump at an affordable price, adding an external electromagnetic valve to the package to automate the fuel supply.

Characteristics

By-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withModel type: without electromagnetic valveOil temperature: from 0 to 130 °C in the pumpStrainer: Opening size: 550 µmStrainer: Open area: 45 cm²Pump series: E: pressure regulationPerformance at 20 bar pressure and 20 cSt viscosity: 180 l/hPressure gauge port: ⅛ inchVacuum gauge port: ½ inchNominal rotation speed: 2850 rpmDirection of rotation (looking at the drive shaft): A: clockwise rotation / nozzle on the rightInstallation method: flange ∅ 54 mmMaximum rotation speed: 3600 rpmShaft design: one cavityFactory pressure setting: 20 barInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemNozzle pressure range: from 14 to 30 barShaft diameter: 11 mmReturn pressure: 3.5 barInlet pressure: 3.5 barNozzle outlet: ¼ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilSuction and return line: ½ inchTorque: 0.3 N·mValve function: pressure regulating and cut-offOperating viscosity: from 3 to 75 mm²/sType of pumped liquid: diesel, biodiesel fuel blend B20, sea ​​water
