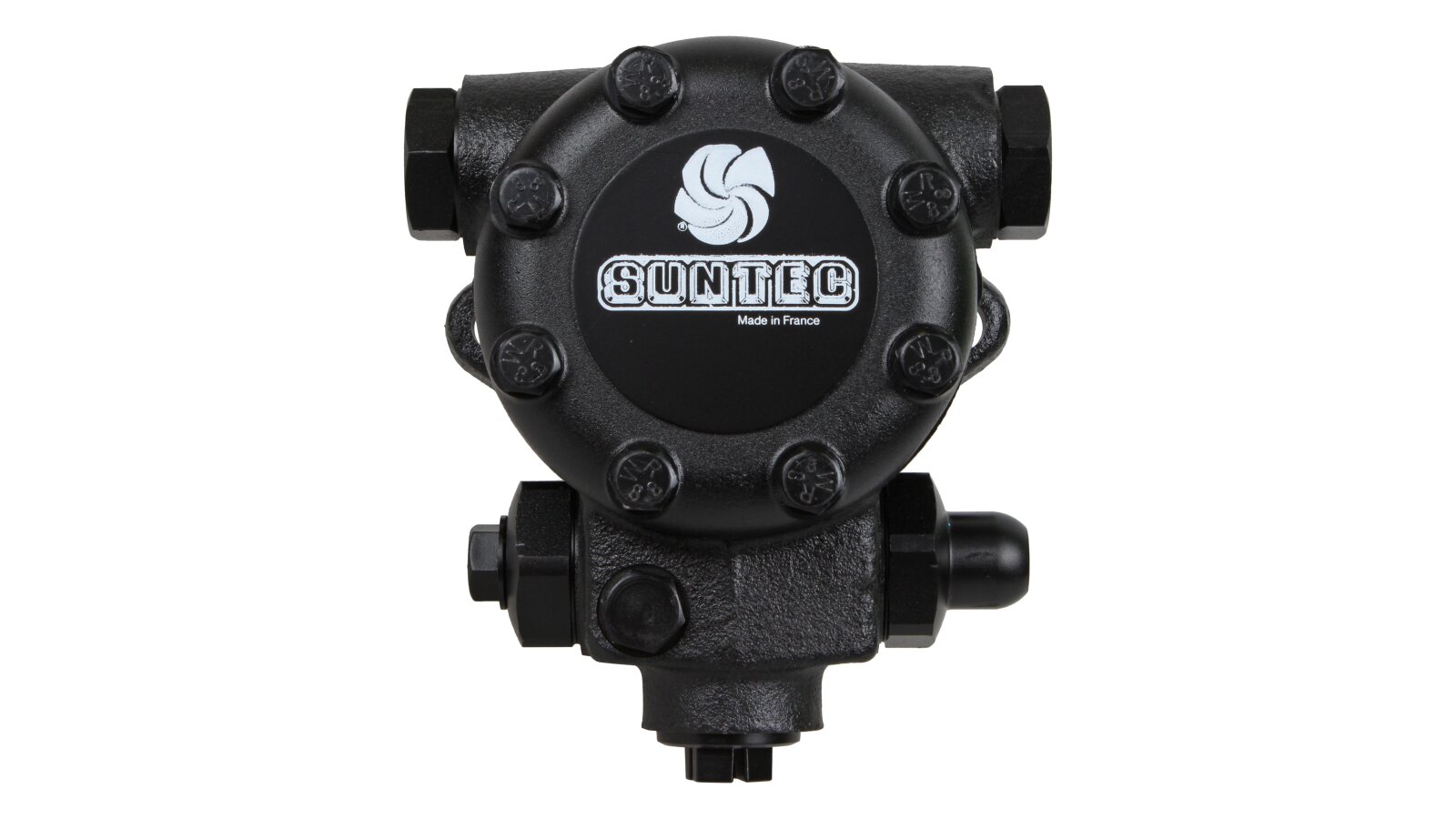

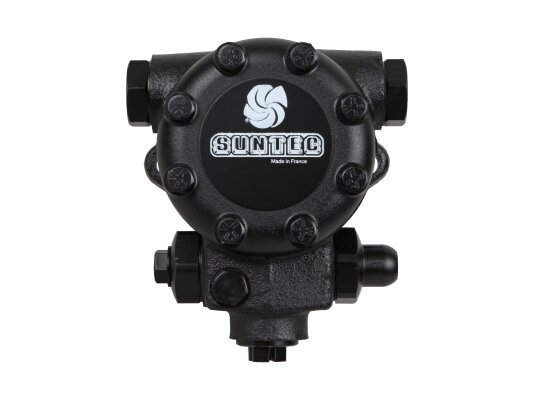

Burner Pump Suntec J 4 PAB 1000 8M
Suntec
About product
Go to descriptionShaft design one cavityModel type without electromagnetic valveValve function pressure regulating and cut-offOil temperature from 0 to 90 °C in the pumpStrainer: Opening size 170 µmStrainer: Open area 97 cm²
AED 2,650
Characteristics
Shaft design: one cavityModel type: without electromagnetic valveValve function: pressure regulating and cut-offOil temperature: from 0 to 90 °C in the pumpStrainer: Opening size: 170 µmStrainer: Open area: 97 cm²Pump series: J: control valve with locking functionPerformance at 20 bar pressure and 5 cSt viscosity: 146 l/hPressure gauge port: ⅛ inch NPTFVacuum gauge port: ¼ inch NPTFNominal rotation speed: 2850 rpmDirection of rotation (looking at the drive shaft): A: clockwise rotation / nozzle on the rightInstallation method: flange ∅ 54 mmMaximum rotation speed: 3600 rpmBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withFactory pressure setting: 12 barOperating viscosity: from 2 to 75 mm²/sNozzle pressure range: from 7 to 14 barShaft diameter: 11 mmReturn pressure: 1.5 barInlet pressure: 1.5 barNozzle outlet: ⅛ inch NPTFSuction height: 0.45 bars max. vacuum to prevent air separation from oilSuction and return line: ¼ inch NPTF (taper thread)Torque: 0.3 N·mType of pumped liquid: medium viscosity fuel, dieselInstalling the bypass plug: M: no bypass plug, return line closed to single pipe system
Information about the technical characteristics, appearance and color of the product is for reference only and is based on the latest information available at the time of publication
