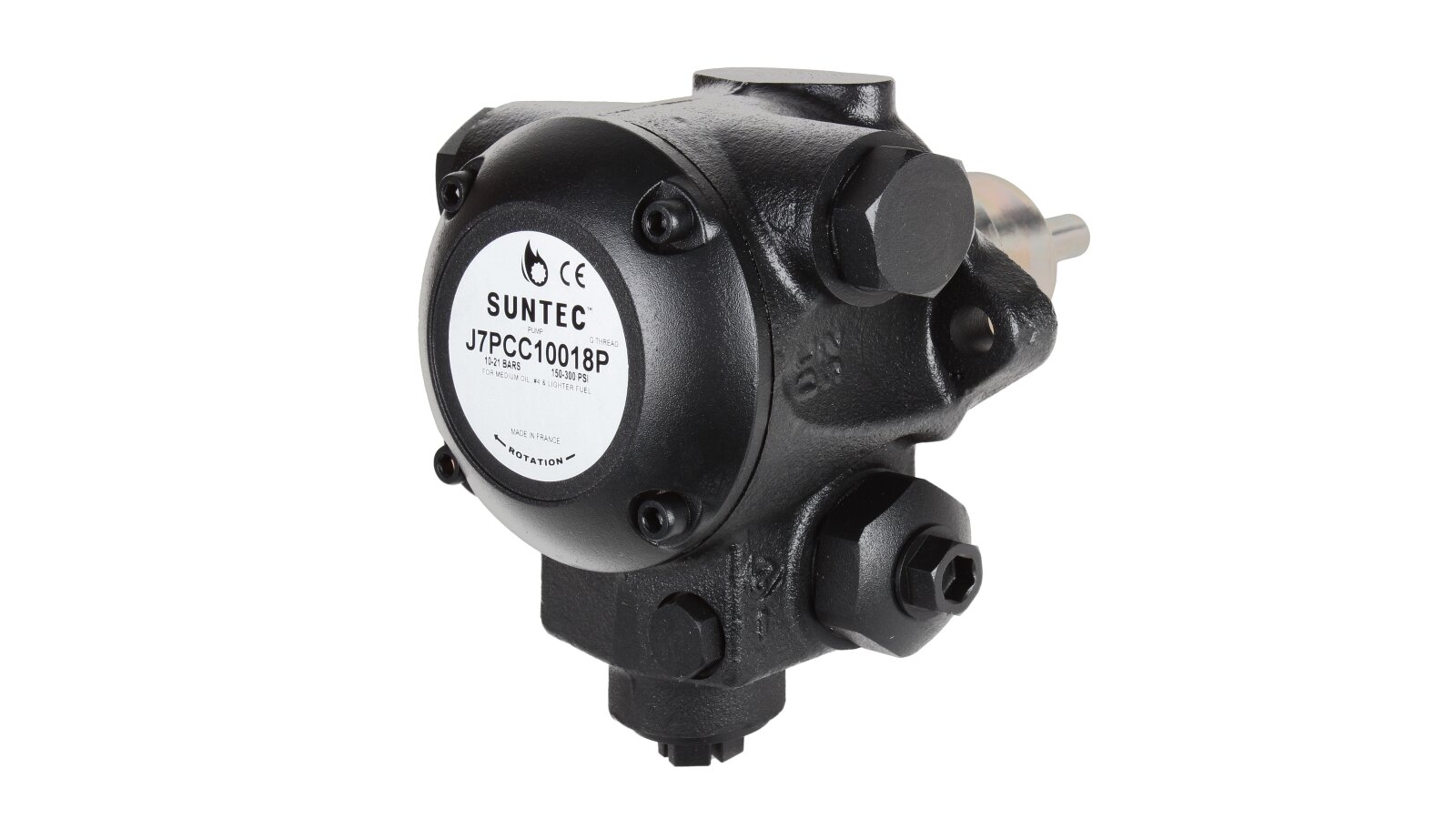

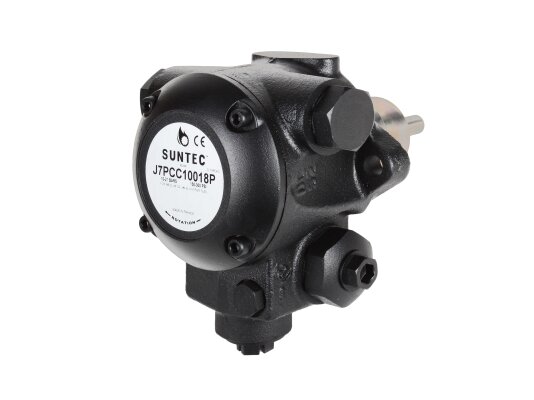

Burner Pump Suntec J 7 PCK 1001 8P
Suntec
About product
Go to descriptionPump series J: control valve with locking functionType of pumped liquid medium viscosity fuel, dieselSolenoid valve consumption от 275 Вт до 625 Вт при 5 сСт /30 бар WPerformance at 14 bar pressure and 20 cSt viscosity 312 l/hPerformance at 14 bar pressure and 75 cSt viscosity 373 l/hPerformance at 20 bar pressure and 20 cSt viscosity 306 l/h
AED 3,125
Characteristics
Pump series: J: control valve with locking functionType of pumped liquid: medium viscosity fuel, dieselSolenoid valve consumption: от 275 Вт до 625 Вт при 5 сСт /30 бар WPerformance at 14 bar pressure and 20 cSt viscosity: 312 l/hPerformance at 14 bar pressure and 75 cSt viscosity: 373 l/hPerformance at 20 bar pressure and 20 cSt viscosity: 306 l/hPerformance at 20 bar pressure and 5 cSt viscosity: 287 l/hPerformance at 30 bar pressure and 5 cSt viscosity: 281 l/hPerformance at 30 bar pressure and 75 cSt viscosity: 340 l/hPressure gauge port: ⅛ inchStrainer: Open area: 97 cm²Strainer: Opening size: 170 µmOil temperature: from 0 to 90 °C in the pumpModel type: without electromagnetic valveInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemValve function: pressure regulating and cut-offOperating viscosity: from 2 to 75 mm²/sPerformance at 11 bar pressure and 5 cSt viscosity: 325 l/hNominal rotation speed: 2850 rpmTorque: 0.3 N·mSuction and return line: ½ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilNozzle outlet: ¼ inchInlet pressure: 1.5 barReturn pressure: 1.5 barShaft diameter: 11 mmNozzle pressure range: from 14 to 30 barFactory pressure setting: 20 barBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withShaft design: one cavityMaximum rotation speed: 3600 rpmInstallation method: flange ∅ 54 mmDirection of rotation (looking at the drive shaft): C: counterclockwise rotation / nozzle on the leftVacuum gauge port: ½ inch
Information about the technical characteristics, appearance and color of the product is for reference only and is based on the latest information available at the time of publication
