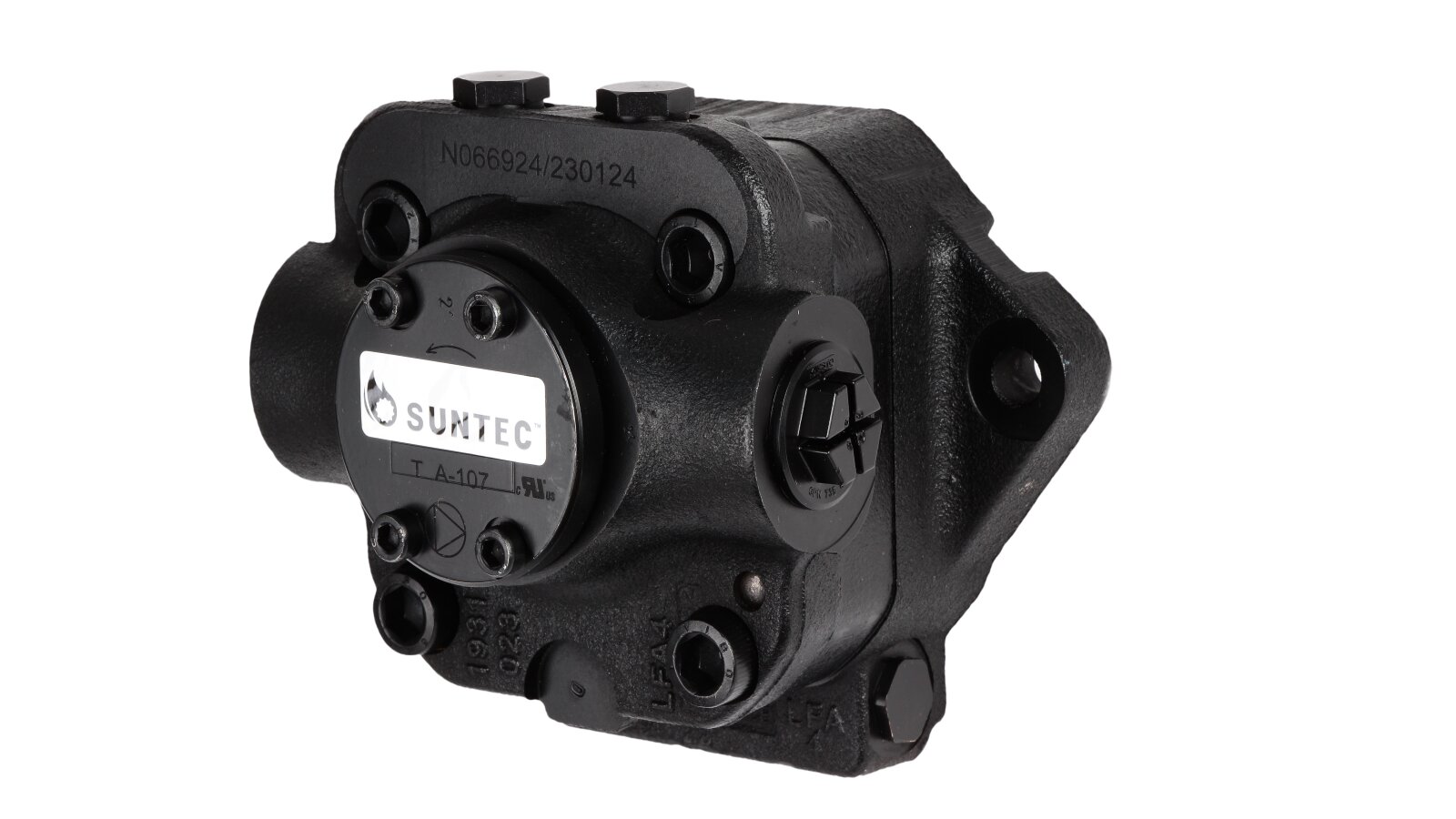

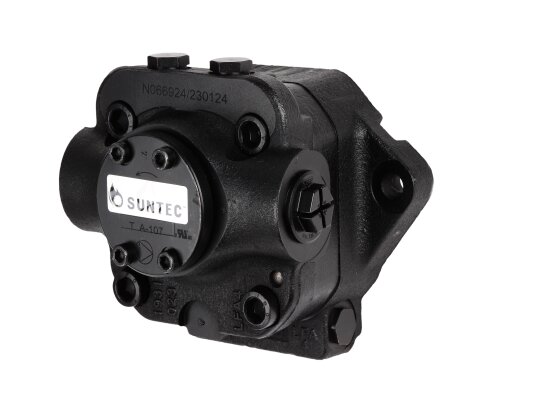

Burner Pump Suntec T 2 A 10 7
Suntec
About product
Go to descriptionVacuum gauge port ¼ inchPerformance at 11 bar pressure and 5 cSt viscosity 1310 l/hOperating viscosity from 3 to 75 mm²/sModel type without electromagnetic valveOil temperature from 0 to 150 °C in the pumpPump series T: no pressure adjustment
AED 8,300
Characteristics
Vacuum gauge port: ¼ inchPerformance at 11 bar pressure and 5 cSt viscosity: 1310 l/hOperating viscosity: from 3 to 75 mm²/sModel type: without electromagnetic valveOil temperature: from 0 to 150 °C in the pumpPump series: T: no pressure adjustmentPerformance at 7 bar pressure and 5 cSt viscosity: 1330 l/hPerformance at 30 bar pressure and 75 cSt viscosity: 1416 l/hPerformance at 30 bar pressure and 5 cSt viscosity: 1112 l/hPerformance at 20 bar pressure and 5 cSt viscosity: 1212 l/hPerformance at 20 bar pressure and 20 cSt viscosity: 1392 l/hPerformance at 14 bar pressure and 75 cSt viscosity: 1412 l/hPerformance at 14 bar pressure and 20 cSt viscosity: 1390 l/hSolenoid valve consumption: от 260 Вт при 5 сСт /1 бар до 1970 Вт при 5 сСт /40 бар WPressure gauge port: ¼ inchNominal rotation speed: 2850 rpmTorque: 0.4 N·mSuction and return line: ¾ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilNozzle outlet: ¾ inchInlet pressure: 0.45 - 0.5 barShaft diameter: 20 mmNozzle pressure range: from 1 to 40 barShaft design: one cavityMaximum rotation speed: 3600 rpmInstallation method: flange ∅ 70 mmDirection of rotation (looking at the drive shaft): A: clockwise rotation / nozzle on the rightType of pumped liquid: diesel, sea water
Information about the technical characteristics, appearance and color of the product is for reference only and is based on the latest information available at the time of publication
