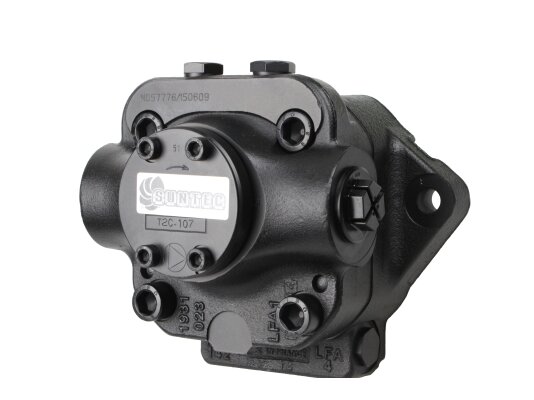

Burner Pump Suntec T 2 C 10 7

Suntec

Alternative Part Number

Oilon

34024190

CIB Unigas

2590123

AED 6,800

Oil Burner Pumps
Products code: 1304

Description

Reliable equipment for industrial operating conditions - fuel pump Suntec T 2 C 10 7. It is used as part of powerful boiler complexes for heating large areas.

Main characteristics

The capacity of the device depends on the fuel parameters and the pressure setting on the nozzle. For example, it is 1380 l / h at a pressure of 30 atm. and a viscosity of 75 cSt.

Fuel oil, diesel fuel, crude oil with a viscosity of 3-75 cSt can serve as fuel.

The feed pressure is set to 40 bar (there is no basic adjustment function).

Design features

  • The pump does not contain a control valve. A standard hole is provided for mounting an external valve (optional).

  • To simplify starting the burner, a 12 mm diameter hole is drilled in the body, into which the heater is installed. An 80-100 W electric device allows you to preheat the fuel, reducing the load on the gear mechanism and increasing the service life of the burner.

  • The location of the heating element is chosen so that the fuel does not come into contact with the device, and heat transfer is carried out as efficiently as possible.

  • Important! It is necessary to turn on the heater in advance to reduce the viscosity of the fuel. Then the heating element can be turned off or left on to maintain the optimum temperature of the working fluid.

Recommendations for extending the service life

In order to prevent the pump from blocking when pumping unrefined fuel, the manufacturer recommends installing a 200 micron motorized filter.

When pumping heated fuel oil, it is advisable to install a degasser flask in the pipeline, which will protect the equipment from premature wear and extend its service life.

Advantages of the model:

  • high throughput;

  • work with fuel of different types and viscosity;

  • heat resistance (operating temperature of the pumped liquid from 0 to +150 ºC);

  • installation of the heating element on a standard connector;

  • cylindrical thread for connecting an external valve, instrumentation and piping according to ISO 228/1.

Equipment selection

Our catalog presents a wide range of components at low prices for assembling boiler units. The company's specialists will help you make a choice. It is important to take into account all the characteristics for the correct operation of the heating system. Before buying a Suntec T 2 C 10 7 fuel pump, get free information support by contacting a consultant in any convenient way (call, online assistant).

Characteristics

Shaft design: one cavityOil temperature: from 0 to 150 °C in the pumpPump series: T: no pressure adjustmentPerformance at 30 bar pressure and 75 cSt viscosity: 1380 l/hPressure gauge port: ¼ inchVacuum gauge port: ¼ inchNominal rotation speed: 2850 rpmDirection of rotation (looking at the drive shaft): C: counterclockwise rotation / nozzle on the leftInstallation method: flange ∅ 70 mmMaximum rotation speed: 3600 rpmModel type: without electromagnetic valveNozzle pressure range: from 1 to 40 barShaft diameter: 20 mmInlet pressure: 5 barNozzle outlet: ¾ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilSuction and return line: ¾ inchTorque: 0.4 N·mOperating viscosity: from 3 to 75 mm²/sType of pumped liquid: diesel, sea ​​water
