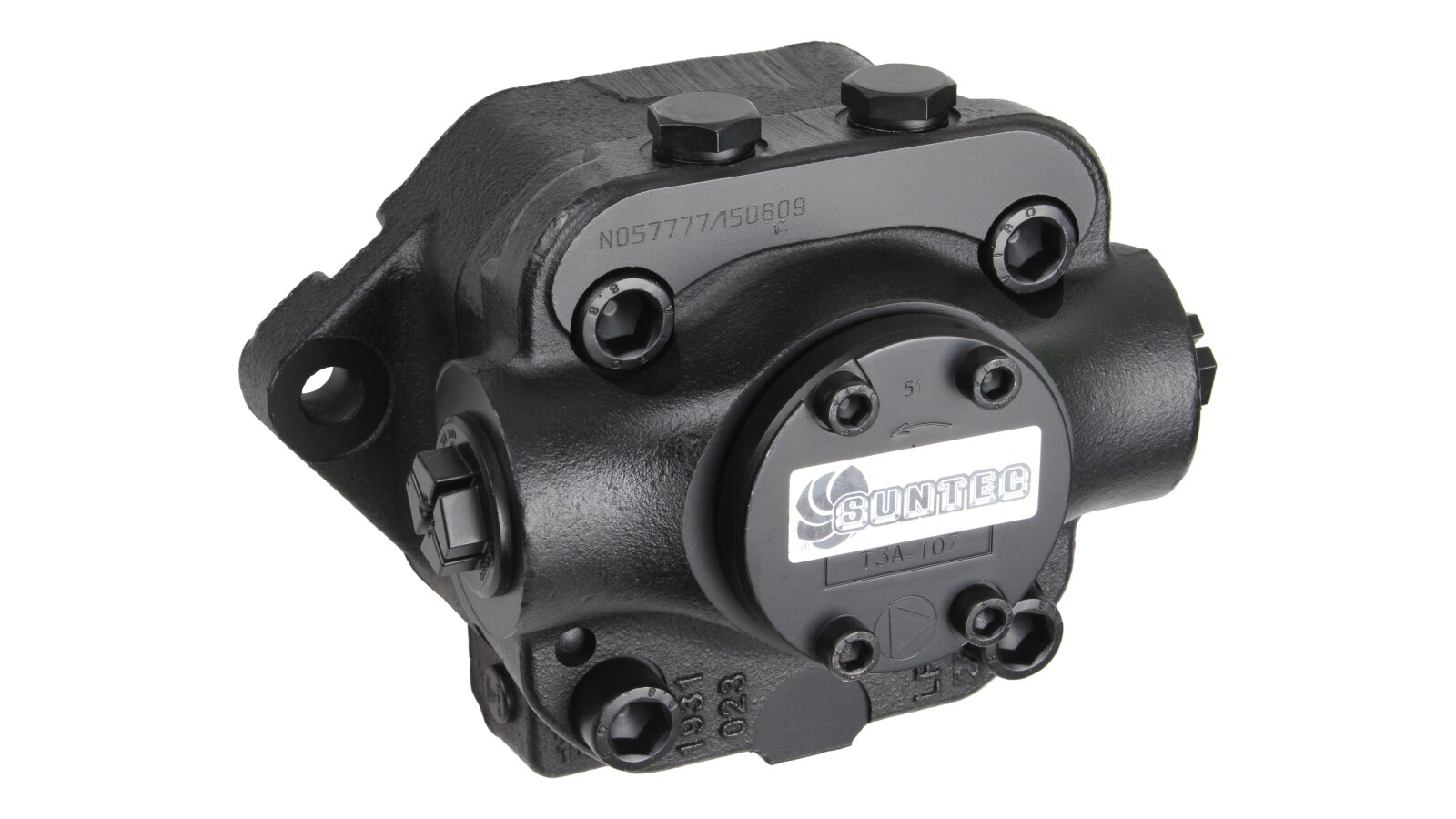

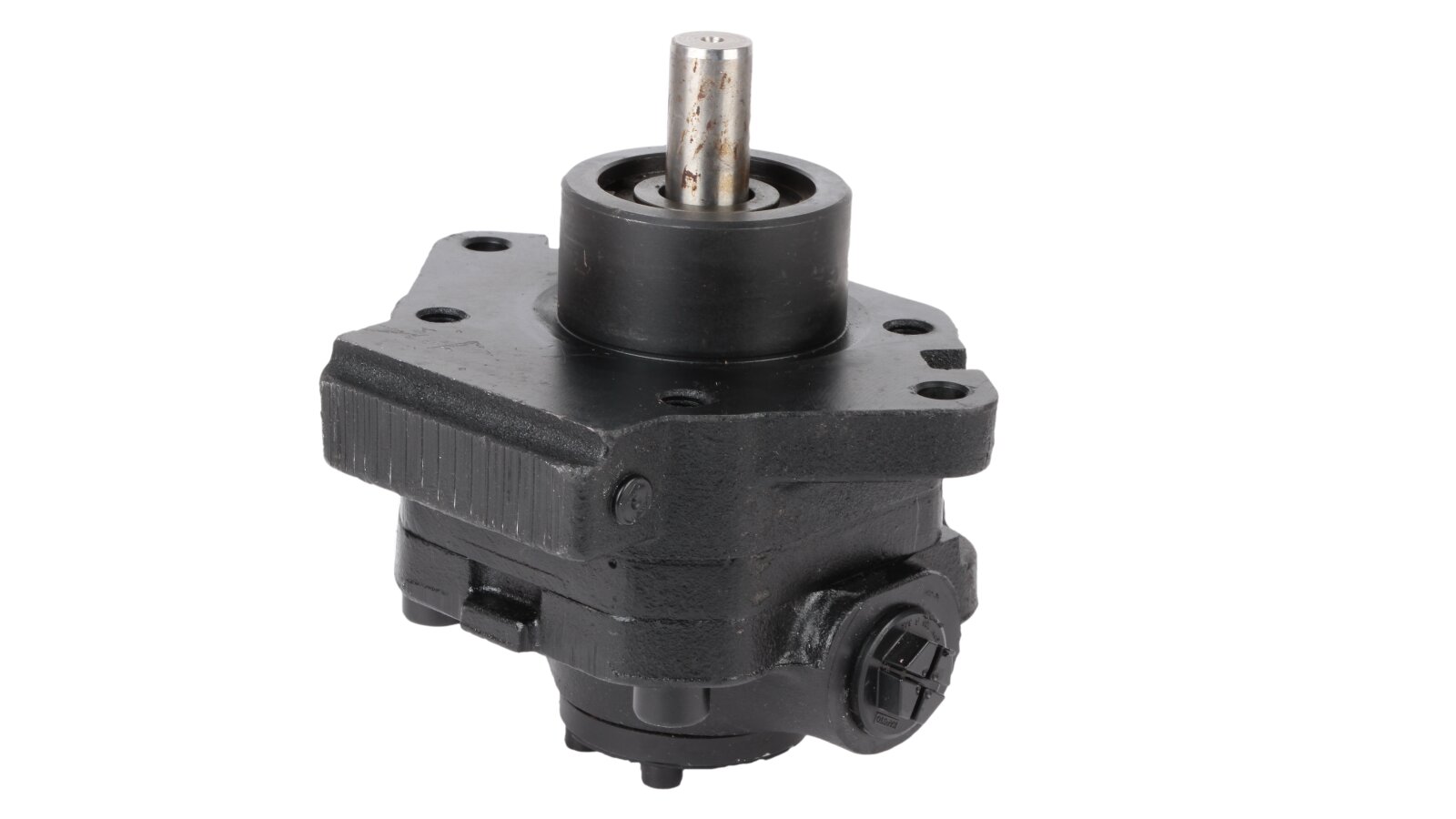

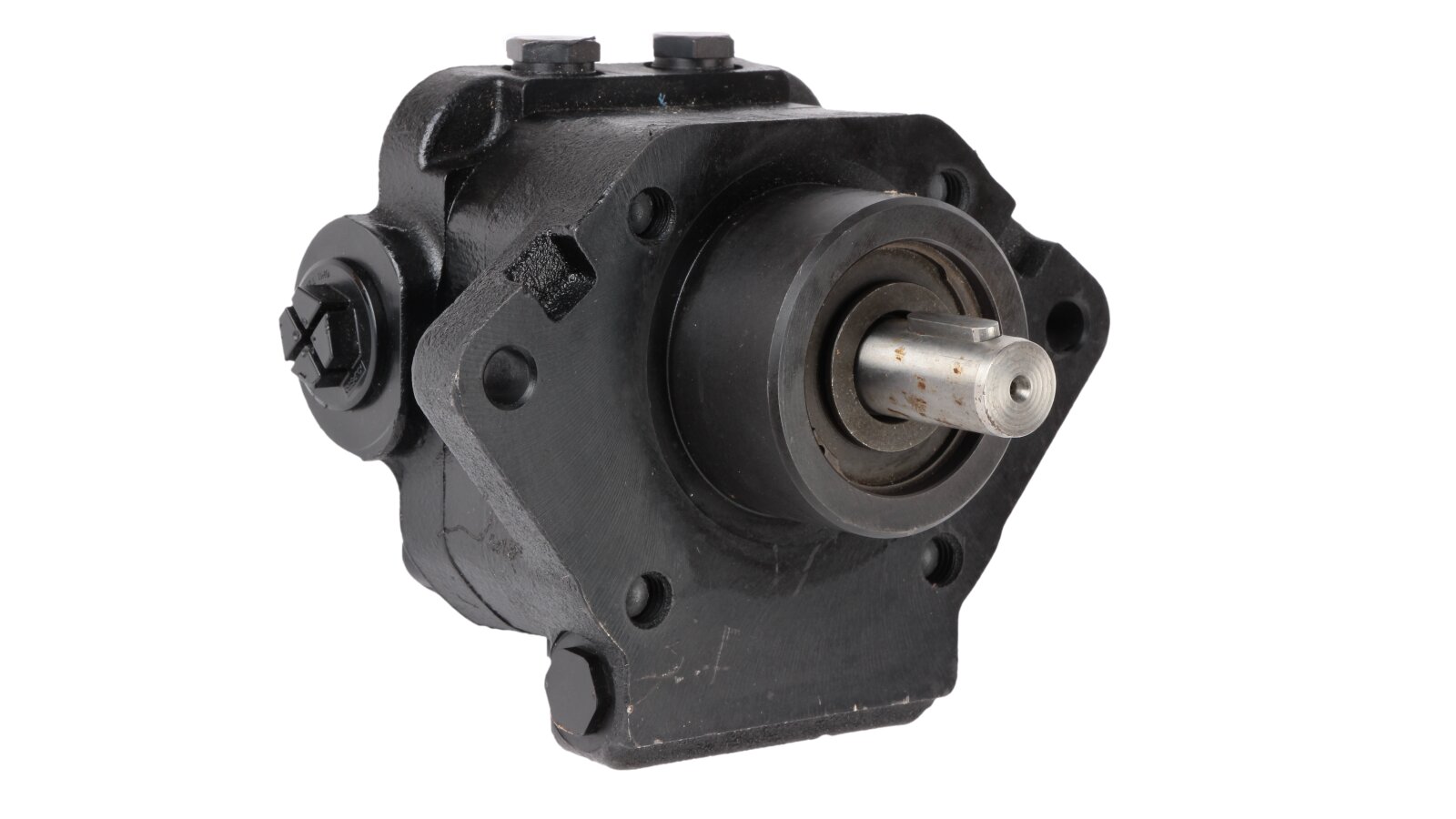

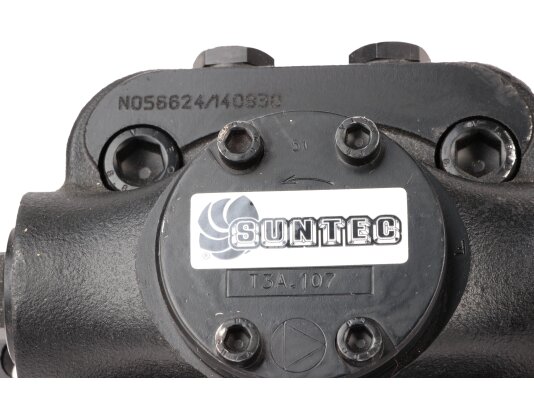

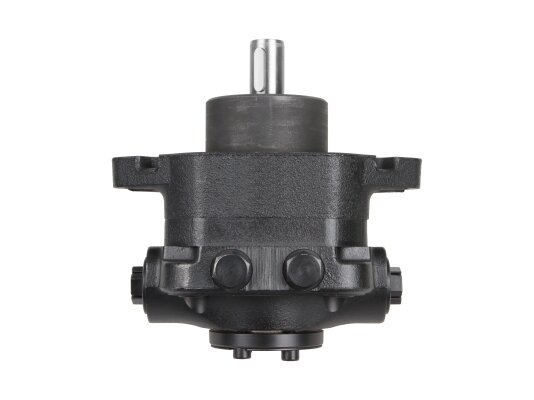

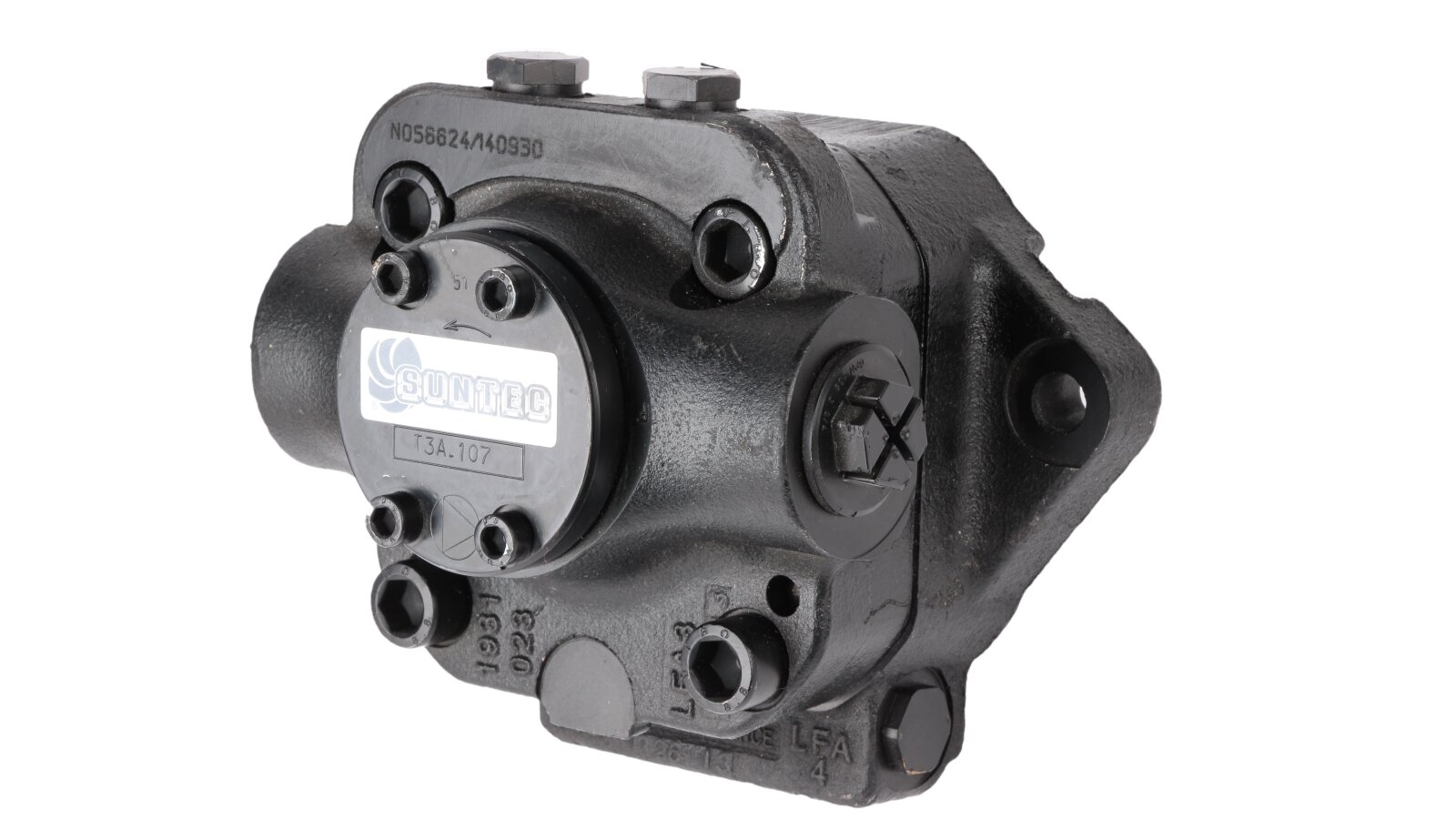

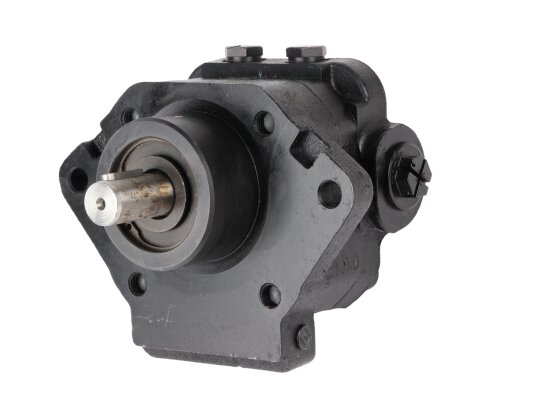

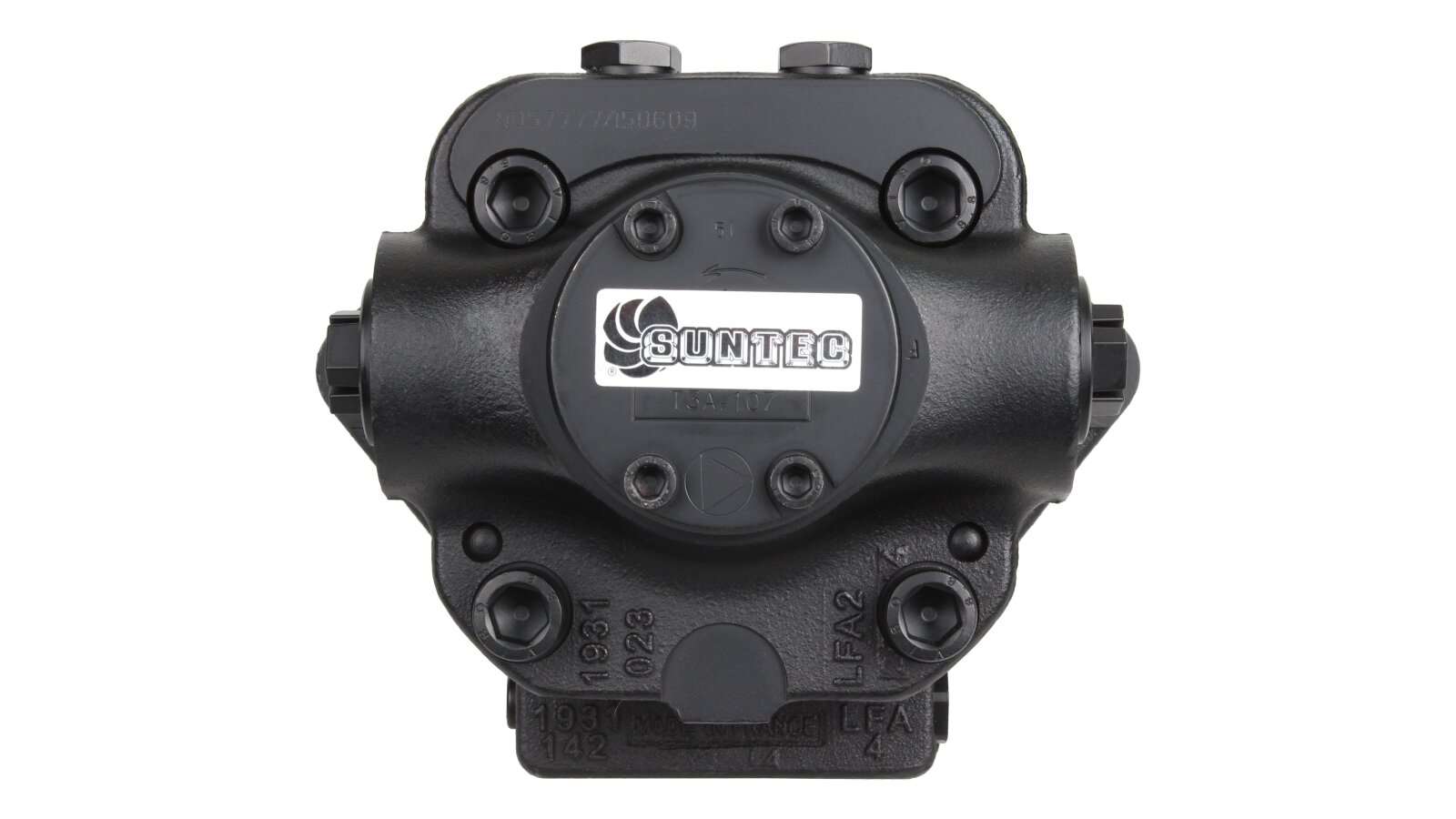

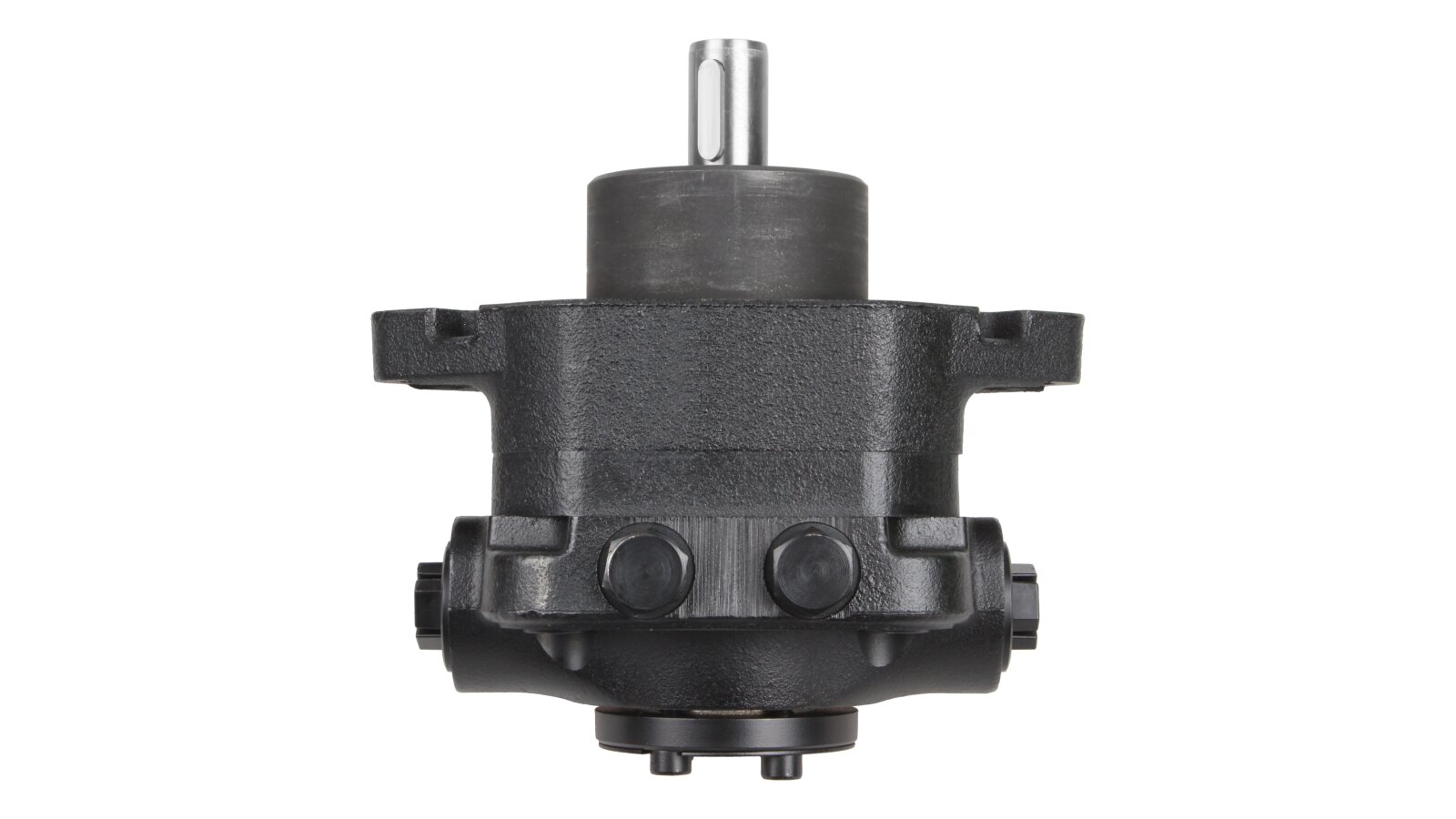

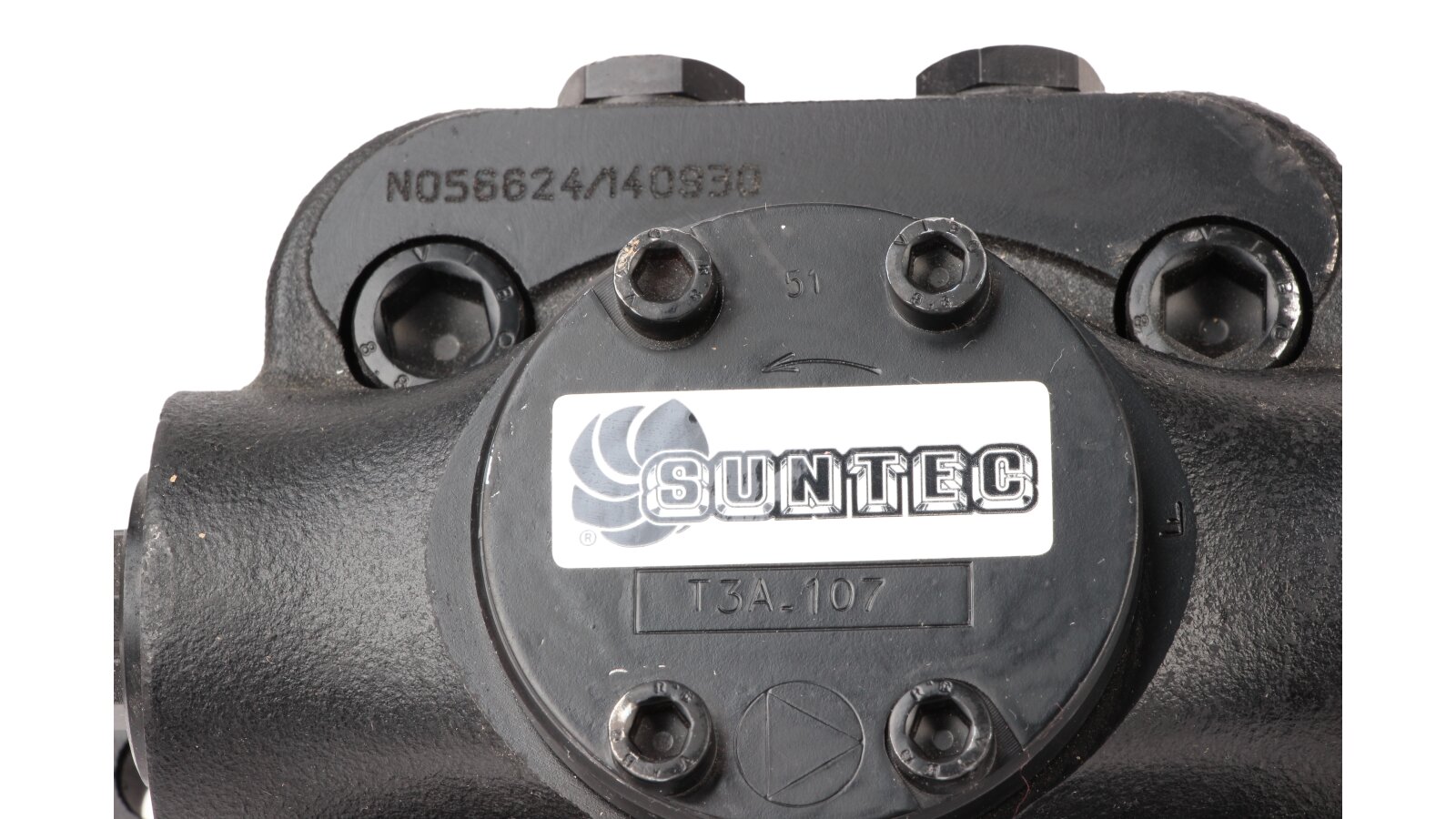

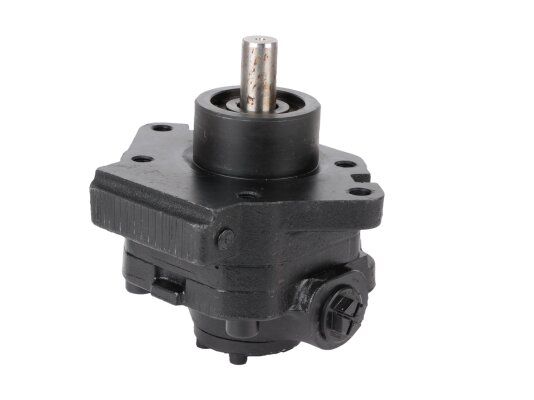

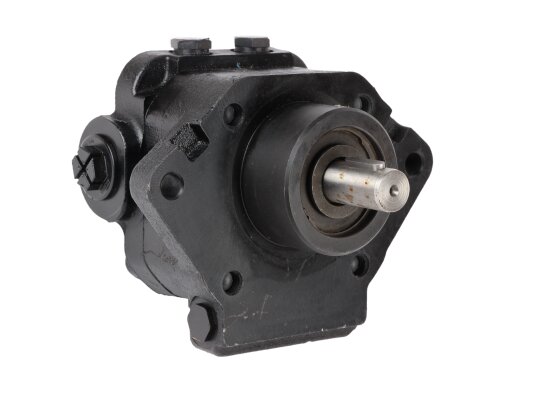

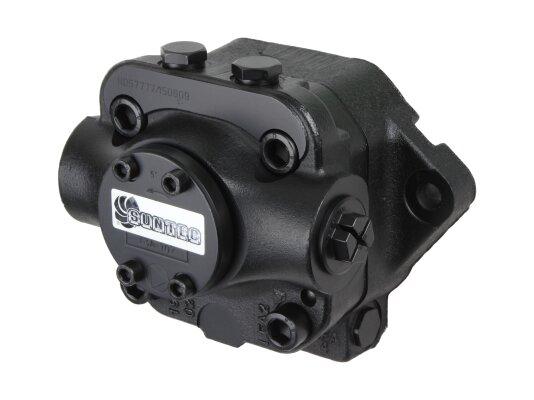

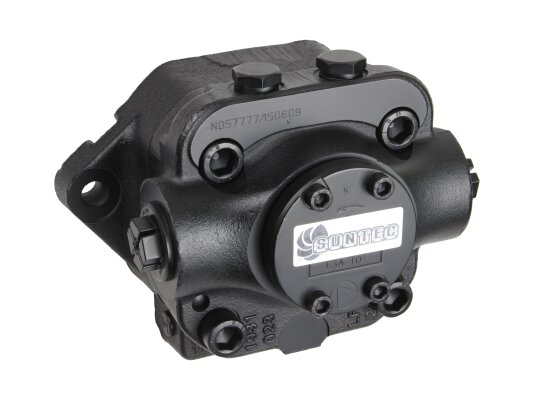

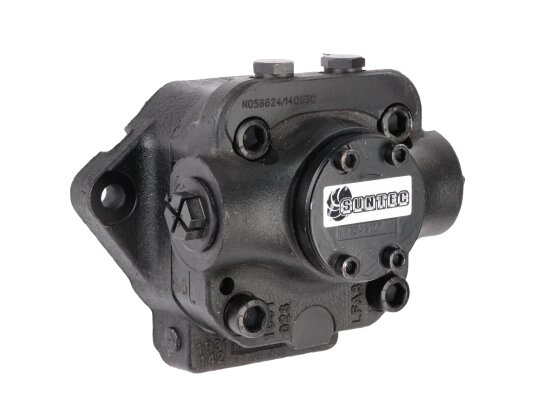

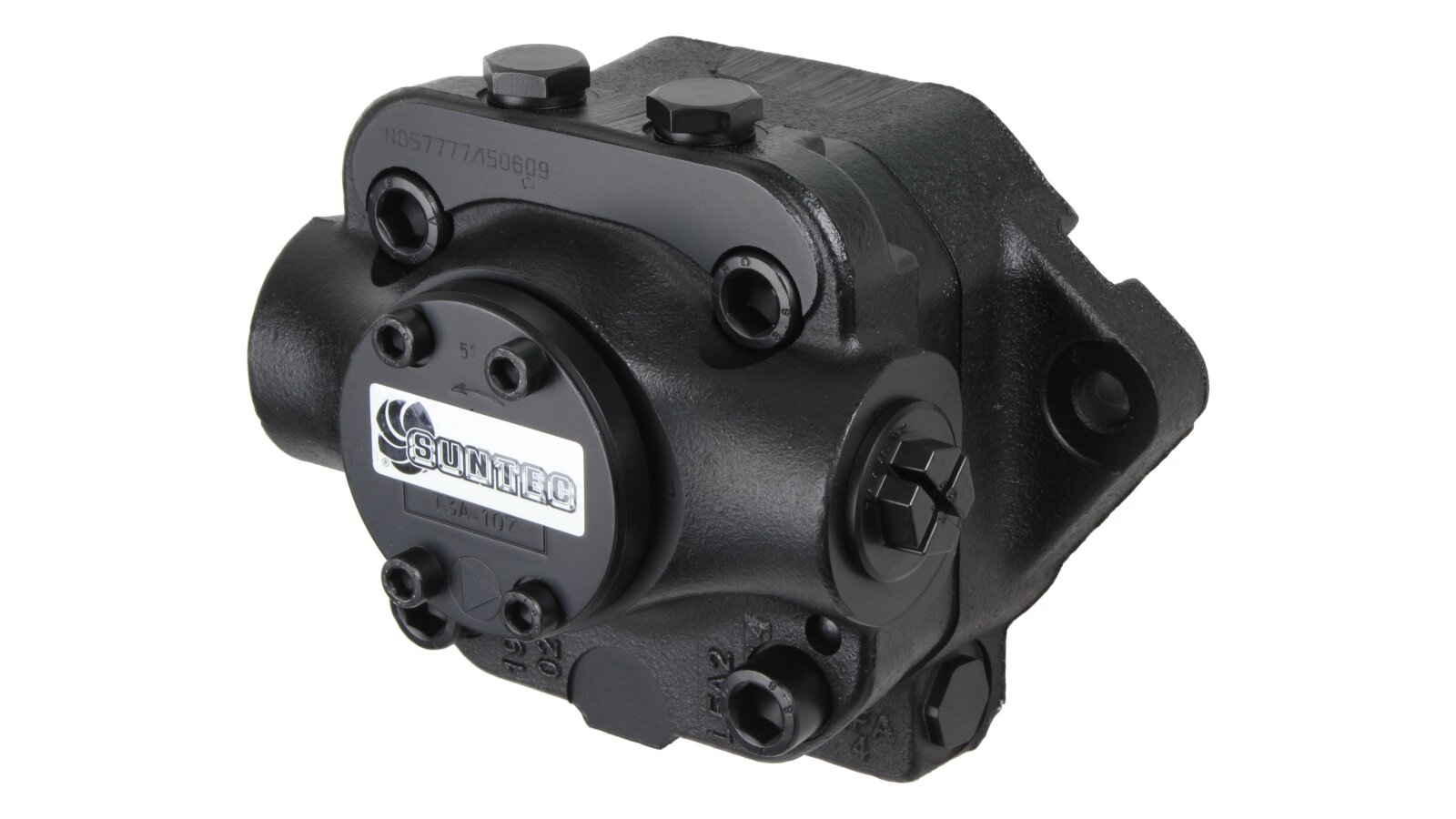

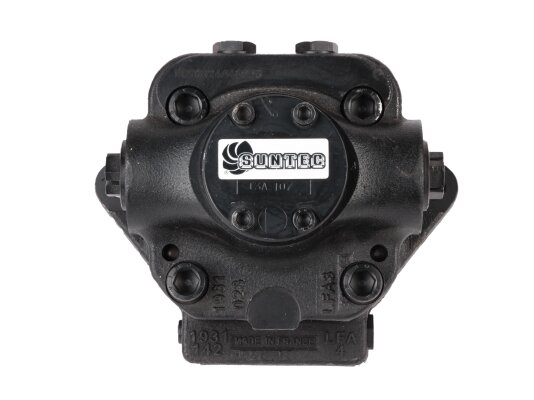

Burner Pump Suntec T 3 A 10 7

Suntec

AED 7,400

Oil Burner Pumps
Products code: 1305

Description

The high-performance fuel pump Suntec T 3 A 10 7 is used for powerful industrial heating burners. Does not contain an adjustment function. The feed pressure is set to 40 atmospheres. It is possible to install a heating element to facilitate start-up and increase the service life of the device.

Features of execution

  • The pump is heat-resistant - it is capable of pumping fuel heated to +150 ºC.

  • A quick start of the burner is possible when installing a heater with a power of 80-100 W. The hole, which complies with the European standard EN 50262, is located so as to guarantee safe heating and ensure maximum heat transfer.

  • Attention! The device should be turned on in advance to protect the gear pair from excessive load. After heating the fuel, the heater can be turned off or left on.

  • Add. equipment for increased service life

  • The T series pumps do not contain a pre-filter, so it is advisable to include an additional protection element in the system - a motorized filter for 200 microns.

  • When pumping fuel oil, it is recommended to install a degasser flask in the pipeline, which will eliminate the evaporation of light fractions and increase the service life of the pump.

The advantages are:

  • highly efficient fuel supply - at a pressure of 30 atm. and a viscosity of 75 cSt, the rate is 1980 l / h;

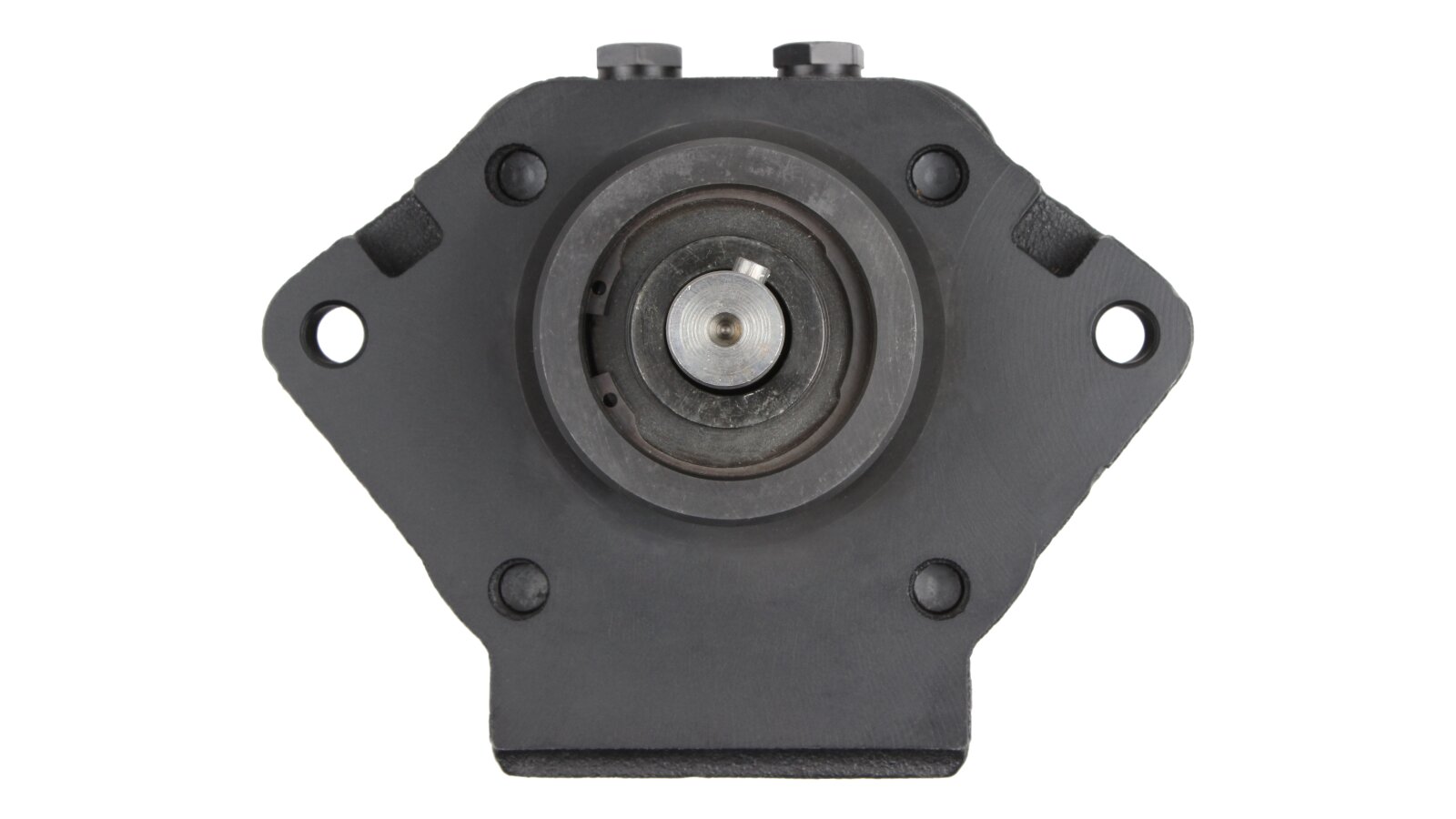

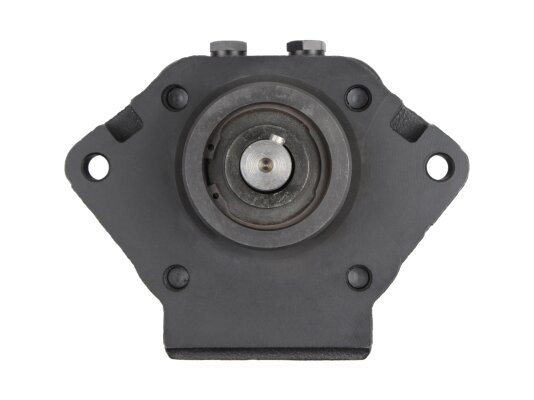

  • reliable flange connection method, seat diameter 70 mm;

  • safe operation with fuel heated to a temperature of +150 degrees;

  • standard ports and outputs for instrumentation, external valve and pipeline;

the ability to install an electric heater.

Affordable price, impeccable quality

High-quality, wear-resistant Suntec pumps allow you to organize the efficient operation of large boiler plants. You can buy a Suntec T 3 A 10 7 fuel pump and other necessary components from us at the best prices to create heating systems for any purpose.

Characteristics

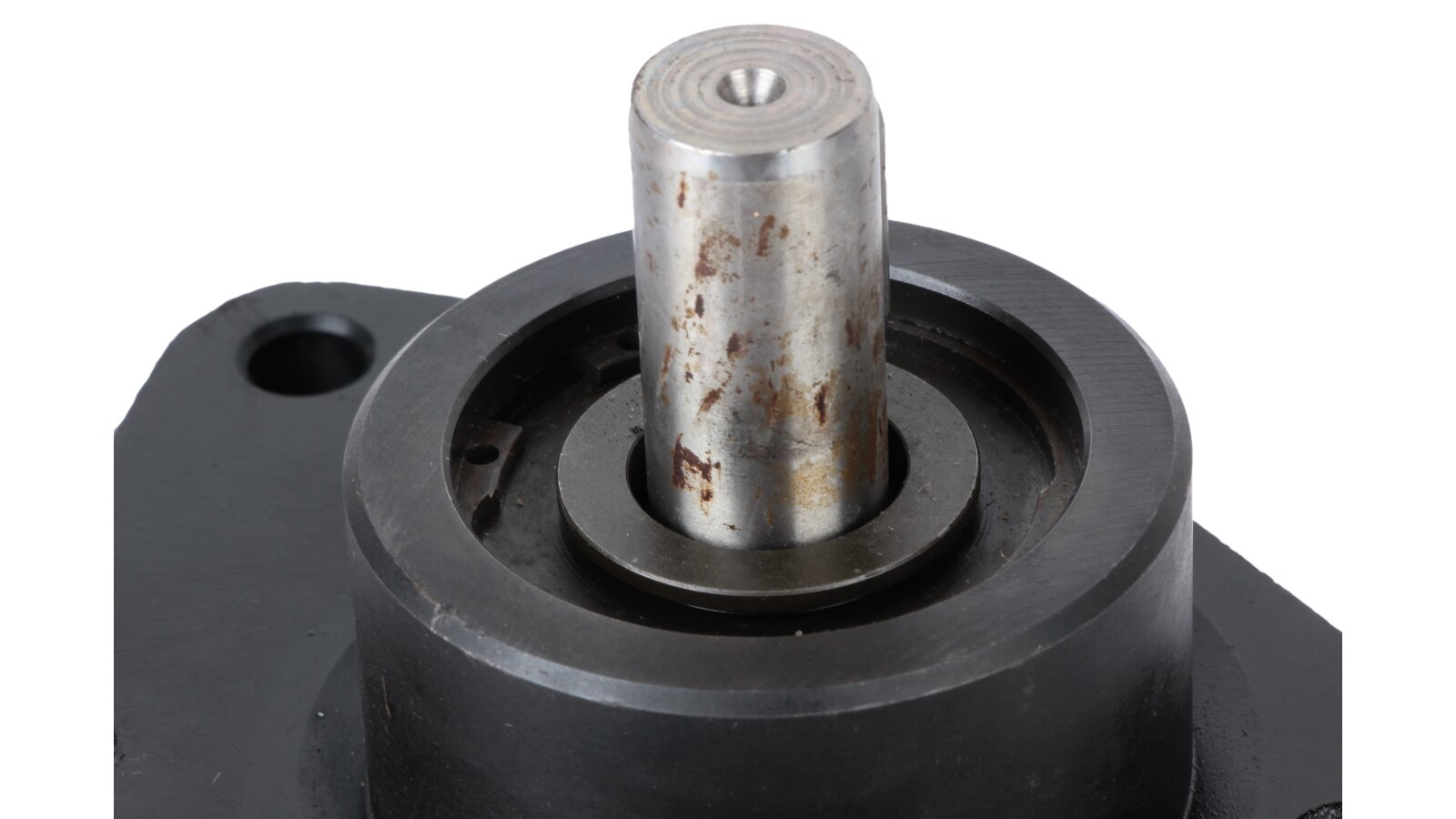

Shaft design: one cavityOil temperature: from 0 to 150 °C in the pumpPump series: T: no pressure adjustmentPerformance at 30 bar pressure and 75 cSt viscosity: 1980 l/hPressure gauge port: ¼ inchVacuum gauge port: ¼ inchNominal rotation speed: 2850 rpmDirection of rotation (looking at the drive shaft): A: clockwise rotation / nozzle on the rightInstallation method: flange ∅ 70 mmMaximum rotation speed: 3600 rpmModel type: without electromagnetic valveNozzle pressure range: from 1 to 40 barShaft diameter: 20 mmInlet pressure: 5 barNozzle outlet: ¾ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilSuction and return line: ¾ inchTorque: 0.4 N·mOperating viscosity: from 3 to 75 mm²/sType of pumped liquid: diesel, sea ​​water
