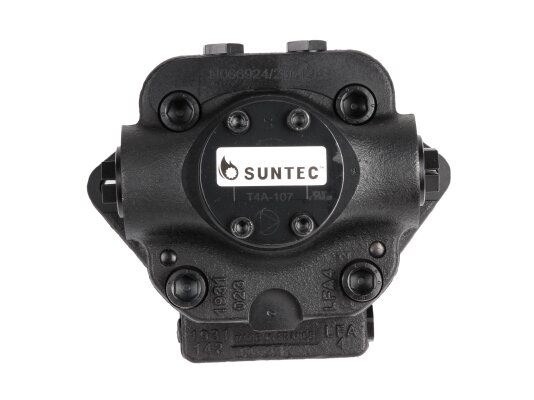

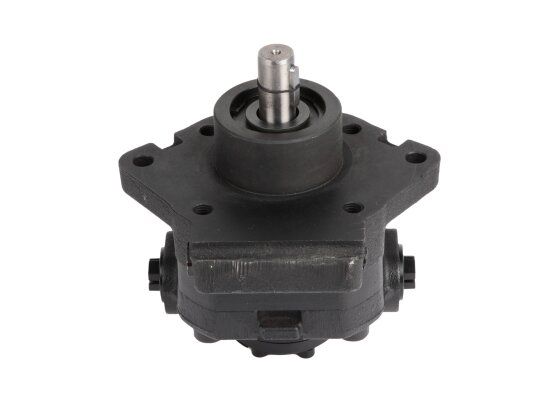

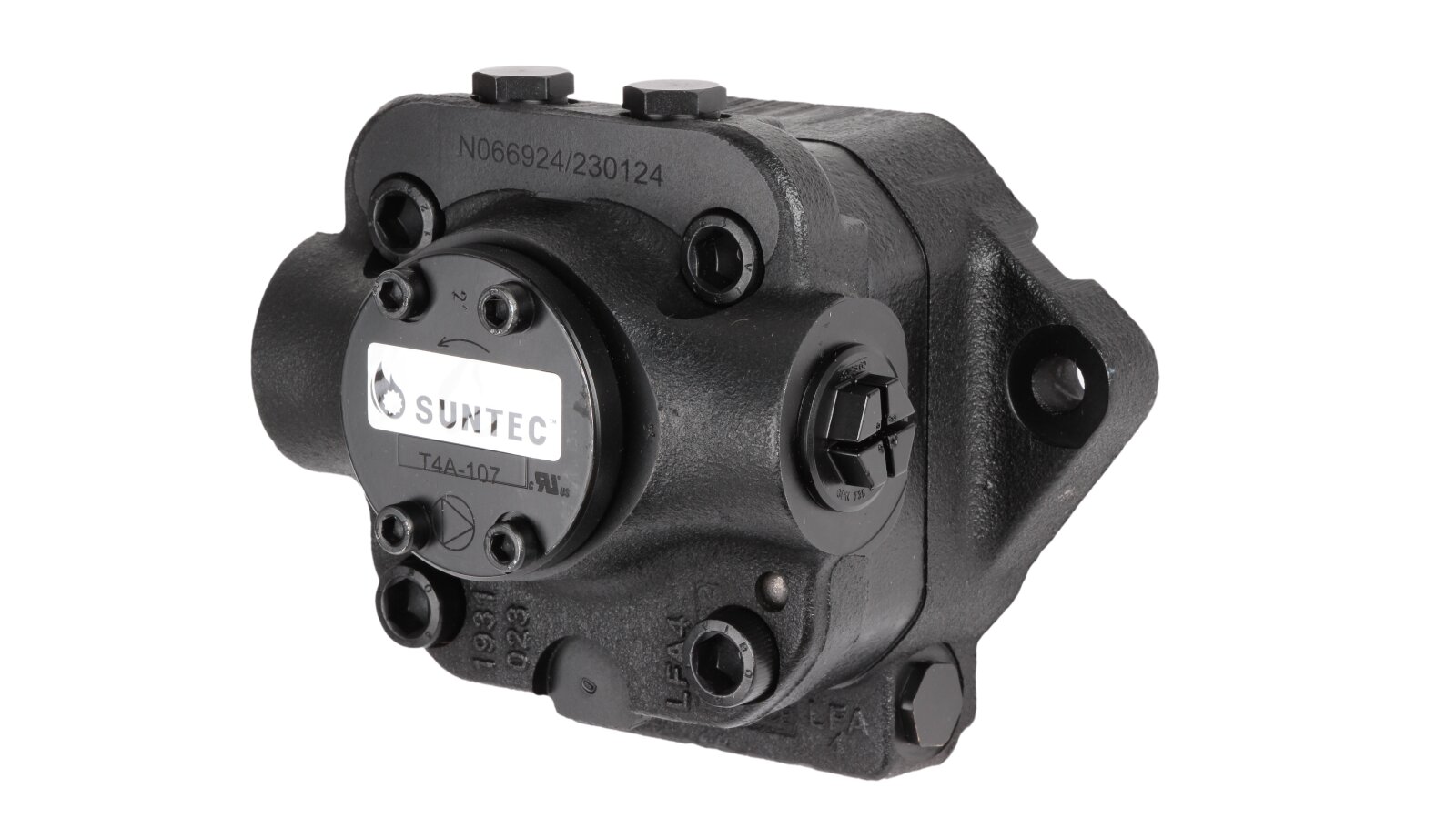

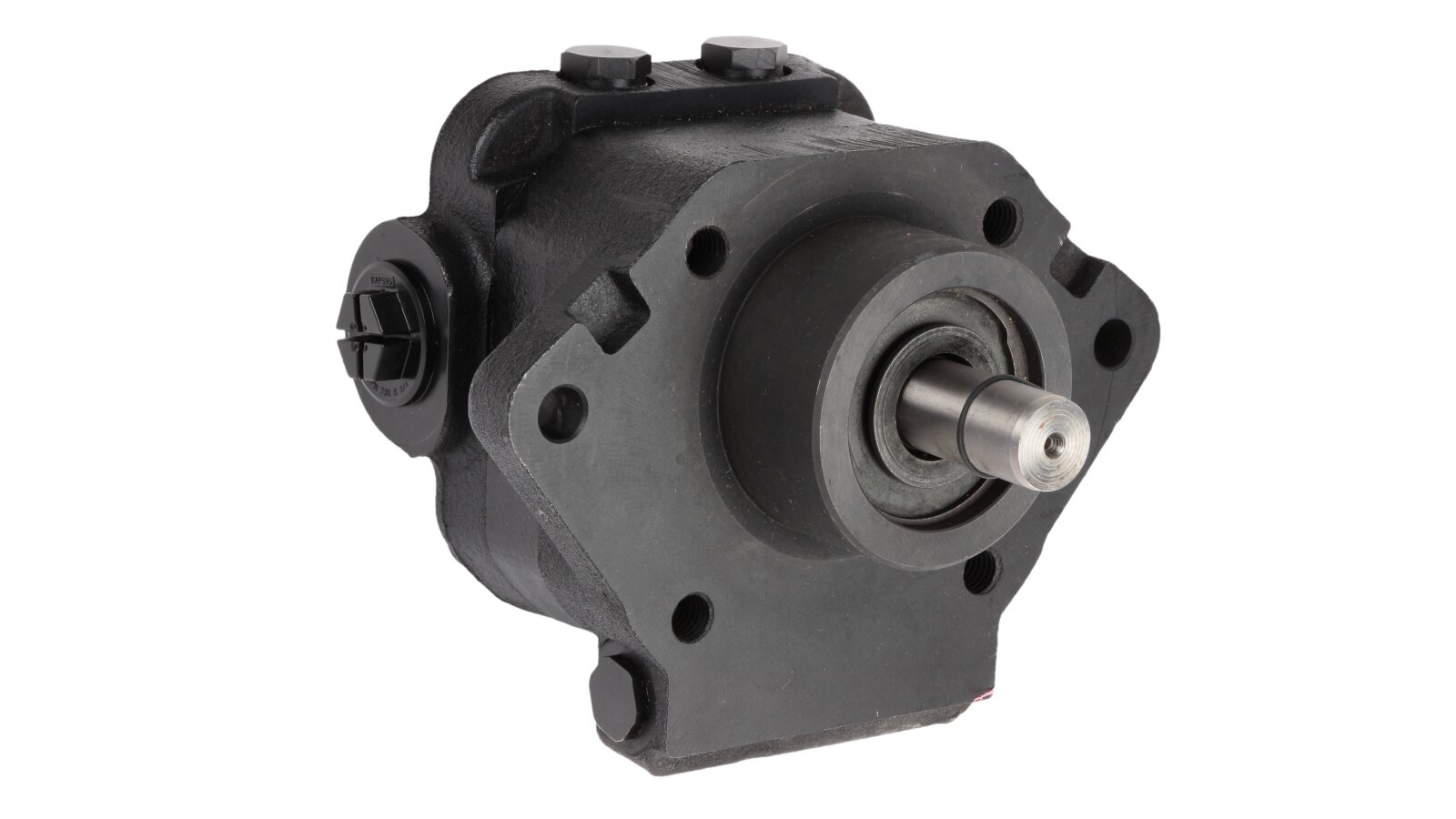

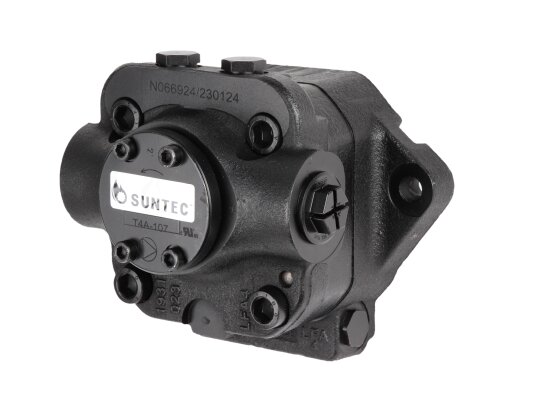

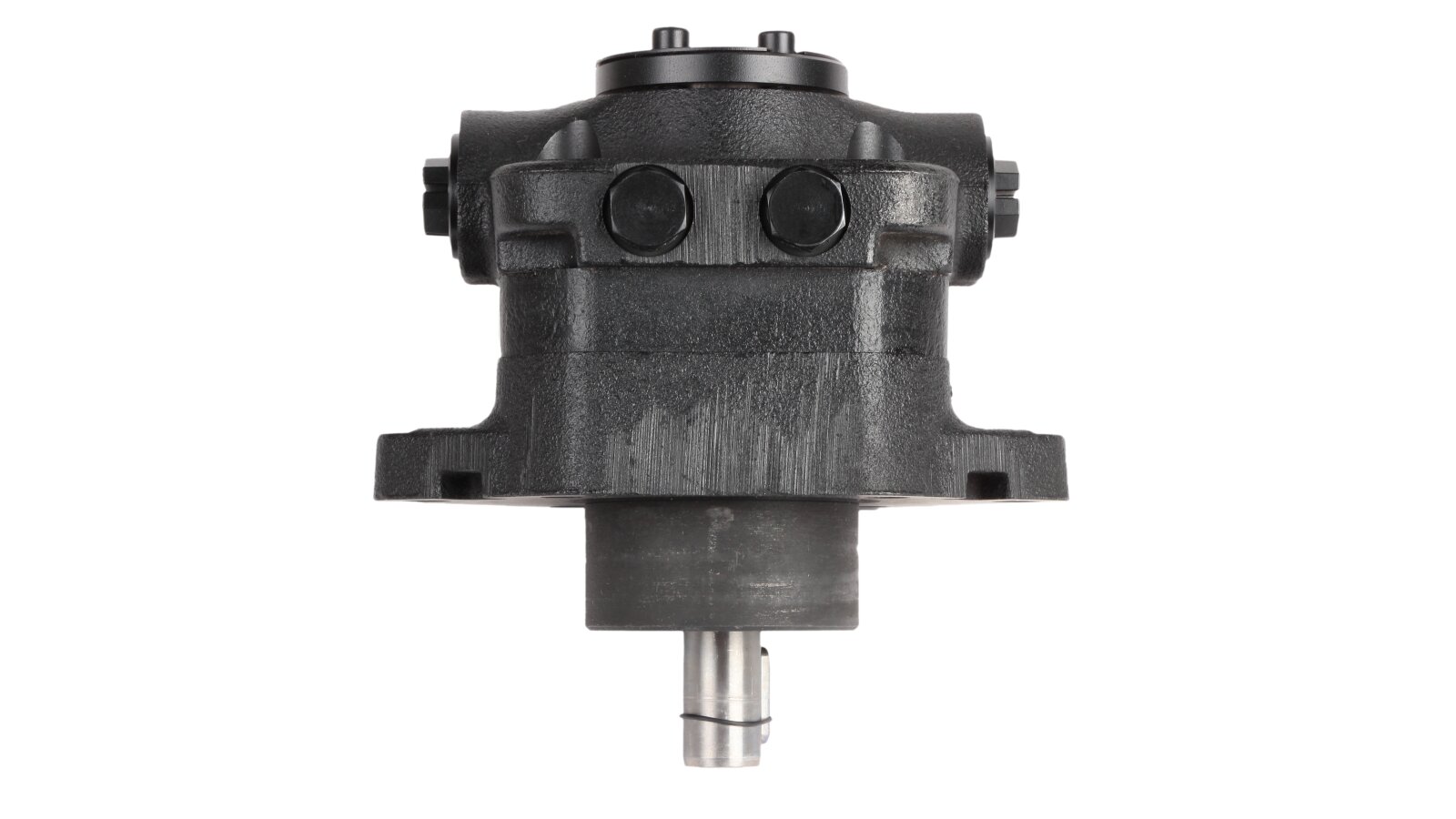

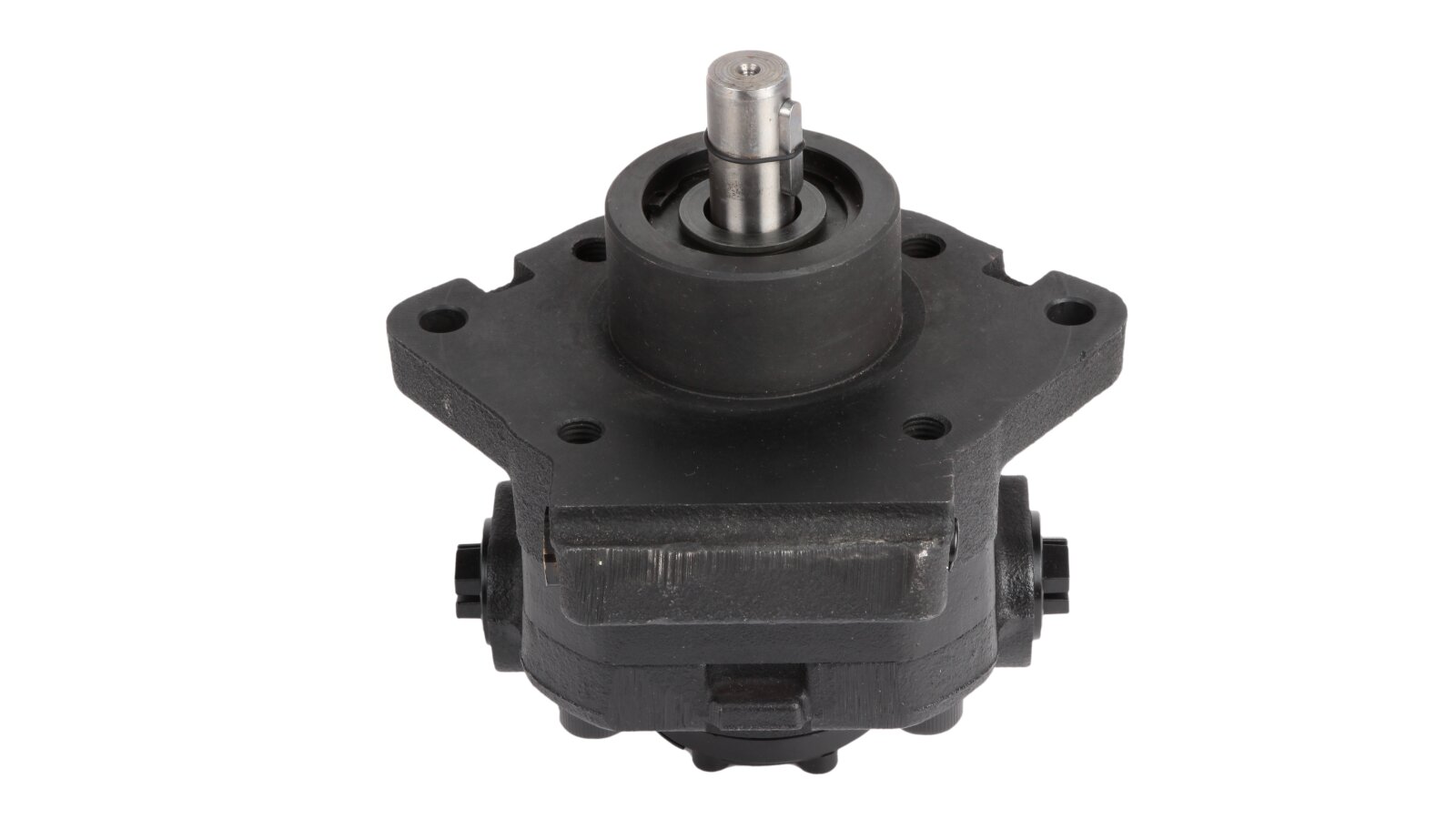

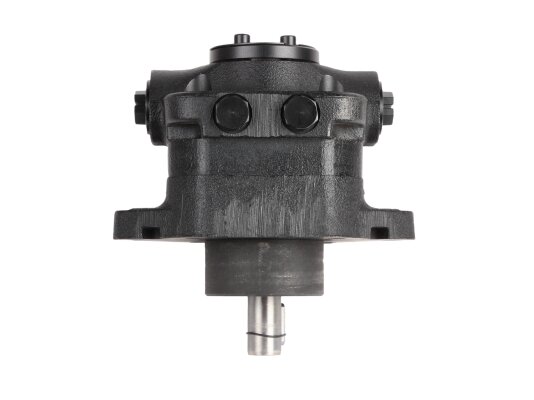

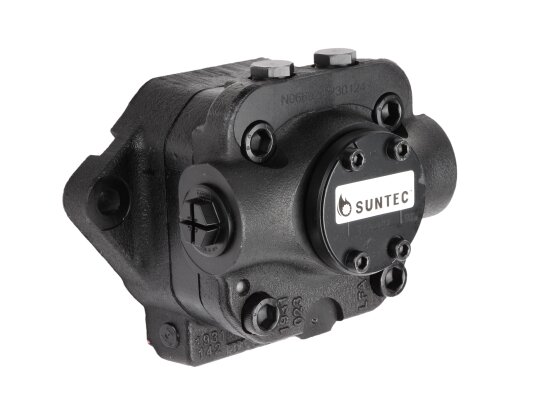

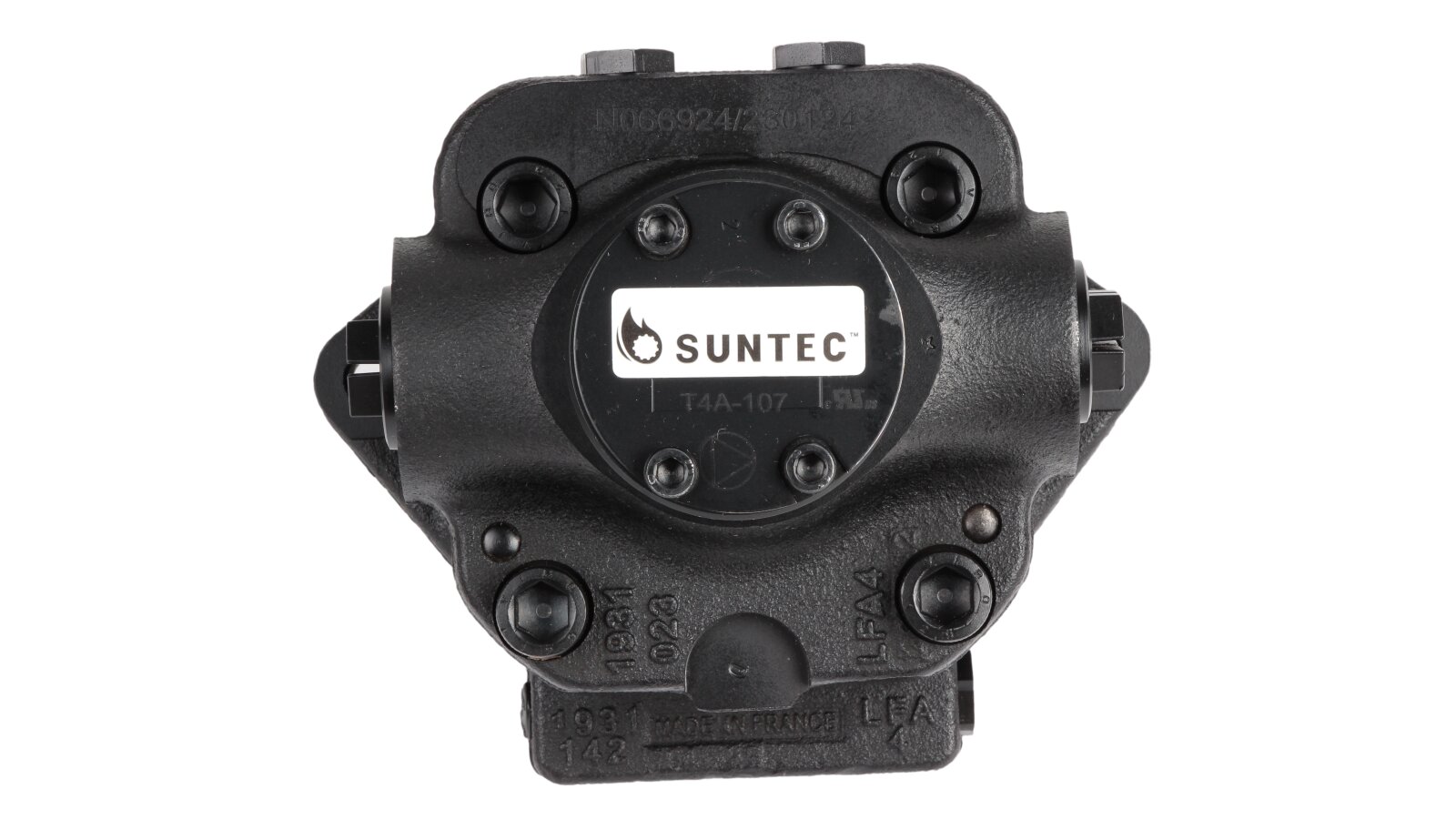

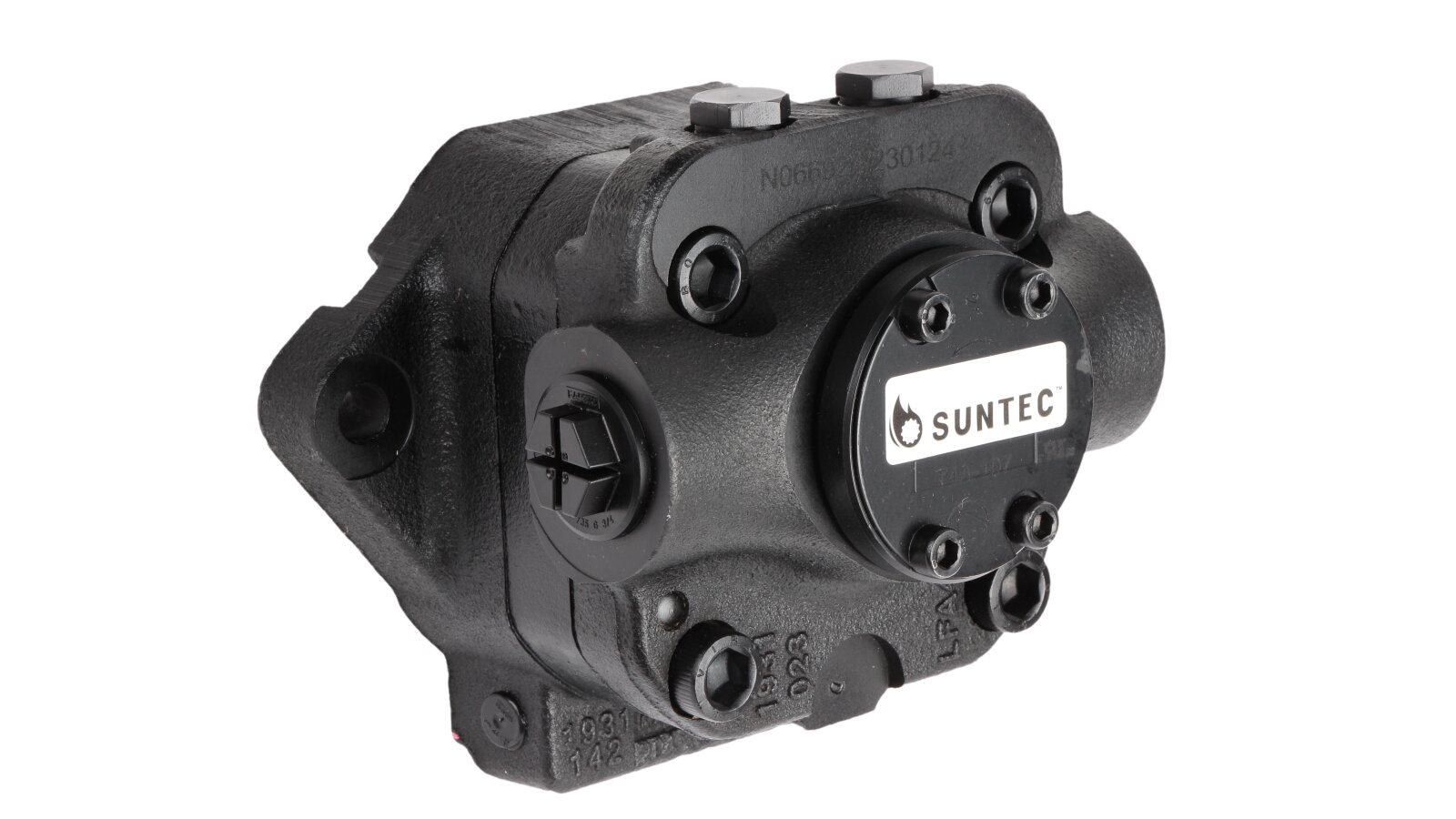

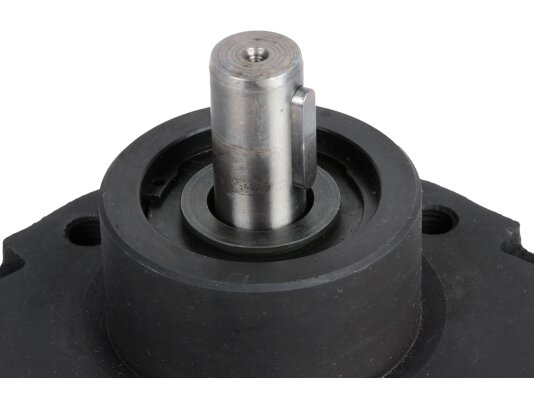

Burner Pump Suntec T 4 A 10 7

Suntec

Alternative Part Number

FBR

258568

AED 10,600

Oil Burner Pumps
Products code: 36863

Description

The Suntec T 4 A 10 7 burner pump is an industrial high-performance equipment for pumping diesel fuel and fuel oil under pressure up to 40 bar. It is used to equip powerful heating systems. The design does not contain a pressure regulating and electromagnetic valves. Heat-resistant design and a special seat allow the installation of an electric heater, facilitating a cold start.

Features:

  • universal purpose - for fuel oil, crude oil, diesel fuel;

  • design adapted for work with heated fuel;

  • setting pressure parameters in a wide range, from 1 to 40 bar;

  • temperature of the pumped medium 0 ... + 150 ° C;

  • hole in the body for mounting a fuel heating device;

  • for working with fuel with a viscosity of 3-75 cSt, it is possible to use for more viscous types of fuel when reducing the viscosity to the recommended one by preheating;

  • flange connection, ∅ 70 mm;

  • bypass plug between the high-pressure area and the shaft seal to change the direction of rotation;

  • threaded ports for pressure gauge and vacuum gauge G¾";

  • without built-in filter, it is necessary to install a motorized filter behind the pump;

  • special design for industrial purposes with high flow rate;

  • version without shut-off solenoid valve.

The manufacturer recommends equipping the Suntec T 4 A 10 7 burner pump with an external SUNTEC TV valve for pressure regulation.

Characteristics

Vacuum gauge port: ¼ inchPerformance at 11 bar pressure and 5 cSt viscosity: 3714 l/hOperating viscosity: from 3 to 75 mm²/sModel type: without electromagnetic valveOil temperature: from 0 to 150 °C in the pumpPump series: T: no pressure adjustmentPerformance at 7 bar pressure and 5 cSt viscosity: 3815 l/hPerformance at 30 bar pressure and 75 cSt viscosity: 3948 l/hPerformance at 30 bar pressure and 5 cSt viscosity: 3300 l/hPerformance at 20 bar pressure and 5 cSt viscosity: 3522 l/hPerformance at 20 bar pressure and 20 cSt viscosity: 3879 l/hPerformance at 14 bar pressure and 75 cSt viscosity: 3980 l/hPerformance at 14 bar pressure and 20 cSt viscosity: 3905 l/hSolenoid valve consumption: от 460 Вт при 5 сСт /1 бар до 3530 Вт при 5 сСт /40 бар WPressure gauge port: ¼ inchNominal rotation speed: 2850 rpmTorque: 0.4 N·mSuction and return line: ¾ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilNozzle outlet: ¾ inchInlet pressure: 0.45 - 0.5 barShaft diameter: 20 mmNozzle pressure range: from 1 to 40 barShaft design: one cavityMaximum rotation speed: 3600 rpmInstallation method: flange ∅ 70 mmDirection of rotation (looking at the drive shaft): A: clockwise rotation / nozzle on the rightType of pumped liquid: diesel, sea ​​water
