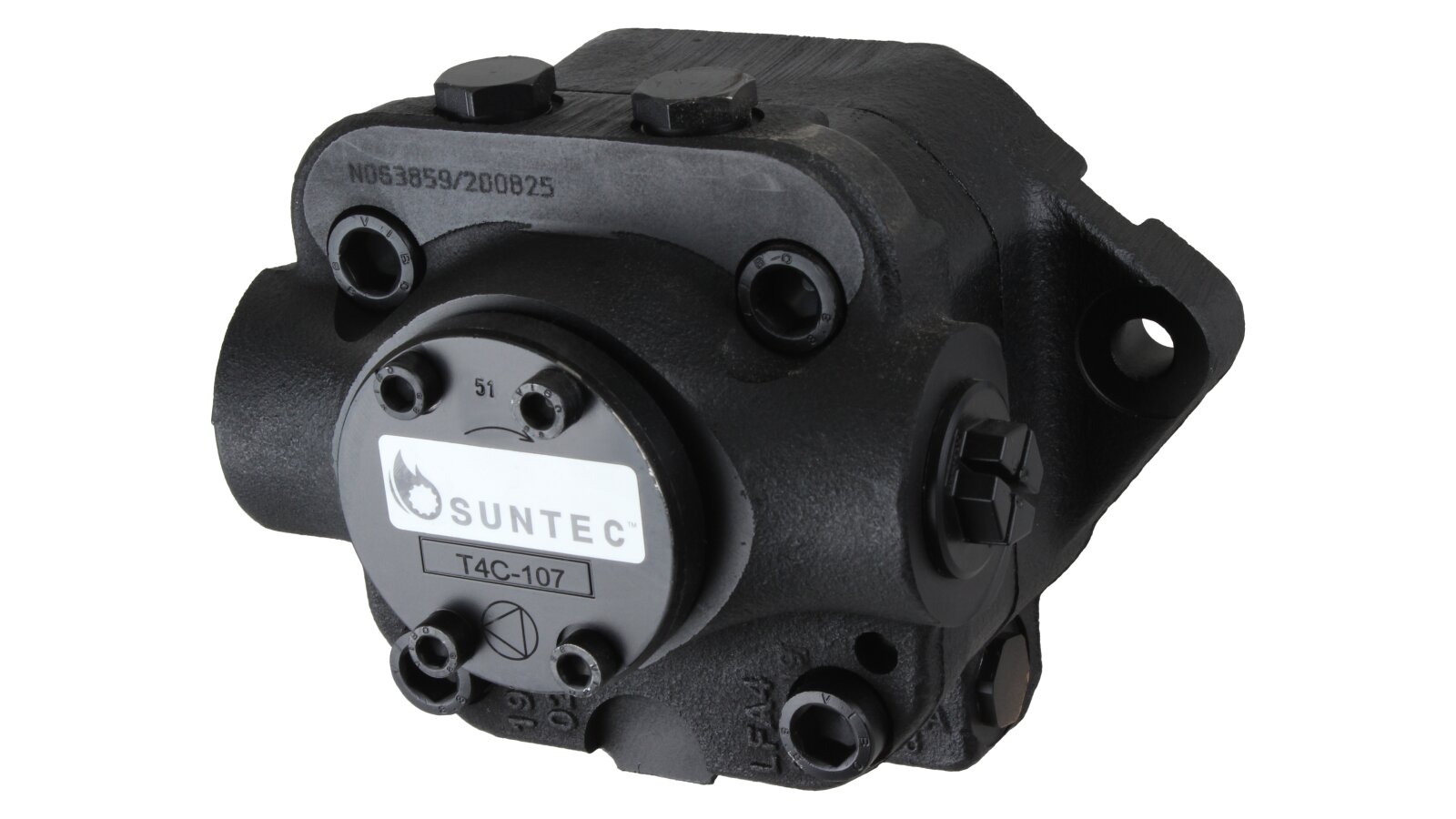

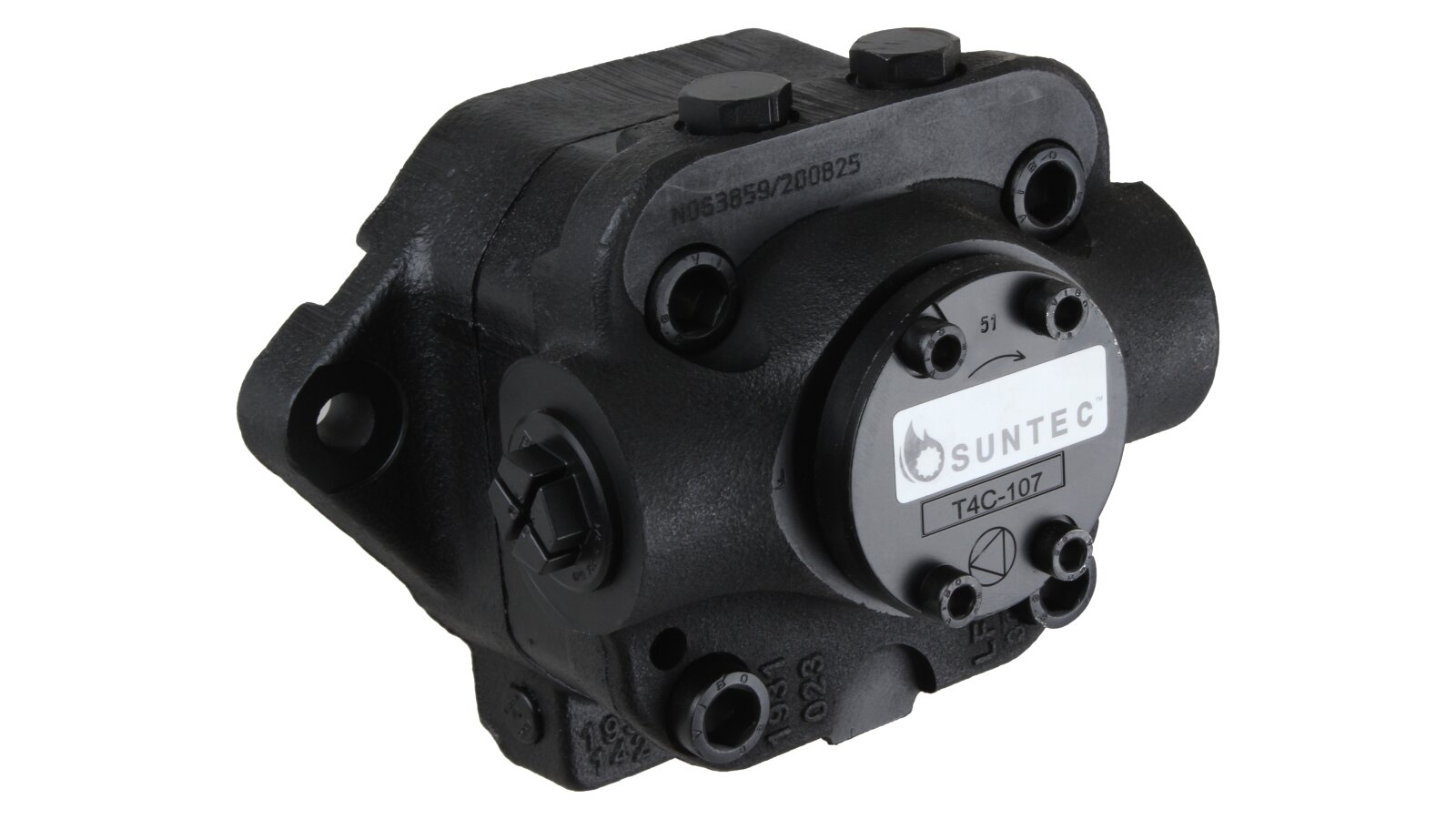

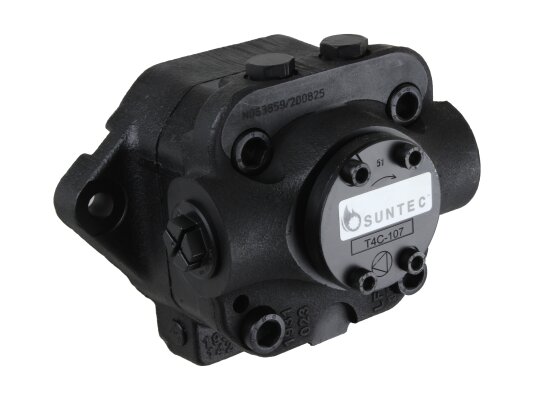

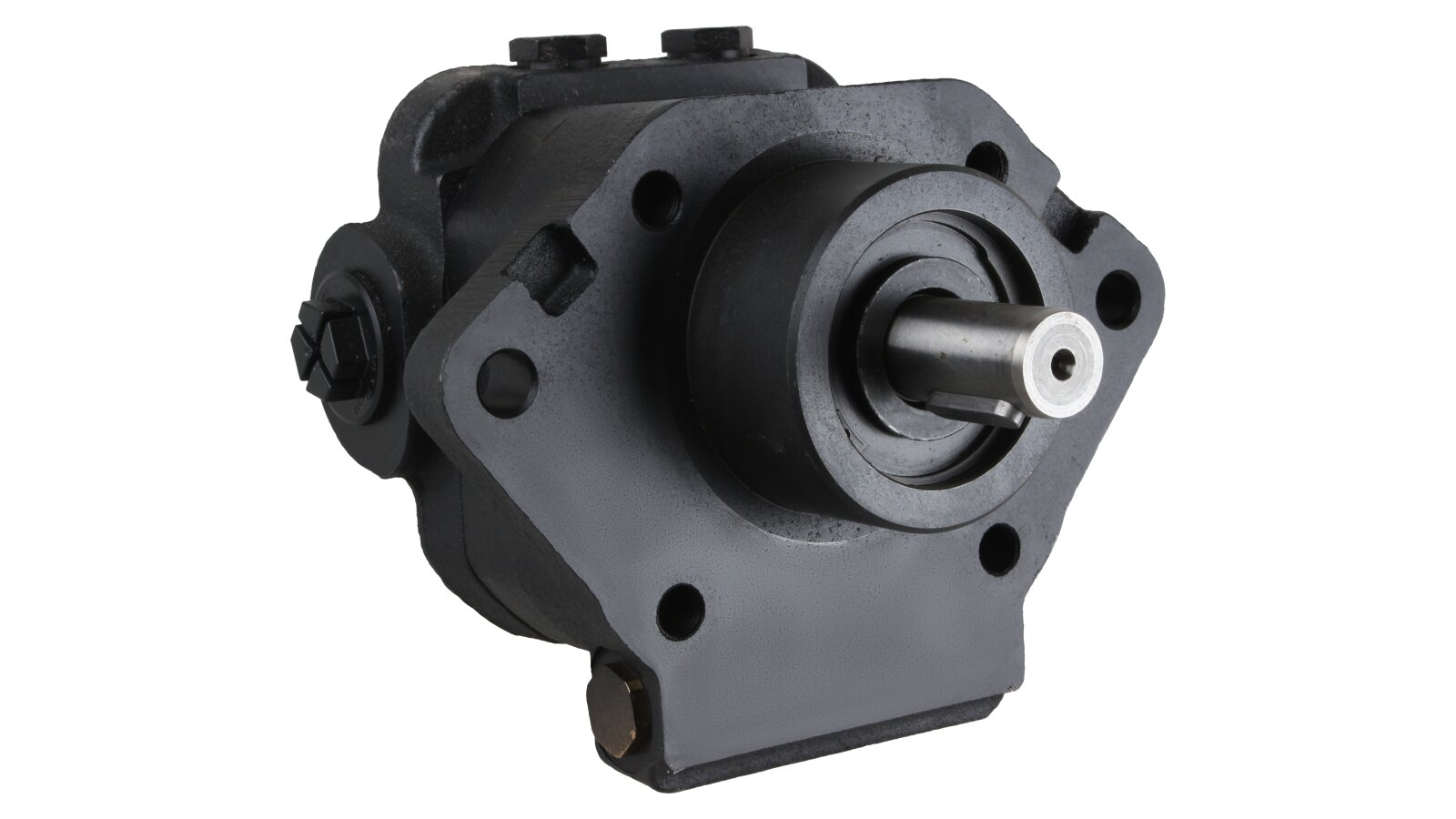

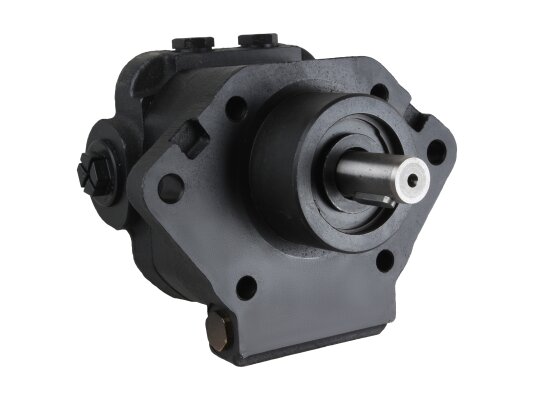

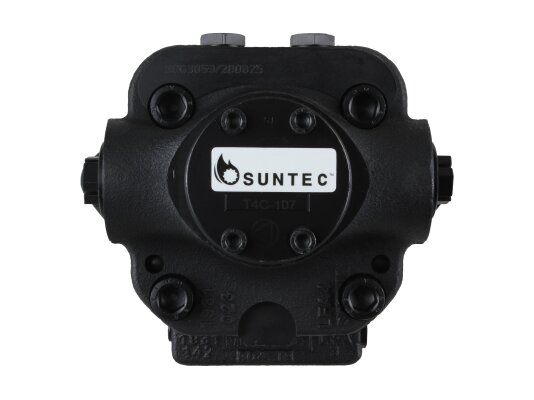

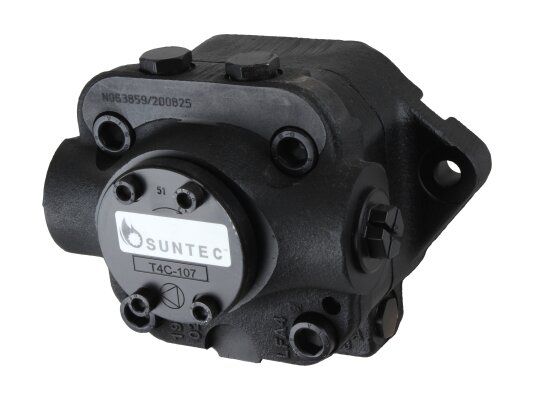

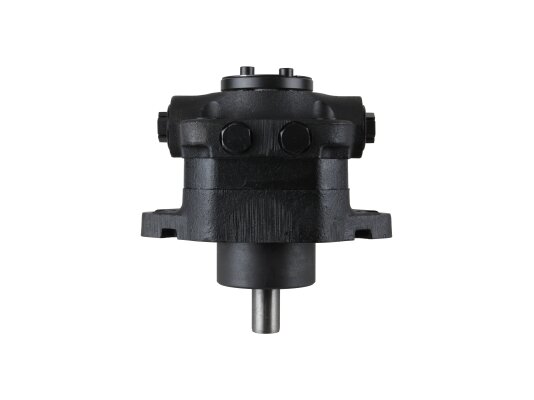

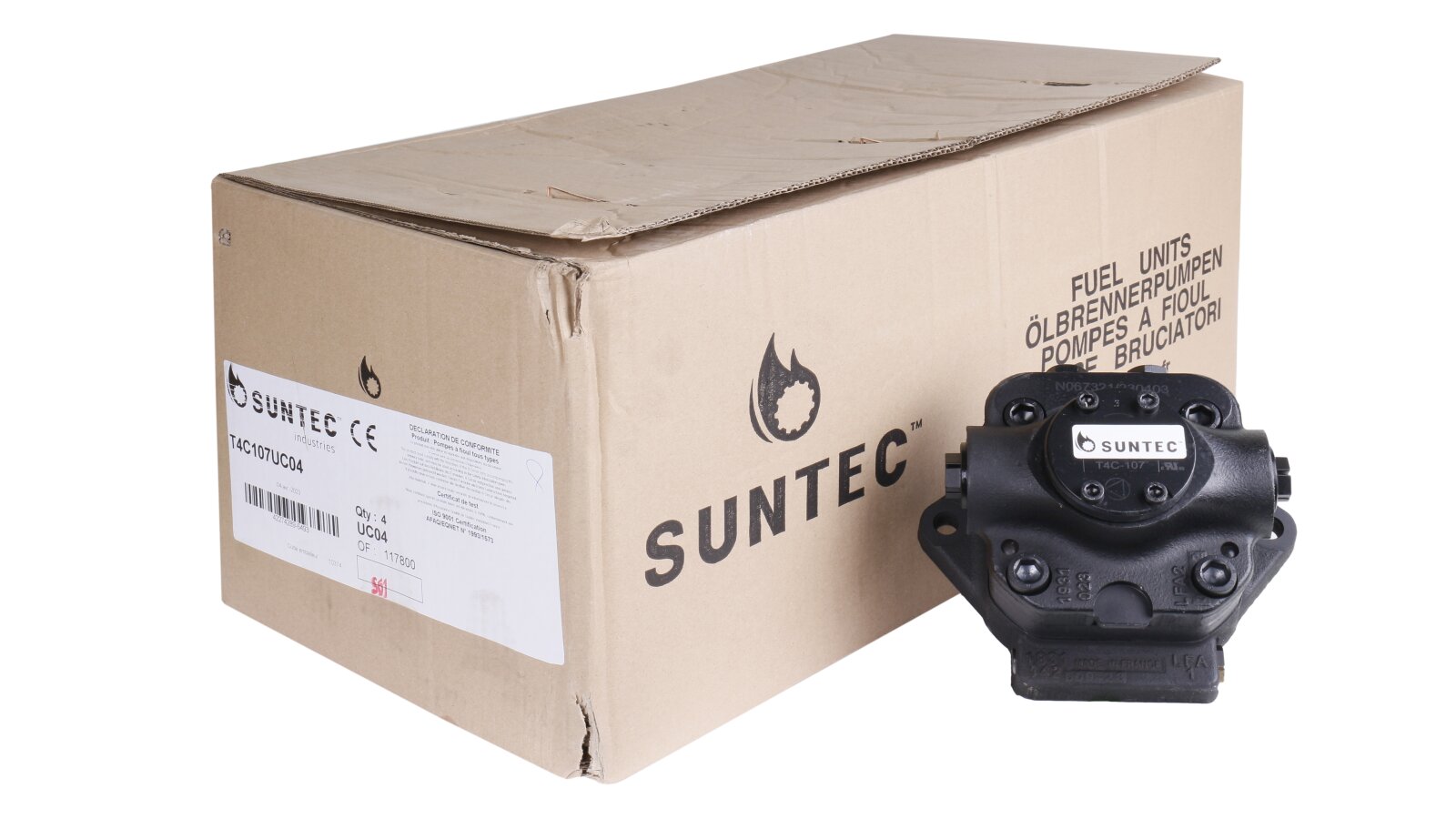

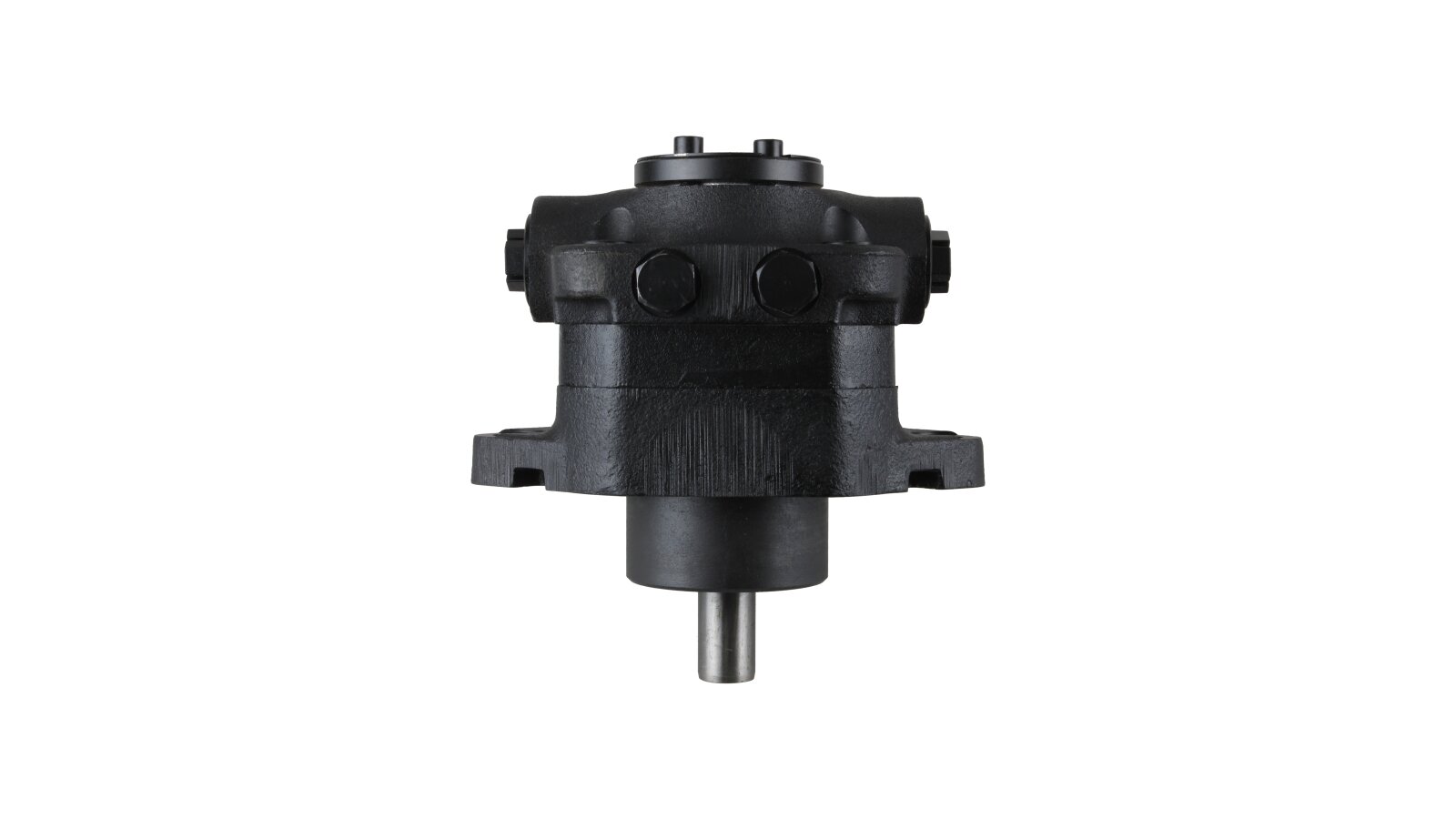

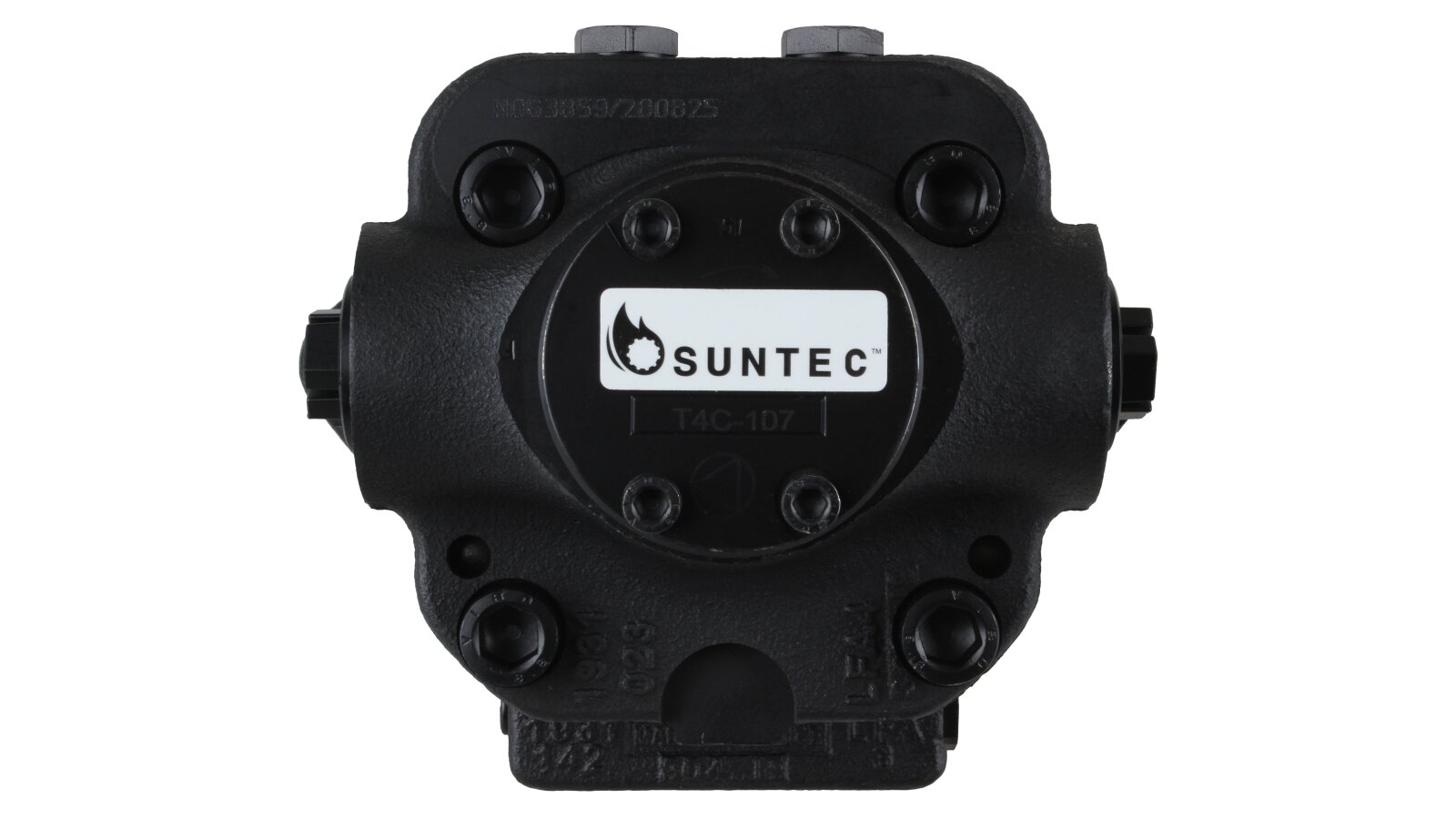

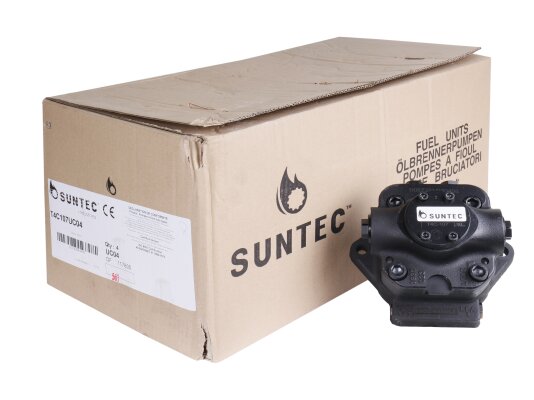

Burner Pump Suntec T 4 C 10 7

Suntec

AED 7,700

Oil Burner Pumps
Products code: 1307

Description

The Suntec T 4 C 10 7 fuel pump ensures stable operation of liquid fuel burners with a capacity of up to 30,000 kW, operating on diesel fuel and fuel oil. This high-capacity equipment is used for heating large production bases, factory areas, retail pavilions and warehouses. The lack of a control function can be compensated for by installing an external Suntec TV shut-off valve.

Design features

The main functional unit is a gear pair with increased resistance to wear and loads. The gear moves fuel from the tank to the external valve, and then under a given pressure - to the nozzle.

The design does not contain a mesh filter. For additional protection of the gear mechanism, the manufacturer recommends installing a 200 micron motorized filter "upstream". The Suntec T 4 C 10 7 fuel pump has a heat-resistant design - it distills fuel heated to +150 degrees. Heating is necessary to minimize the load on the gears and extend their service life.

The housing has a hole for mounting the heating element. The location of the heater is chosen as efficiently as possible - direct contact with the fuel is excluded and the greatest heat transfer is ensured. The device is turned on in advance to simplify the start-up of the burner.

To reduce the risk of premature wear when working with fuel oil, it is recommended to include a degasser flask in the pipeline.

Main parameters

  • The viscosity of the fuel is from 3 to 75 cSt.

  • The pressure is set to 40 bar.

  • Feed rate: 2710 l / h at maximum viscosity and pressure of 30 atm.

Advantages

  • high fuel feed rate;

  • versatility - work with fuel of various types and viscosities;

  • easy start-up of the burner when installing an electric heater;

  • heat resistance - the fuel temperature can reach +150 degrees;

  • hole for installing an external valve;

  • threaded outputs for connecting a pressure gauge and vacuum gauge according to ISO 228/1.

Availability and reliability

The combination of decent technical and operational parameters, undemanding operation and affordable price is what distinguishes Suntec products from competitors' models. You can buy a Suntec T 4 C 10 7 fuel pump and auxiliary equipment for assembling modern boiler plants of any scale from us.

Characteristics

Shaft design: one cavityOil temperature: from 0 to 150 °C in the pumpPump series: T: no pressure adjustmentPerformance at 30 bar pressure and 75 cSt viscosity: 2710 l/hPressure gauge port: ¼ inchVacuum gauge port: ¼ inchNominal rotation speed: 2850 rpmDirection of rotation (looking at the drive shaft): C: counterclockwise rotation / nozzle on the leftInstallation method: flange ∅ 70 mmMaximum rotation speed: 3600 rpmModel type: without electromagnetic valveNozzle pressure range: from 1 to 40 barShaft diameter: 20 mmInlet pressure: 5 barNozzle outlet: ¾ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilSuction and return line: ¾ inchTorque: 0.4 N·mOperating viscosity: from 3 to 75 mm²/sType of pumped liquid: diesel, sea ​​water
