Characteristics

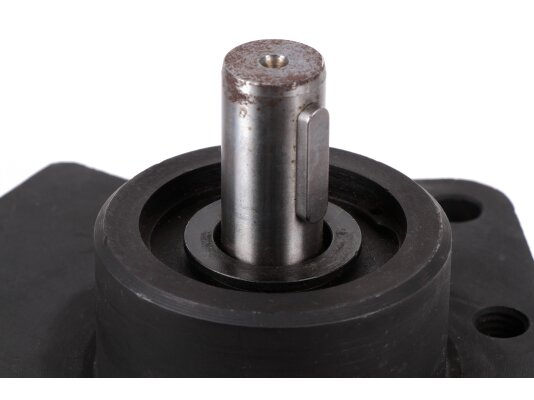

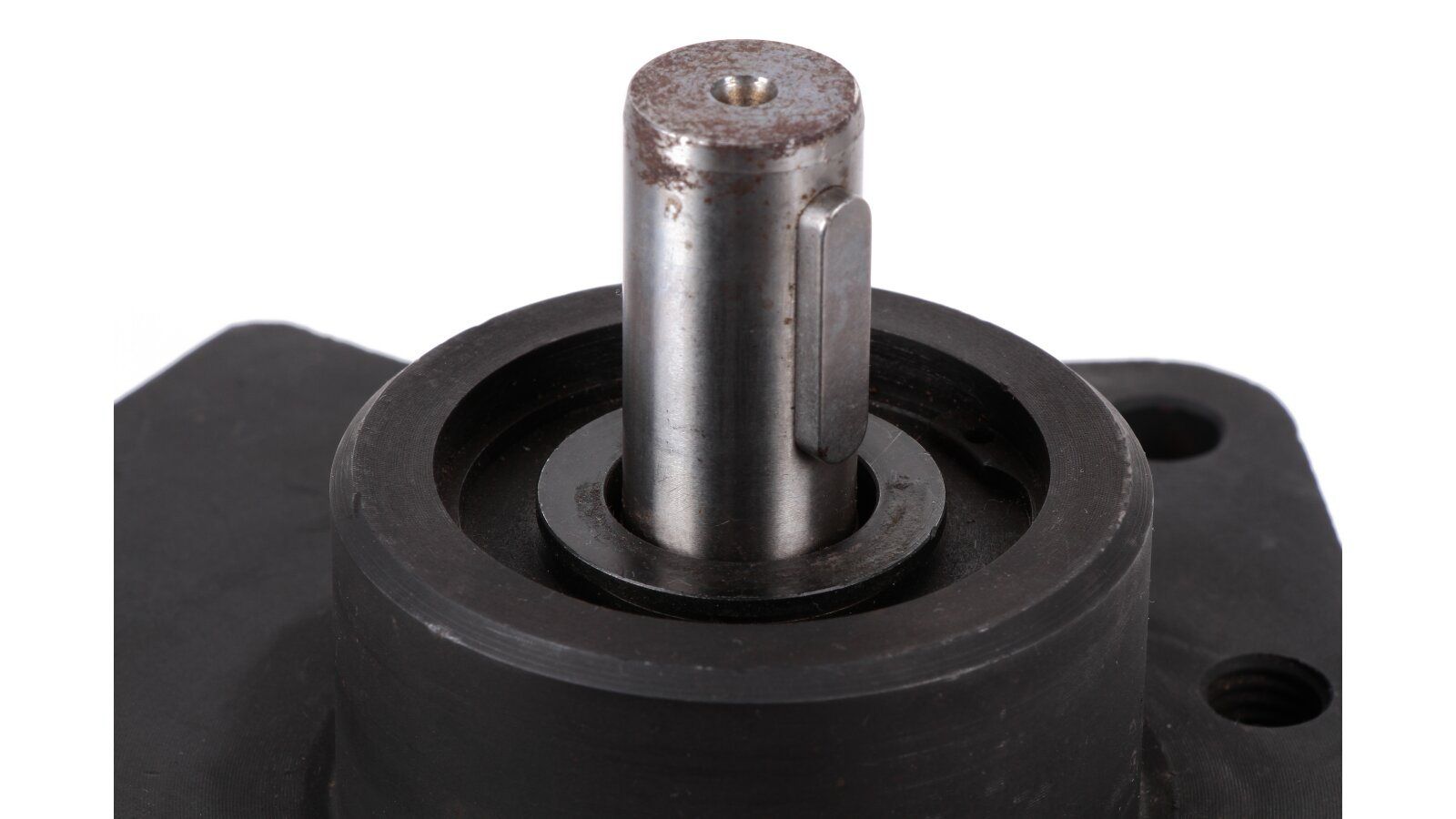

Shaft design: one cavityOil temperature: from 0 to 150 °C in the pumpPump series: T: no pressure adjustmentPerformance at 30 bar pressure and 75 cSt viscosity: 3855 l/hPressure gauge port: ¼ inchVacuum gauge port: ¼ inchNominal rotation speed: 2850 rpmDirection of rotation (looking at the drive shaft): A: clockwise rotation / nozzle on the rightInstallation method: flange ∅ 70 mmMaximum rotation speed: 3600 rpmModel type: without electromagnetic valveNozzle pressure range: from 1 to 30 barShaft diameter: 20 mmInlet pressure: 5 barNozzle outlet: ¾ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilSuction and return line: ¾ inchTorque: 0.4 N·mOperating viscosity: from 3 to 75 mm²/sType of pumped liquid: sea water, diesel
Information about the technical characteristics, appearance and color of the product is for reference only and is based on the latest information available at the time of publication
