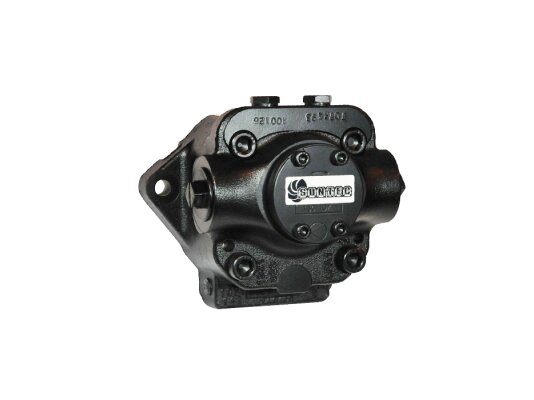

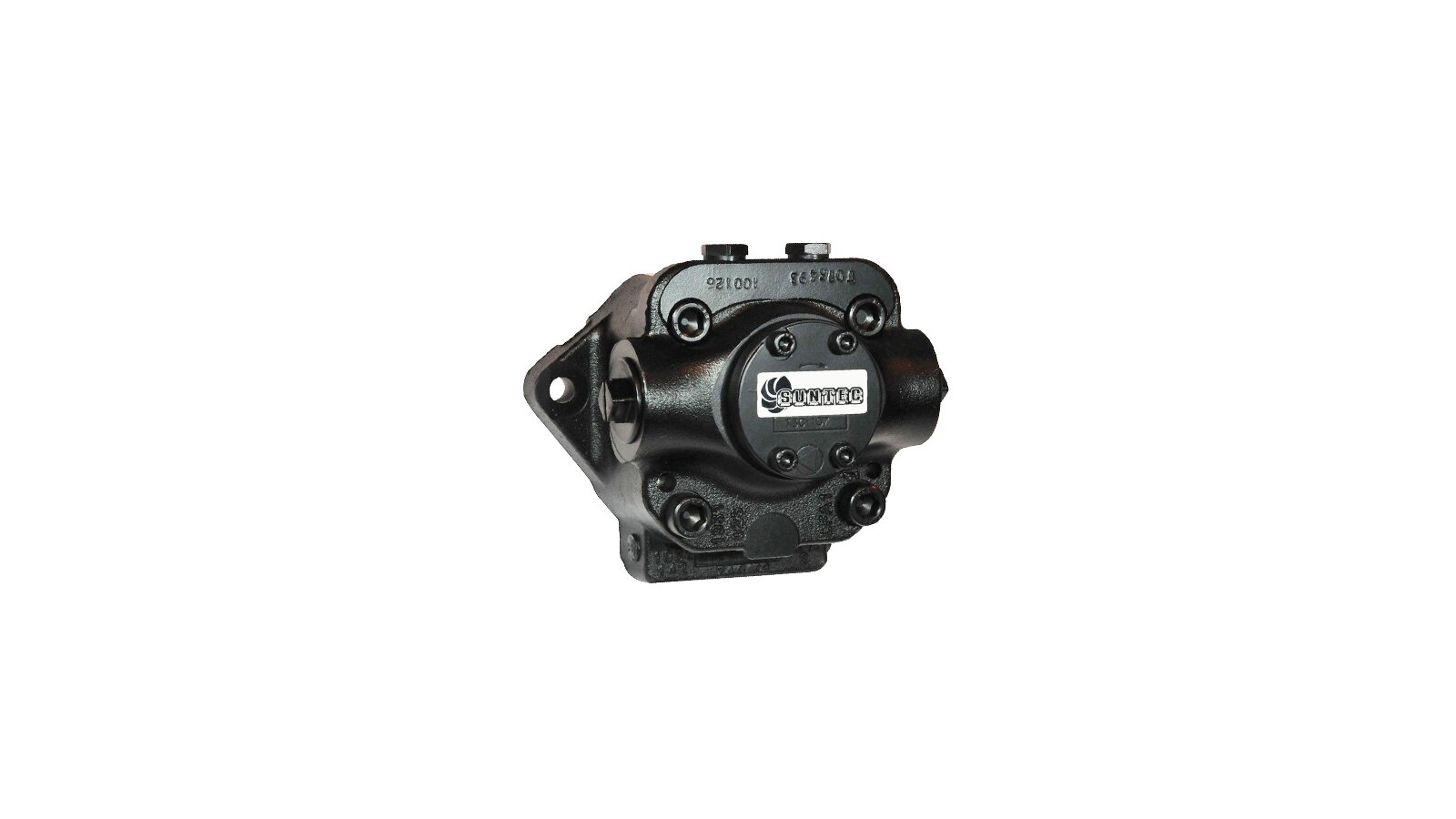

Burner Pump Suntec T 5 A 10 7

Suntec

AED 8,400

Oil Burner Pumps
Products code: 1308

Description

High efficiency and adaptation to work with high fuel temperatures are the main requirements for equipment used on an industrial scale. The Suntec T 5 A 10 7 fuel pump pumps 3855 liters of working fluid with a viscosity of 75 cSt per hour at a pressure of 30 atm. It is used as part of boiler complexes for feeding fuel oil and diesel fuel to burners with a capacity of 3000-30000 kW.

Design

  • The pump does not have a control valve. The feed pressure is set to 30 atm. The lack of a pressure regulation function can be compensated for by using an external Suntec TV valve.

  • The Suntec T 5 A 10 7 fuel pump has a heat-resistant design and the ability to install a heater, which facilitates the start of the burner and extends the service life of the unit. It is possible to work with fuel, the temperature of which reaches +150 degrees. Heated fuel liquefies, which reduces the load on the gear pair.

  • The installation location of the heating element is chosen so that heat transfer is carried out extremely efficiently, and direct contact with the fuel is excluded. The main thing is to turn on the device in advance of starting the pump, so that the fuel has time to heat up.

Manufacturer's recommendations:

Additionally, it is recommended to install a degasser flask in the pipeline, which will reduce the wear of the structure when working with fuel oil.

Due to the lack of an integrated filter, the likelihood of emergency shutdowns can be eliminated by installing a motorized filter of 200 microns after the pump.

Let's note the advantages:

  • maximum throughput in the presented line is 3850 l / h;

  • universal purpose - pumping diesel fuel, fuel oil;

  • heat-resistant design;

  • the ability to install an electric device for easy start-up of the burner;

  • threaded outlets and ports of standard sizes according to ISO 228/1.

To form reliable industrial heating systems for premises, we offer to buy a fuel pump Suntec T 5 A 10 7 and other components at reasonable prices. Suntec products are a successful combination of impeccable characteristics, unpretentiousness and high wear resistance.

Characteristics

Shaft design: one cavityOil temperature: from 0 to 150 °C in the pumpPump series: T: no pressure adjustmentPerformance at 30 bar pressure and 75 cSt viscosity: 3855 l/hPressure gauge port: ¼ inchVacuum gauge port: ¼ inchNominal rotation speed: 2850 rpmDirection of rotation (looking at the drive shaft): A: clockwise rotation / nozzle on the rightInstallation method: flange ∅ 70 mmMaximum rotation speed: 3600 rpmModel type: without electromagnetic valveNozzle pressure range: from 1 to 30 barShaft diameter: 20 mmInlet pressure: 5 barNozzle outlet: ¾ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilSuction and return line: ¾ inchTorque: 0.4 N·mOperating viscosity: from 3 to 75 mm²/sType of pumped liquid: sea ​​water, diesel
