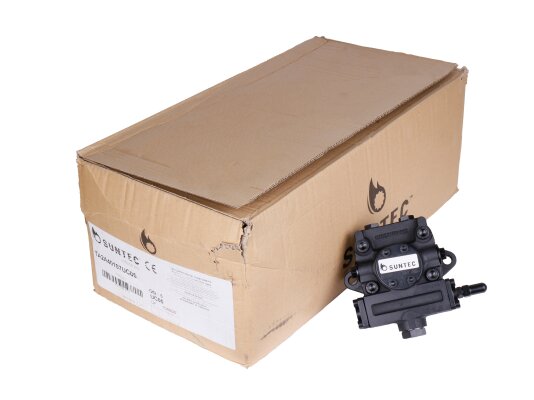

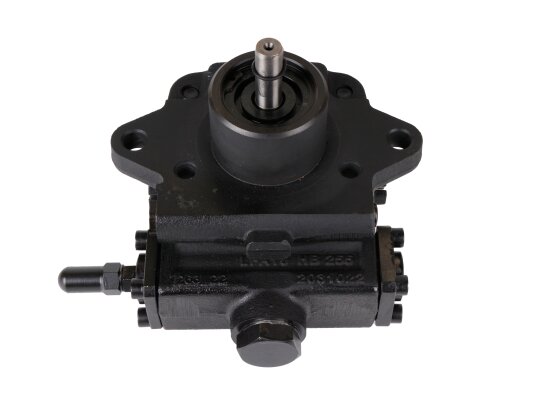

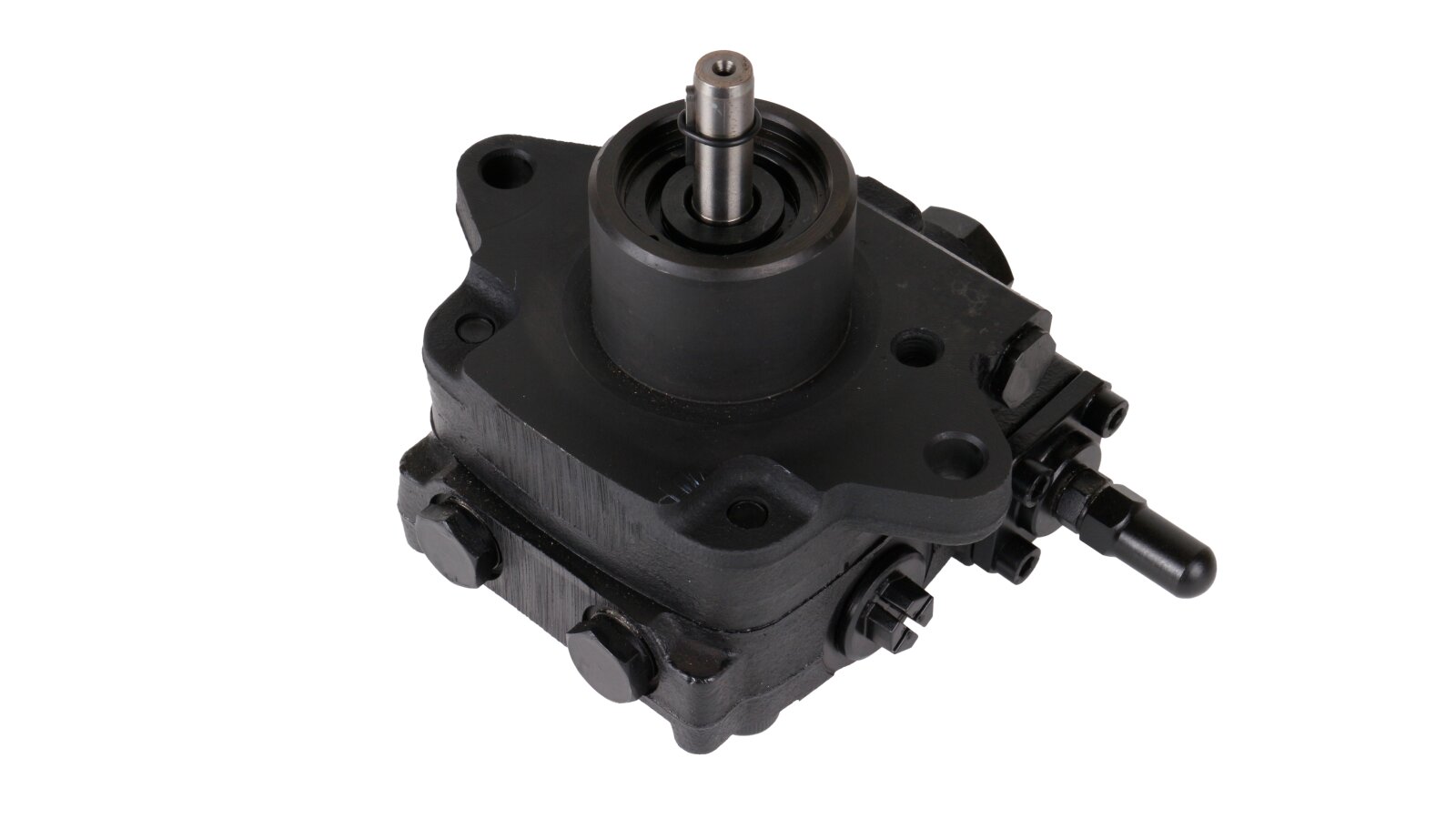

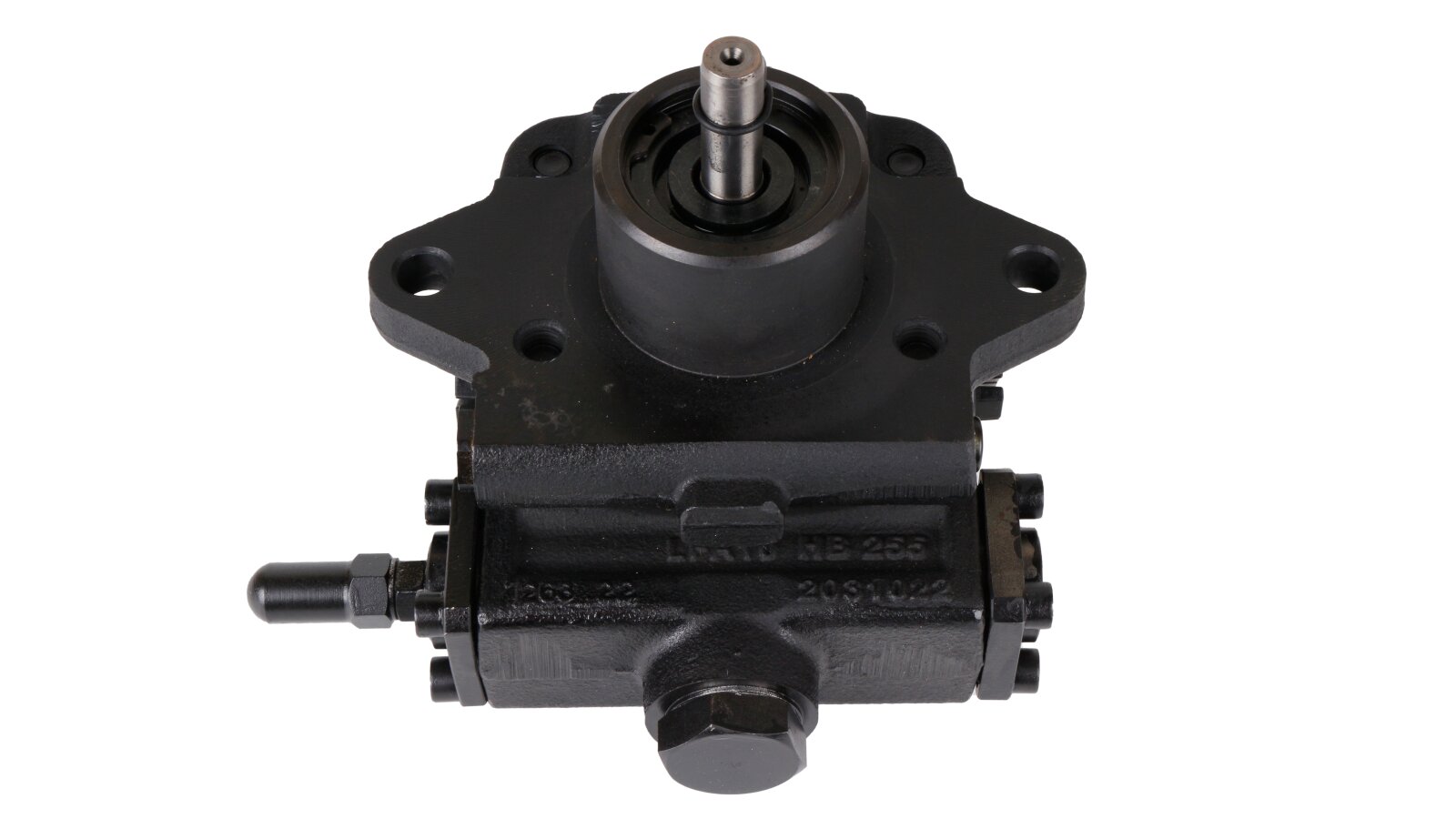

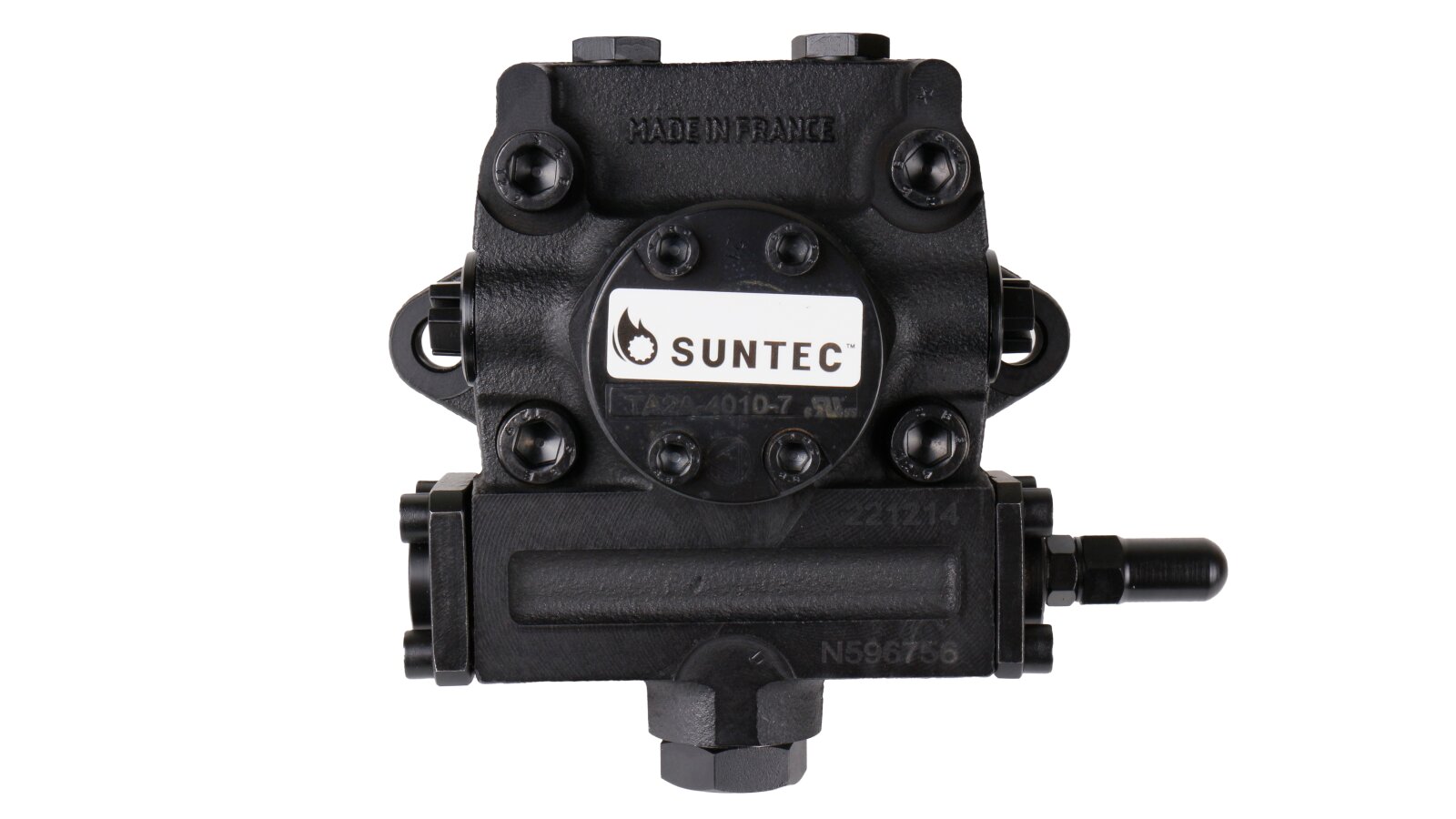

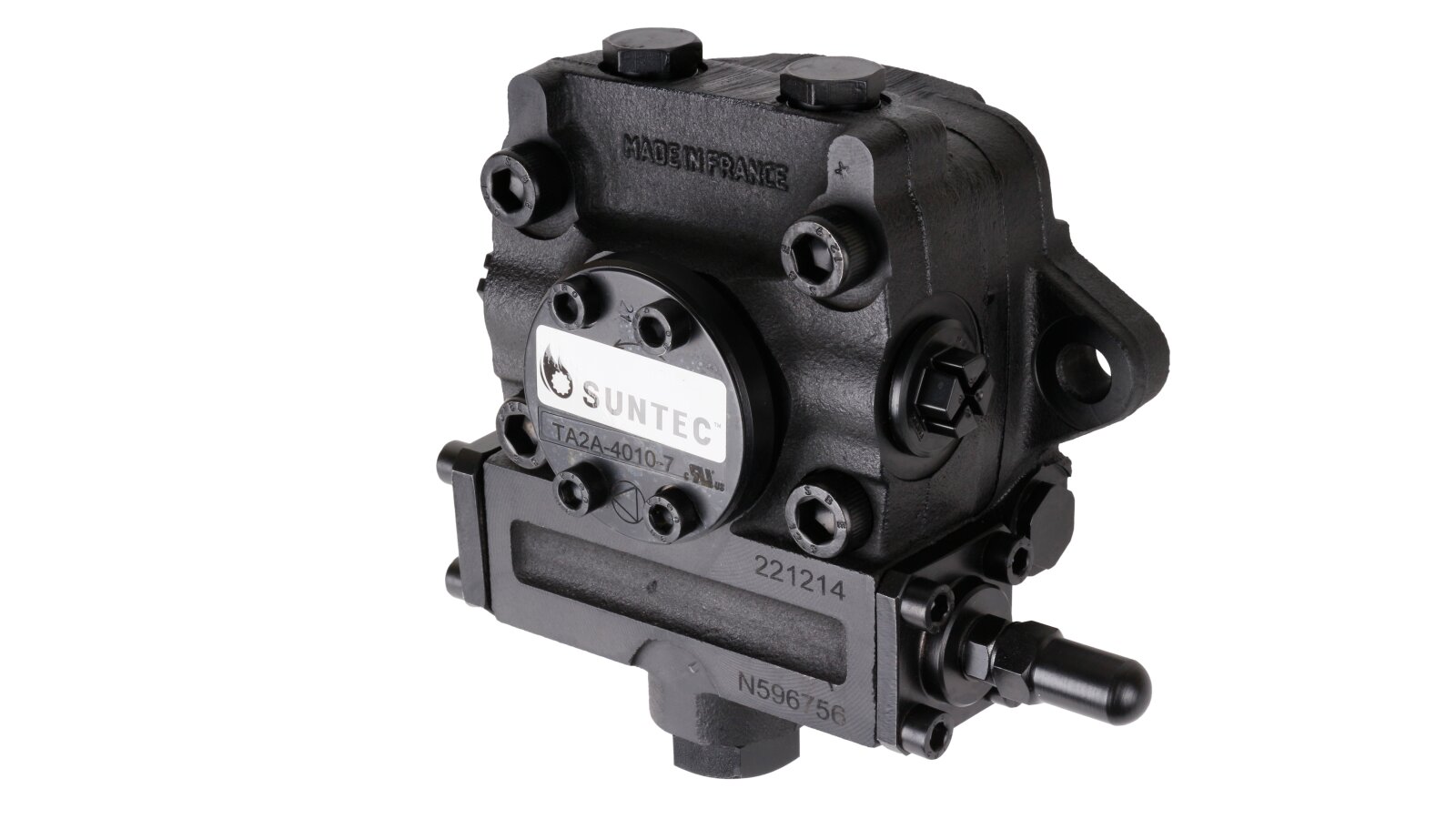

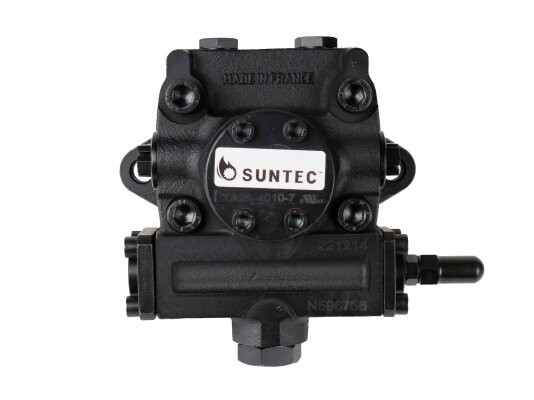

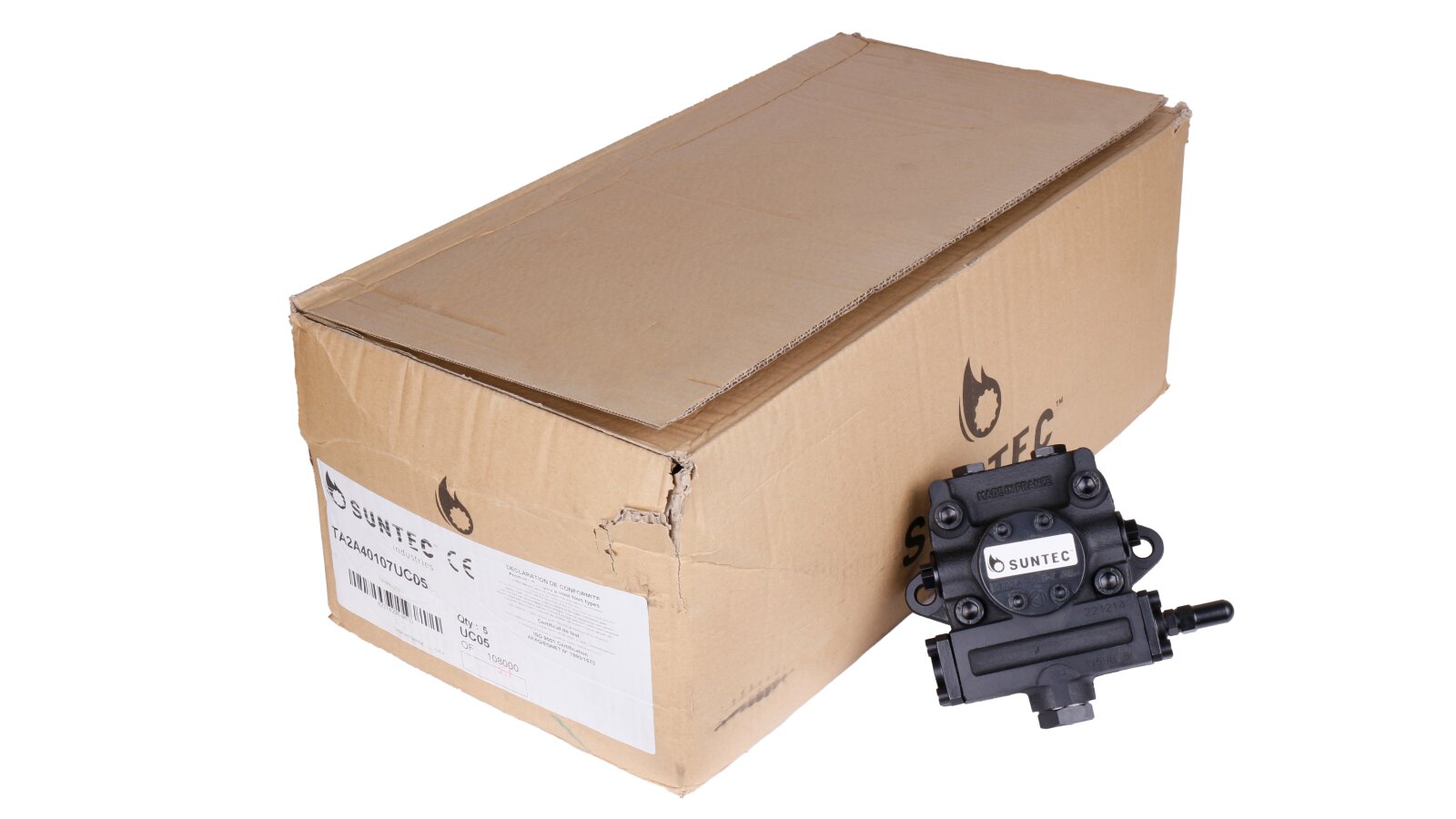

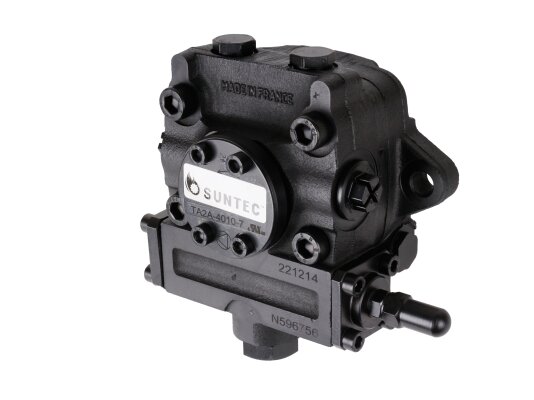

Burner Pump Suntec TA 2 A 4010 7

Suntec

AED 5,700

Oil Burner Pumps
Products code: 1298

Description

The high-performance fuel pump Suntec TA 2 A 4010 6 is built into boiler complexes with a capacity of 3000-30000 kW. It is used for high-speed fuel supply when heating large industrial, warehouse premises, factory workshops, shopping centers. Due to the standard connection method, it is suitable for burners of most manufacturers, including Baltur, Ecoflam, Oilon, etc.

Main operating parameters

  • The fuel is fuel oil, diesel fuel, crude oil with a viscosity of 3-75 cSt.

  • The pressure is regulated in the range of 7-40 atm. Factory setting - 30 bar.

  • The performance depends on the type of fuel and pressure parameters. For example, for diesel fuel 5 cSt and a pressure of 30 atm. is 400 l / h.

Design features

The fuel pump Suntec TA 2 A 4010 6 is a basic model with a pressure regulating valve. There is no locking function. The supply of working fluid to the nozzle can only be stopped manually.

The heat resistance of the device is achieved through the use of special seals and durable materials. Heating of the fuel mixture up to +150 degrees is allowed.

The factory version implies installation of the pump in a two-pipe system. For designs with one pipe, it is necessary to unscrew the bypass plug and block the drain hole.

The housing provides the ability to connect a heater. The heating device is installed to protect the gears from wear and to facilitate the start of the burner.

Operating recommendations

The pump is supplied without a built-in mesh filter, therefore, to protect the nozzles, you should purchase a separate filter with a cleaning depth of 200 microns.

When working with fuel oil, the manufacturer recommends additionally installing a degasser flask, which will eliminate premature wear of the working units.

The main advantages are:

  • standard flange connection;

  • high-speed fuel supply;

  • universal purpose - pumping various types of fuel;

  • automatic air outlet from two-pipe systems;

  • possibility of installation in single- and double-pipe structures;

  • heat-resistant design;

  • standard threaded outputs for connecting measuring equipment.

Suntec equipment combines safe design, reliability and simplicity. You can buy from us at a reasonable price a Suntec TA 2 A 4010 6 fuel pump and other components for forming a functional room heating system. For detailed information on the features of the models, the manufacturer's instructions are attached to the product pages.

Characteristics

Shaft design: one cavityModel type: without electromagnetic valveOil temperature: from 0 to 150 °C in the pumpPump series: TA: Pressure controlPerformance at 30 bar pressure and 75 cSt viscosity: 530 l/hPerformance at 30 bar pressure and 5 cSt viscosity: 400 l/hPressure gauge port: ¼ inchVacuum gauge port: ¼ inchNominal rotation speed: 2850 rpmDirection of rotation (looking at the drive shaft): A: clockwise rotation / nozzle on the rightInstallation method: flange ∅ 54 mmMaximum rotation speed: 3600 rpmBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withFactory pressure setting: 30 barValve function: pressure regulatingNozzle pressure range: from 7 to 40 barShaft diameter: 12 mmReturn pressure: 5 barInlet pressure: 5 barNozzle outlet: ½ inchSuction and return line: ½ inchTorque: 0.3 N·mOperating viscosity: from 3 to 75 mm²/sType of pumped liquid: sea ​​water, diesel
