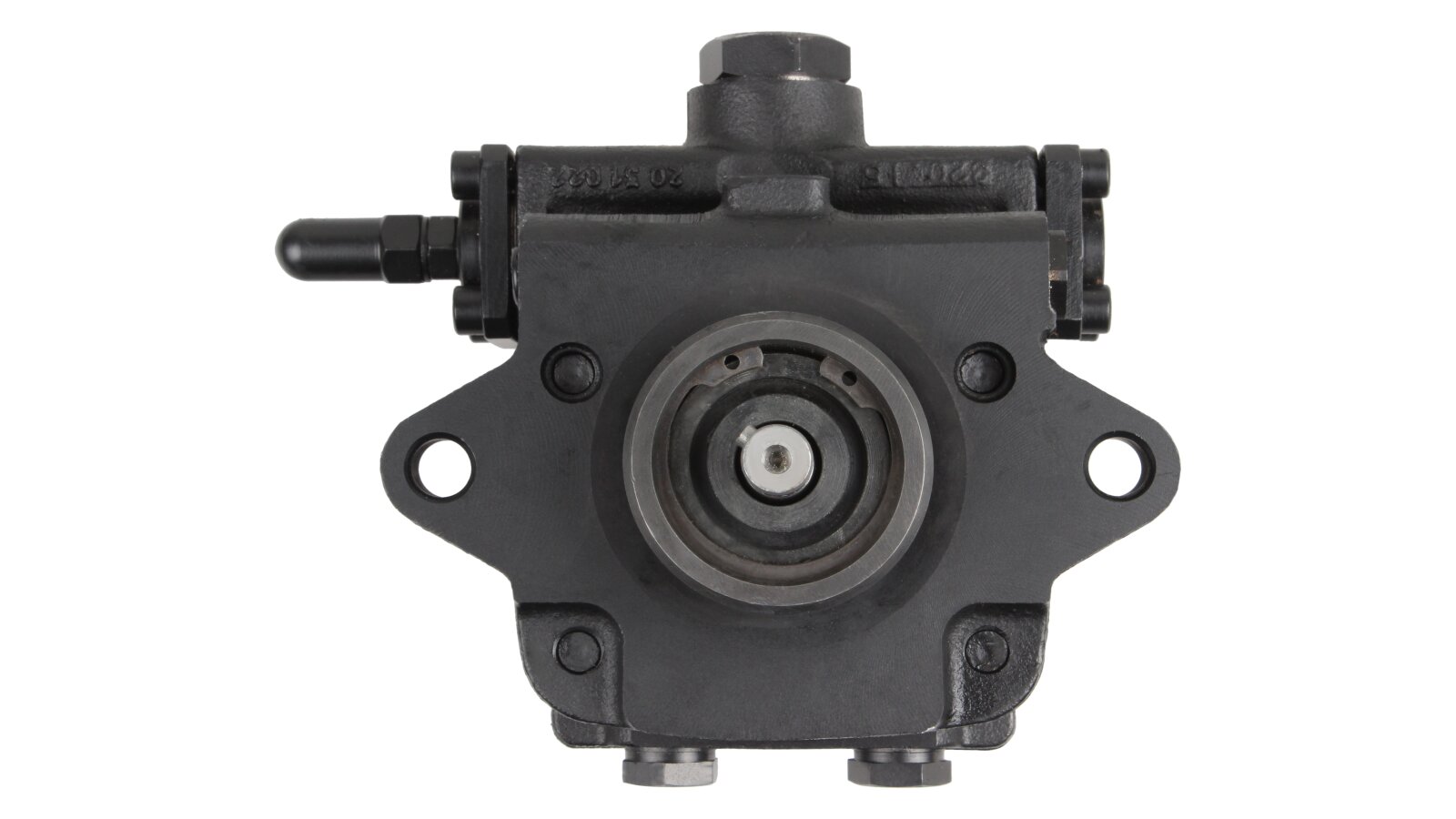

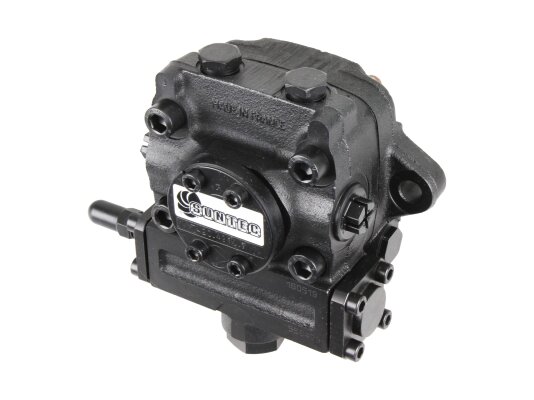

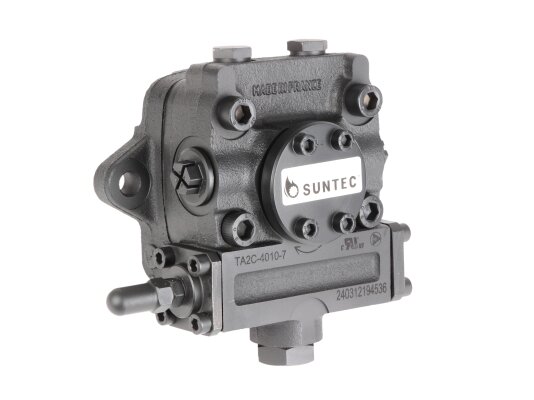

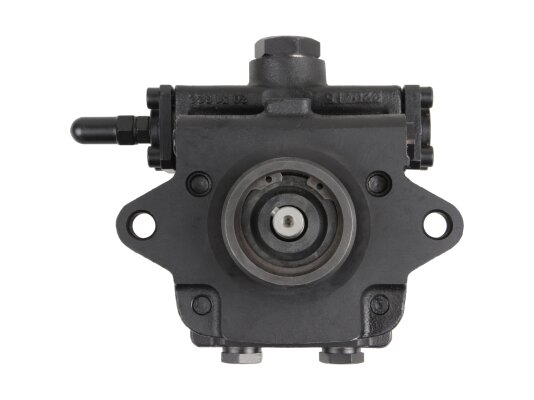

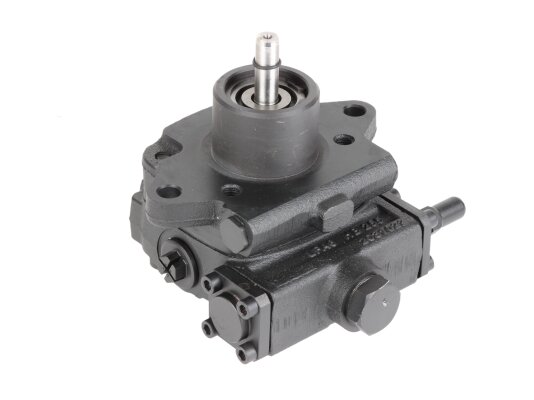

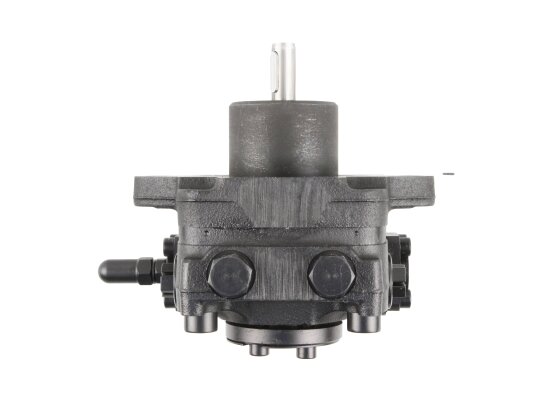

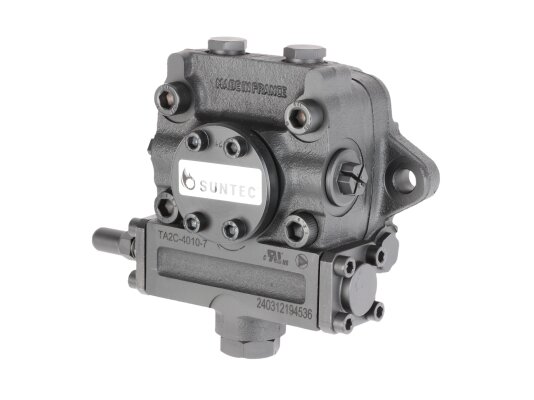

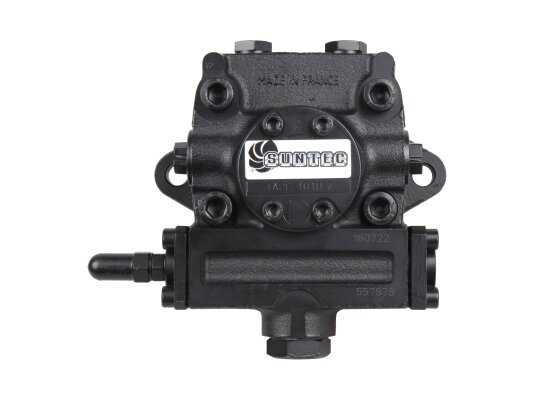

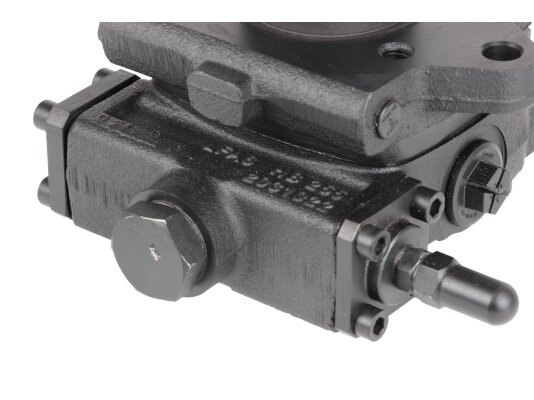

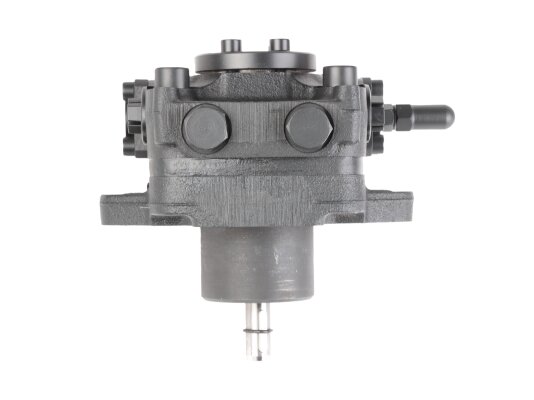

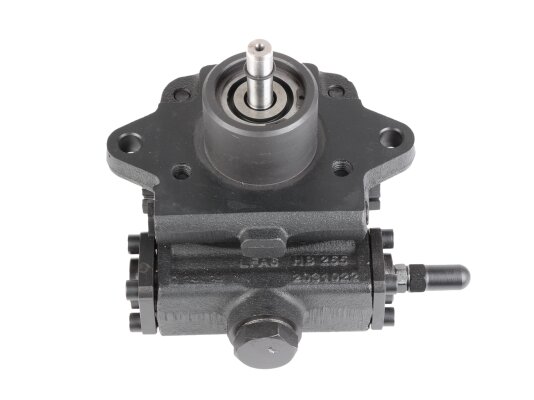

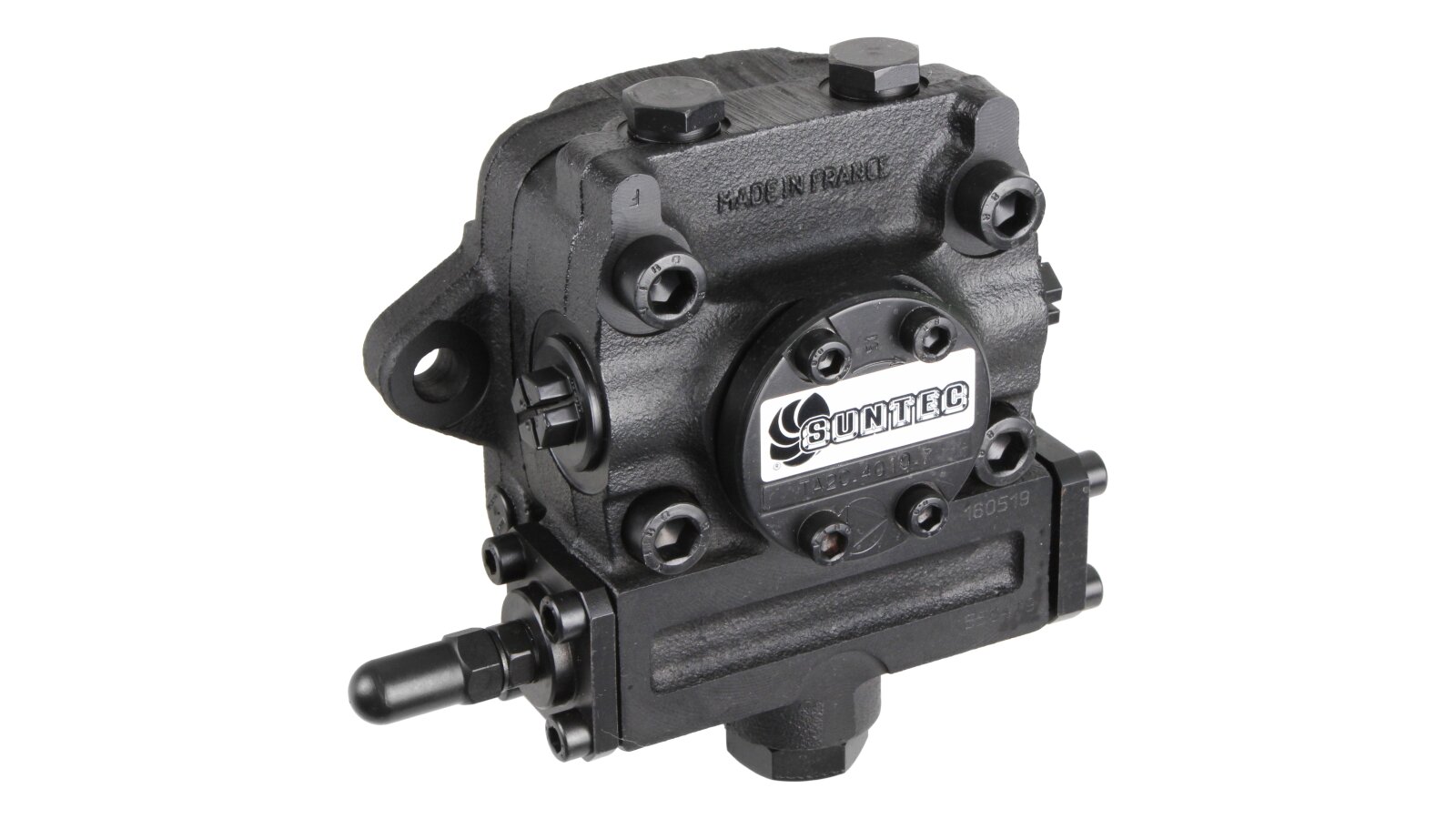

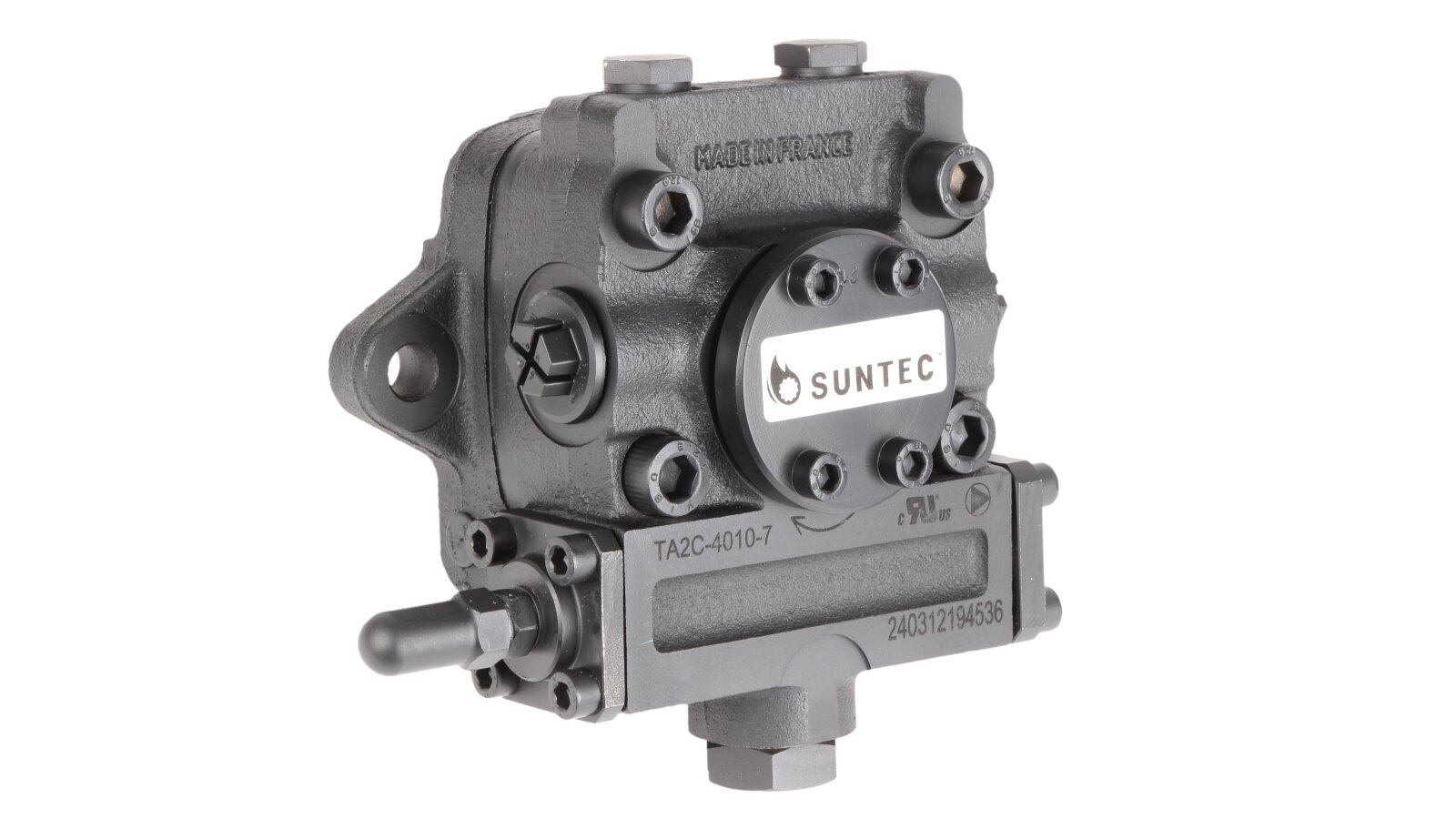

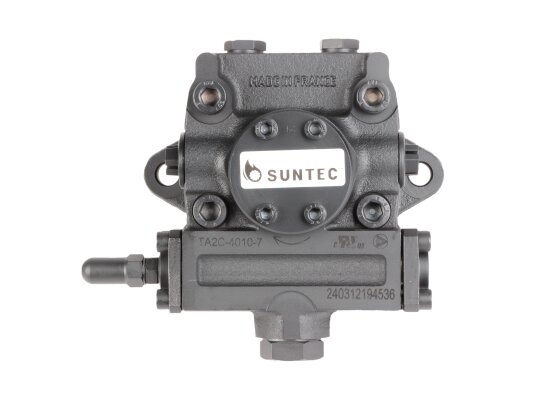

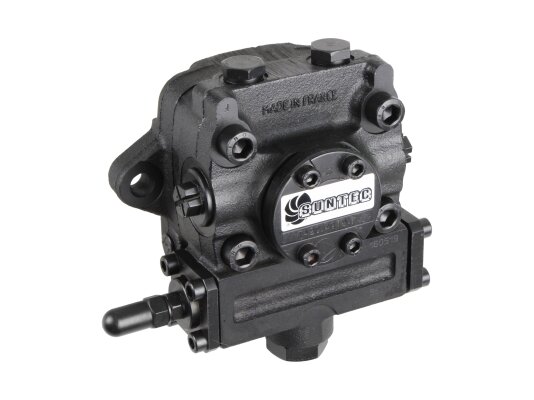

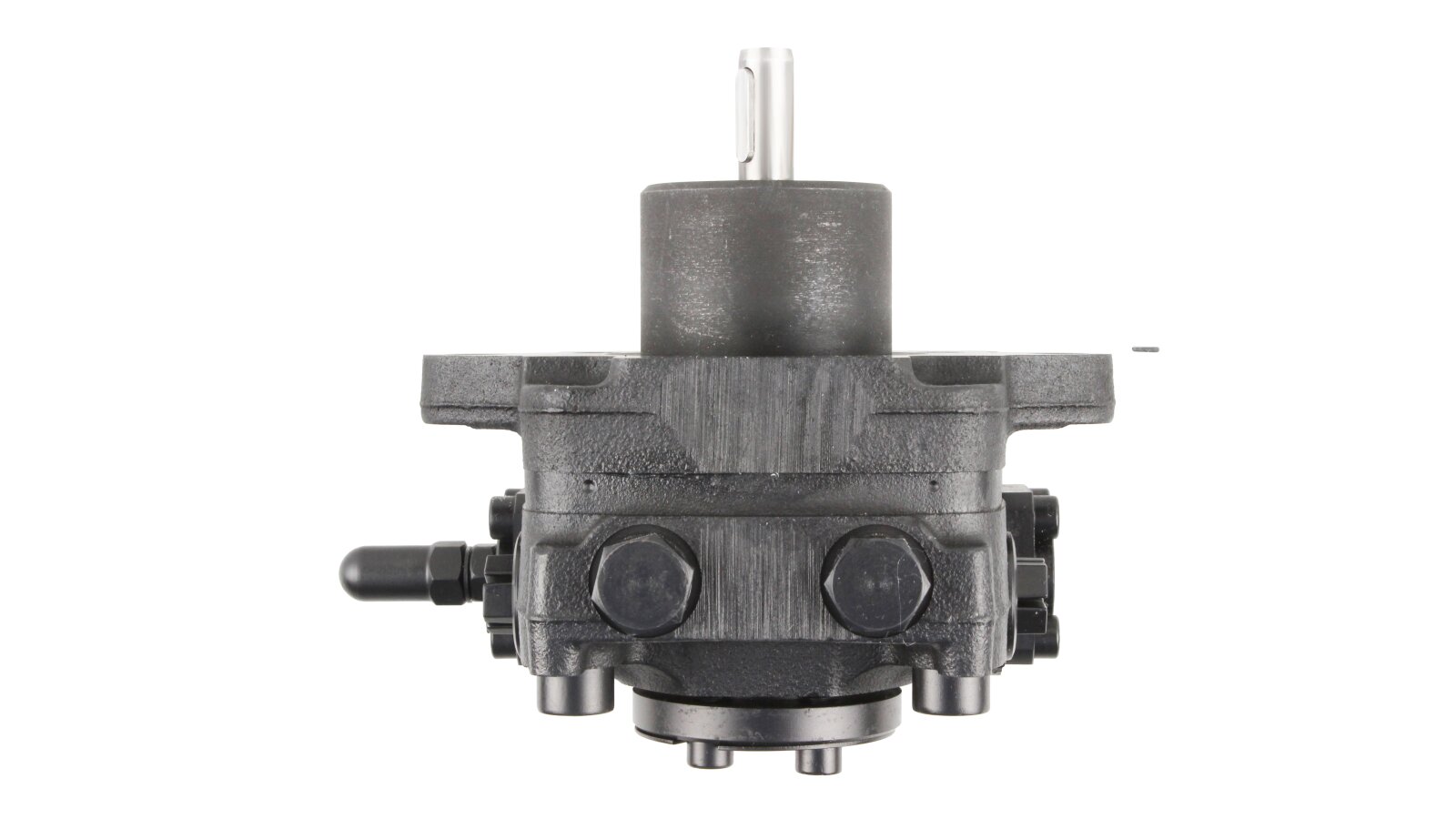

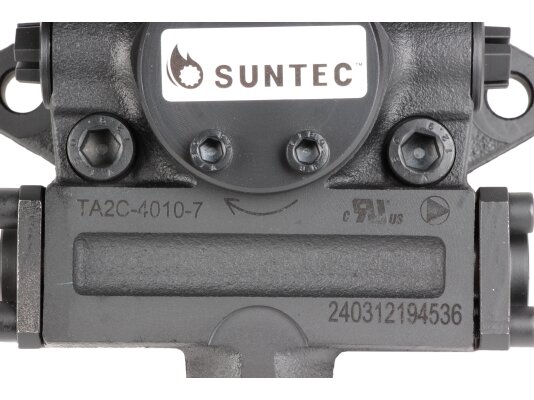

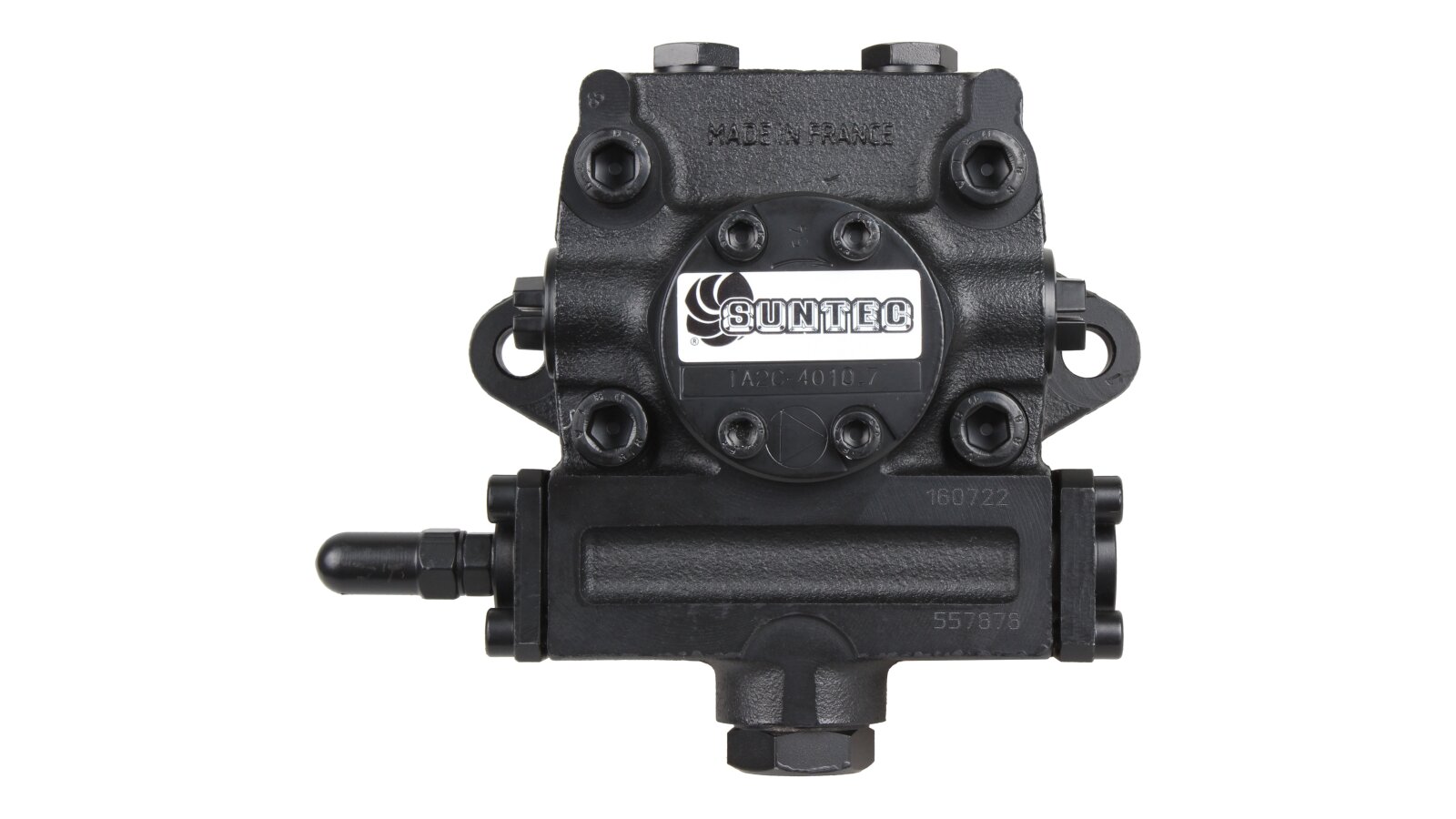

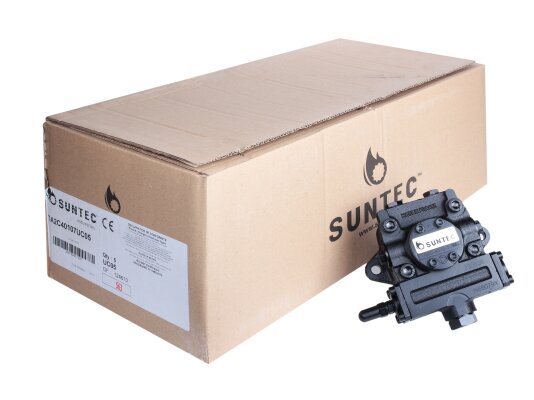

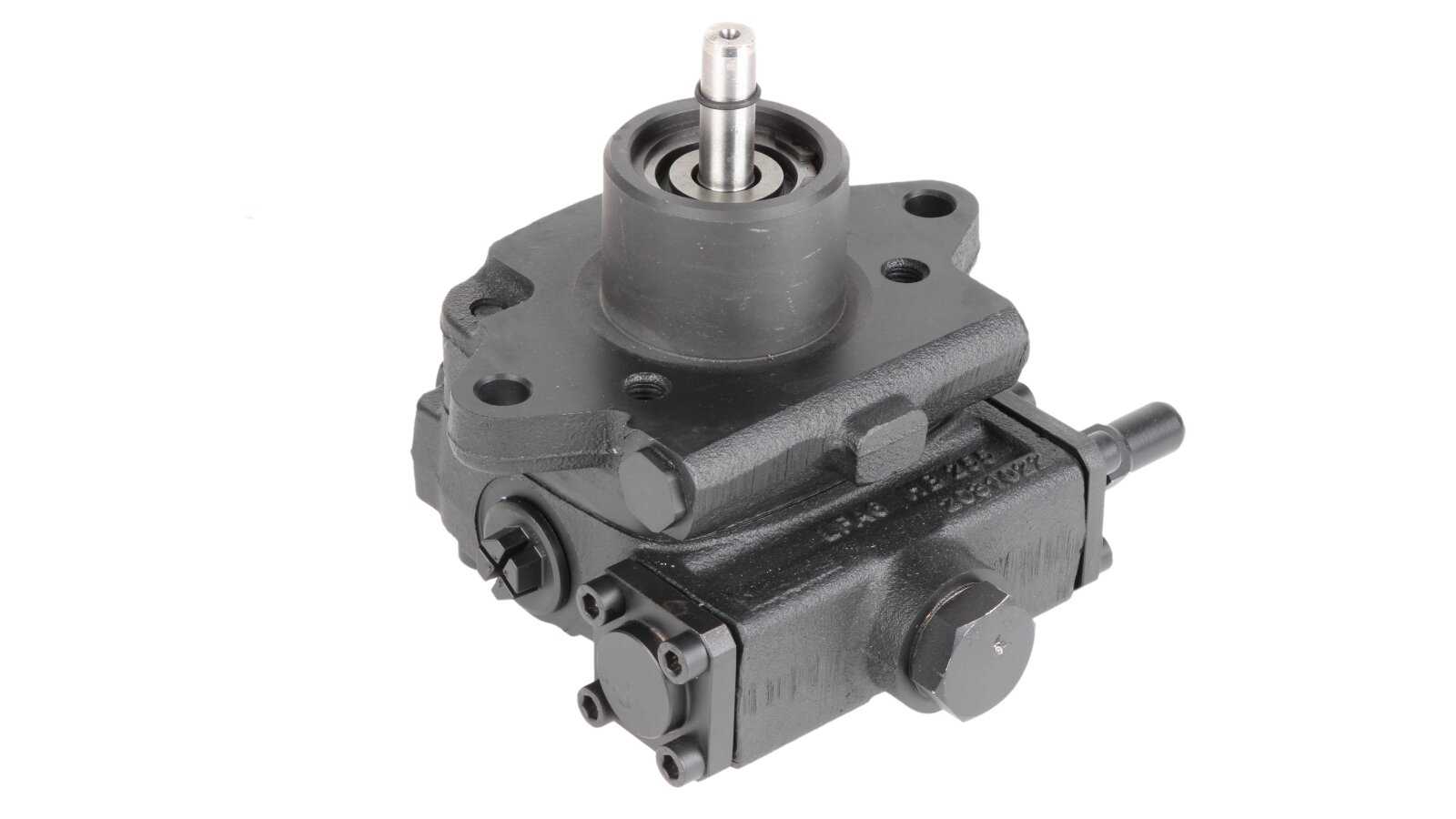

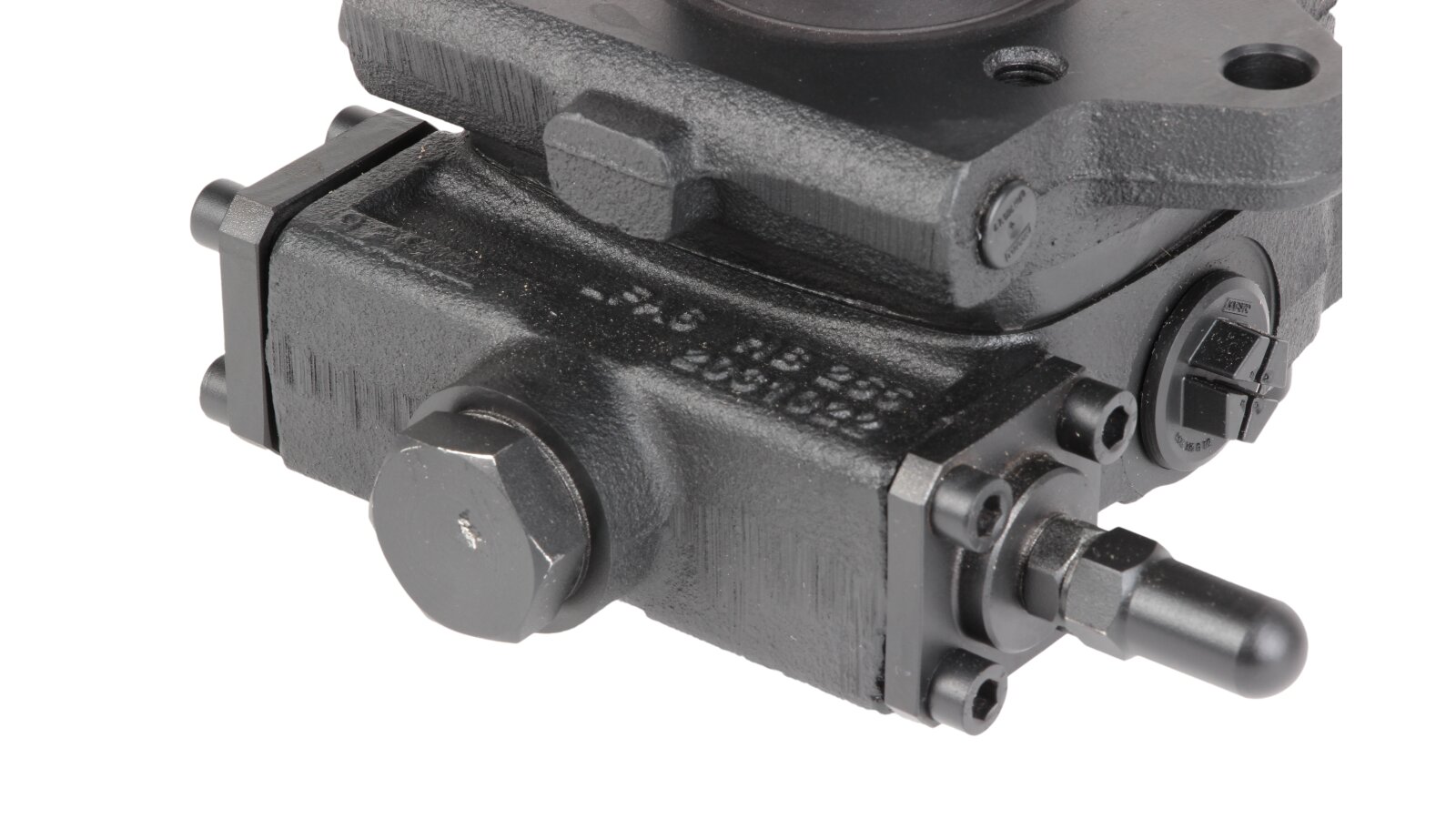

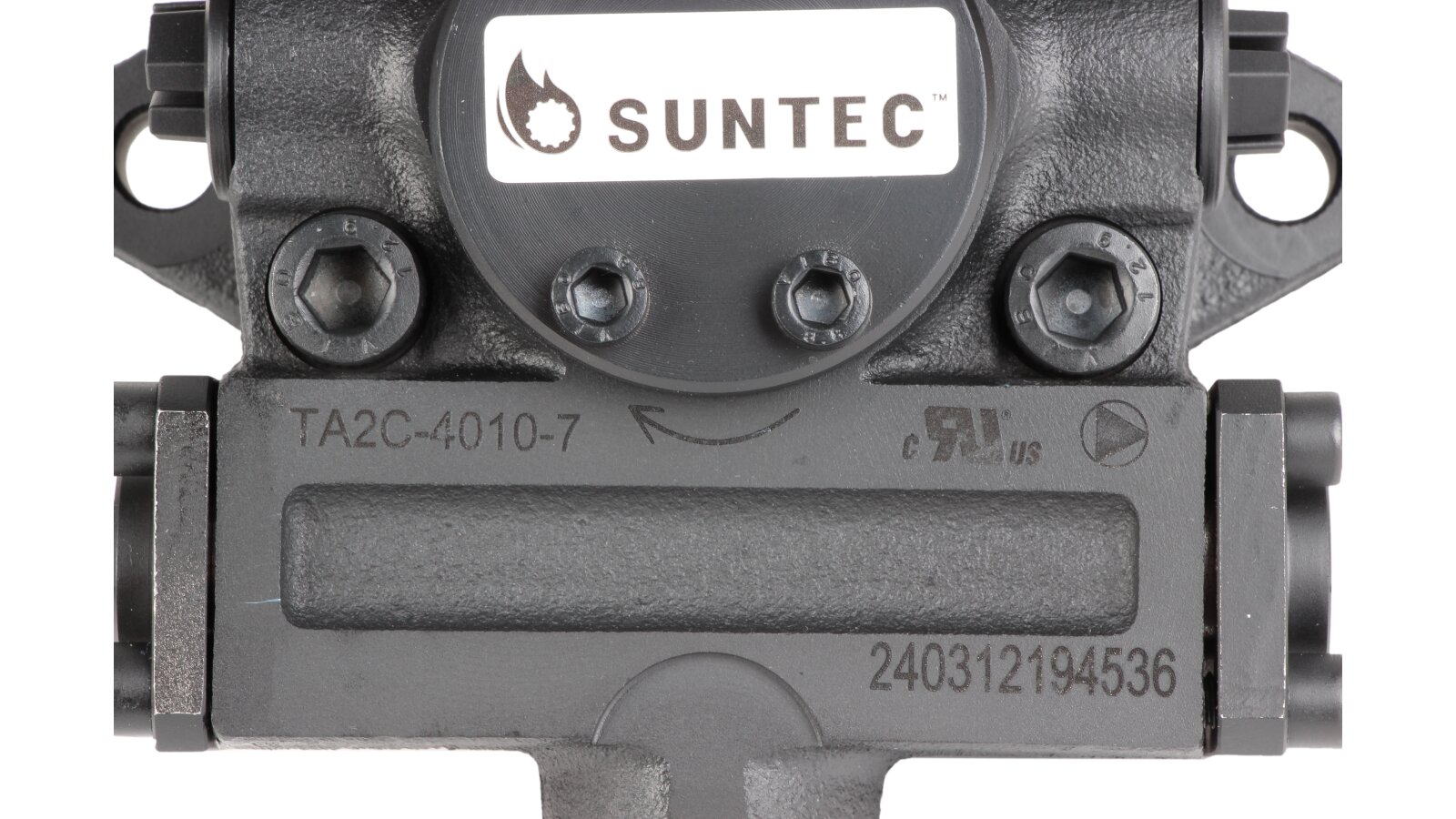

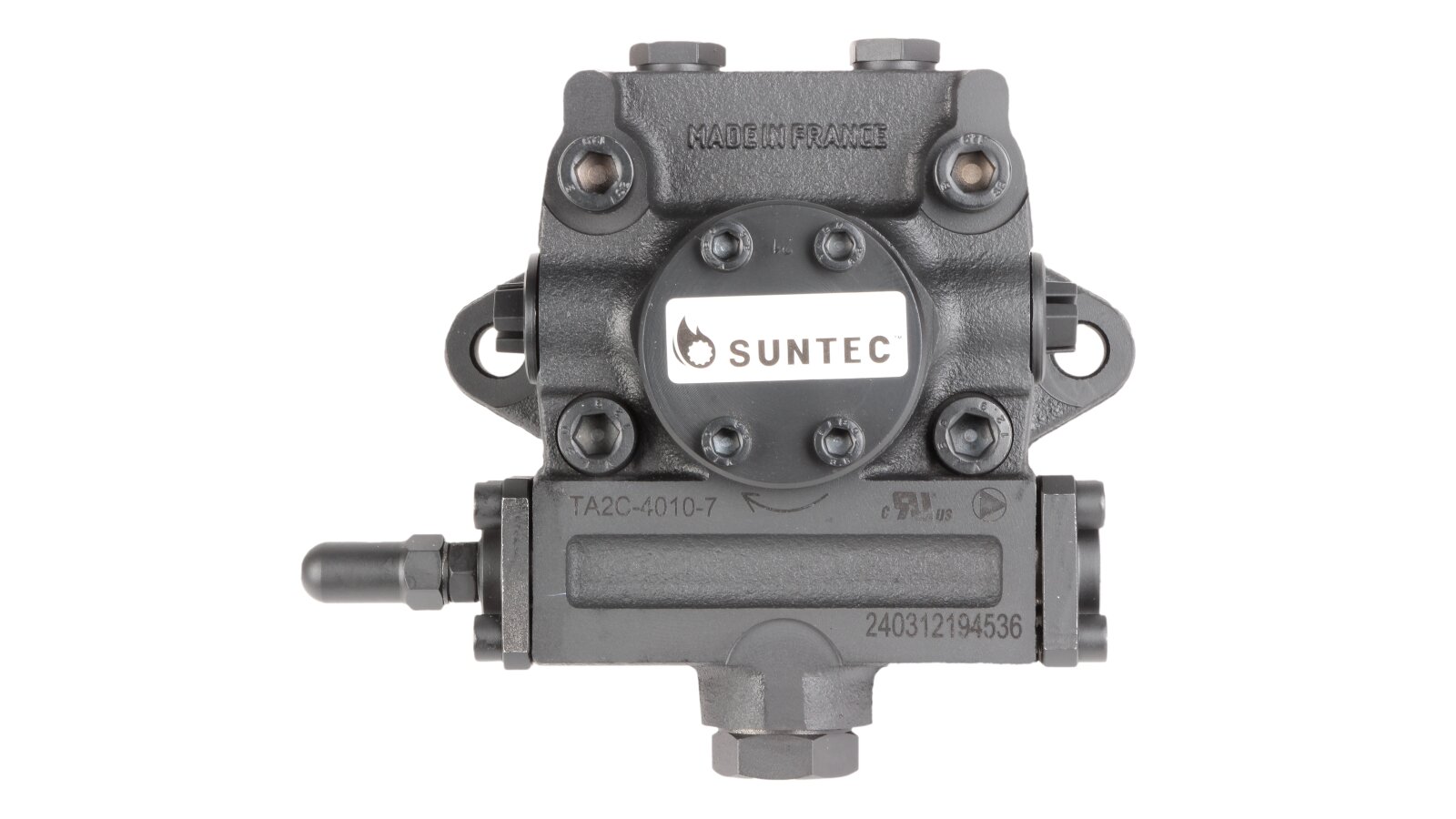

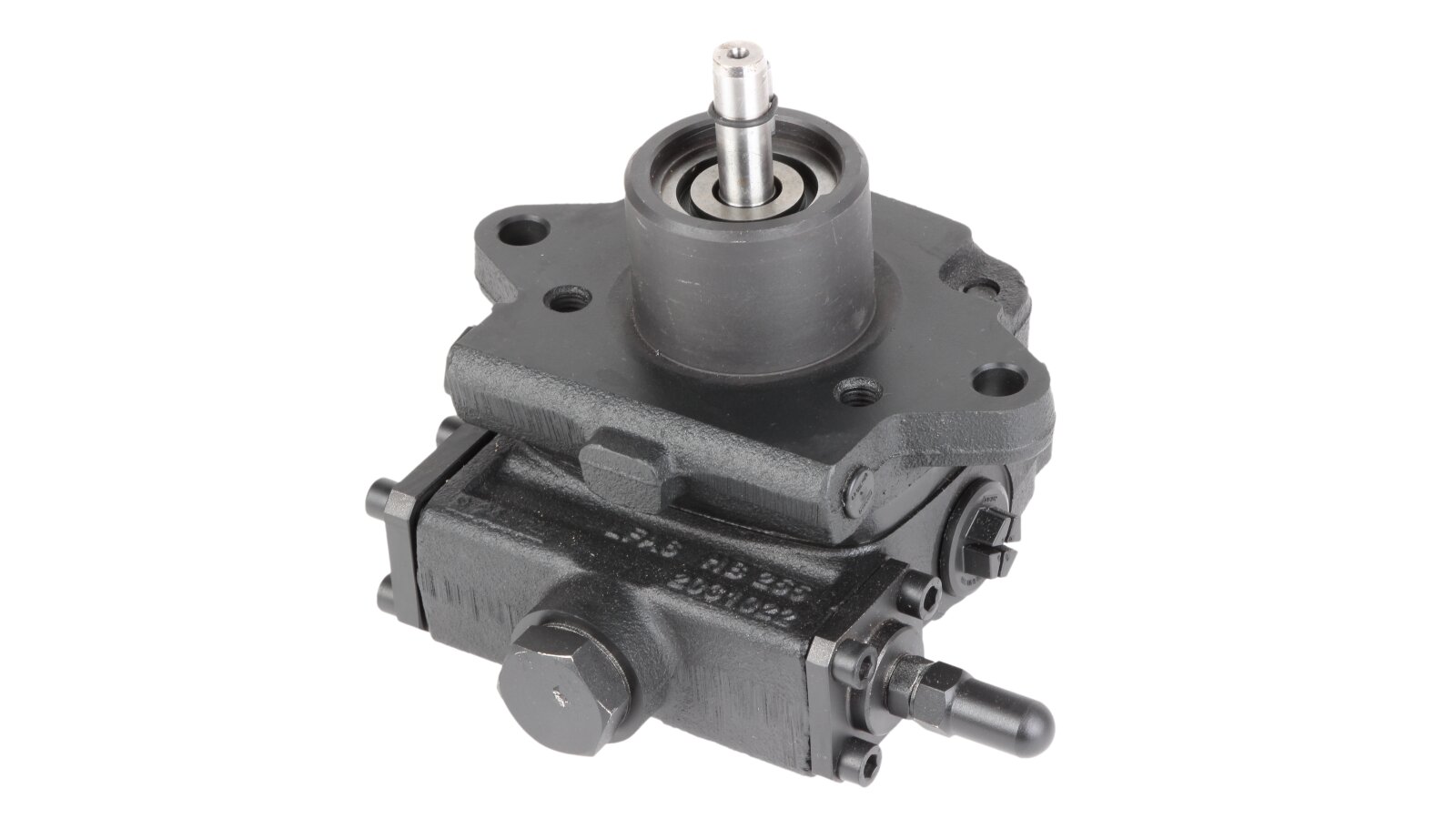

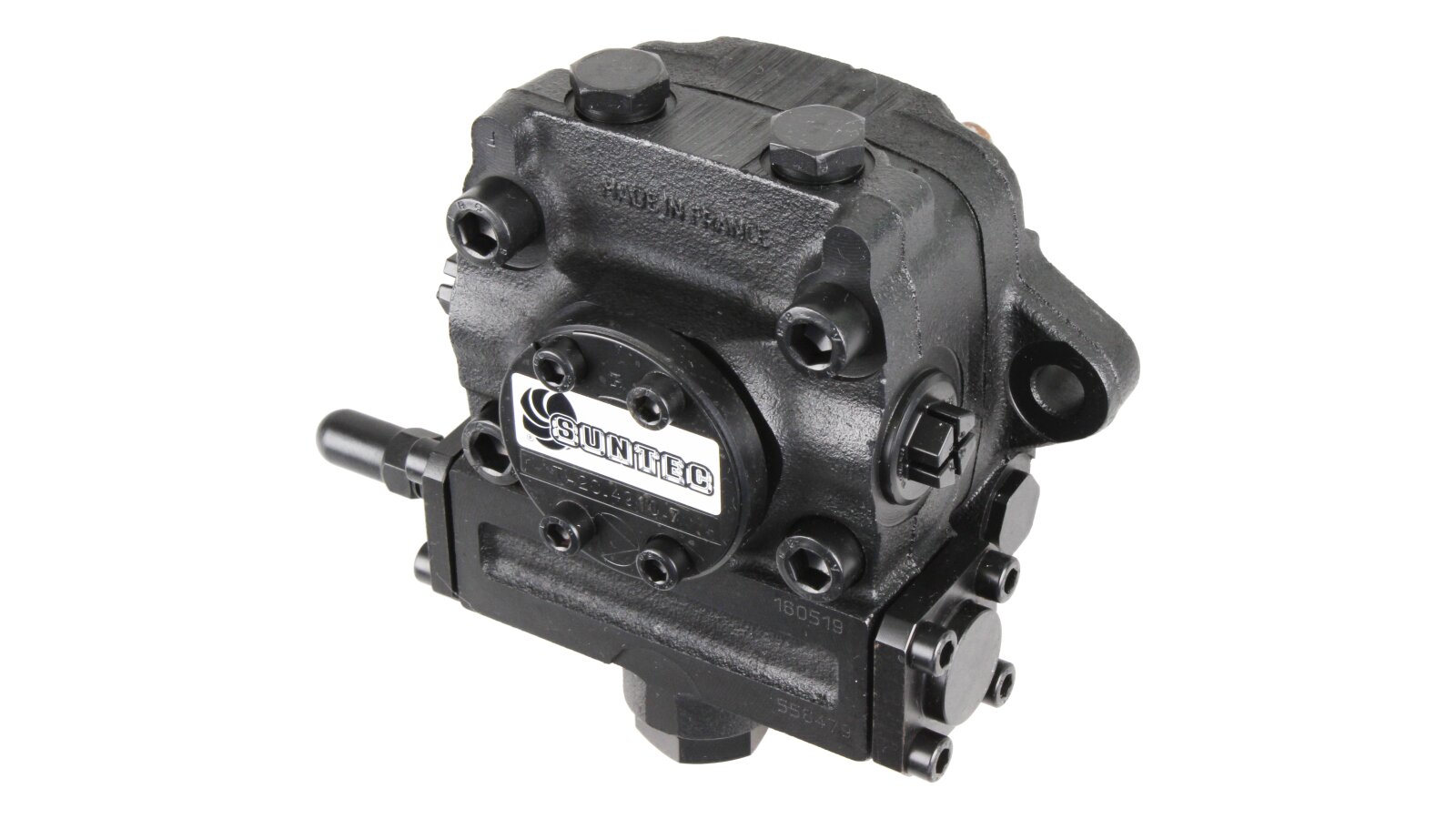

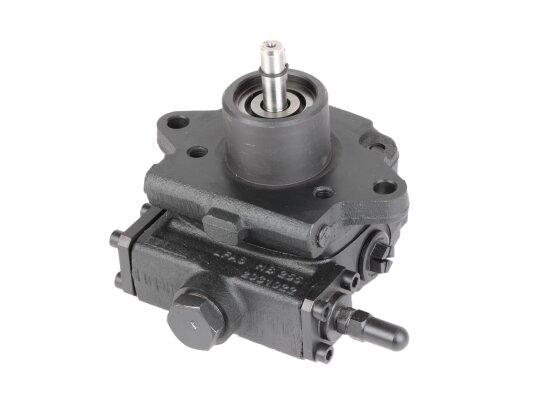

Burner Pump Suntec TA 2 C 4010 7

Suntec

Alternative Part Number

FBR

258011

AED 5,700

Oil Burner Pumps
Products code: 1299

Description

High efficiency and increased reliability of the design allow using the Suntec TA 2 C 4010 7 fuel pump for equipping large boiler complexes for heating factory workshops, production sites, warehouses. The basic model is part of a series of devices equipped with a pressure regulating valve without a locking function.

Design and features

Thanks to the use of special materials and seals, the pump has a heat-resistant design, which allows pumping fuel with a temperature of up to +150 degrees.

A hole of a standard diameter of 12 mm is drilled in the body for mounting the heating element. The heater with a power of 80-100 W liquefies the fuel, reducing the load on the gear mechanism and extending the service life of the burner.

The installation location of the device is chosen so as to exclude contact with the fuel and implement effective heat transfer. The electric heater should be turned on in advance, before starting the pump.

Factory assembly allows installation of the Suntec TA 2 C 4010 7 fuel pump in a system with a return line. If there is no return line, remove the bypass plug and block the hole.

Manufacturer's recommendations

A coarse filter is not included in the kit, so to increase the service life of the injectors, it is recommended to install a separate 200 μm filter "upstream".

When pumping fuel oil, it is advisable to include a degasser flask in the pipeline. This minimizes the negative impact of light fractions of heated fuel on the working elements and extends the service life of the pump.

Main parameters

  • Working fluid - diesel fuel, fuel oil, crude oil.

  • Fuel temperature in the pump: from 0 to +150 ºC.

  • Discharge pressure: from 7 to 40 bar, basic setting - 30 bar.

  • Operating viscosity: from 3 to 75 cSt.

  • The capacity is 530 l/h at a viscosity of 75 cSt and factory pressure setting.

Important advantages are:

  • high fuel feed rate;

  • the ability to adjust pressure in a wide range;

  • pumping different types of fuel with a viscosity of 3-75 cSt;

  • flange connection according to the European standard EN 225;

  • increased reliability and heat resistance;

  • two- or single-pipe connection;

  • standard threaded ports and outlets.

Suntec equipment is suitable for most burners from well-known manufacturers. On the website you can buy a Suntec TA 2 C 4010 7 fuel pump together with additional accessories at an affordable price. You can read more about the characteristics and operating requirements of the product in the attached manufacturer's instructions.

Characteristics

Shaft design: one cavityModel type: without electromagnetic valveOil temperature: from 0 to 150 °C in the pumpPump series: TA: Pressure controlPerformance at 30 bar pressure and 75 cSt viscosity: 530 l/hPerformance at 30 bar pressure and 5 cSt viscosity: 400 l/hPressure gauge port: ¼ inchVacuum gauge port: ¼ inchNominal rotation speed: 2850 rpmDirection of rotation (looking at the drive shaft): C: counterclockwise rotation / nozzle on the leftInstallation method: flange ∅ 54 mmMaximum rotation speed: 3600 rpmBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withFactory pressure setting: 30 barValve function: pressure regulatingNozzle pressure range: from 7 to 40 barShaft diameter: 12 mmReturn pressure: 5 barInlet pressure: 5 barNozzle outlet: ½ inchSuction and return line: ½ inchTorque: 0.3 N·mOperating viscosity: from 3 to 75 mm²/sType of pumped liquid: sea ​​water, diesel
