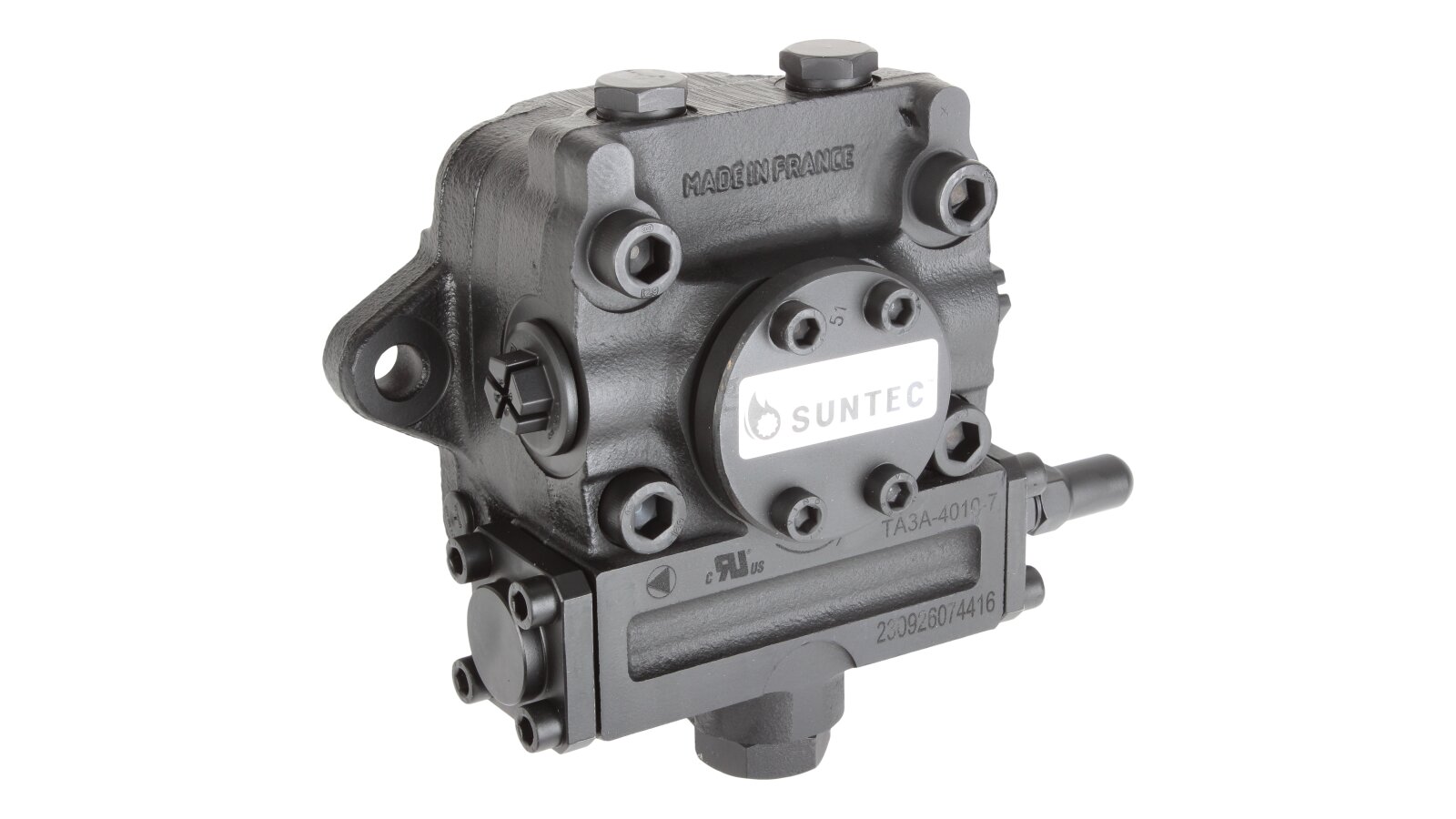

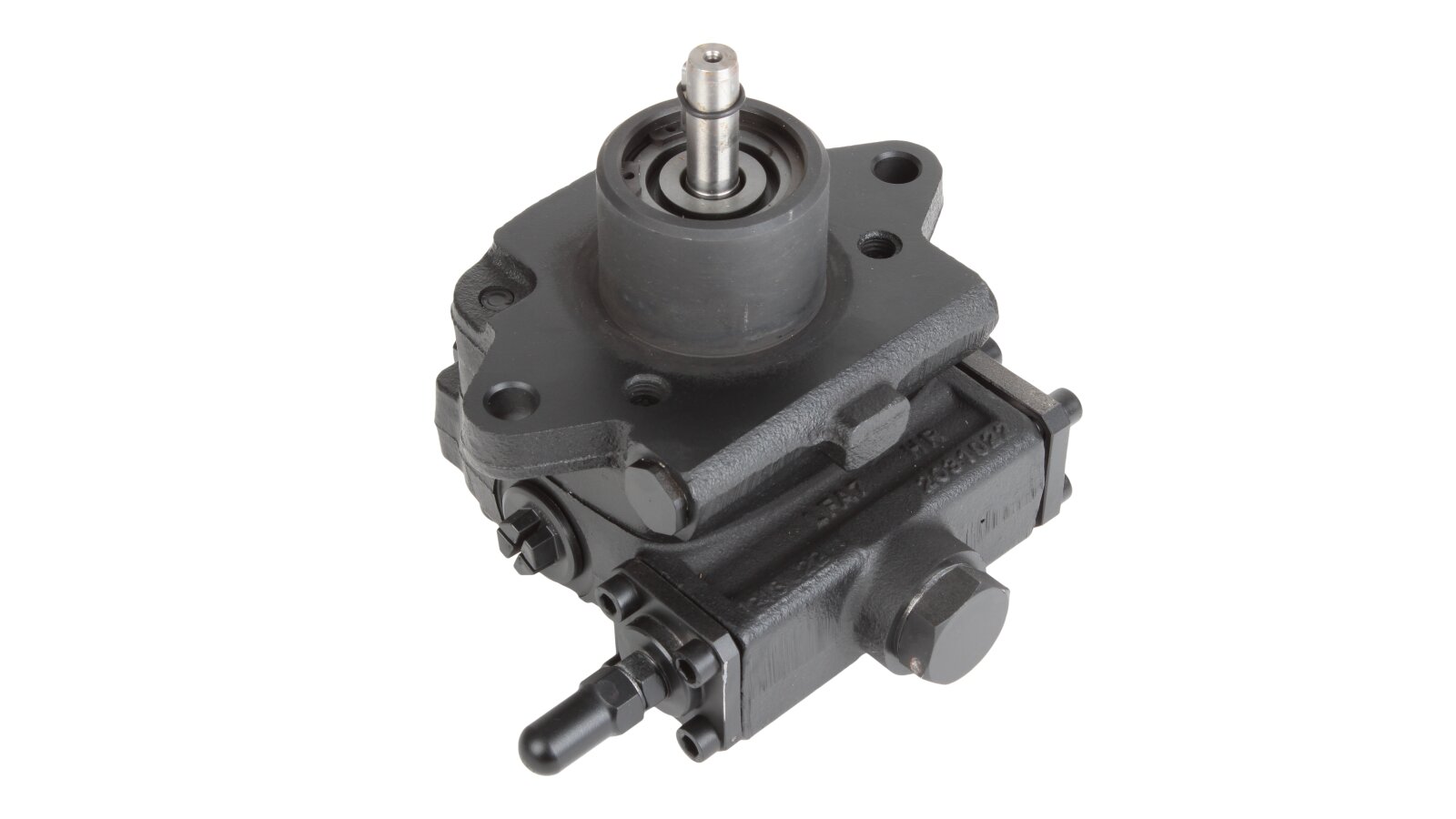

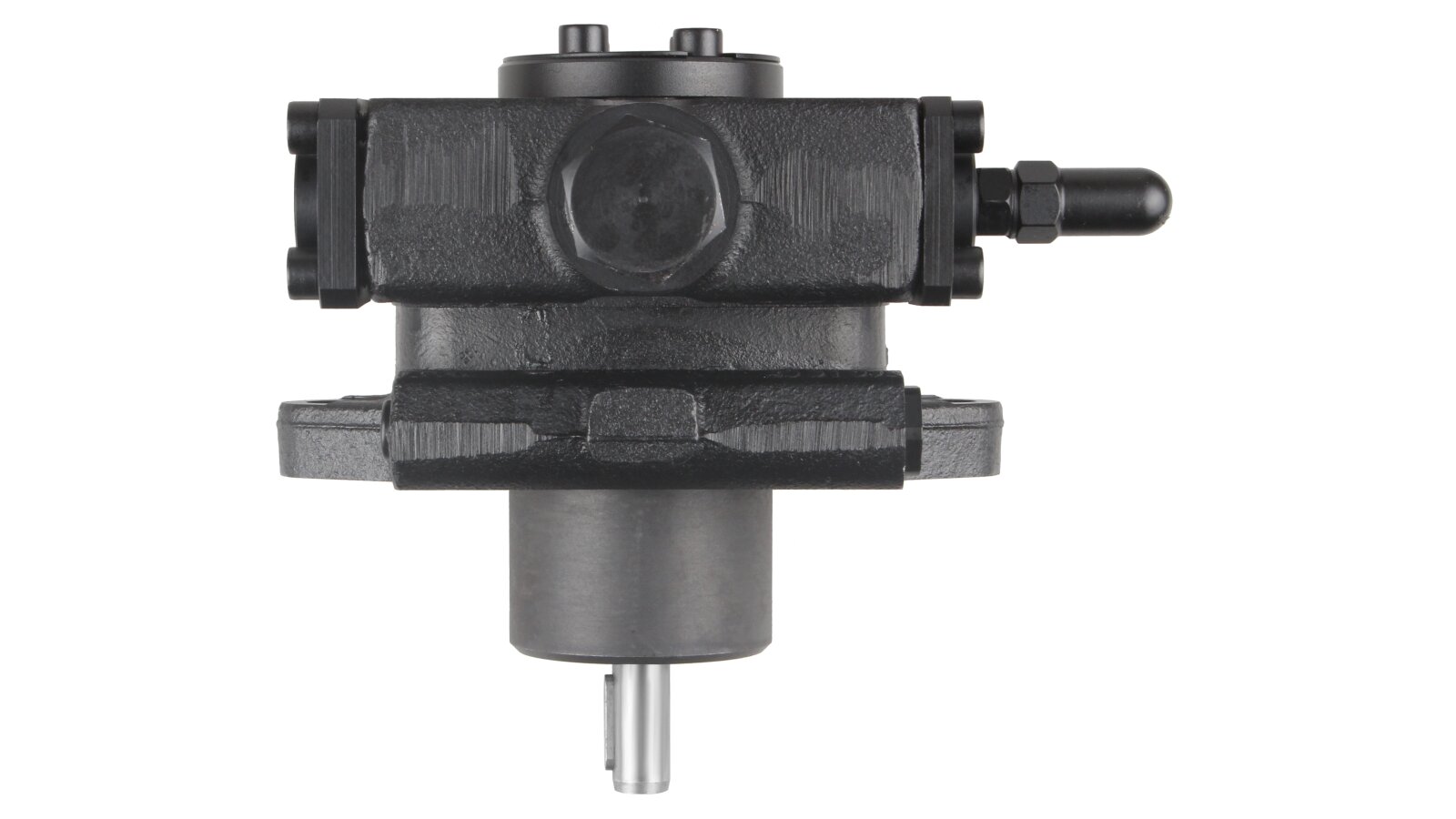

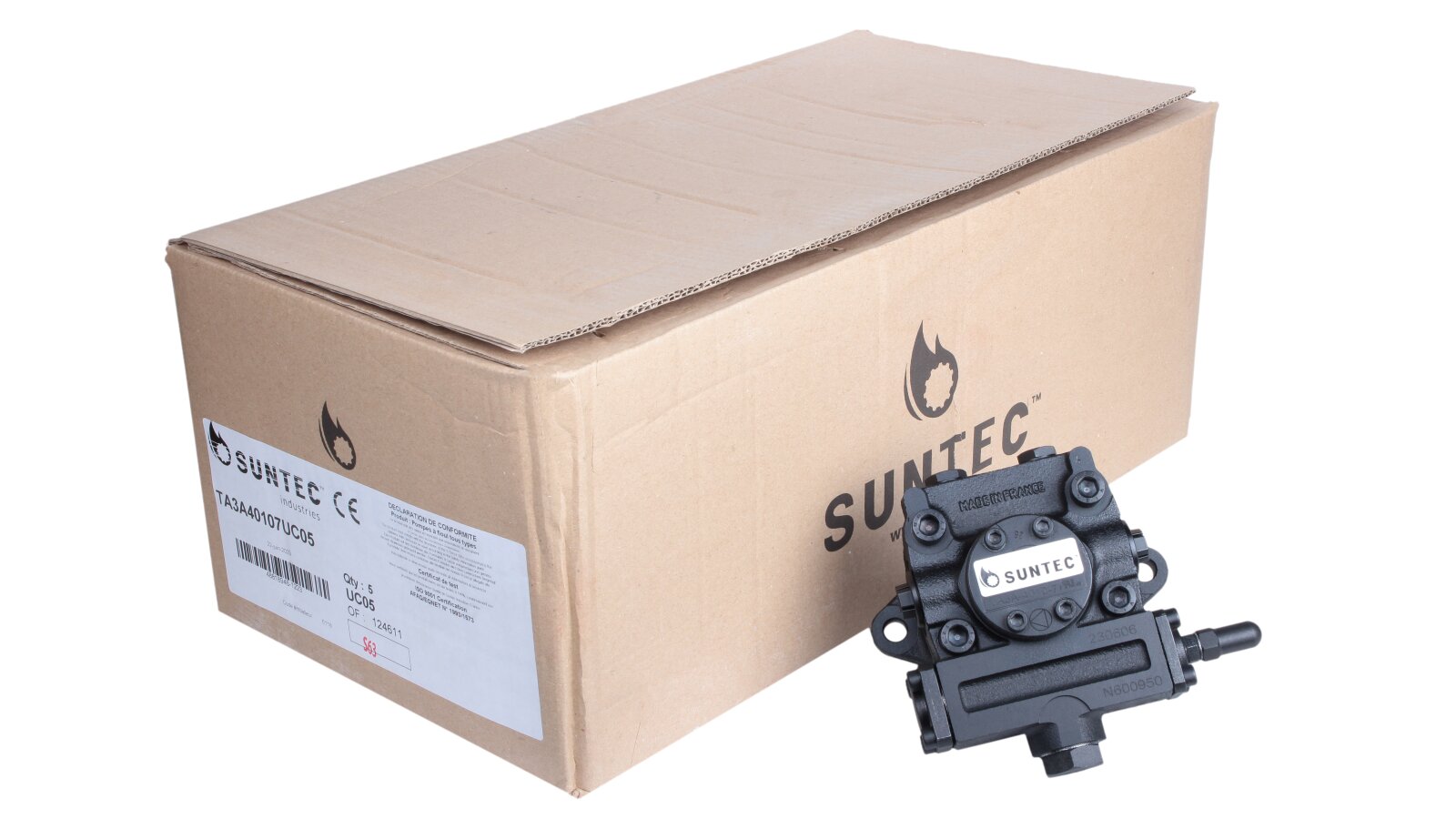

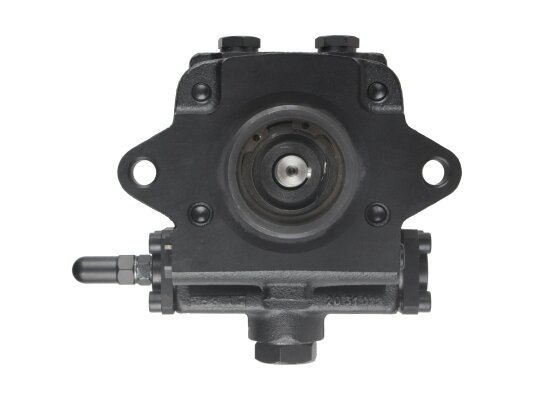

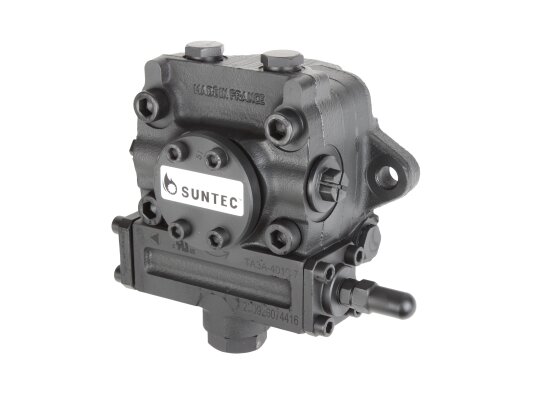

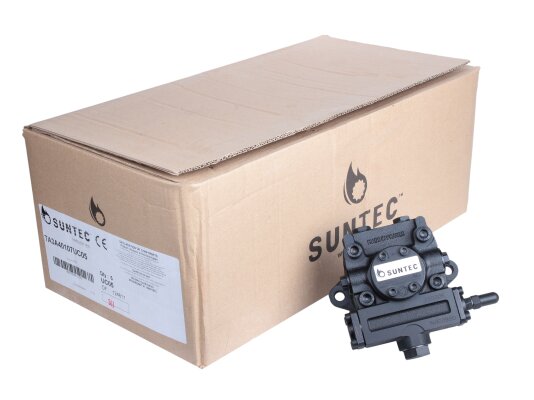

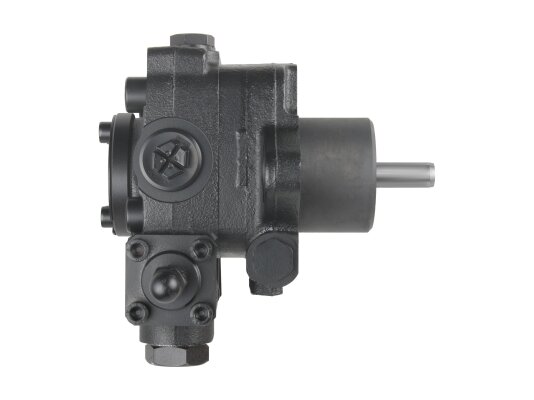

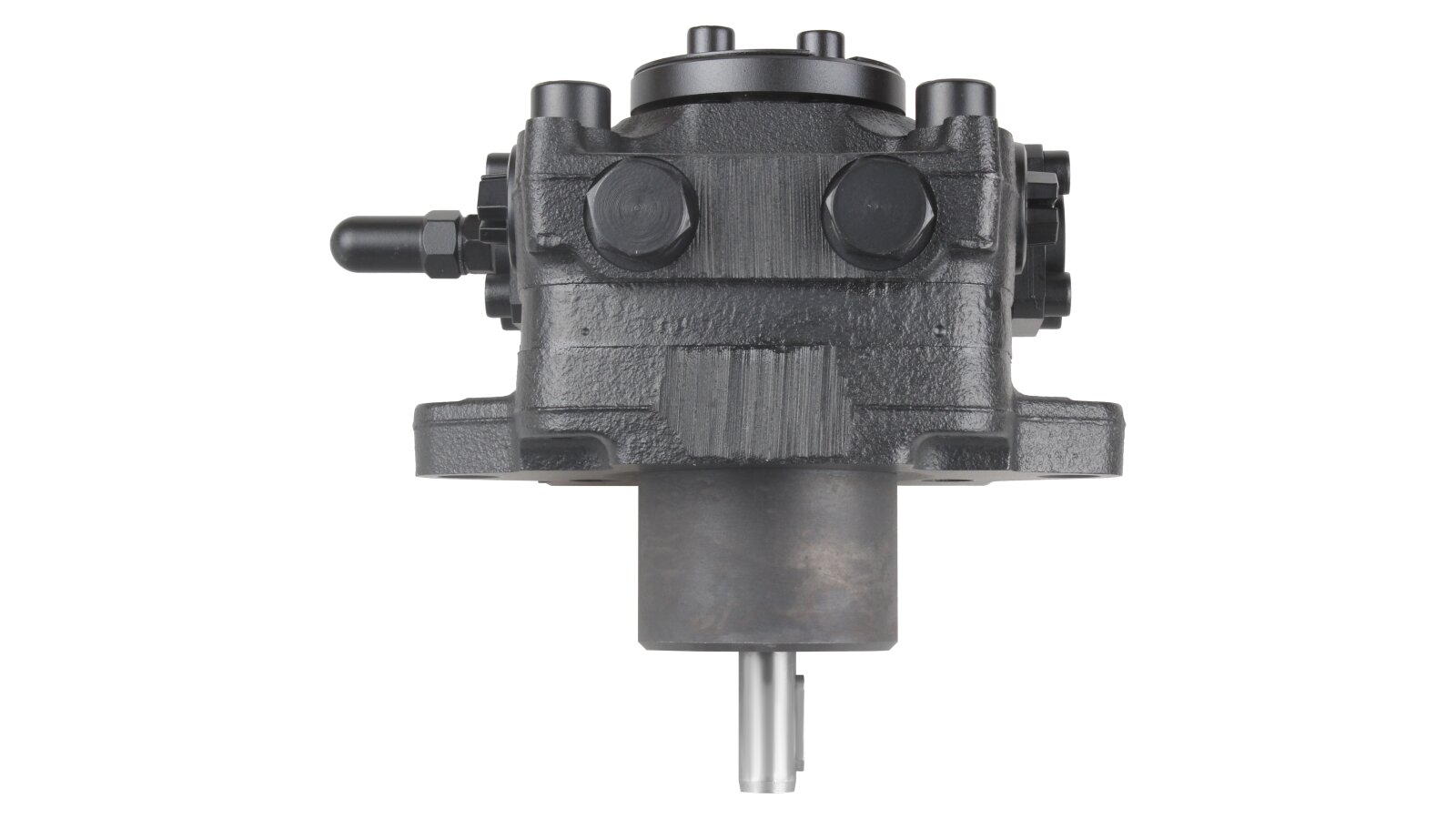

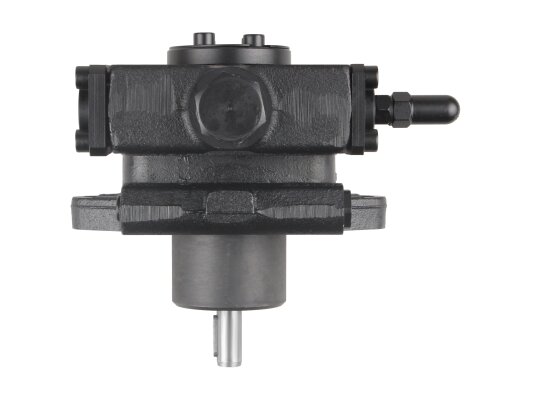

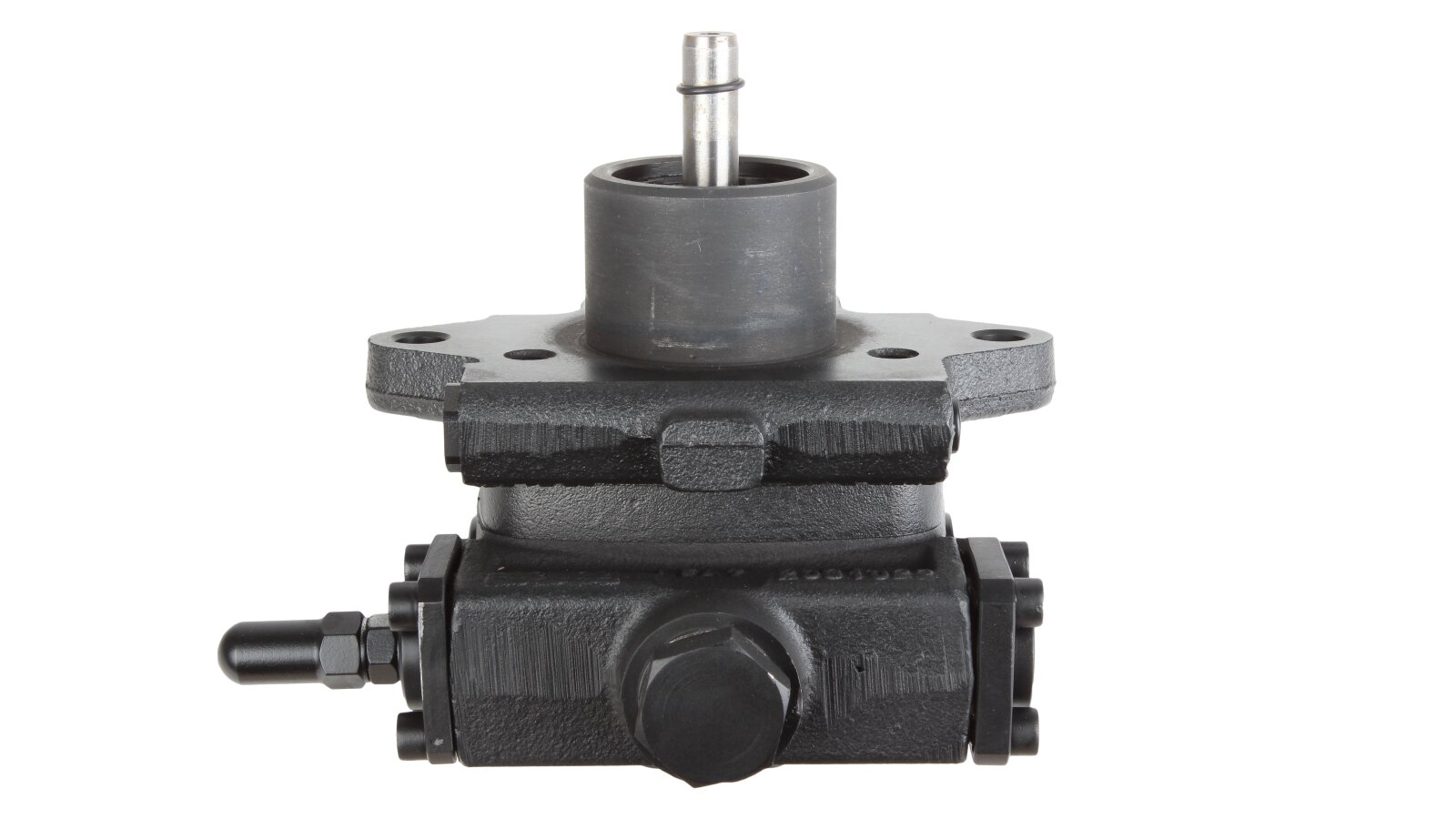

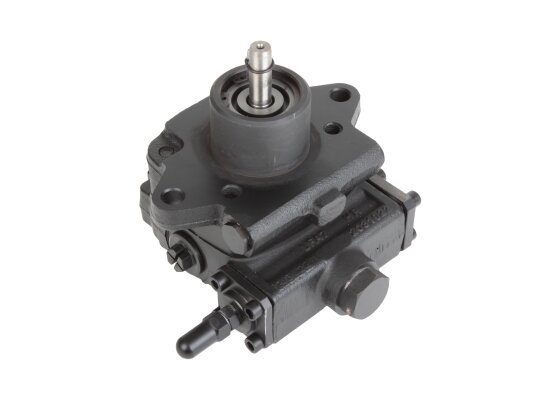

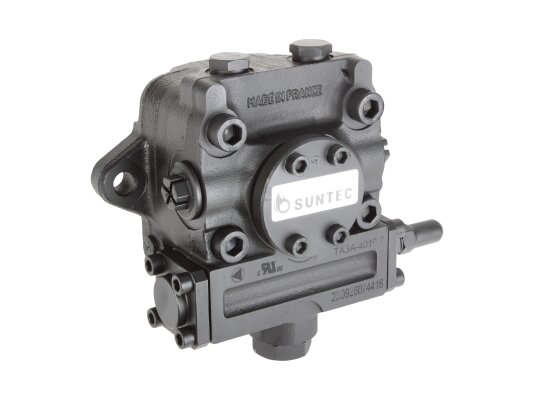

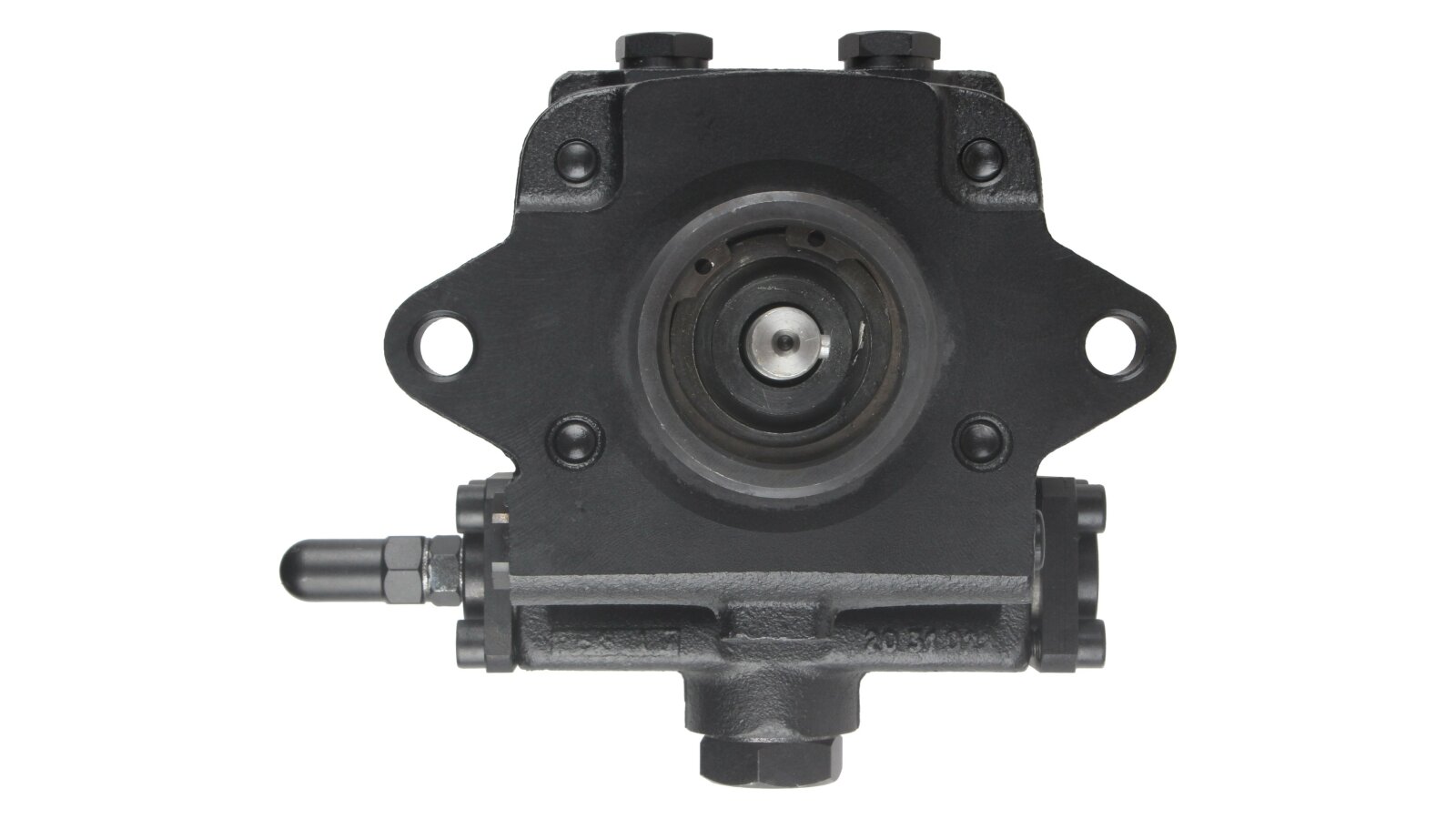

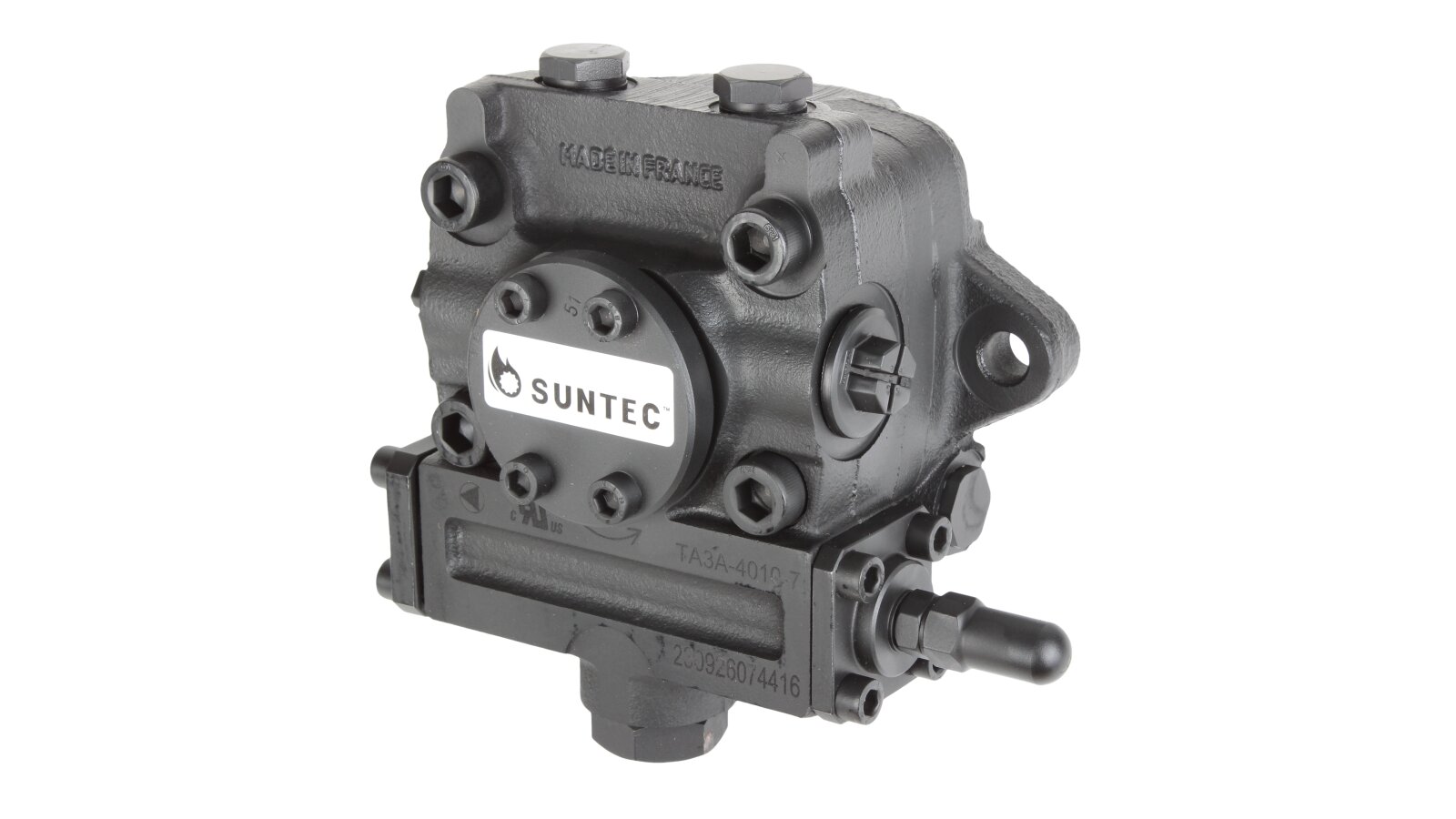

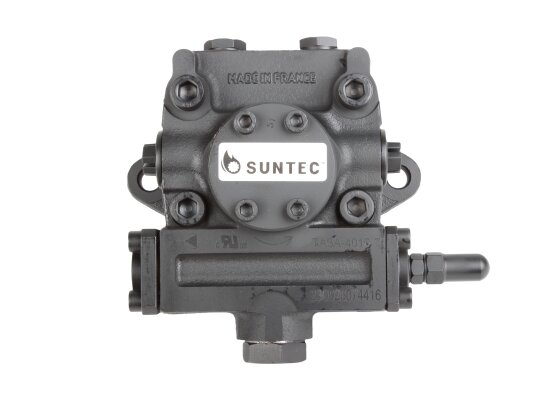

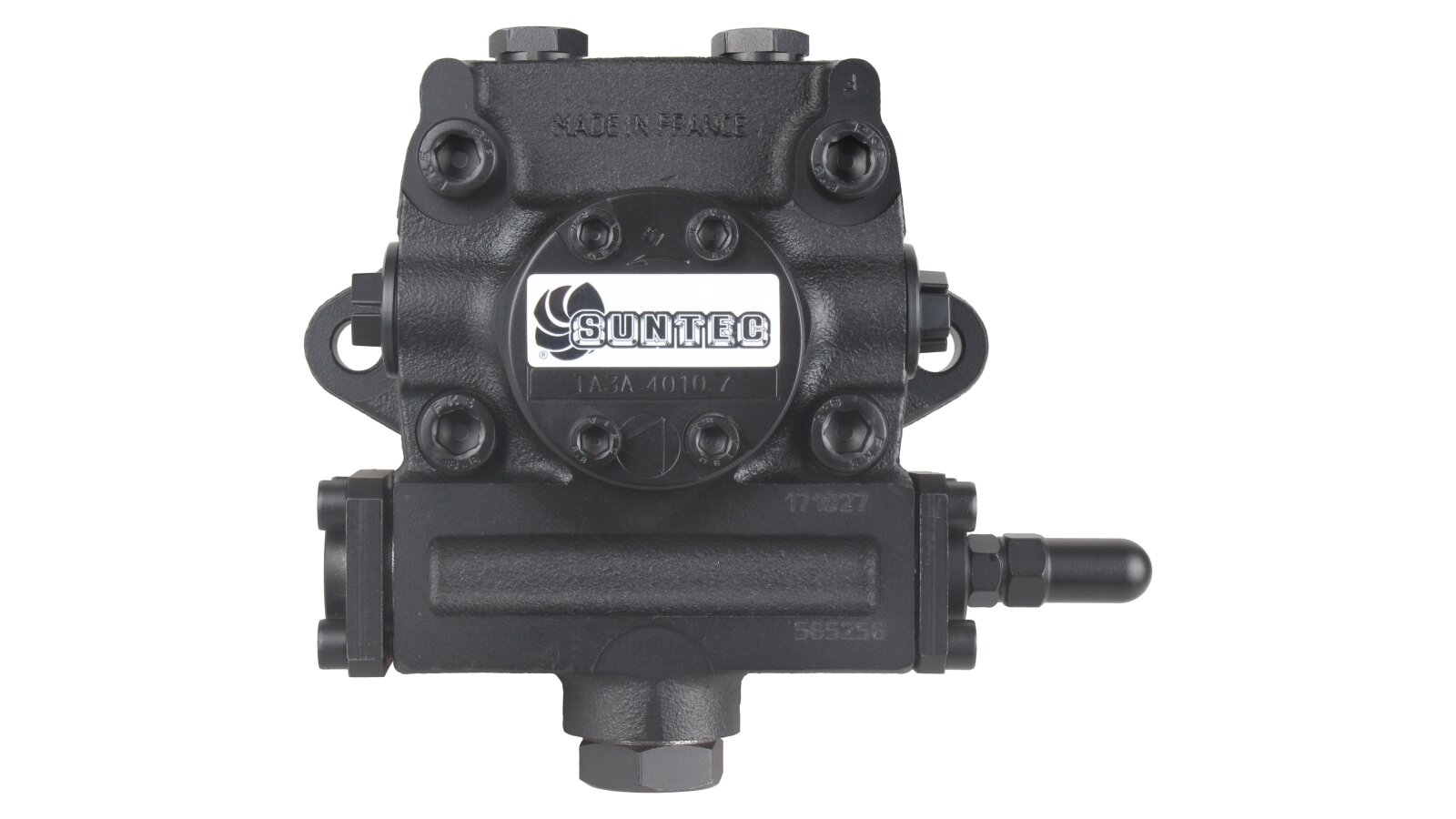

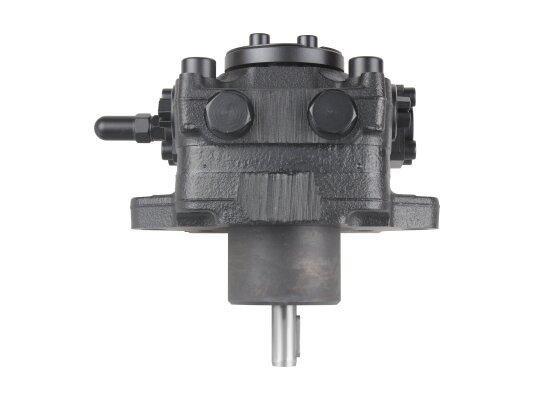

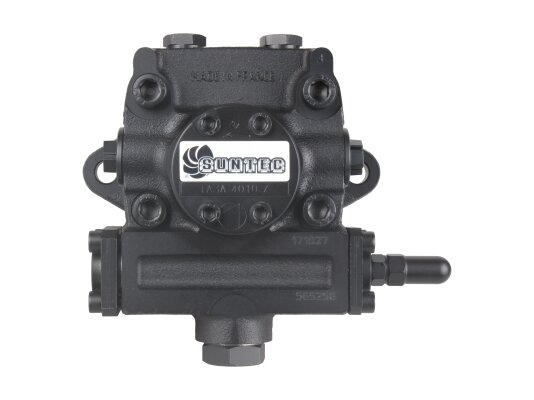

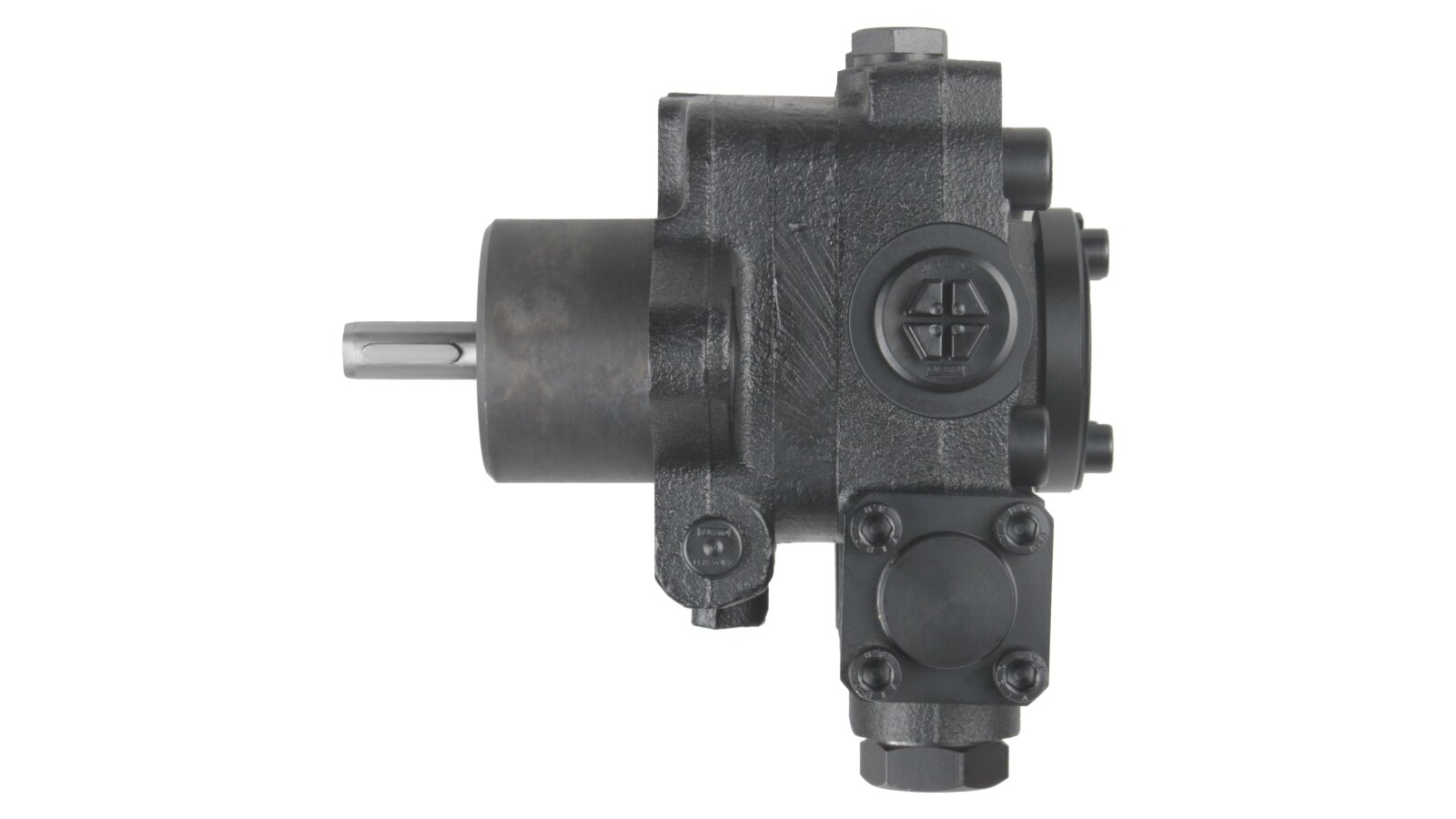

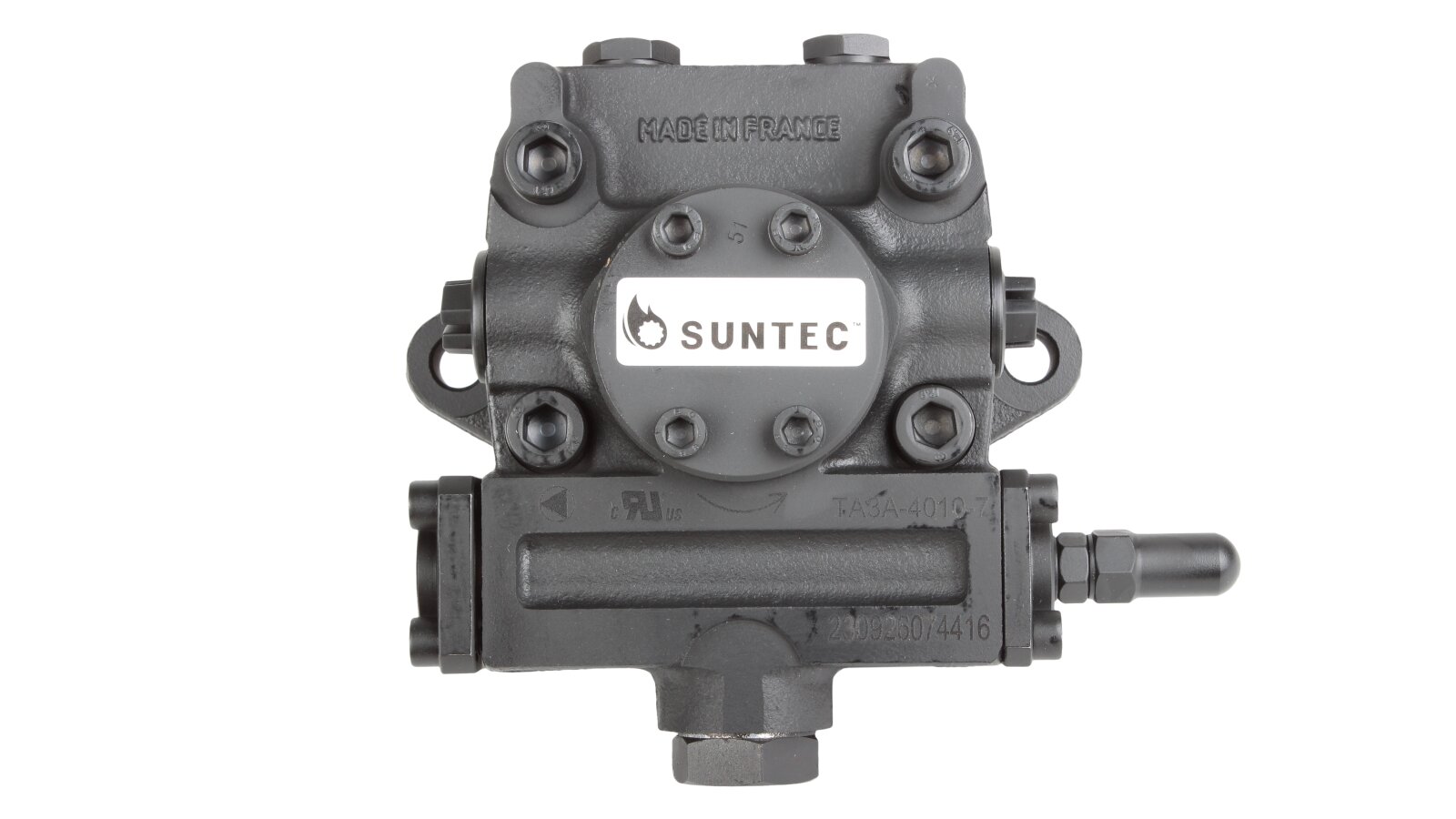

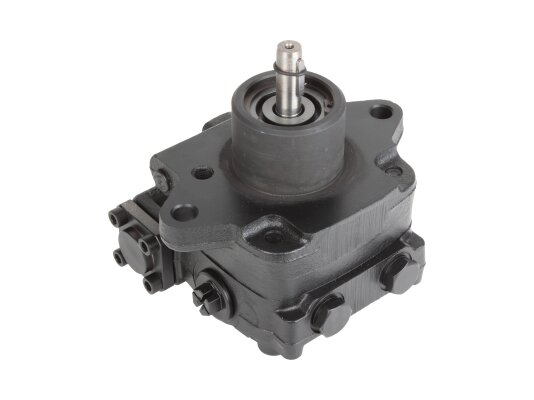

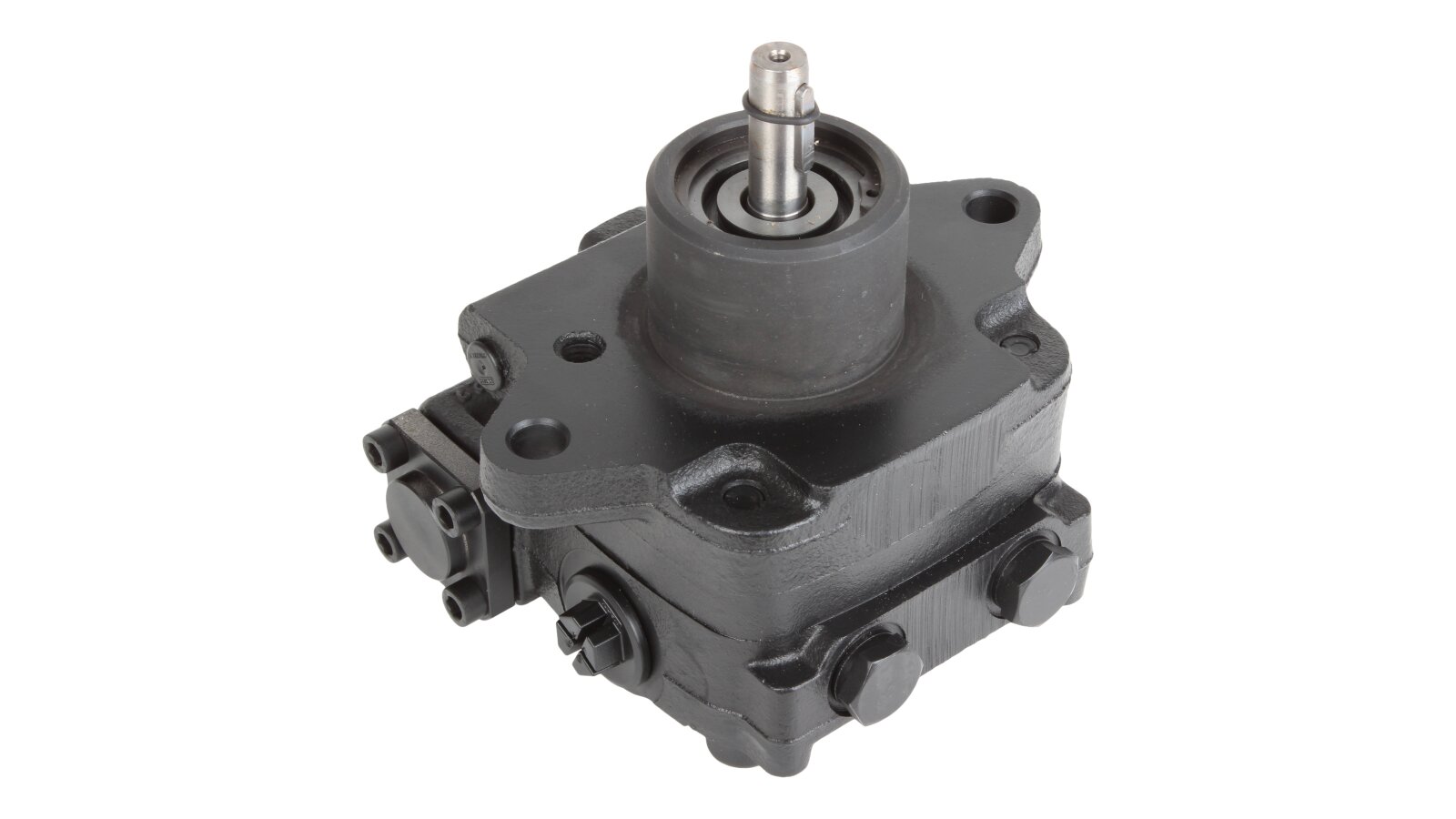

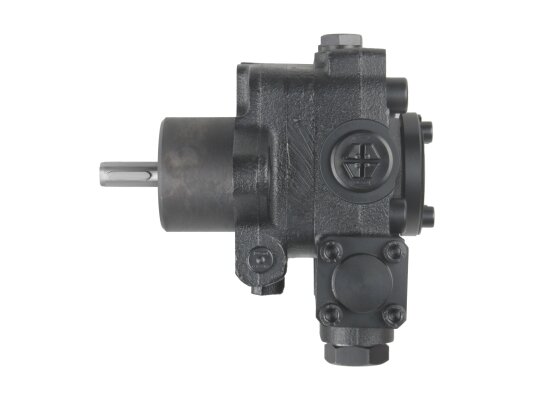

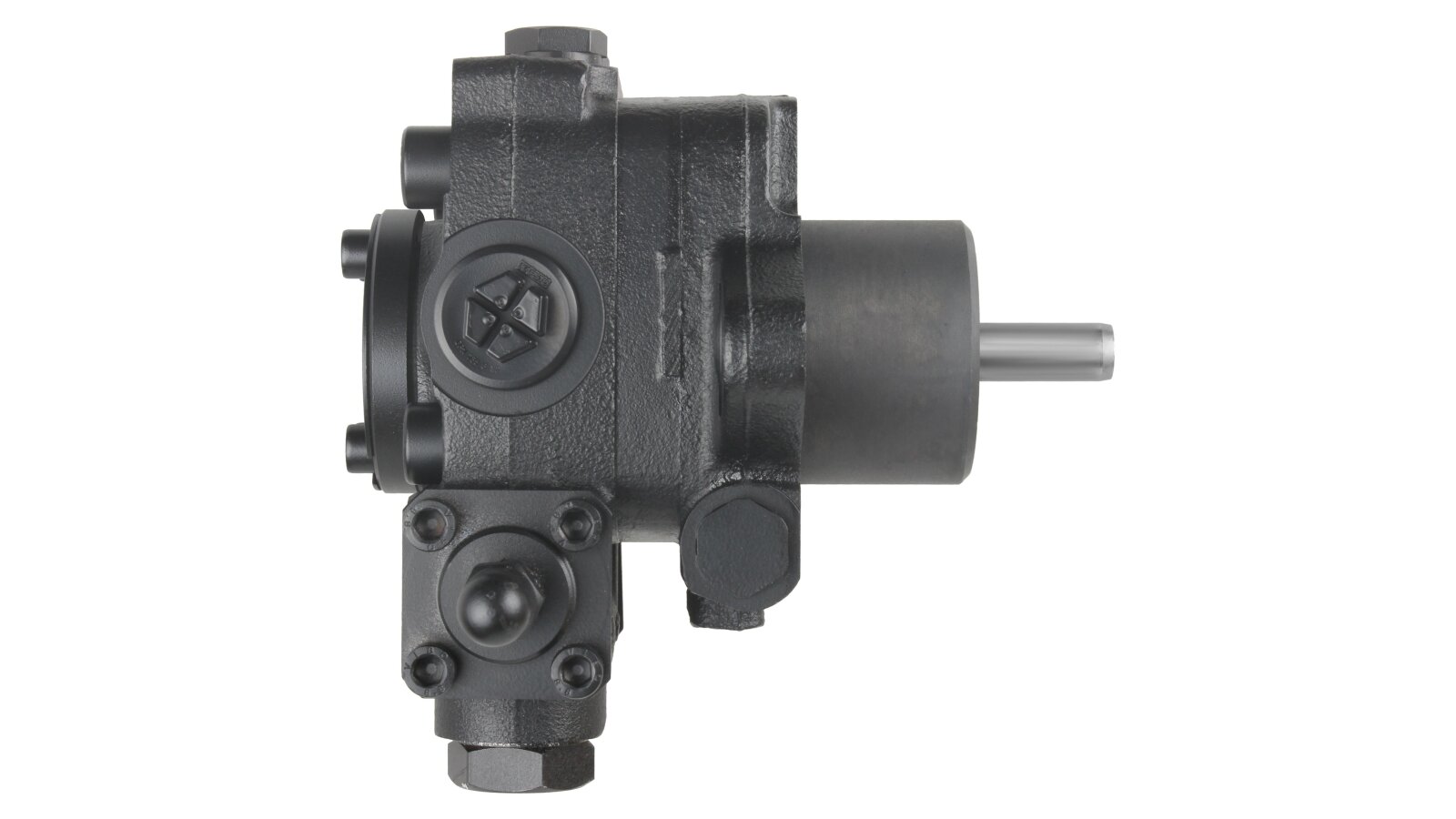

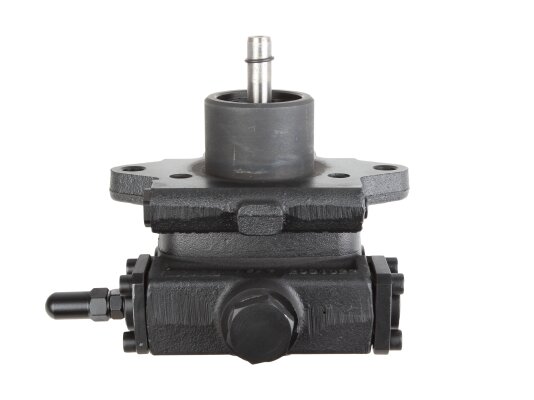

Burner Pump Suntec TA 3 A 4010 7

Suntec

AED 6,000

Oil Burner Pumps
Products code: 1300

Description

High fuel delivery rate, versatility and reliable operation in harsh operating conditions make the Suntec TA 3 A 4010 7 fuel pump an ideal solution for equipping large industrial burners with a capacity of up to 30,000 kW. In one hour, the pump is capable of pumping 780 liters of fuel oil, diesel fuel or crude oil with a viscosity of up to 75 cSt at a pressure setting of 30 bar.

Features

  • The pump is part of a series, a characteristic feature of which is the presence of a control valve without a shut-off function. The pressure on the nozzle can be adjusted in the range of 7-40 atmospheres. The basic setting is 30 bar.

  • The design has a heat-resistant version for safe operation with fuel heated to +150 degrees. To facilitate a cold start, a standard-sized hole is drilled in the pump body, into which an electric heater is mounted. The device is positioned so as to ensure the greatest heat transfer while excluding direct contact with the fuel. In the factory assembly, the Suntec TA 3 A 4010 7 pump is designed for installation in a 2-pipe system. When installing in a 1-pipe design, it is necessary to unscrew the bypass plug and close the return line.

  • The manufacturer supports the EN 225 standard, approved in Europe, which allows the unit to be built into burners of most brands, including Baltur, Ecoflam, Oilon, Lamborghini.

Additional accessories

The pump is not equipped with a built-in filter. To increase the service life of the nozzles and prevent cases of blocking the boiler equipment, the manufacturer recommends purchasing the Suntec TA 3 A 4010 7 fuel pump together with a motorized filter with a cleaning depth of 200 microns.

Working with fuel oil requires additional equipment - a degasser flask should be included in the pipeline, minimizing the negative impact of light fractions of heated fuel.

Important advantages are:

  • high efficiency;

  • pumping fuel of different types and viscosities;

  • adjustment of feed pressure for tasks to be solved, range 7-40 atm.;

  • easy start-up when installing a heating device;

  • installation in burners of many brands;

  • heat resistance - operating fuel temperature up to +150 ºC;

  • low maintenance requirements.

Our online catalog presents equipment of various capacities and performance for assembling reliable heating systems. Compliance with European quality and safety requirements, affordable price and compatibility with burners of many manufacturers make Suntec pumps popular among users in many countries.

Characteristics

Shaft design: one cavityModel type: without electromagnetic valveOil temperature: from 0 to 150 °C in the pumpPump series: TA: Pressure controlPerformance at 30 bar pressure and 75 cSt viscosity: 780 l/hPerformance at 30 bar pressure and 5 cSt viscosity: 620 l/hPressure gauge port: ¼ inchVacuum gauge port: ¼ inchNominal rotation speed: 2850 rpmDirection of rotation (looking at the drive shaft): A: clockwise rotation / nozzle on the rightInstallation method: flange ∅ 54 mmMaximum rotation speed: 3600 rpmBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withFactory pressure setting: 30 barValve function: pressure regulatingNozzle pressure range: from 7 to 40 barShaft diameter: 12 mmReturn pressure: 5 barInlet pressure: 5 barNozzle outlet: ½ inchSuction and return line: ½ inchTorque: 0.3 N·mOperating viscosity: from 3 to 75 mm²/sType of pumped liquid: sea ​​water, diesel
