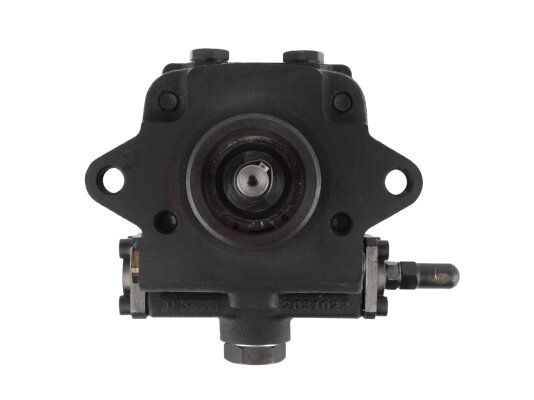

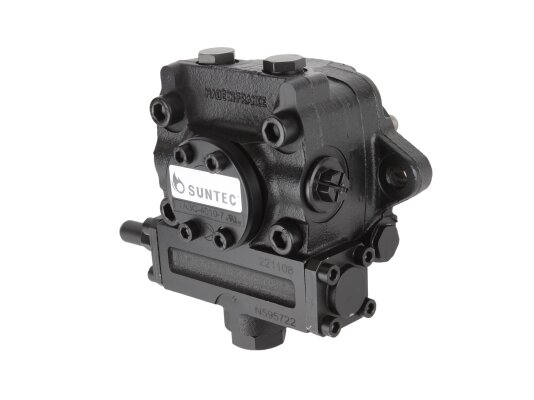

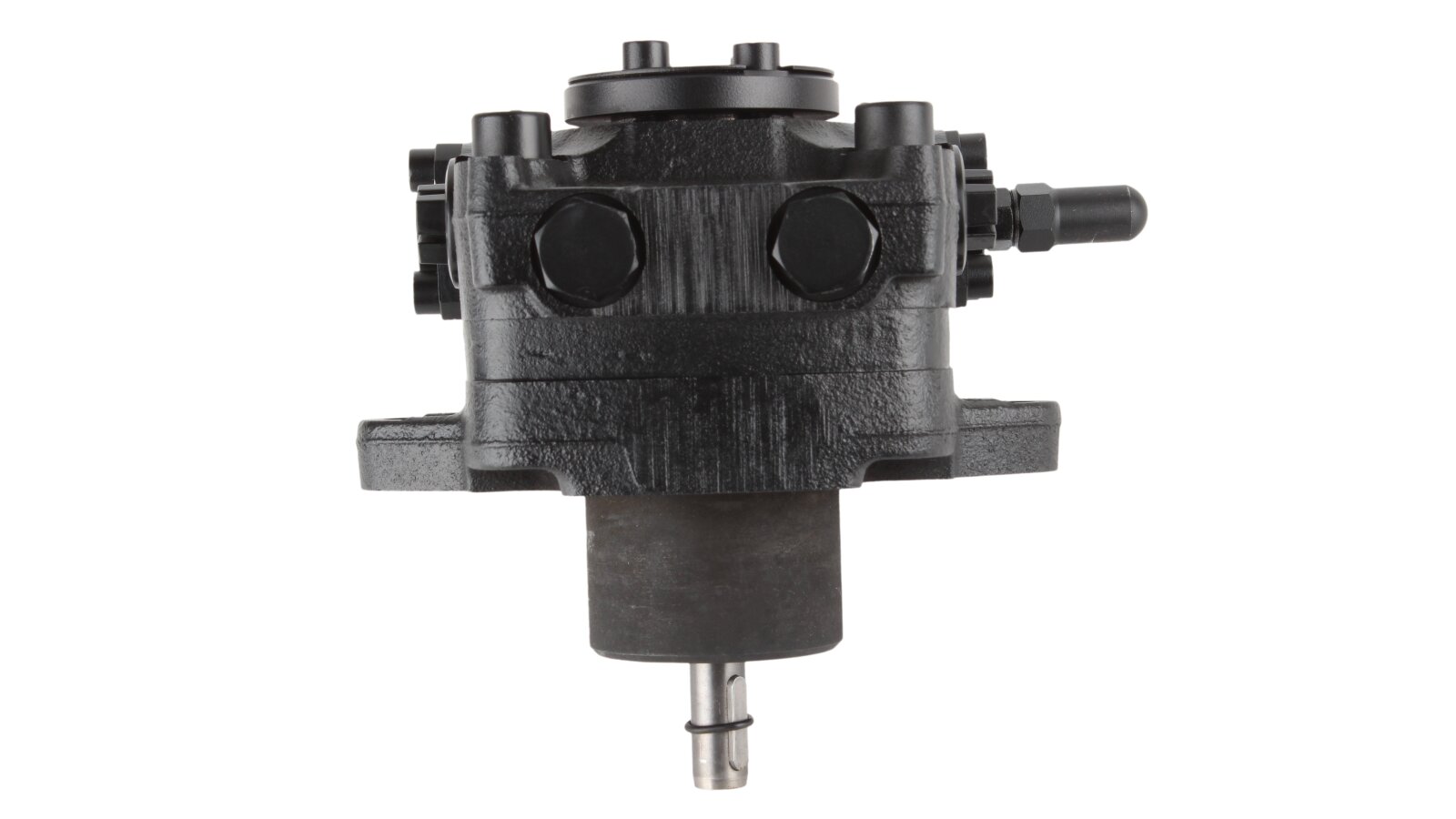

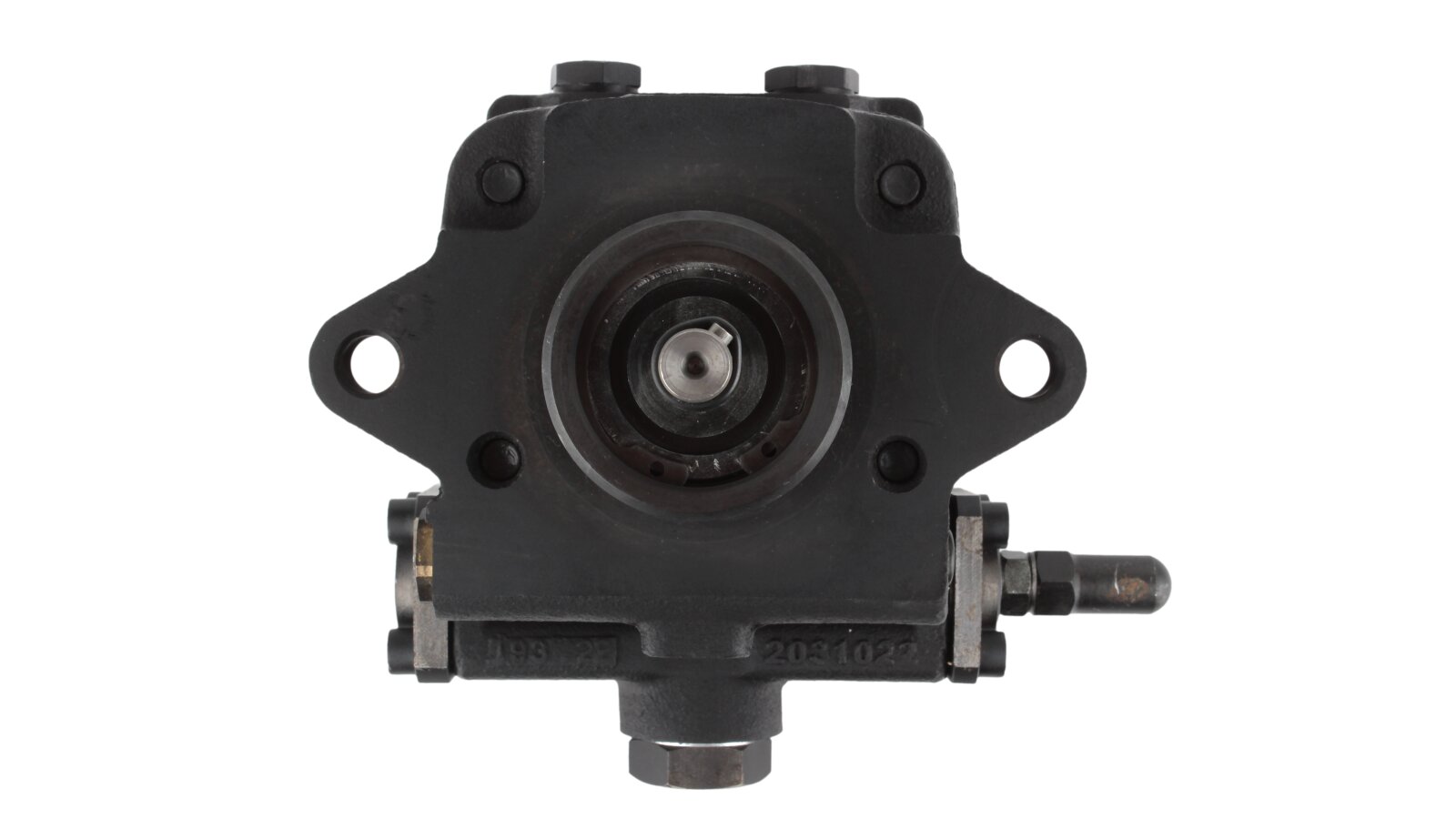

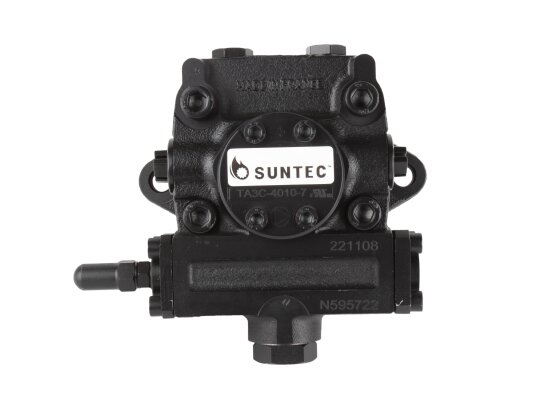

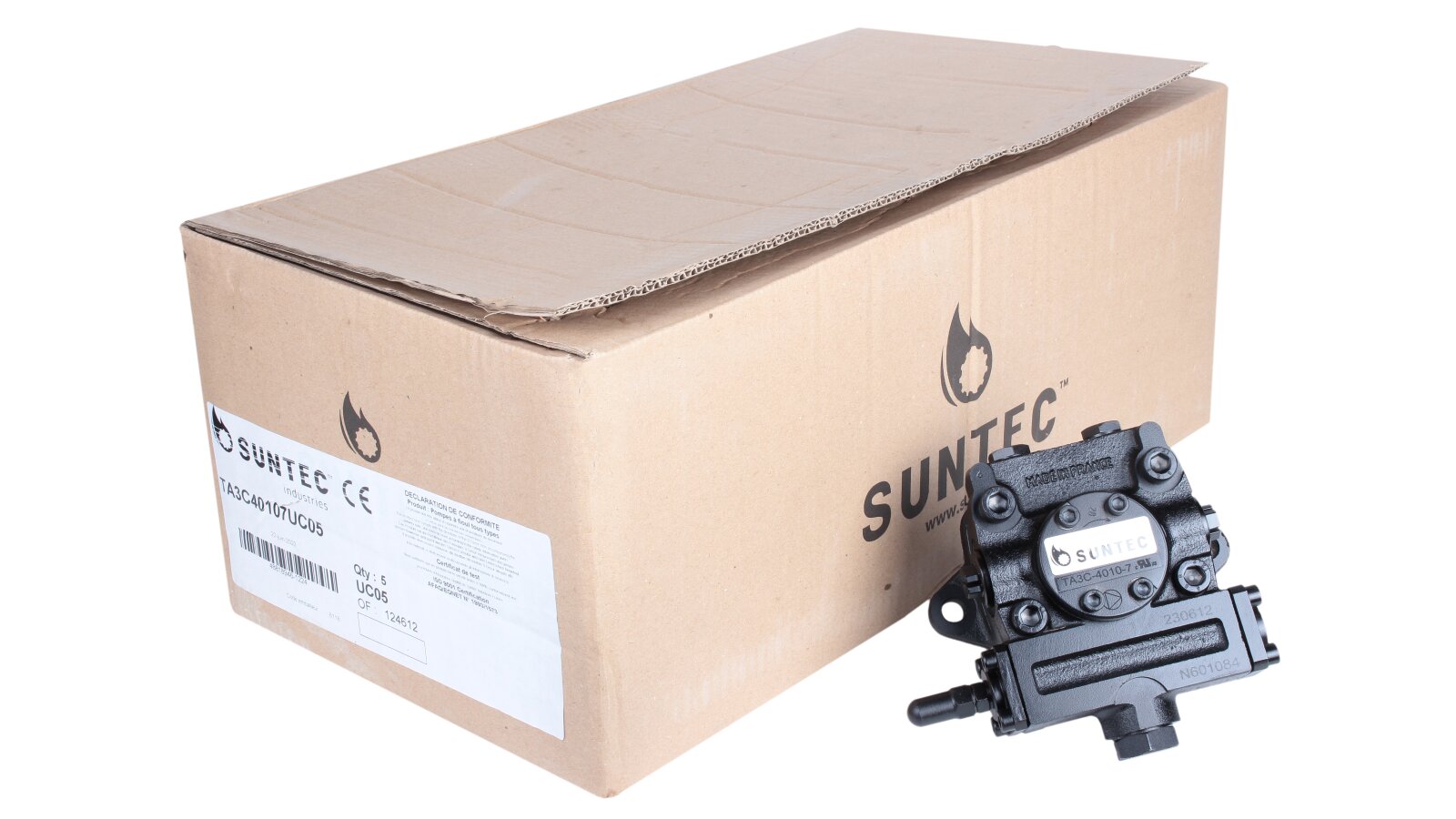

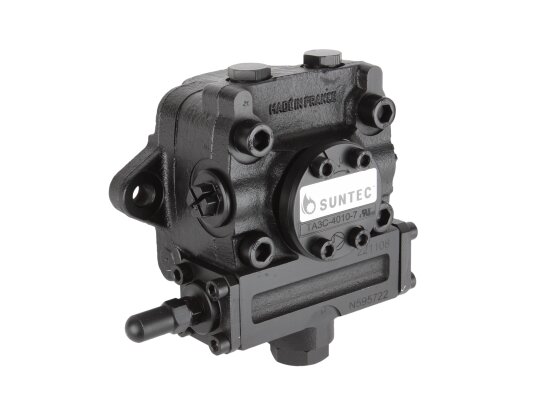

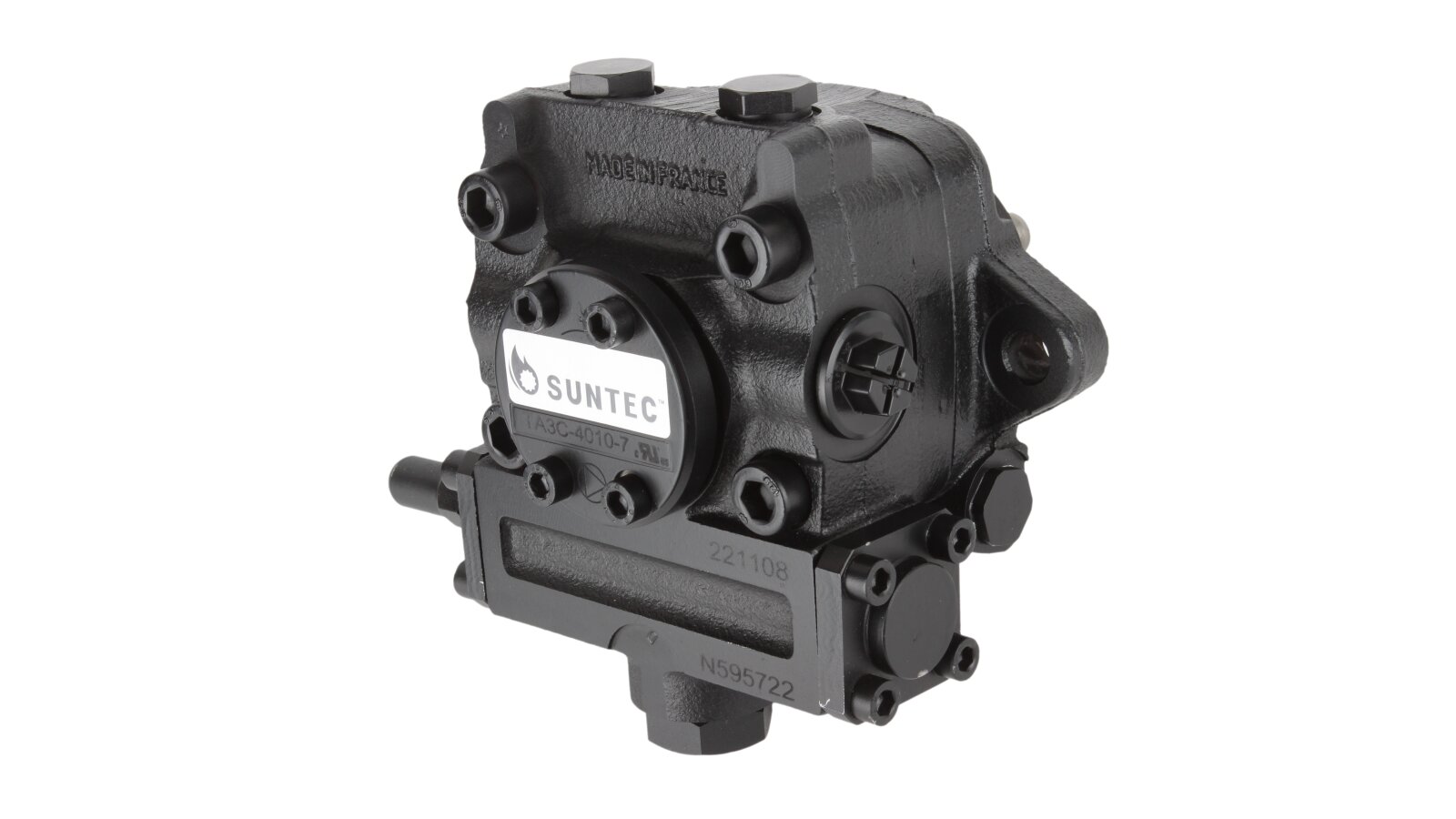

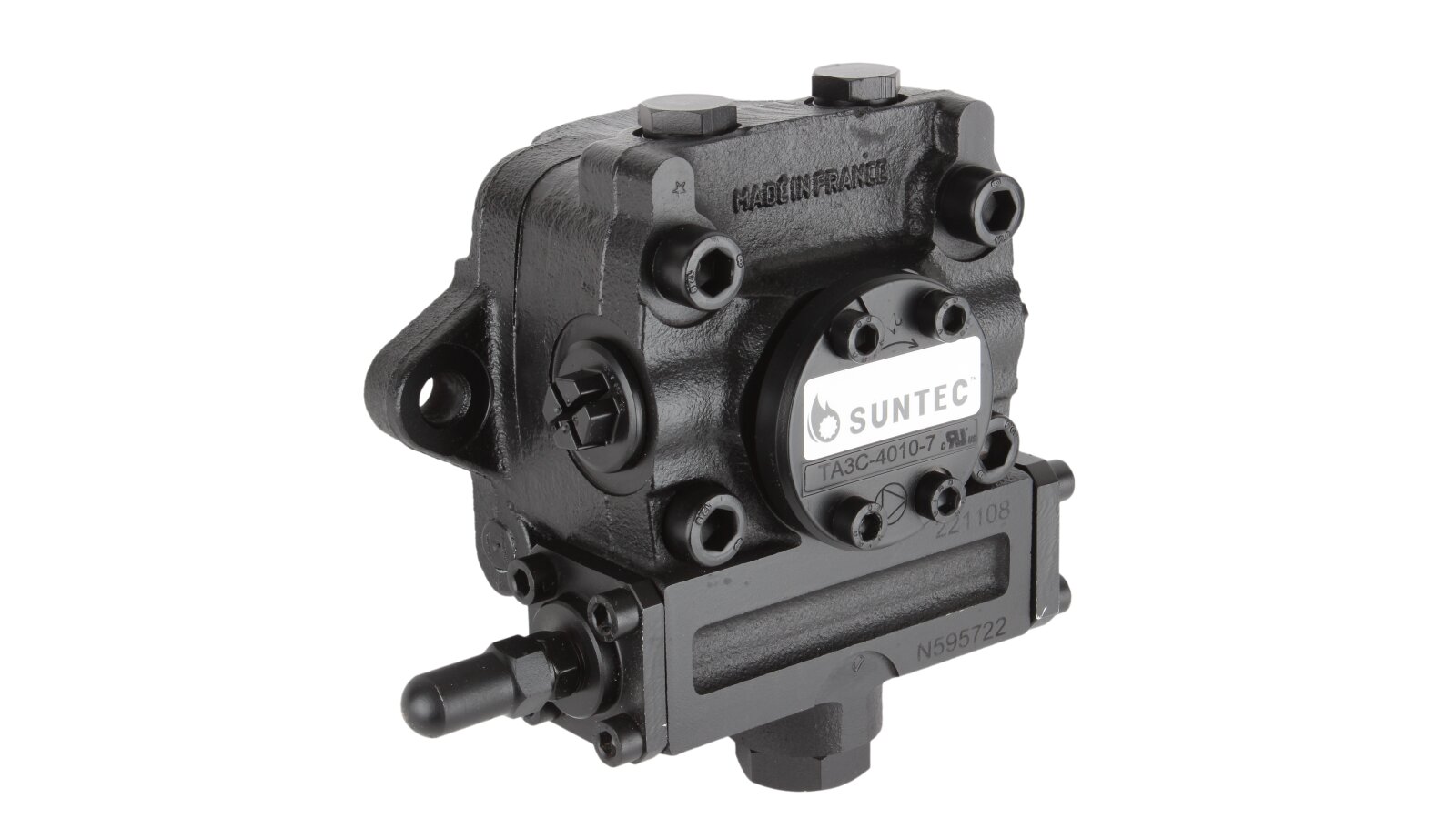

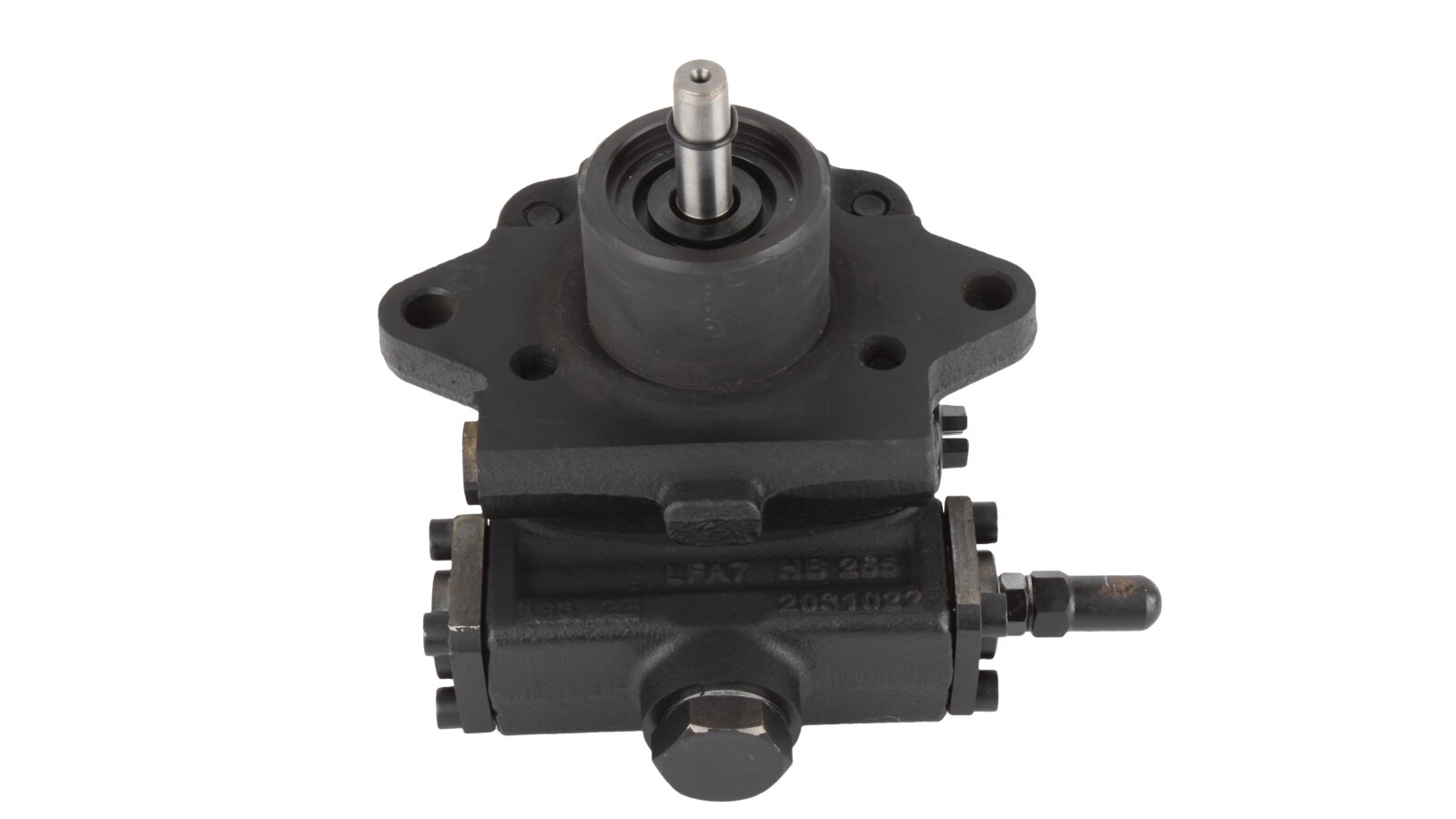

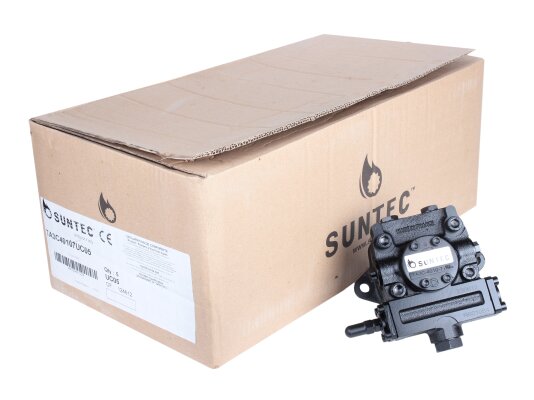

Burner Pump Suntec TA 3 C 4010 7

Suntec

AED 6,000

Oil Burner Pumps
Products code: 1301

Description

Industrial burners with a capacity of up to 30,000 kW Elco, Lamborghini, Baltur, Weishaupt require decent equipment. The Suntec TA 3 C 4010 7 fuel pump combines impeccable performance characteristics, universal installation and safe design. It operates on fuel with a viscosity of 3-75 cSt: fuel oil, diesel fuel, crude oil.

Design features

  • The pump is equipped with a pressure regulating valve, which allows you to adjust the fuel supply parameters taking into account production tasks. Permissible range: 7-40 bar, factory setting - 30 atm. Due to the lack of a locking function, the fuel supply is interrupted manually.

  • The design is heat-resistant. Thanks to the use of special seals, the pump is designed to work with fuel, the temperature of which reaches +150 degrees.

  • The body has an opening for a heating device with a power of 80-100 W. The well-thought-out location of the heater ensures the best heat transfer without direct contact with the fuel. The electrical device is installed in accordance with the European standard.

  • The pump can be used in two- and one-pipe systems. For systems without a return line, the bypass plug should be unscrewed and the fuel drain should be closed beforehand.

  • A built-in filter is not included in the kit.

Additional options

You can protect the injectors from clogging and the fuel system from emergency failures by installing a motorized filter with a purification degree of 200 microns (optional, the price is indicated without a filter). Installation location - after the pump.

For uninterrupted operation of the pump and to prevent premature wear when working with fuel oil, the manufacturer recommends using a degasser flask in the pipeline.

Professionals note the following advantages of the model:

  • highly efficient fuel supply - 780 l / h at a viscosity of 75 cSt and a pressure of 30 bar;

  • pressure adjustment taking into account operating conditions in the range of 7-40 atm.;

  • easy start when installing a heating device;

  • cylindrical threaded connections for monitoring devices and pipelines;

  • heat-resistant design - operating fuel temperature 0 ... + 150 degrees;

  • automatic air bleed from 2-pipe systems.

You can find out more about the features of installation, adjustment and operation of the pump in the manufacturer's instructions (attached file). Before buying a Suntec TA 3 C 4010 7 fuel pump, check the characteristics with the burner specification.

Characteristics

Vacuum gauge port: ¼ inchPerformance at 11 bar pressure and 5 cSt viscosity: 707 l/hOperating viscosity: from 3 to 75 mm²/sValve function: pressure regulatingModel type: without electromagnetic valveOil temperature: from 0 to 150 °C in the pumpPump series: TA: Pressure controlPerformance at 7 bar pressure and 5 cSt viscosity: 718 l/hPerformance at 30 bar pressure and 75 cSt viscosity: 780 l/hPerformance at 30 bar pressure and 5 cSt viscosity: 614 l/hPerformance at 20 bar pressure and 5 cSt viscosity: 656 l/hPerformance at 20 bar pressure and 20 cSt viscosity: 752 l/hPerformance at 14 bar pressure and 75 cSt viscosity: 779 l/hPerformance at 14 bar pressure and 20 cSt viscosity: 756 l/hSolenoid valve consumption: от 310 Вт при 5 сСт /7 бар до 1250 Вт при 5 сСт /40 бар WPressure gauge port: ¼ inchNominal rotation speed: 2850 rpmTorque: 0.3 N·mSuction and return line: ½ inchNozzle outlet: ½ inchInlet pressure: 5 barReturn pressure: 5 barShaft diameter: 12 mmNozzle pressure range: from 7 to 40 barFactory pressure setting: 30 barBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withShaft design: one cavityMaximum rotation speed: 3600 rpmInstallation method: flange ∅ 54 mmDirection of rotation (looking at the drive shaft): C: counterclockwise rotation / nozzle on the leftType of pumped liquid: sea ​​water, diesel
