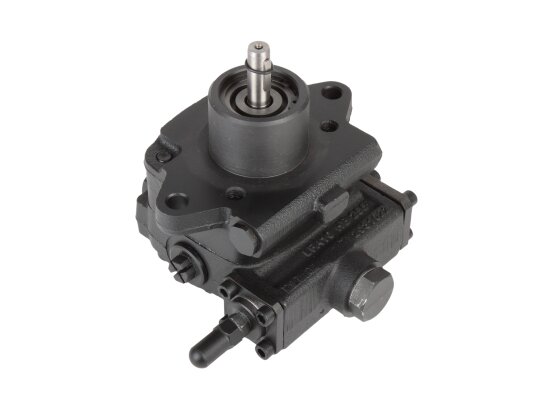

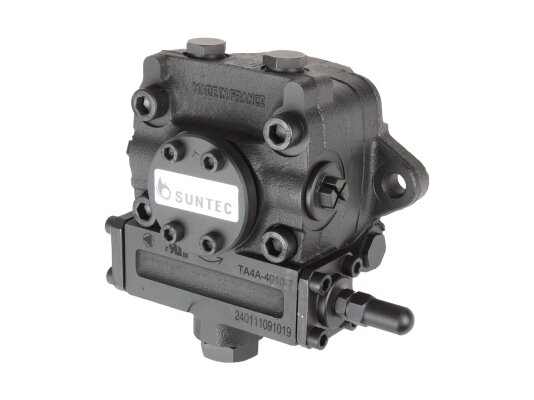

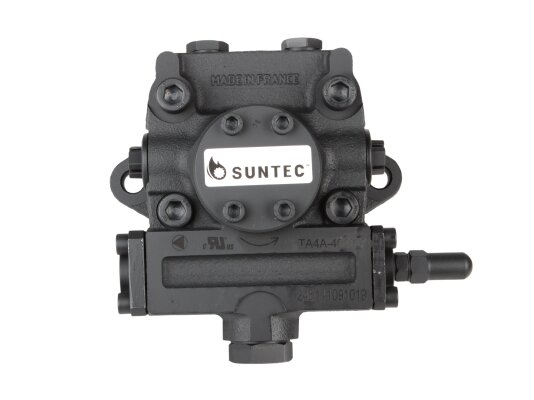

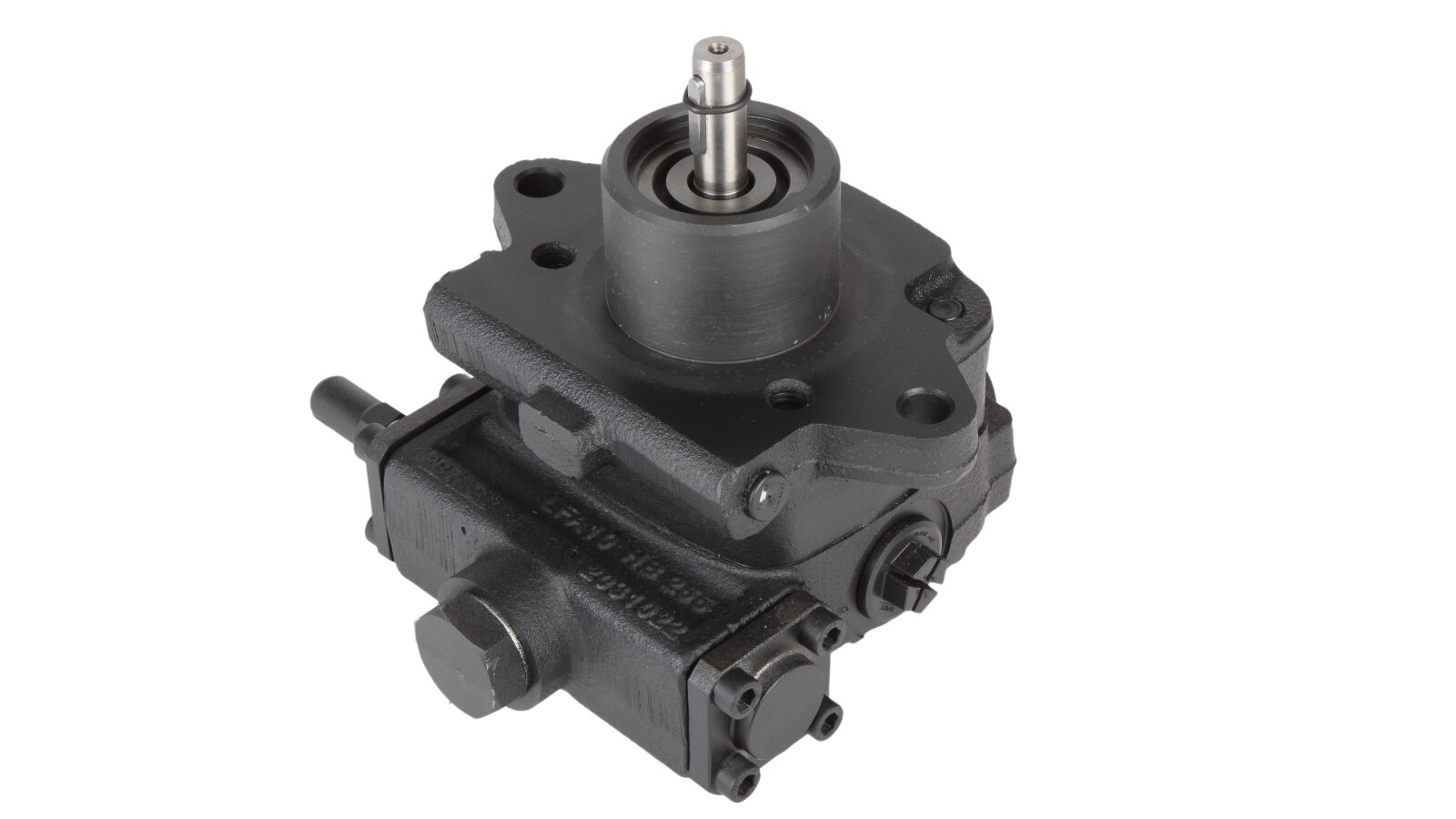

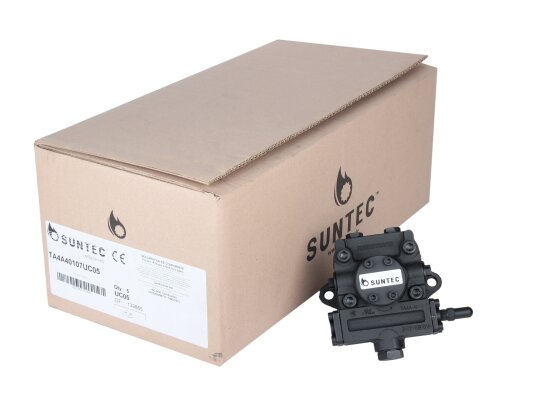

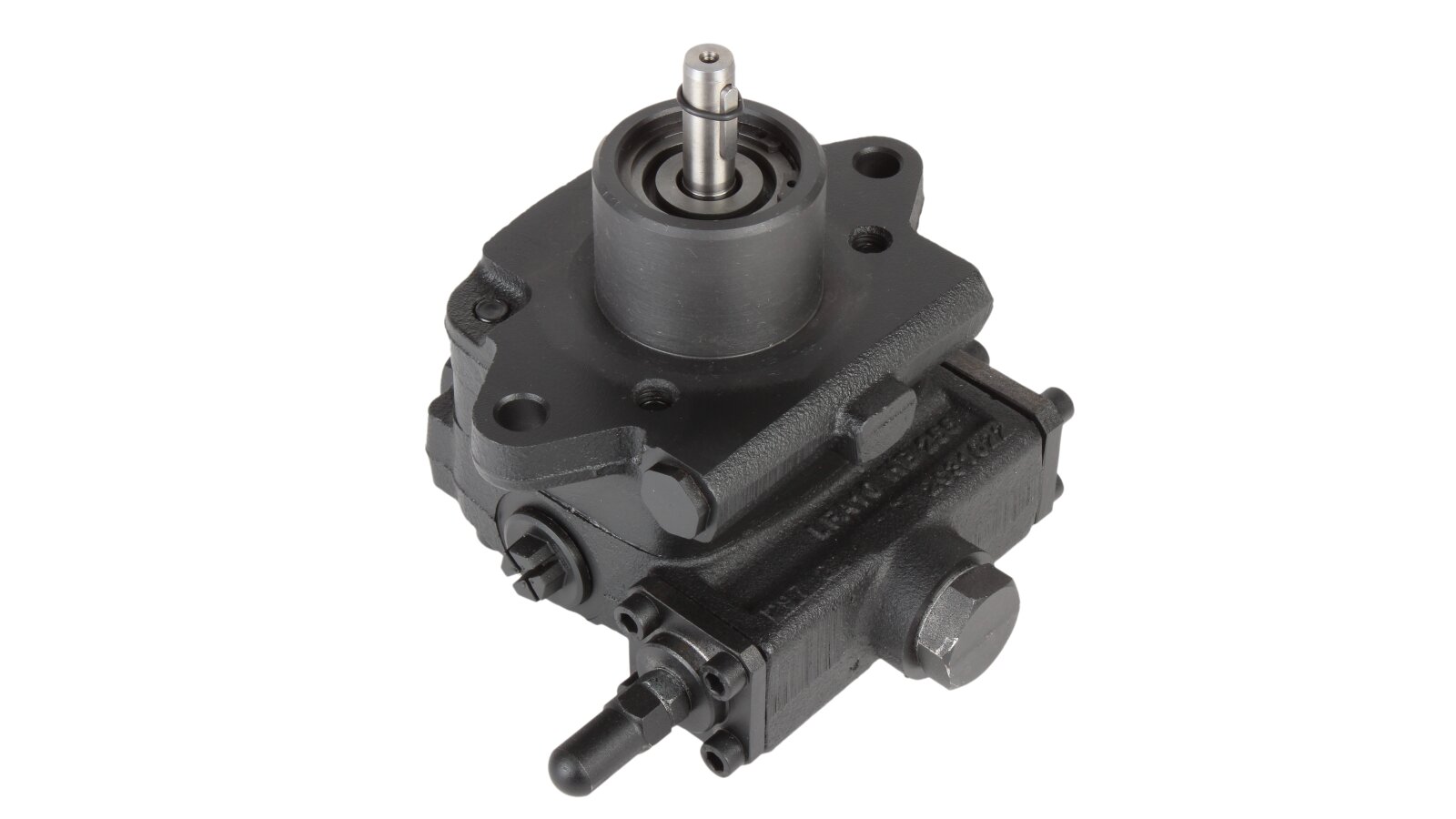

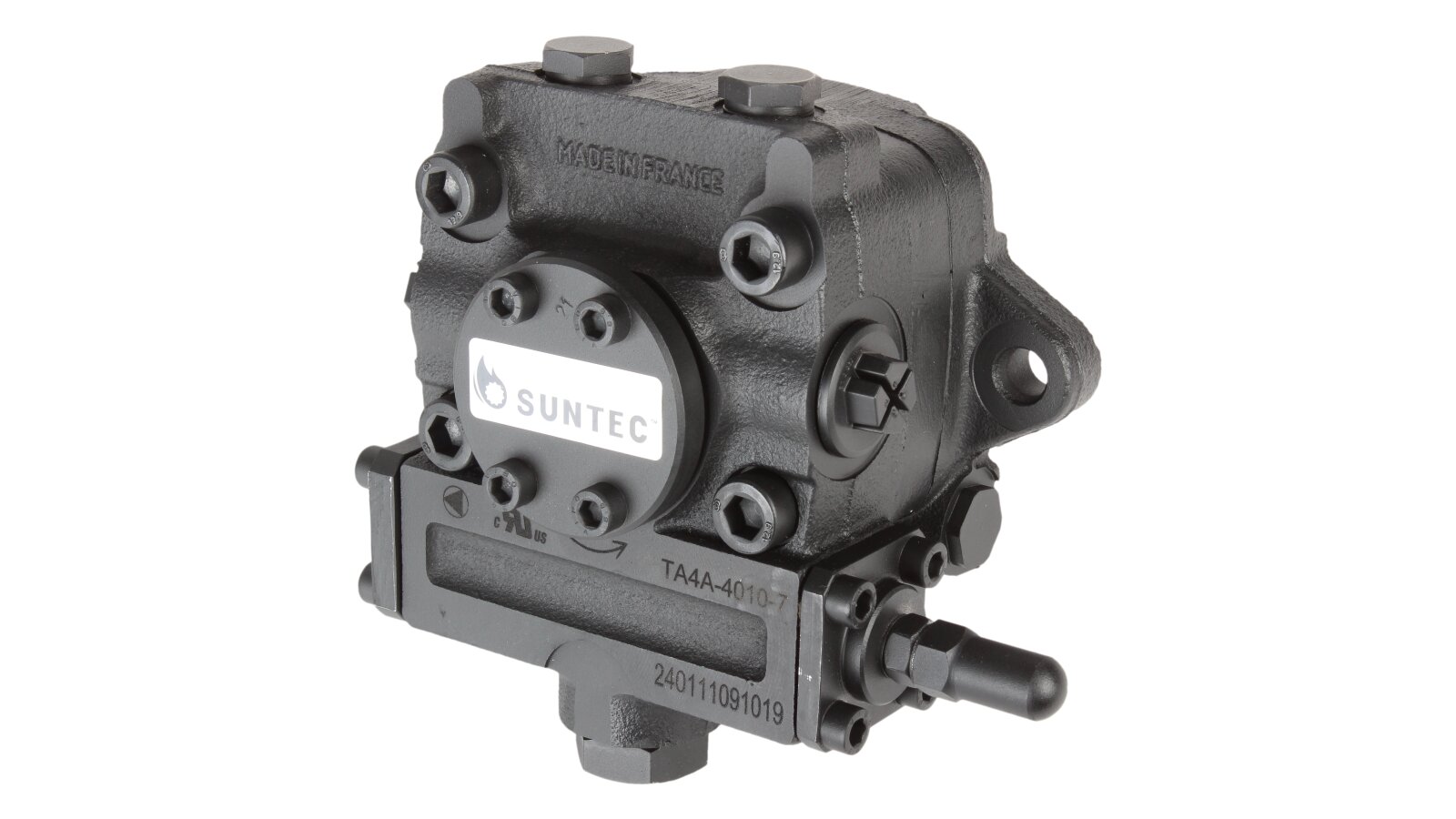

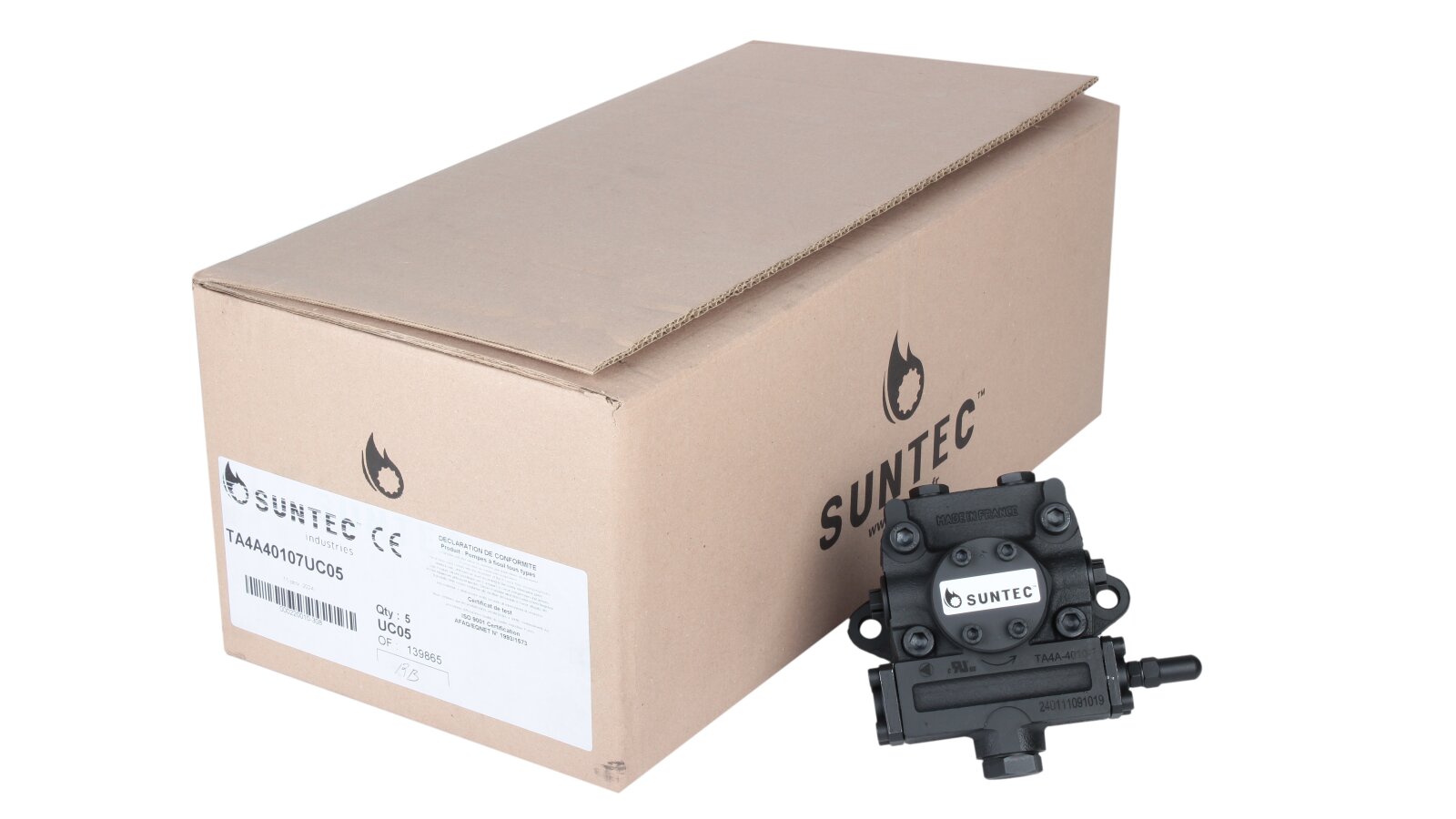

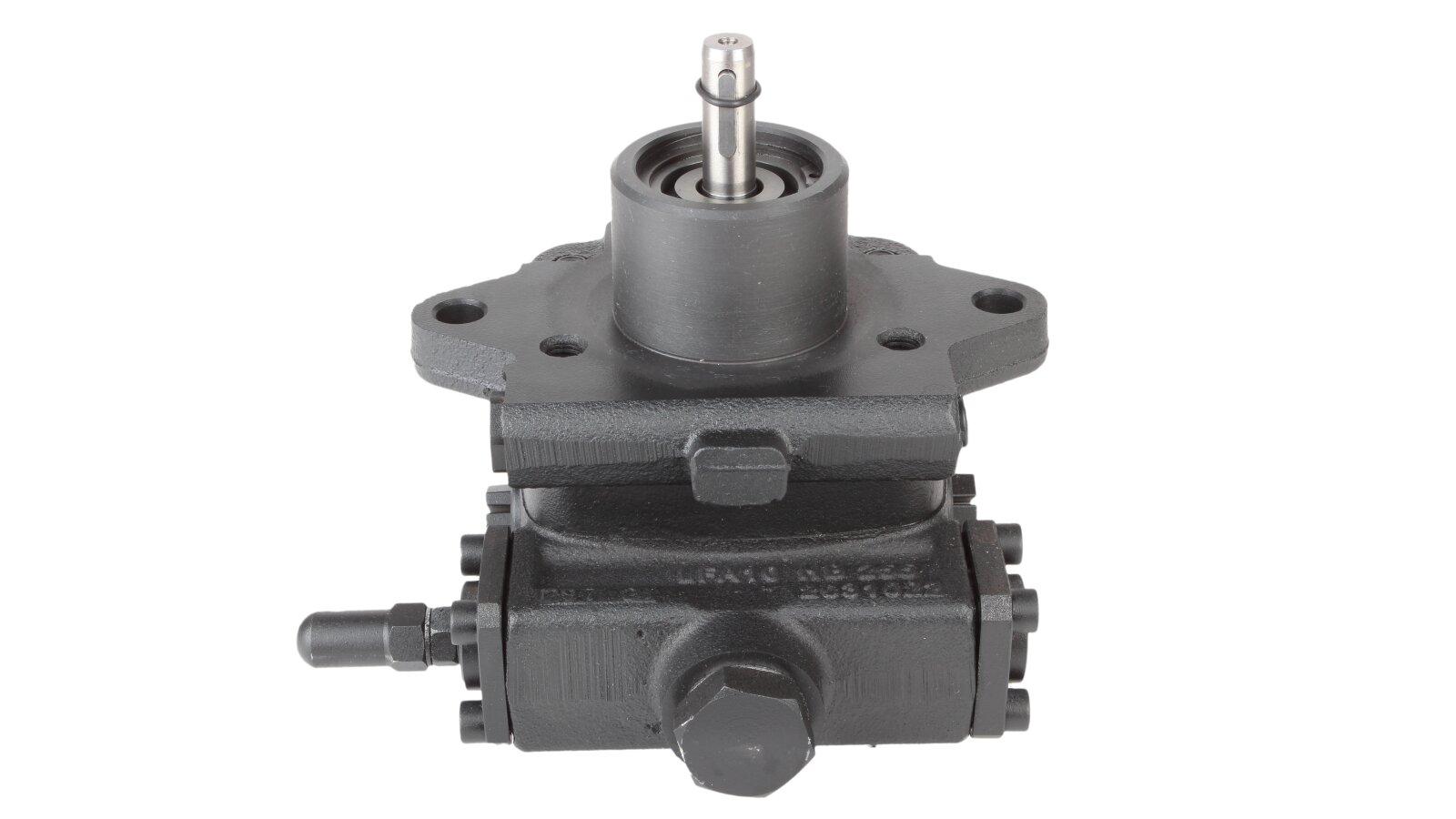

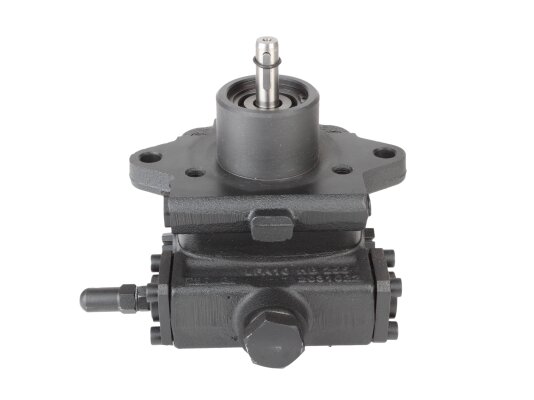

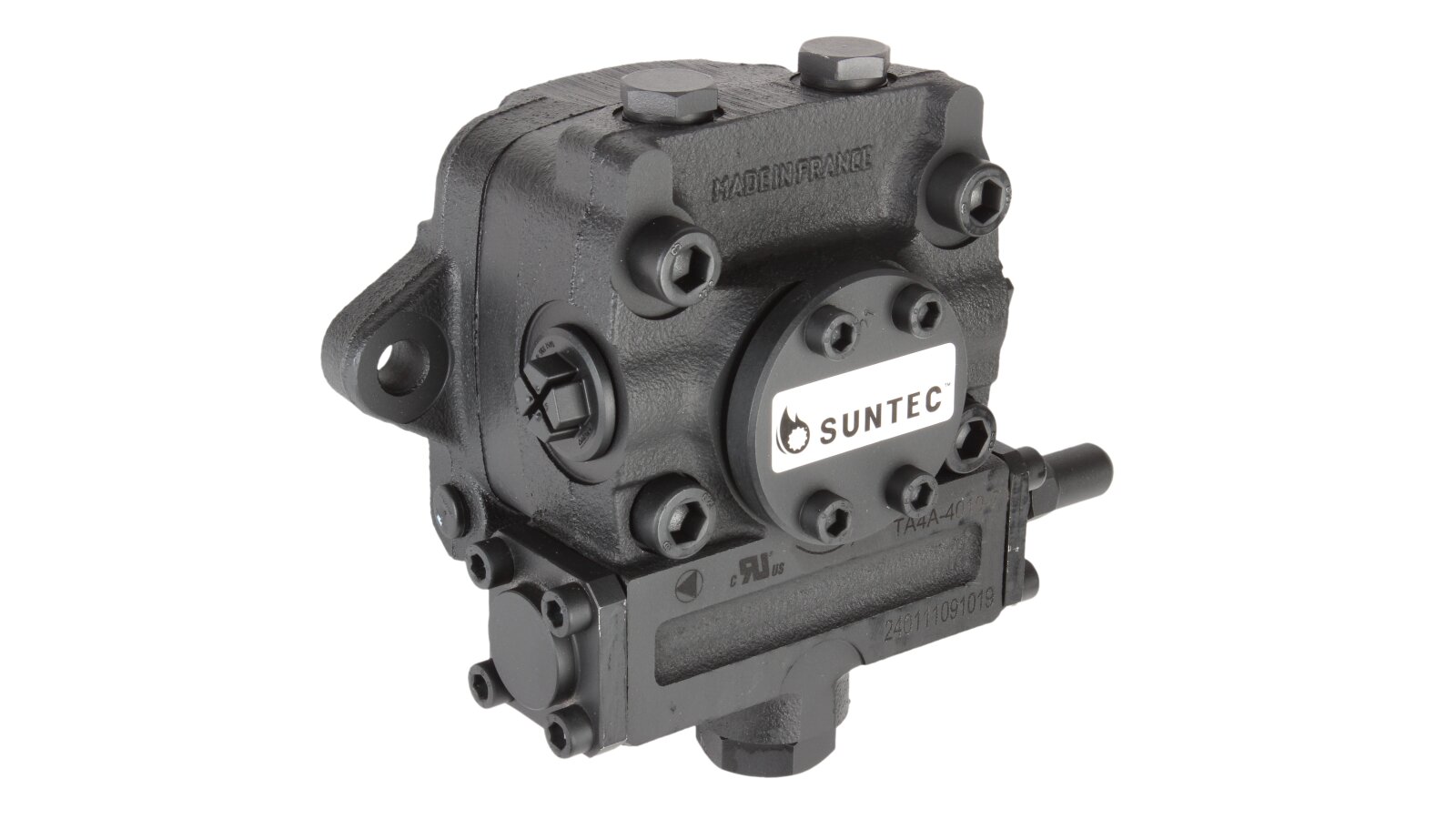

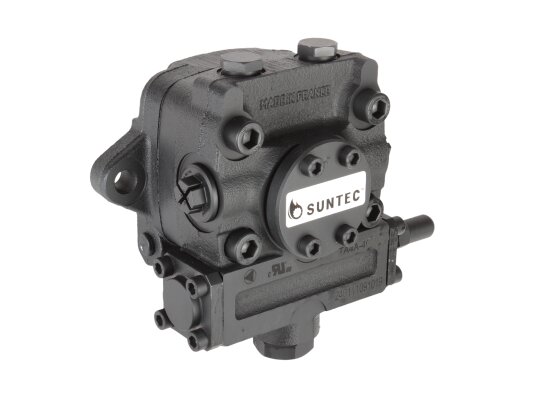

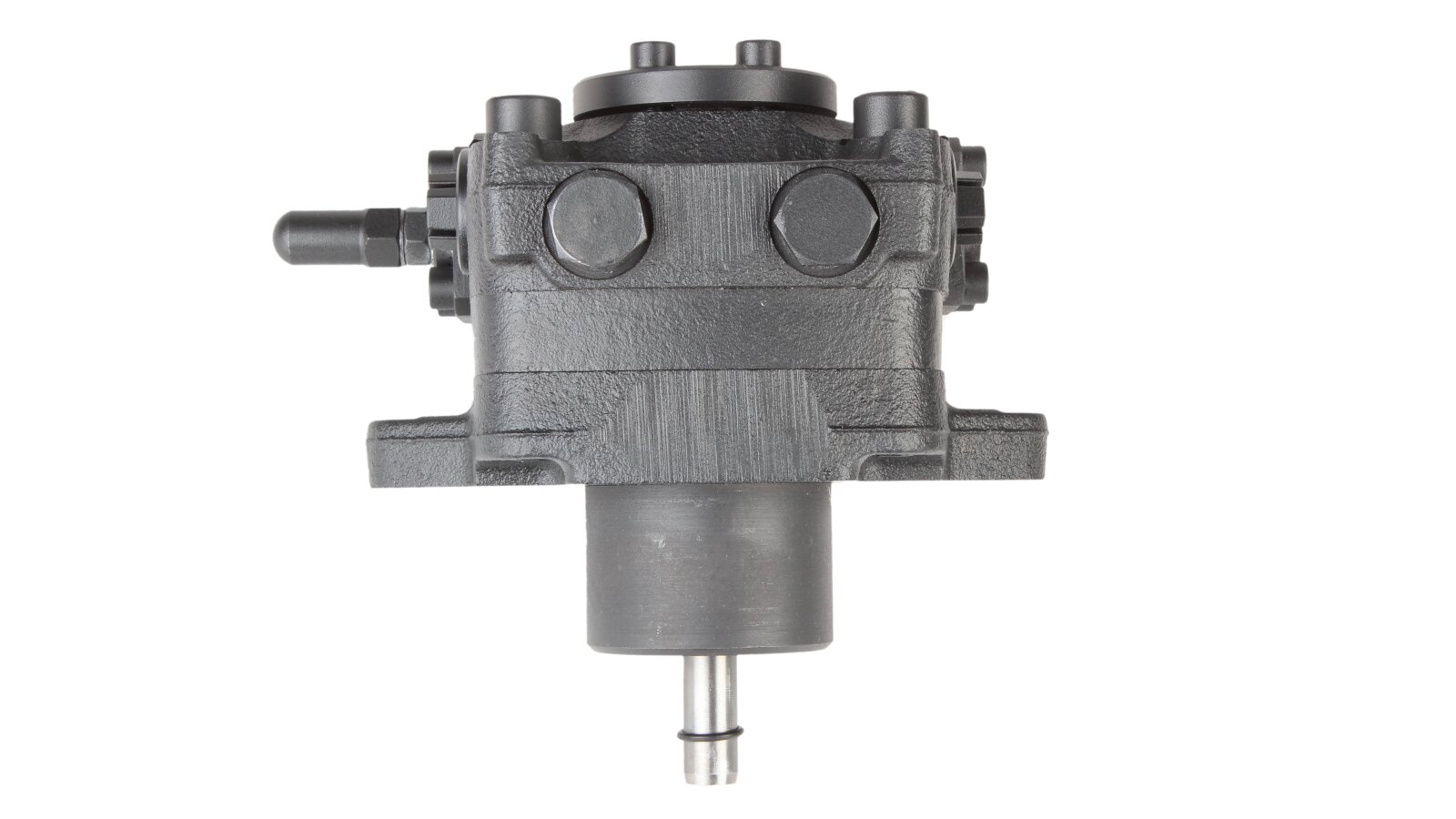

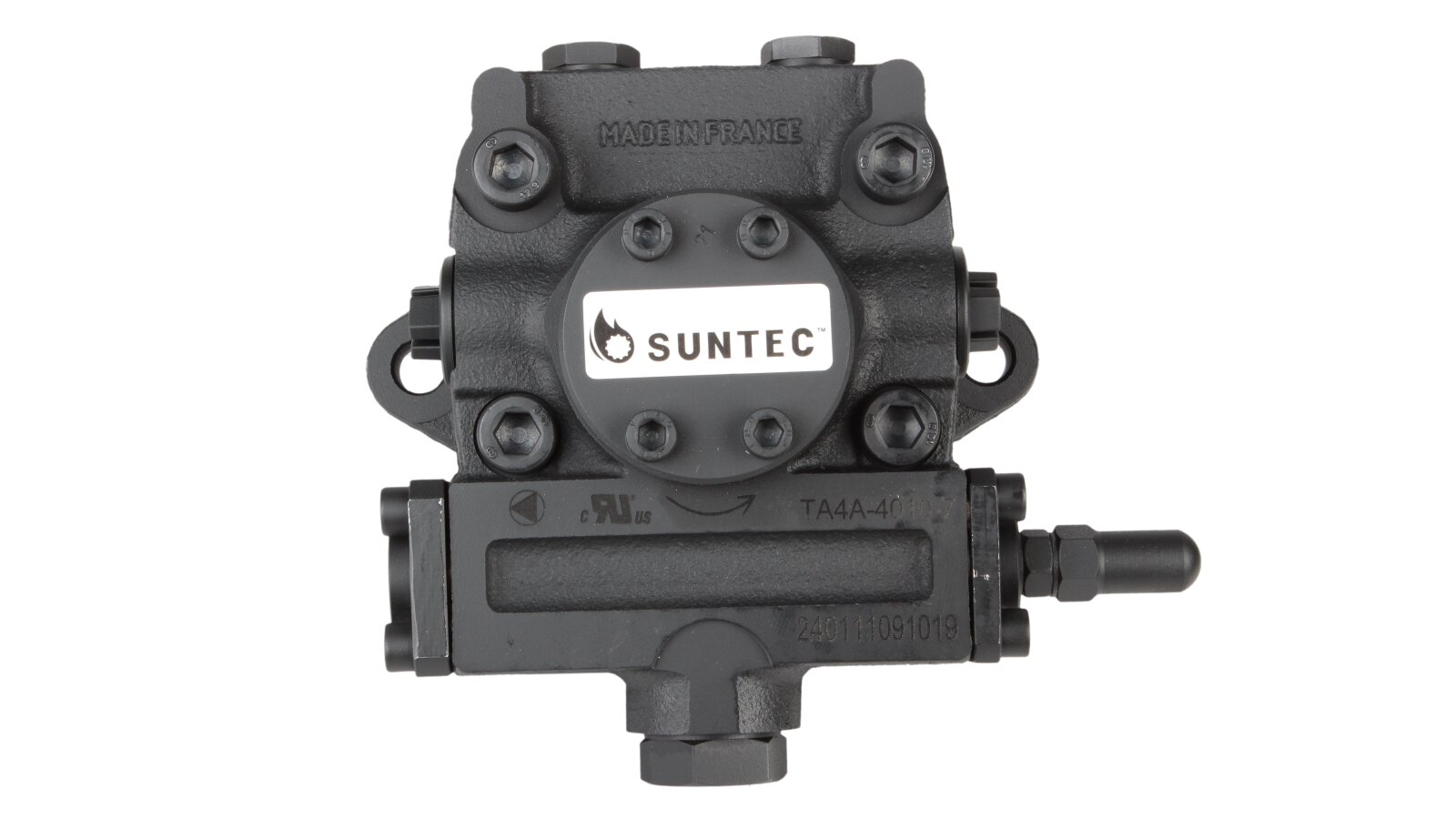

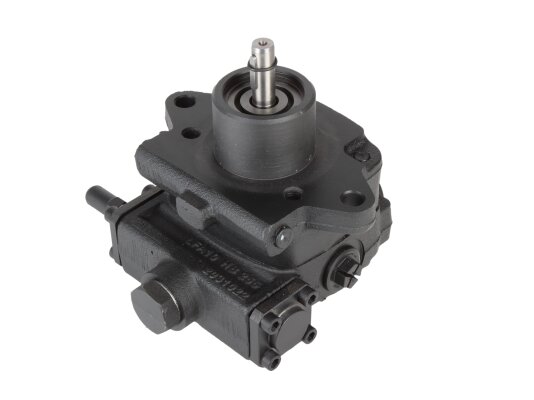

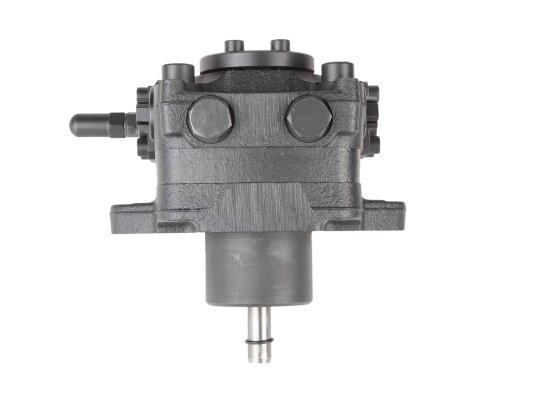

Burner Pump Suntec TA 4 A 4010 7

Suntec

AED 6,500

Oil Burner Pumps
Products code: 8721

Description

The Suntec TA 4 A 4010 7 burner pump is used in industrial fuel combustion systems. The working environment is diesel fuel and fuel oil. To facilitate a cold start, it is possible to install an electric heater, which is switched on in advance. The design is adapted for high-temperature exposure. The maximum fuel temperature inside the pump is +150 ºC. The capacity reaches 1050 l / h at a pressure of 30 bar and a viscosity of 75 cSt.

Features:

  • design with increased resistance to wear, high temperatures, loads;

  • fuel injection under pressure of 7-40 bar, factory setting - 30 bar;

  • built-in pressure regulating valve;

  • temperature of the pumped medium 0 ... + 150 ° C;

  • mounting place for mounting a heating element;

  • for fuel with a viscosity of 3-75 cSt, can be used for more viscous fuel grades when reducing the viscosity to the recommended value using heating;

  • flange connection, ∅ 54 mm;

  • in the basic version - with a bypass plug in the drain hole;

  • the possibility of installation in single-pipe devices when removing the bypass plug and blocking the drain hole with a blind plug with a washer;

  • ports for a pressure gauge and a vacuum gauge ¼ inch;

  • complete set without a built-in filter, requires installation of a motorized filter for 200 microns;

  • version without a shut-off electromagnetic valve.

The pump for the Suntec TA 4 A 4010 7 burner must be equipped with a dosing flask when working with fuel oil. This will reduce the likelihood of premature wear of the working elements.

Characteristics

Maximum rotation speed: 3600 rpmModel type: without electromagnetic valveOil temperature: from 0 to 150 °C in the pumpPump series: TA: Pressure controlPerformance at 30 bar pressure and 75 cSt viscosity: 1050 l/hPerformance at 30 bar pressure and 5 cSt viscosity: 830 l/hPressure gauge port: ¼ inchVacuum gauge port: ¼ inchNominal rotation speed: 2850 rpmDirection of rotation (looking at the drive shaft): A: clockwise rotation / nozzle on the rightInstallation method: flange ∅ 54 mmShaft design: one cavityBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withFactory pressure setting: 30 barOperating viscosity: from 3 to 75 mm²/sNozzle pressure range: from 7 to 40 barShaft diameter: 12 mmReturn pressure: 5 barInlet pressure: 0.45 barNozzle outlet: ½ inchTorque: 0.3 N·mType of pumped liquid: sea ​​water, dieselValve function: pressure regulating
