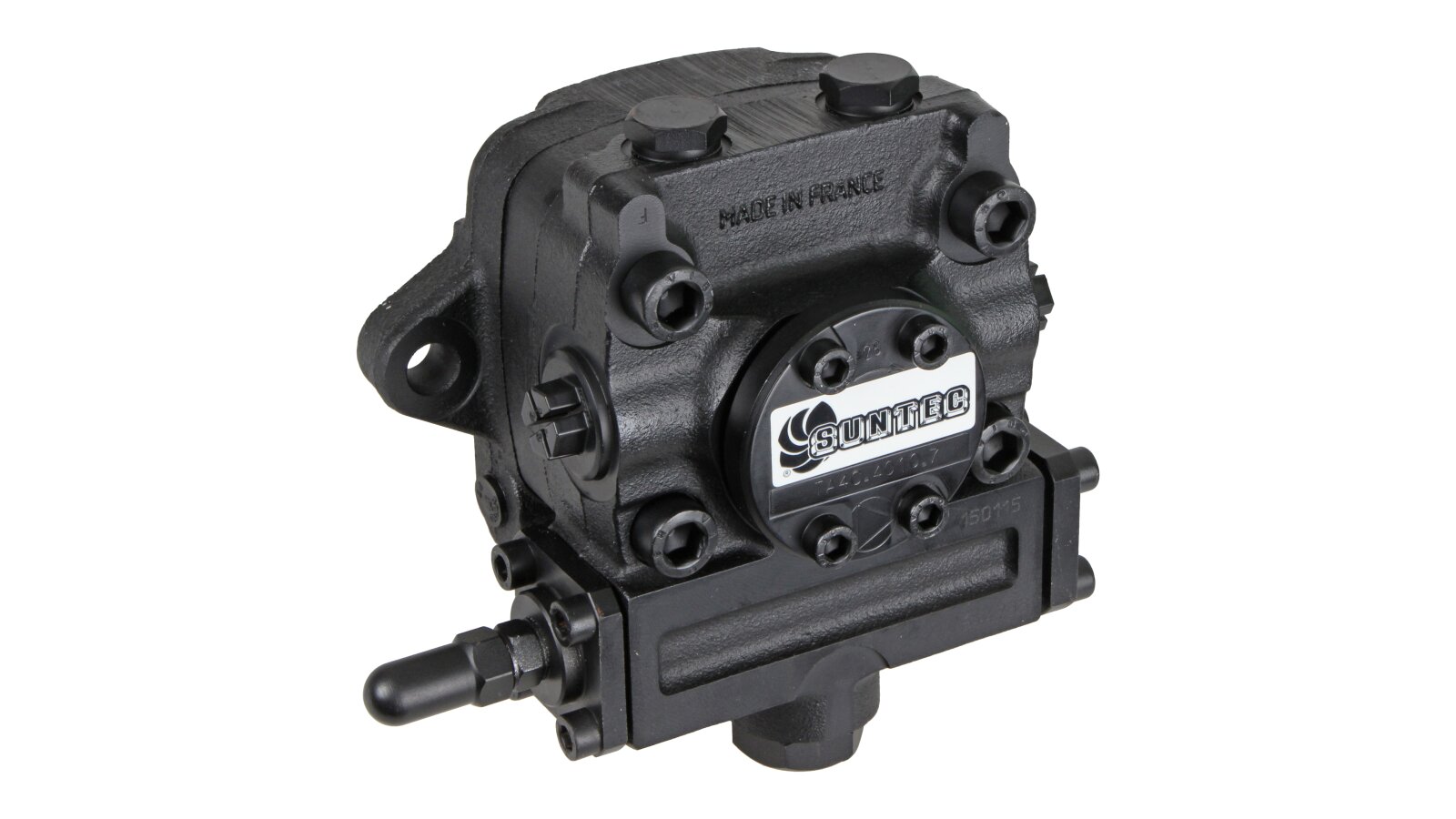

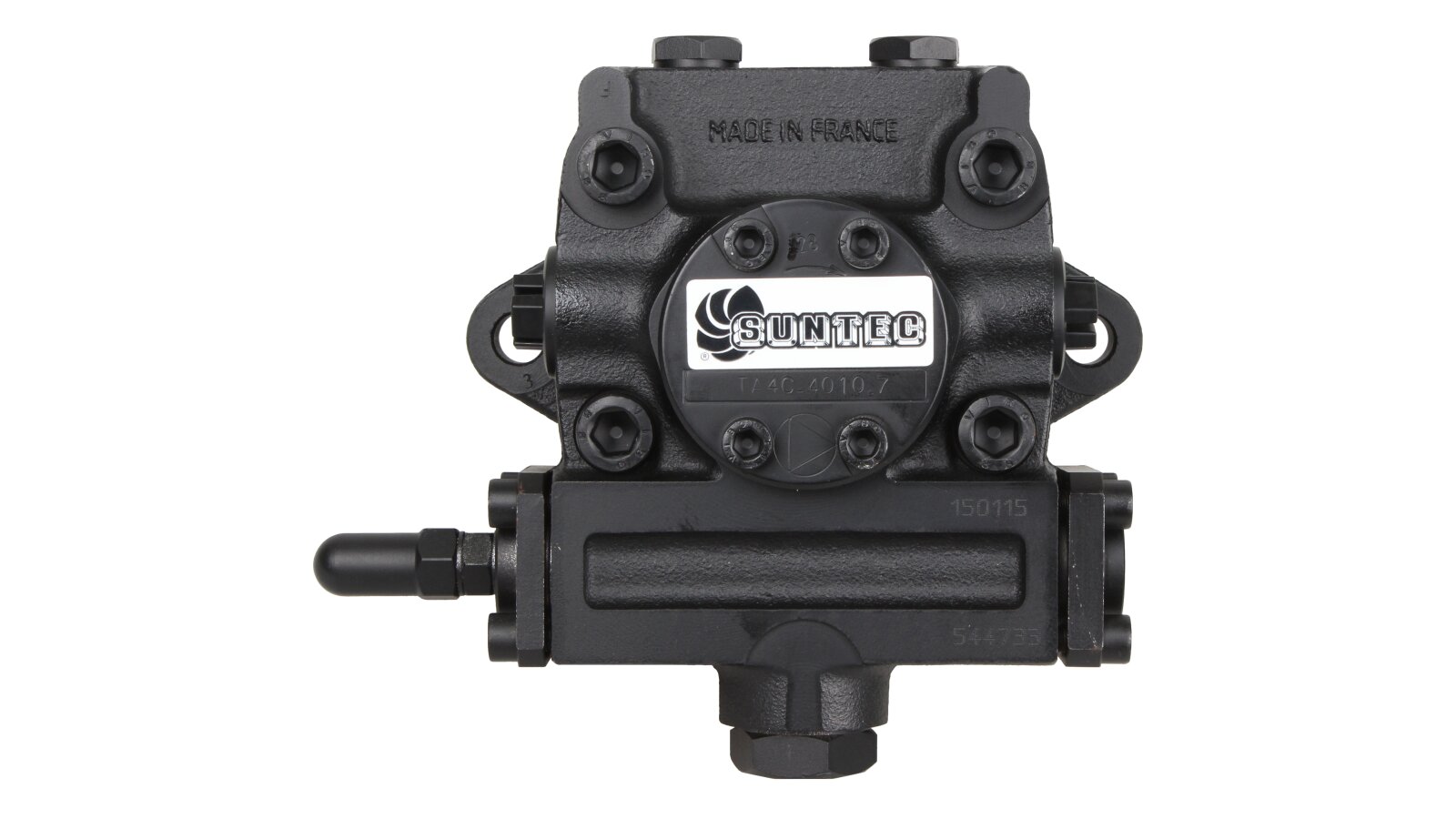

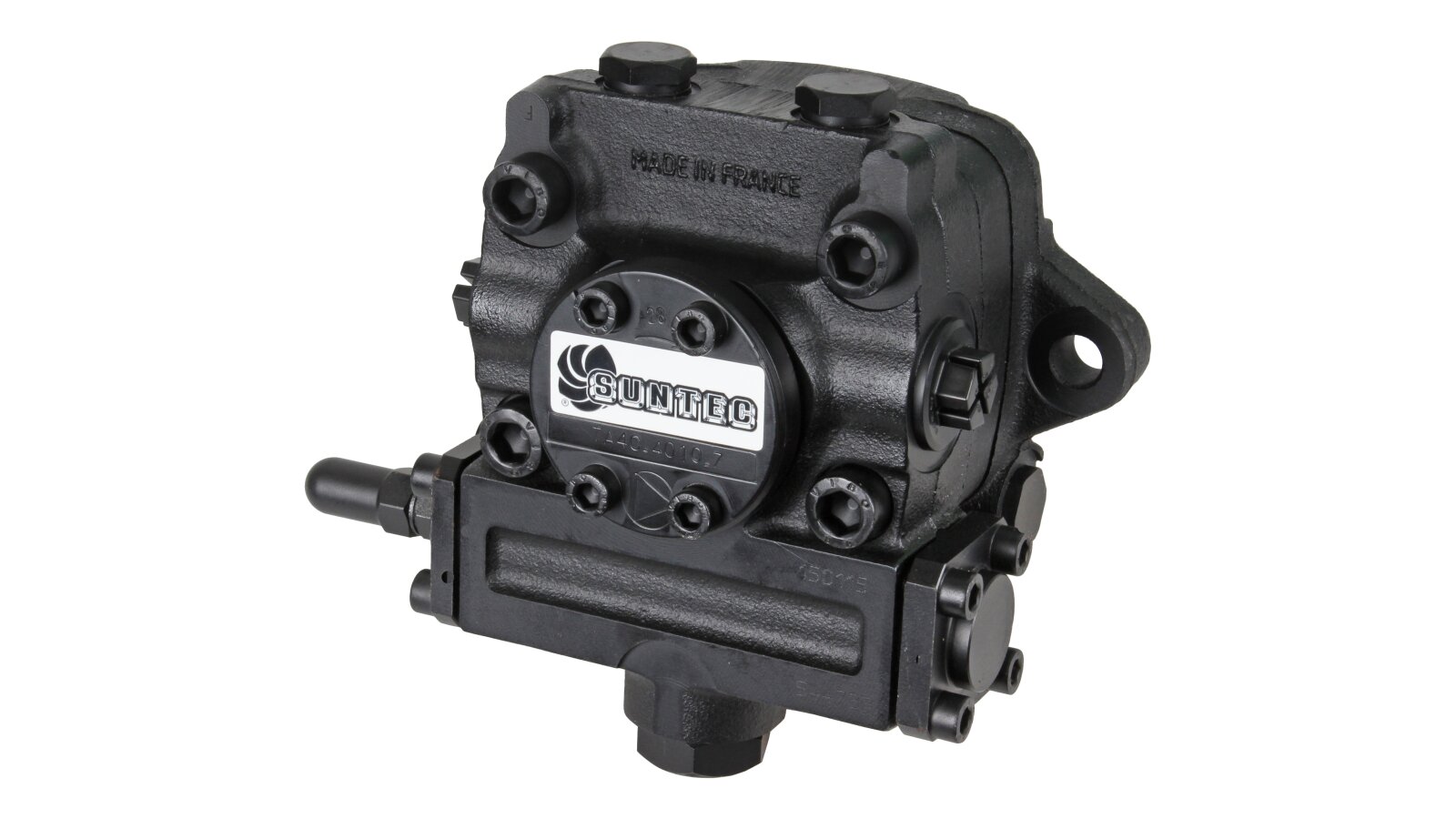

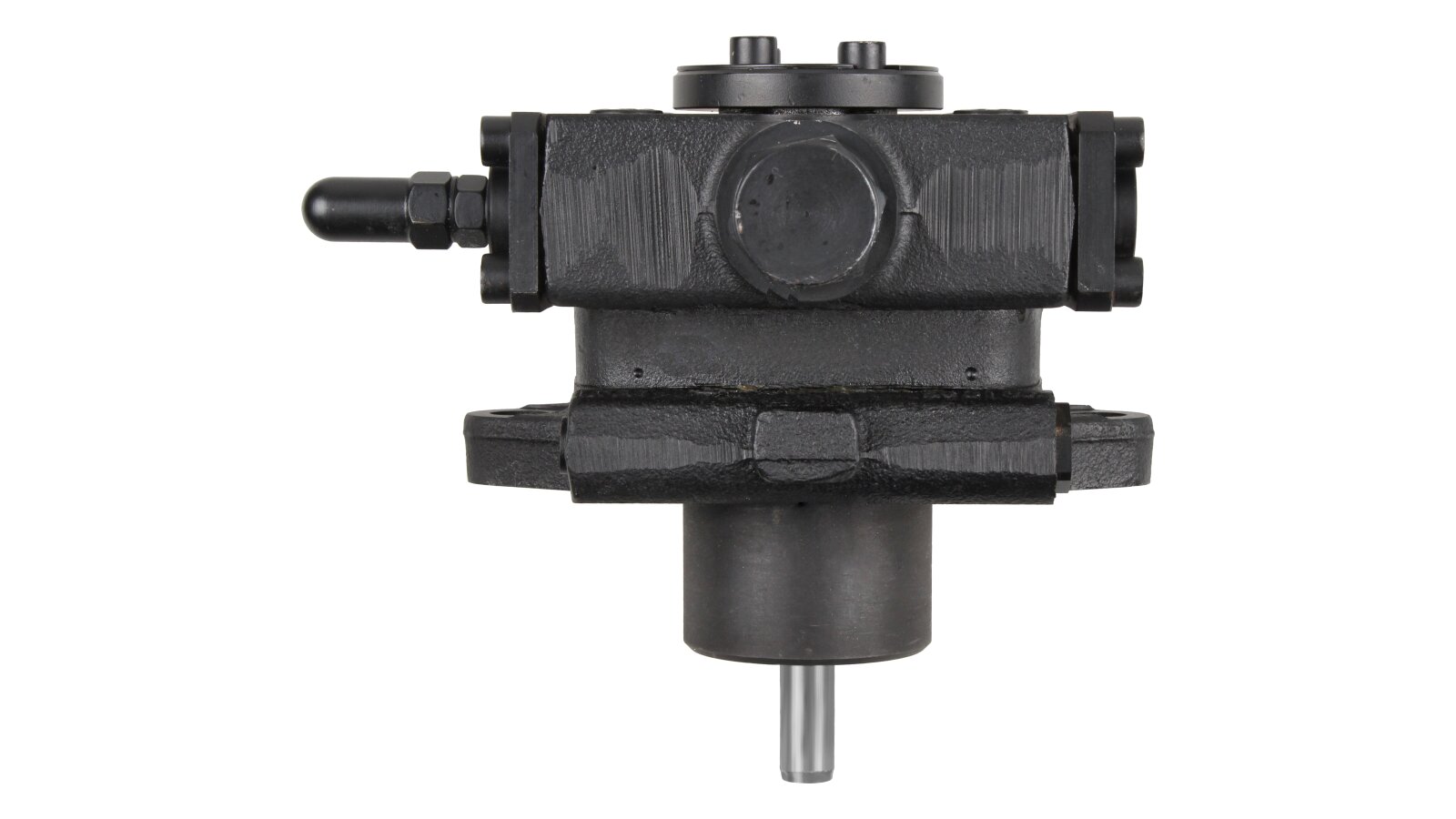

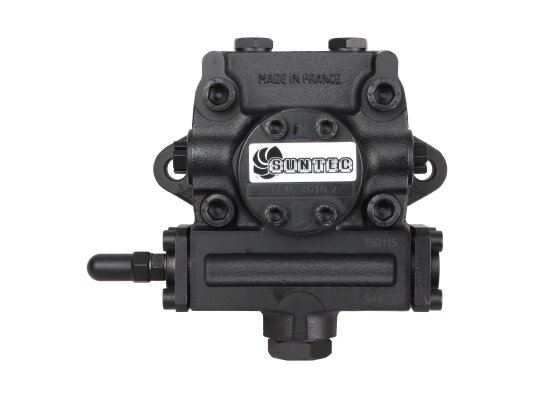

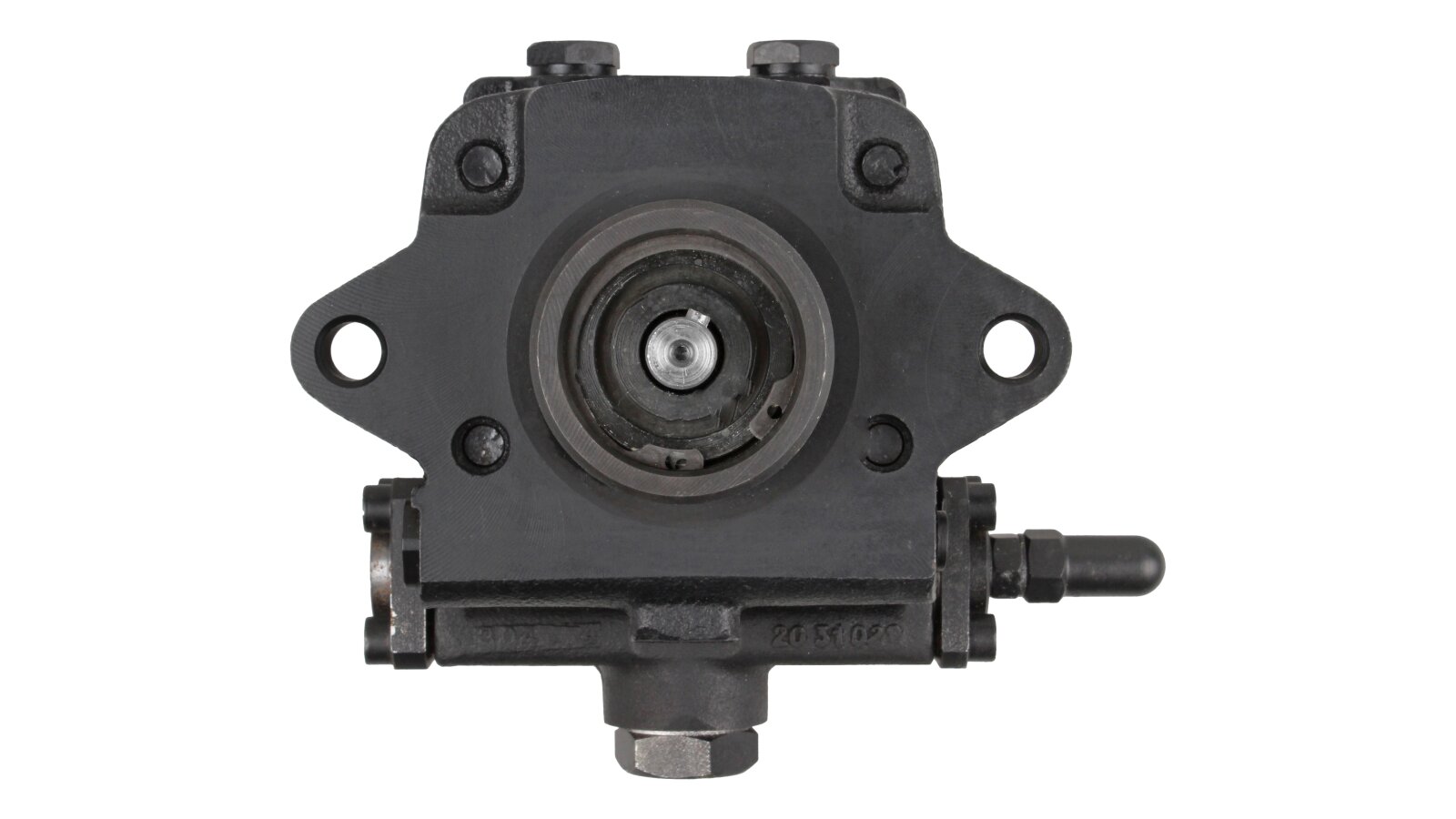

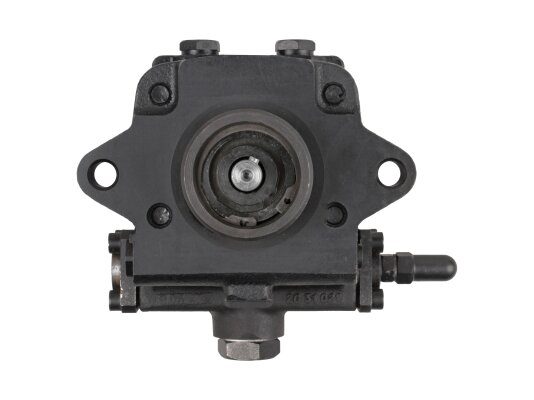

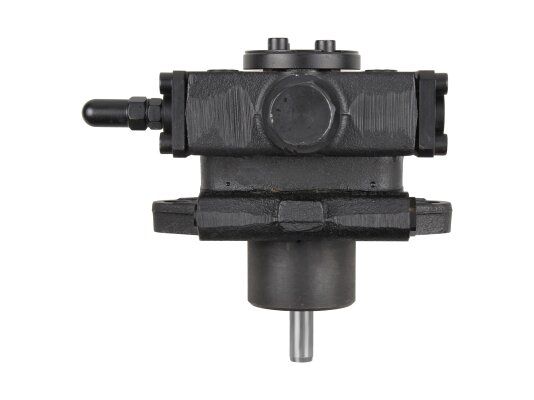

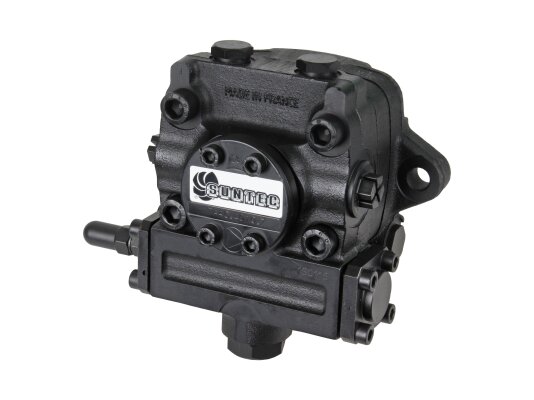

Burner Pump Suntec TA 4 C 4010 7

Suntec

Alternative Part Number

Elco

13011631

AED 6,500

Oil Burner Pumps
Products code: 1302

Description

High-speed fuel supply under pressure of 7-40 bar, heat-resistant design and the ability to install a heater - this is what people choose the Suntec TA 4 C 4010 7 fuel pump for. The model is widely used for powerful burners of famous brands Baltur, Ecoflam, Oilon, Lamborghini, thanks to the standard fit that meets the EN 225 standard.

Main operating parameters

  • Performance varies depending on the pressure settings and fuel viscosity. With a standard pressure setting (30 atm.) and maximum permissible viscosity (75 cSt), it is 1050 l / h.

  • Pressure adjustment range: 7-40 atm.

  • Working fluid: diesel fuel, fuel oil, crude oil.

Features of TA 4 C 4010 7:

The pump is made in a wear-resistant design and withstands high fuel temperatures, up to +150 ºC. Special seals are used in the design.

A mounting hole is drilled in the housing, allowing the installation of an electric heater with a power of 80-100 W. The location of the device is optimally selected, and combines maximum heat transfer without direct contact with the fuel.

The Suntec TA 4 C 4010 7 fuel pump in the factory version is installed in a system with a return line. When installing in a single-pipe design, the bypass plug must be replaced with a steel one with a washer.

The pump has a pressure regulating valve without a shut-off function. When adjusting the pressure, a pressure gauge should be used, for which standardized threaded ports are provided.

Additional equipment

Due to the lack of a built-in filter element, it is recommended to install a 200 μm motorized filter after the pump to protect the injectors from clogging and breakage.

When pumping fuel oil, it is necessary to include a degasser flask in the pipeline, which will reduce the negative impact of light fractions of heated fuel on the structural elements and reduce the risk of wear.

Advantages of this model:

  • high-speed fuel supply to the burner;

  • work with diesel fuel, fuel oil and crude oil;

  • easy start-up when installing an electric heater;

  • resistance to wear, high fuel temperatures and intensive loads;

  • pressure adjustment on the nozzle within 7-40 bar;

  • integration into a design with one or two pipes;

  • standard fit supported by many burner manufacturers;

  • automatic air removal from 2-pipe systems.

Our line includes Suntec equipment for any boiler complexes. You can buy a Suntec TA 4 C 4010 7 fuel pump at an affordable price along with all the necessary components. Take advantage of a professional's advice on choosing equipment by calling us at the specified phone numbers.

Characteristics

By-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withModel type: without electromagnetic valveOil temperature: from 0 to 150 °C in the pumpPump series: TA: Pressure controlPerformance at 30 bar pressure and 75 cSt viscosity: 1050 l/hPerformance at 30 bar pressure and 5 cSt viscosity: 830 l/hPressure gauge port: ¼ inchVacuum gauge port: ¼ inchNominal rotation speed: 2850 rpmDirection of rotation (looking at the drive shaft): C: counterclockwise rotation / nozzle on the leftInstallation method: flange ∅ 54 mmMaximum rotation speed: 3600 rpmShaft design: one cavityFactory pressure setting: 30 barValve function: pressure regulatingNozzle pressure range: from 7 to 40 barShaft diameter: 12 mmReturn pressure: 5 barInlet pressure: 5 barNozzle outlet: ½ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilSuction and return line: ½ inchTorque: 0.3 N·mOperating viscosity: from 3 to 75 mm²/sType of pumped liquid: diesel, sea ​​water
