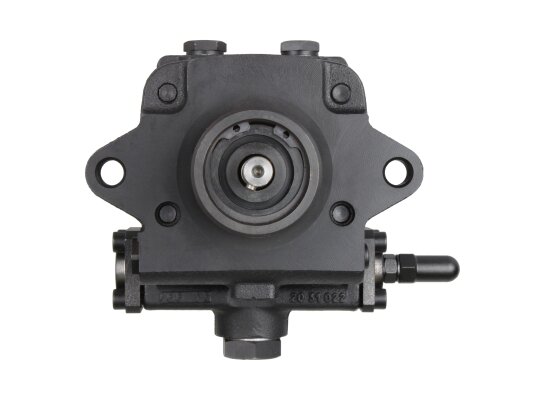

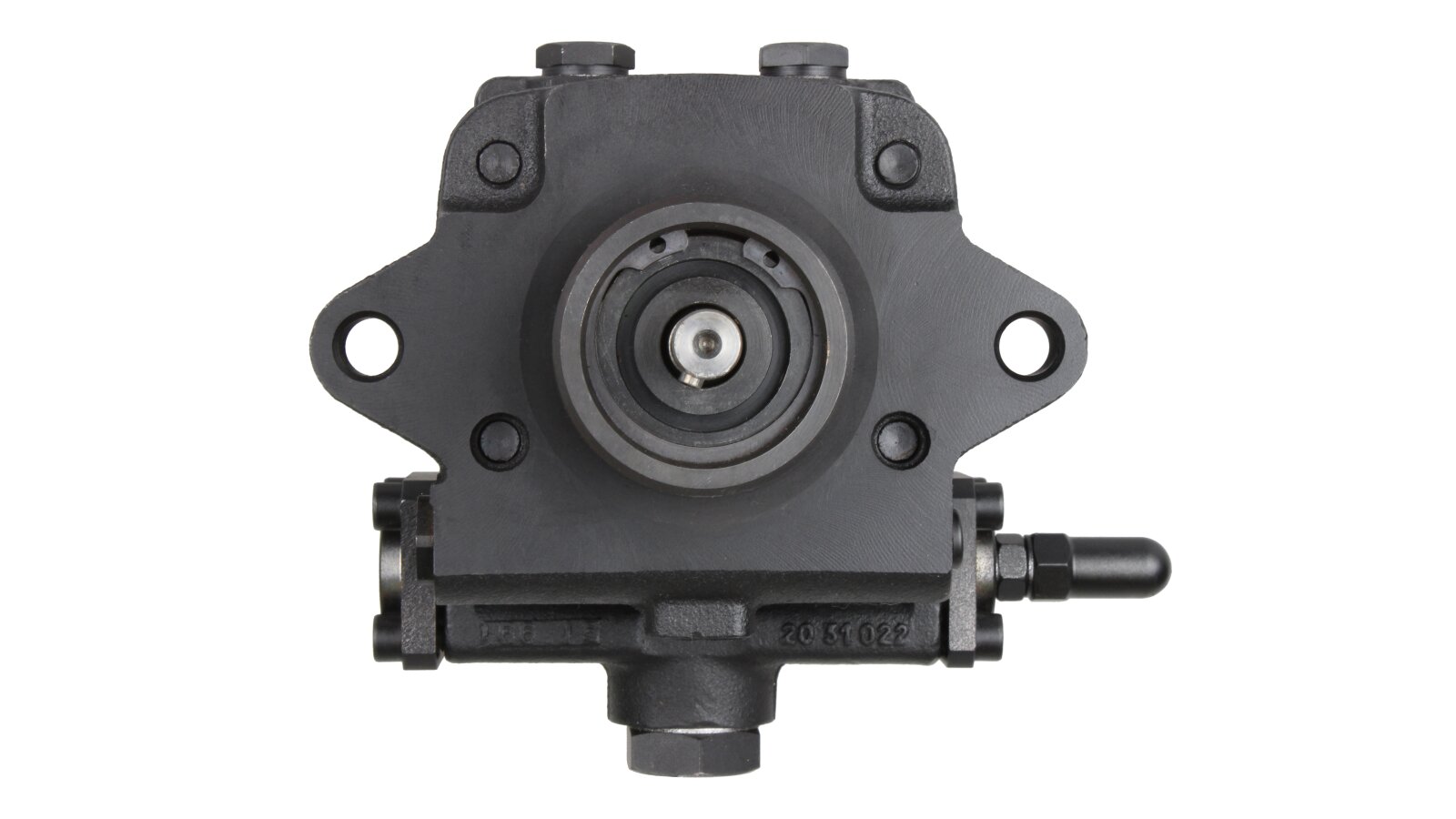

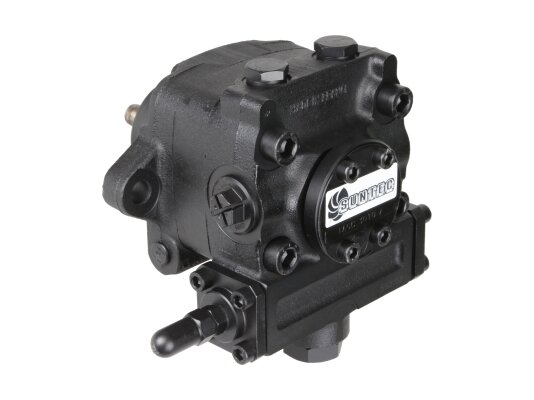

Burner Pump Suntec TA 5 A 3010 7

Suntec

AED 7,000

Oil Burner Pumps
Products code: 55499

Description

The Suntec TA 5 A 3010 7 burner pump has been specially designed for intensive industrial use. It is used to pump diesel fuel and fuel oil under high pressure when operating powerful burners. Adapted for installation of an electric fuel preheater, simplifying cold starts. The capacity reaches 1400 l/h when the pressure is set to 30 bar and the fuel viscosity is 75 cSt.

Features and benefits:

  • Built-in pressure regulating valve, without shut-off function;

  • version without solenoid valve;

  • pressure adjustment 7-30 bar, factory setting - 30 bar;

  • resistance to high temperatures;

  • pumping fuel with temperatures up to +150 °C;

  • single-pipe and two-pipe connection;

  • bypass plug when installed in a 2-pipe system;

  • space for an 80-100 W heater;

  • working environment: heavy/light oil, biofuel mixture B10;

  • viscosity of pumped fuel 3-75 cSt;

  • gear mechanism performing the pumping function;

  • fastening with a flange with a diameter of 54 mm;

  • threaded connection ½ inch to the suction, return line;

  • outlets ¼ inch for pressure measuring devices;

  • pressure at the inlet/outlet - 5 bar.

For easy starting of heavy types of fuel, it is necessary to pre-treat the fuel with a heater. The heating device should be switched on in advance before starting the Suntec TA pump. It can be switched off after heating the fuel or left on constantly to maintain the optimum temperature.

Characteristics

By-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withOil temperature: from 0 to 150 °C in the pumpPump series: TA: Pressure controlPerformance at 30 bar pressure and 75 cSt viscosity: 1400 l/hPerformance at 30 bar pressure and 5 cSt viscosity: 1150 l/hPressure gauge port: ¼ inchVacuum gauge port: ¼ inchNominal rotation speed: 2850 rpmModel type: without electromagnetic valveInstallation method: flange ∅ 54 mmMaximum rotation speed: 3600 rpmShaft design: one cavityFactory pressure setting: 30 barValve function: pressure regulatingNozzle pressure range: from 7 to 30 barShaft diameter: 12 mmReturn pressure: 5 barInlet pressure: 5 barNozzle outlet: ½ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilSuction and return line: ½ inchTorque: 0.3 N·mOperating viscosity: from 3 to 75 mm²/sDirection of rotation (looking at the drive shaft): A: clockwise rotation / nozzle on the rightType of pumped liquid: sea ​​water, diesel
