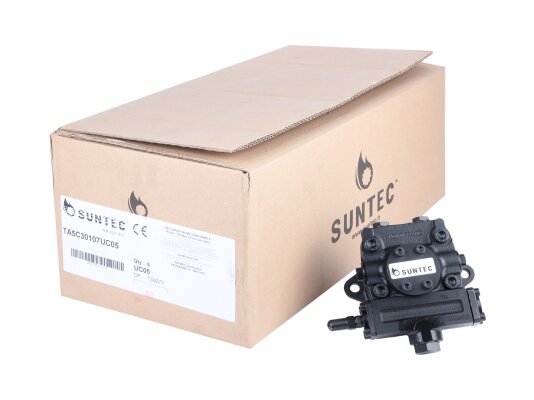

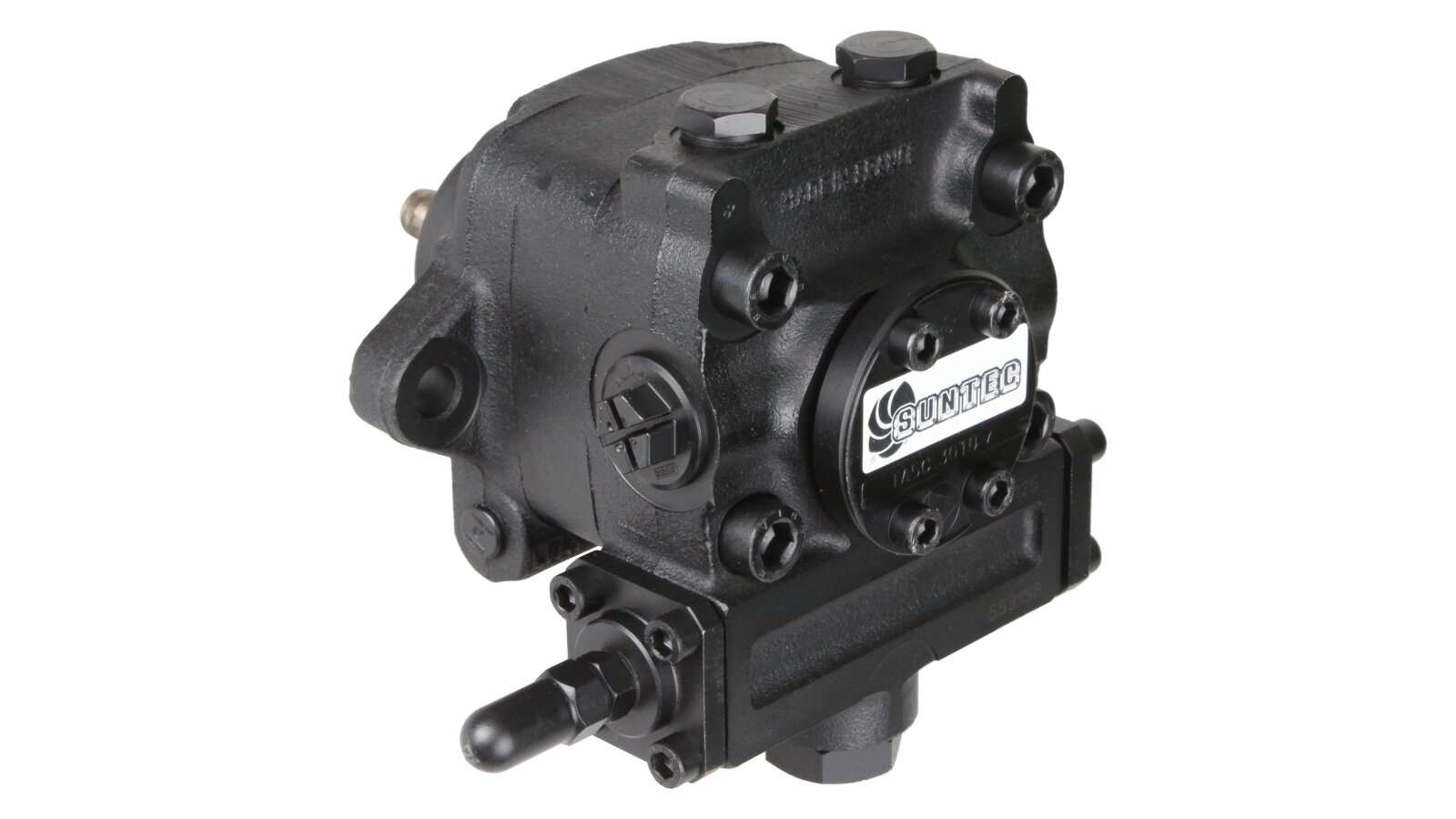

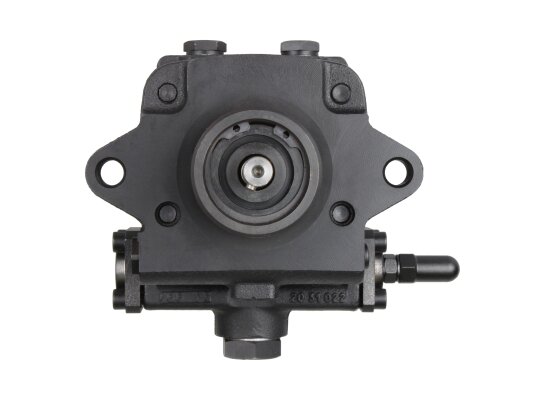

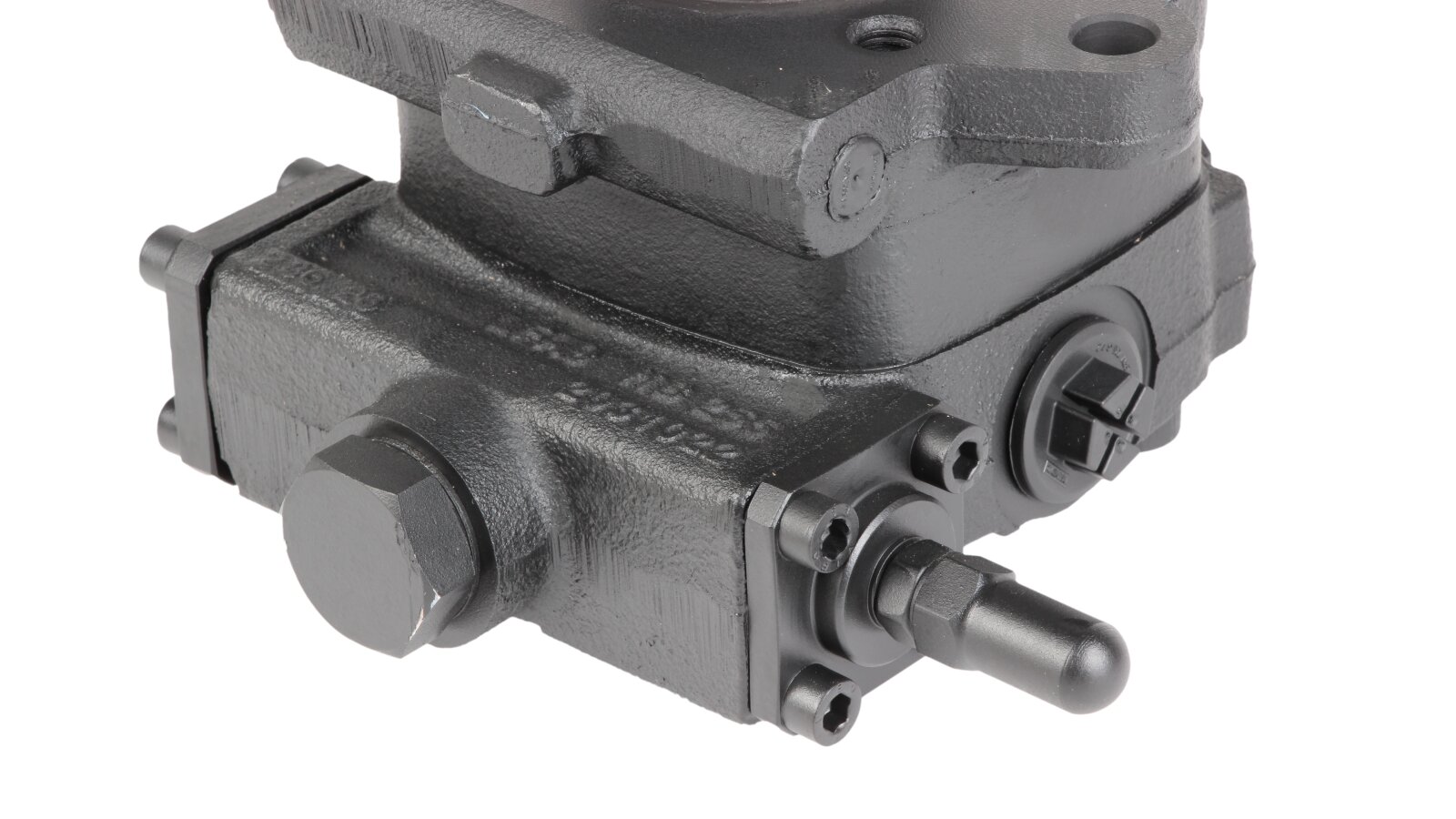

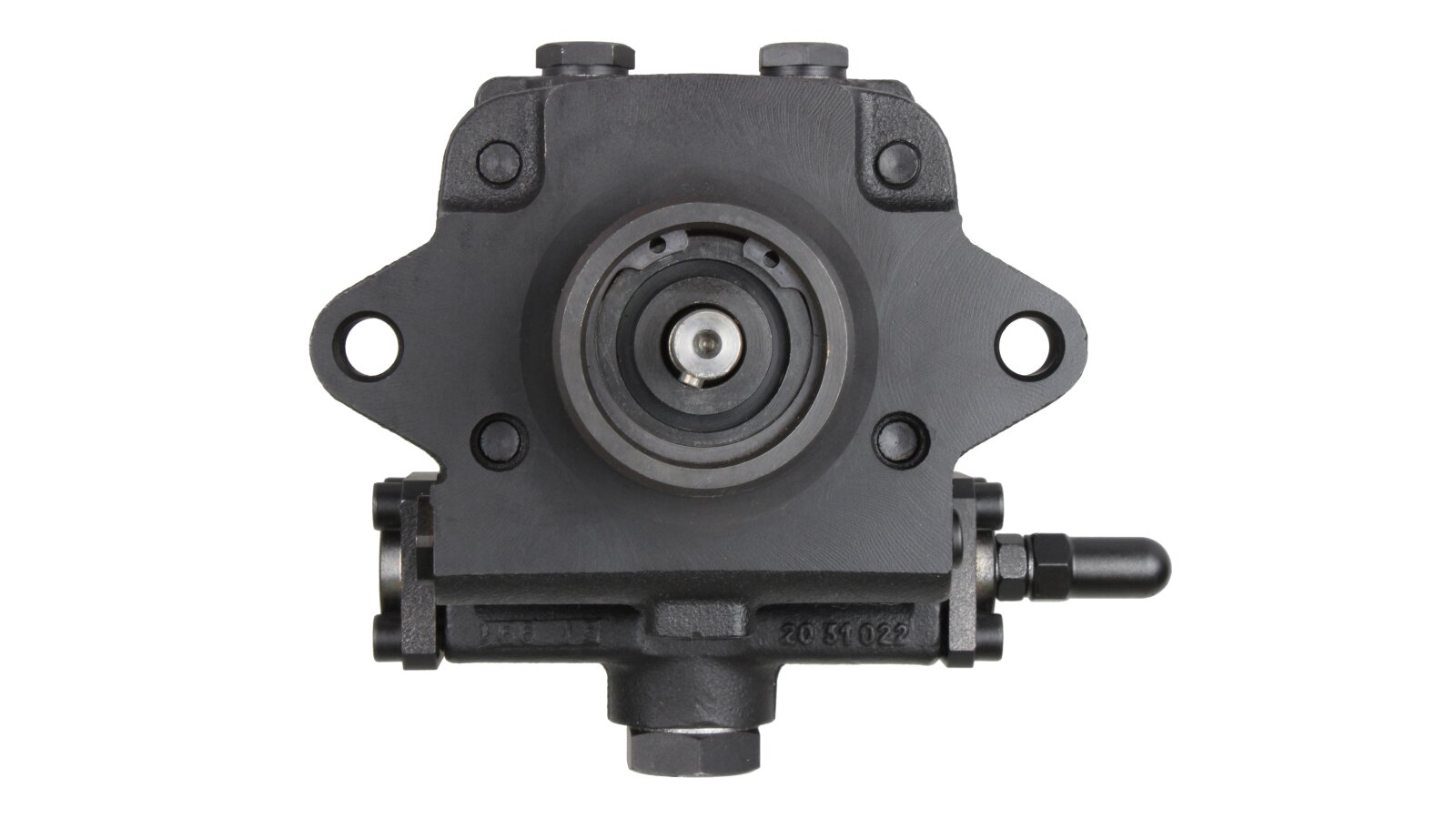

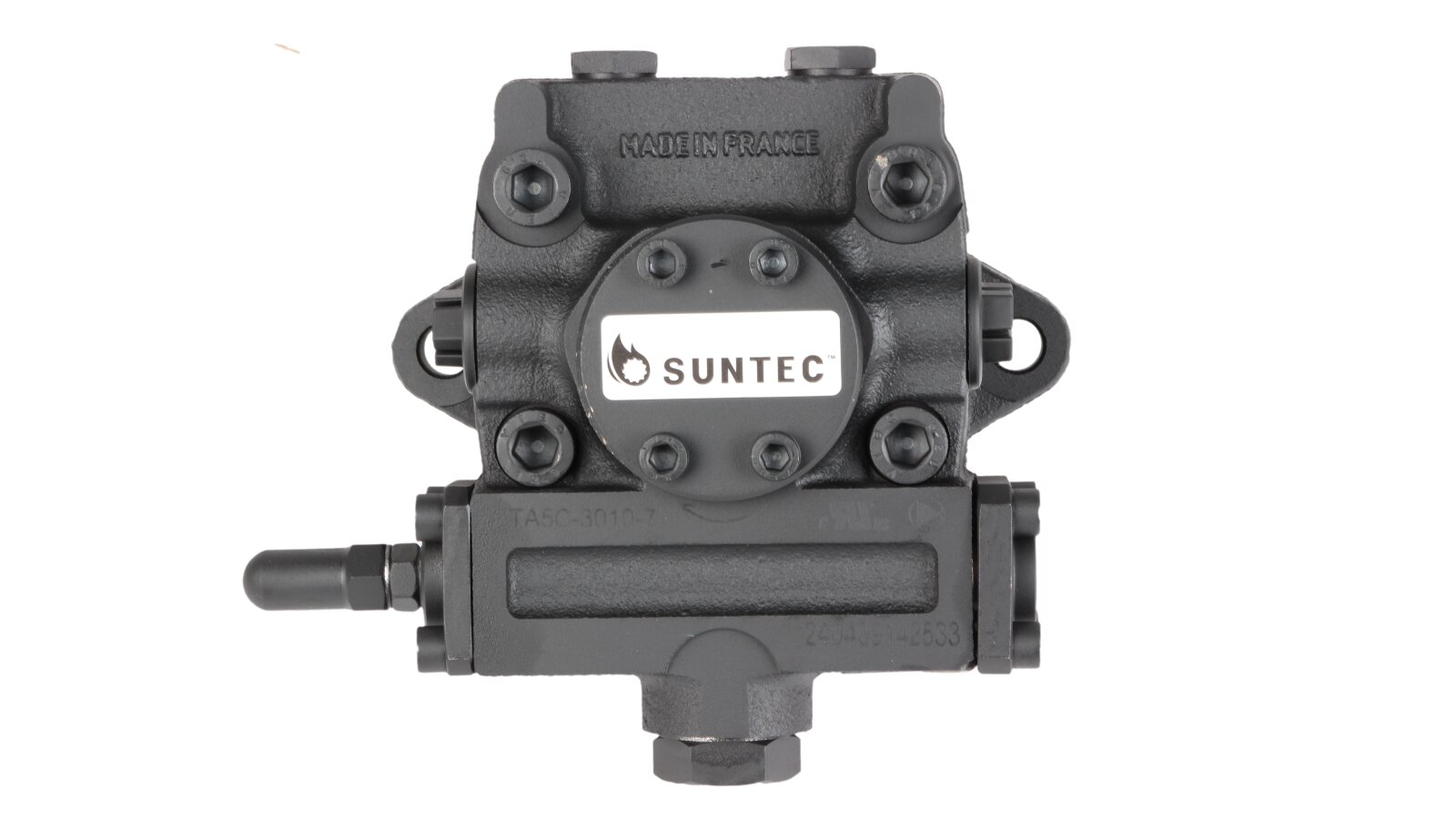

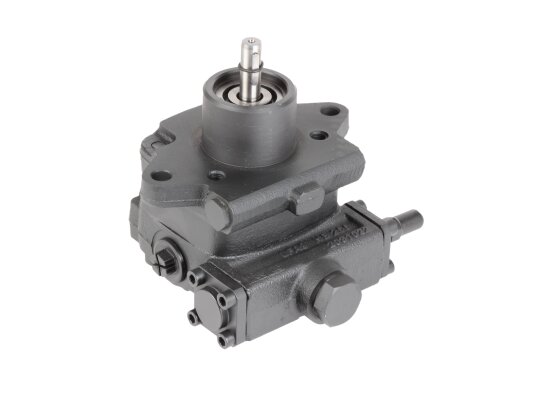

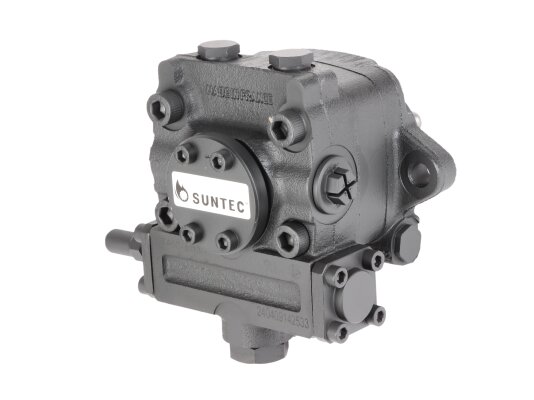

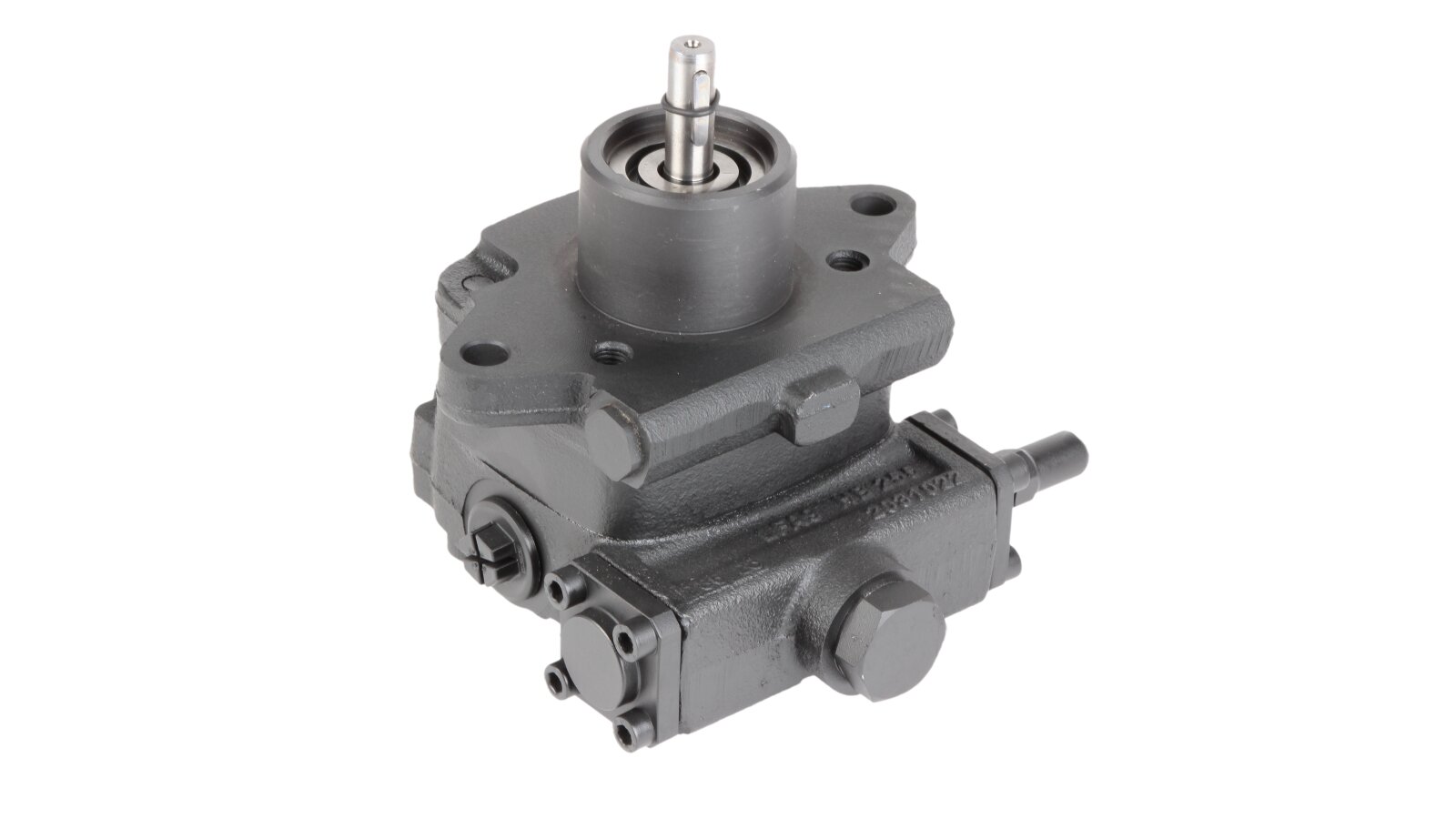

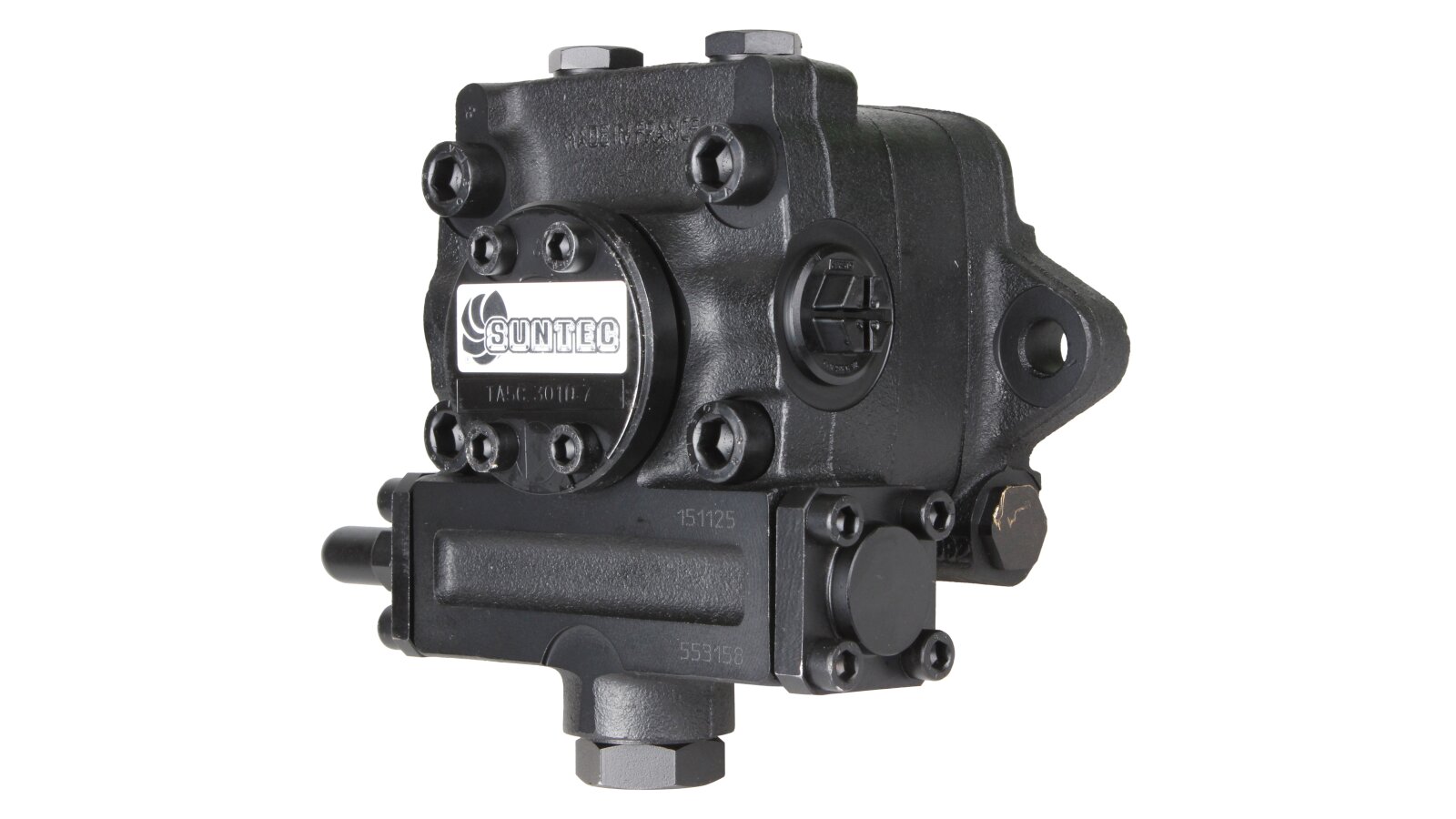

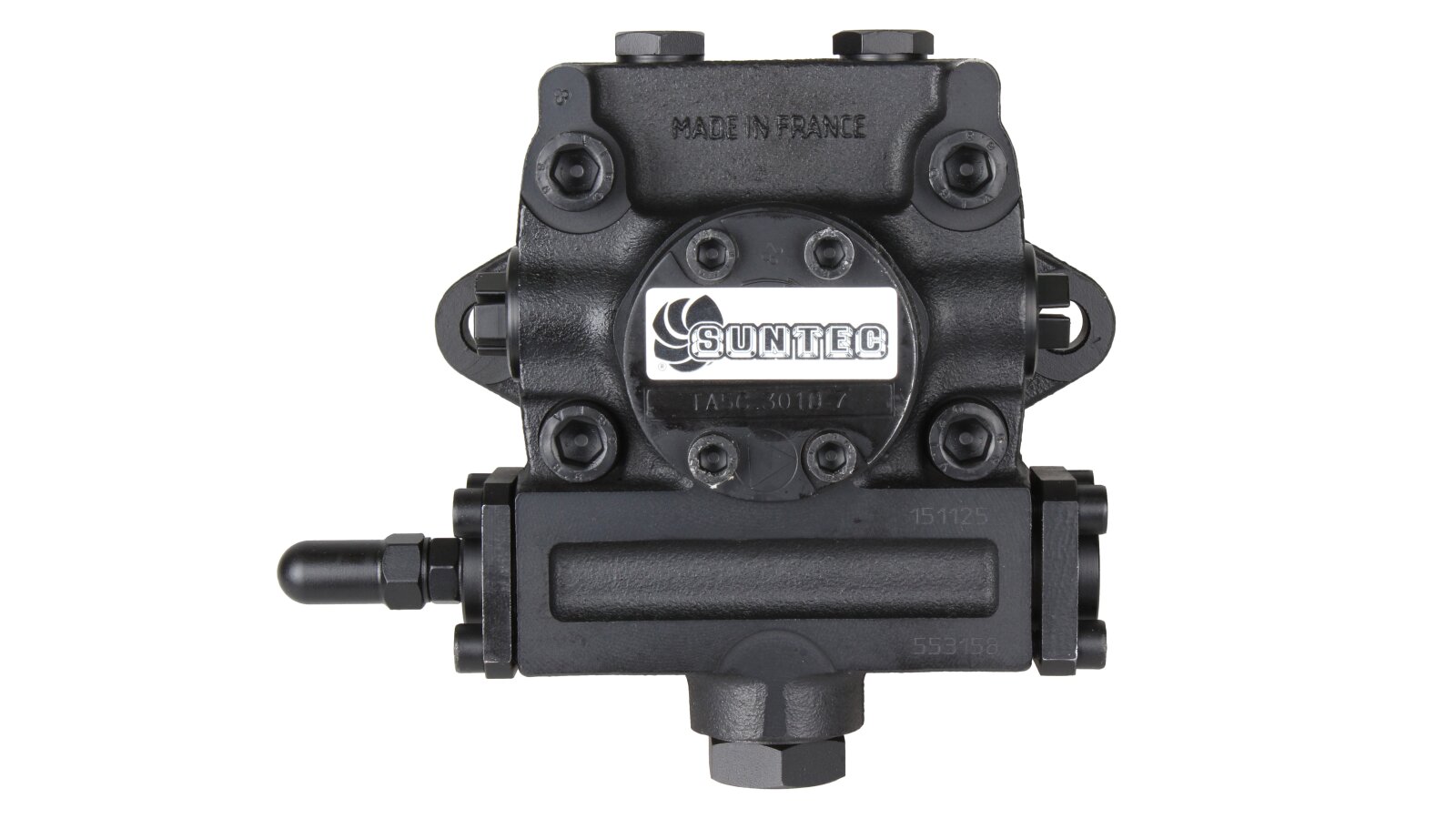

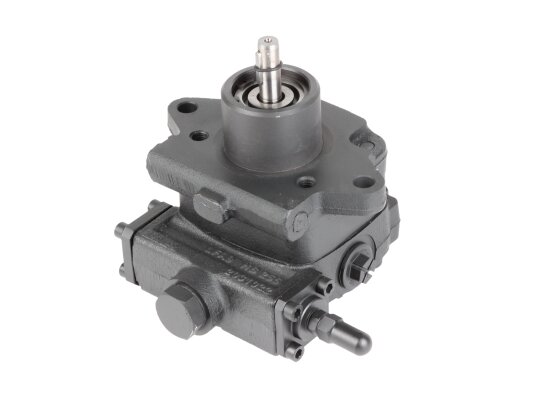

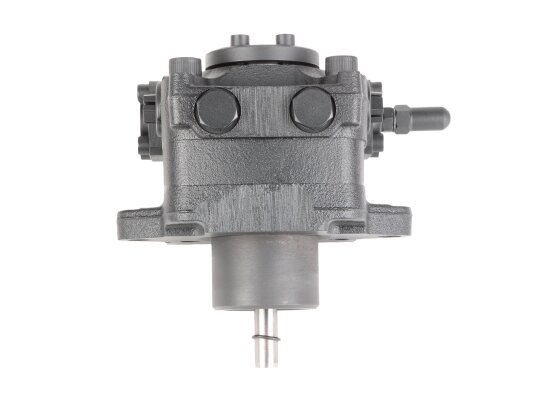

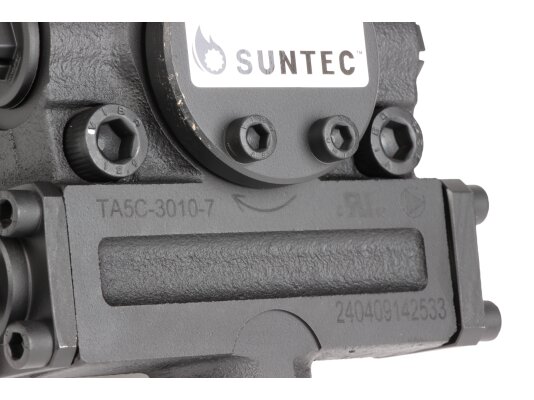

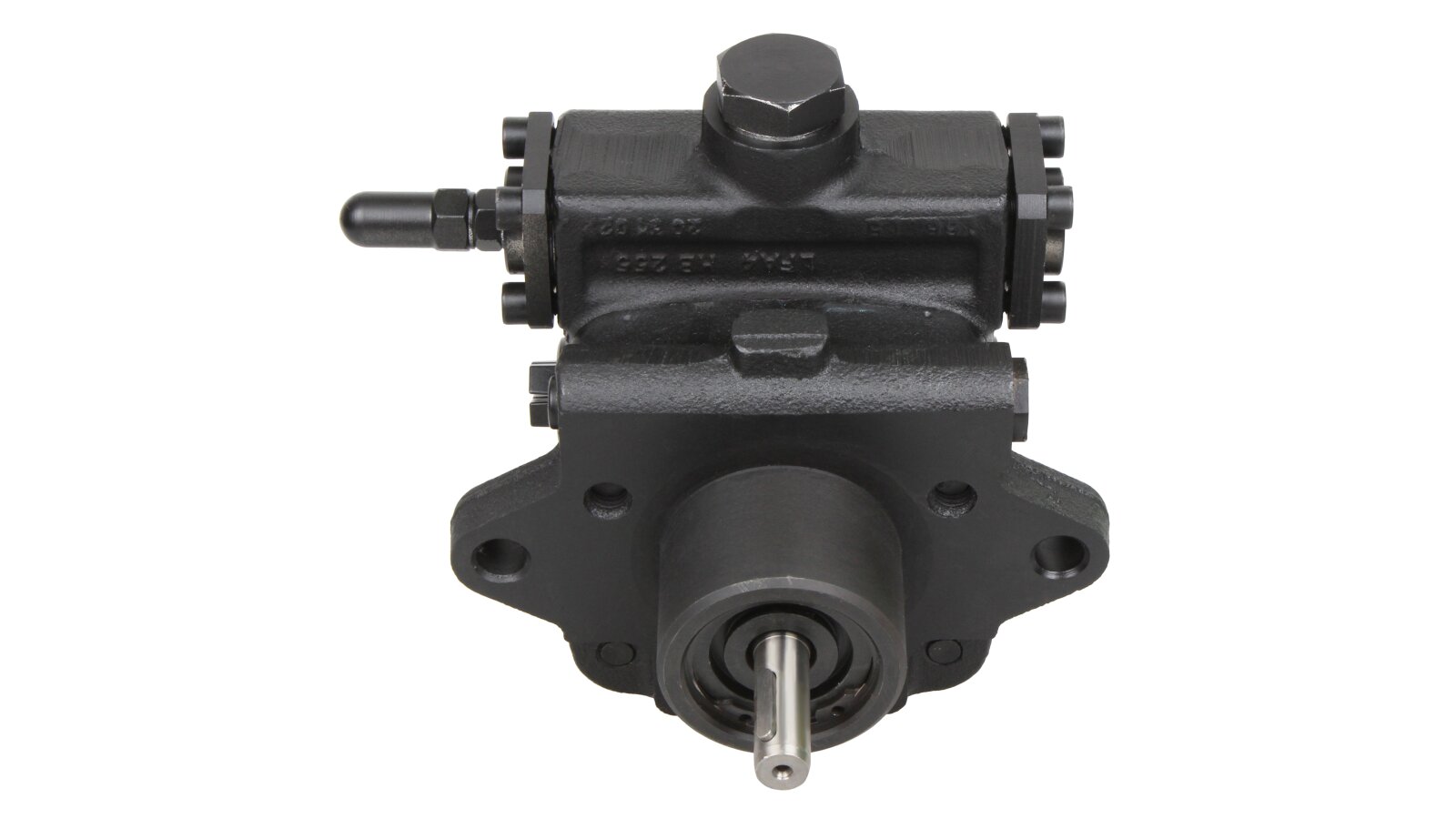

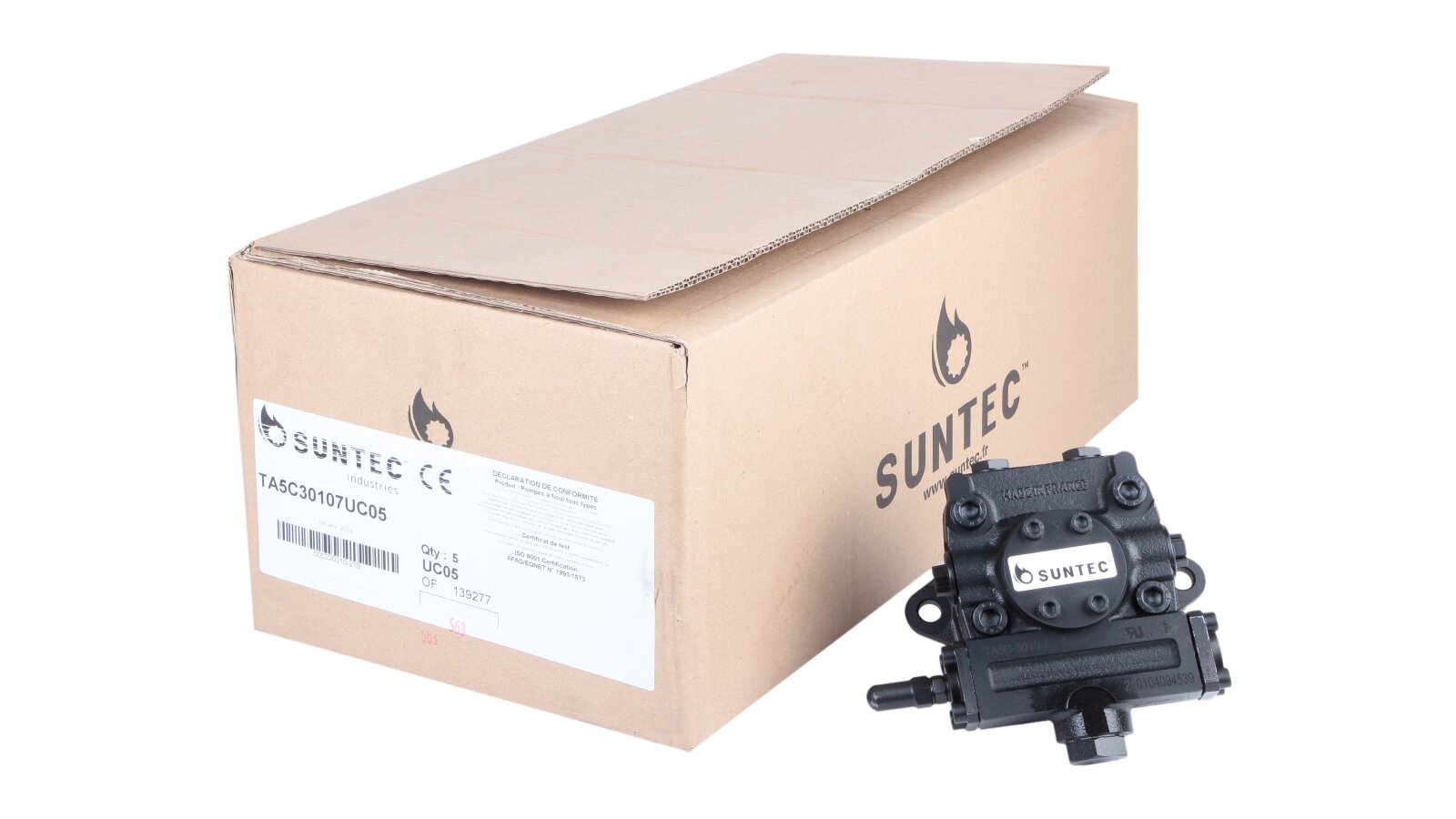

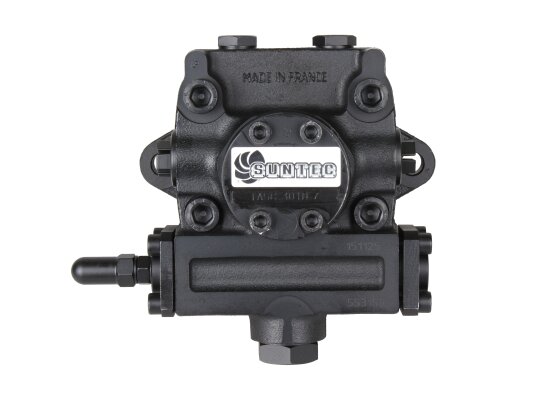

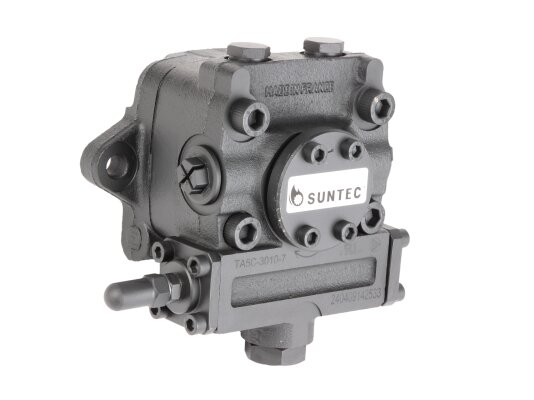

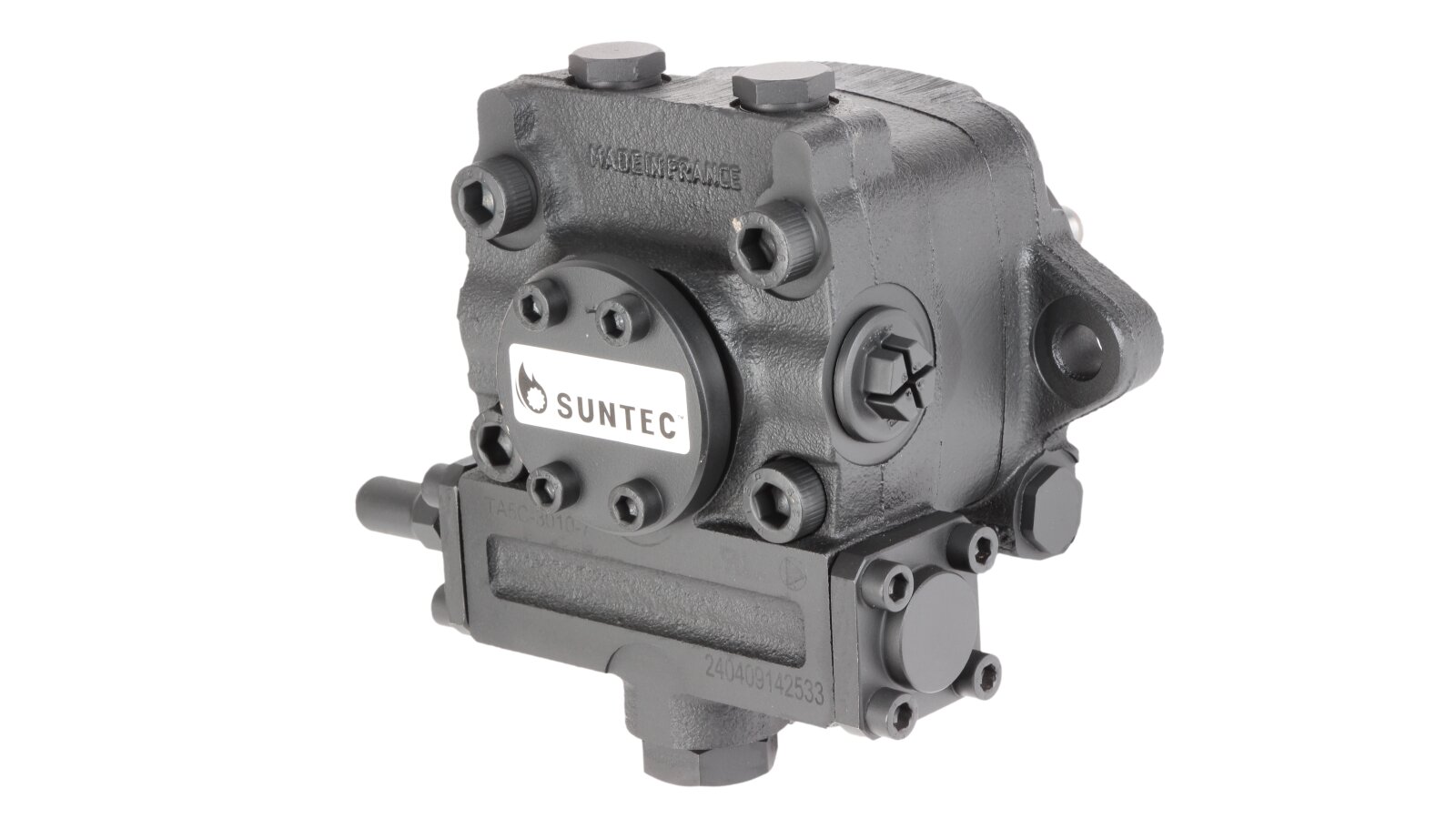

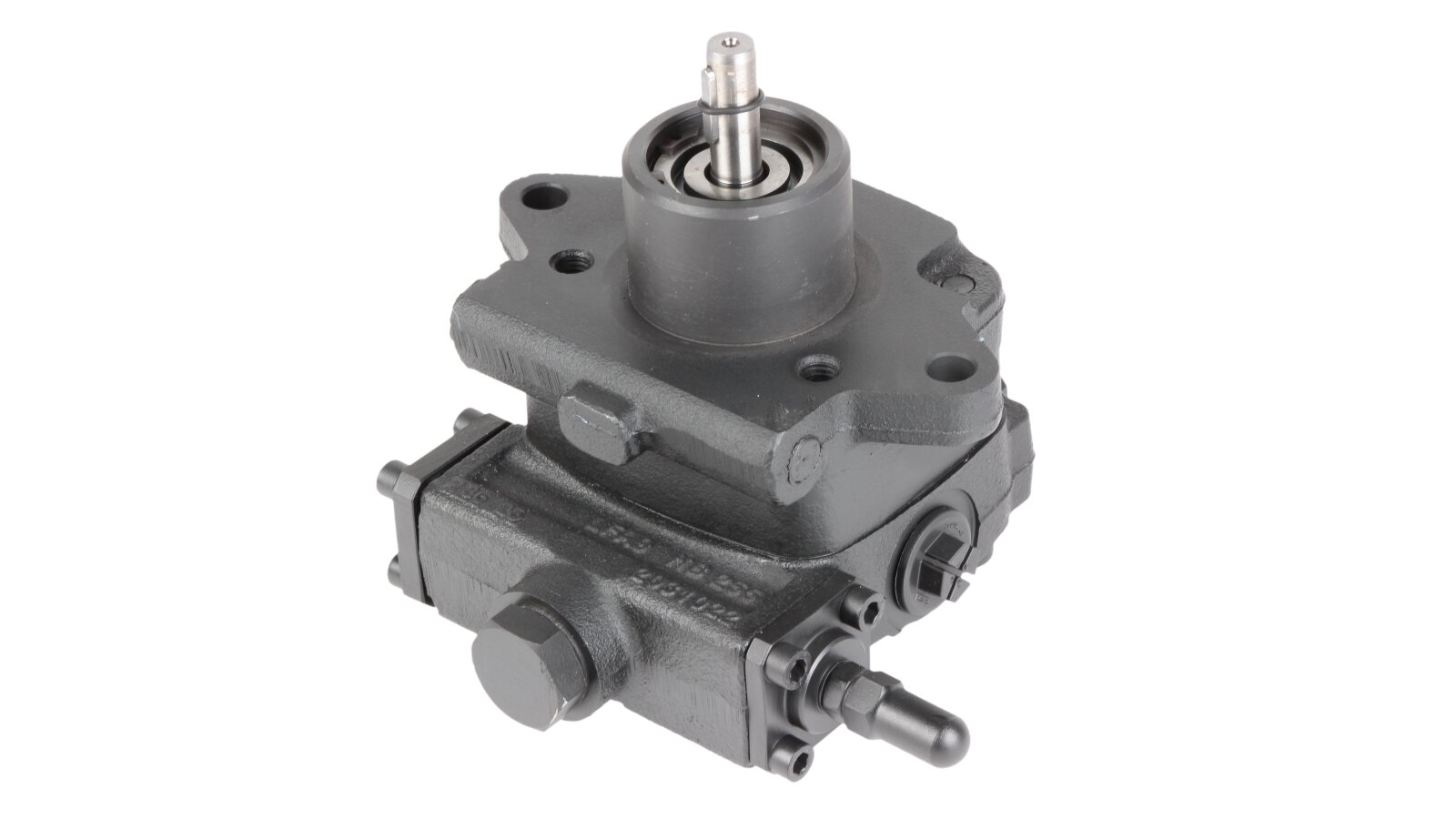

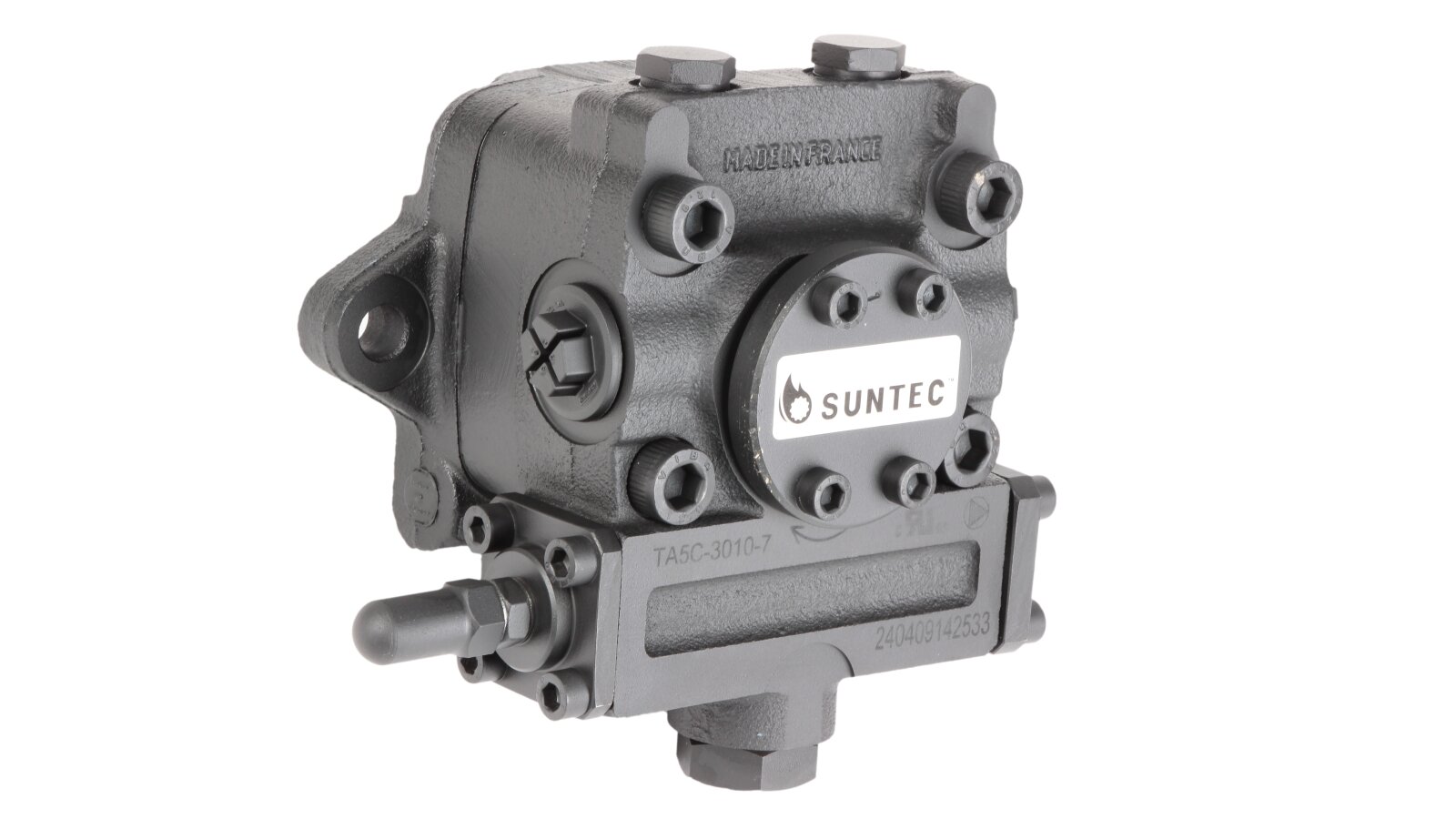

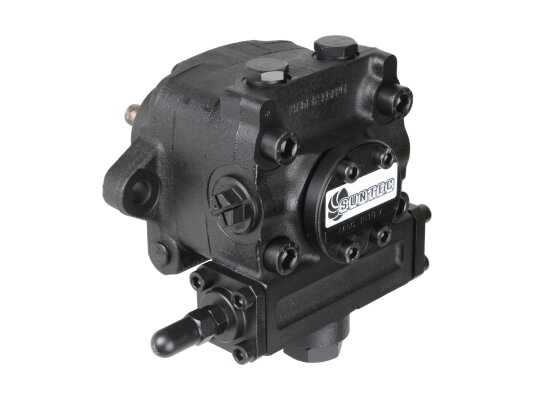

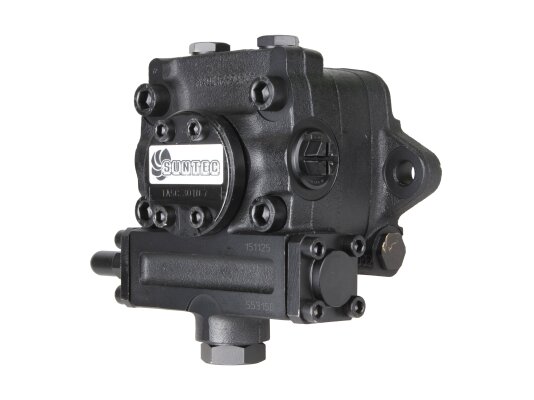

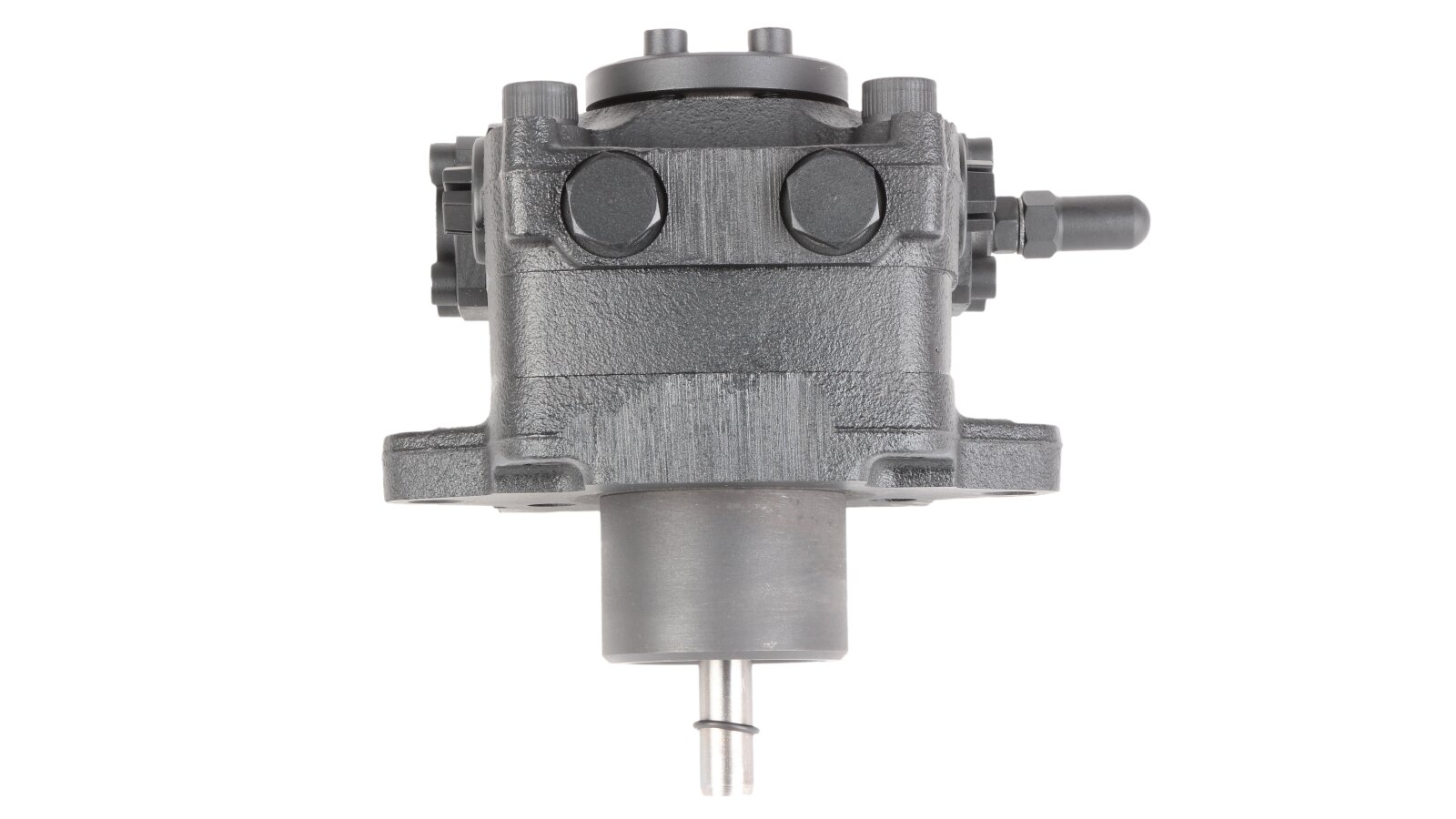

Burner Pump Suntec TA 5 C 3010 7

Suntec

Alternative Part Number

Oilon

34024183

Baltur

0005950290

FBR

258539

AED 7,000

Oil Burner Pumps
Products code: 1303

Description

The most efficient fuel pump in its series, the Suntec TA 5 C 3010 7, delivers fuel to the injector at a rate of 1400 l/h (with a pressure setting of 30 atm and a viscosity of 75 cSt). This productive equipment is adapted for operation in difficult industrial conditions and is designed for intensive use. Installation of a heating device facilitates cold starting.

Purpose

The pump is designed for powerful burners (3000-30000 kW) that are part of large boiler plants. Place of use:

production sites, shopping malls, warehouses.

Fuel can be fuel oil, diesel fuel or crude oil 3-75 cSt.

Features and specifications

  • The pump design is designed to pump fuel heated to a high temperature (maximum value +150 degrees).

  • The body has a special opening that allows you to install a heater with a power of 80-100 W. The electric device ensures safe heating of the fuel before starting the burner, which extends its service life and reduces the load on the gear mechanism.

  • The kit includes a pressure control valve (range 7-30 atm.), which does not contain a shut-off function. The supply is stopped manually.

  • The Suntec TA 5 C 3010 7 fuel pump can be used for two- and one-pipe systems. The basic assembly involves installation in a structure with a return line. If there is no return line, the bypass plug is pre-removed and a steel plug with a washer is installed in its place.

Additional protective equipment

The design does not include a coarse filter, so the manufacturer recommends additionally purchasing a motorized filter. It will protect the nozzles from clogging and prevent the pump from blocking. The location is "upstream".

When pumping fuel oil, it is necessary to include a degasser flask in the pipeline, which reduces equipment wear due to the impact of light fractions of heated fuel.

Pump advantages:

  • the highest fuel feed rate in the TA series;

  • versatility - pumping fuel oil, diesel fuel, oil;

  • wide pressure setting range, 7-30 bar;

  • heat resistance, increased reliability;

  • place for mounting a heater to facilitate starting;

  • installation in systems of various configurations;

  • connection of measuring equipment to standard ports.

Our online catalog presents reliable European equipment for equipping boiler complexes. You can buy a Suntec TA 5 C 3010 7 fuel pump and the necessary accessories from us at the price of a direct supplier. To submit an application, use a simple order form.

Characteristics

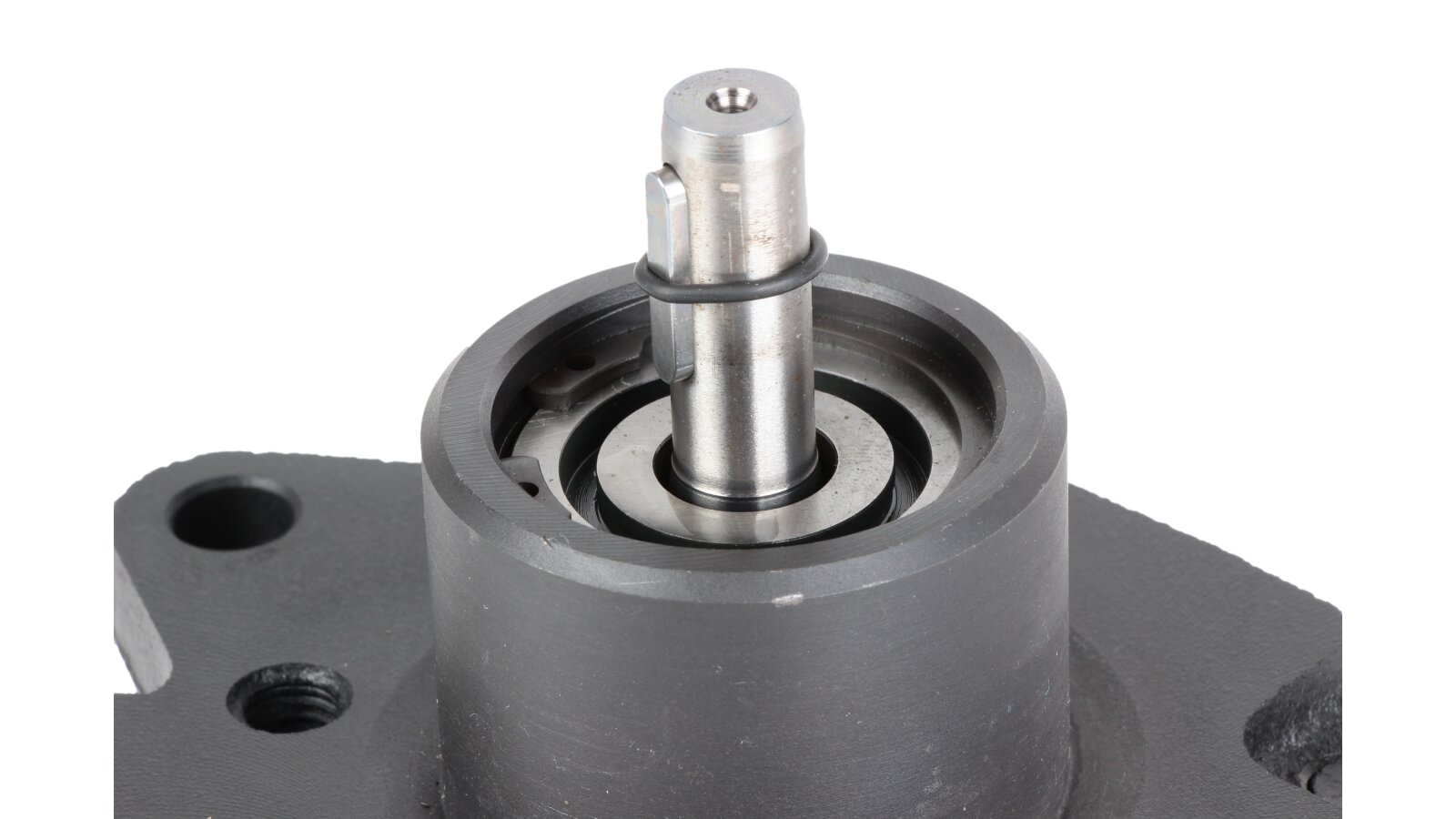

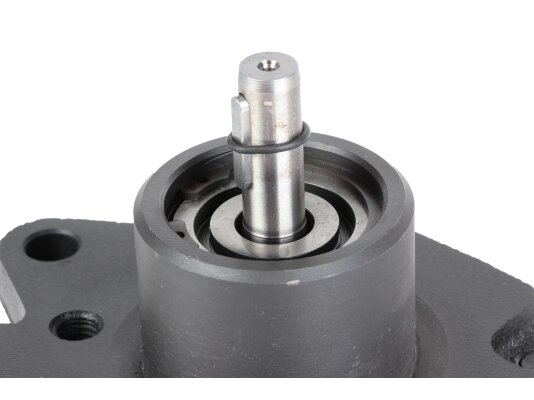

By-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withModel type: without electromagnetic valveOil temperature: from 0 to 150 °C in the pumpPump series: TA: Pressure controlPerformance at 30 bar pressure and 75 cSt viscosity: 1400 l/hPerformance at 30 bar pressure and 5 cSt viscosity: 1150 l/hPressure gauge port: ¼ inchVacuum gauge port: ¼ inchNominal rotation speed: 2850 rpmDirection of rotation (looking at the drive shaft): C: counterclockwise rotation / nozzle on the leftInstallation method: flange ∅ 54 mmMaximum rotation speed: 3600 rpmShaft design: one cavityFactory pressure setting: 30 barValve function: pressure regulatingNozzle pressure range: from 7 to 30 barShaft diameter: 12 mmReturn pressure: 5 barInlet pressure: 5 barNozzle outlet: ½ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilSuction and return line: ½ inchTorque: 0.3 N·mOperating viscosity: from 3 to 75 mm²/sType of pumped liquid: sea ​​water, diesel
