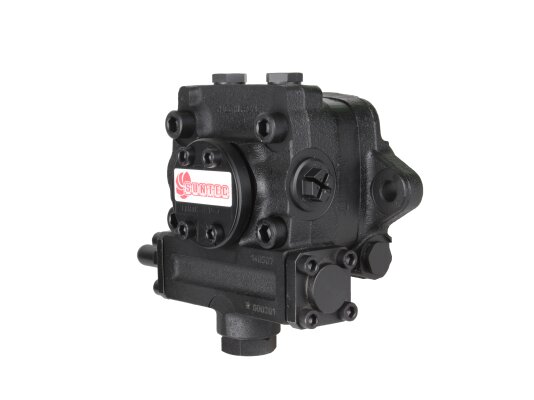

Burner Pump Suntec TAR 2 C 4010 7

Suntec

Alternative Part Number

Oilon

34024420

AED 6,200

Oil Burner Pumps
Products code: 10015

Description

The Suntec TAR 2 C 4010 7 industrial burner pump is an excellent solution for use with industrial burners on residual marine fuel, fuel oil and other types of medium-viscosity liquid fuel.

It is possible to install a heater for the supplied fuel, which will reduce its viscosity and reduce the load on the moving elements of the pump structure directly involved in pumping the liquid.

The heater MUST be turned on for a short time before starting the burner to avoid damage to the suction gear pair.

The pump body has increased wear resistance, which allows for the presence of abrasive particles in the fuel without much harm to the pump.

The capacity at a pressure of 20 bar and a viscosity of 20 cSt will be 510 l / h. The range of pressure created on the nozzle will be from 7 to 40 Bar. The pump is intended for use with industrial burners with a capacity of 3,000 to 30,000 kW.

Among the advantages of the Suntec TAR 2 C 4010 7 pump, the following should be noted:

  • Presence of a valve regulating the pressure in the system

  • Relatively light weight

  • A wide range of fuel temperatures with which the pump can operate without interference

  • A wide range of operational fuel viscosity from 125 to 75 mm2 /s (cSt)

Characteristics

By-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withModel type: without electromagnetic valveOil temperature: from 0 to 150 °C in the pumpPump series: TAR: Pressure AdjustmentPerformance at 20 bar pressure and 20 cSt viscosity: 520 l/hPressure gauge port: ¼ inchVacuum gauge port: ¼ inchNominal rotation speed: 2850 rpmDirection of rotation (looking at the drive shaft): C: counterclockwise rotation / nozzle on the leftInstallation method: flange ∅ 54 mmMaximum rotation speed: 3600 rpmShaft design: one cavityFactory pressure setting: 30 barValve function: pressure regulatingNozzle pressure range: from 7 to 40 barShaft diameter: 12 mmReturn pressure: 5 barInlet pressure: 5 barNozzle outlet: ½ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilSuction and return line: ½ inchTorque: 0.3 N·mOperating viscosity: from 125 to 75 mm²/sType of pumped liquid: sea ​​water, medium viscosity fuel
