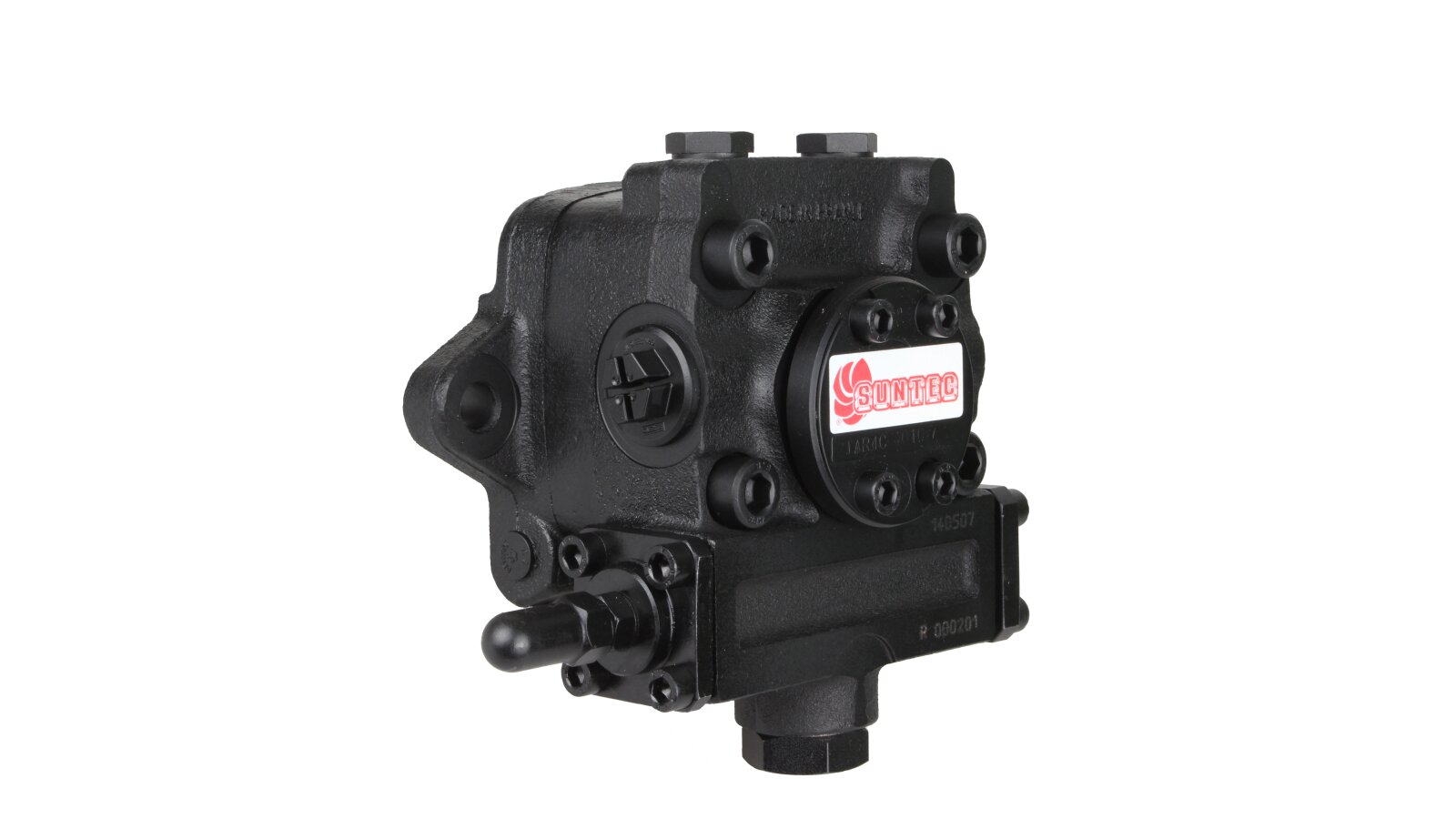

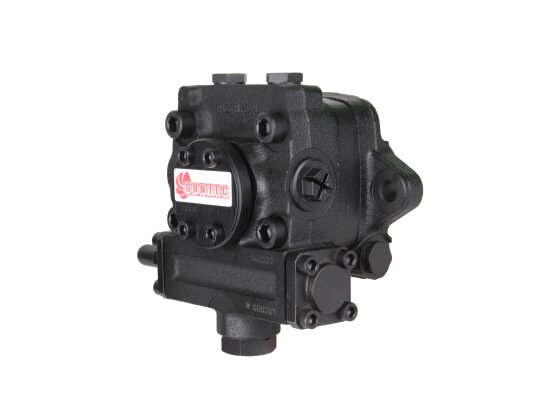

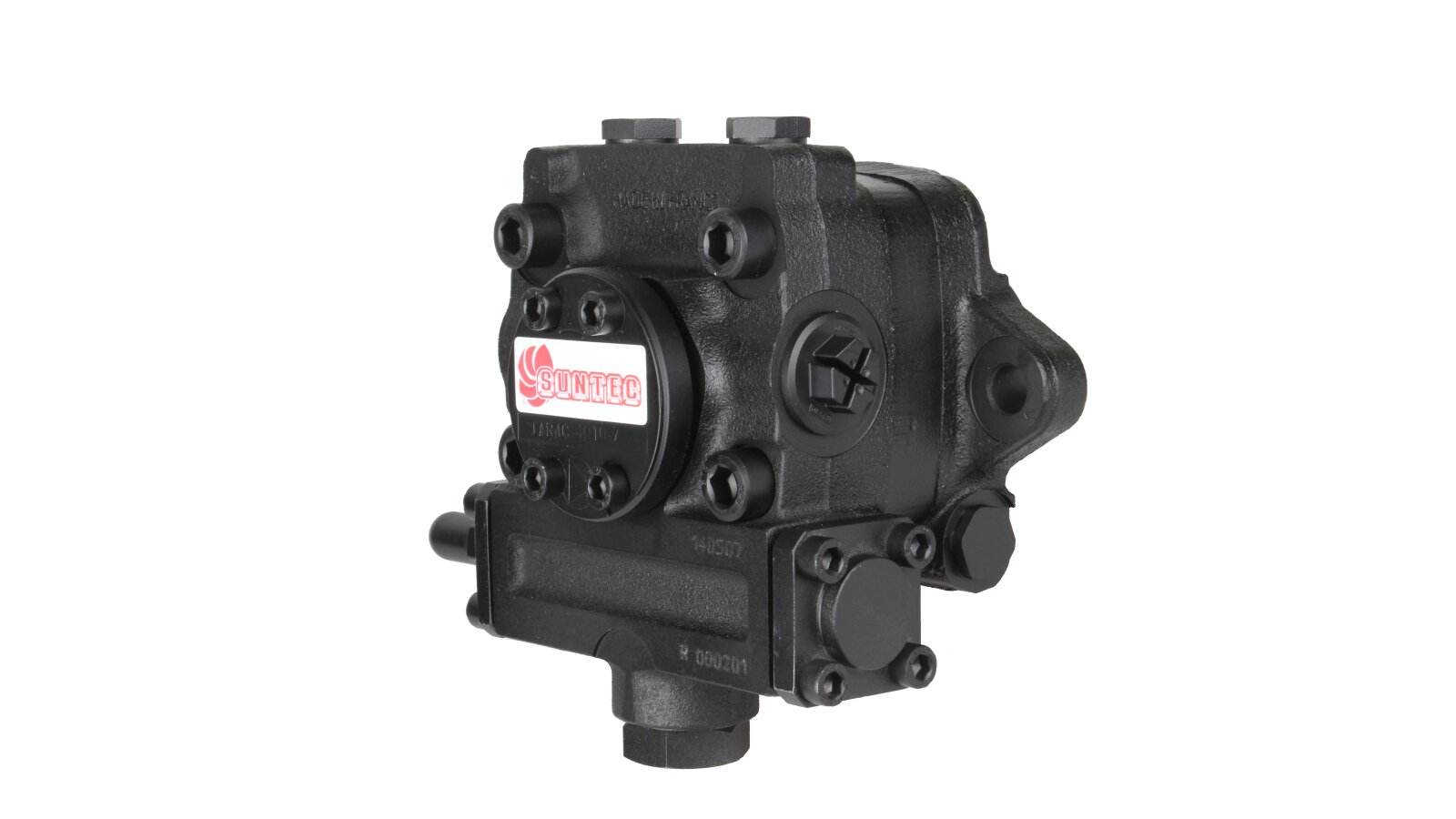

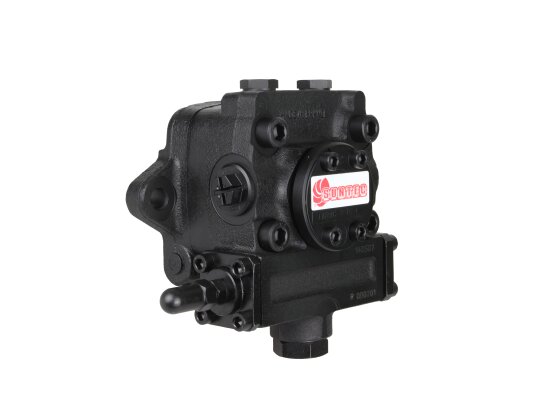

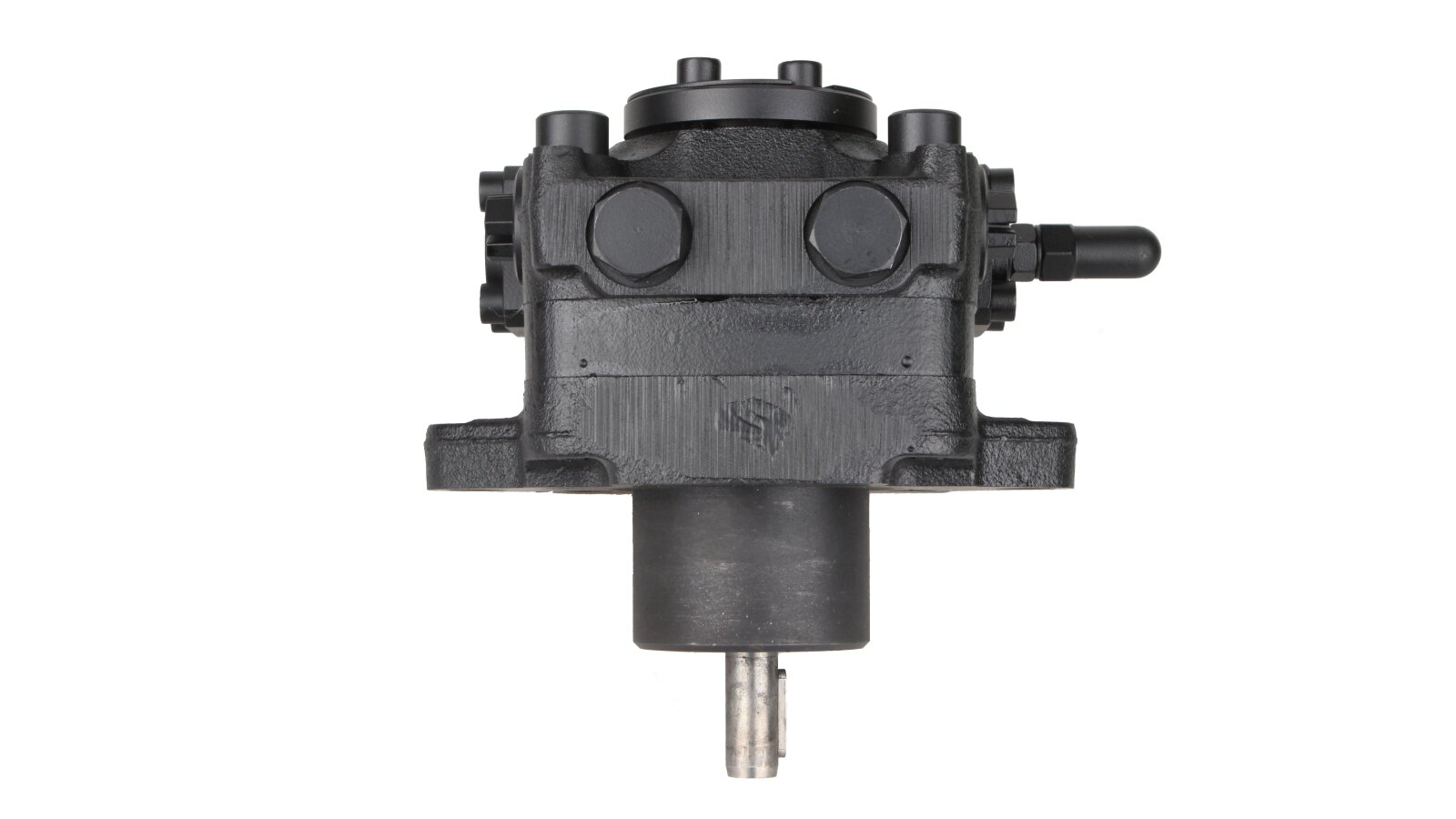

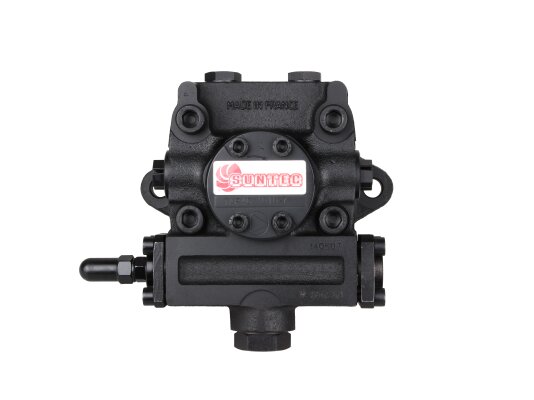

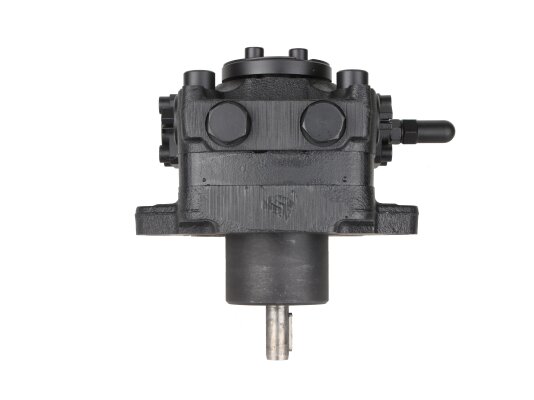

Burner Pump Suntec TAR 4 C 4010 7

Suntec

Alternative Part Number

Oilon

34024422

AED 7,100

Oil Burner Pumps
Products code: 1314

Description

The universal fuel pump Suntec TAR 4 C 4010 7 is an effective development of engineers of the French company. An important advantage of the TAR line of devices is their wear-resistant design for supplying various types of fuel containing abrasive inclusions. High throughput, the ability to adjust the pressure in the range of 7-40 atm. and simplification of cold start by installing a heater make this model an ideal solution for equipping powerful industrial burners.

Design features

  • The basic version is suitable by default for a 2-pipe distribution system. When using the pump in a single-pipe installation, unscrew the bypass plug with a hex key and carefully close the drain hole.

  • The design provides a special seat for fixing the heater. The electric device allows you to reduce the load on the gear mechanism by preheating the fuel to a specified temperature. The design of the hole complies with the EN50262 standard and ensures maximum heat transfer while eliminating contact with the fuel.

  • Heat-resistant materials and special seals were selected for the pump, which allows pumping fuel with an operating temperature of up to +150 ºC.

  • A screw regulator on the device body allows you to select the optimal pressure mode on the injector, the permissible range is 7-40 atm. The basic setting is 30 bar. Adjustments must be made under the control of a pressure gauge, which is connected to a standard diameter port.

Main parameters

The fuel is fuel oil, diesel fuel, crude oil, residual and distillate marine fuel with a viscosity of 1.25-75 cSt.

The injection rate depends on the viscosity of the working mixture and the pressure. For example, with a pressure of 20 bar and a viscosity of 20 cSt, it is 762 liters per hour.

The Suntec TAR 4 C 4010 7 fuel pump belongs to the basic models. The control valve does not have a shut-off function.

Advantages:

  • Efficient supply of different types of fuel;

  • Increased wear resistance for pumping unrefined fuel;

  • Heater installation on a standard connector;

  • Universal purpose;

  • Installation in most burners of well-known brands;

  • Heat-resistant design, fuel temperature up to +150 ºC;

  • Simple pressure adjustment;

  • Installation in systems of different designs.

Suntec equipment is the optimal solution for equipping boiler complexes. It combines impeccable performance characteristics and an affordable price. You can buy a Suntec TAR 4 C 4010 7 fuel pump and all the necessary accessories for creating an effective room heating system from us.

Characteristics

Performance at 30 bar pressure and 75 cSt viscosity: 513 l/hNominal rotation speed: 2850 rpmPressure gauge port: ¼ inchSolenoid valve consumption: от 420 Вт при 5 сСт /7 бар до 1680 Вт при 5 сСт /40 бар WPerformance at 14 bar pressure and 20 cSt viscosity: 508 l/hPerformance at 14 bar pressure and 75 cSt viscosity: 513 l/hPerformance at 20 bar pressure and 20 cSt viscosity: 762 l/hPerformance at 20 bar pressure and 5 cSt viscosity: 447 l/hPerformance at 30 bar pressure and 5 cSt viscosity: 400 l/hVacuum gauge port: ¼ inchPerformance at 7 bar pressure and 5 cSt viscosity: 490 l/hPump series: TAR: Pressure AdjustmentOil temperature: from 0 to 150 °C in the pumpModel type: without electromagnetic valveValve function: pressure regulatingOperating viscosity: from 125 to 75 mm²/sPerformance at 11 bar pressure and 5 cSt viscosity: 475 l/hDirection of rotation (looking at the drive shaft): C: counterclockwise rotation / nozzle on the leftInstallation method: flange ∅ 54 mmMaximum rotation speed: 3600 rpmShaft design: one cavityBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withFactory pressure setting: 30 barNozzle pressure range: from 7 to 40 barShaft diameter: 12 mmReturn pressure: 5 barInlet pressure: 5 barNozzle outlet: ½ inchTorque: 0.3 N·mSuction height: 0.45 bars max. vacuum to prevent air separation from oilSuction and return line: ½ inchType of pumped liquid: medium viscosity fuel, sea ​​water
