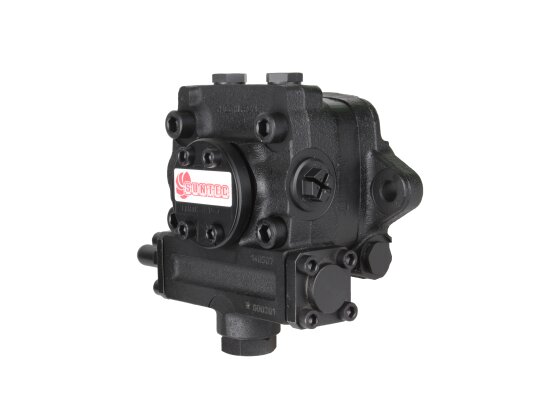

Burner Pump Suntec TAR 5 C 3010 7

Suntec

Alternative Part Number

Oilon

34024423

AED 10,600

Oil Burner Pumps
Products code: 6643

Description

The Suntec TAR 5 C 3010 7 pump has a special design for industrial use. High-performance equipment can pump 1,400 liters of fuel with a viscosity of 75 cSt at a pressure of 30 atmospheres per hour. The pump is used to equip large industrial boiler houses. The design is adapted for the installation of a heater, simplifying cold start. The model is used for fuel with a viscosity of 3-75 cSt, including diesel fuel, residual marine fuel, fuel oil, crude oil.

Features

  • The pump is manufactured taking into account intensive use, high-temperature exposure and significant loads when pumping liquid fuel with abrasive particles. The design has increased wear resistance and an increased service life. The pump is designed to work with fuel heated to +150 ºC.

  • In the factory version, the pump is ready for installation in a system with a return line. If it is missing, it is necessary to remove the bypass plug and plug the fuel drain channel.

  • The pump is equipped with a control valve without a shut-off function. The flow is interrupted manually. The pump is factory-set to 30 bar. Depending on production needs, the pressure can be adjusted within 7-30 bar. When setting up, connect a pressure gauge.

  • The design provides a special seat for installing a heater with a power of 80-100 W, which complies with the EN50262 standard. The location of the heater is selected in such a way as to exclude contact of the device with the fuel and at the same time ensure maximum heat transfer.

  • When pumping fuel oil and other highly viscous fuel, it is necessary to exclude a cold start, which can lead to breakage or damage to the working elements of the pump. The heater is turned on in advance.

Advantages:

  • high pumping speed - up to 1400 l / h;

  • wide range of pressure adjustment;

  • resistance to high-temperature exposure, wear, intense loads;

  • installation in single-pipe and two-pipe systems;

  • special place for mounting the heater and eliminating cold start;

  • standard ports for control and measuring instruments.

Important! The Suntec TAR 5 C 3010 7 pump does not include a built-in filter. According to the manufacturer's recommendation, a 200 µm motorized filter should be installed after the pump (separate order). To avoid premature wear of the equipment when pumping fuel oil, a degasser flask must be installed.

Characteristics

Shaft design: one cavityModel type: without electromagnetic valveOil temperature: from 0 to 150 °C in the pumpPump series: TAR: Pressure AdjustmentPerformance at 30 bar pressure and 75 cSt viscosity: 1400 l/hPerformance at 30 bar pressure and 5 cSt viscosity: 1100 l/hPerformance at 20 bar pressure and 20 cSt viscosity: 1350 l/hPressure gauge port: ¼ inchVacuum gauge port: ¼ inchNominal rotation speed: 2850 rpmDirection of rotation (looking at the drive shaft): C: counterclockwise rotation / nozzle on the leftInstallation method: flange ∅ 54 mmMaximum rotation speed: 3600 rpmBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withFactory pressure setting: 30 barValve function: pressure regulatingNozzle pressure range: from 7 to 30 barShaft diameter: 12 mmReturn pressure: 5 barInlet pressure: 5 barNozzle outlet: ½ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilSuction and return line: ½ inchTorque: 0.3 N·mOperating viscosity: from 1.25 to 75 mm²/sType of pumped liquid: sea ​​water, medium viscosity fuel
