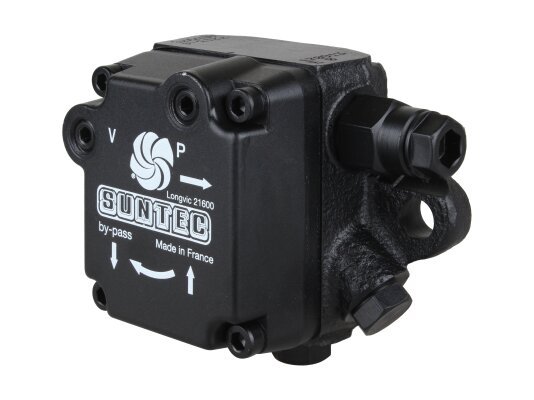

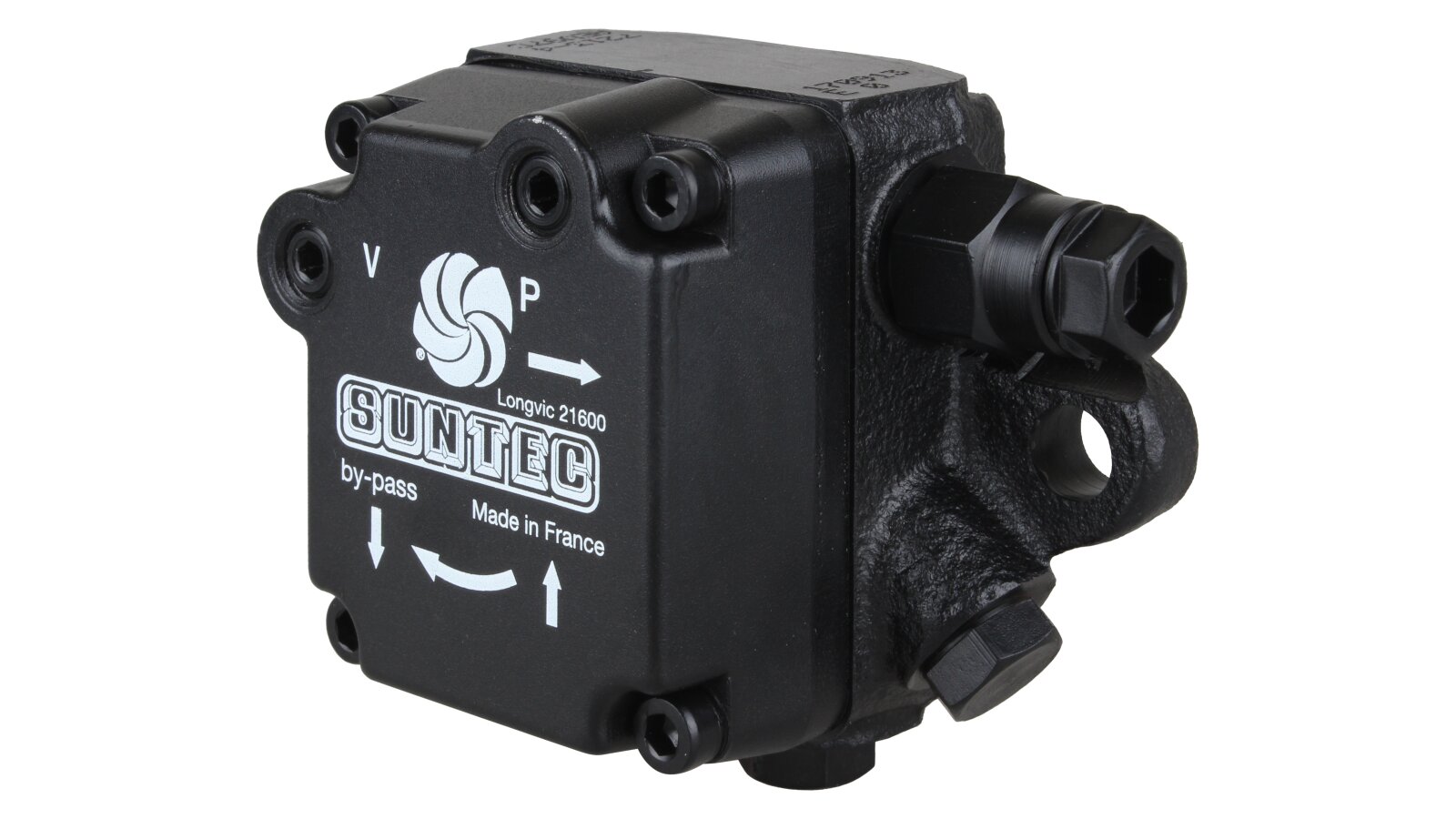

Burner Pump Weishaupt AE V 97 C 7213 4P
Weishaupt601898
Alternative Part Number
Weishaupt We601898Weishaupt We60189-8
AED 2,050
Characteristics
Manufacturer Part Number: 601898Type of pumped liquid: diesel, biodiesel fuel blend B10Installation method: flange ∅ 54 mmPerformance at 11 bar pressure and 5 cSt viscosity: 132 l/hOperating viscosity: from 2 to 75 mm²/sInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemModel type: without electromagnetic valveOil temperature: from 0 to 60 °C in the pumpStrainer: Opening size: 150 µmStrainer: Open area: 20 cm²Performance for stage 2 at 11 bar and 5 cSt viscosity: 132 l/hPressure gauge port: ⅛ inchVacuum gauge port: ⅛ inchNominal rotation speed: 2850 rpmDirection of rotation (looking at the drive shaft): C: counterclockwise rotation / nozzle on the leftShaft design: one cavityTorque: 0.14 N·mSuction and return line: ¼ inch NPTF (taper thread)Suction height: 0.45 bars max. vacuum to prevent air separation from oilNozzle outlet: ⅛ inchInlet pressure: 2 barReturn pressure: 2 barShaft diameter: 8 mmNozzle pressure range: from 8 to 28 barFactory pressure setting: 14 barBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withMaximum rotation speed: 3600 rpmPump series: AE: base model without locking function
Information about the technical characteristics, appearance and color of the product is for reference only and is based on the latest information available at the time of publication
