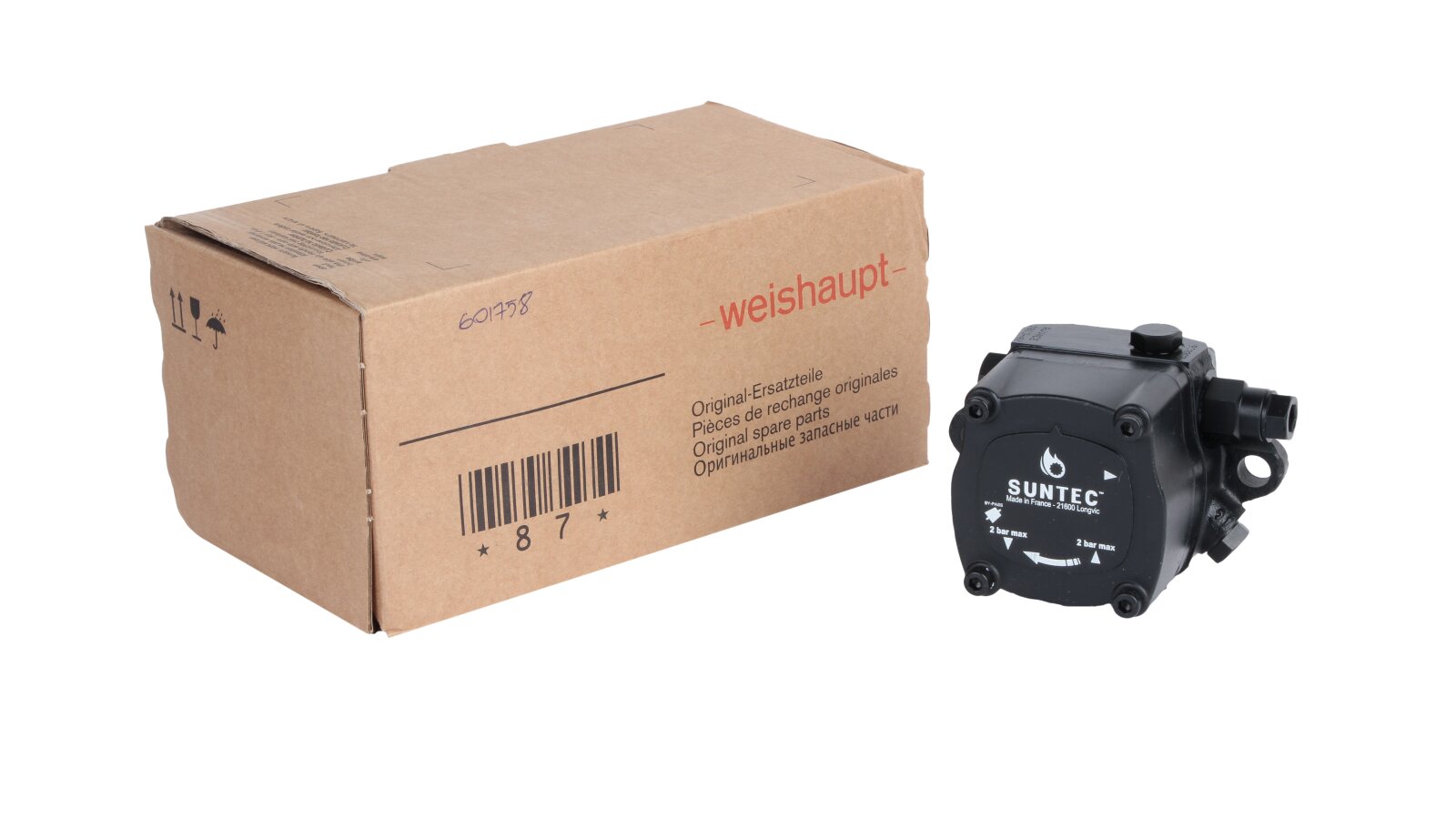

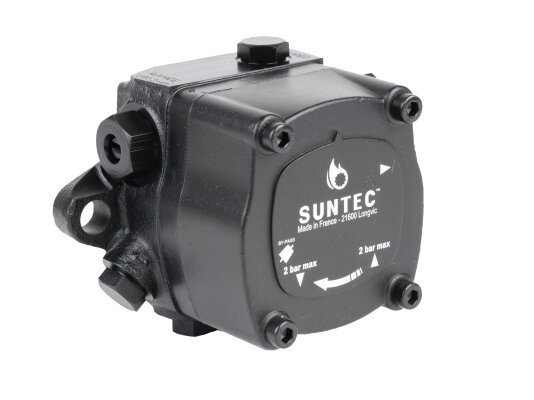

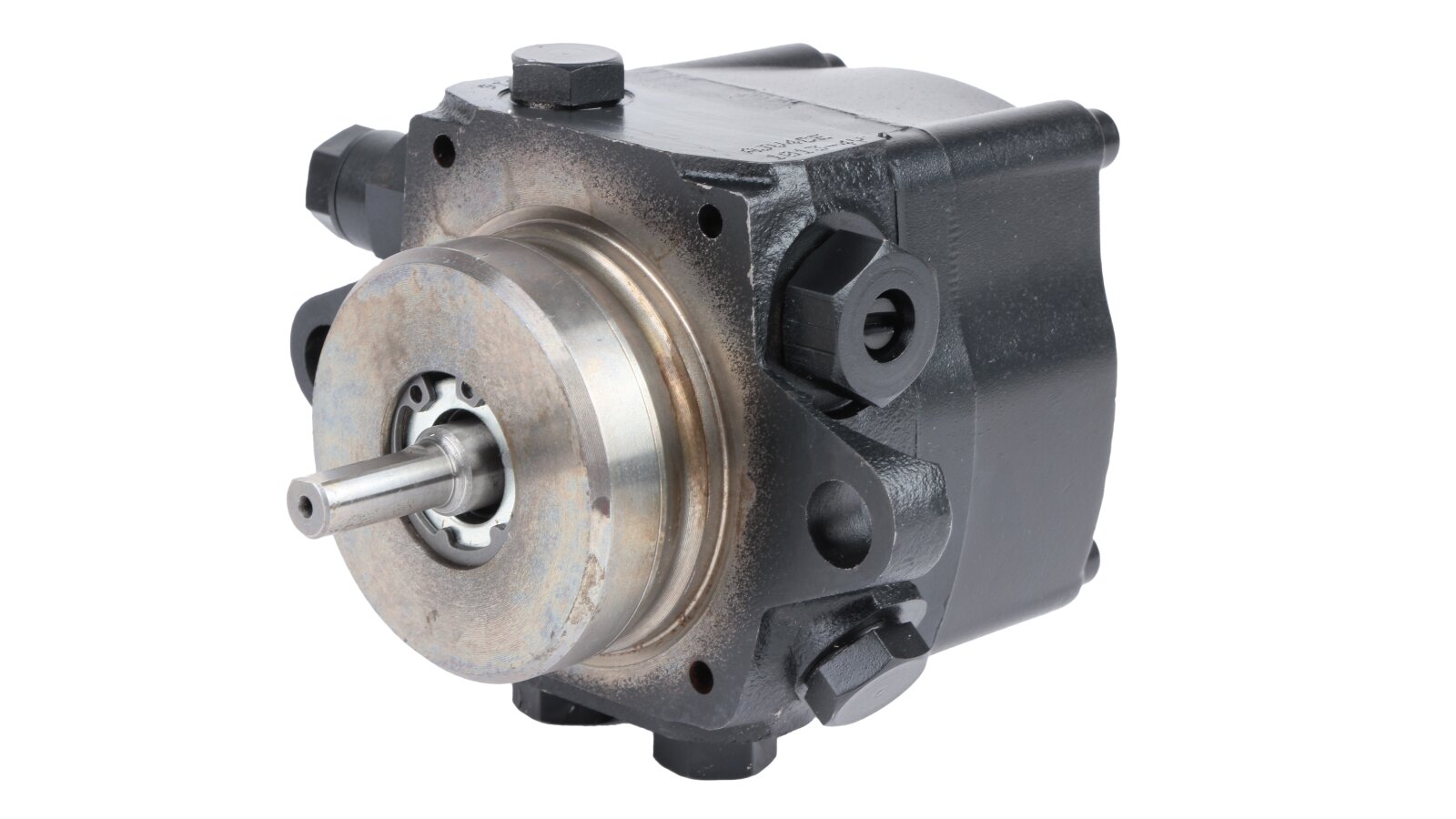

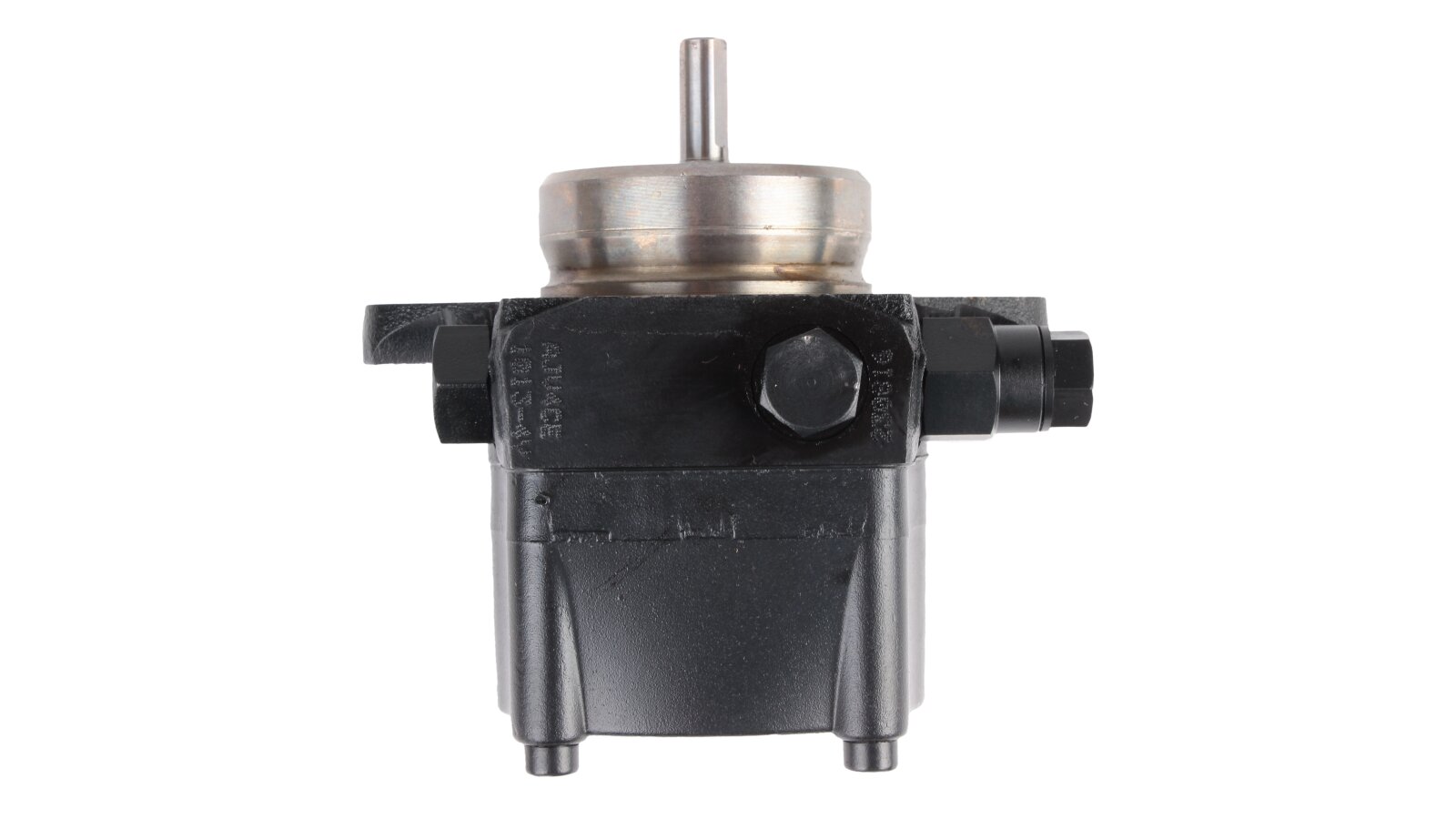

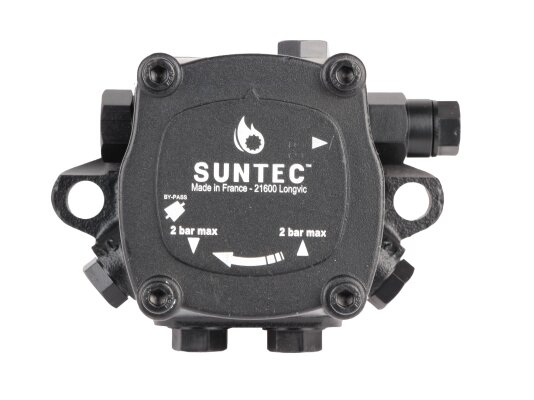

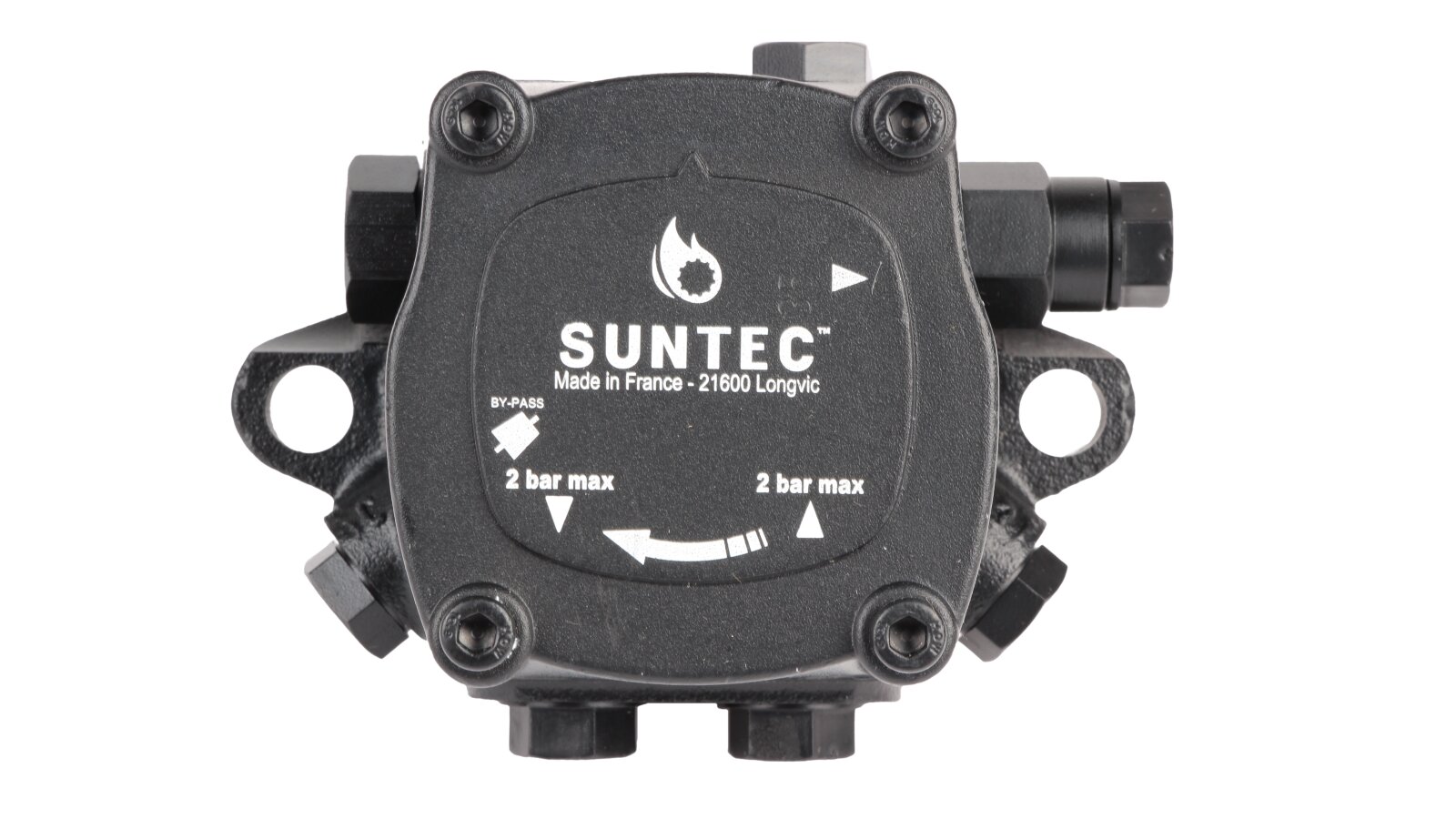

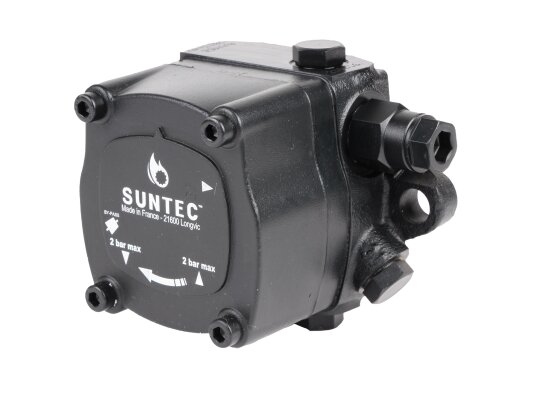

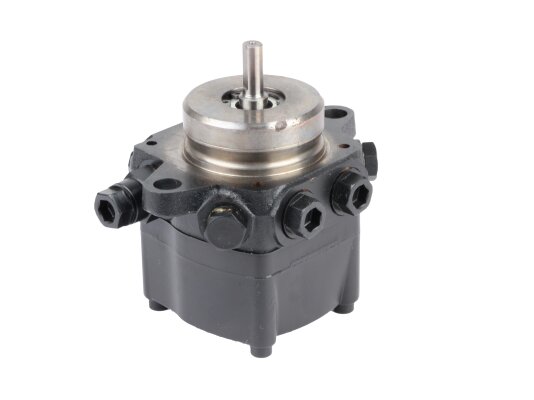

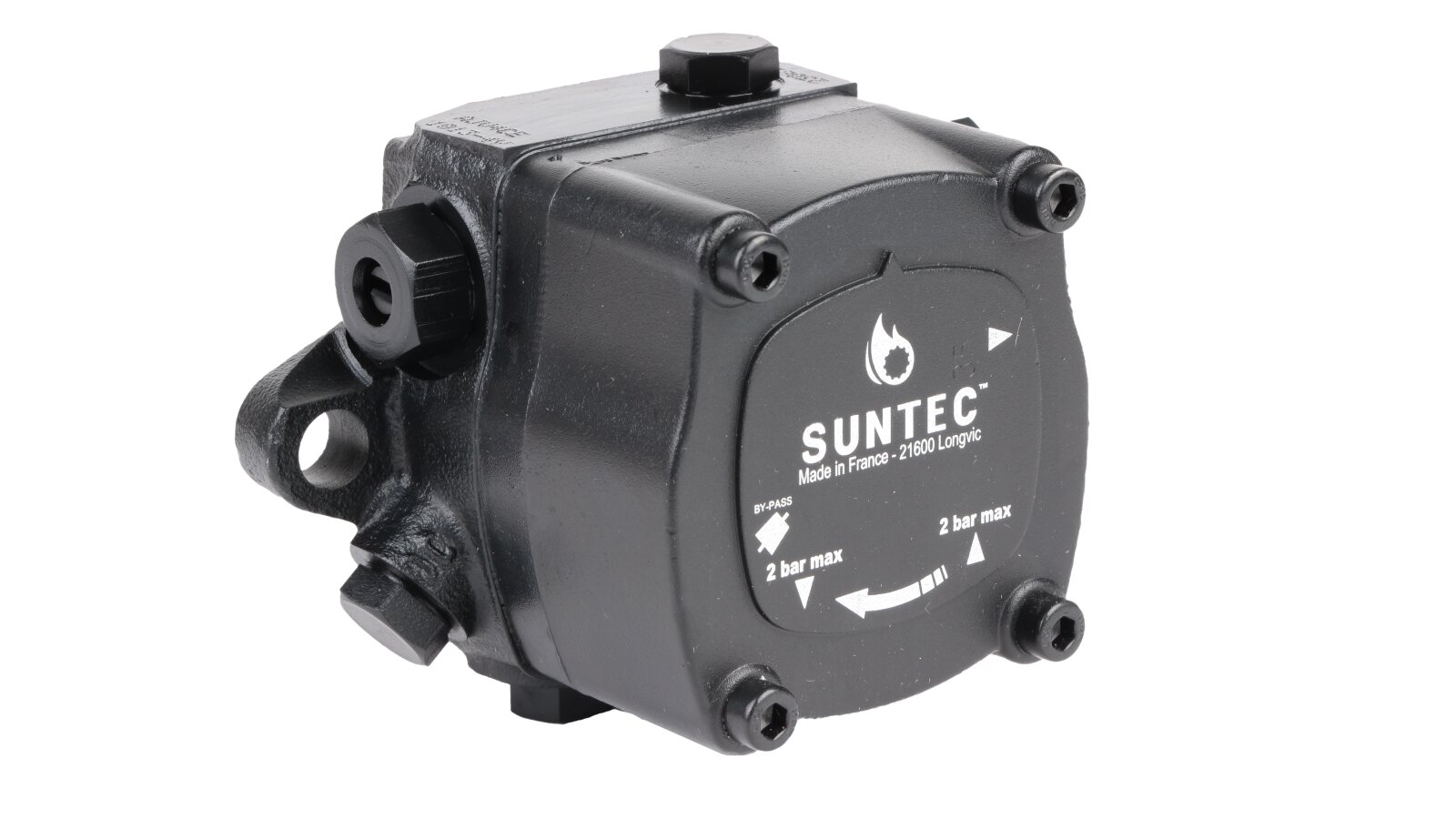

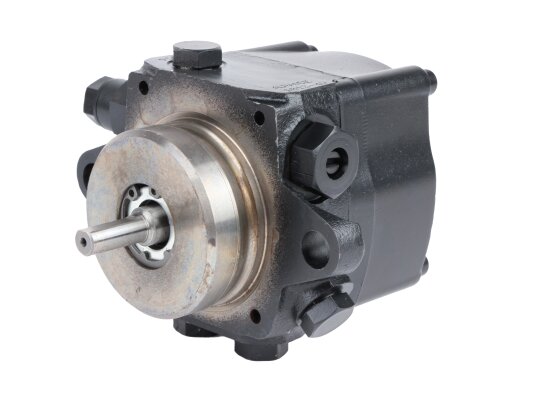

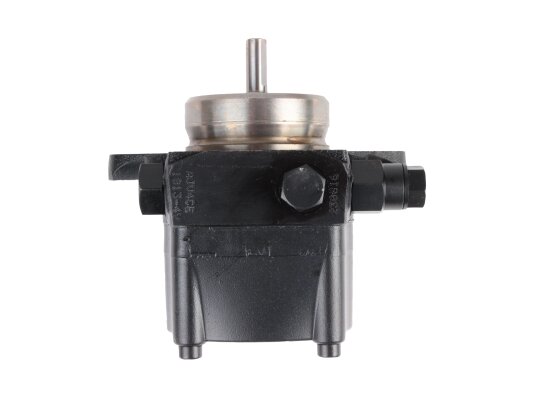

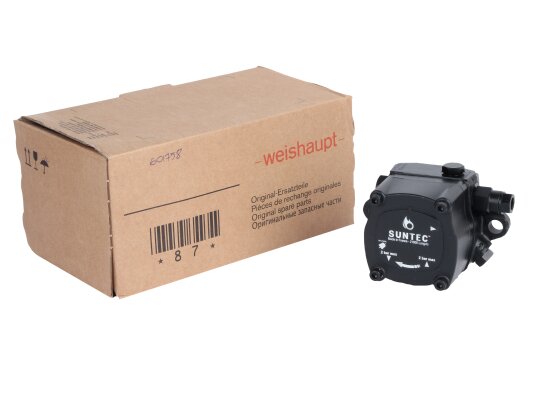

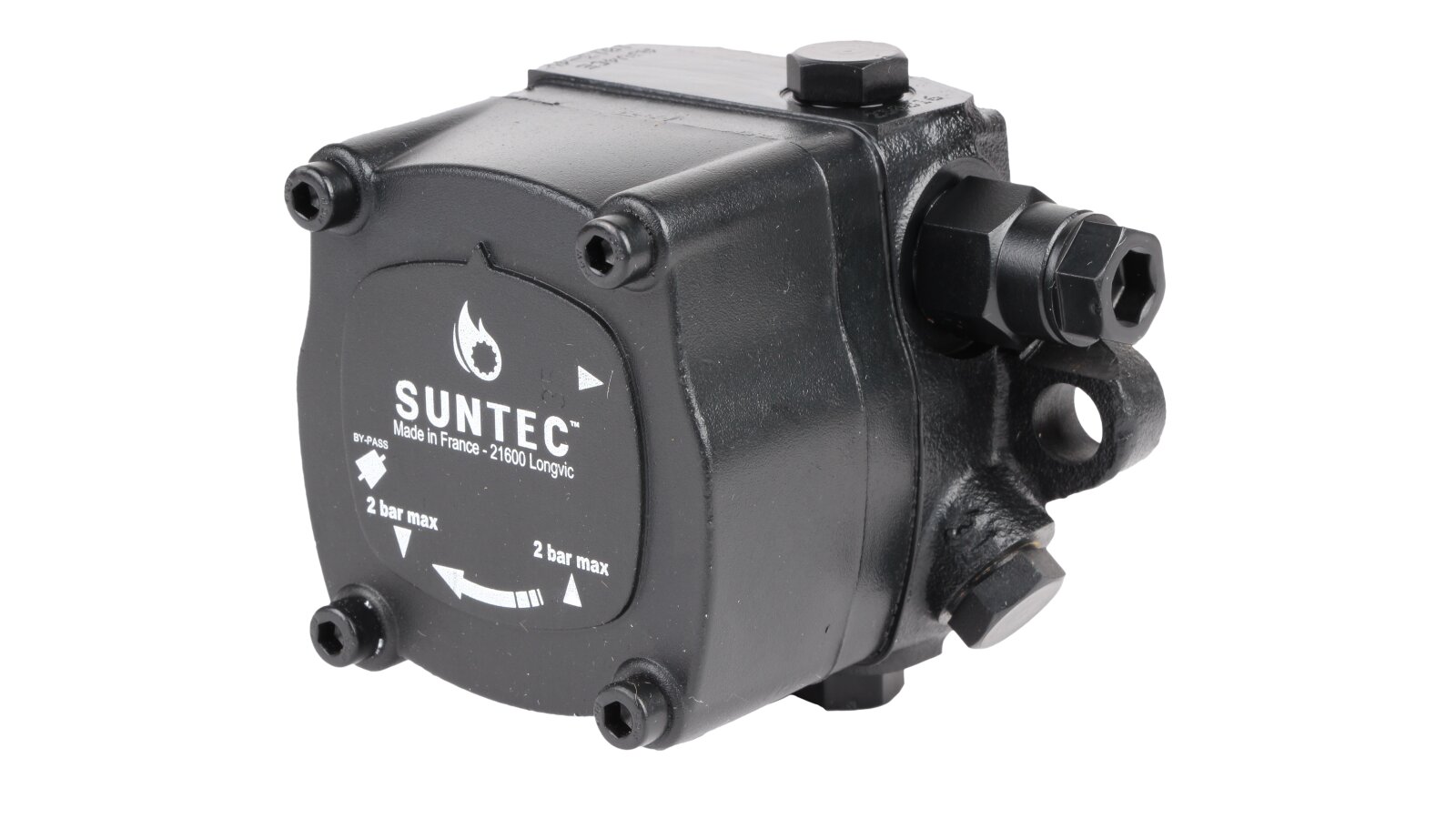

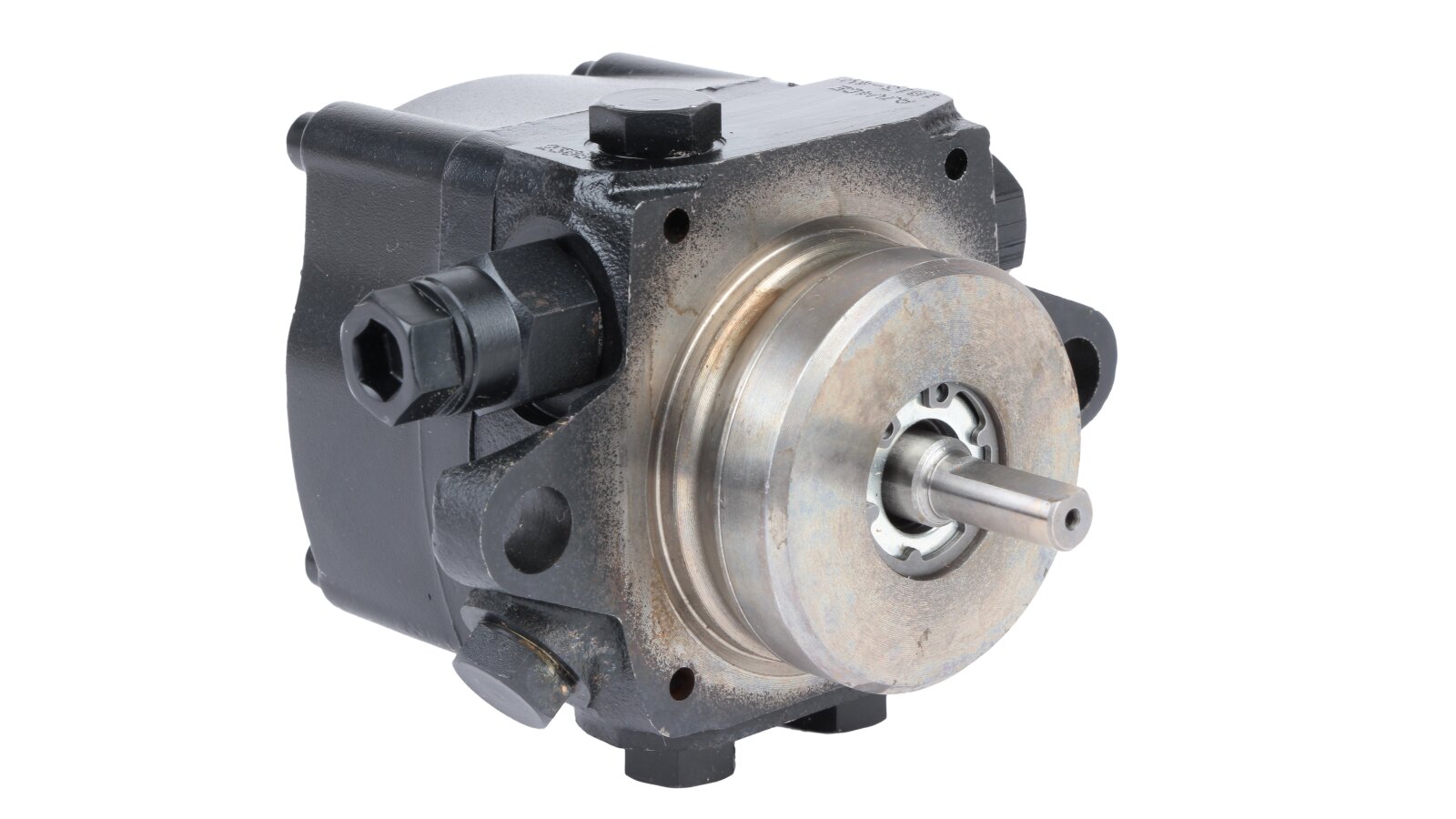

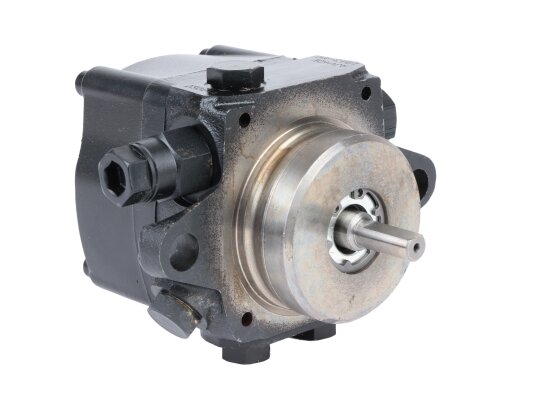

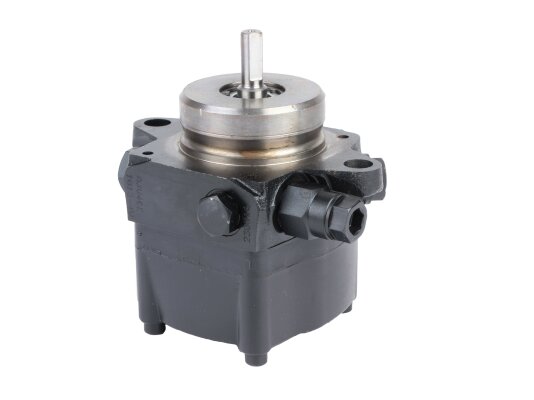

Burner Pump Weishaupt AJ V 4 CE 1013 4P

Weishaupt601758

Alternative Part Number

Weishaupt

We601758

AED 2,350

Oil Burner Pumps
Products code: 36962

Description

The Suntec AJ V 4 CE 1013 4P burner pump is a high-performance equipment for pumping diesel fuel, biodiesel to the nozzle. It is included in a series with a pressure regulating valve with a shut-off function. Suitable for two-pipe and single-pipe connections. Installing an external solenoid valve will help optimize the fuel supply without taking into account the shaft speed.

Features:

  • gear mechanism resistant to intensive loads;

  • flexible adjustment of the supply pressure in the range of 10 ... 30 bar;

  • regulating valve with a shut-off function;

  • dismountable pre-filter with an increased working area (30 cm²) for filtering out dirt particles of 120x150 μm;

  • O-ring seals for reliable connection to the suction and return lines;

  • modification with low internal pressure losses;

  • operating temperature and pumped fuel: 0 ... + 60 ° C;

  • flange mounting according to European standard EN225;

  • possibility of using an external solenoid valve;

  • installation in any position, except for the position with the axis up (avoid axial or radial load);

  • connection to the inlet line and the fuel return channel on a tapered thread ¼ inch NPTF;

  • standard connection of the pressure gauge and vacuum gauge.

It is recommended to use a separate filter "upstream" from the Suntec AJ V 4 CE 1013 4P pump.

Bypass plug

With a two-pipe configuration, the bypass plug is installed in the vacuum gauge port (basic version). With a single-pipe connection, it is necessary to plug the drain hole with a steel plug with a washer by unscrewing the bypass plug.

Characteristics

Manufacturer Part Number: 601758Type of pumped liquid: diesel, biodiesel fuel blend B10Installing the bypass plug: P: bypass plug installed in return line for two-pipe systemModel type: without electromagnetic valveValve function: pressure regulating and cut-offOil temperature: from 0 to 60 °C in the pumpStrainer: Opening size: 30 µmStrainer: Open area: 120х150 cm²Pump series: AJ: control valve with locking functionPressure gauge port: ⅛ inchVacuum gauge port: ⅛ inch or ¼ inchNominal rotation speed: 2850 rpmDirection of rotation (looking at the drive shaft): C: counterclockwise rotation / nozzle on the leftInstallation method: flange ∅ 54 mmMaximum rotation speed: 3600 rpmShaft design: one cavityBy-pass plug: It is installed in the port of the vacuum gauge for a two-pipe system and is removed with a hexagonaFactory pressure setting: 12 barOperating viscosity: from 2 to 75 mm²/sNozzle pressure range: from 10 to 30 barShaft diameter: 8 mmReturn pressure: 2 barInlet pressure: 2 barNozzle outlet: ⅛ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilSuction and return line: ¼ inchTorque: 0.3 N·m
