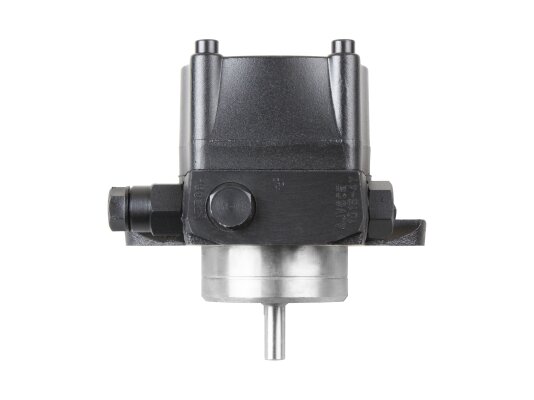

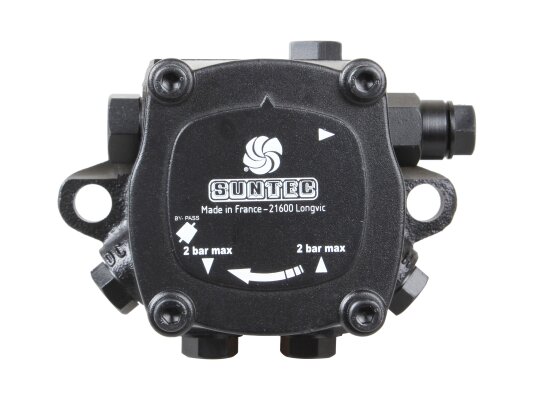

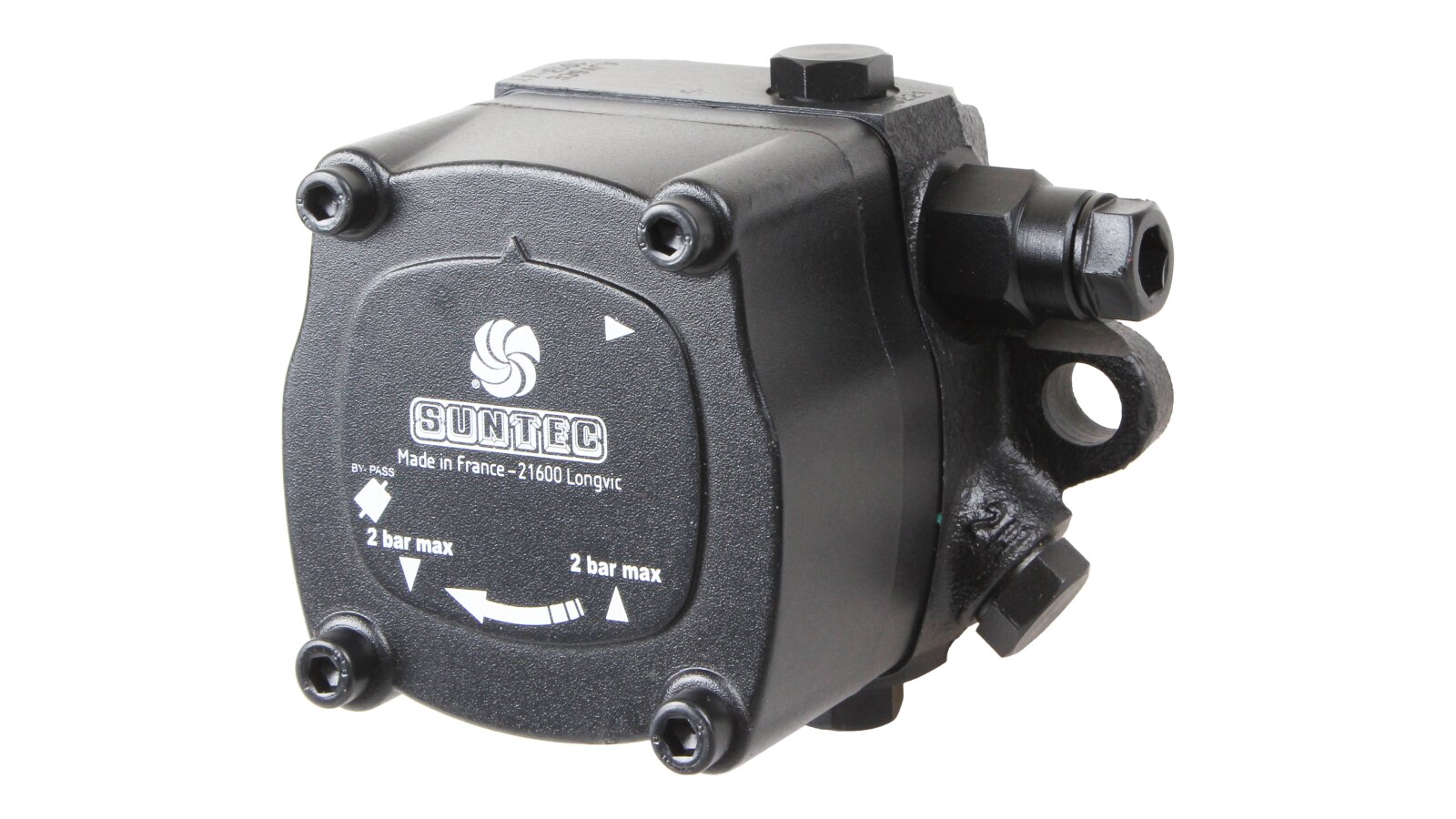

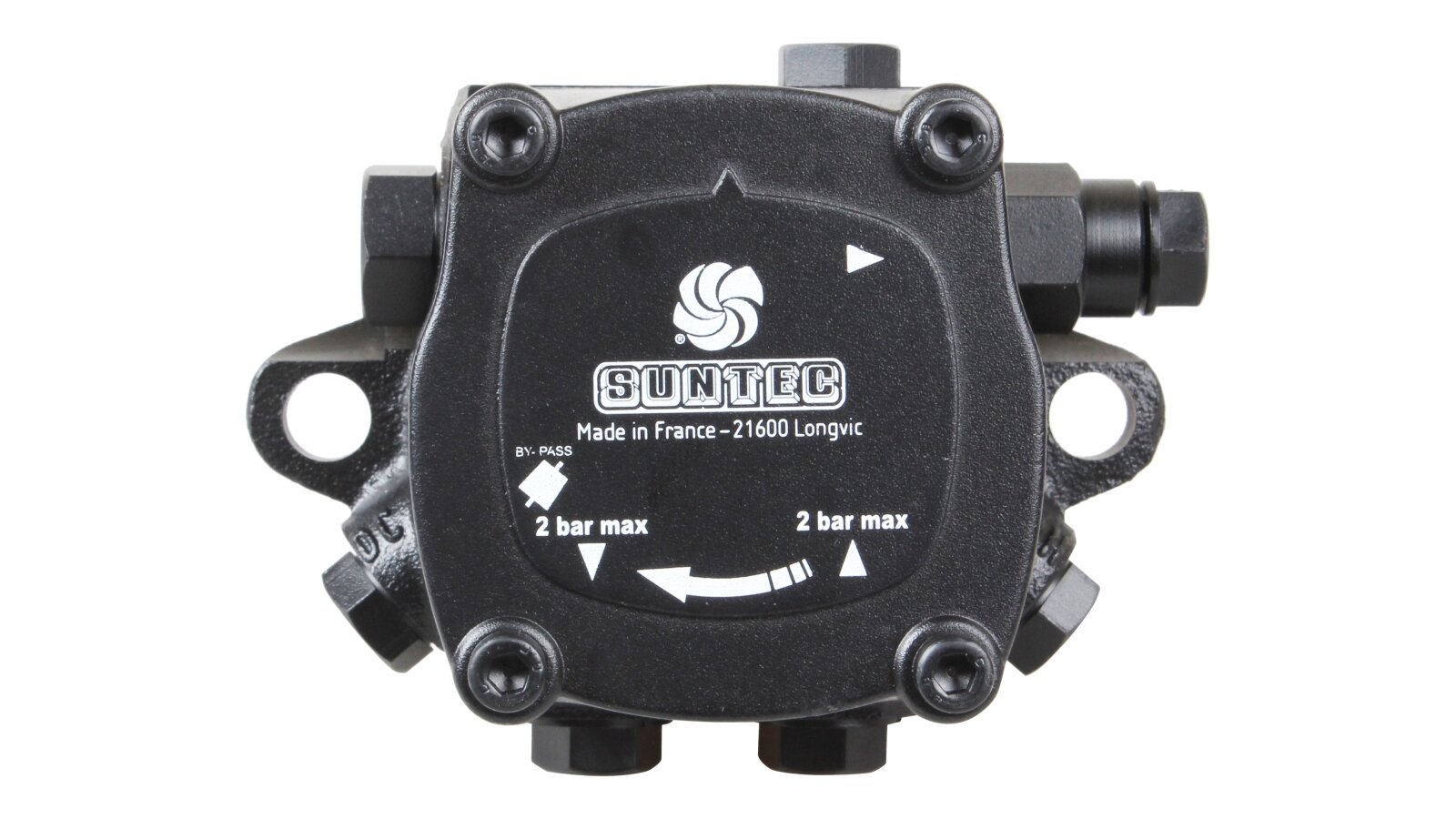

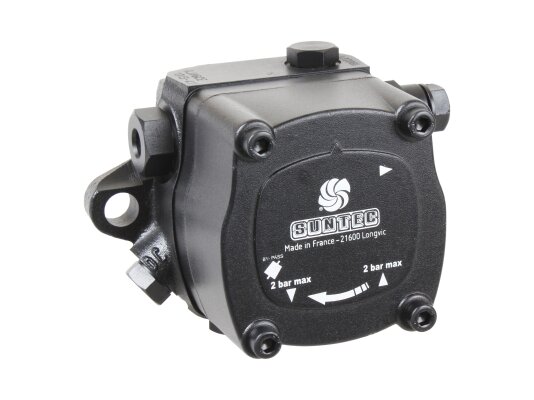

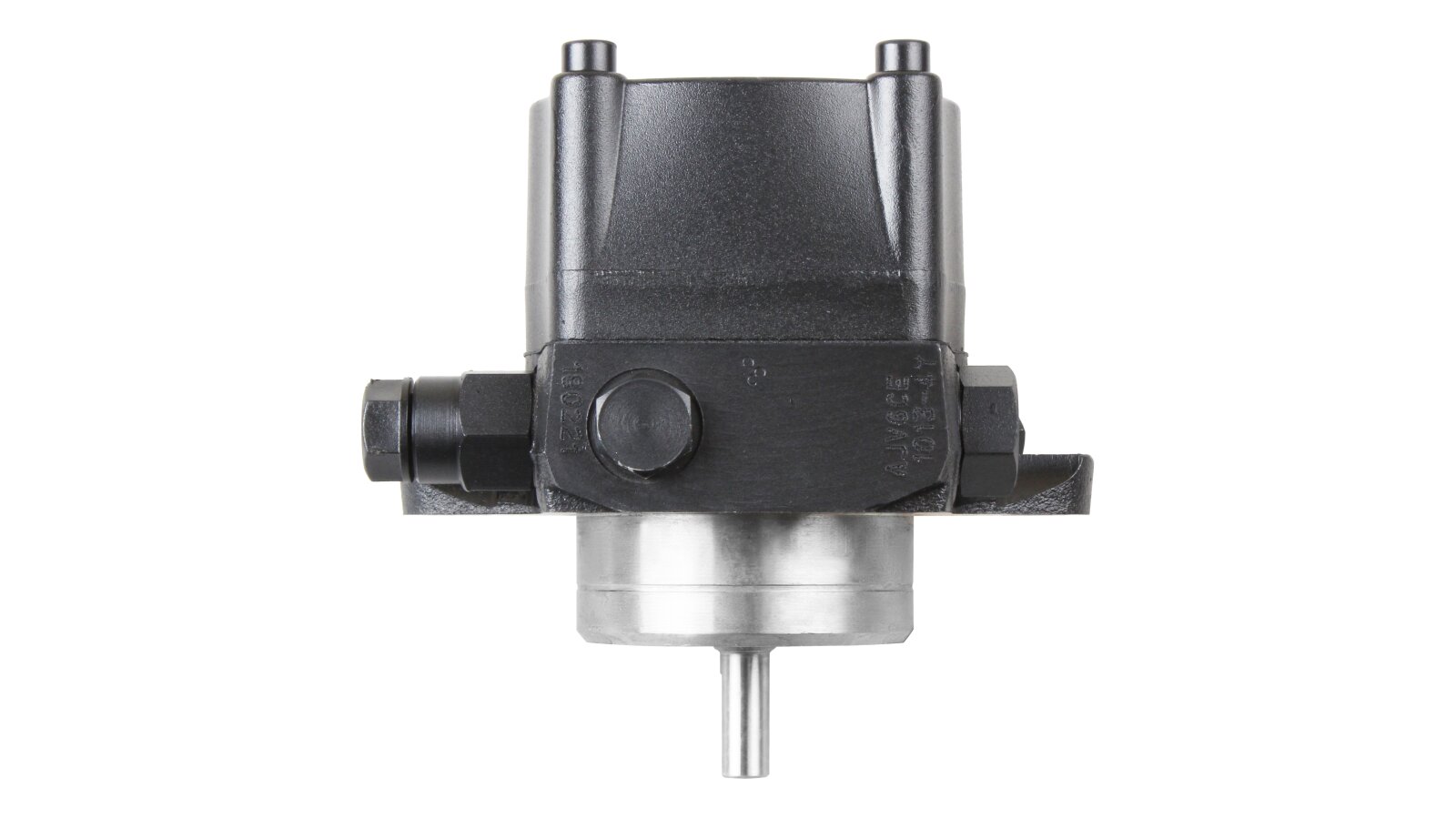

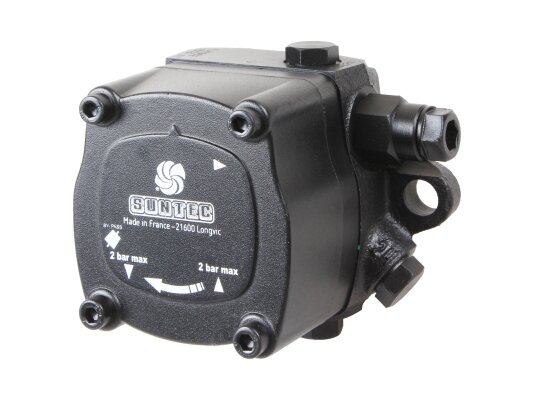

Burner Pump Weishaupt AJ V 6 CE 1013 4P

Weishaupt601751

Alternative Part Number

Weishaupt

We601751

AED 2,600

Oil Burner Pumps
Products code: 65266

Description

The Weishaupt AJ V 6 CE 1013 4P burner pump, art.: 601751, is characterized by high performance, wear resistance, and versatility. Suitable for pumping diesel fuel and biodiesel. The flow rate reaches 248 l/h at a pressure of 20 bar and a fuel viscosity of 5 cSt. The pump is used for heating systems with single-pipe and double-pipe connections. The nozzle pressure is adjusted in the range of 10-20 bar.

Features:

  • Viton shaft seals for safe operation with a B10 biodiesel mixture;

  • equipped with a pressure regulating valve with a shut-off function;

  • external solenoid valve for automated fuel supply (optional);

  • for equipping double-pipe and single-pipe systems.

Design and installation

The Weishaupt AJ pump is made of wear-resistant, durable materials designed for contact with fuel, high pressure and intensive loads. The main working unit is a gear mechanism, which is responsible for moving fuel from the tank to the injector line under a given pressure. The fuel is pre-cleaned from dirt, passing through a mesh detachable filter with 120x150 μm holes.

In the basic version, the pump is assembled for systems with a return line. With a single-pipe connection, the bypass plug must be unscrewed and the drain channel must be tightly closed. The pump includes a valve that regulates the pressure on the injector and provides a shut-off function. To automate the fuel supply to the injector, an external electromagnetic valve must be installed.

The Weishaupt AJ burner pump is installed using a flange connection ∅ 54 mm. The body has ports for connecting pressure measuring devices.

Advantages:

  • versatility, for diesel fuel and biodiesel mixture;

  • hermetic shaft seals (Viton material);

  • high efficiency;

  • built-in removable coarse filter;

  • compact size, standard connection;

  • protection against dust and moisture penetration;

  • use in two- and one-pipe systems.

You can buy burner pumps and additional accessories (external solenoid valve, flanges, gaskets, etc.) from us.

Characteristics

Manufacturer Part Number: 601751Type of pumped liquid: diesel, biodiesel fuel blend B10Installing the bypass plug: P: bypass plug installed in return line for two-pipe systemModel type: without electromagnetic valveValve function: pressure regulating and cut-offOil temperature: from 0 to 60 °C in the pumpStrainer: Opening size: 30 µmStrainer: Open area: 120х150 cm²Pump series: AJ: control valve with locking functionPerformance at 20 bar pressure and 5 cSt viscosity: 248 l/hPressure gauge port: ⅛ inchVacuum gauge port: ⅛ inch or ¼ inchNominal rotation speed: 2850 rpmDirection of rotation (looking at the drive shaft): C: counterclockwise rotation / nozzle on the leftInstallation method: flange ∅ 54 mmMaximum rotation speed: 3600 rpmShaft design: one cavityBy-pass plug: It is installed in the port of the vacuum gauge for a two-pipe system and is removed with a hexagonaFactory pressure setting: 12 barOperating viscosity: from 2 to 75 mm²/sNozzle pressure range: from 10 to 30 barShaft diameter: 8 mmReturn pressure: 2 barInlet pressure: 2 barNozzle outlet: ⅛ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilSuction and return line: ¼ inchTorque: 0.3 N·m
