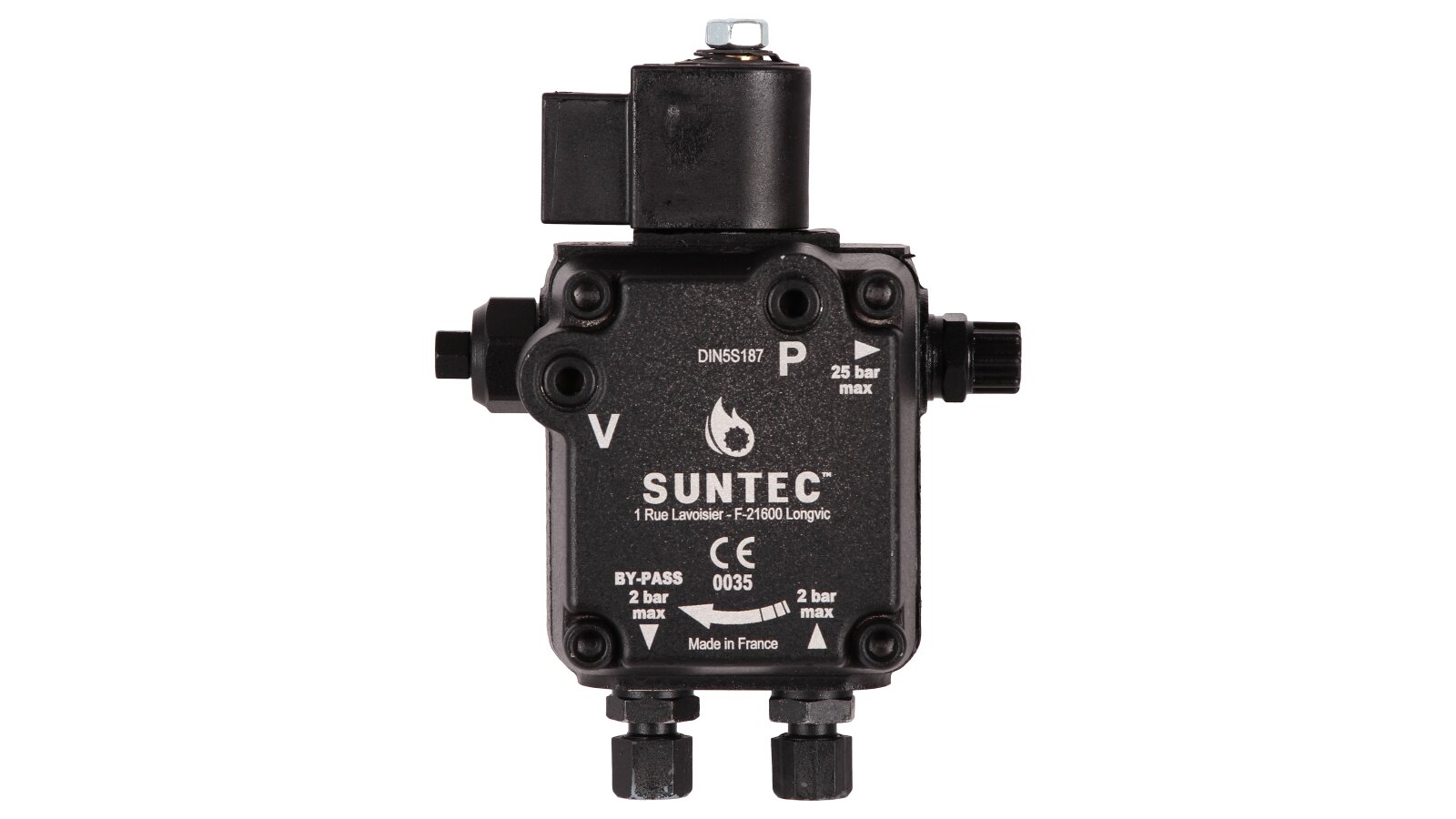

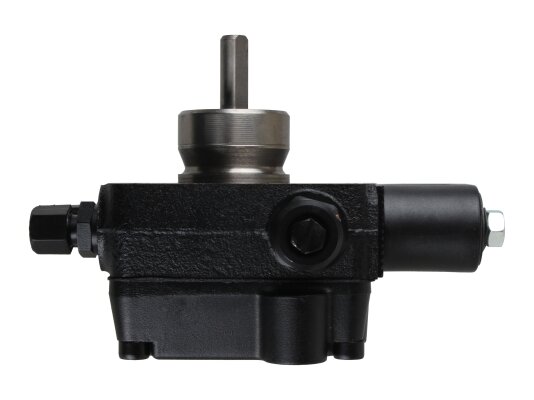

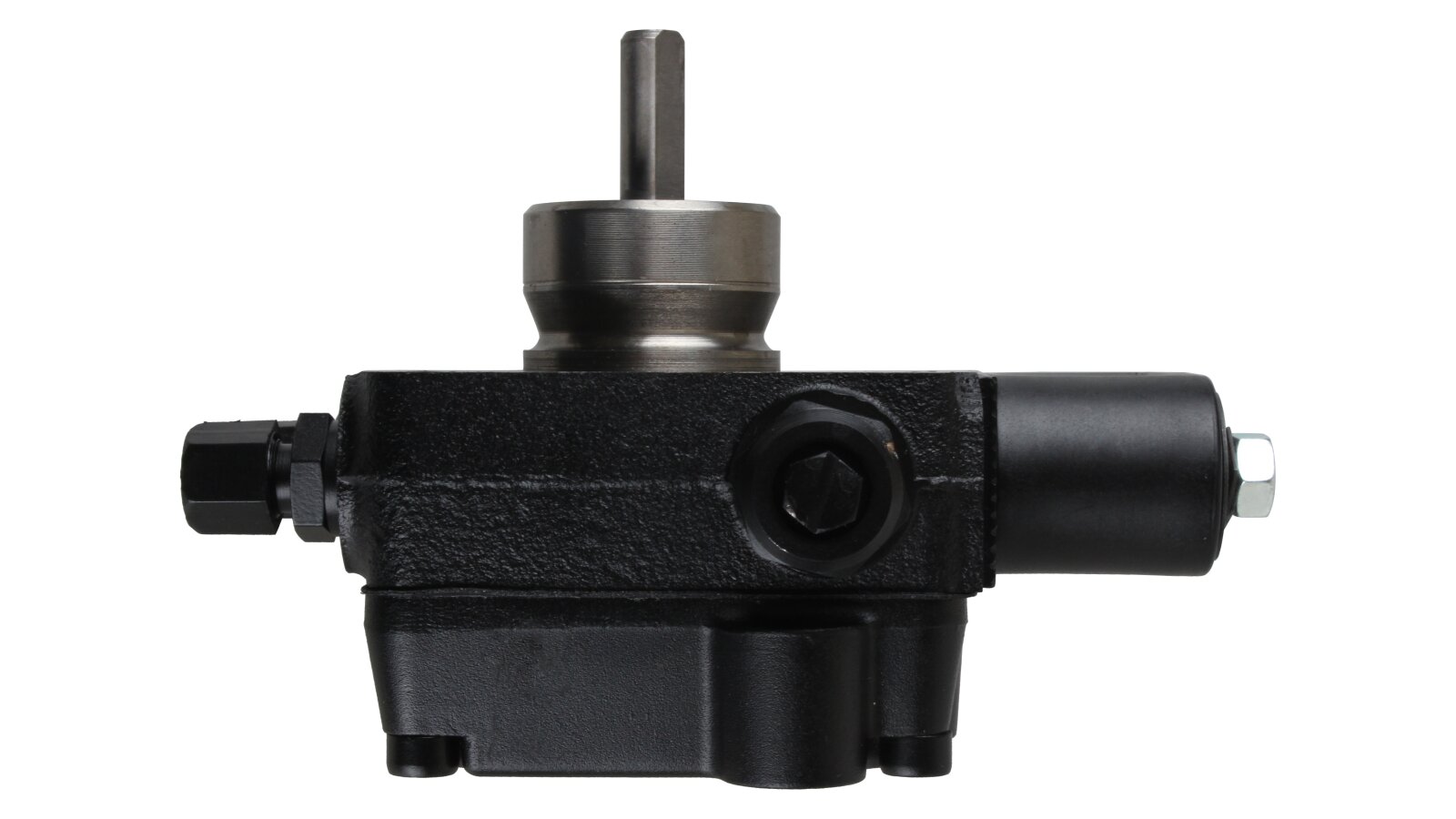

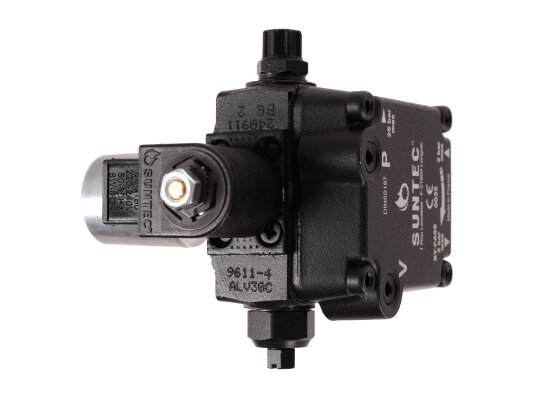

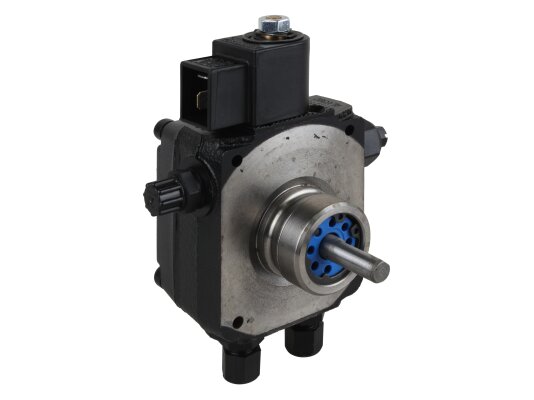

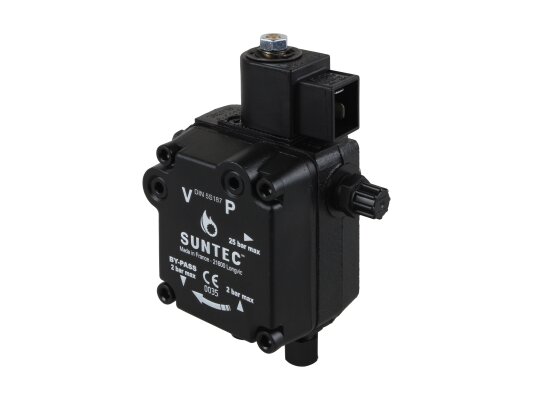

Burner Pump Weishaupt AL V 30 C 9611 4P 0700, 24120006082

Weishaupt24120006082

Alternative Part Number

Weishaupt

We24120006082

AED 1,325

Oil Burner Pumps
Products code: 56753

Description

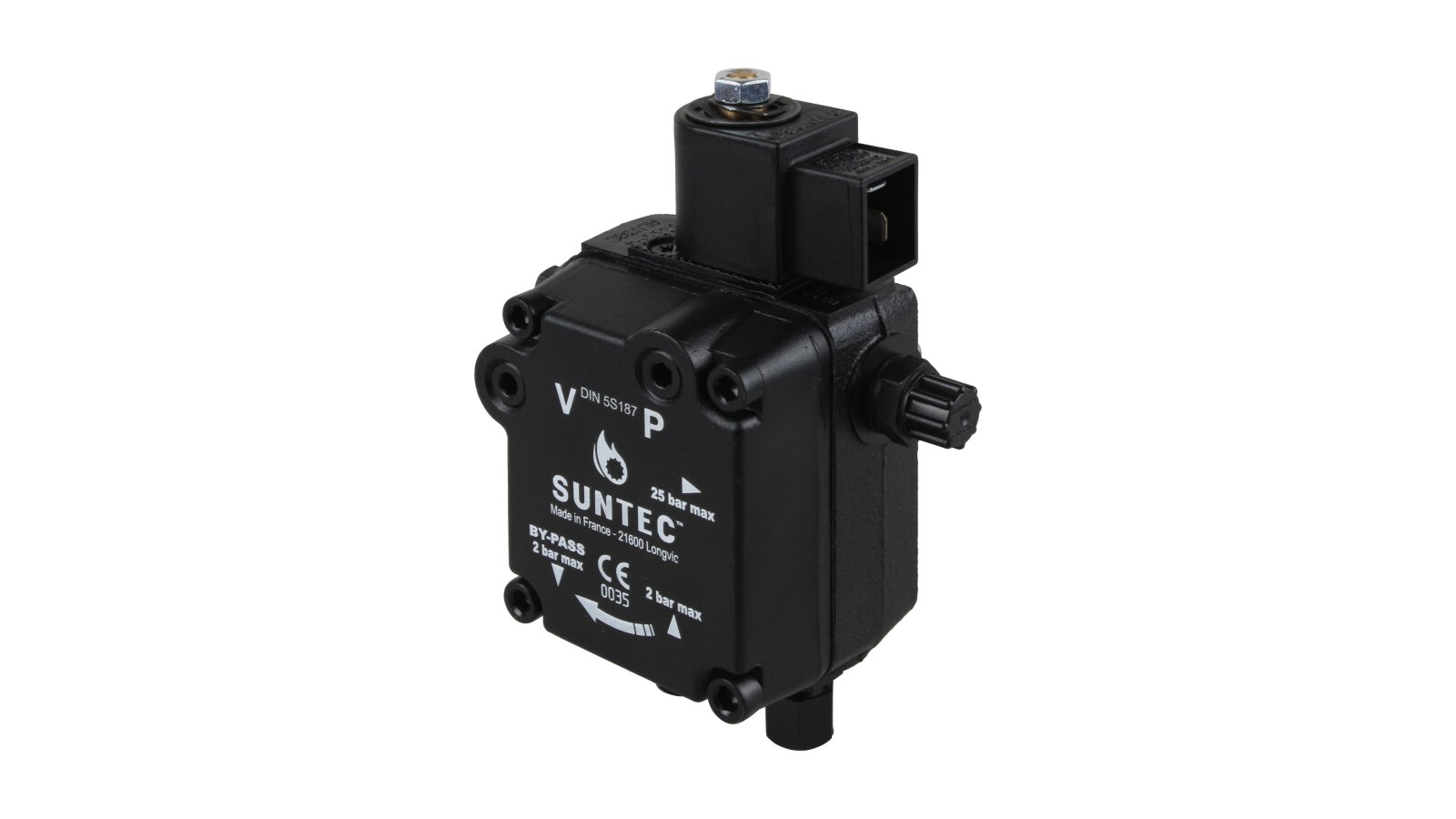

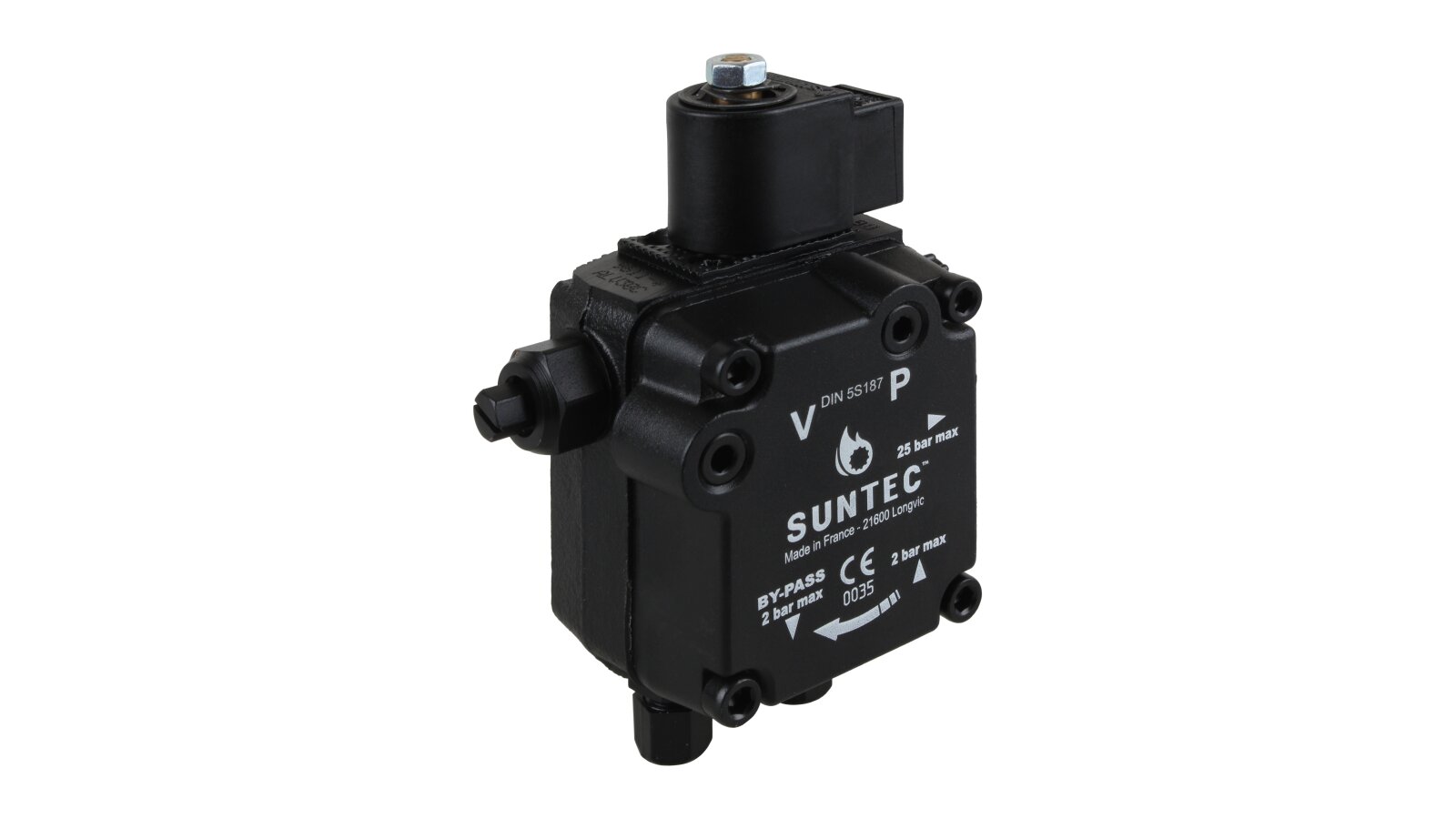

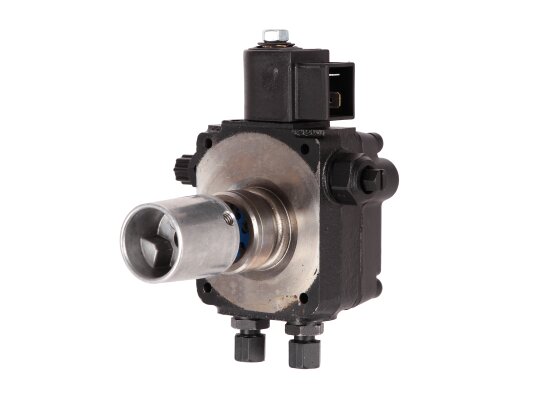

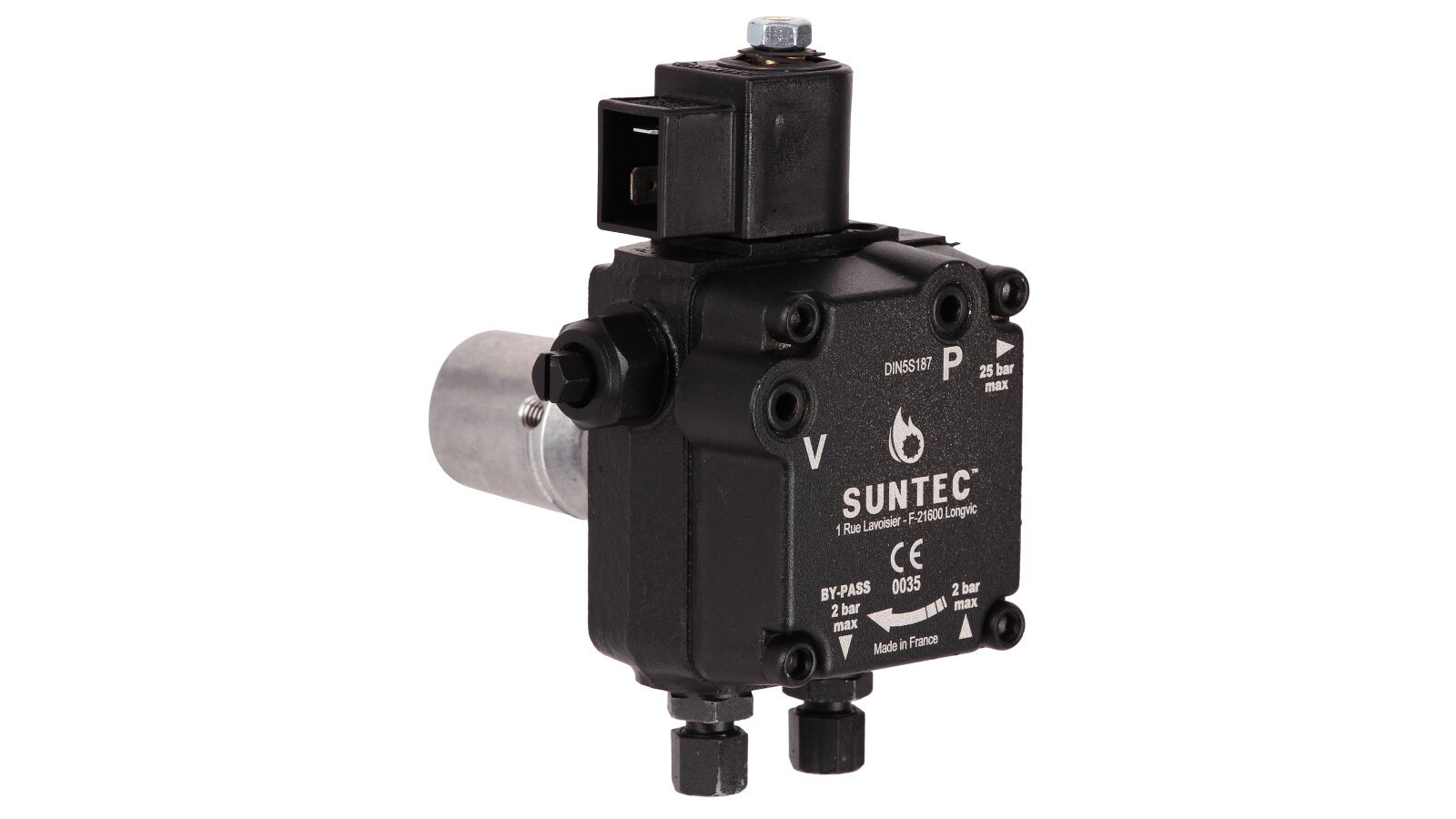

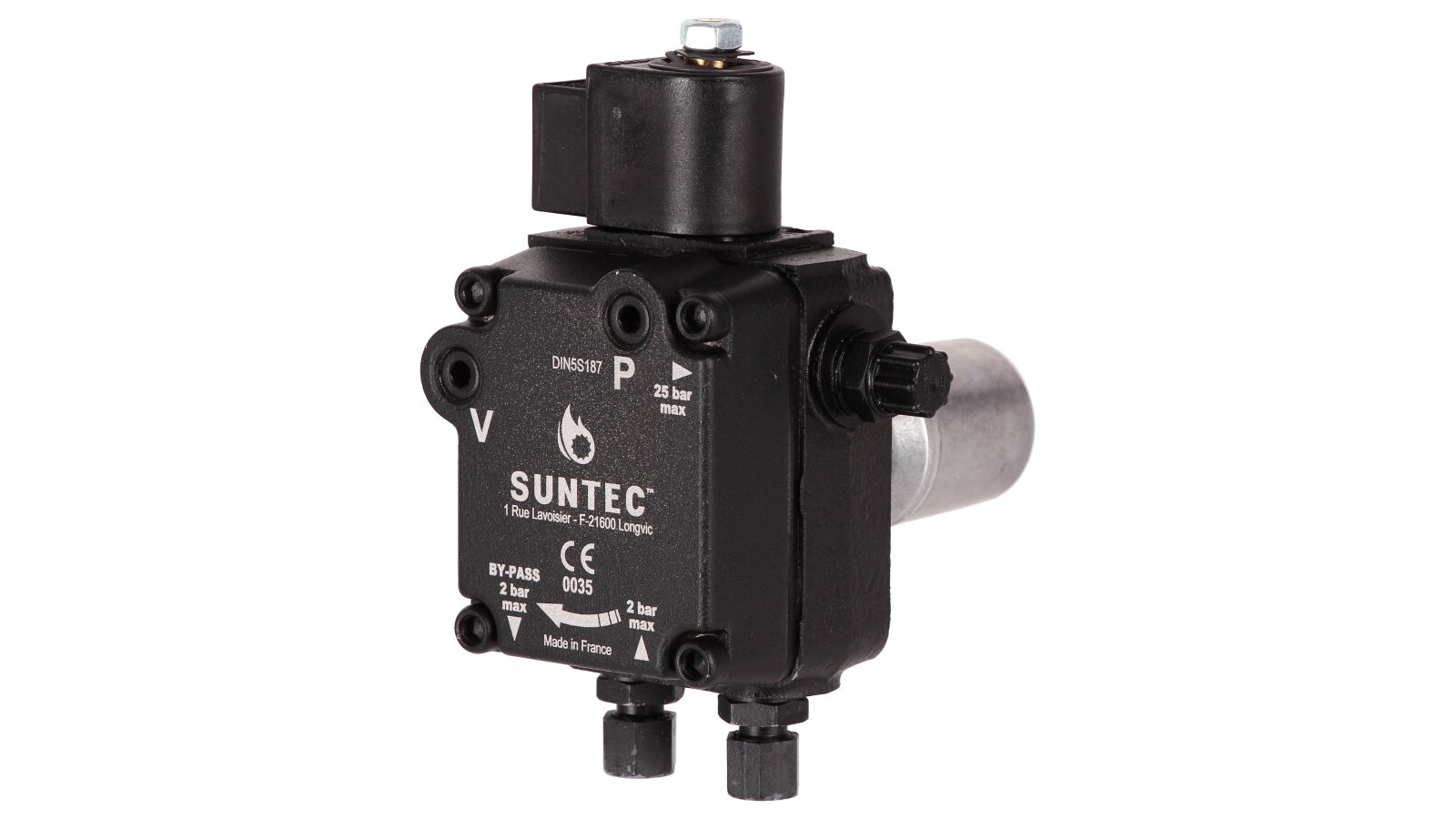

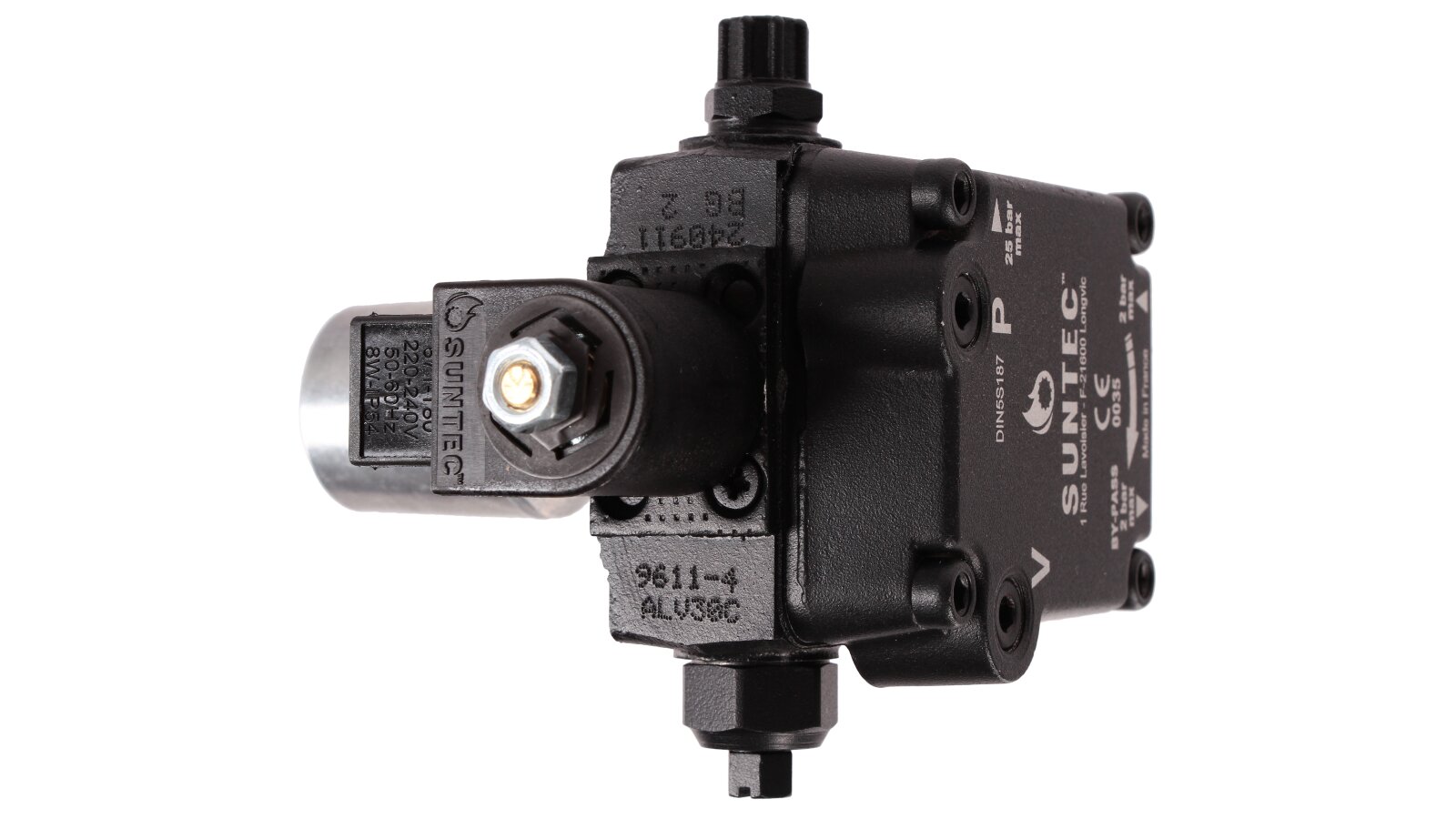

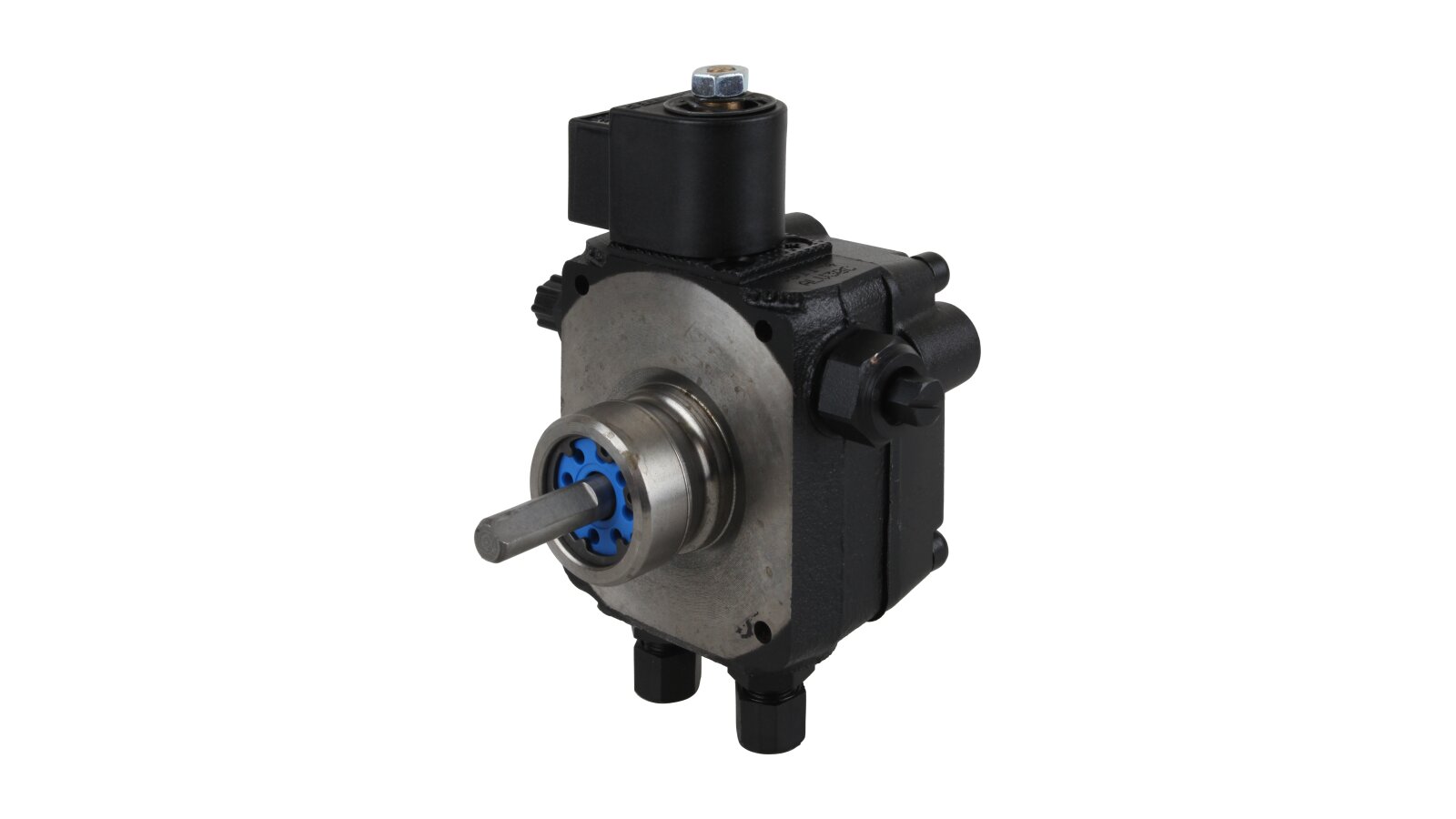

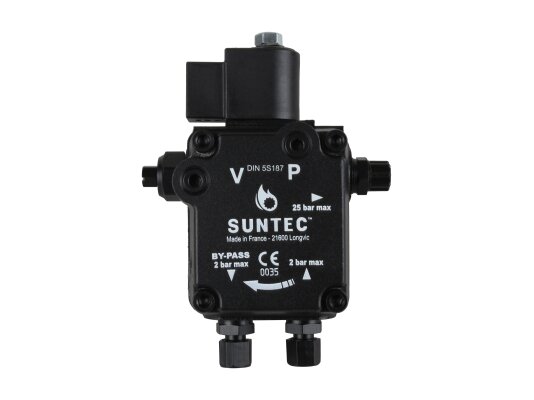

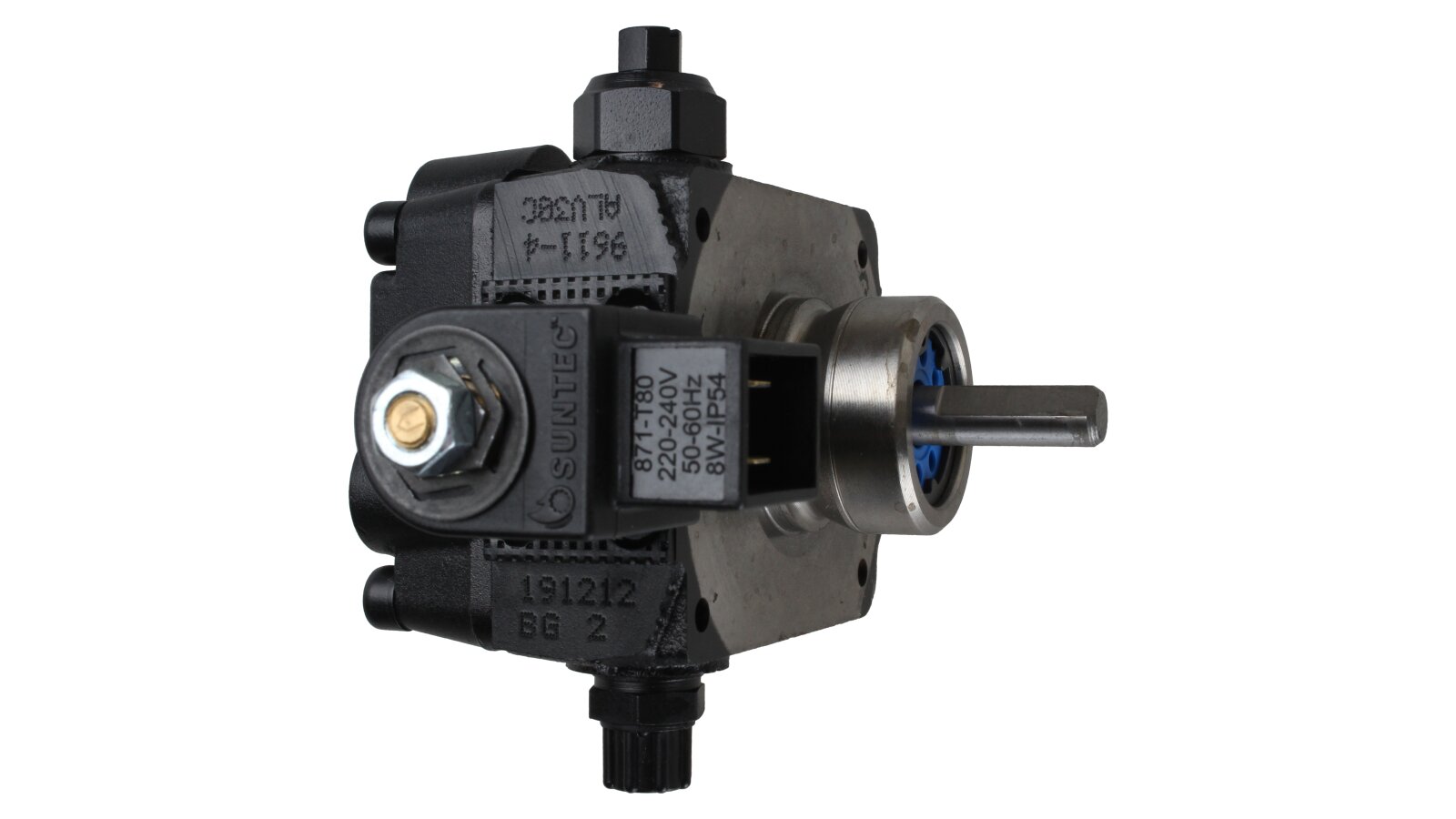

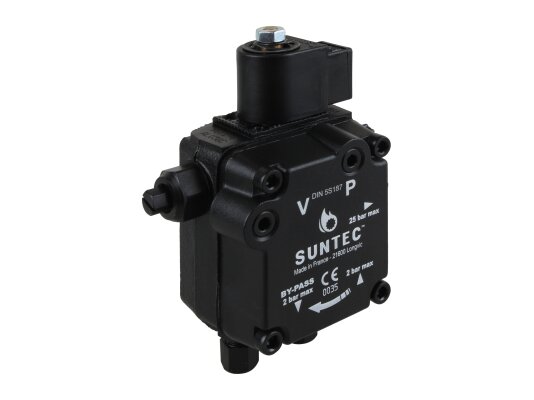

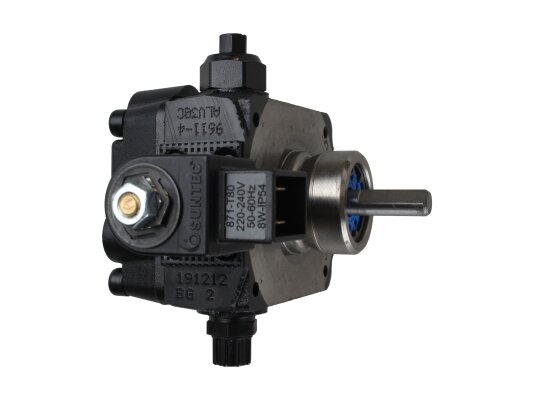

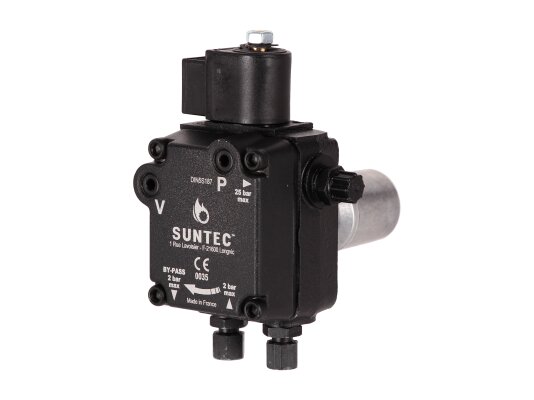

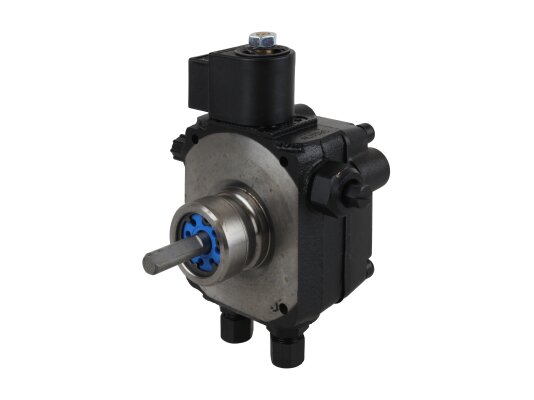

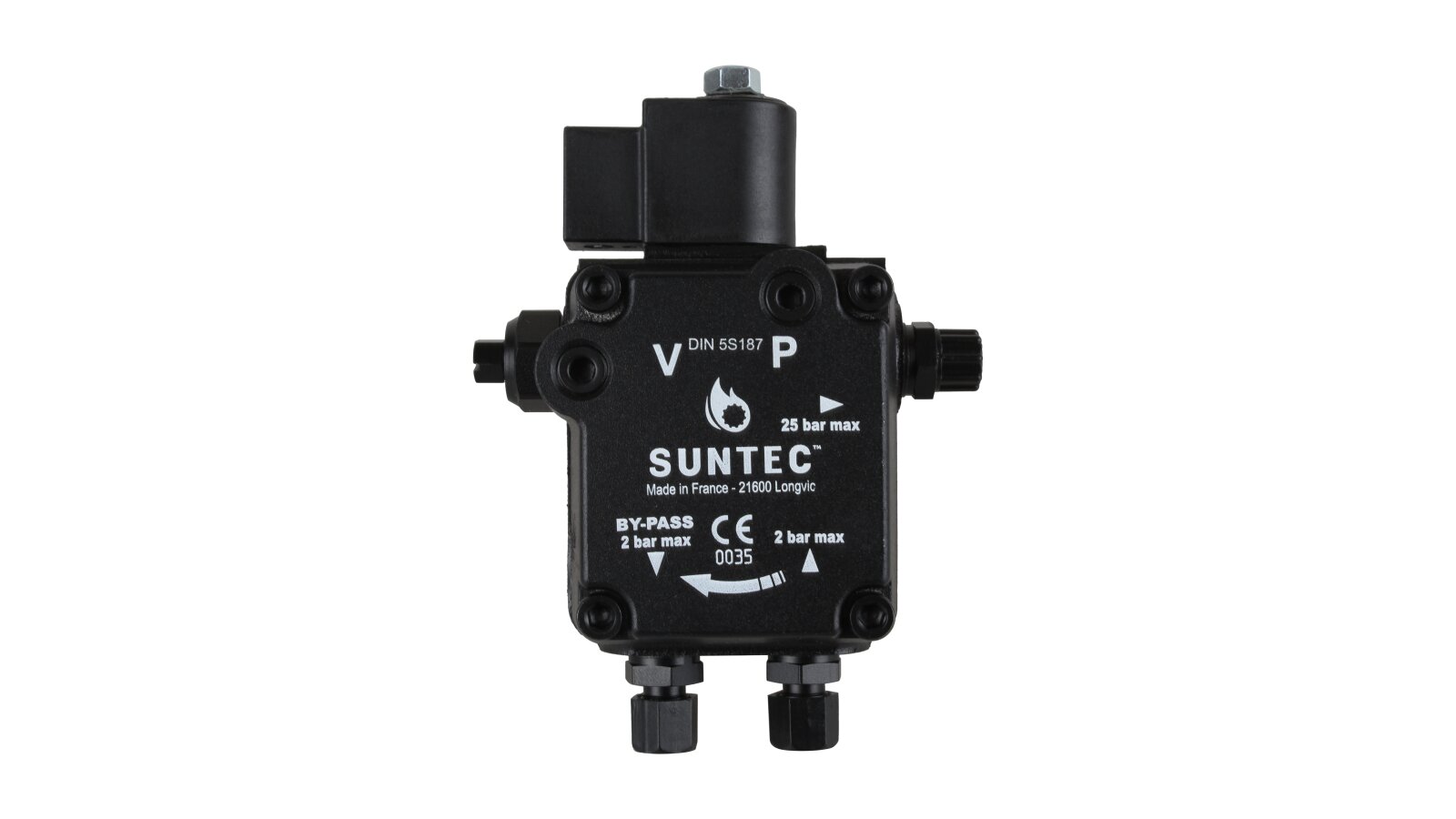

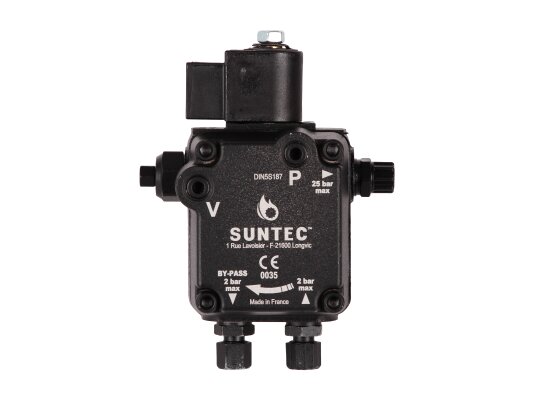

The Weishaupt AL V 30 C 9611 4P 0700 burner pump with fittings, art: 24120006082, can pump diesel and biodiesel fuel. Equipped with a locking solenoid valve with a shut-off function. It is used in single-stage burners with or without a return line. The feed pressure is adjustable in the range of 4-18 bar, factory set to 9 bar. It is installed in WL20 burners.

Features

The pump is assembled for a 2-pipe connection. If there is no return line, it is necessary to unscrew the bypass plug and hermetically close the drain channel. Excess fuel returns to the tank or goes to the gear teeth, depending on the system configuration.

The pump is equipped with Viton seals, which expands the scope of application. The working environment can be not only diesel fuel, but also a B10 biodiesel mixture.

Design

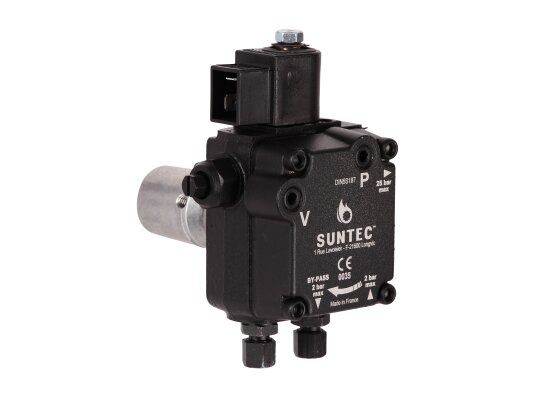

Suntec AL is made of wear- and corrosion-resistant materials. The main working element is a pair of gears in engagement. The gear device sucks fuel from the tank and passes it through the filter and pressure-regulating valve, moving it to the injector line under a given pressure. A mesh metal filter with 150 μm holes prevents damage and early wear of the gear pair. An electromagnetic normally-closed valve is installed in the injector line and quickly responds regardless of the shaft speed.

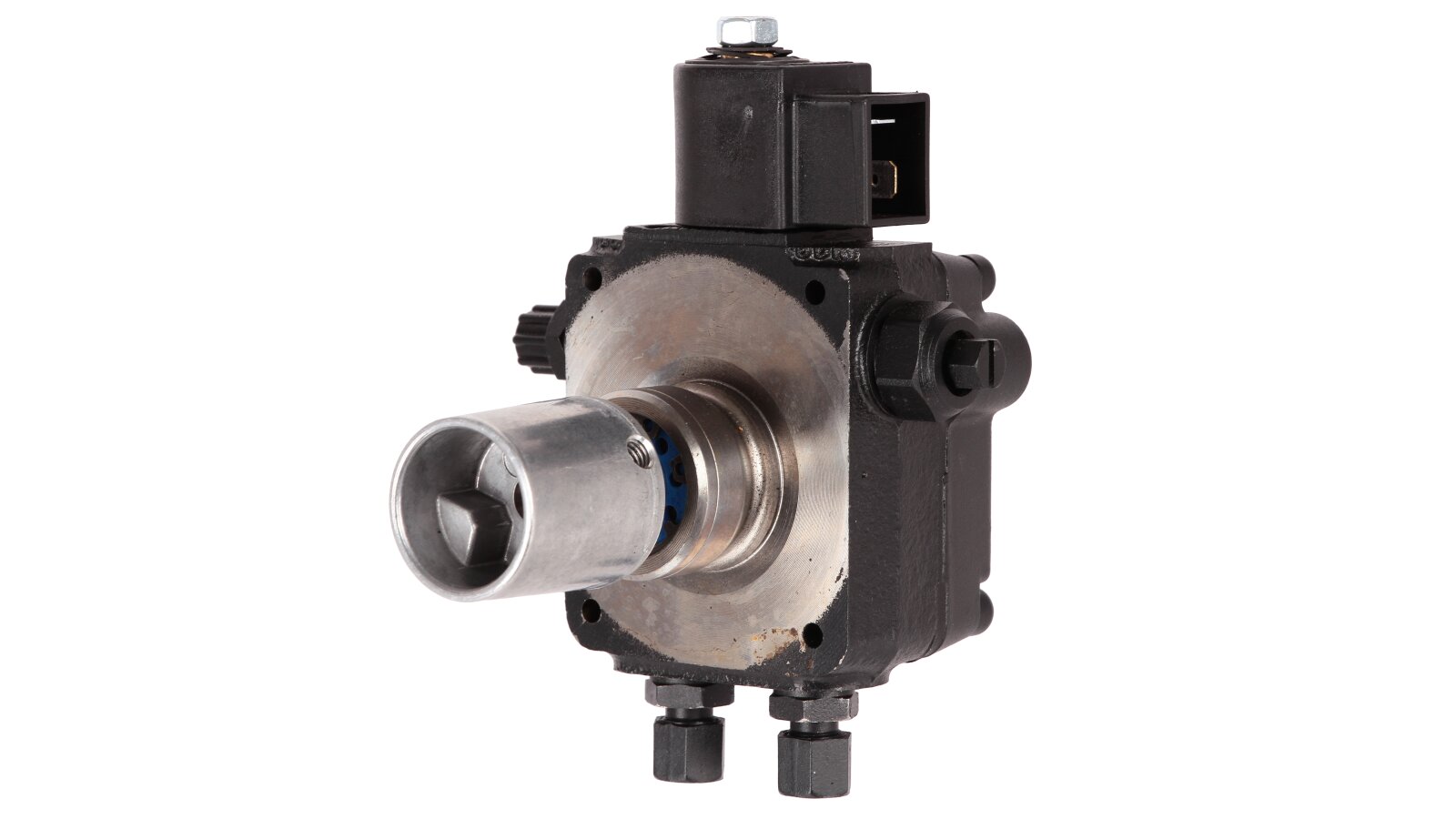

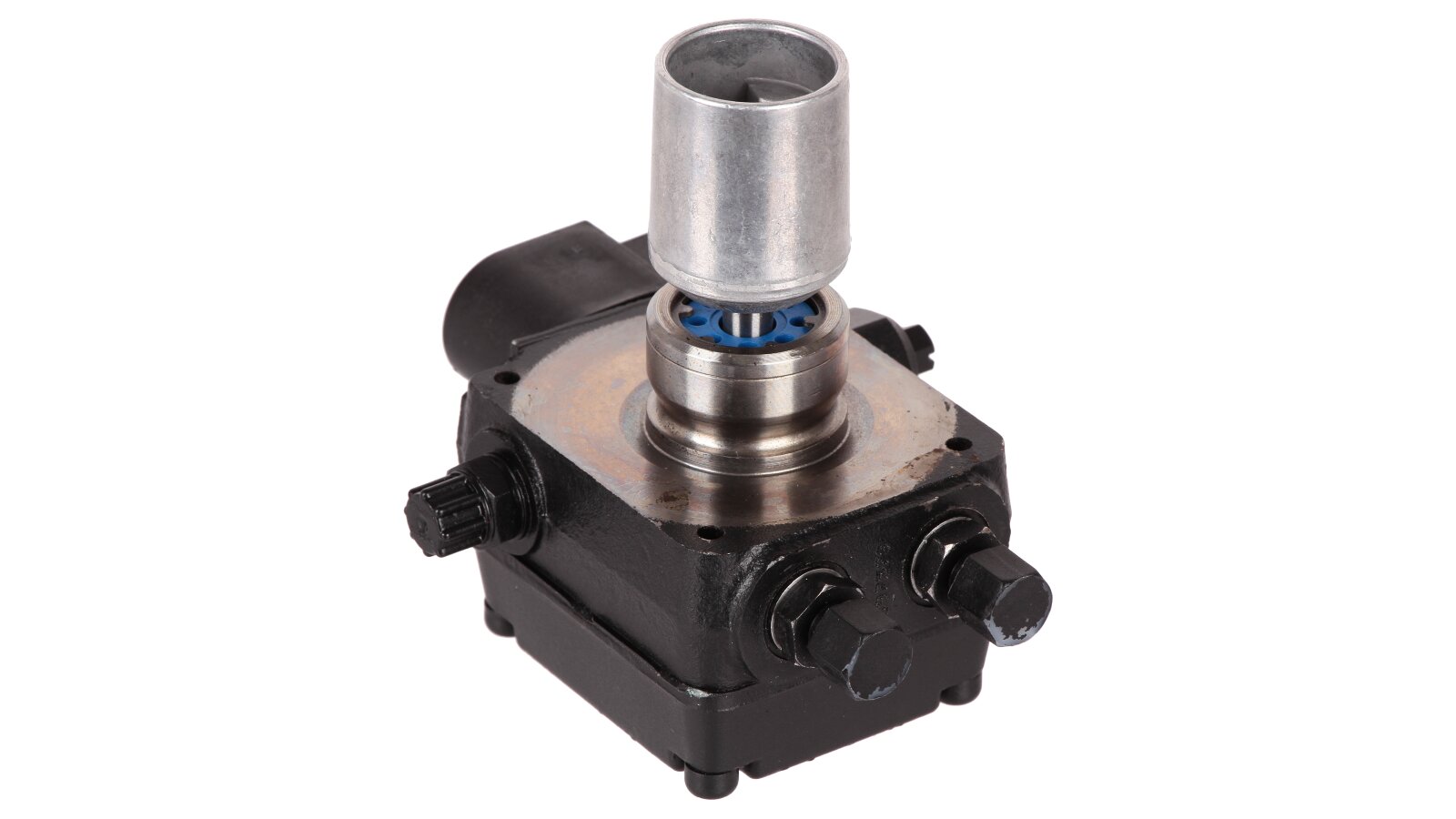

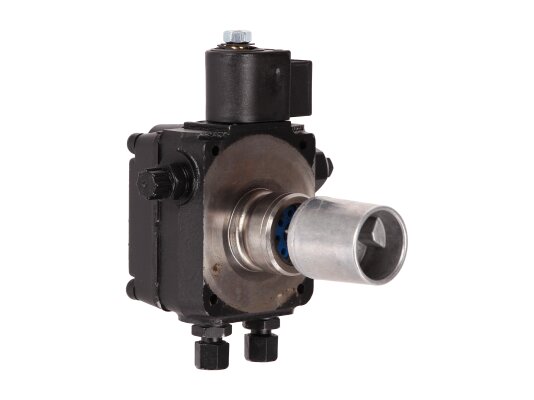

The electrical components of the pump are protected from dust and splashes of water according to the IP54 standard. The design is designed to pump fuel with a temperature in the range of 0 ... + 60ºC. The pump is mounted using a ∅ 32 mm sleeve connection. The body has ⅛ inch ports for a pressure gauge and a vacuum gauge.

Installation of an additional fine filter will prevent clogging of the injector and loss of combustion system performance (optional).

Advantages:

  • works with diesel fuel and biodiesel mixture;

  • hermetic shaft seals (Viton material);

  • high feed stability;

  • pressure regulation in a wide range;

  • built-in filter with 150 micron cleaning capacity;

  • compact dimensions, standard sleeve fit;

  • high level of dust and moisture protection;

  • use in two- and single-pipe systems.

You can buy Weishaupt AL pumps and other equipment from us for the efficient operation of heating units of any capacity and purpose.

Characteristics

Manufacturer Part Number: 24120006082Performance at 11 bar pressure and 5 cSt viscosity: 40 l/hType of pumped liquid: diesel, biodiesel fuel blend B10Operating viscosity: from 2 to 12 mm²/sValve function: pressure regulatingInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemModel type: 1 stage with electromagnetic valveOil temperature: from 0 to 60 °C in the pumpStrainer: Opening size: 150 µmStrainer: Open area: 6 cm²Pump series: AL: pressure regulation and interlock solenoid valve with shut-off functionPerformance for stage 2 at 11 bar and 5 cSt viscosity: 40 l/hSolenoid valve consumption: 9 WPressure gauge port: ⅛ inchVacuum gauge port: ⅛ inchNominal rotation speed: 2850 rpmSolenoid valve voltage: 220-240V~, 50-60HzDirection of rotation (looking at the drive shaft): C: counterclockwise rotation / nozzle on the leftMaximum pressure of the solenoid valve: 25 barTorque: 0.1 N·mSuction and return line: ¼ inch NPTF (taper thread)Suction height: 0.45 bars max. vacuum to prevent air separation from oilNozzle outlet: ⅛ inchInlet pressure: 2 barReturn pressure: 2 barShaft diameter: 8 mmNozzle pressure range: from 4 to 18 barFactory pressure setting: 9 barBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withShaft design: one cavityMaximum rotation speed: 3600 rpmInstallation method: sleeve ∅ 32 mmDegree of protection: IP54
