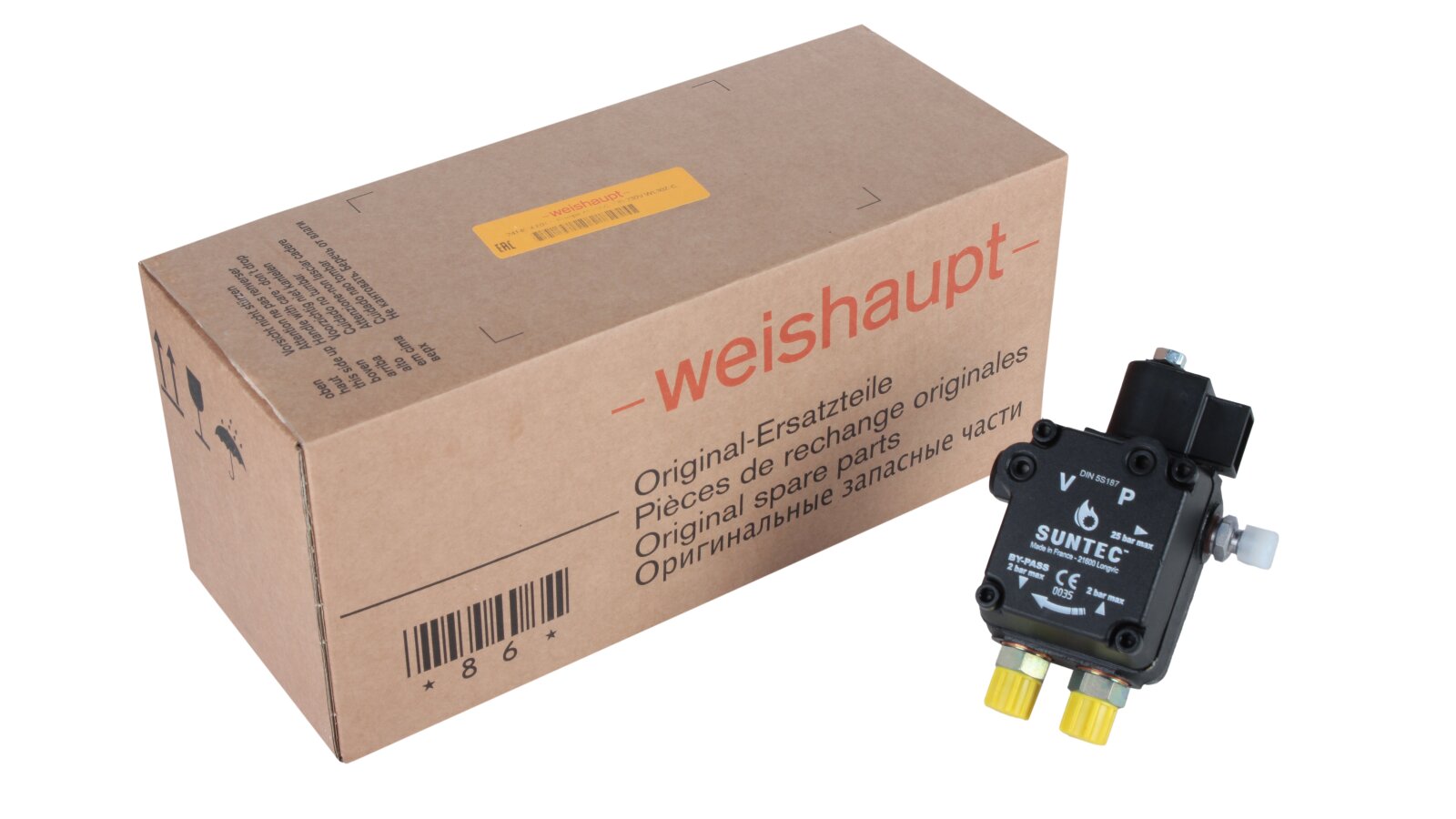

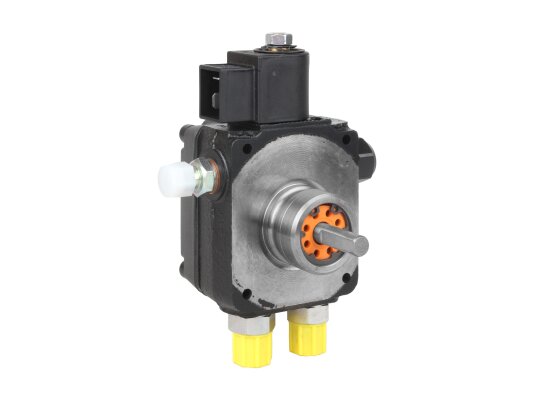

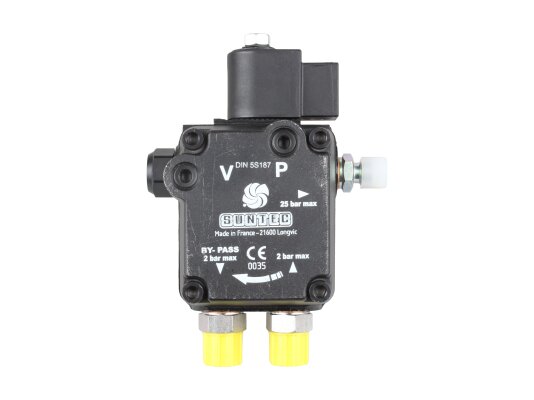

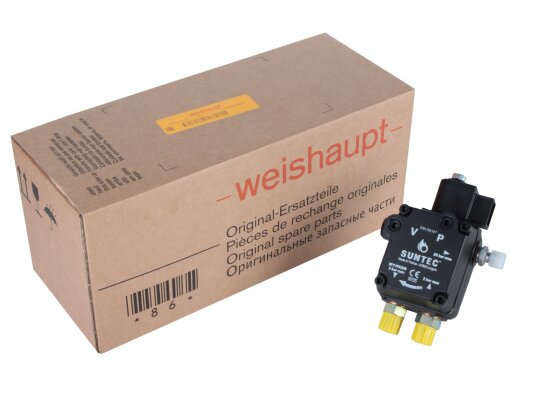

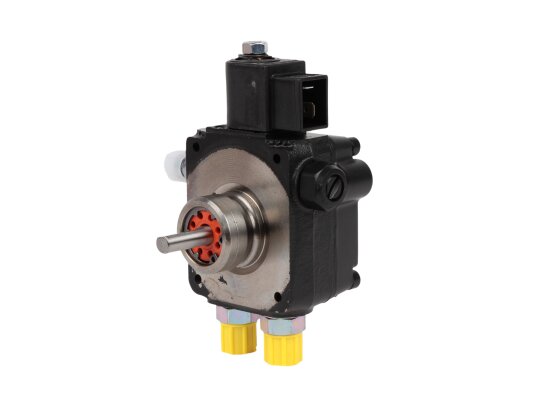

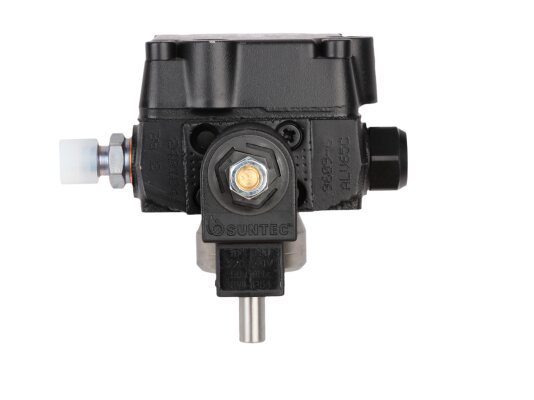

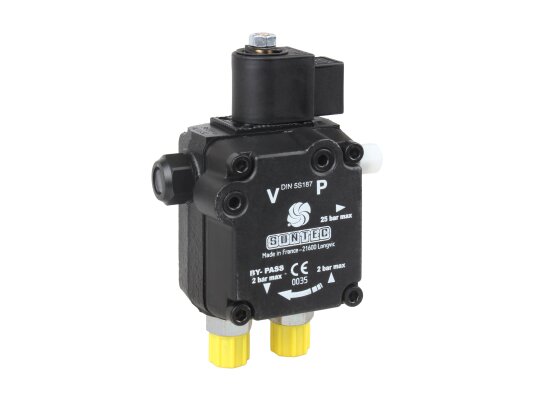

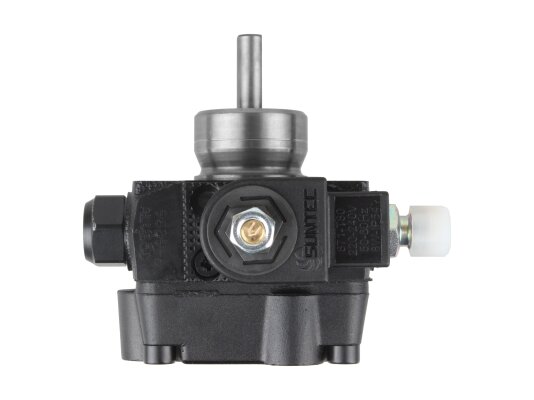

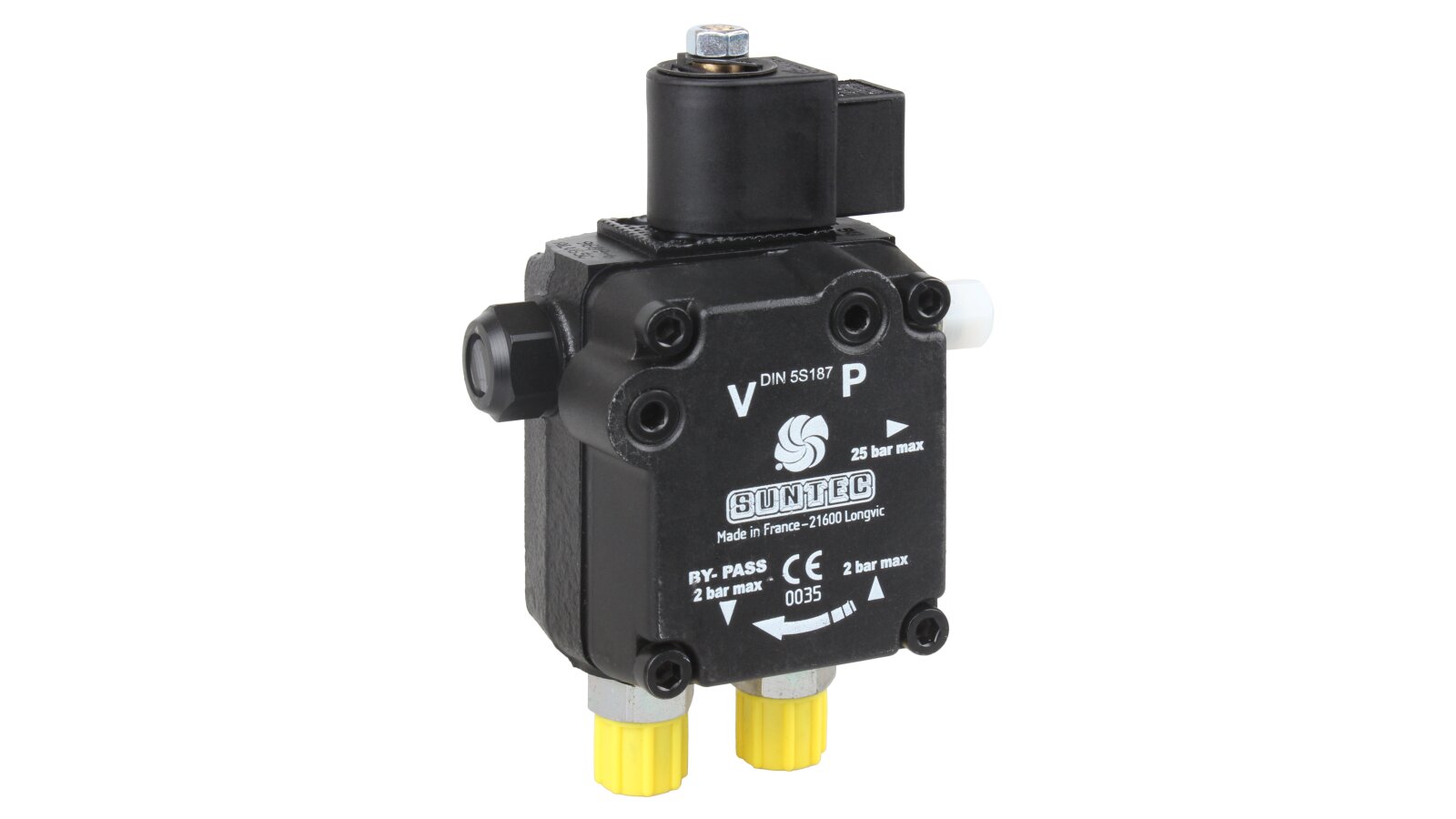

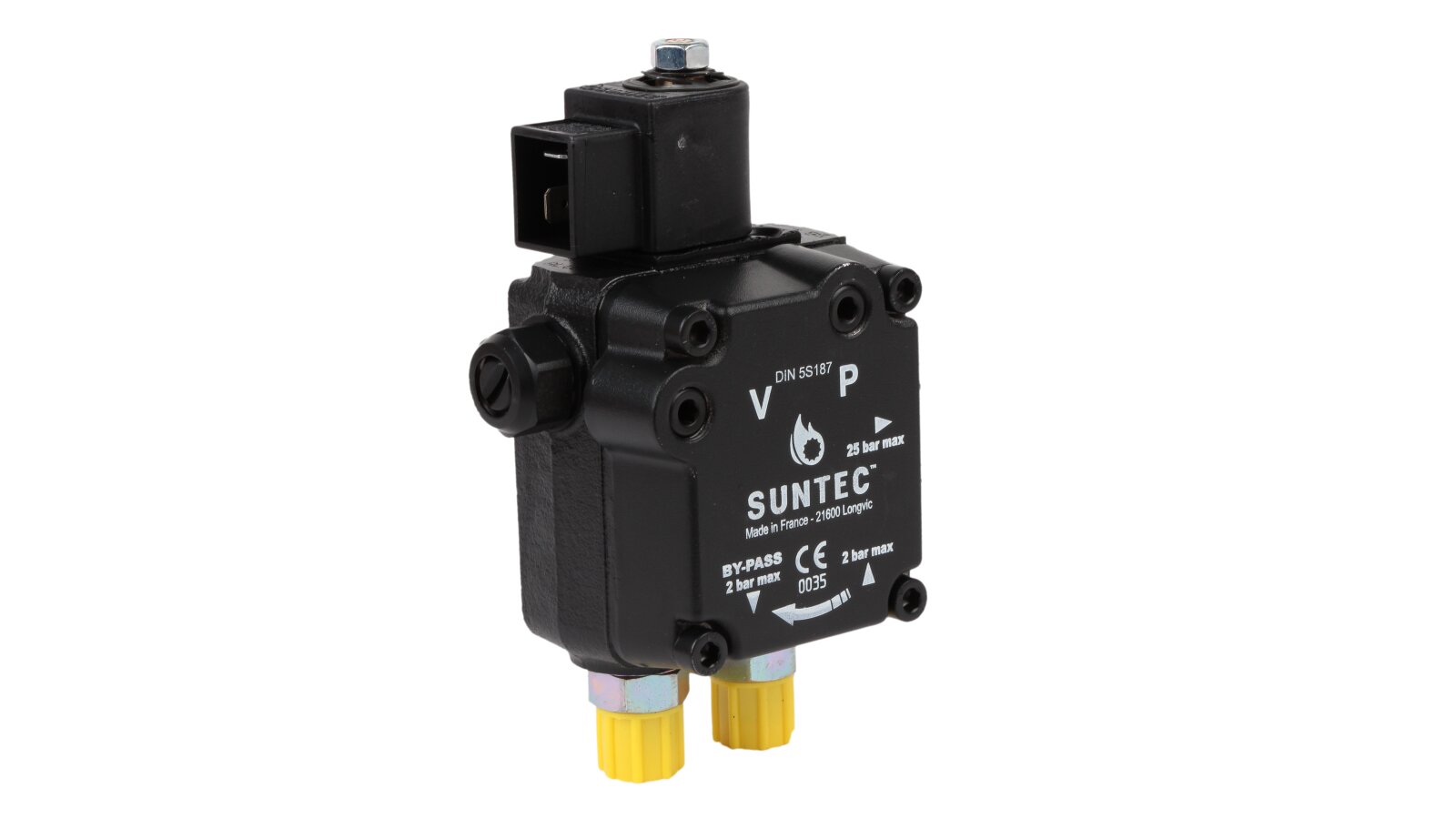

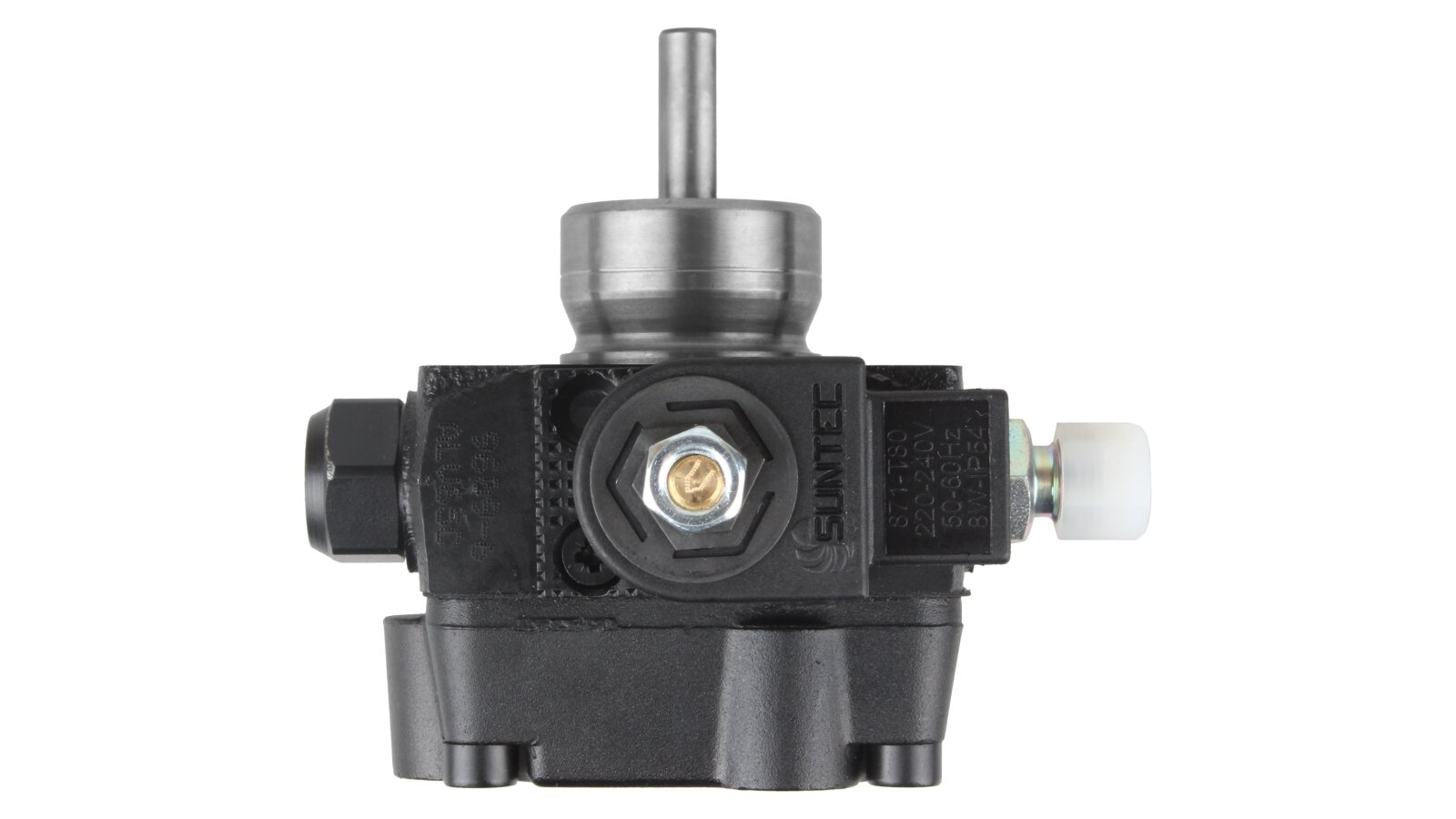

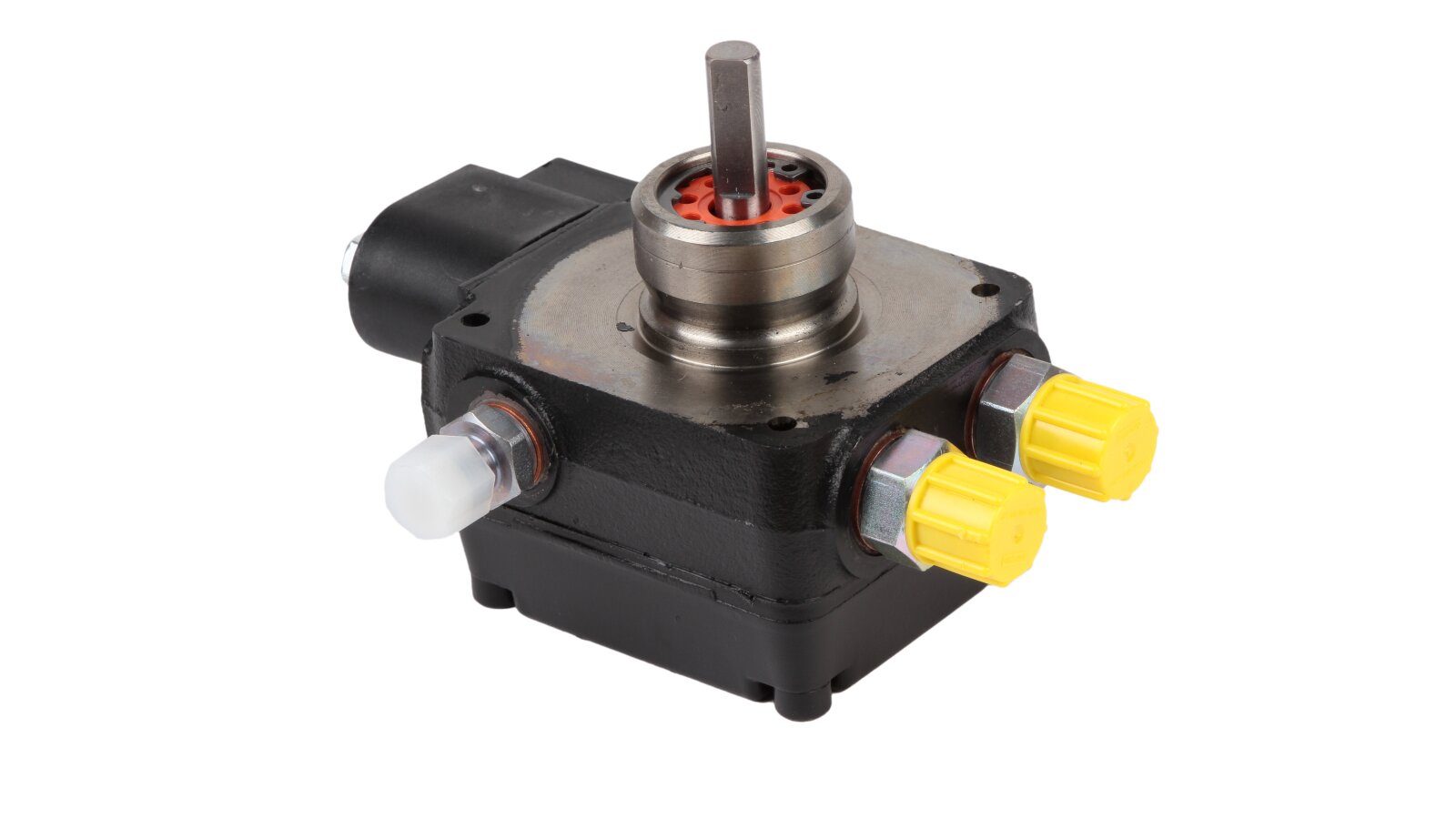

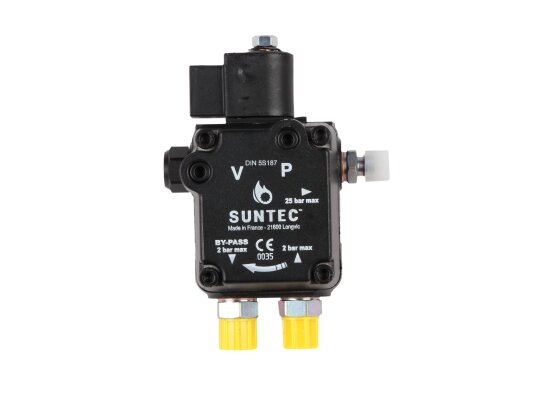

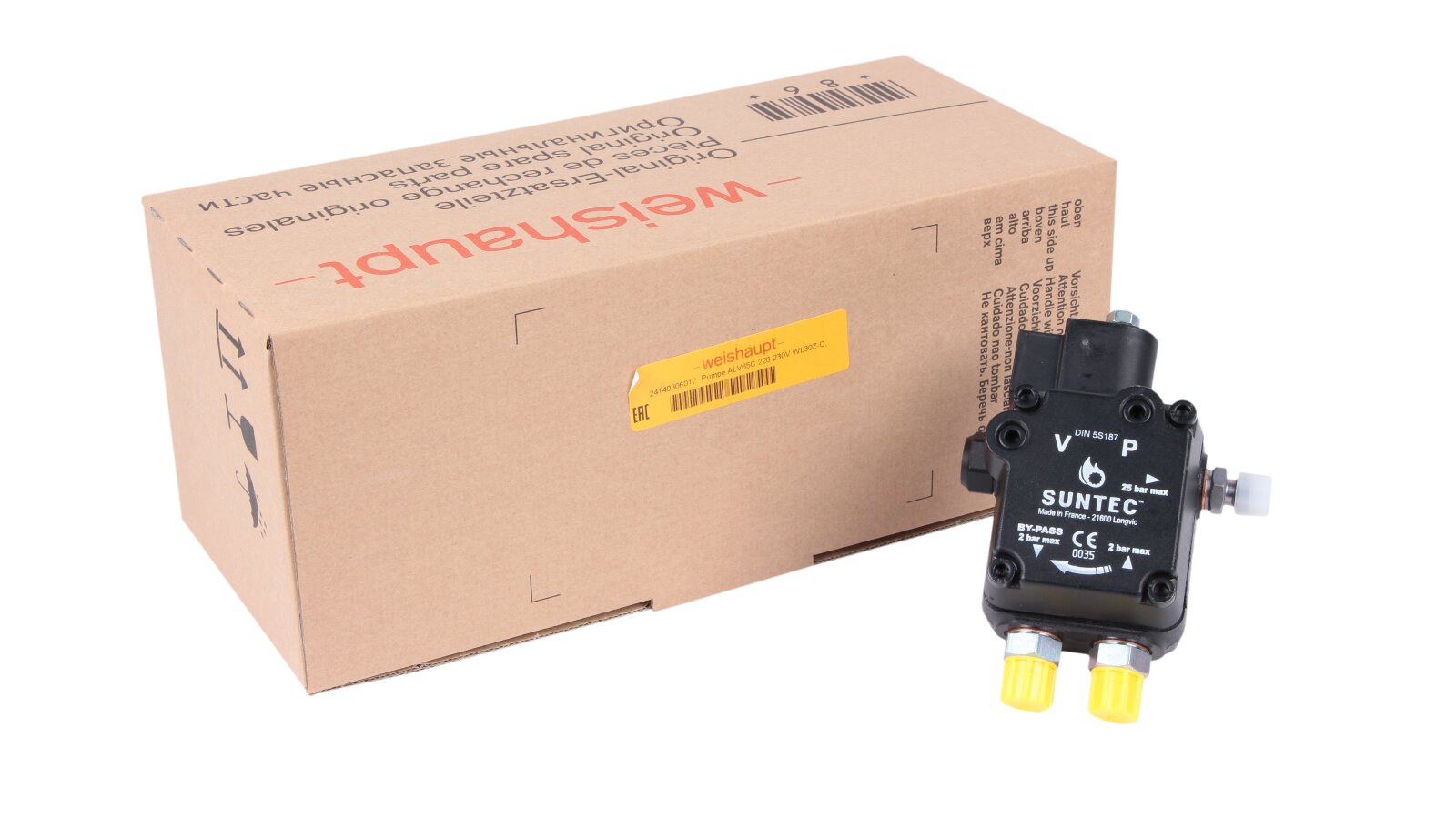

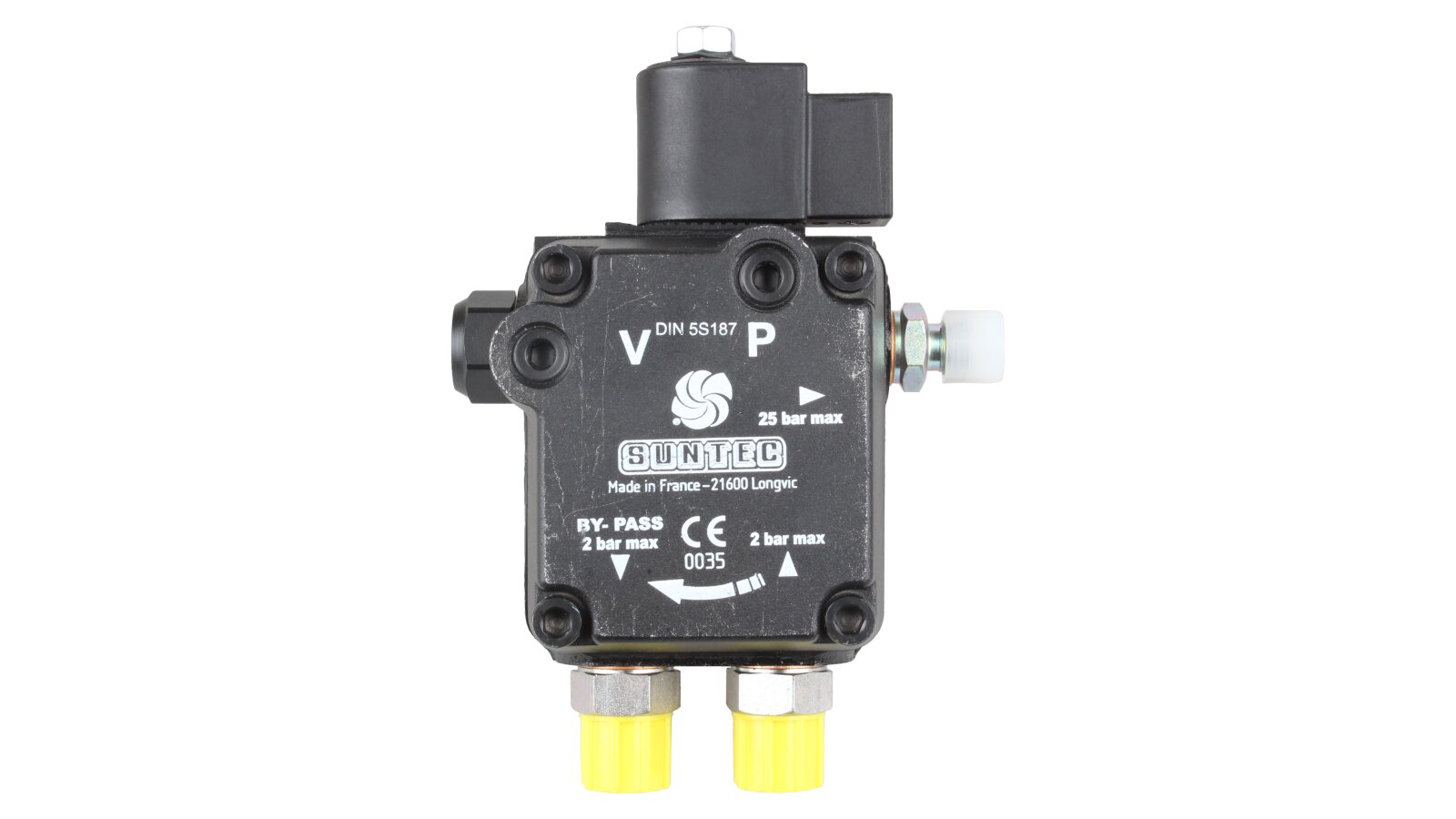

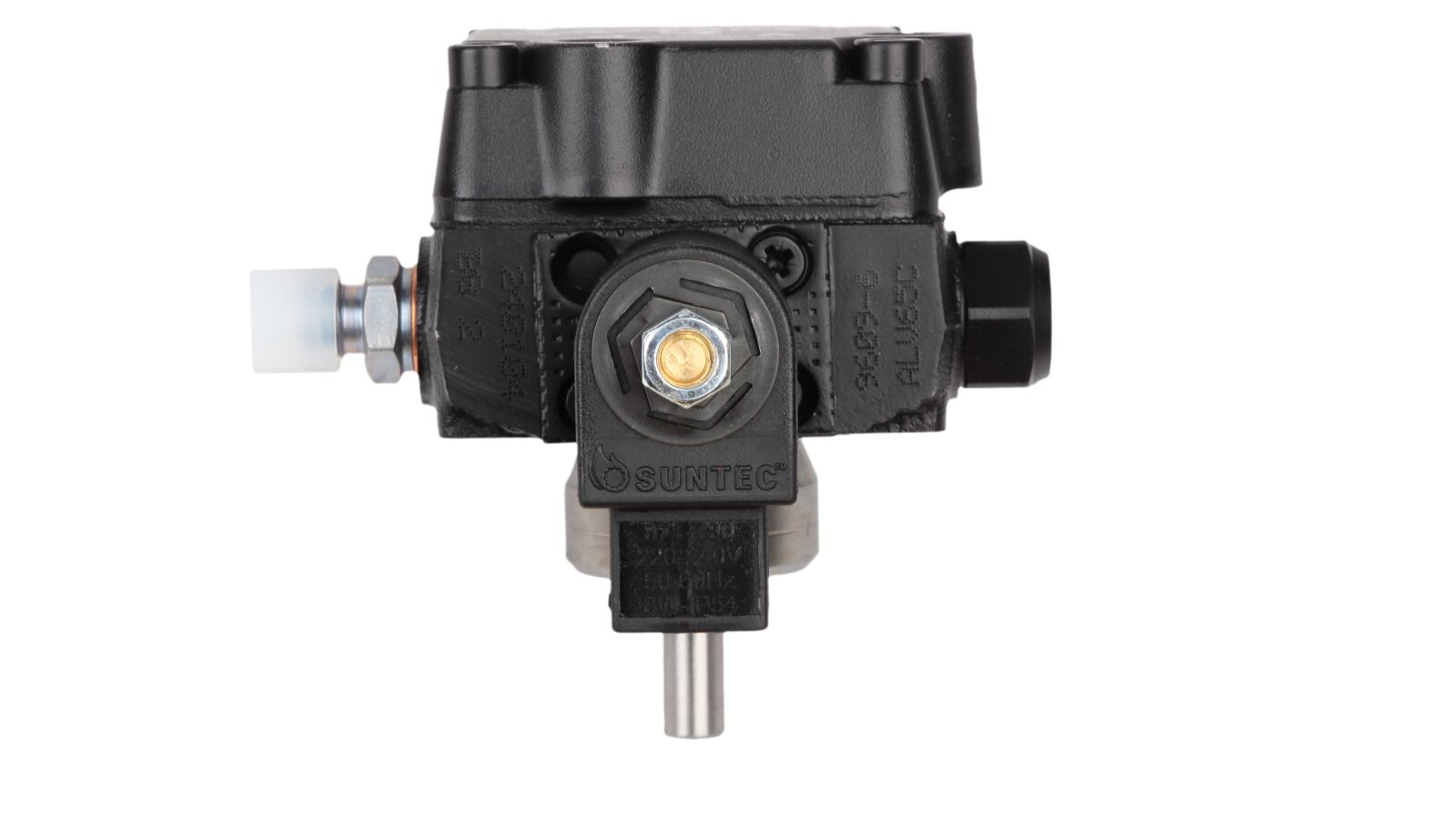

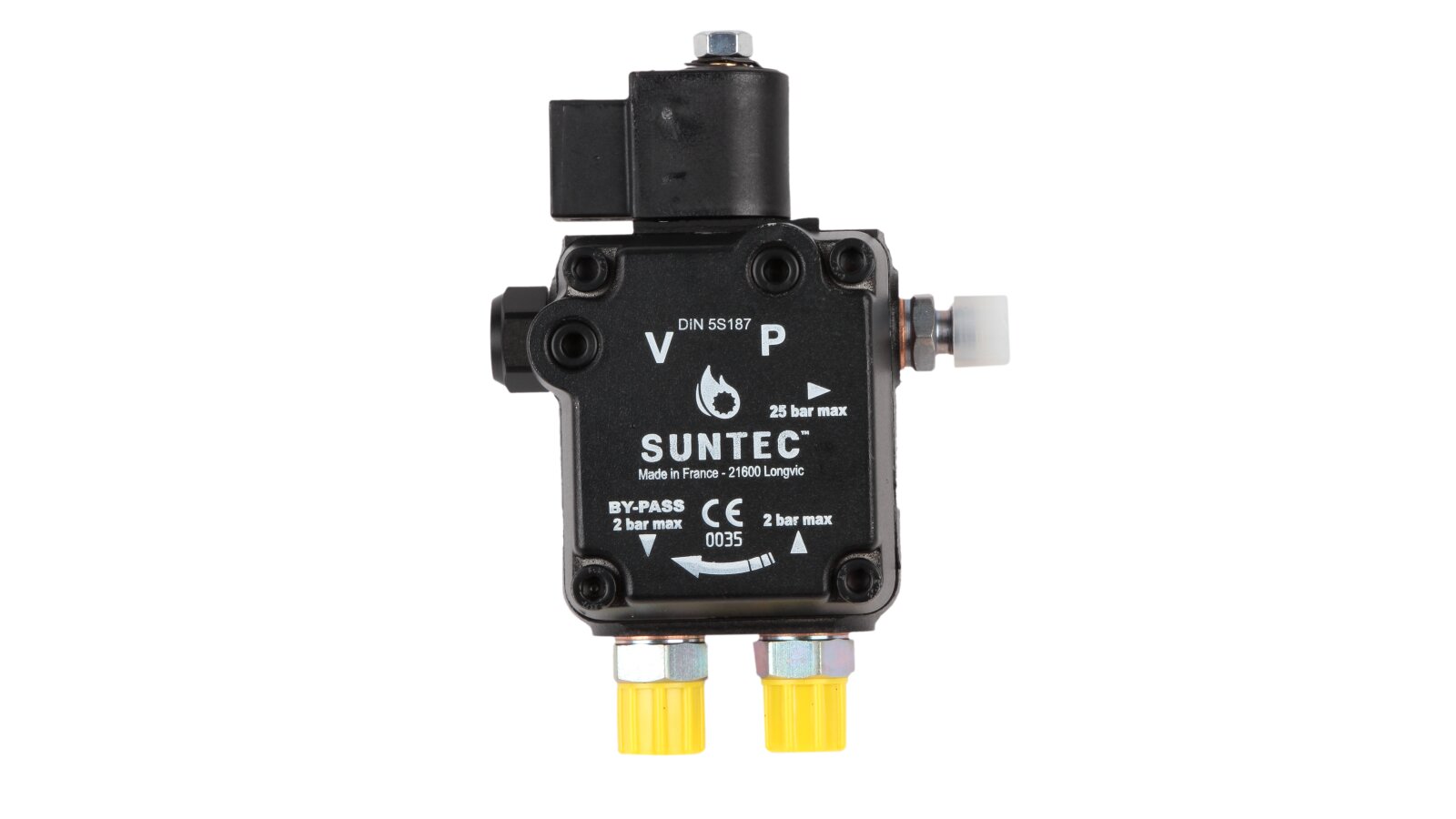

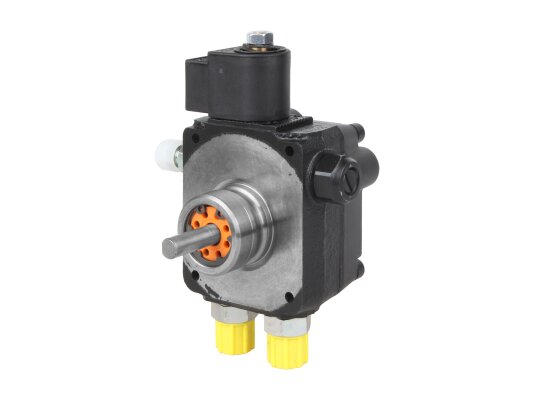

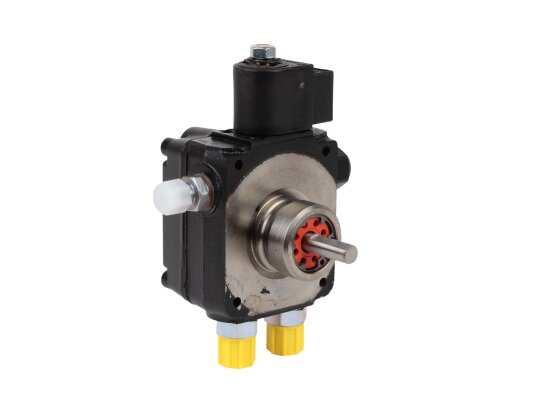

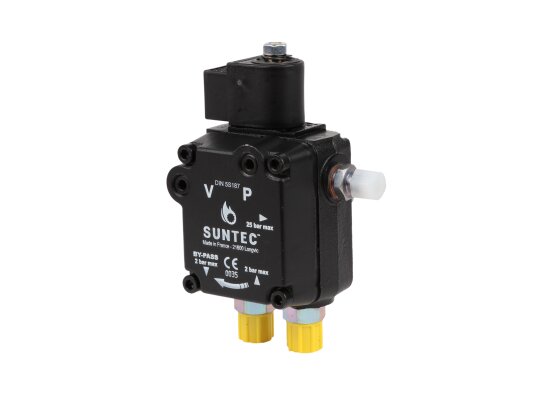

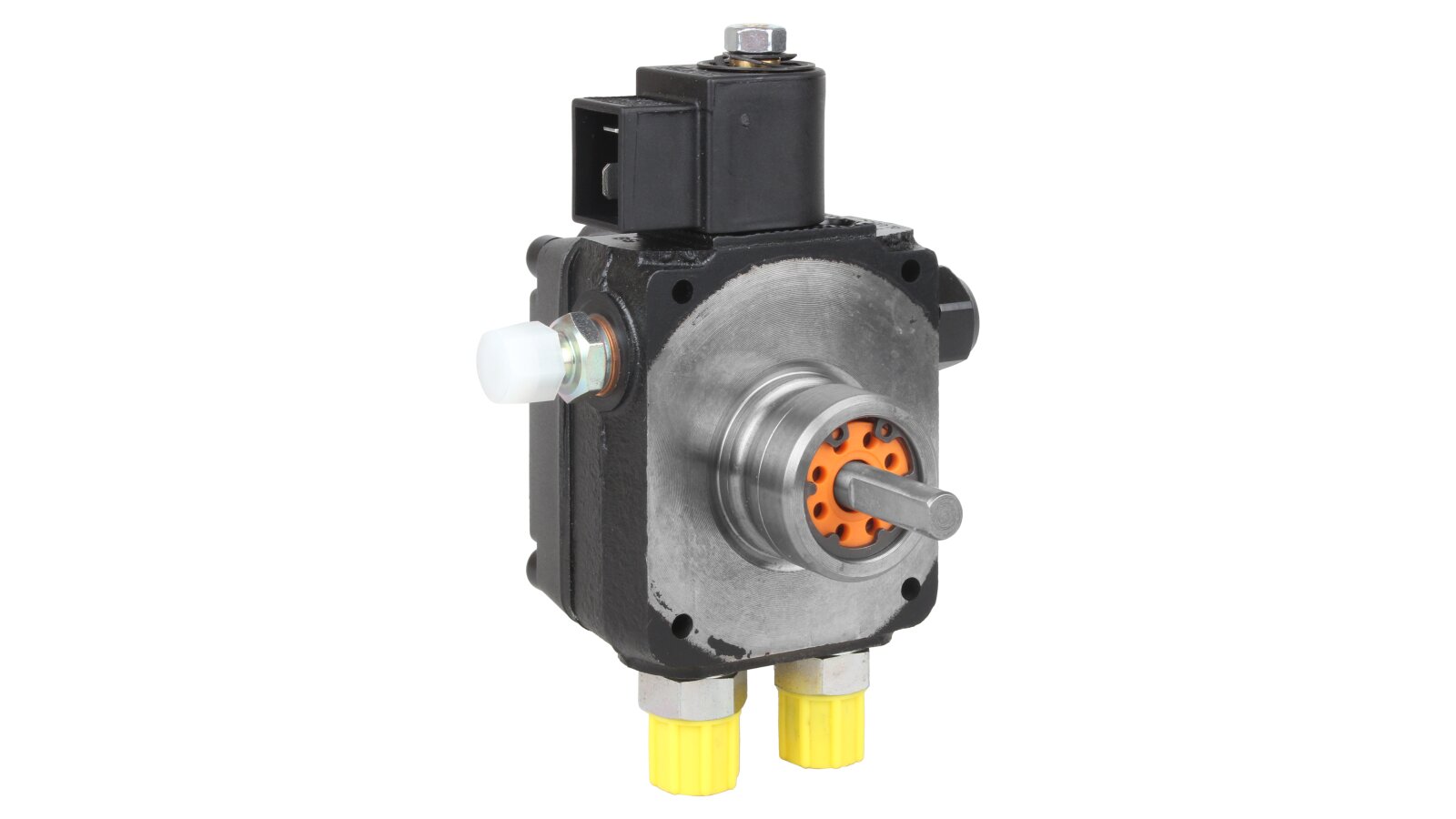

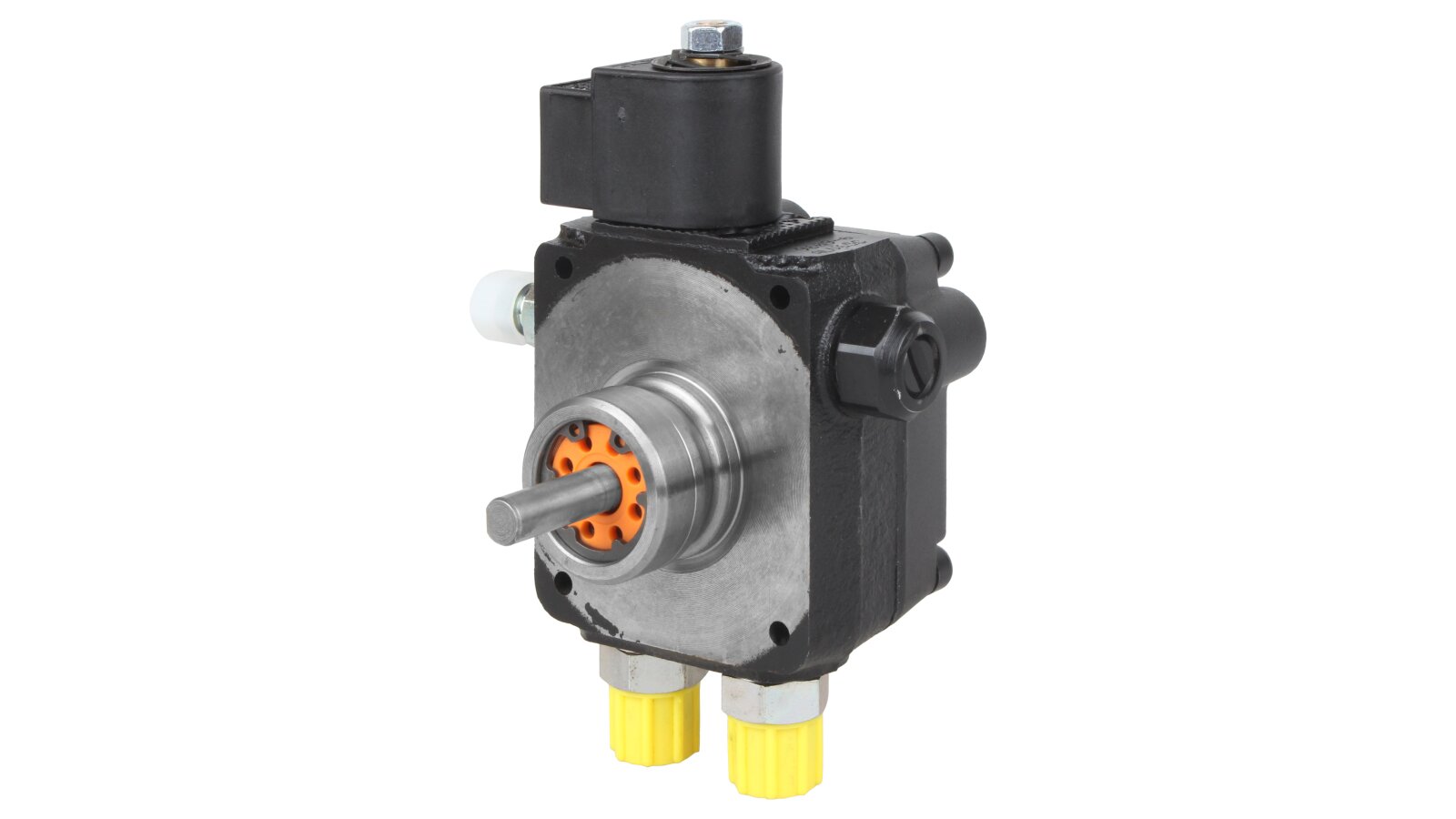

Burner Pump Weishaupt Suntec AL V 65 C 9609 6P, 24140306012

Weishaupt24140306012

Alternative Part Number

Weishaupt

We24140306012

AED 1,675

Oil Burner Pumps
Products code: 8696

Description

The Suntec AL V 65 C 9609 6P pump is used to pump liquid fuel with a viscosity of 2 - 12 cSt. It is equipped with a blocking electromagnetic valve with a locking function. The pump has a wear-resistant design, designed for long-term operation.

Features

  • The electrical protection class of the housing complies with the IP54 standard (when using the SUNTEC connecting cable), which ensures stable operation of the equipment.

  • The gear pair is responsible for moving fuel from the tank to the injector line. Before entering the gear mechanism, the fuel undergoes a stage of cleaning from abrasive impurities of 150 microns in size, which prevents wear and breakage of the working unit parts.

  • The electromagnetic "normally closed" valve with a locking function is located in the injector line, is characterized by fast response.

  • The pump can be installed in systems with or without a return line. With a two-pipe fuel line, the bypass plug remains in the drain hole, with a single-pipe system, it is replaced with a steel plug with a washer.

  • Unclaimed fuel passes back to the tank or to the gear mechanism, depending on the fuel line design.

  • Reliable seals and high-quality components were used in the manufacture of the pump. The pump is mounted using a ∅ 32 mm sleeve connection according to EN 225 - a universal mounting method supported by most burners.

Advantages:

  • optimal performance;

  • blocking EM valve with shut-off function;

  • protection of the housing from dust and moisture according to the IP54 standard;

  • universal fit according to EN 225;

  • mesh filter for cleaning the fuel from coarse impurities;

  • installation in systems with one or two pipes;

  • standard ports for control and measuring devices;

  • long service life.

Detailed information about the characteristics and features of the Suntec AL V 65 C 9609 6P liquid fuel pump can be obtained from ANKAS consultants.

Characteristics

Manufacturer Part Number: 24140306012Performance at 11 bar pressure and 5 cSt viscosity: 80 l/hTorque: 0.12 N·mNominal rotation speed: 2850 rpmSolenoid valve consumption: 9 WInlet pressure: 2 barReturn pressure: 2 barShaft diameter: 8 mmStrainer: Open area: 6 cm²Factory pressure setting: 9 barStrainer: Opening size: 150 µmMaximum rotation speed: 3600 rpmPressure gauge port: ⅛ inchSolenoid valve voltage: 220-240 or 110-120 or 24 VPump series: AL: pressure regulation and interlock solenoid valve with shut-off functionOil temperature: from 0 to 60 °C in the pumpModel type: 1 stage with electromagnetic valveInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemValve function: pressure regulatingOperating viscosity: from 2 to 12 mm²/sVacuum gauge port: ⅛ inchDirection of rotation (looking at the drive shaft): C: counterclockwise rotation / nozzle on the leftInstallation method: sleeve ∅ 32 mmBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withNozzle pressure range: from 8 to 15 barNozzle outlet: ⅛ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilSuction and return line: ¼ inchType of pumped liquid: dieselDegree of protection: IP54
