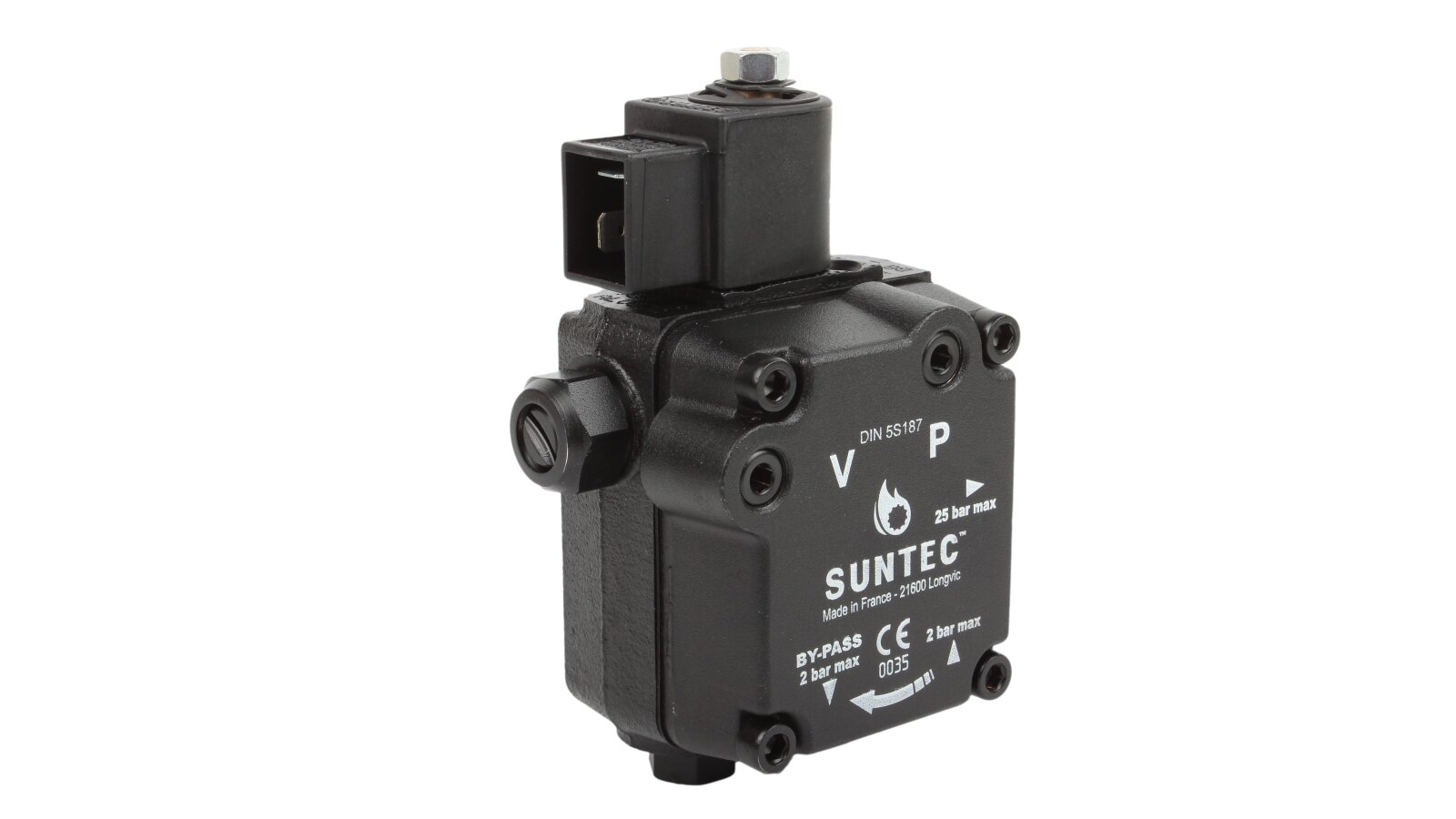

Burner Pump Weishaupt AL V 65 C 9609 6P0700R, 601860

Weishaupt601860

Alternative Part Number

Weishaupt

We601860

AED 1,350

Oil Burner Pumps
Products code: 56756

Description

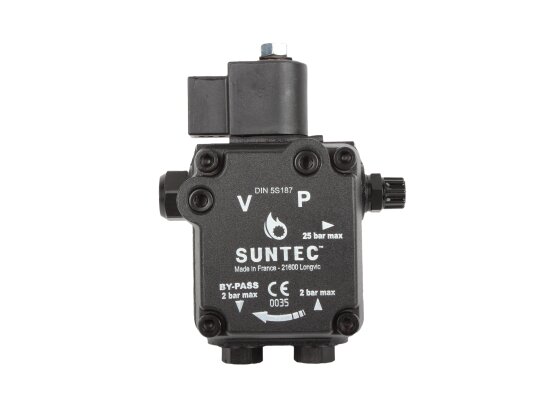

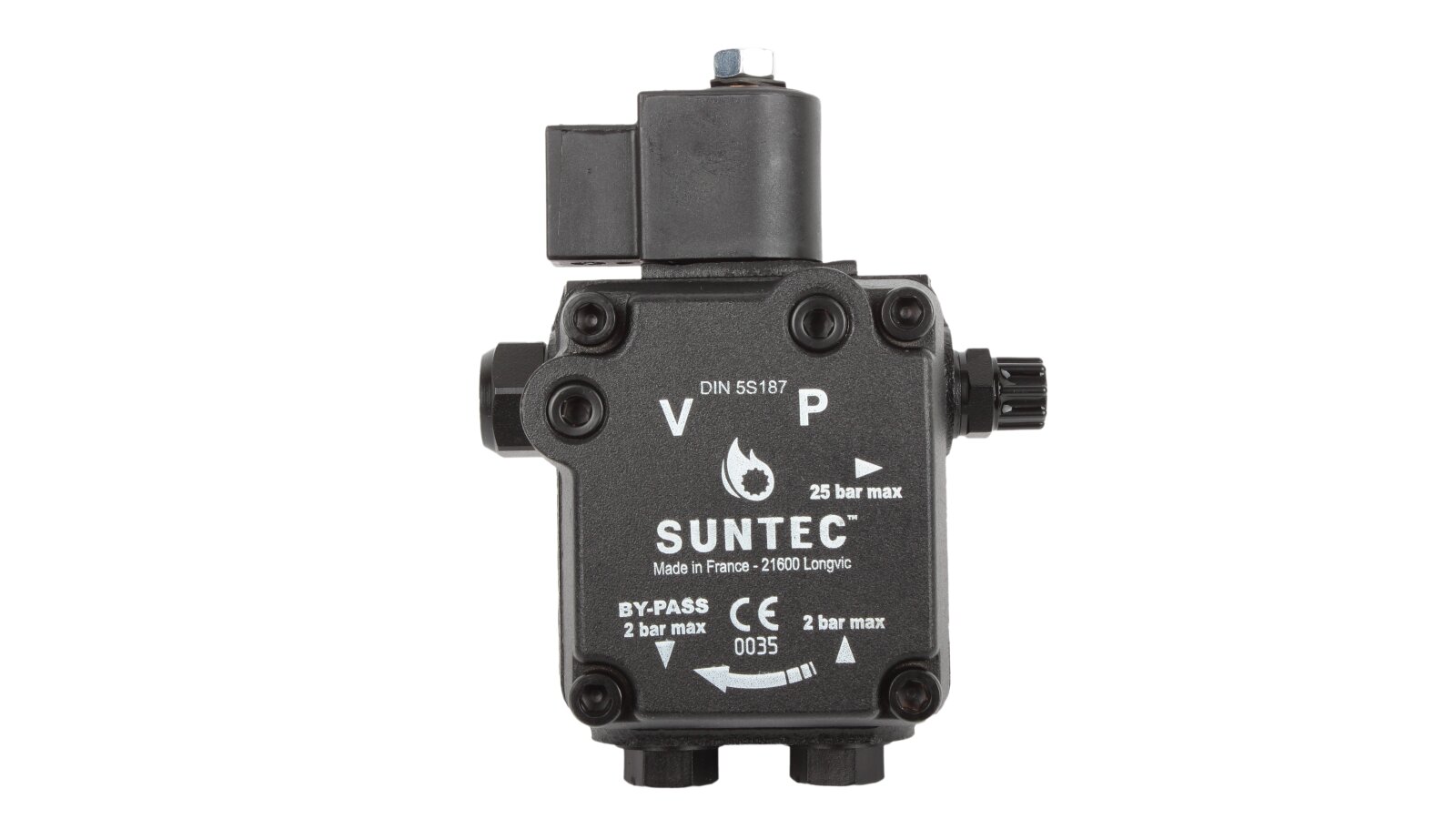

The Weishaupt ALV65C 9609 6P0700R burner pump without fittings is part of a series with a regulating and electromagnetic shut-off valve. It is used in single-stage diesel burners for pumping fuel under pressure up to 15 bar. It is characterized by high reliability, stable feed pressure parameters, and universal installation.

Features and parameters:

  • series with an electromagnetic shut-off valve with locking;

  • pressure range 8-15 bar, basic setting - 9 bar;

  • for working with liquid fuel with a viscosity of 2-12 cSt;

  • fast response of the electromagnetic valve due to placement in the nozzle line;

  • fuel temperature inside the pump: 0...+60 °C;

  • performance - 80 l/h when the pressure is set to 11 bar and the fuel viscosity is 5 cSt;

  • mesh filter cleaning capacity - 150 μm, area - 6 cm²;

  • standard spigot connection ∅32 mm;

  • installation in any orientation, excluding axle load;

  • permissible inlet/outlet pressure – 2 bar;

  • automatic bleed of excess air in a 2-pipe system.

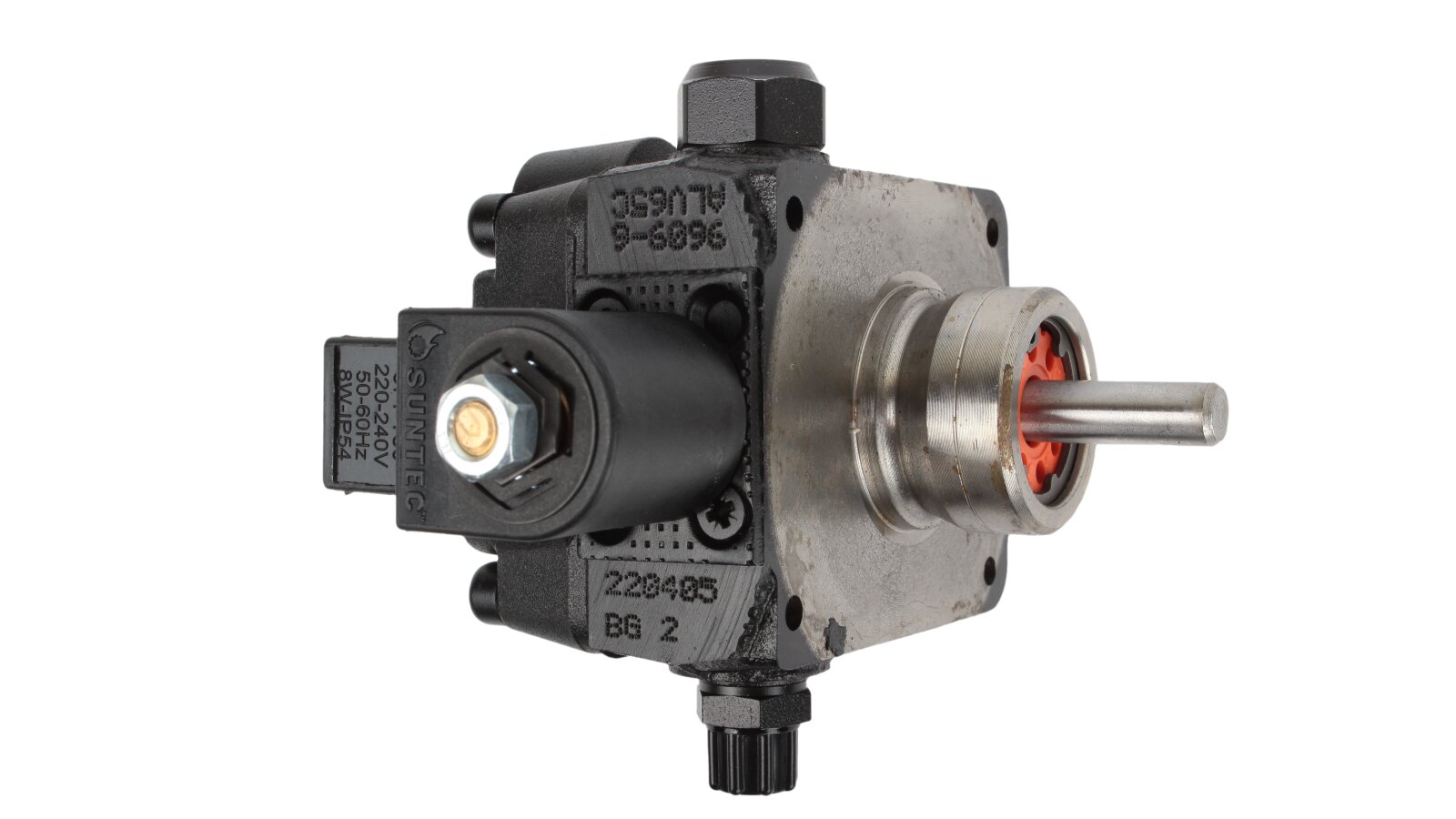

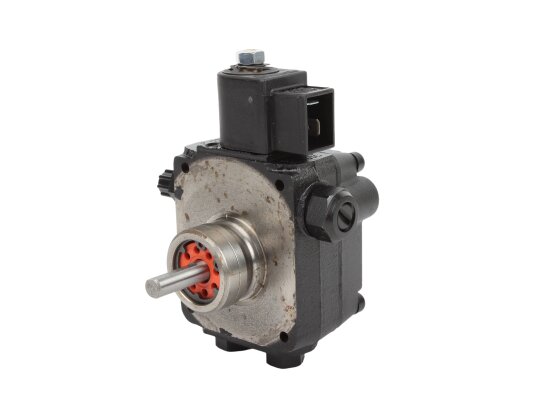

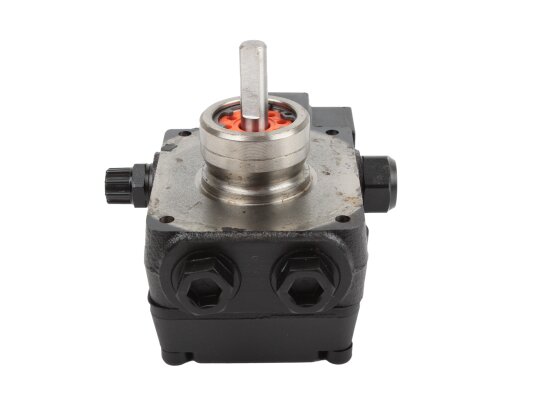

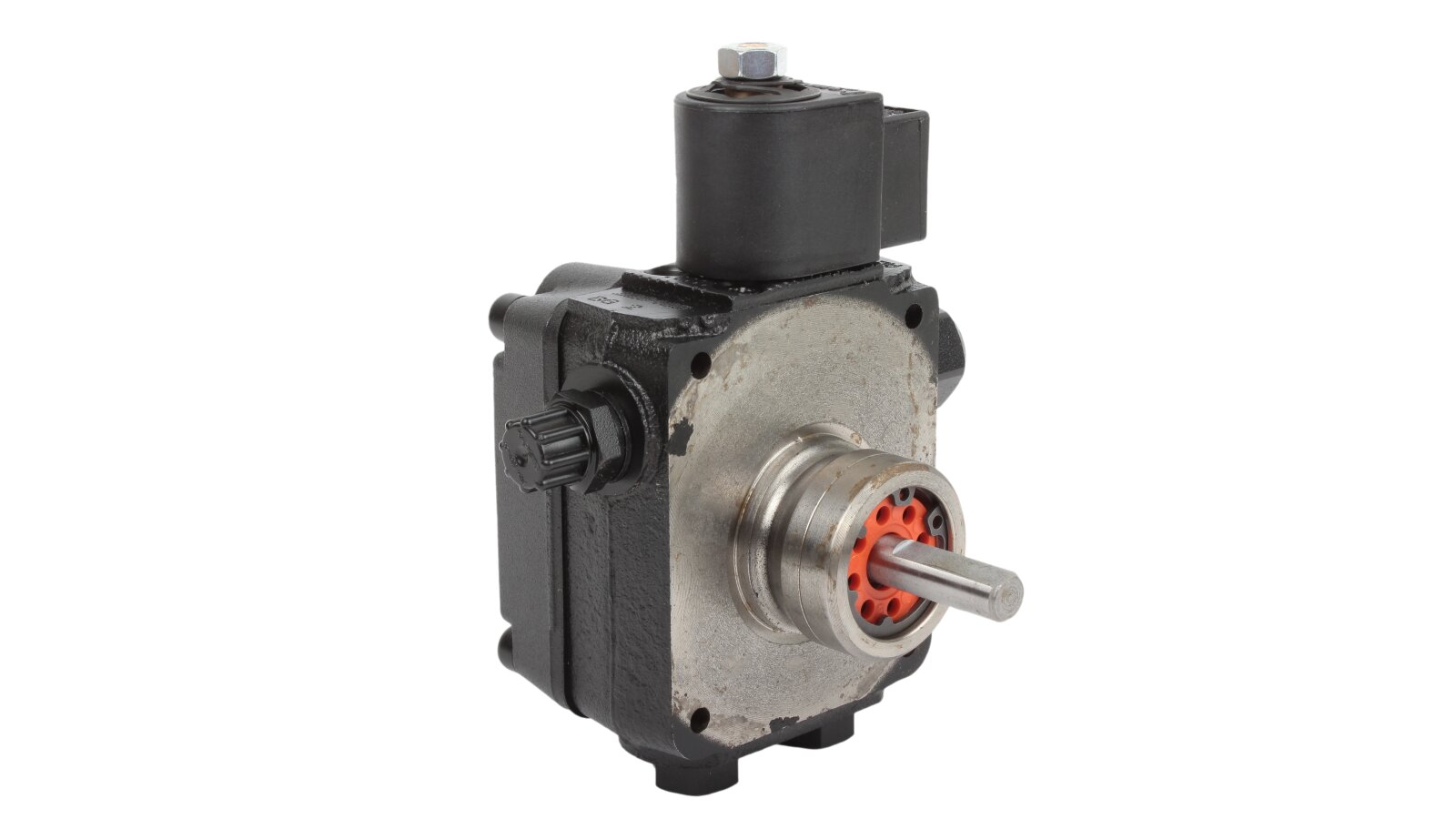

Pump design

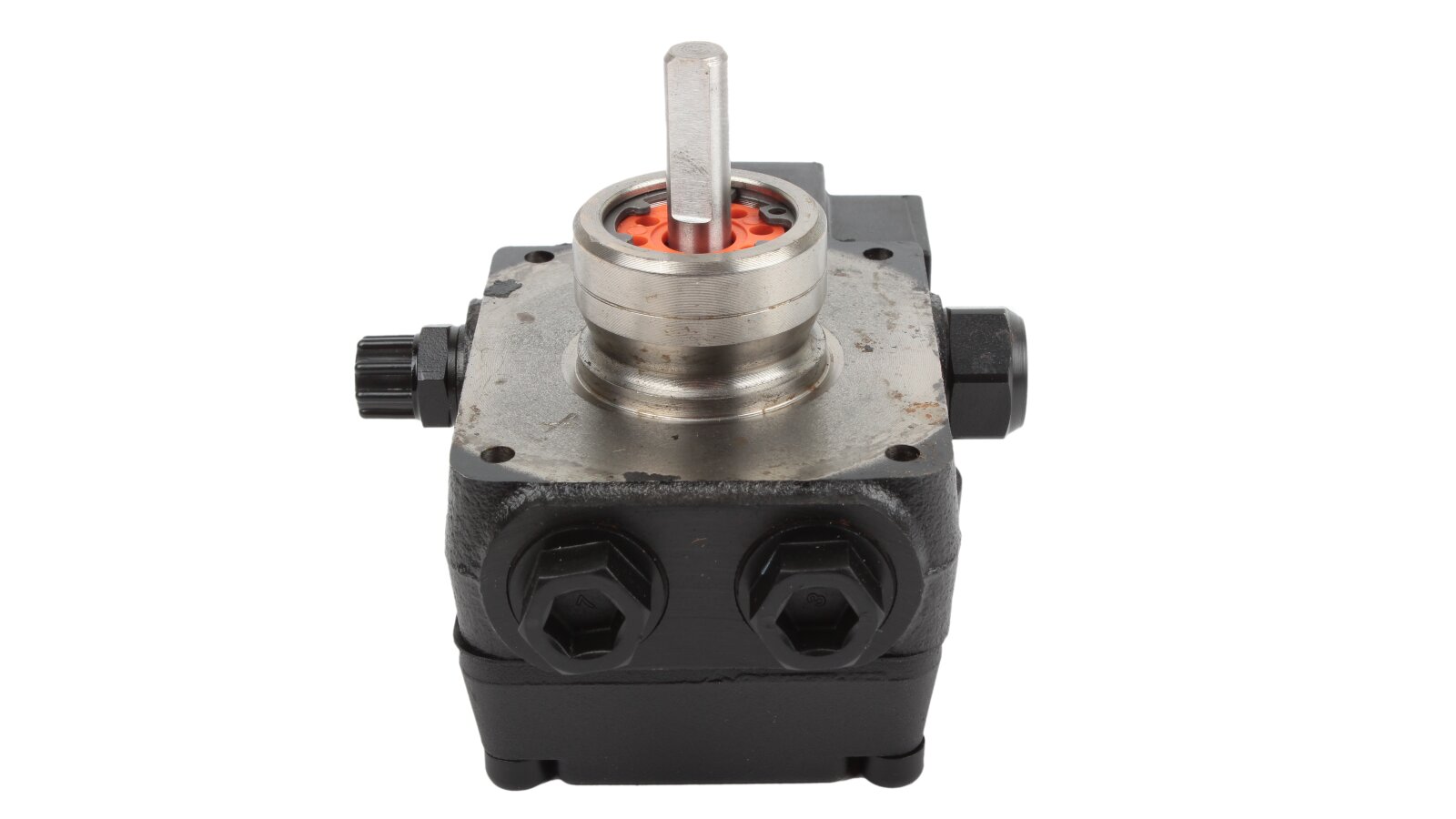

The compact body of the Weishaupt ALV65C 9609 6P0700R burner pump contains a gear working mechanism connected to the drive shaft, electromagnetic and control valves, a mesh filter, outlets for connection to a pipeline, nozzle, pressure gauge and vacuum gauge ports. The design is made according to the IP54 dust and moisture protection standard. In the factory assembly, the pump is ready for installation in a 2-pipe system. A bypass plug is inserted into the return line hole. It must be replaced with a steel plug when using the pump in one-pipe systems. The standard shaft and sleeve dimensions allow the pump to be used in burners of most manufacturers.

Characteristics

Manufacturer Part Number: 601860Shaft diameter: 8 mmNominal rotation speed: 2850 rpmSolenoid valve consumption: 9 WMaximum rotation speed: 3600 rpmStrainer: Open area: 6 cm²Factory pressure setting: 9 barStrainer: Opening size: 150 µmReturn pressure: 2 barInlet pressure: 2 barTorque: 0.12 N·mPerformance at 11 bar pressure and 5 cSt viscosity: 80 l/hDirection of rotation (looking at the drive shaft): C: counterclockwise rotation / nozzle on the leftOil temperature: from 0 to 60 °C in the pumpModel type: 1 stage with electromagnetic valveInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemValve function: pressure regulatingPump series: AL: pressure regulation and interlock solenoid valve with shut-off functionOperating viscosity: from 2 to 12 mm²/sPressure gauge port: ⅛ inchVacuum gauge port: ⅛ inchSolenoid valve voltage: 220-240 or 110-120 or 24 VInstallation method: sleeve ∅ 32 mmBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withNozzle pressure range: from 8 to 15 barNozzle outlet: ⅛ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilSuction and return line: ¼ inchType of pumped liquid: diesel, biodieselDegree of protection: IP54
