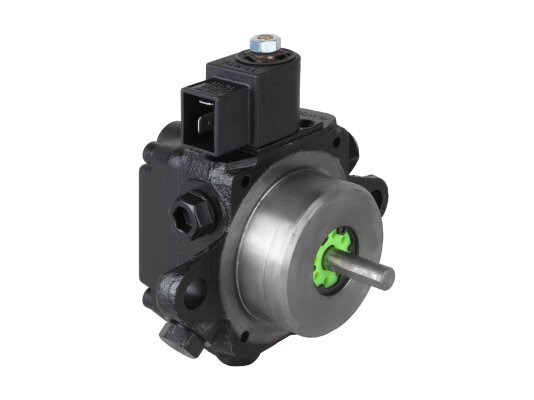

Burner Pump Weishaupt AL V 75 C 9425 4P 0700
Weishaupt21110406022
Alternative Part Number
Weishaupt
We21110406022
Weishaupt
We2111040602-2
About product
Go to descriptionDirection of rotation (looking at the drive shaft) C: counterclockwise rotation / nozzle on the leftPerformance at 11 bar pressure and 5 cSt viscosity 109 l/hOperating viscosity from 2 to 12 mm²/sInstalling the bypass plug P: bypass plug installed in return line for two-pipe systemModel type 1 stage with electromagnetic valveOil temperature from 0 to 60 °C in the pump
AED 2,050
Characteristics
Manufacturer Part Number: 21110406022Direction of rotation (looking at the drive shaft): C: counterclockwise rotation / nozzle on the leftPerformance at 11 bar pressure and 5 cSt viscosity: 109 l/hOperating viscosity: from 2 to 12 mm²/sInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemModel type: 1 stage with electromagnetic valveOil temperature: from 0 to 60 °C in the pumpStrainer: Opening size: 150 µmStrainer: Open area: 6 cm²Pump series: AL: pressure regulation and interlock solenoid valve with shut-off functionPerformance for stage 2 at 11 bar and 5 cSt viscosity: 109 l/hSolenoid valve consumption: 9 WPressure gauge port: ⅛ inchNominal rotation speed: 2850 rpmSolenoid valve voltage: 220-240V~, 50-60HzInstallation method: flange ∅ 54 mmMaximum pressure of the solenoid valve: 25 barShaft design: one cavityTorque: 0.12 N·mSuction and return line: ¼ inch NPTF (taper thread)Suction height: 0.45 bars max. vacuum to prevent air separation from oilNozzle outlet: ⅛ inchInlet pressure: 2 barReturn pressure: 2 barShaft diameter: 8 mmNozzle pressure range: from 8 to 15 barFactory pressure setting: 12 barBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withMaximum rotation speed: 3600 rpmType of pumped liquid: diesel, biodiesel fuel blend B10Degree of protection: IP54Vacuum gauge port: ⅛ inchValve function: pressure regulating
Information about the technical characteristics, appearance and color of the product is for reference only and is based on the latest information available at the time of publication
