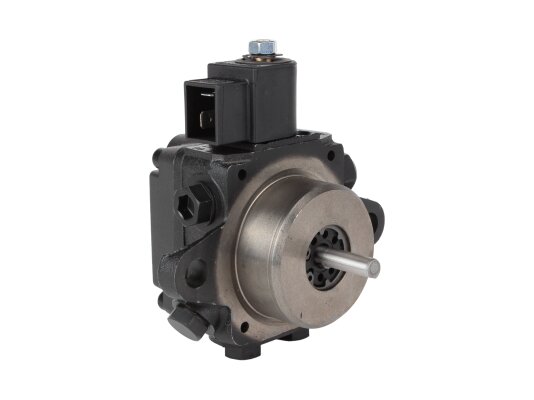

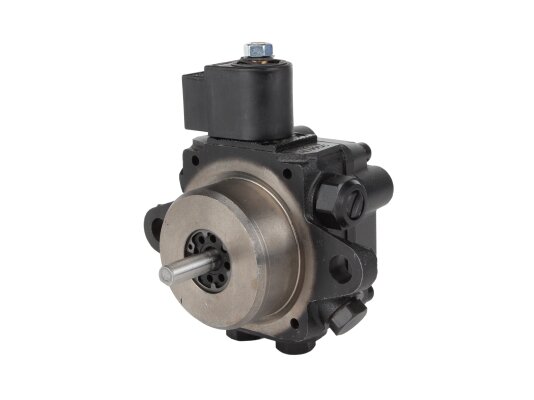

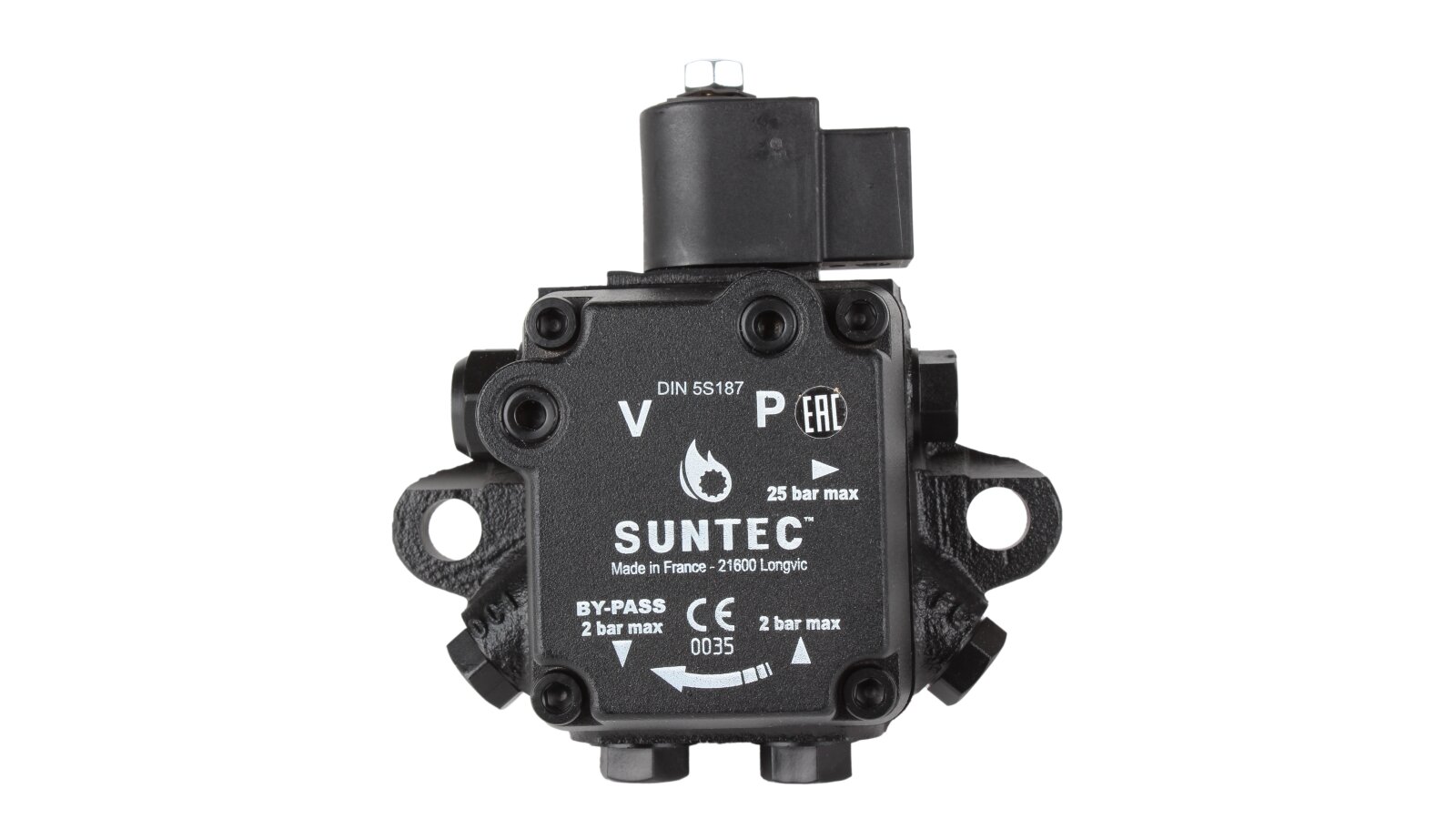

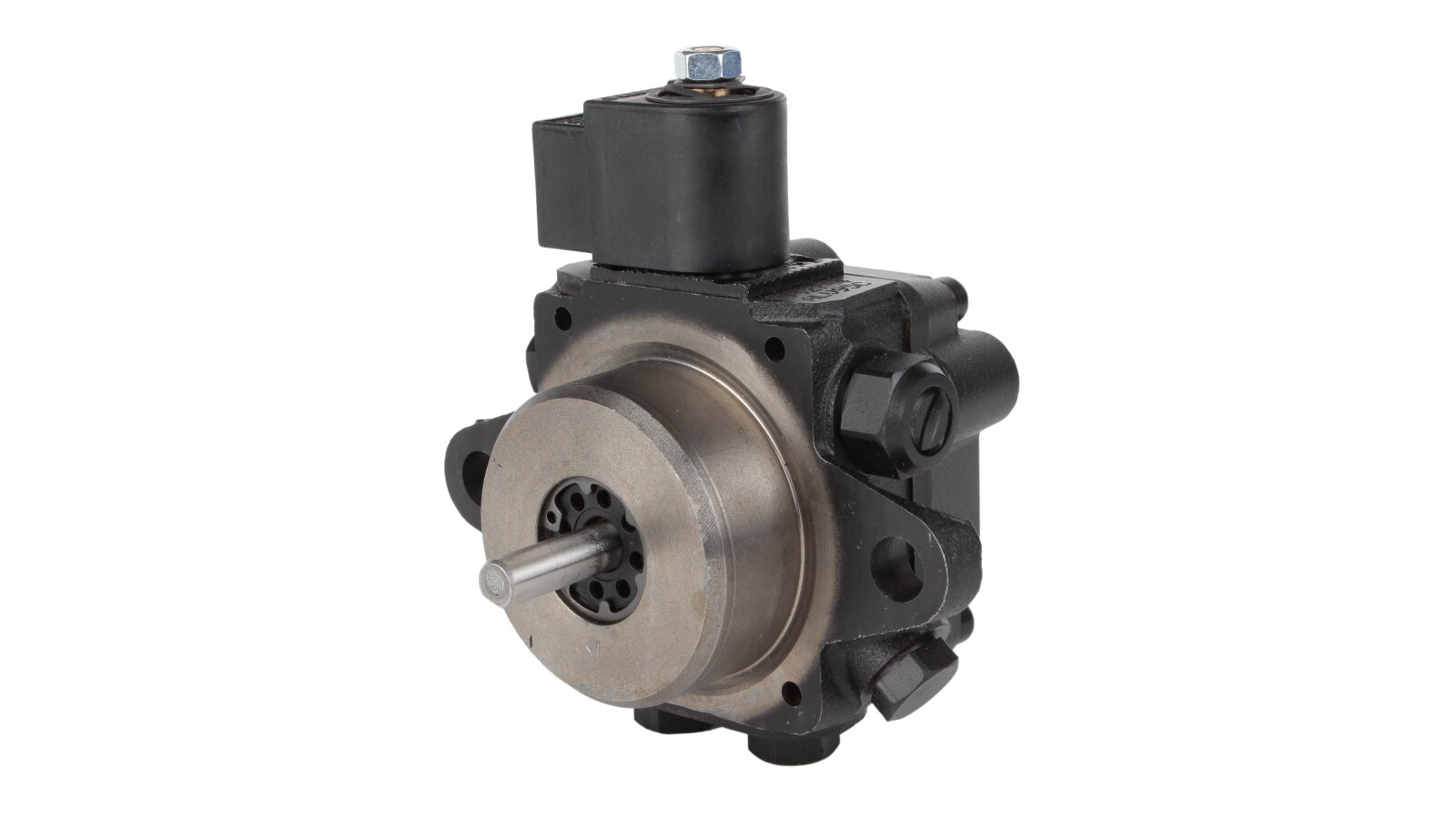

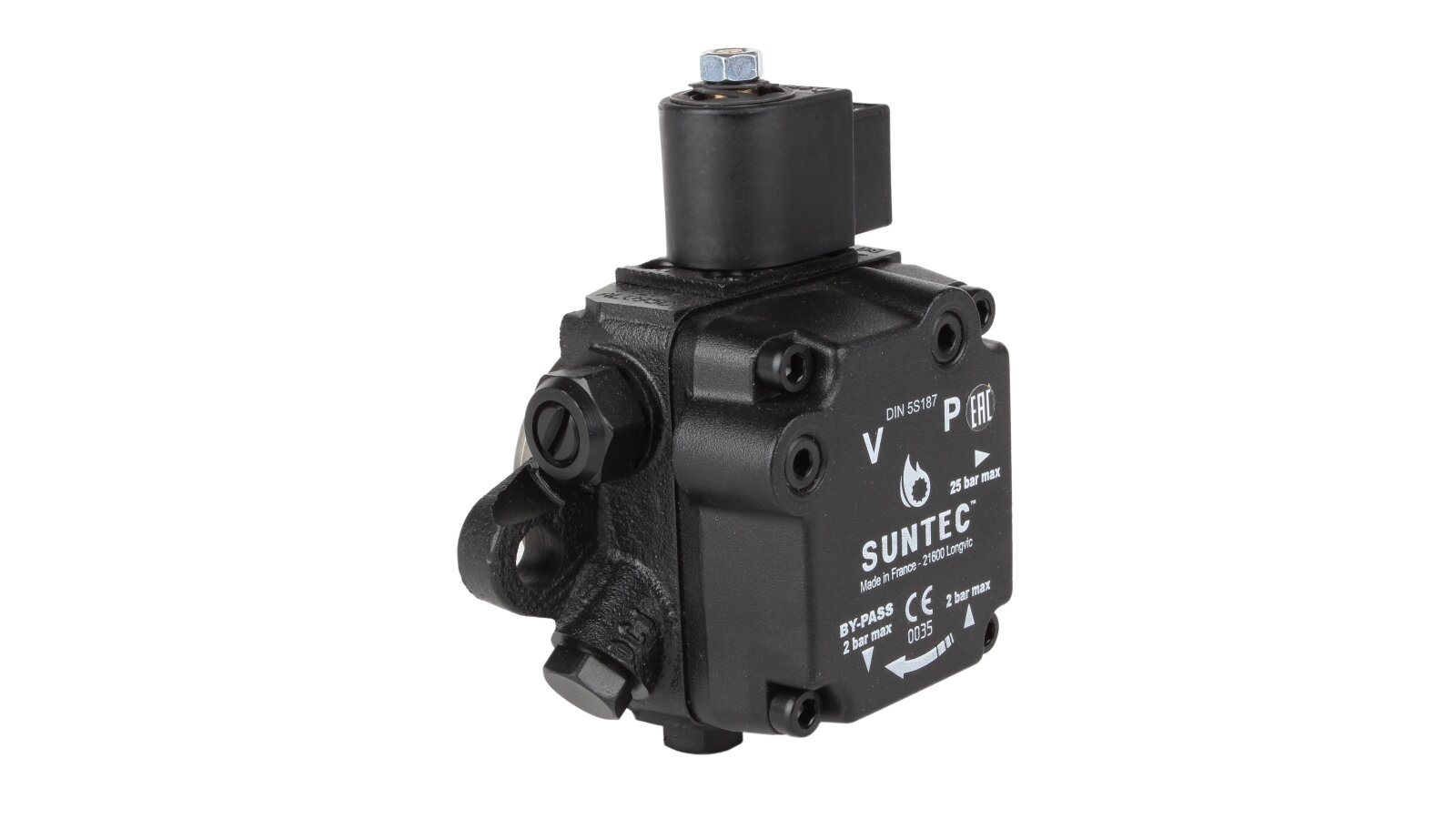

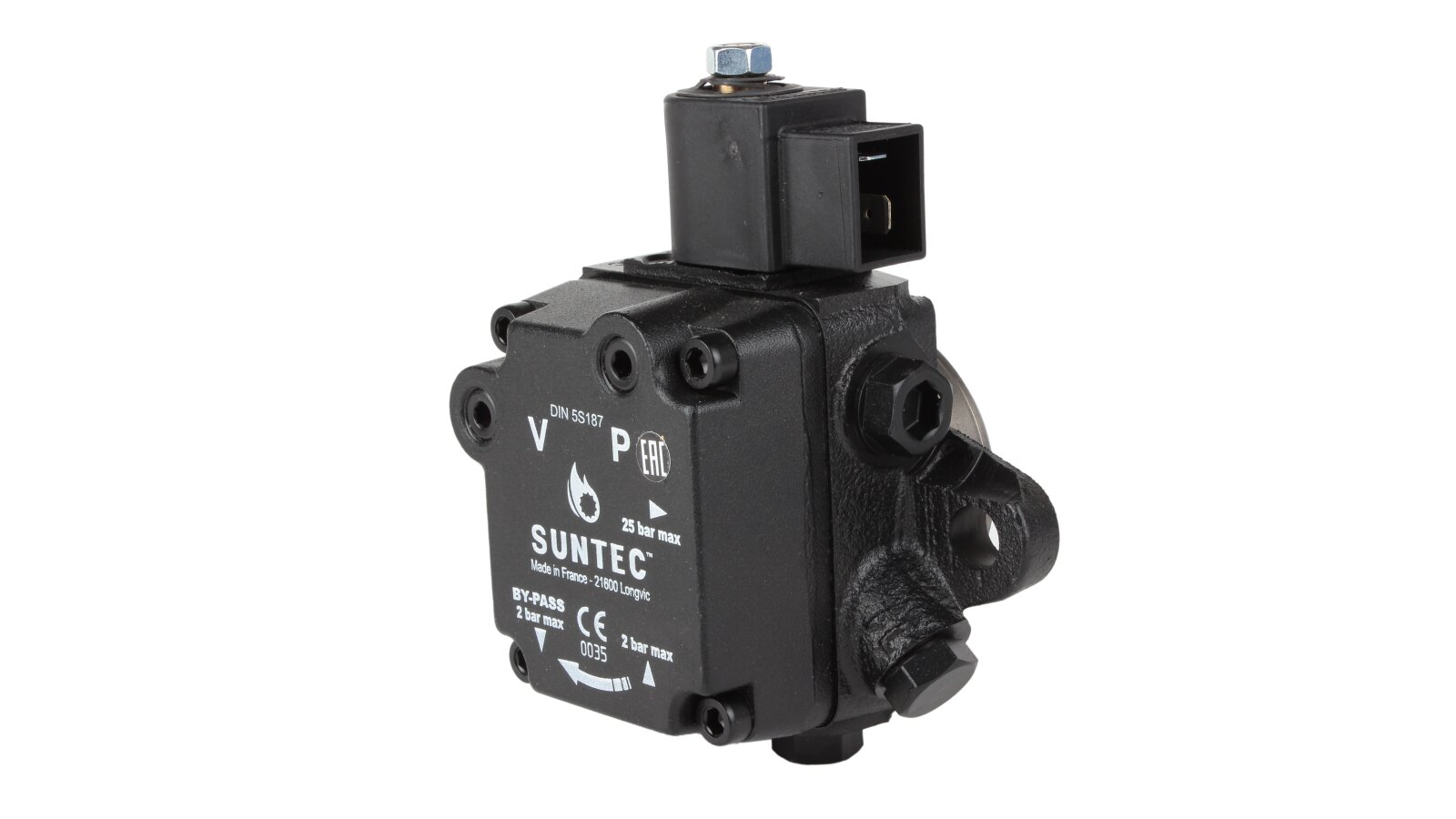

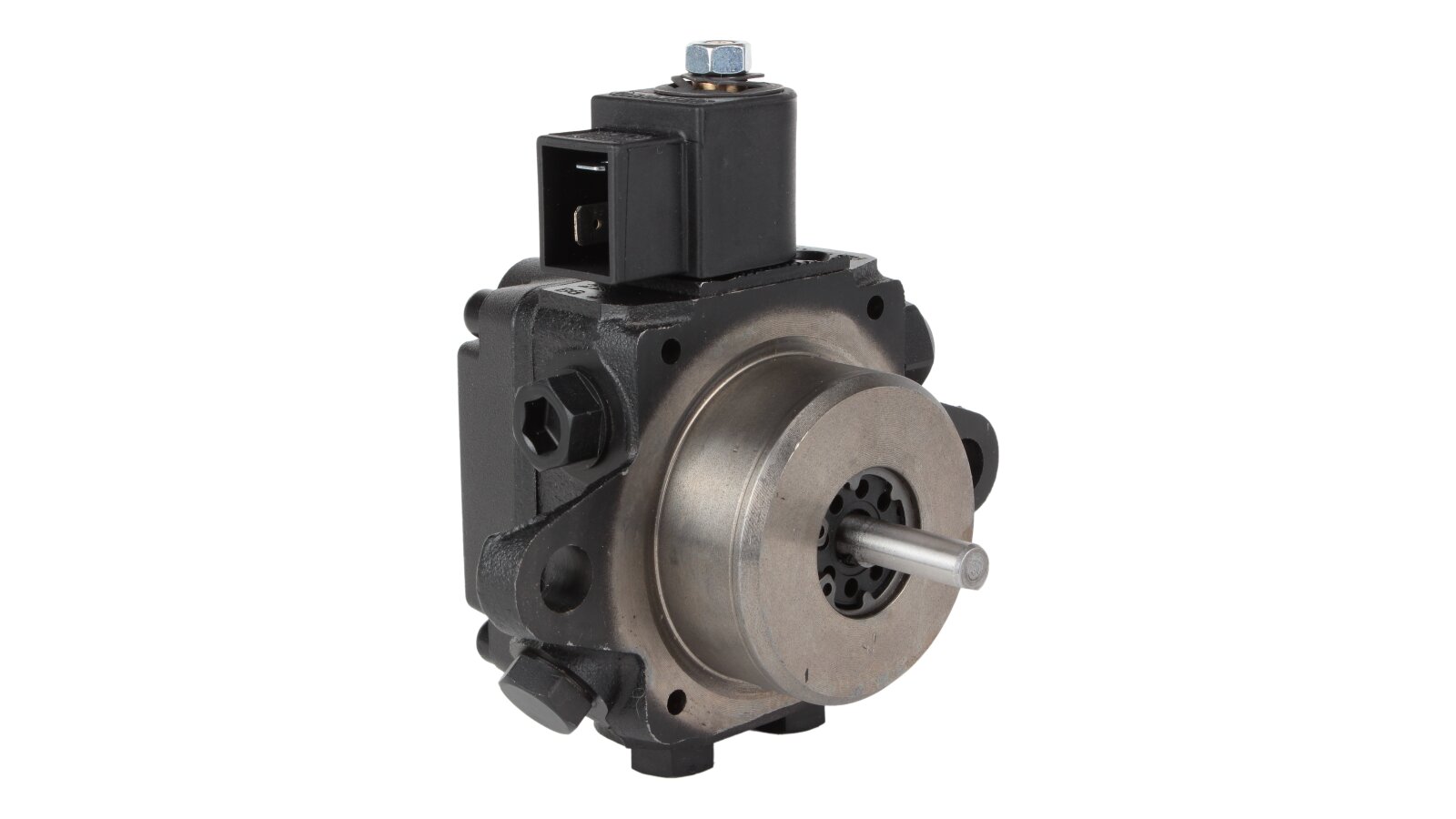

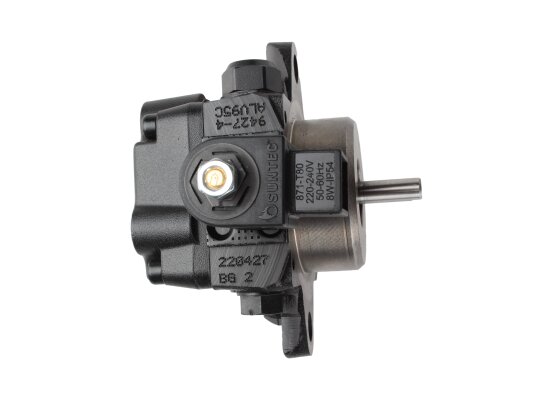

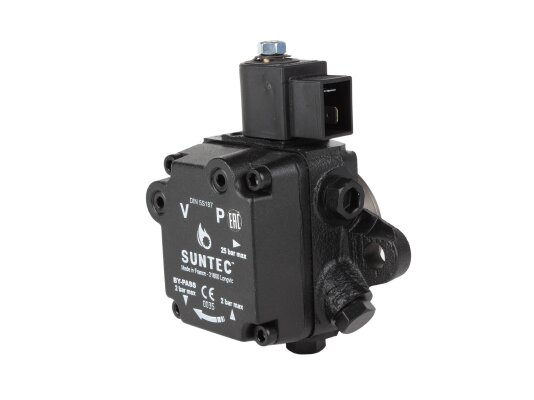

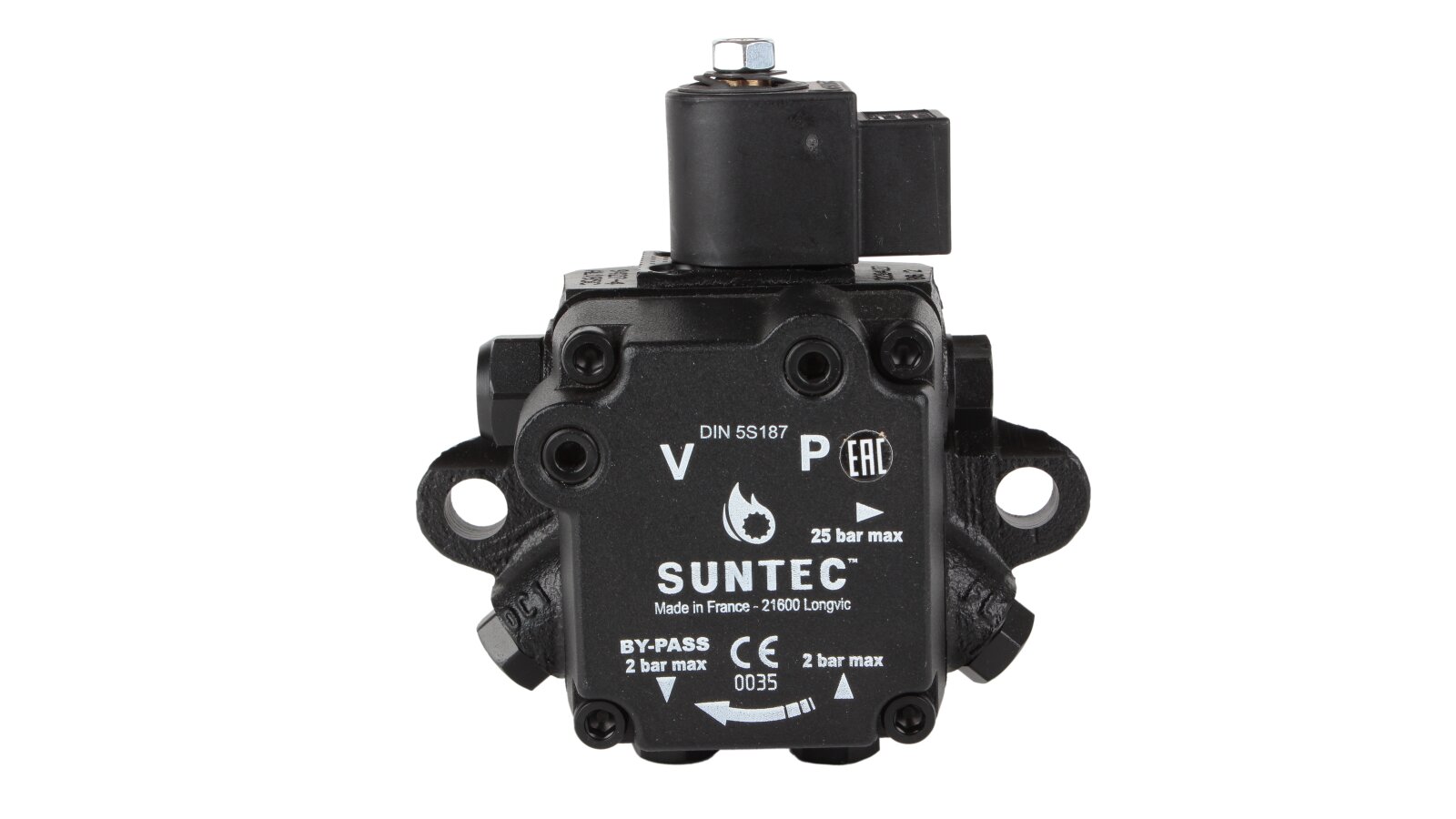

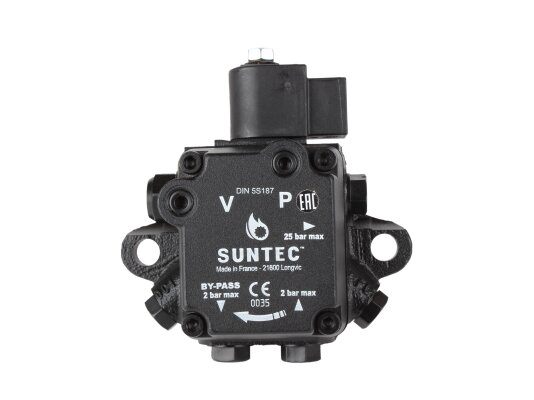

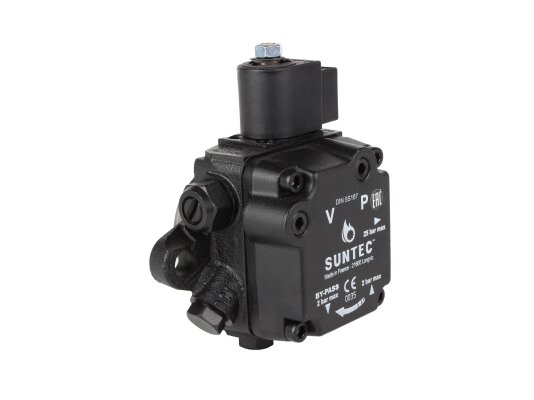

Burner Pump Weishaupt AL V 95 C 9427 4P 0700

Weishaupt21110406032

Alternative Part Number

Weishaupt

We21110406032

AED 2,350

Oil Burner Pumps
Products code: 65263

Description

The Weishaupt AL V 95 C 9427 4P 0700 burner pump, art.: 21110406032, is installed in heating systems with a capacity of up to 1000 kW. Due to the standard fit, compact dimensions and optimal performance characteristics, it is suitable for most single-stage burners from well-known manufacturers. The fuel pumping rate reaches 128 l/h when the pressure is set to 11 bar and a viscosity of 5 cSt. Universal equipment is used to work with diesel fuel and a biodiesel mixture. The pump includes an electromagnetic shut-off valve and a valve regulating the pressure on the nozzle in the range of 8-15 bar.

Design

A pair of wear-resistant gears in engagement are responsible for sucking fuel from the tank and moving it to the nozzle. Before entering the gear mechanism, the fuel is cleaned of foreign particles larger than 150 microns. For maximum protection of the injector, an additional fine filter (optional) should be used.

The feed pressure is set at the factory to 12 bar and can be adjusted using the regulator in the range of 8-15 bar. To cut off the flow in the injector line, an electromagnetic normally-closed valve is installed, which instantly operates regardless of the shaft speed.

The electrical components are reliably protected from dust and splashes of water according to the IP54 standard. The pump design is designed to work with fuel at a temperature of 0 ... + 60ºC. The Weishaupt AL pump is mounted using a flange connection ∅ 54 mm. The body has standard ⅛ inch ports for connecting a pressure gauge and a vacuum gauge.

Advantages:

  • universal model for diesel fuel and biodiesel mixtures;

  • hermetic shaft seals (Viton material);

  • high performance;

  • built-in disassemblable filter;

  • compact dimensions, standard connection;

  • high level of dust and moisture protection;

  • use in two- and one-pipe systems.

You can buy burner pumps and other components for fuel combustion systems from us. For equipment selection, please contact our specialists.

Characteristics

Manufacturer Part Number: 21110406032Type of pumped liquid: diesel, biodiesel fuel blend B10Strainer: Open area: 20 cm²Solenoid valve voltage: 220-240V~, 50-60HzNominal rotation speed: 2850 rpmVacuum gauge port: ⅛ inchPressure gauge port: ⅛ inchSolenoid valve consumption: 9 WPerformance for stage 2 at 11 bar and 5 cSt viscosity: 128 l/hPump series: AL: pressure regulation and interlock solenoid valve with shut-off functionDirection of rotation (looking at the drive shaft): C: counterclockwise rotation / nozzle on the leftStrainer: Opening size: 150 µmOil temperature: from 0 to 60 °C in the pumpModel type: 1 stage with electromagnetic valveInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemValve function: pressure regulatingOperating viscosity: from 2 to 12 mm²/sPerformance at 11 bar pressure and 5 cSt viscosity: 128 l/hMaximum pressure of the solenoid valve: 25 barTorque: 0.2 N·mSuction and return line: ¼ inch NPTF (taper thread)Suction height: 0.45 bars max. vacuum to prevent air separation from oilNozzle outlet: ⅛ inchInlet pressure: 2 barReturn pressure: 2 barShaft diameter: 8 mmNozzle pressure range: from 8 to 15 barFactory pressure setting: 12 barBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withShaft design: one cavityMaximum rotation speed: 3600 rpmInstallation method: flange ∅ 54 mmDegree of protection: IP54
