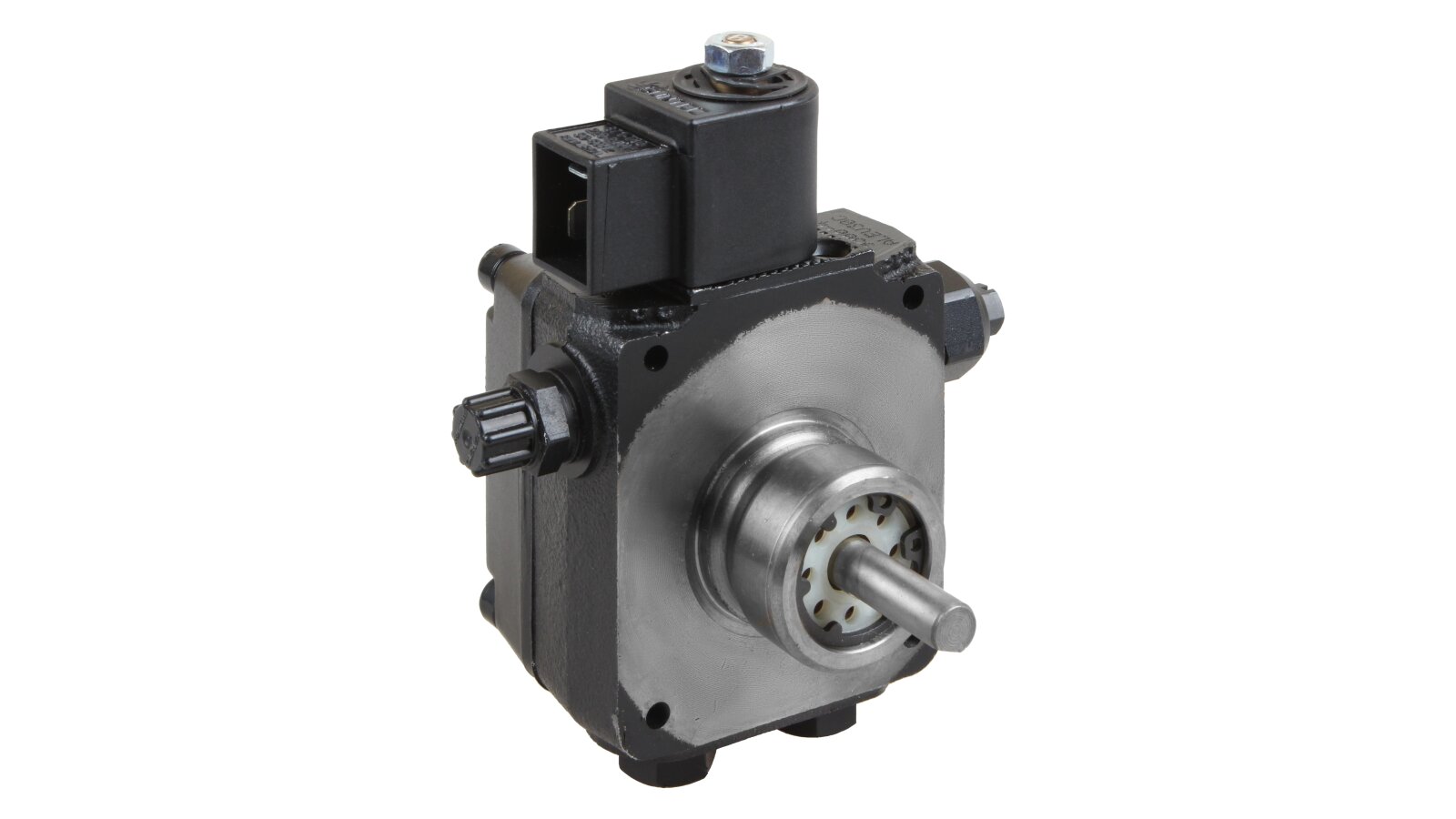

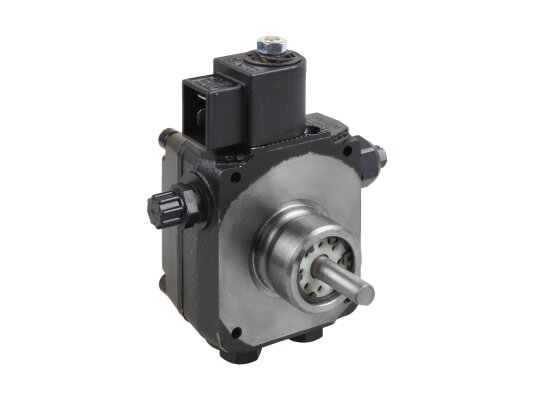

Burner Pump Weishaupt ALE V 30C 9300 4P 0500 R
Weishaupt601737
Alternative Part Number
Weishaupt
We601737
Weishaupt
We60173-7
About product
Go to descriptionPerformance at 11 bar pressure and 5 cSt viscosity 40 l/hType of pumped liquid diesel, biodiesel fuel blend B10Operating viscosity from 2 to 12 mm²/sValve function pressure regulatingInstalling the bypass plug P: bypass plug installed in return line for two-pipe systemModel type 1 stage with electromagnetic valve
AED 1,000
Characteristics
Manufacturer Part Number: 601737Performance at 11 bar pressure and 5 cSt viscosity: 40 l/hType of pumped liquid: diesel, biodiesel fuel blend B10Operating viscosity: from 2 to 12 mm²/sValve function: pressure regulatingInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemModel type: 1 stage with electromagnetic valveOil temperature: from 0 to 60 °C in the pumpStrainer: Opening size: 150 µmStrainer: Open area: 6 cm²Pump series: ALE: blocking solenoid valve with shut-off function and pressure relief device in line fSolenoid valve consumption: 9 WPressure gauge port: ⅛ inchVacuum gauge port: ⅛ inchNominal rotation speed: 2850 rpmSolenoid valve voltage: 220-240 or 110-120 or 24 VDirection of rotation (looking at the drive shaft): C: counterclockwise rotation / nozzle on the leftInstallation method: sleeve ∅ 32 mmMaximum rotation speed: 3600 rpmDegree of protection: IP41Torque: 0.1 N·mSuction and return line: ¼ inch NPTF (taper thread)Suction height: 0.45 bars max. vacuum to prevent air separation from oilNozzle outlet: ⅛ inchInlet pressure: 2 barReturn pressure: 2 barBypass valve opening pressure: 3.5 barShaft diameter: 8 mmNozzle pressure range: from 8 to 18 barFactory pressure setting: 9 barBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withShaft design: one cavityMaximum pressure of the solenoid valve: 15 bar
Information about the technical characteristics, appearance and color of the product is for reference only and is based on the latest information available at the time of publicationAnalogues
