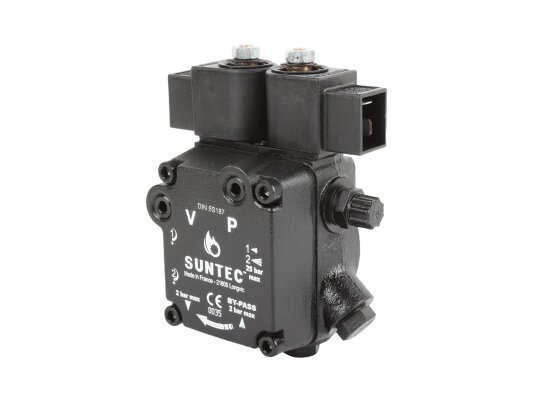

Burner Pump Weishaupt AT2 V 45 C 9602 4P 0700, 601865

Weishaupt601865

Alternative Part Number

Weishaupt We601865
AED 2,025
  1. Oil Burner Pumps

Description

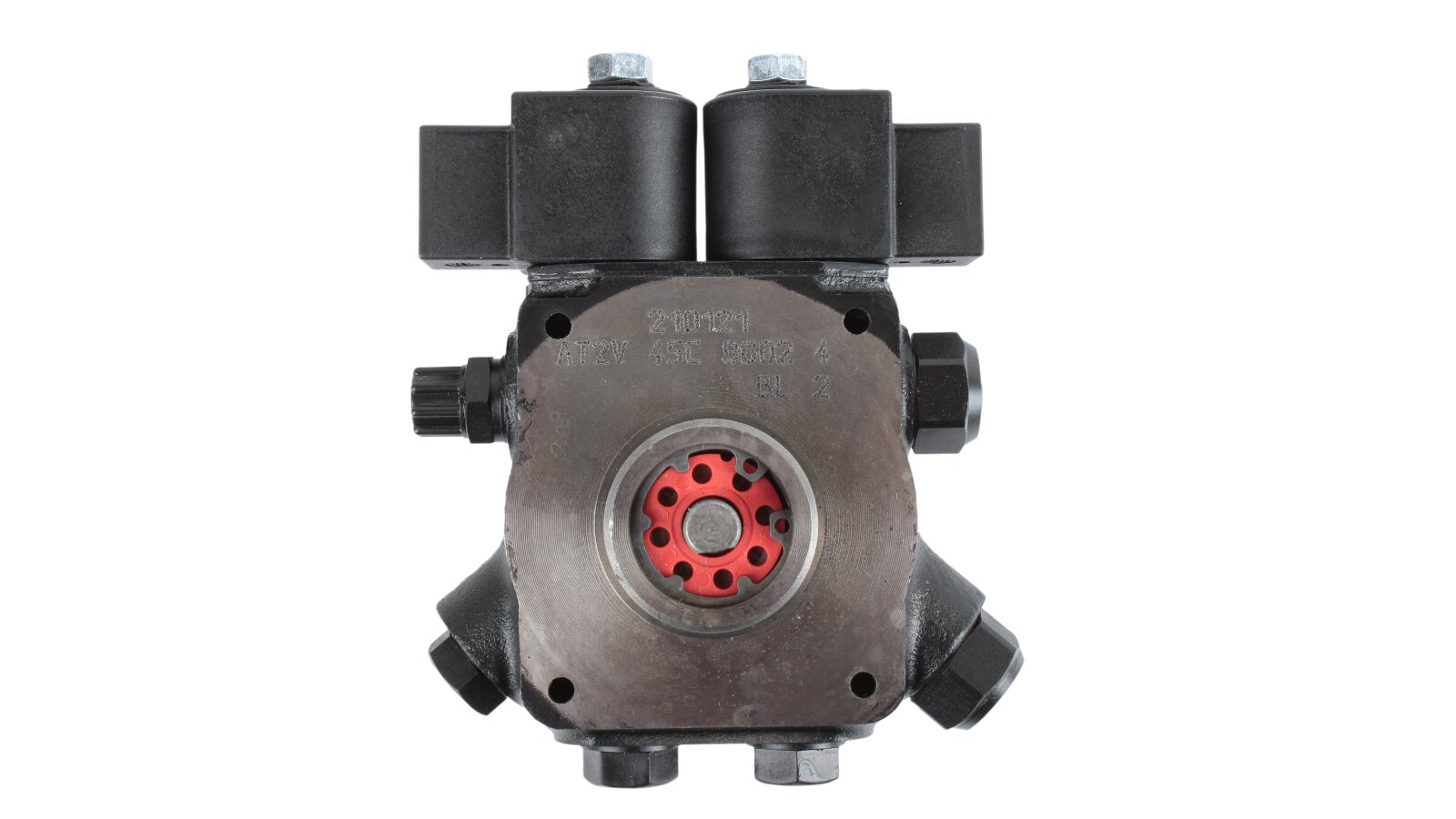

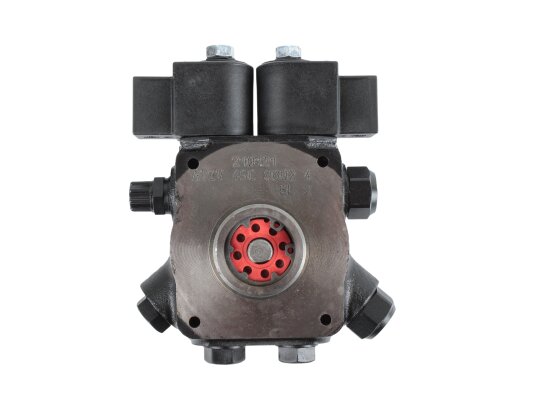

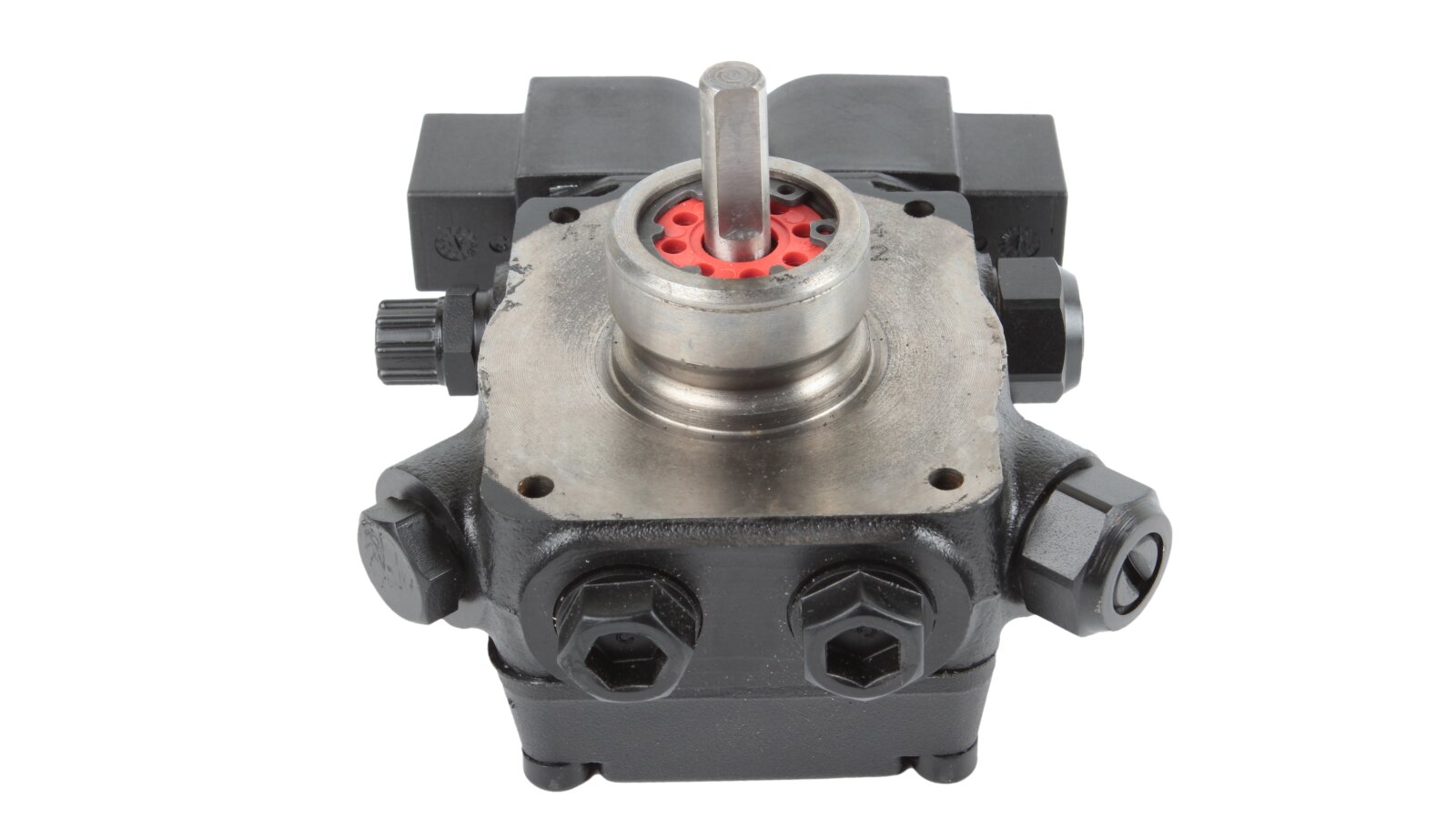

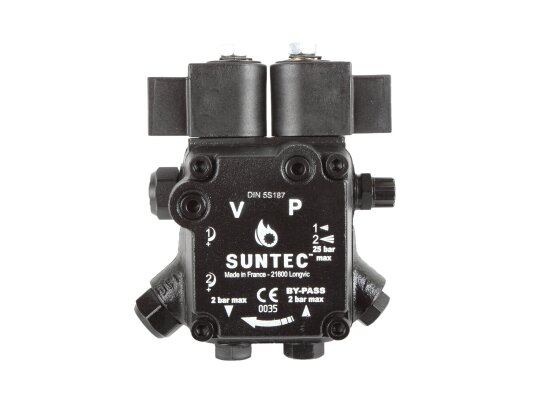

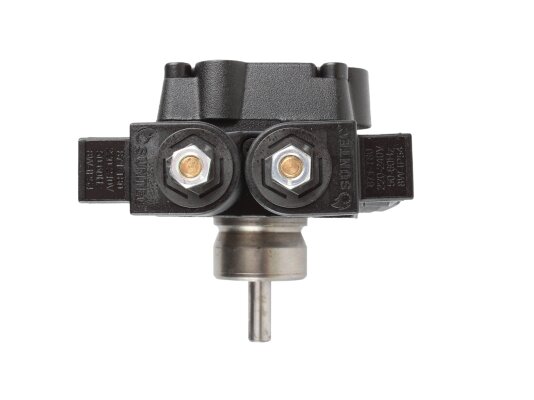

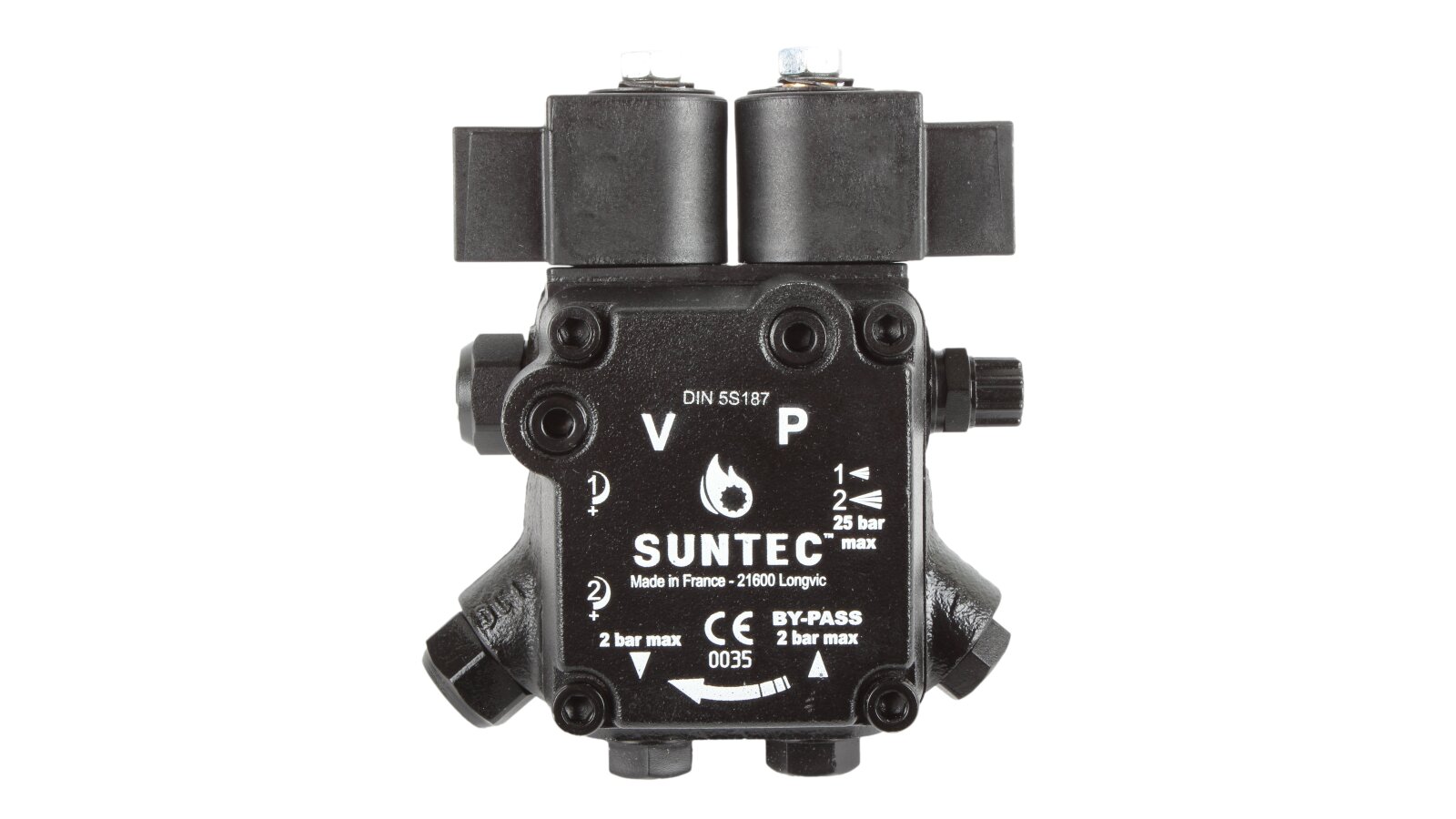

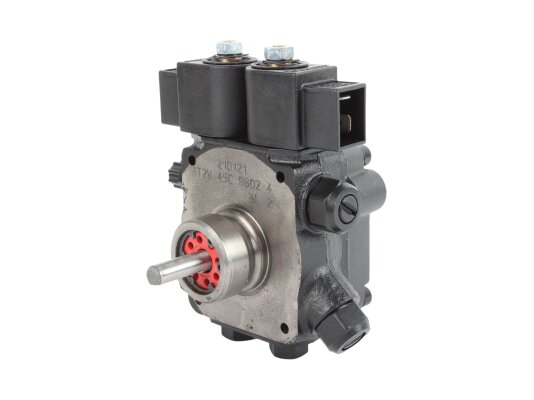

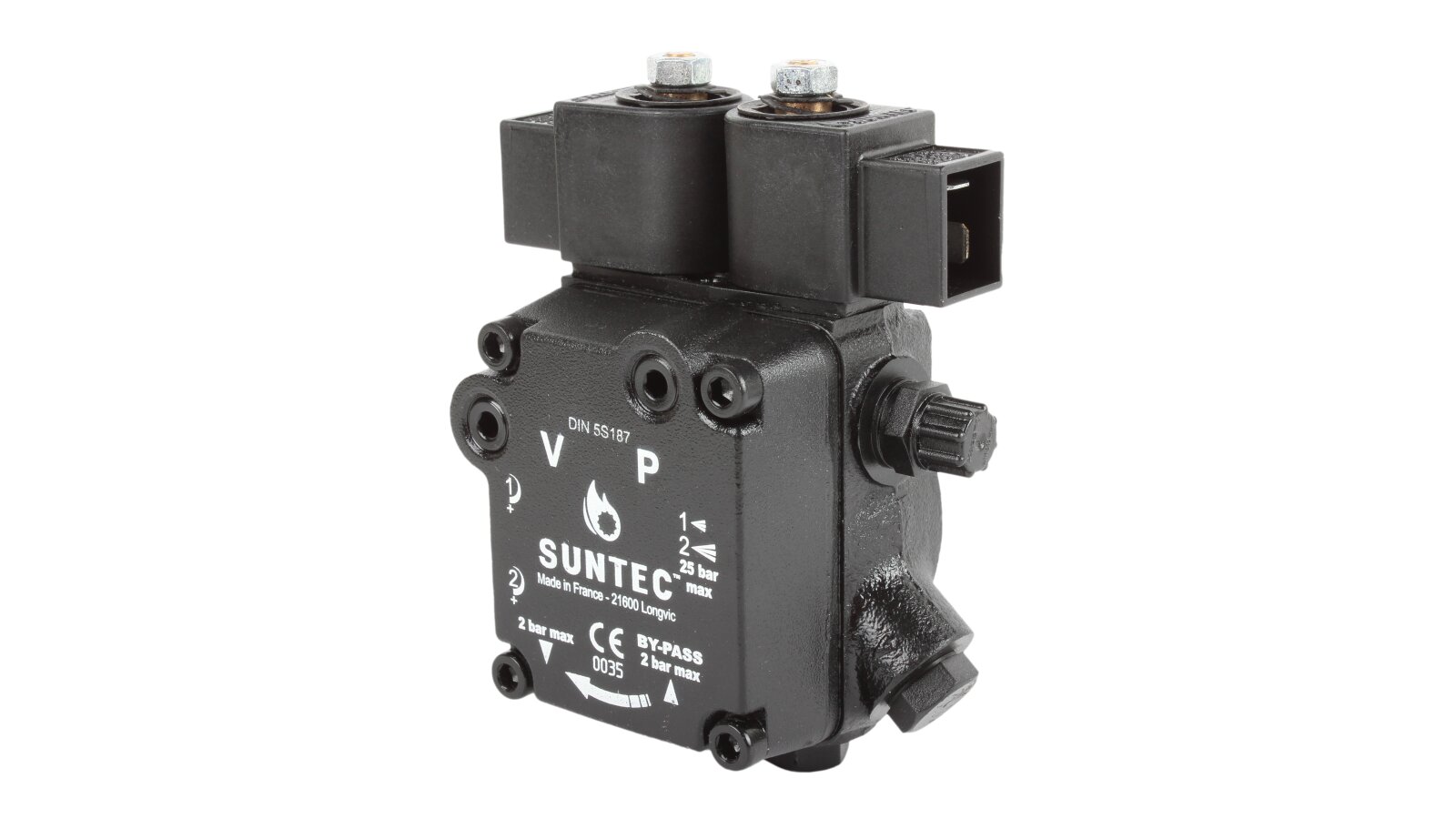

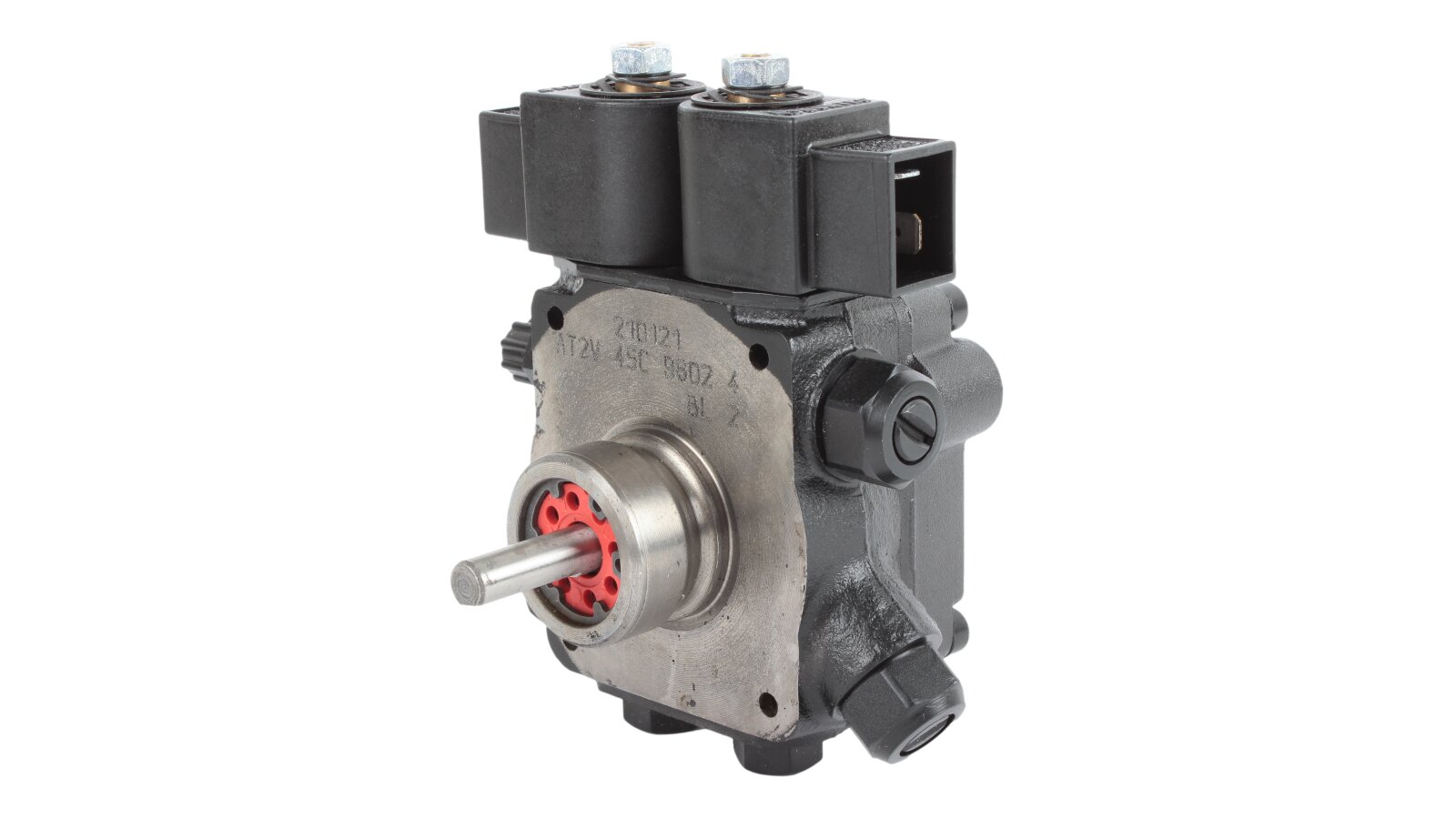

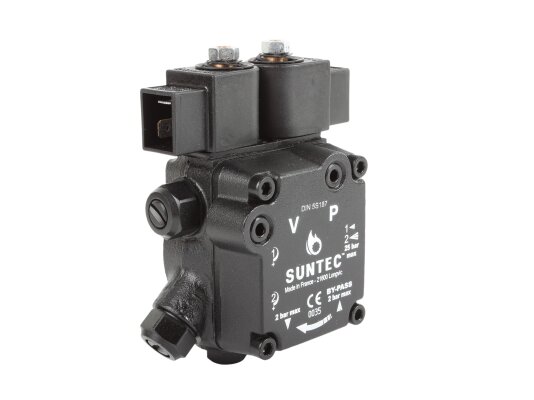

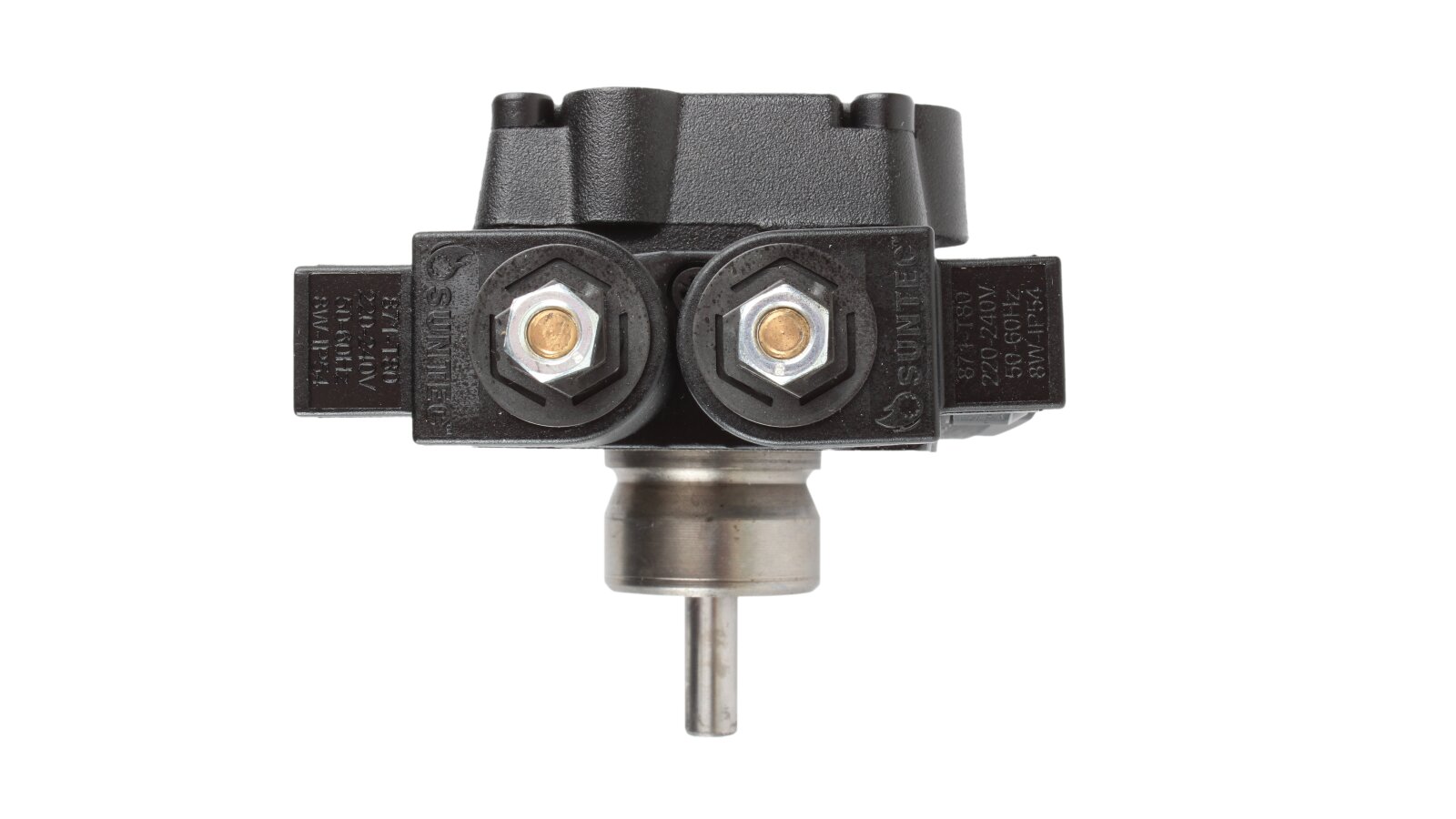

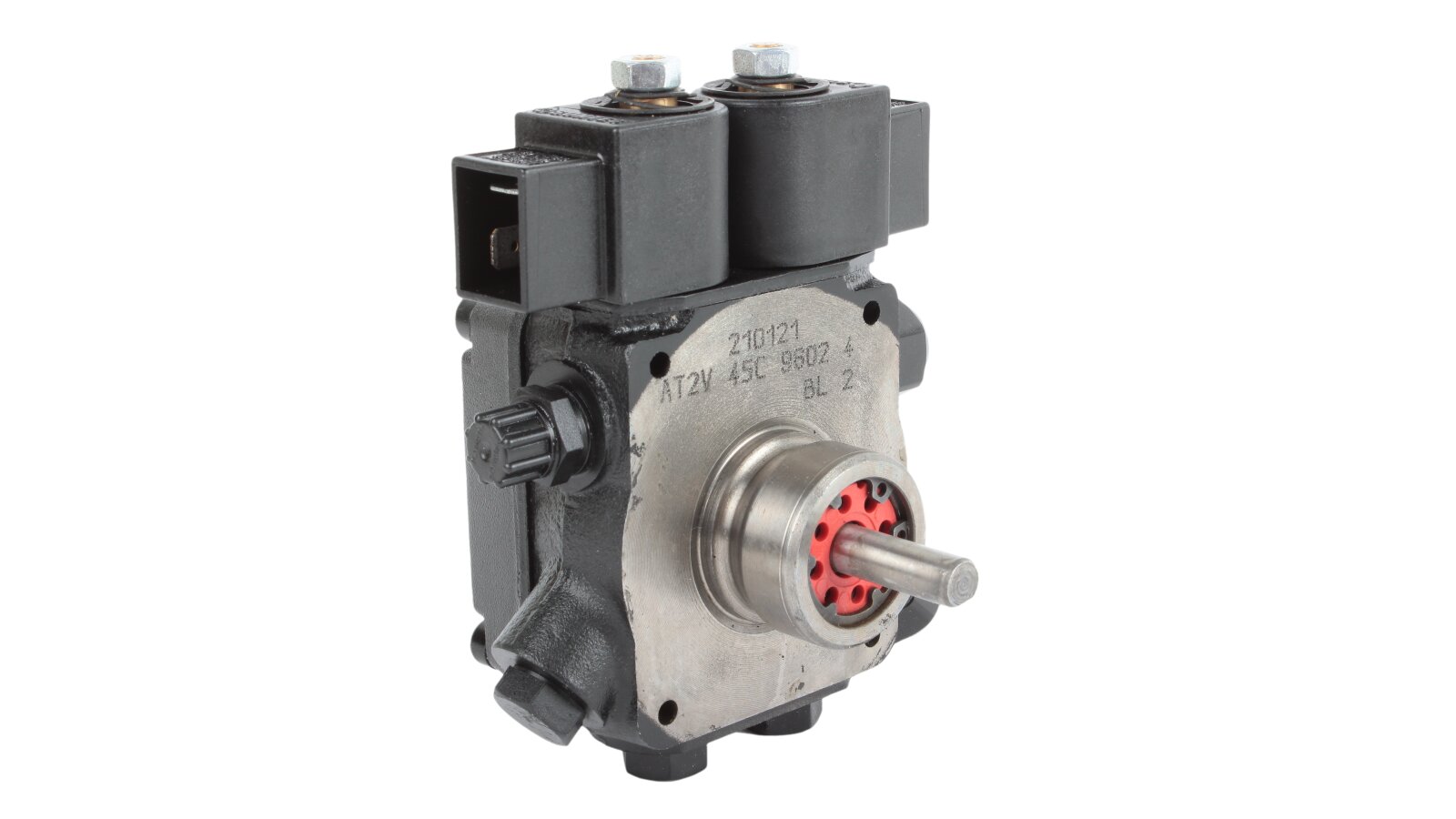

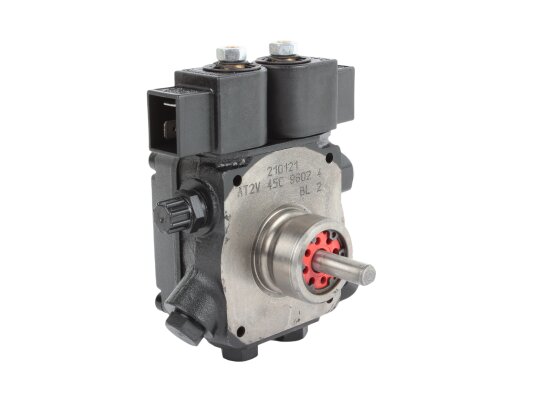

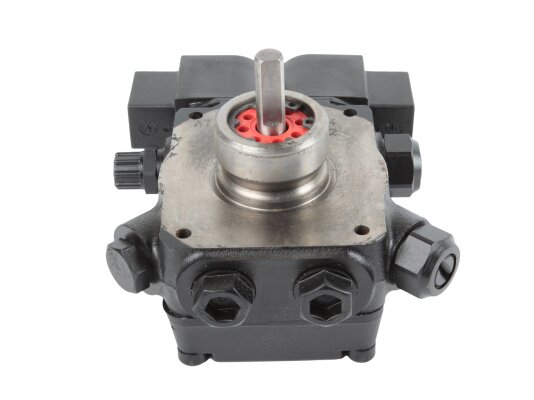

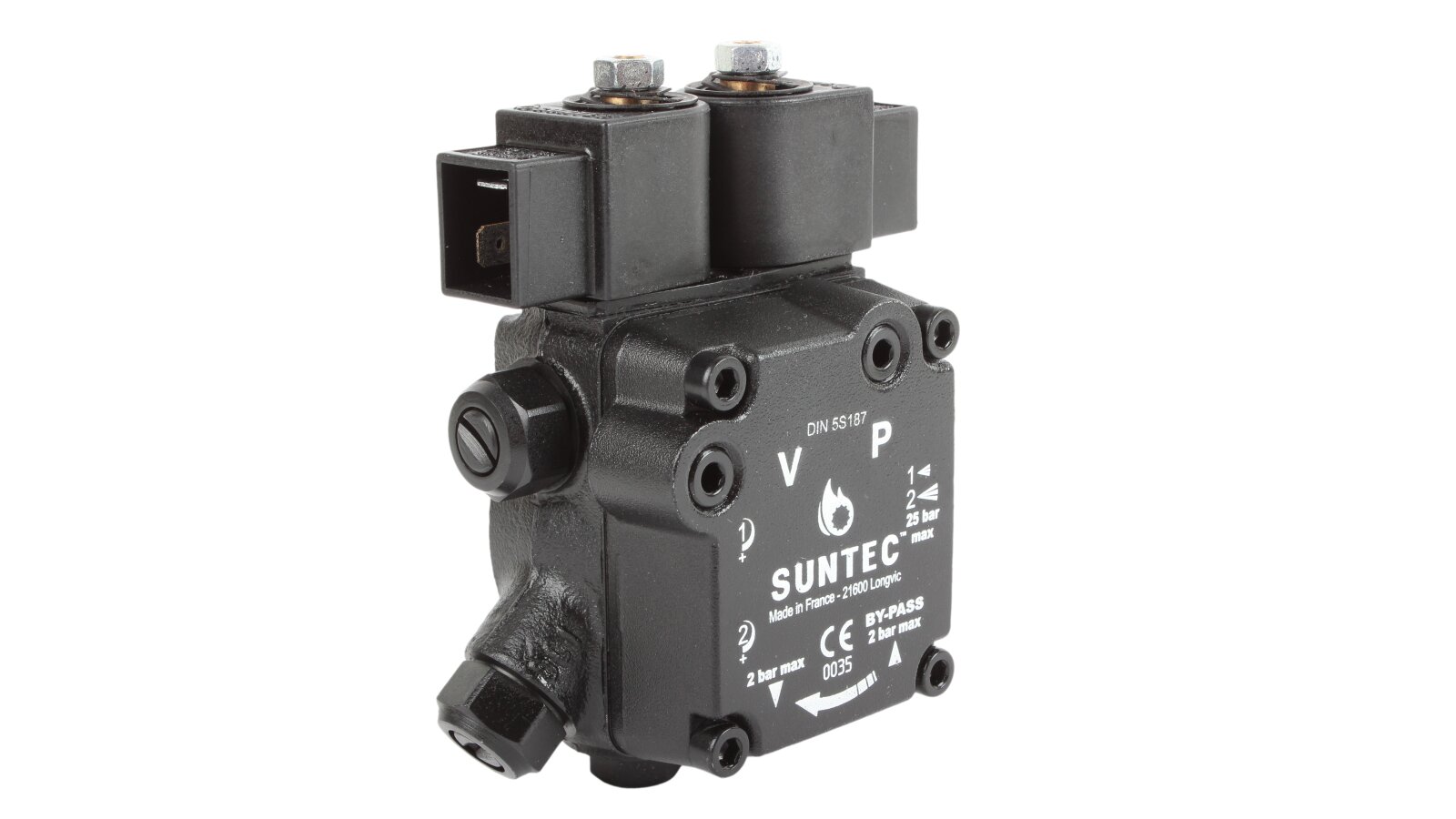

The liquid fuel pump AT2 V 45 C 9602 4P 0700 operates in two modes with different fuel supply pressure to the injector. The model replaces the discontinued pumps AT2 V 45 C 9602 4P 0500 and AT2 45 C 9563 2P 0500. The design is equipped with mechanical and electromagnetic valves. The outlet to the injector line is on the right side, the shaft rotates clockwise. A special feature of this version is its universal purpose - the pump pumps biodiesel and diesel fuel with a viscosity of 2-12 cSt.

Design features

  • The pump in the basic version is adapted for a 2-pipe system. When forming an installation with one pipe, the bypass plug should be dismantled and a steel one should be installed instead, closing the outlet to the return line. The design contains special shaft seals made of Viton, which makes it possible to work not only with diesel fuel, but also with biodiesel.

  • The gear pair pumps the working fluid from the tank to the spool valves, after passing it through a mesh filter with a cell size of 150 microns, which retains rust, sand and other foreign impurities.

  • The spool valves control the fuel pressure at the feed. Screw regulators are used for adjustment. Switching between modes (spool valves) is carried out by a "normally open" bypass electromagnetic valve. In its normal position, the fuel enters under low pressure of the 1st stage. When the valve is closed, the 2nd stage (high pressure) is launched. Excess fuel that does not pass through the injector line is sent back to the tank or to the gear teeth, depending on the configuration of the fuel line.

Main advantages

  • standard ports for connecting measuring instruments;

  • operation in two modes;

  • universal purpose;

  • small dimensions and optimal performance (46 l/h at a pressure of 11 atm.);

  • pre-cleaning with a built-in filter.

To equip heating systems, we offer to buy a liquid fuel pump AT2 V 45 C 9602 4P 0700 at an affordable price - reliable equipment with decent technical and operational characteristics. You can place an order online or by phone.

Characteristics

Manufacturer Part Number: 601865Type of pumped liquid: diesel, biodiesel fuel blend B10Installation method: sleeve ∅ 32 mmInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemDirection of rotation (looking at the drive shaft): A: clockwise rotation / nozzle on the rightSolenoid valve voltage: 220-240 or 110-120 or 24 VNominal rotation speed: 2850 rpmVacuum gauge port: ⅛ inchPressure gauge port: ⅛ inchSolenoid valve consumption: 9 WPerformance for stage 2 at 11 bar and 5 cSt viscosity: 31, 46 l/hPump series: AT2: two operating modes (1 nozzle / 2 pressure modes), with built-in solenoid valve in lStrainer: Open area: 6 cm²Strainer: Opening size: 150 µmOil temperature: from 0 to 60 °C in the pumpValve function: pressure regulatingModel type: 2-stage with electromagnetic valveMaximum rotation speed: 3600 rpmTorque: 0.1 N·mSuction and return line: ¼ inch NPTF (taper thread)Suction height: 0.45 bars max. vacuum to prevent air separation from oilNozzle outlet: ⅛ inchInlet pressure: 2 barReturn pressure: 2 barShaft diameter: 8 mmNozzle pressure range: from 8 to 25 barOperating viscosity: from 2 to 12 mm²/sFactory installations for high pressure: 22 barFactory settings for low pressure: 9 barBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withShaft design: one cavityMaximum pressure of the solenoid valve: 25 barDegree of protection: IP54
