Burner Pump Weishaupt AT2 V 45 C 9602 4P 0700, 24131306012

Weishaupt24131306012

Alternative Part Number

Weishaupt We24131306012
AED 2,425
  1. Oil Burner Pumps

Description

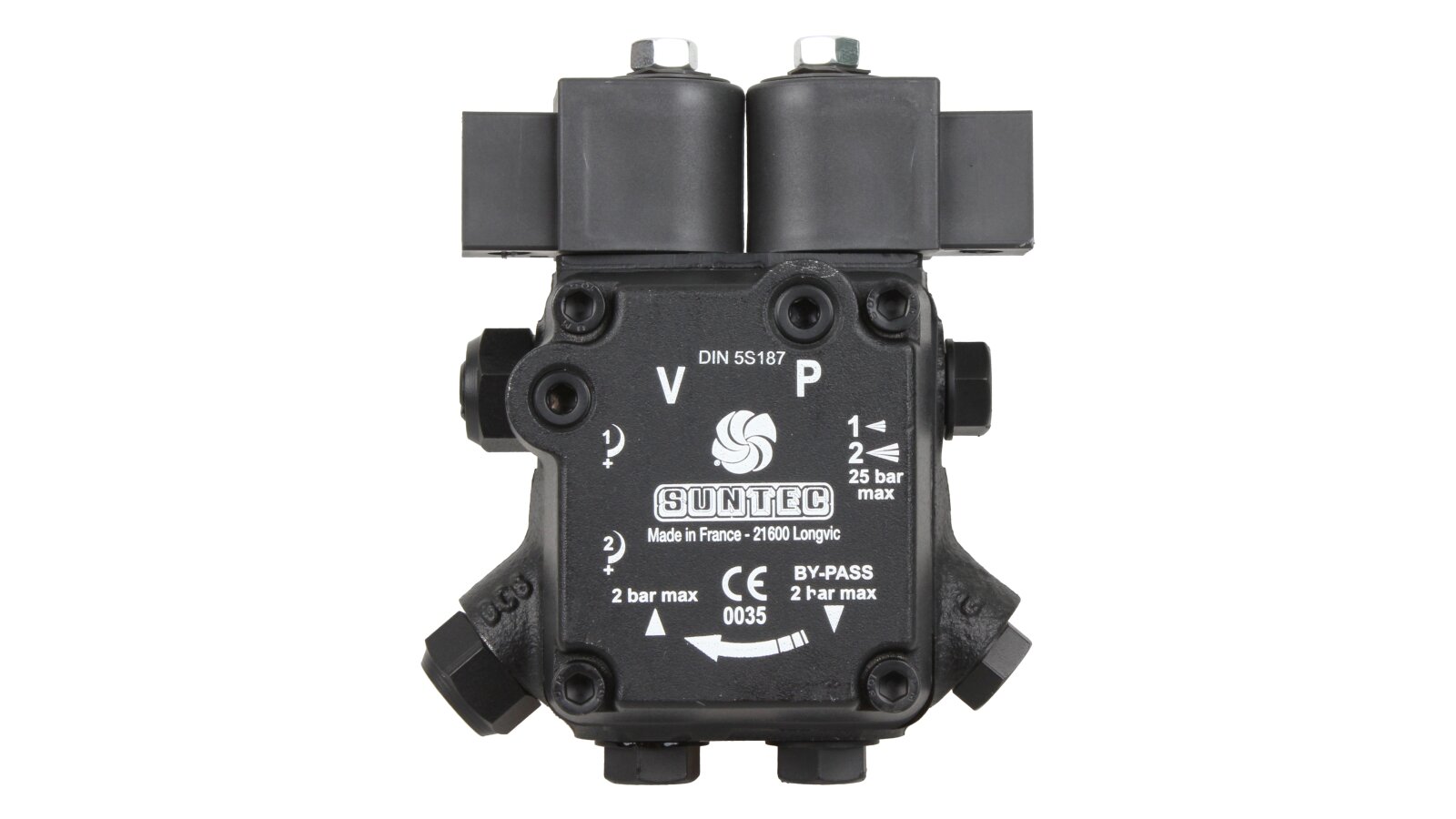

The Weishaupt AT2 V 45 C 9602 4P 0700 burner pump with fittings, art.: 24131306012, operates in low (8-15 bar) and high (12-25 bar) pressure modes. It can pump diesel fuel and biodiesel B10 with a viscosity of 2-12 cSt. It is installed in single-pipe and double-pipe systems. The performance depends on the viscosity of the fuel and the discharge pressure. The pump is preset at the factory.

Device and features

The pump is made of wear-resistant materials, equipped with a mesh metal filter, two gate valves and two electromagnetic valves (one in the nozzle line, the second in the bypass channel). Electrical components are protected from dust and moisture according to the IP54 standard. Permissible operating temperatures: 0 ... + 60 ºC.

The standard version is prepared for a 2-pipe connection. When installed in a single-pipe unit, the bypass plug must be unscrewed and the fuel drain hole must be sealed. Excess flammable liquid that does not pass through the nozzle is returned to the tank or to the gear device, depending on the connection option.

Viton shaft seals allow safe pumping of biodiesel. Installation is carried out using a ∅ 32 mm sleeve fit. Screw regulators are provided to set the operating pressure parameters. The body has standard ports for measuring devices (pressure gauge and vacuum gauge).

Advantages:

  • versatility, works with diesel fuel and biodiesel;

  • wear-resistant viton seals;

  • 2 pressure modes;

  • built-in metal mesh filter;

  • compact dimensions, standard fit;

  • reliable gear mechanism;

  • wide range pressure adjustment.

You can buy a pump for the Weishaupt AT2 burner and the necessary additional equipment for assembling a heating system from us.

Characteristics

Manufacturer Part Number: 24131306012Type of pumped liquid: diesel, biodiesel fuel blend B10Installation method: sleeve ∅ 32 mmInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemDirection of rotation (looking at the drive shaft): A: clockwise rotation / nozzle on the rightSolenoid valve voltage: 220-240 or 110-120 or 24 VNominal rotation speed: 2850 rpmVacuum gauge port: ⅛ inchPressure gauge port: ⅛ inchSolenoid valve consumption: 9 WPerformance for stage 2 at 11 bar and 5 cSt viscosity: 31, 46 l/hPump series: AT2: two operating modes (1 nozzle / 2 pressure modes), with built-in solenoid valve in lStrainer: Open area: 6 cm²Strainer: Opening size: 150 µmOil temperature: from 0 to 60 °C in the pumpValve function: pressure regulatingModel type: 2-stage with electromagnetic valveMaximum rotation speed: 3600 rpmTorque: 0.1 N·mSuction and return line: ¼ inch NPTF (taper thread)Suction height: 0.45 bars max. vacuum to prevent air separation from oilNozzle outlet: ⅛ inchInlet pressure: 2 barReturn pressure: 2 barShaft diameter: 8 mmNozzle pressure range: from 8 to 25 barOperating viscosity: from 2 to 12 mm²/sFactory installations for high pressure: 22 barFactory settings for low pressure: 9 barBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withShaft design: one cavityMaximum pressure of the solenoid valve: 25 barDegree of protection: IP54
