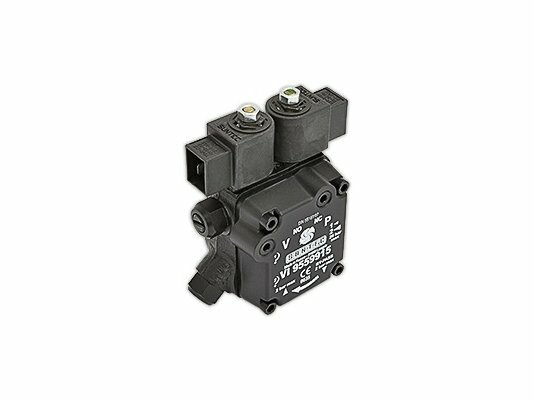

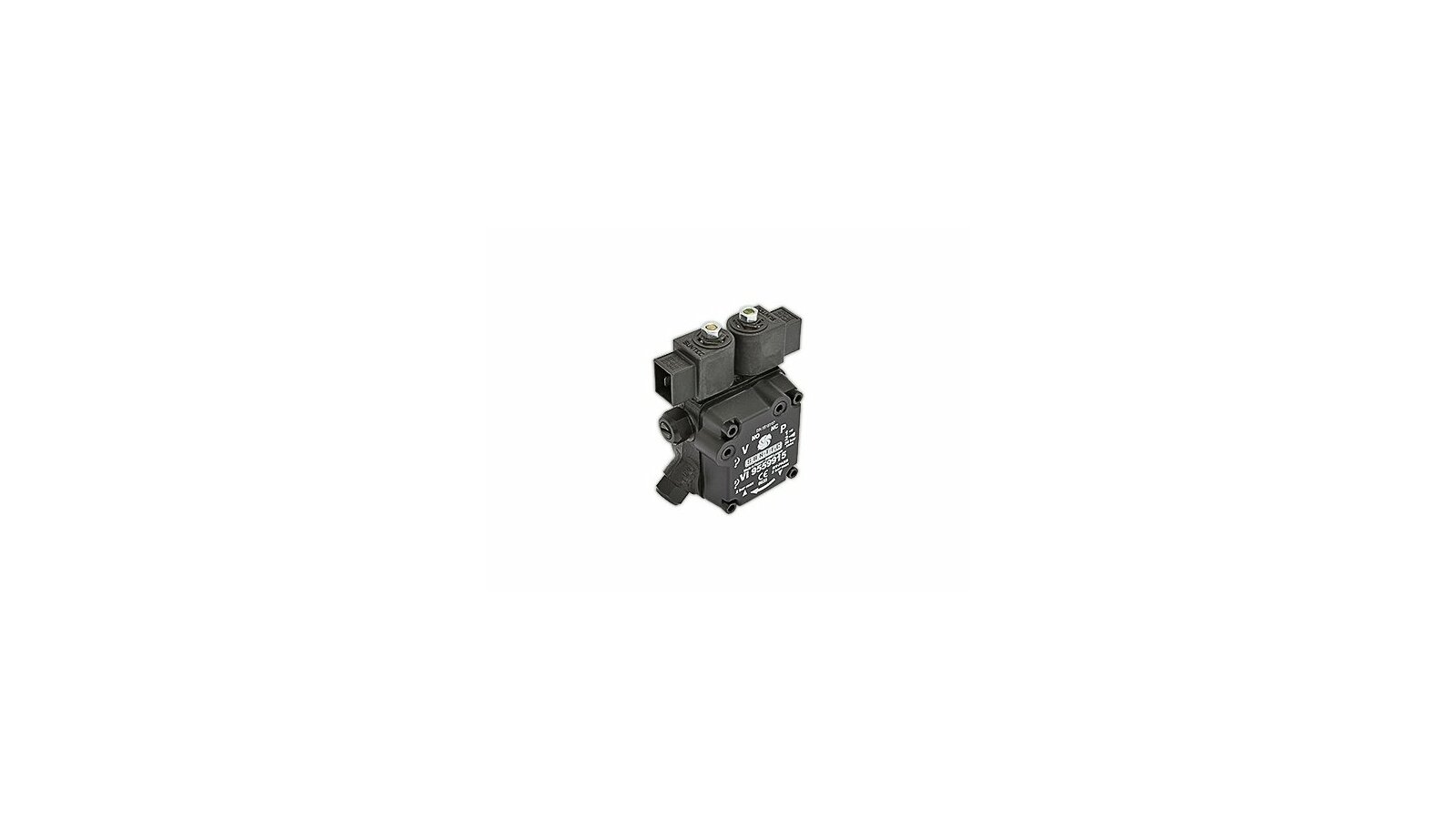

Burner Pump Suntec AT2 V 55 C K 9605 4P 0700

Weishaupt24140306022

Alternative Part Number

Weishaupt We24140306022
AED 2,750
  1. Oil Burner Pumps

Description

The Suntec AT2 V 55 C K 9605 4P 0700 pump has one outlet to the nozzle and two pressure modes (high and low). The pump is equipped with two electromagnetic valves - shut-off and bypass. It is used to equip burners burning diesel fuel, biofuel B10, kerosene. Universal mount (EN 225) allows you to build the pump into burners of most manufacturers.

Features

  • The pump is manufactured according to European safety and electrical protection standards. The equipment meets the IP54 standard when using the SUNTEC connecting cable. The nozzle connection is located on the left.

  • The main working mechanism is a pair of gears. For their long service life, a 150 μm mesh filter is installed at the fuel inlet, which holds back all abrasive impurities.

  • The electromagnetic "normally open" bypass valve switches between low and high pressure modes.

  • The shut-off solenoid valve is located in the injector line, which ensures instantaneous operation. When it is active, fuel passes to the injector under the pressure set by the regulating (spool) valves.

  • The pump is factory assembled and ready for a 2-pipe connection. To create a single-pipe design, the bypass plug should be removed and a steel plug with a washer should be installed instead.

  • Depending on the system features, excess fuel is sent to the tank or passes to the suction line.

  • The pressure is adjusted to meet the needs in the range: 8-15 bar and 12-25 bar (9 and 22 bar - the "default" setting). The flow rate reaches 55 l / h with a fuel viscosity of 5 cSt.

Advantages:

  • wide functionality - pumps diesel fuel, biofuel, kerosene;

  • 2-stage fuel supply regulation;

  • high level of protection against dust and moisture (IP54);

  • one- and two-pipe connection;

  • universal fit;

  • gear protection against wear and jamming;

  • wide pressure adjustment range;

  • ports for connecting measuring equipment;

  • 2 built-in electromagnetic valves.

Additional information about the Suntec AT2 V 55 C K 9605 4P 0700 pump and other components for diesel burners can be obtained from ANKAS consultants.

Characteristics

Manufacturer Part Number: 24140306022Strainer: Open area: 6 cm²Nominal rotation speed: 2850 rpmSolenoid valve consumption: 9 WMaximum pressure of the solenoid valve: 25 barMaximum rotation speed: 3600 rpmPerformance at 7 bar pressure and 5 cSt viscosity: 68 l/hFactory settings for low pressure: 9 barFactory installations for high pressure: 22 barShaft diameter: 8 mmReturn pressure: 2 barInlet pressure: 2 barStrainer: Opening size: 150 µmTorque: 0.1 N·mInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemPump series: AT2: two operating modes (1 nozzle / 2 pressure modes), with built-in solenoid valve in lOil temperature: from 0 to 60 °C in the pumpValve function: pressure regulatingPressure gauge port: ⅛ inchModel type: without electromagnetic valveVacuum gauge port: ⅛ inchDirection of rotation (looking at the drive shaft): C: counterclockwise rotation / nozzle on the leftInstallation method: sleeve ∅ 32 mmBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withOperating viscosity: from 2 to 12 mm²/sNozzle pressure range: from 8 to 25 barNozzle outlet: ⅛ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilSuction and return line: ¼ inchType of pumped liquid: dieselDegree of protection: IP54
