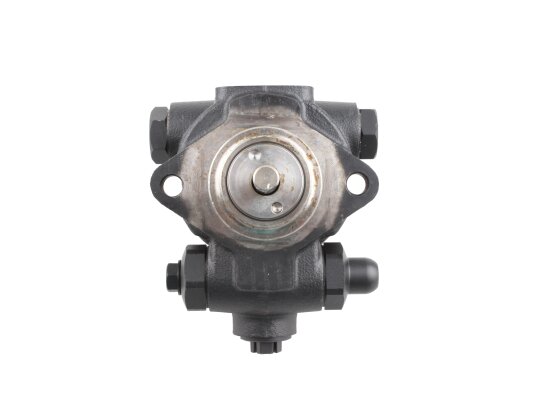

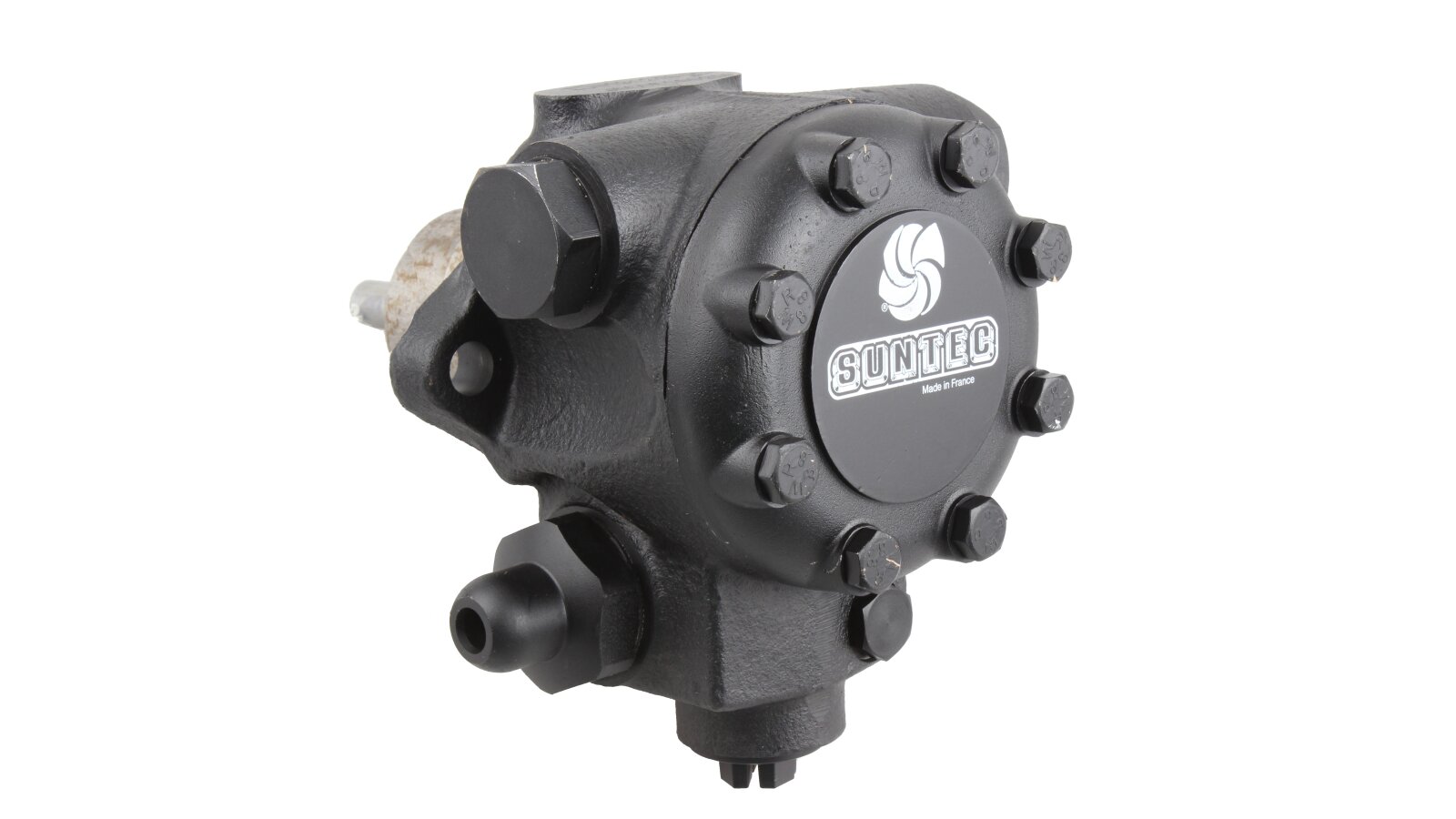

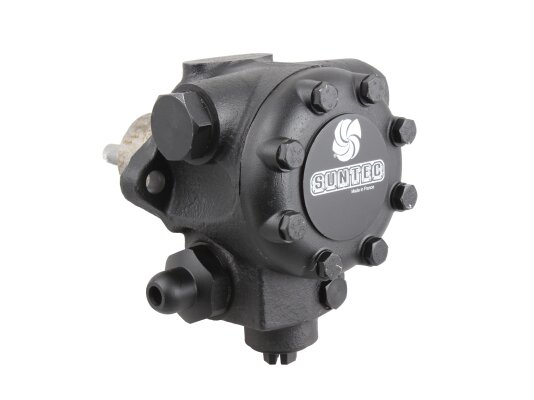

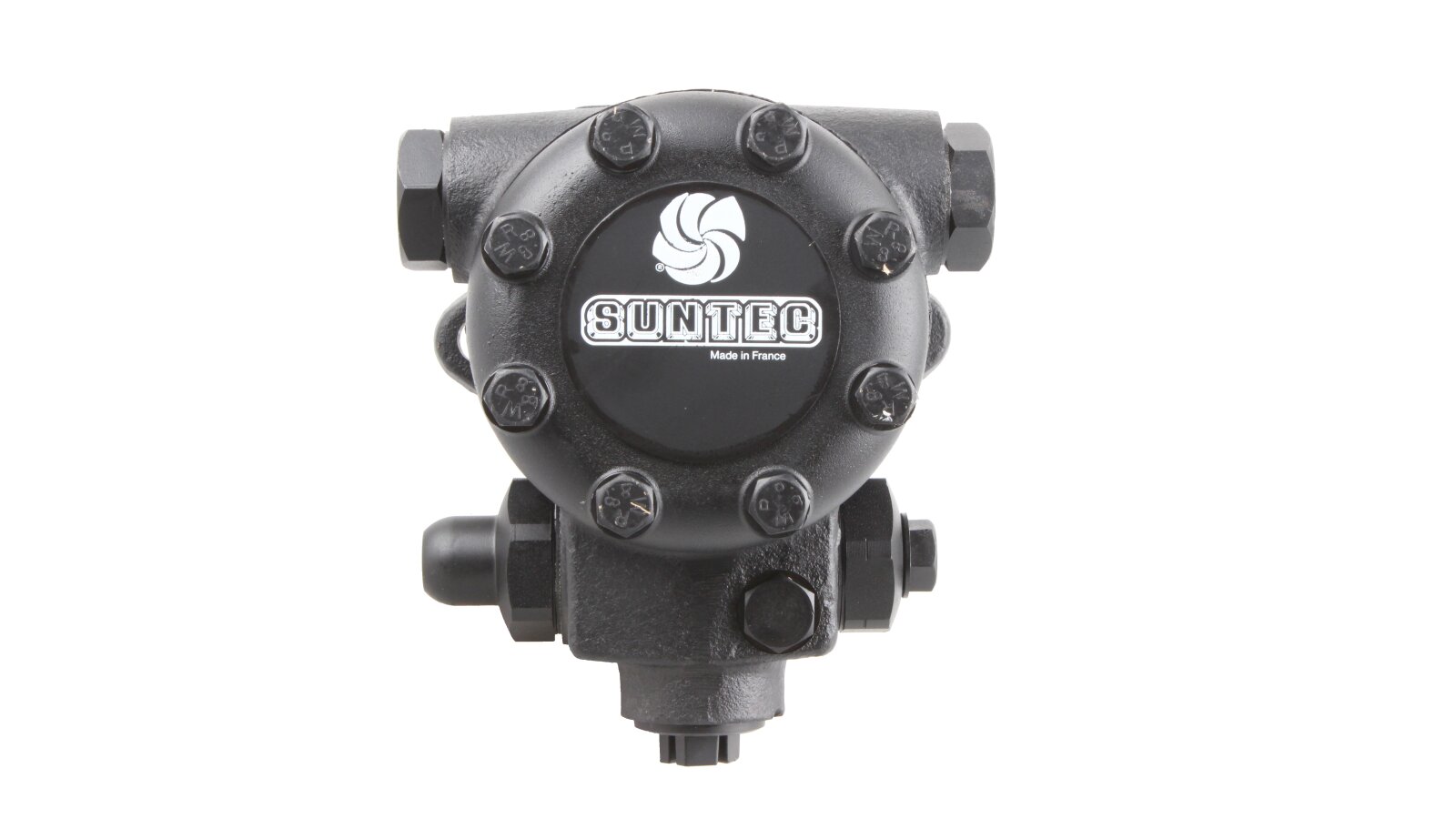

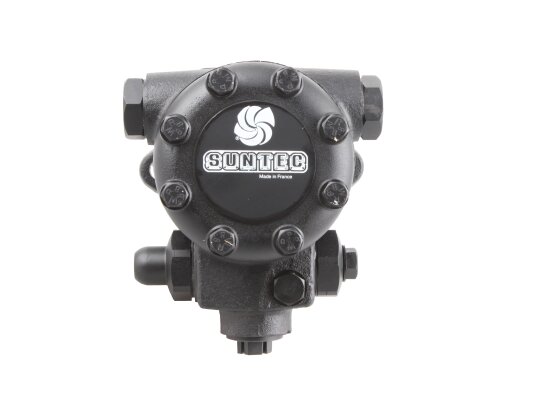

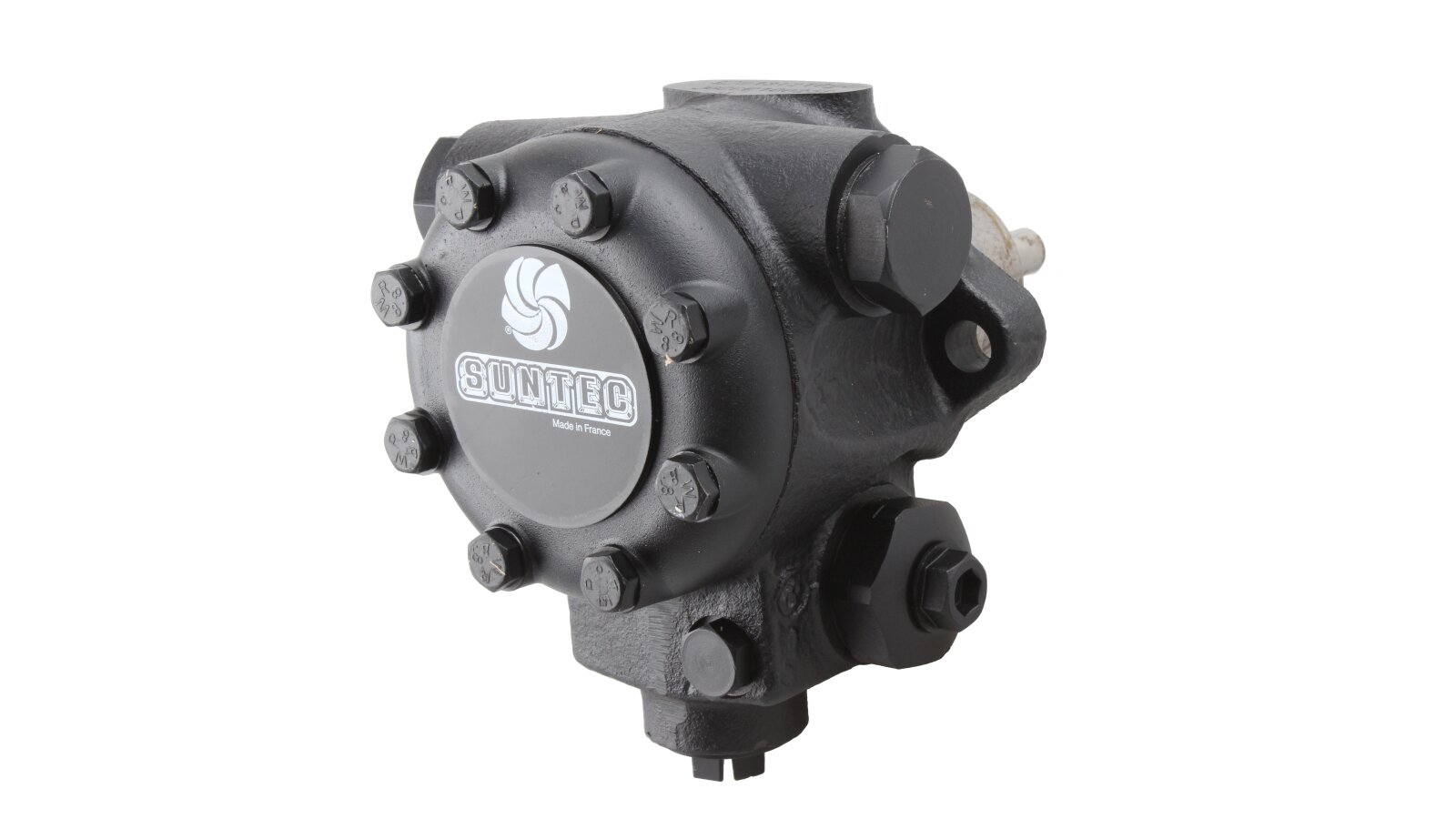

Burner Pump Weishaupt J 6 CCE 1002 5P

Weishaupt601150

Alternative Part Number

Weishaupt

We601150

AED 3,475

Oil Burner Pumps
Products code: 65264

Description

The Weishaupt J 6 CCE 1002 5P burner pump, art.: 601150, is used in industrial heating and process units for pumping diesel fuel and medium-viscosity fuel. The capacity reaches 226 l/h (20 bar/ 5 cSt). The feed pressure is set at the factory and can be changed in the range of 10-30 bar.

Features:

  • Bypass hole in the nozzle line;

  • pressure regulating valve without shut-off;

  • external electromagnetic valve for automation of the feed and shut-off mode;

  • for equipping two-pipe and one-pipe systems;

  • increased heat resistance of the structure, fuel temperature 0...+90 ºC;

  • built-in mesh filter that holds back solid particles from 170 µm in size.

Design and installation

The pump is made of materials resistant to high pressure, contact with fuel, and wear. The key working unit is a pair of gears that suck fuel from the tank and move it to the injector line. A mesh metal filter prevents the gear pair from jamming. It is easy to disassemble for cleaning from dirt.

The design is ready for a 2-pipe connection. When used in systems without a return line, it is necessary to remove the bypass plug and close the drain channel. The pump includes a valve that regulates the pressure on the injector. Installing an additional electromagnetic valve will provide a locking function.

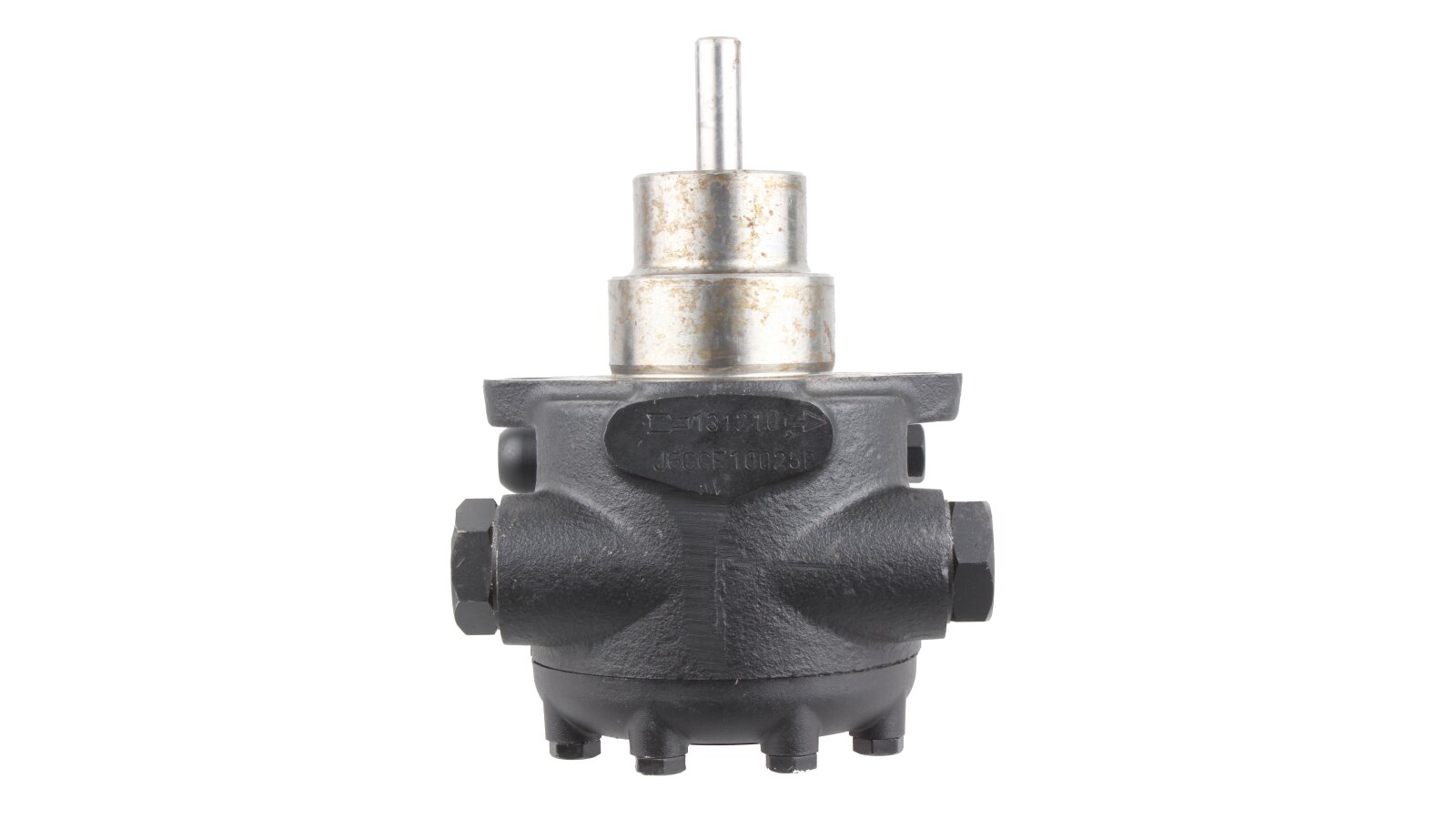

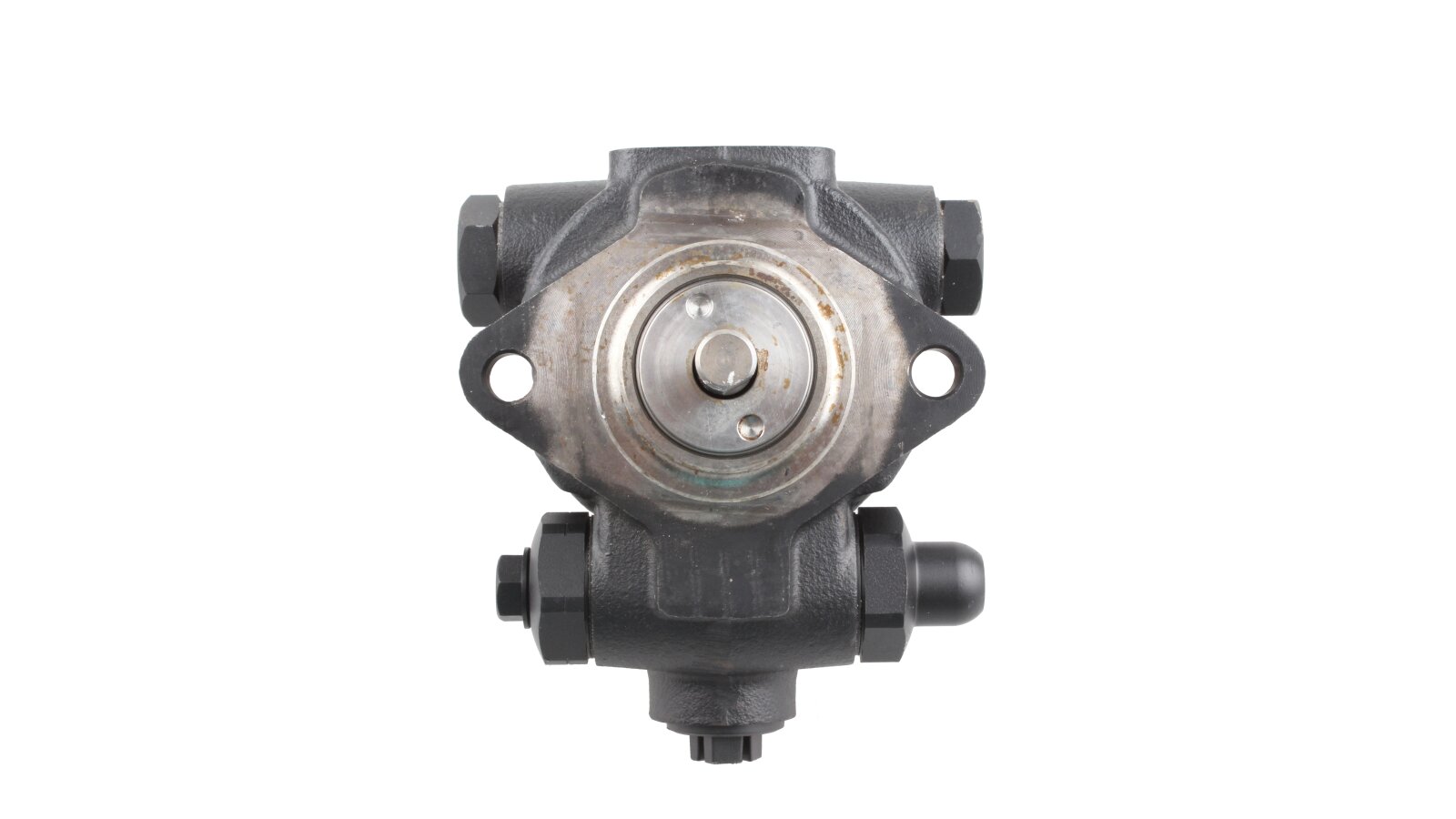

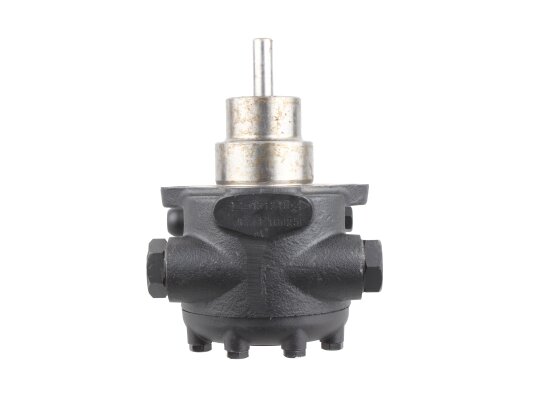

A flange connection of ∅ 54 mm is used to install the pump. The pressure is adjusted using a regulator on the body. Ports are provided for measuring equipment and monitoring operating parameters.

Advantages:

  • increased heat resistance of the design;

  • work with diesel fuel and medium-viscosity fuel;

  • high efficiency;

  • standard flange connection;

  • built-in mesh filter;

  • use in two- and one-pipe systems;

wide range of feed pressure. You can buy diesel pumps for burners of any purpose from us. All equipment is tested and supplied with a factory warranty.

Characteristics

Manufacturer Part Number: 601150Shaft design: one cavityModel type: without electromagnetic valveInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemOil temperature: from 1 to 90 °C in the pumpStrainer: Opening size: 170 µmStrainer: Open area: 45 cm²Pump series: J: control valve with locking functionPerformance at 20 bar pressure and 5 cSt viscosity: 226 l/hPressure gauge port: ⅛ inchVacuum gauge port: ½ inchNominal rotation speed: 2850 rpmDirection of rotation (looking at the drive shaft): C: counterclockwise rotation / nozzle on the leftInstallation method: flange ∅ 54 mmMaximum rotation speed: 3600 rpmBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withFactory pressure setting: 12 barOperating viscosity: from 2 to 75 mm²/sNozzle pressure range: from 10 to 30 barShaft diameter: 11 mmReturn pressure: 1.5 barInlet pressure: 1.5 barNozzle outlet: ¼ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilSuction and return line: ½ inchTorque: 0.3 N·mType of pumped liquid: medium viscosity fuel, diesel
