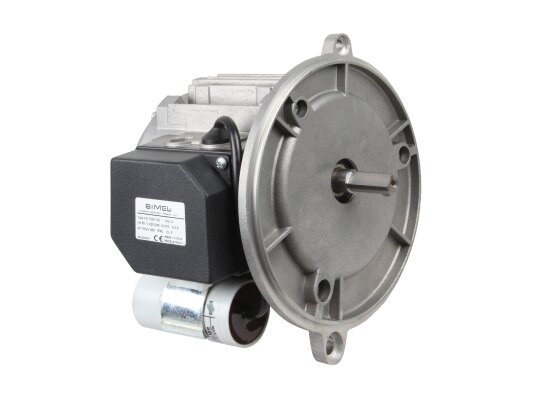

Motor Simel XD 7/207-32

Simel electric motor (engine) for blower burners XD 7/207-32:

Single-phase asynchronous motor XD 7/207-32, manufactured by the Italian company Simel SpA, has a high energy efficiency class. The unit is designed for blower heating burners operating on liquid fuel. The power of the device is 370 W. Protection against penetration of foreign objects is implemented in the form of a casing with IP40 rating, which does not protect against water droplets and dust, which excludes the possibility of operation outdoors and in rooms with a high level of dust.

Model characteristics

• The unit belongs to the category of two-pole motors designed for connection to a single-phase network. Voltage requirements are 230 V, frequency - 50/60 Hz.

• Protection against voltage drops at startup is provided in the form of a phase-shifting capacitor with a capacity of 16 μF, which also significantly simplifies the start-up process.

• The electric motor has a lightweight aluminum body, resistant to mechanical damage and corrosion.

• Fastening to the burner is carried out using a flange connection with two holes, which significantly simplifies and speeds up the installation process.

Main advantages

• even with fluctuations in network parameters within ±5%, the engine operates without failures;

• it is possible to reduce the level of energy consumption when connecting the motor through a frequency converter;

• windings are protected from corrosion and short circuits using double insulation resistant to temperatures up to +155 ° C;

• alloy steel was used in the production of the shaft, providing a high level of strength.

The company "ANKAS" offers to buy Simel electric motors with a power consumption of 370 W at the manufacturer's price.
