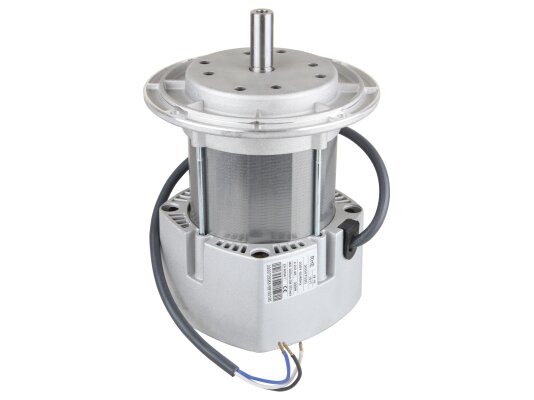

Motor Riello 151T 20007030

Electric motor (engine) RHE 151T for forced-draft burners

The single-phase asynchronous open-type motor RHE 151T with a power consumption of 300 W is the optimal solution for completing forced-draft heating burners operating on liquid fuel. The power unit is designed for continuous operation mode S1 in a dust-free room without the risk of jets and drops of water getting on the housing.

Design features:

• The casing of the two-pole electric motor is highly corrosion-resistant, as it is made of aluminum alloy by high-pressure casting.

• The device is connected to a single-phase AC source with a voltage of 220 V and a network frequency of 50 or 60 Hz. To increase the torque at start-up, it is recommended to additionally install a starting capacitor.

• The most effective is considered to be operation from a frequency converter, which allows you to operate the electric drive at an optimal rotation speed in an economy mode.

• Current consumption in the nominal mode depends on the network frequency and is 2.2/2.4 A. The kit includes a 50 cm long power cable for connecting the device to a power source.

Main advantages:

• high reliability of rotating parts and high-quality enamel electrical insulation with heat resistance class F;

• convenient installation using a flange connection;

• resistance to fluctuations in input voltage parameters within ±5%;

• the noise and vibration levels during operation of the power unit do not exceed the permissible parameters.

The compact asynchronous electric motor with a squirrel-cage rotor RHE 151T is a reliable device from an Italian manufacturer, developed in accordance with international requirements for rotating electrical machines EN 60034-1.
