Motor Riello RHE 171T 7402

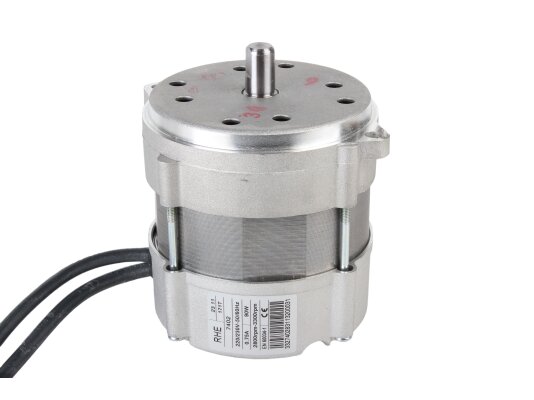

Riello RHE 171T Electric Motor for Fan Burners (used with capacitor 3007479 or 20090008)

This is a single-phase asynchronous motor with article number 3008865 and a power of 90 W, manufactured by the Italian company Riello. The general-purpose device is successfully used in small fan burners as a drive for a liquid fuel pump. The electric motor consumes only 750 mA, while the rotor speed reaches 2780 rpm.

Technical features:

• The compact two-pole electric drive is powered exclusively by an AC source with a voltage of 230 V, which makes it popular in low-power household burners running on biodiesel and solar oil.

• The squirrel-cage motor is not equipped with a starting capacitor. It is attached separately and connected via a 22 cm cord. This simplifies the design and greatly simplifies maintenance.

• The manufacturer recommends equipping the electric motor power supply system with a starting capacity of 4 μF with a maximum voltage of 400-600 V. The higher the rated maximum voltage of the capacitor, the longer it will remain operational.

• The electric drive is equipped with a 190 mm long power cable, which is enough to connect the device to the network control board.

Main advantages:

• The motor body is made of lightweight aluminum alloy by die casting;

• High heat transfer of materials allows you to do without the use of a cooling fan;

• The device is designed for operation in long-term S1 mode;

• Bearing units are serviced for the entire service life and do not require lubrication.

The open type motor Riello RHE 171T is manufactured in accordance with the international standard for rotating electrical machines EN 60034-1.
