Motor Riello ET100Lb-2

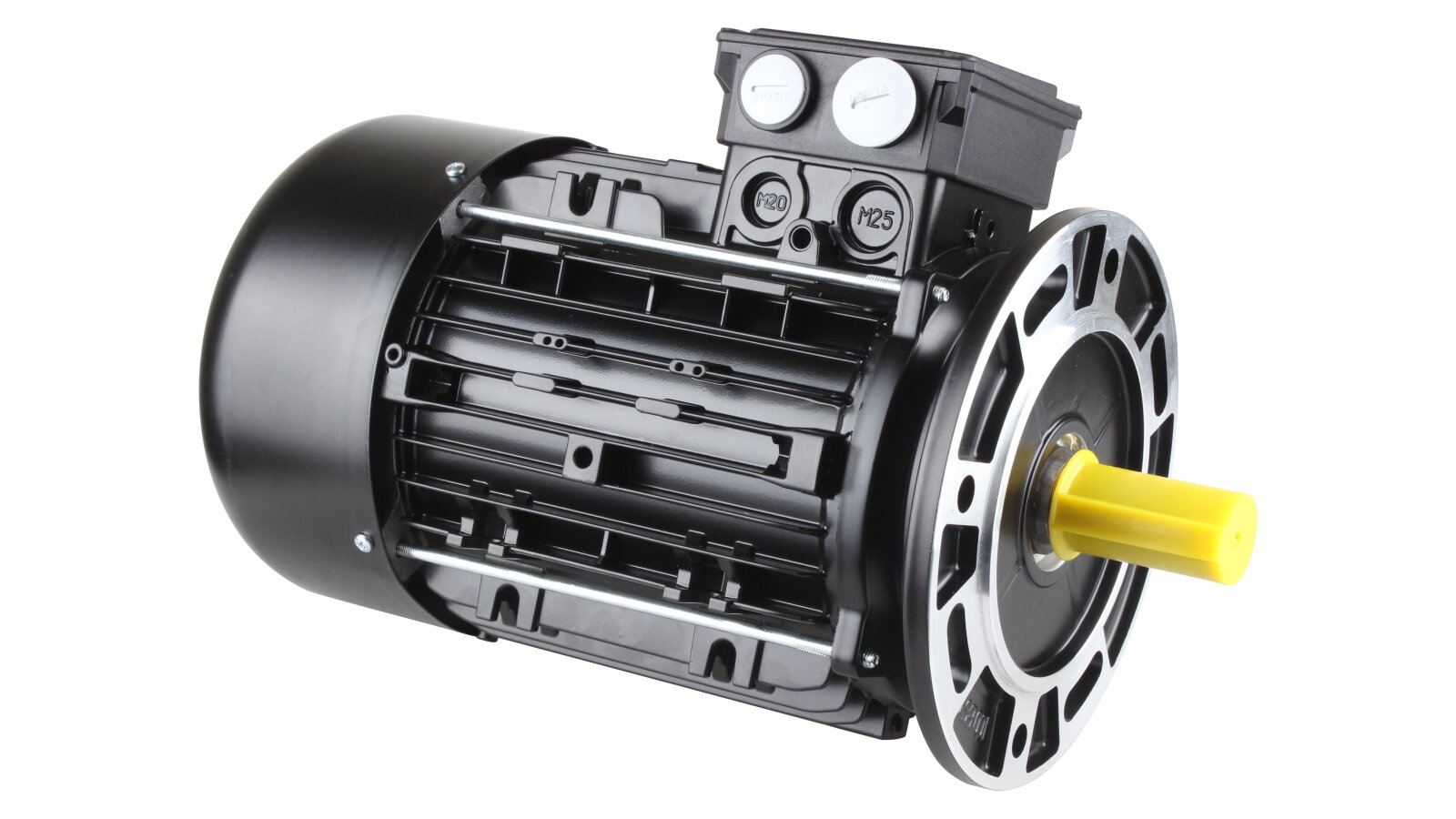

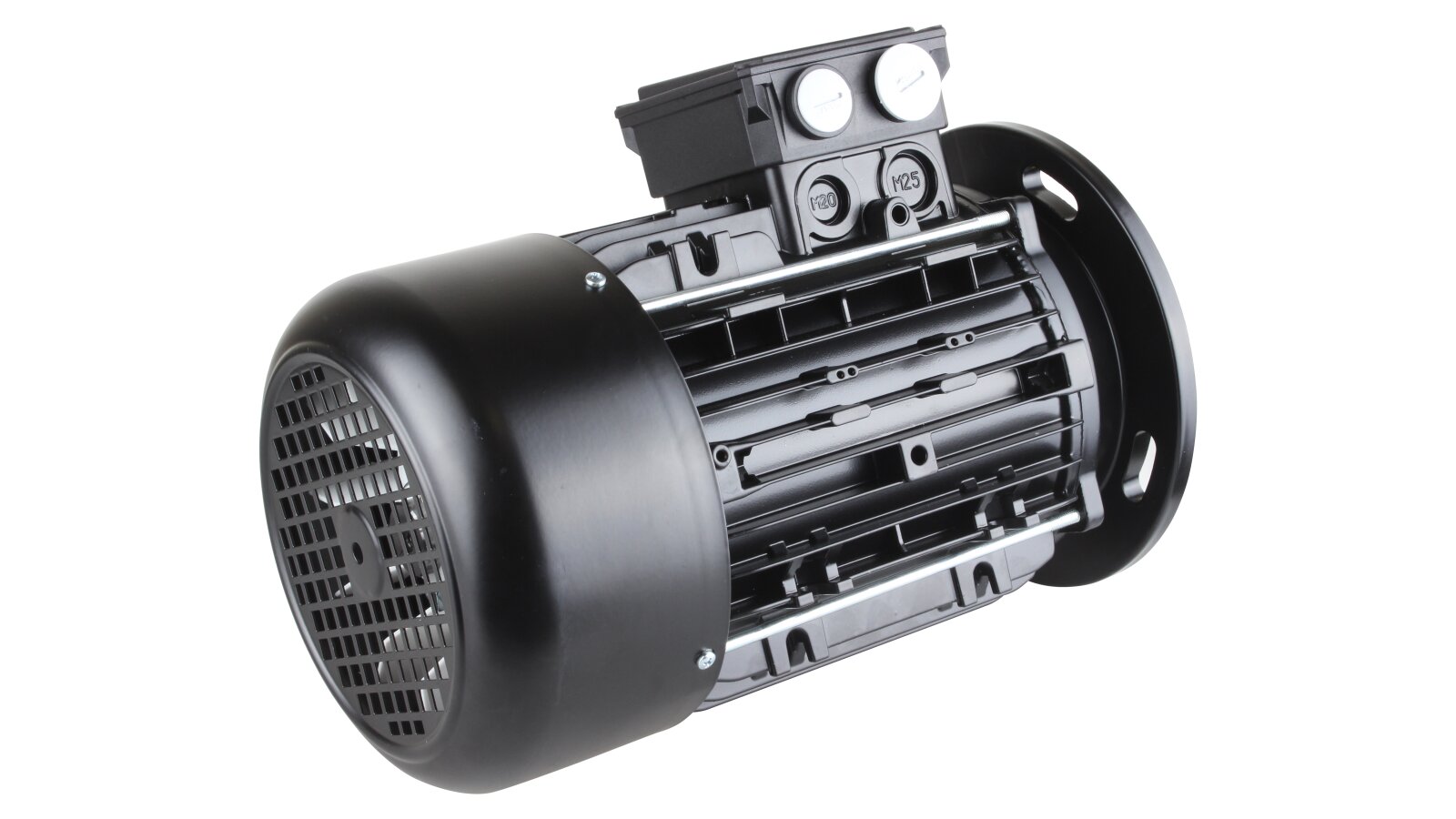

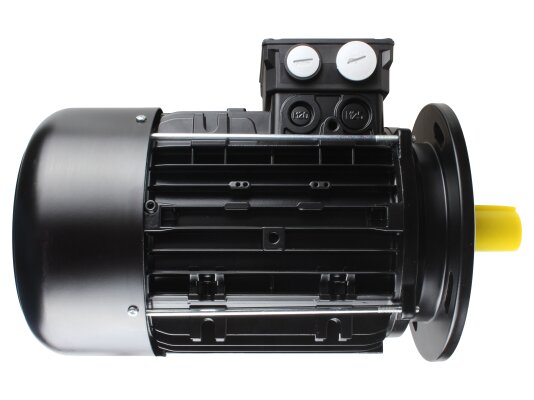

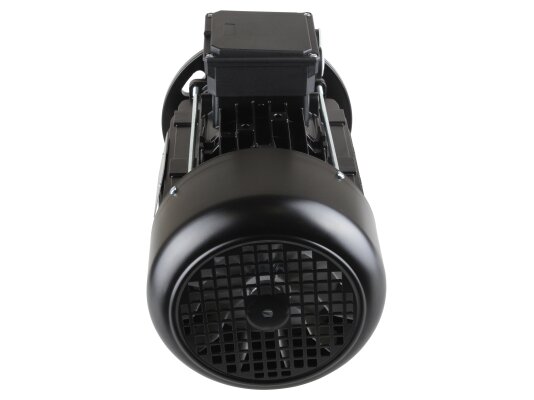

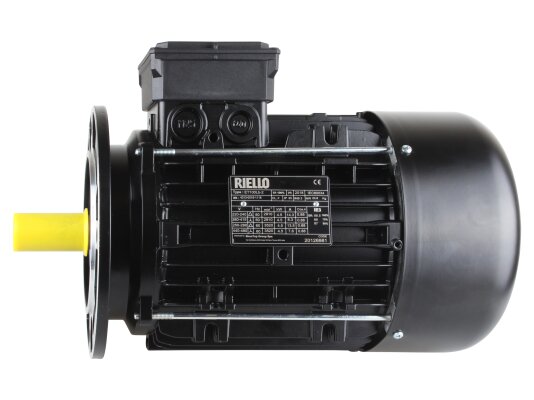

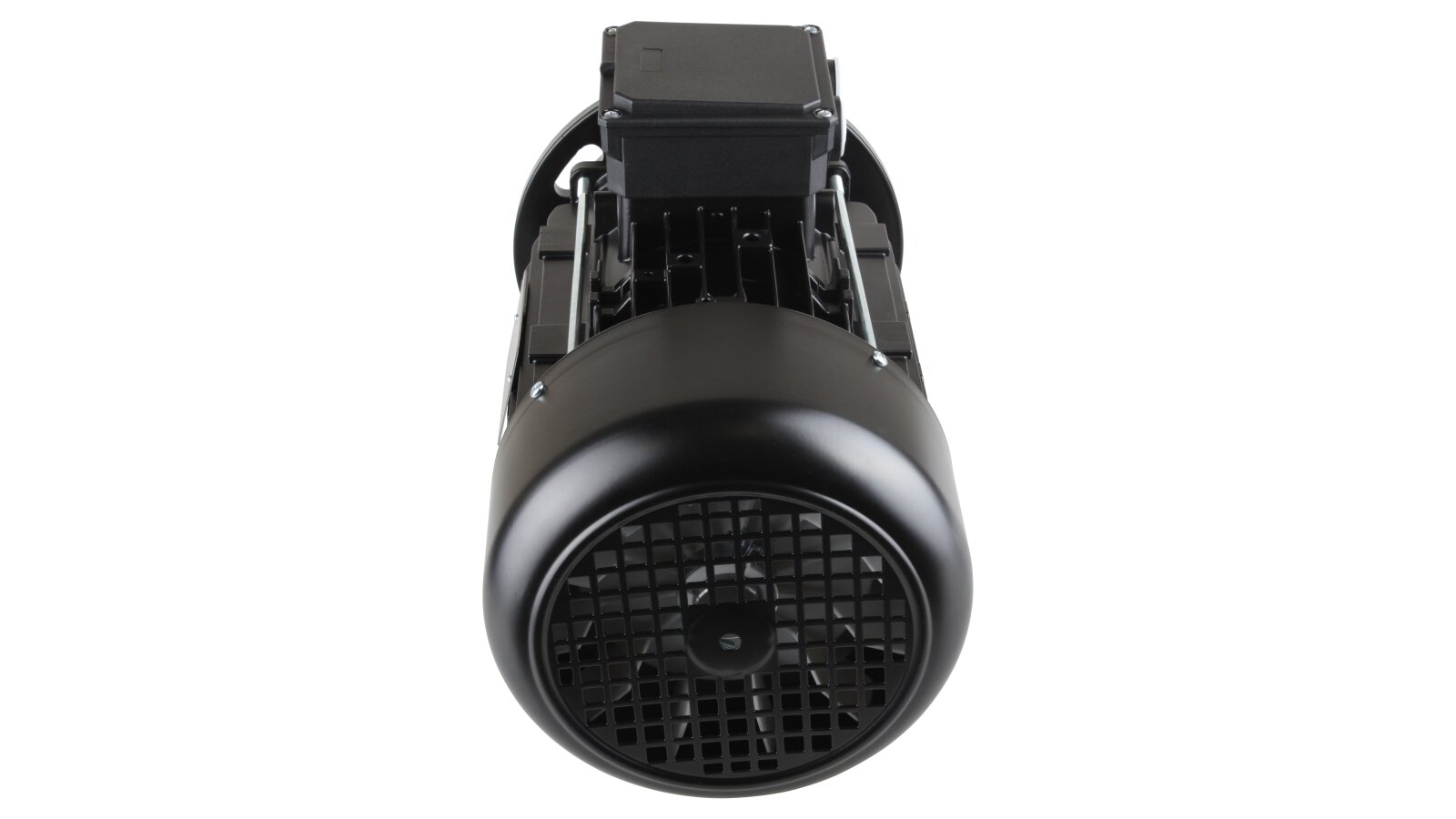

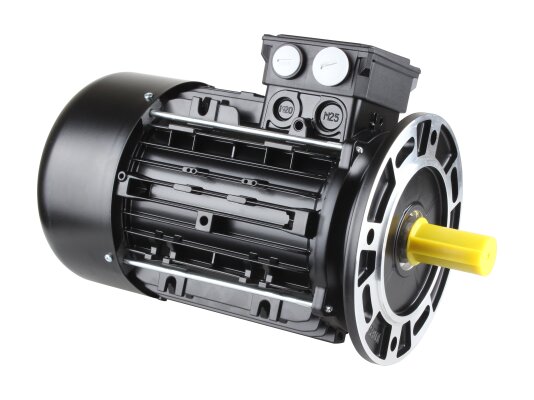

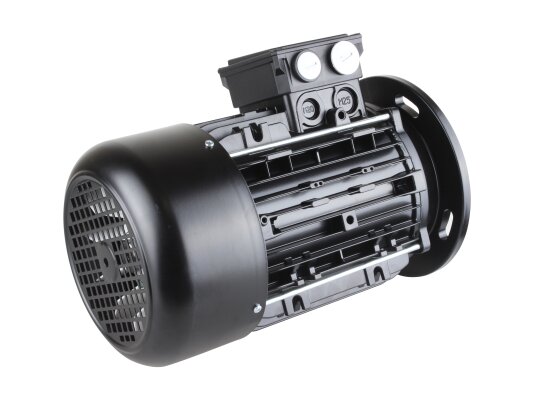

Electric motor (motor) Riello/Elvem MS2 100L2-2 B5R IE2 for forced-draft burners:

The three-phase MS2 100L2-2 B5R electric motor with a power of 4.5 kW was developed by Riello using modern technologies and high-quality materials. The asynchronous motor with a squirrel-cage rotor complies with European standards ISO 9001 and EN 60034-1. This ensures maximum reliability with high energy efficiency - IE2.

Design features:

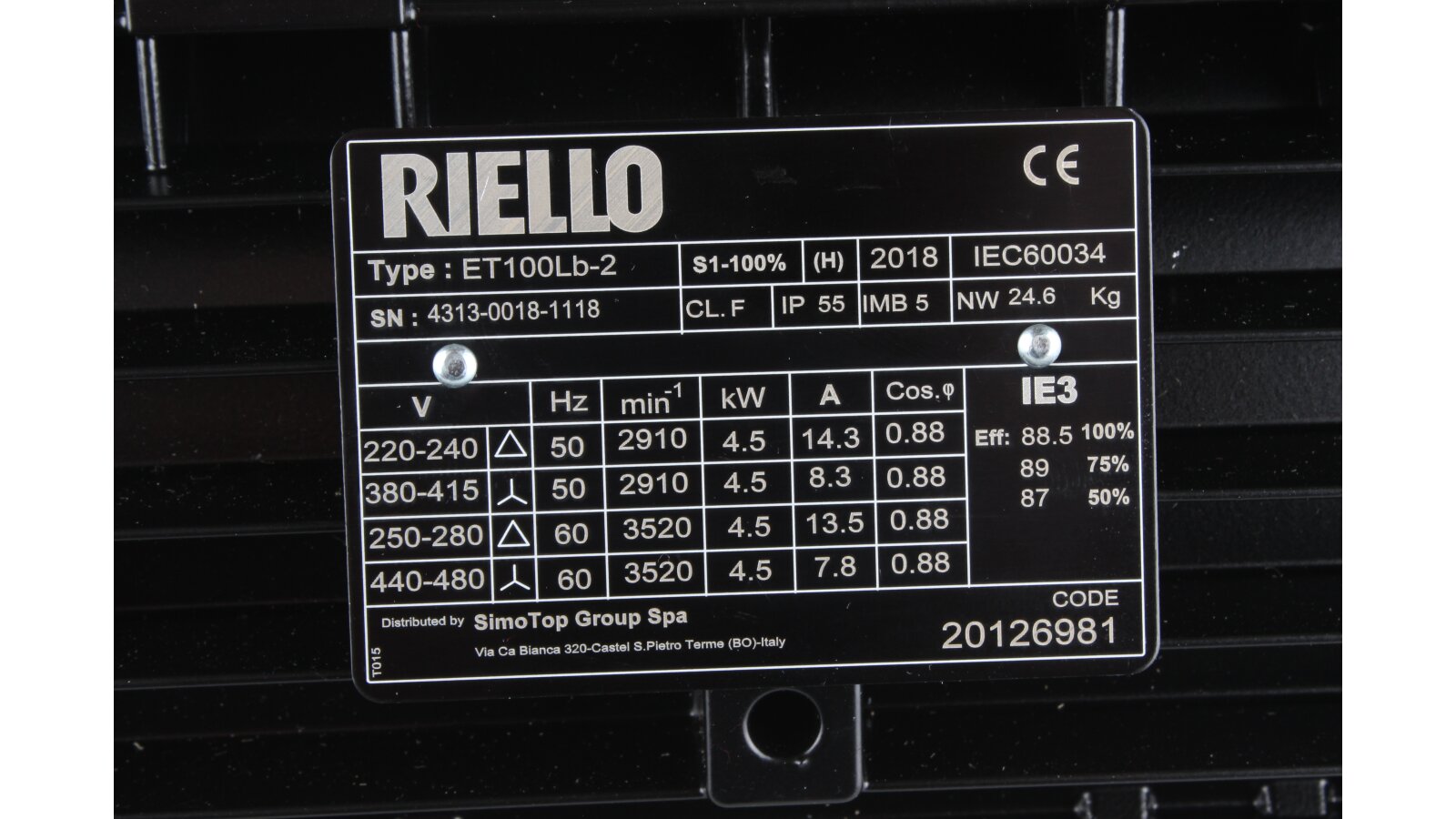

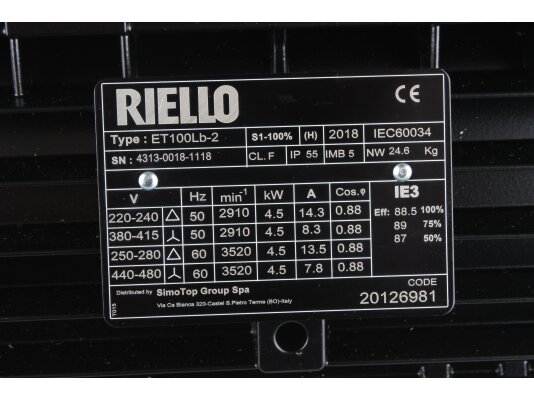

• The power unit can be powered from both a single-phase AC network of 220-240 V and a 3-phase network - 380-415 V at a frequency of 50/60 Hz. The current strength will not exceed 15.1 and 8.72 A, respectively.

• High precision manufacturing of the electric drive parts contributes to minimal noise and vibration parameters during long-term operation.

• The model is certified by the International Electrotechnical Commission (IEC), which is an indicator of the reliability and high quality of the offered devices.

Main advantages:

• small dimensions and easy installation using a flange connection;

• optimal degree of maintainability due to the compliance of the main components of the mechanism with IEC standards;

• high efficiency and low power consumption, confirmed by the international energy efficiency class IE2;

• the degree of protection of the housing from water and dust penetration IP55 will preserve the stator winding and internal elements of the engine when used in industrial conditions.

Three-phase electric motor Riello 4500 W is a profitable solution for equipping liquid fuel burners with supercharging at an optimal price from a European manufacturer.
