Motor Riello RHE 171T 0118

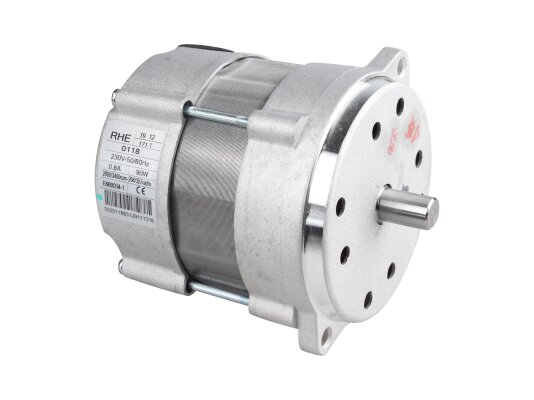

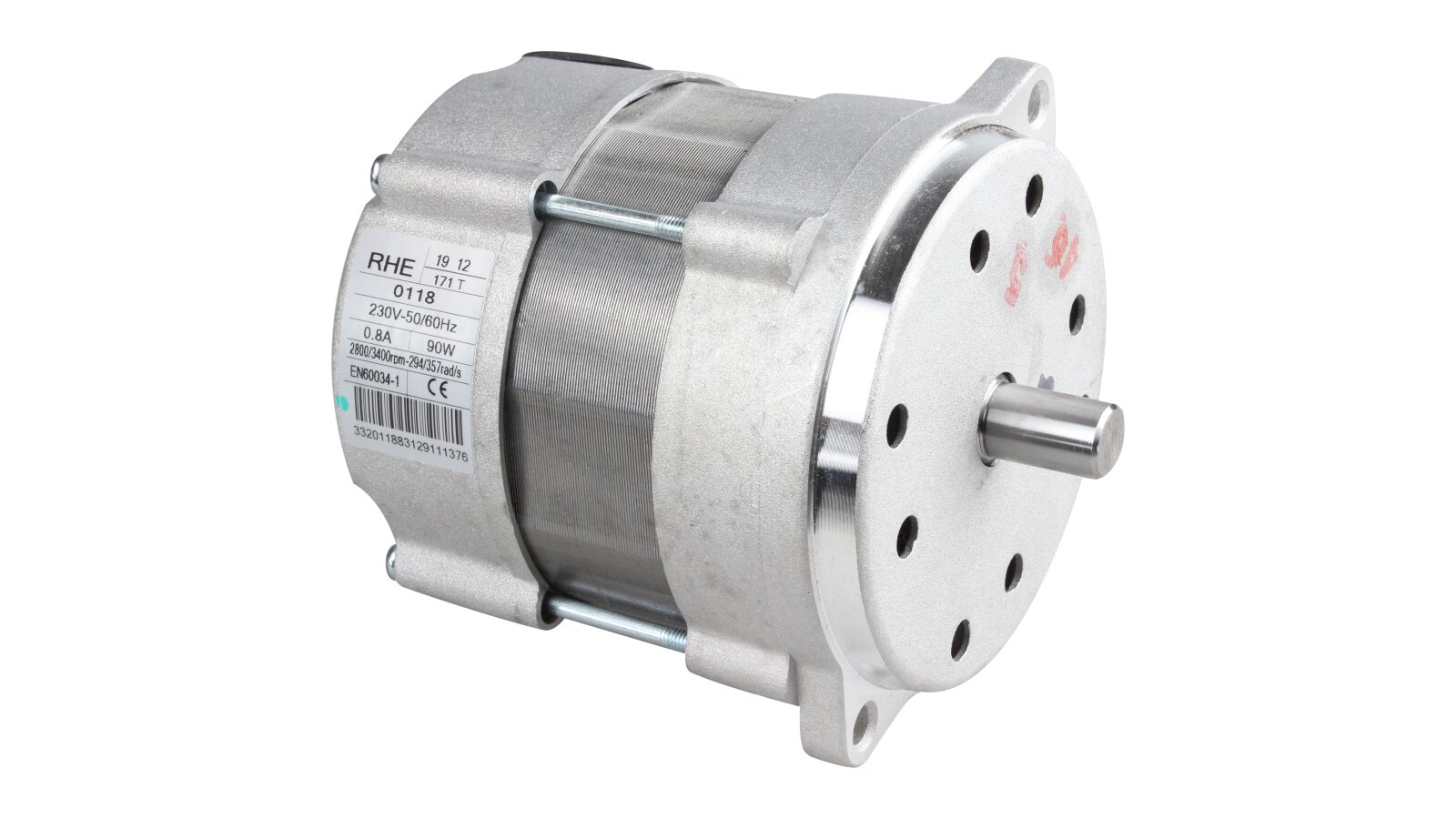

Electric motor (engine) RHE 171T for blown burners (used with clutch 3000443):

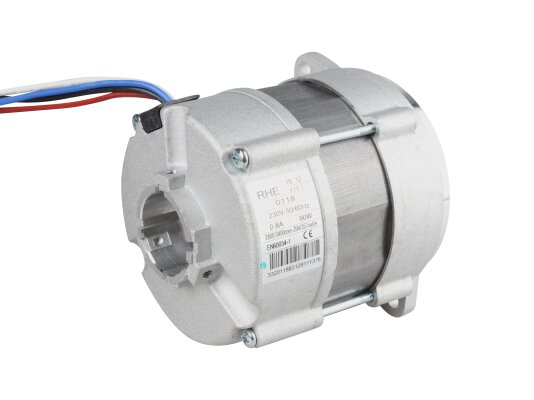

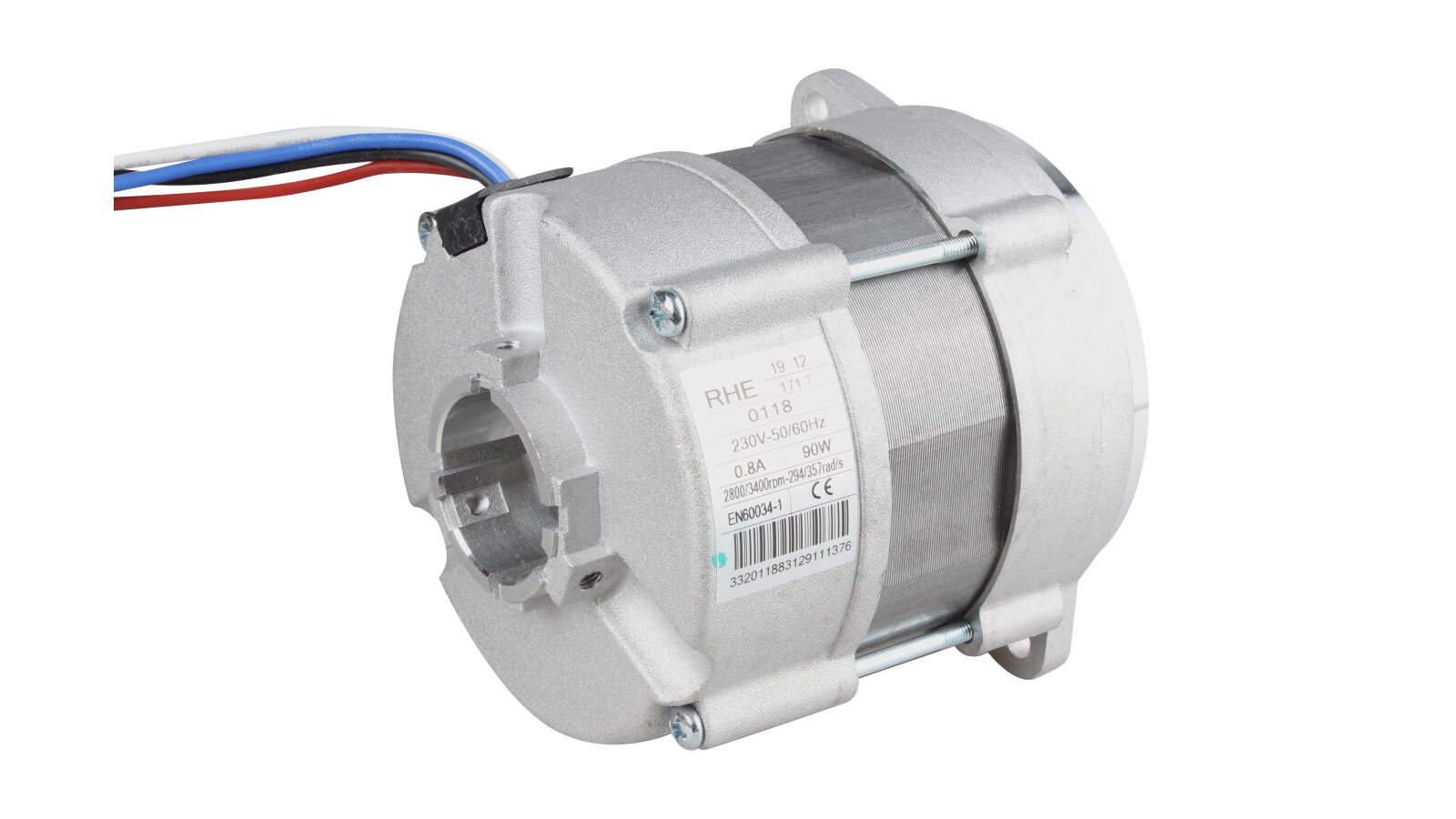

The product of the European company RHE 171T is a compact electric motor for a blown liquid fuel burner, which is designed to be powered by single-phase alternating current with a voltage of 230 V and a network frequency of 50/60 Hz. The device is designed according to the international standard for rotating electrical machines EN 60034-1.

Design features:

• The compact single-phase asynchronous motor is equipped with a squirrel-cage rotor and is designed for low power consumption - 90 W. The maximum load current does not exceed 0.8 A.

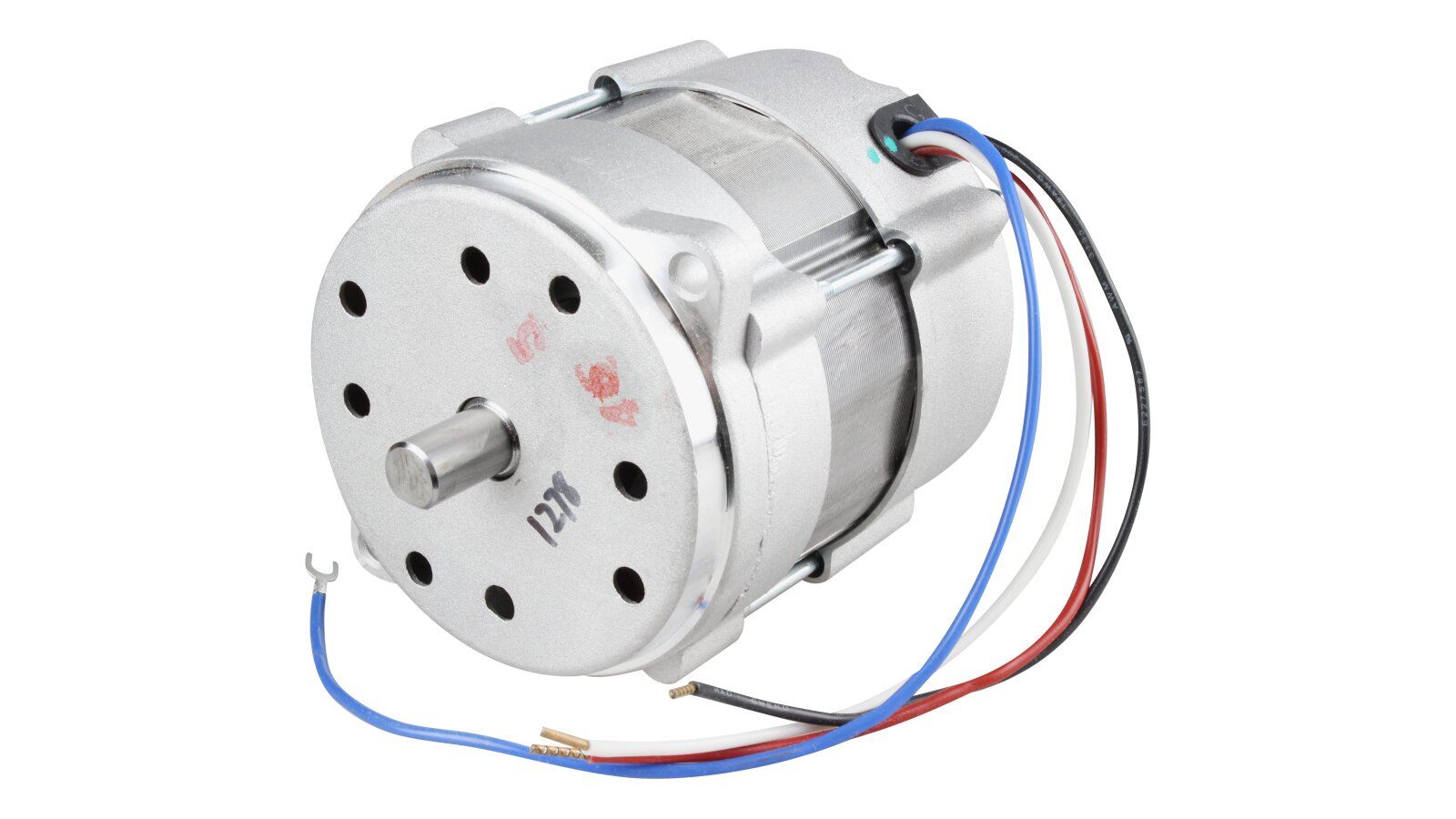

• A cable of 200/230 mm in length is provided for connection to the power supply circuit. The wires have a standard color scheme, simplifying the connection with the phase and neutral conductors.

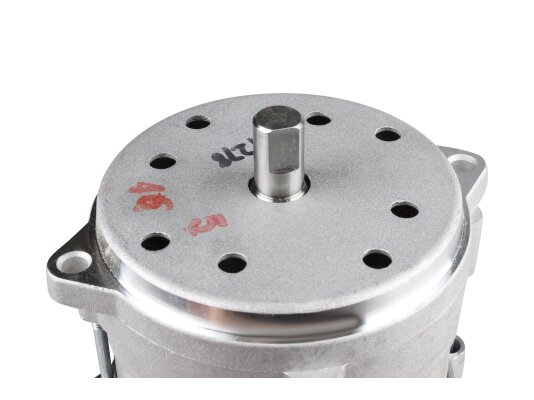

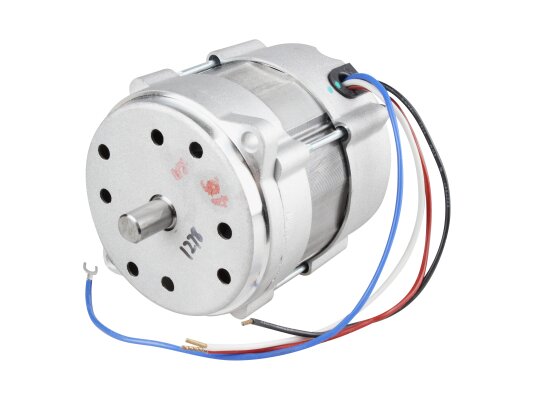

• For installation on the seat of a liquid fuel pump with a diameter of 32 mm, there are 8 mounting holes on the front cover. The connection method is flanged.

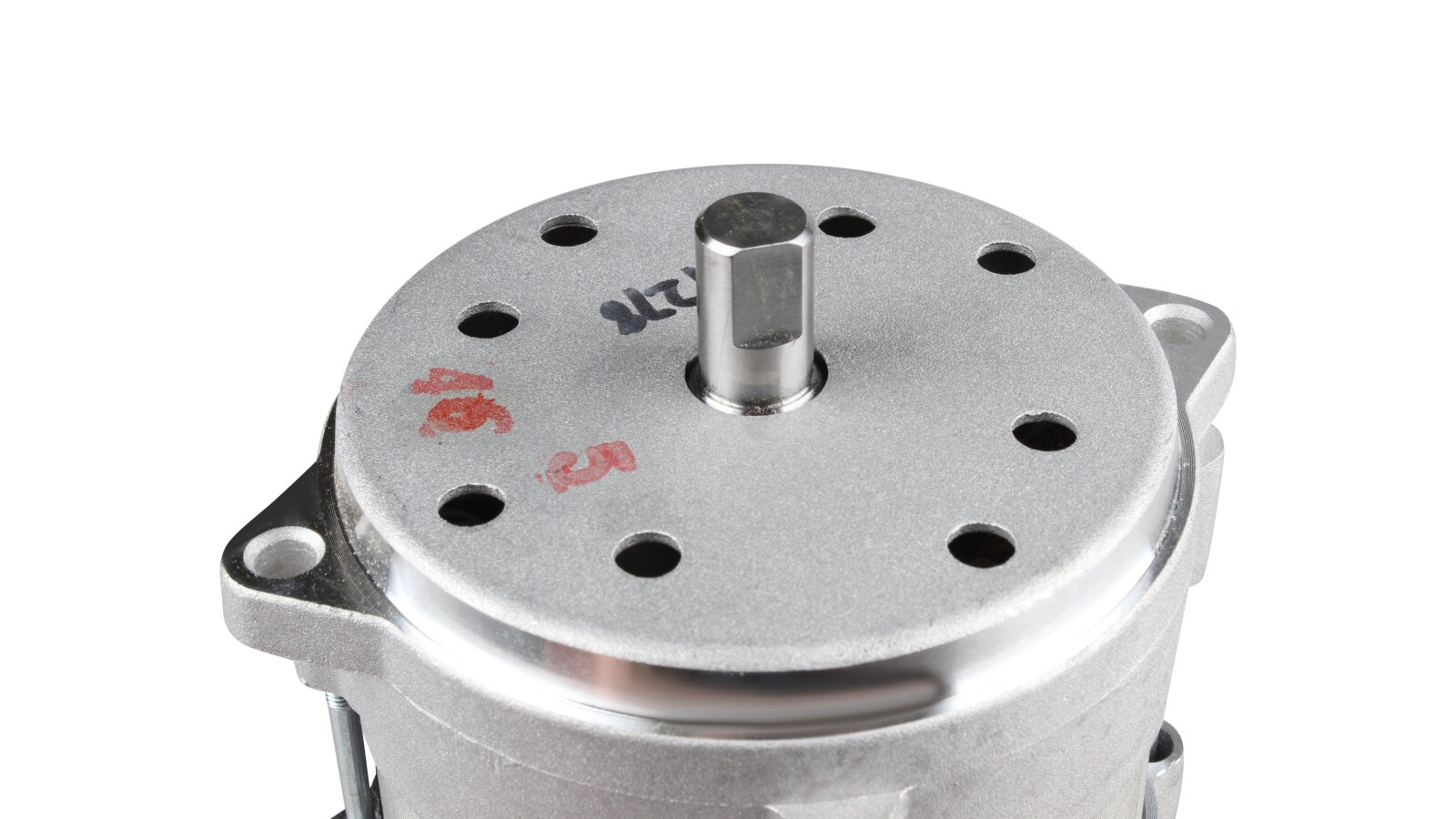

• The shaft is unified, its diameter is 12.7 mm, and the length is 20 mm. The type of coupling with the driven shaft of the pump is 3000443.

Main advantages:

• Lightweight housing with high anti-corrosion properties, made of aluminum alloy by die casting;

• small weight and dimensions, simplifying the installation and maintenance of the device;

• long service life at rated load in continuous operation mode S1;

• insulation class B, allowing heating of the current-carrying parts of the stator winding to a temperature of +130 °C.

The RHE 171T 90W asynchronous electric motor is a high-quality electrical device designed in accordance with international safety requirements and the ISO 14000 Environmental Protection Standard.
