Motor Riello RH Y 110, 3013751

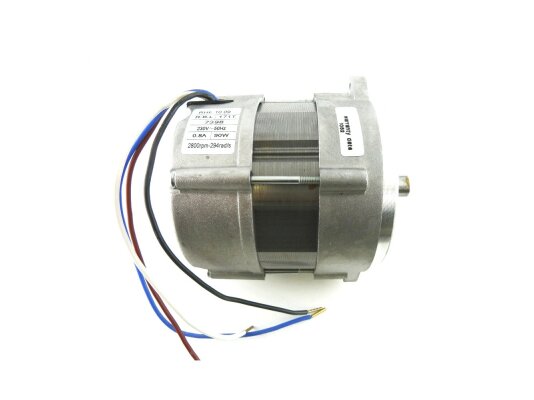

Electric motor (engine) RHE RH Y 110 for forced-draft burners

The compact single-phase electric motor RHE 420 W (RH Y 110) with article number 3013751-RL was developed by a European concern specifically for the assembly of forced-draft heating burners operating on liquid fuel. The device is equipped with a 40 cm long grounding cable and a network cable for connection to an alternating current source with a voltage of 230 V - 32 cm.

Design features:

• The device belongs to two-pole asynchronous motors with a squirrel-cage rotor. This simplifies its connection, maintenance and improves performance.

• The power unit is equipped with a starting capacitor 3003767 with an electric capacity of 12.5 μF and an operating voltage of 450 V. It is designed to create torque and protect the network parameters from sag at high currents.

• The open-type outer casing with an IP20 protection rating will prevent solid objects with a linear size of 12.5 mm or more from entering, but will be insufficient when water splashes or drops enter.

Advantages of the model:

• High-quality double insulation of the rotor and stator windings, impregnated with resin, is resistant to temperatures up to + 155 ° C;

• Dynamic balancing of rotating parts allows the electric drive to be operated with minimal vibration and an acceptable noise level;

• The motor has a lightweight housing made of corrosion-resistant aluminum alloy;

• The electric motor is designed for operation in continuous mode S1, and its operation in periodic short-term modes - S2 and S3 is also allowed.

The two-pole asynchronous motor RHE 420 W in an unprotected housing is the optimal solution for installation in liquid fuel burners with supercharging. The unit is selected according to the technical specification and must correspond to the parameters of the heating equipment. The company "ANKAS", which is an official dealer of industrial equipment, offers to purchase products in "one click", indicating your contact phone number.
