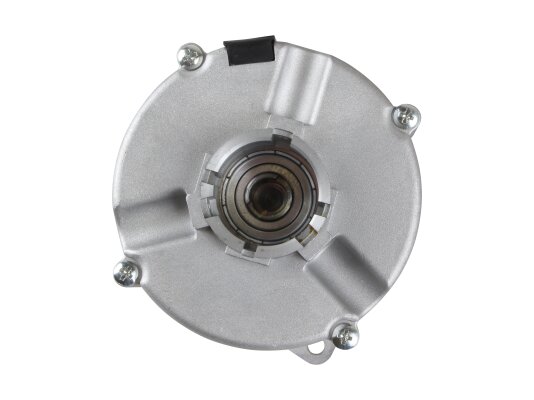

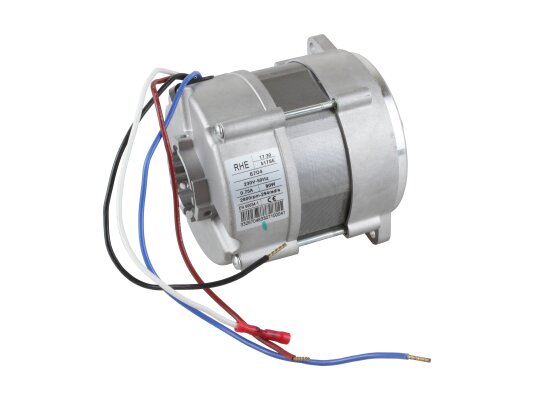

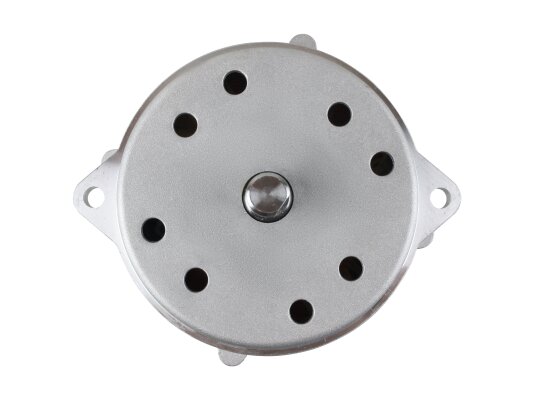

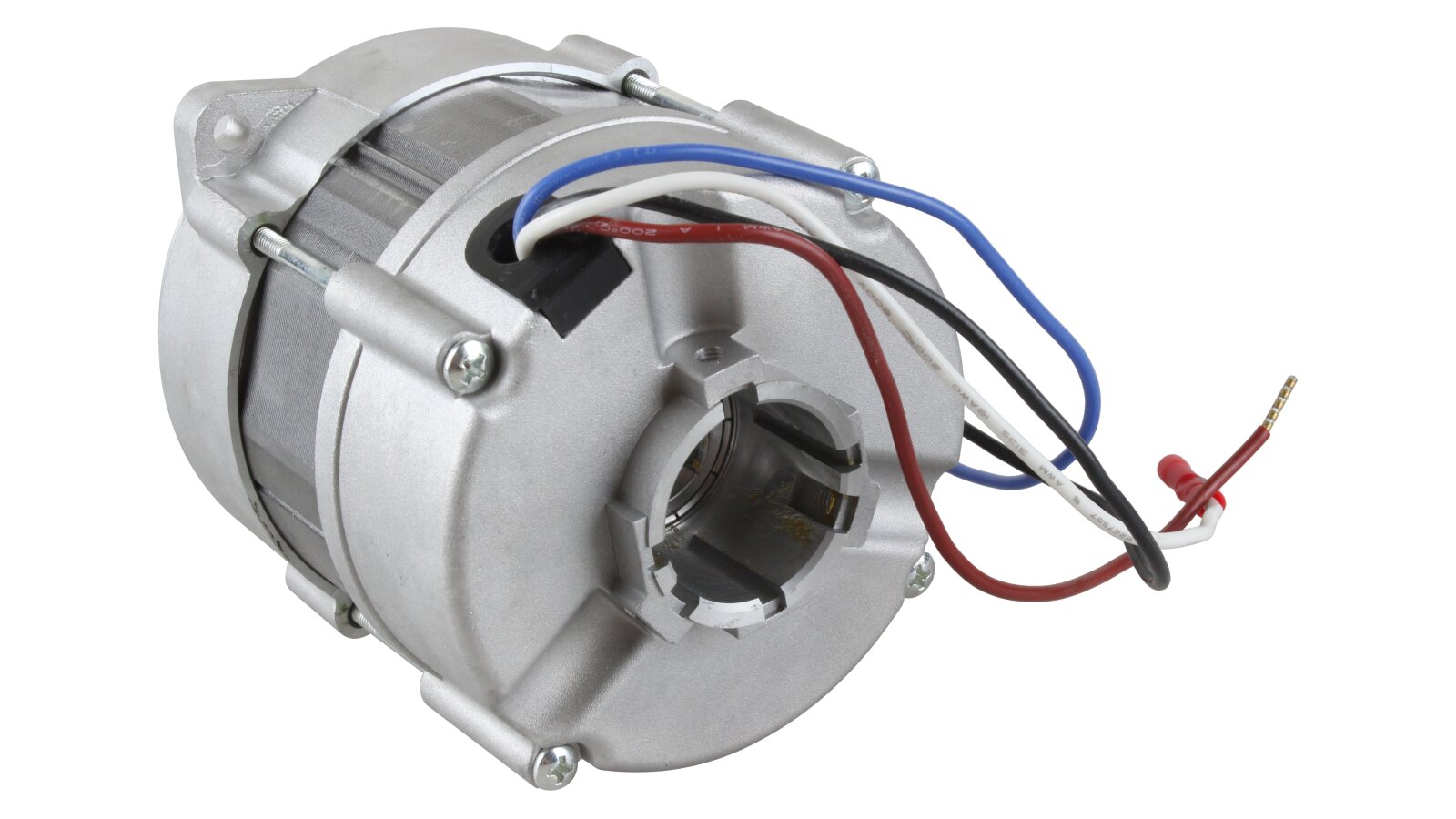

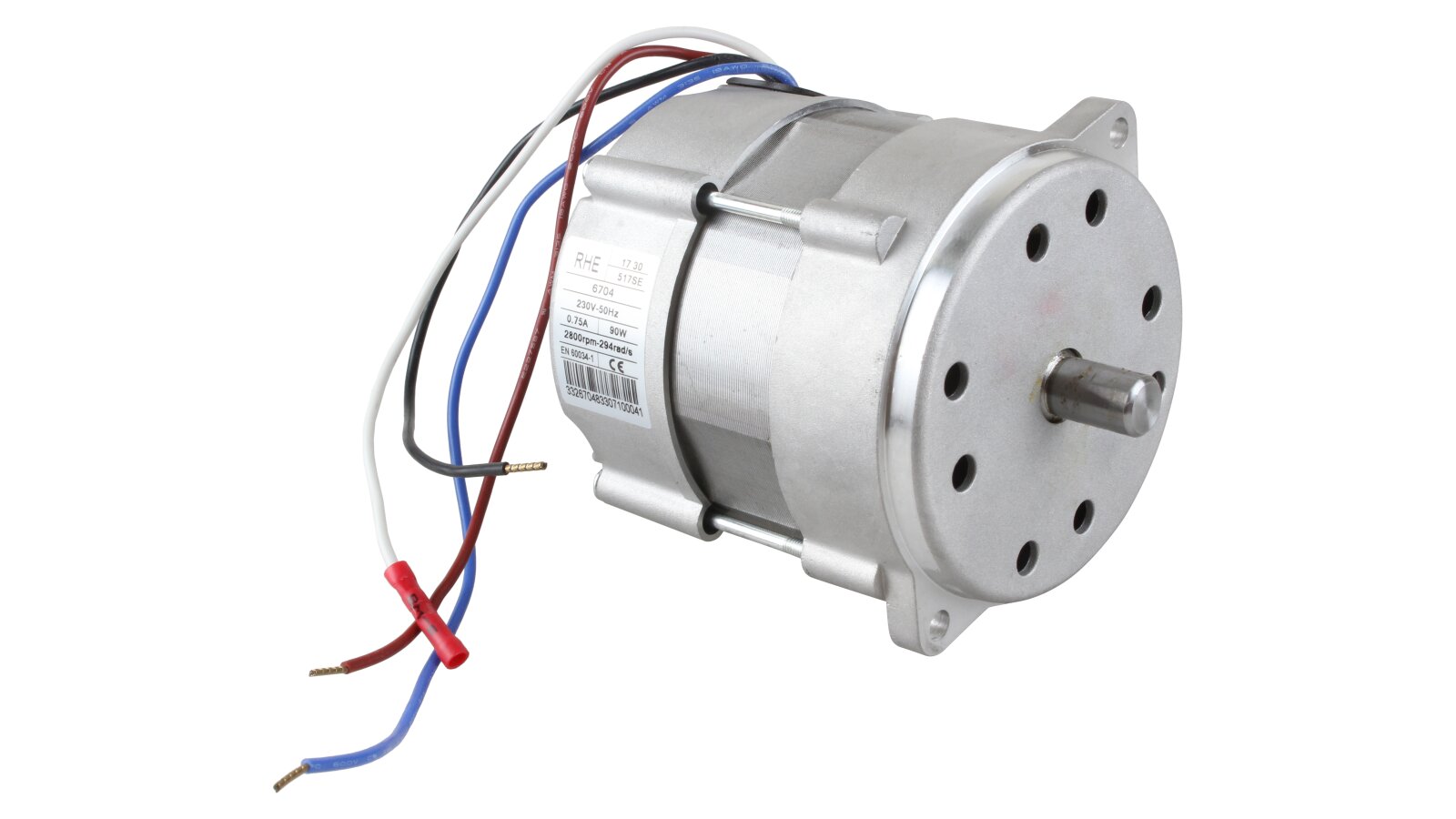

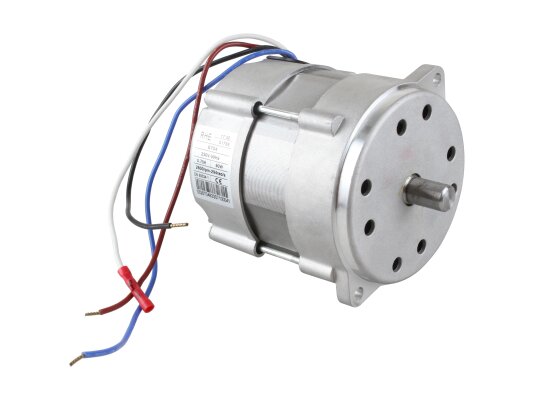

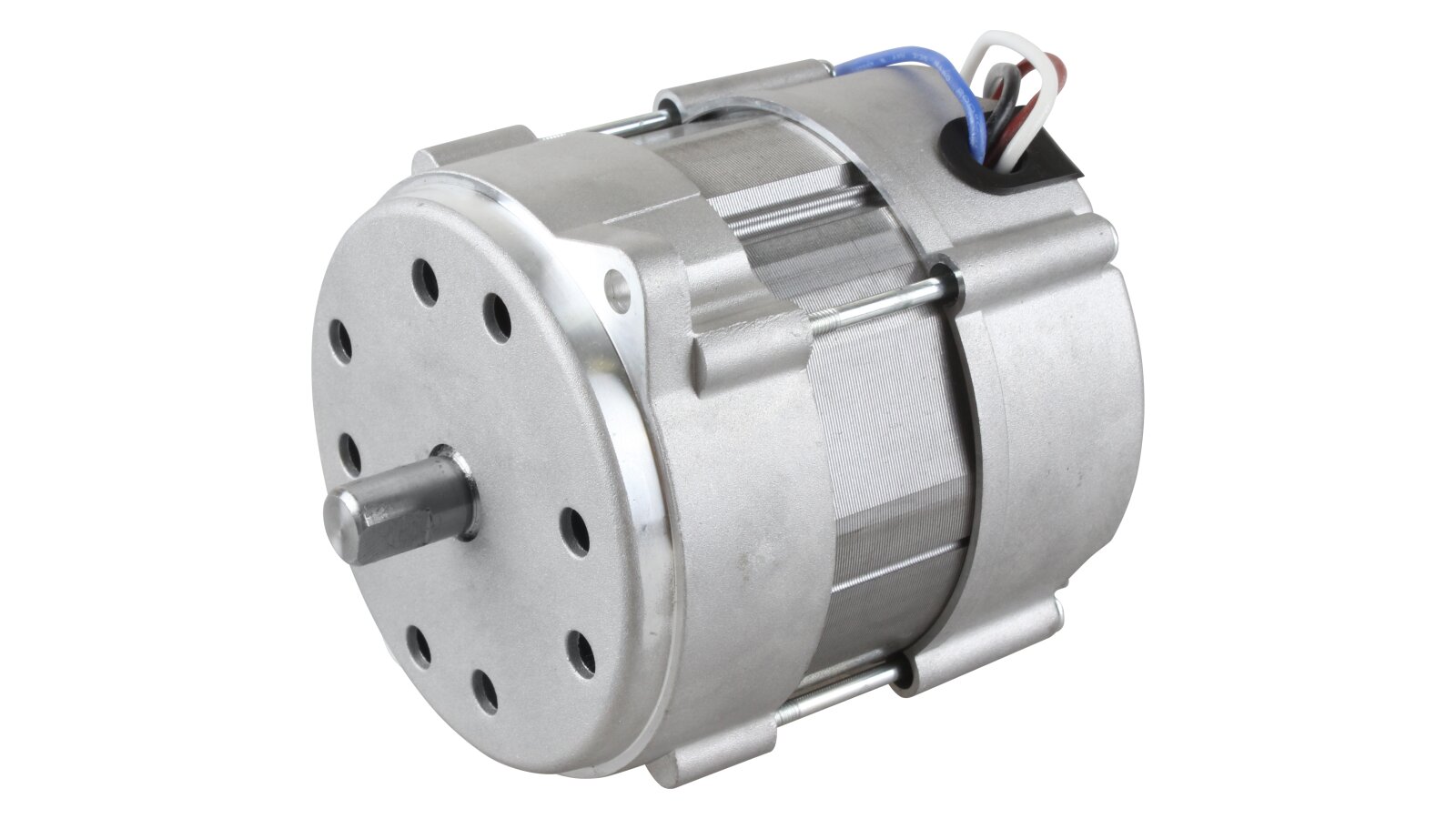

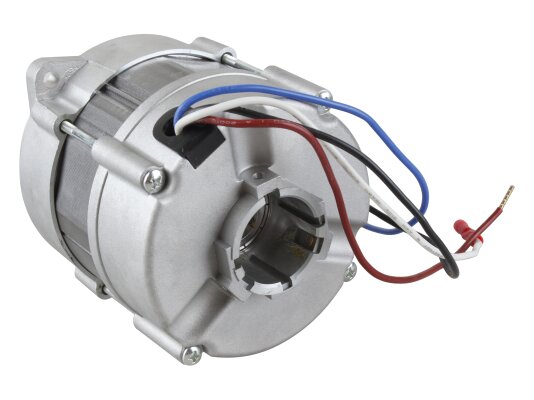

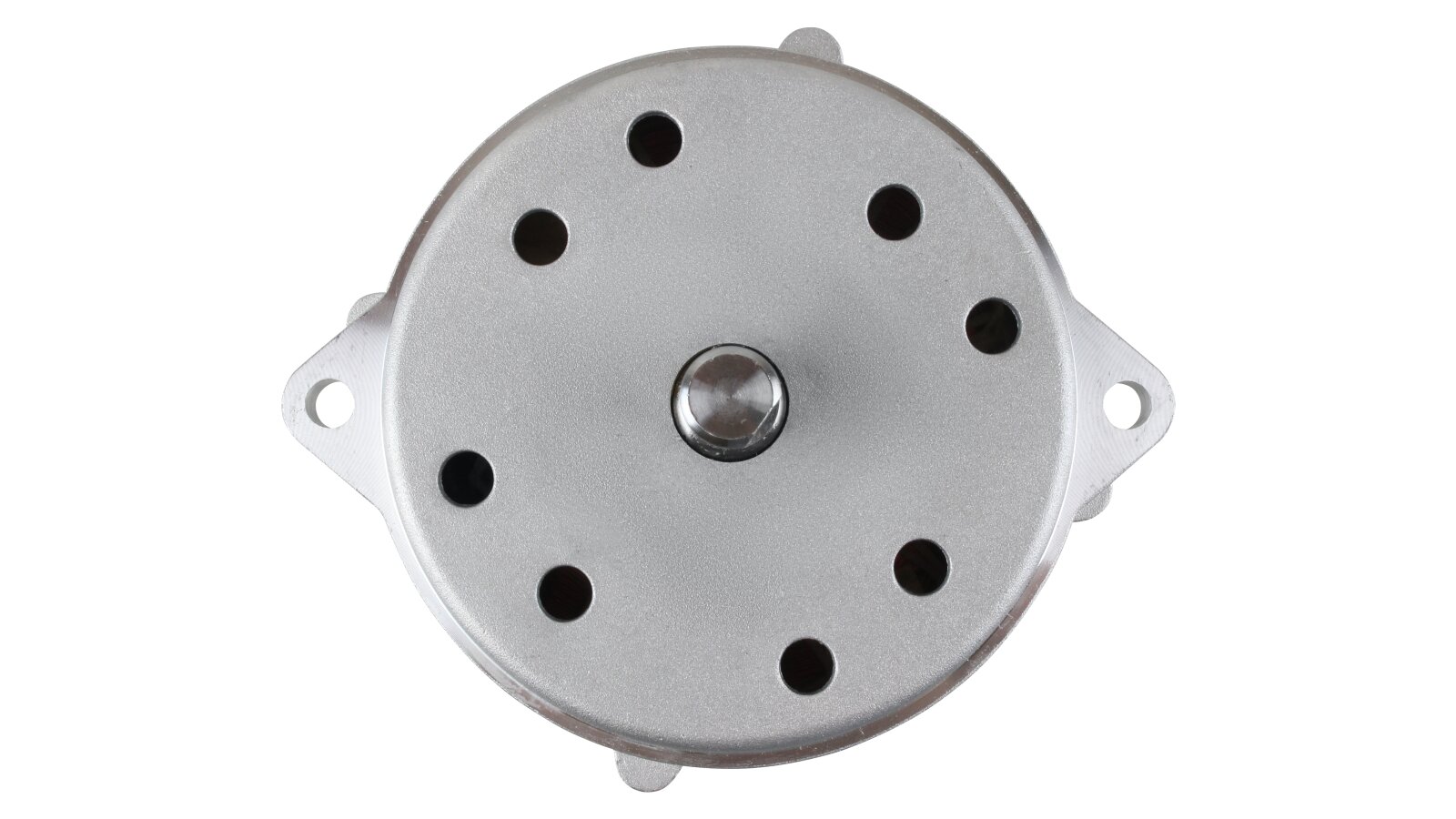

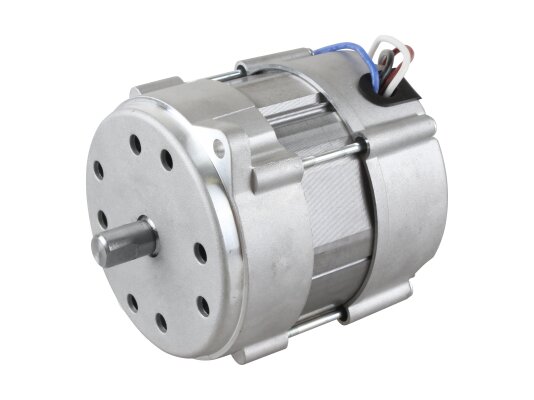

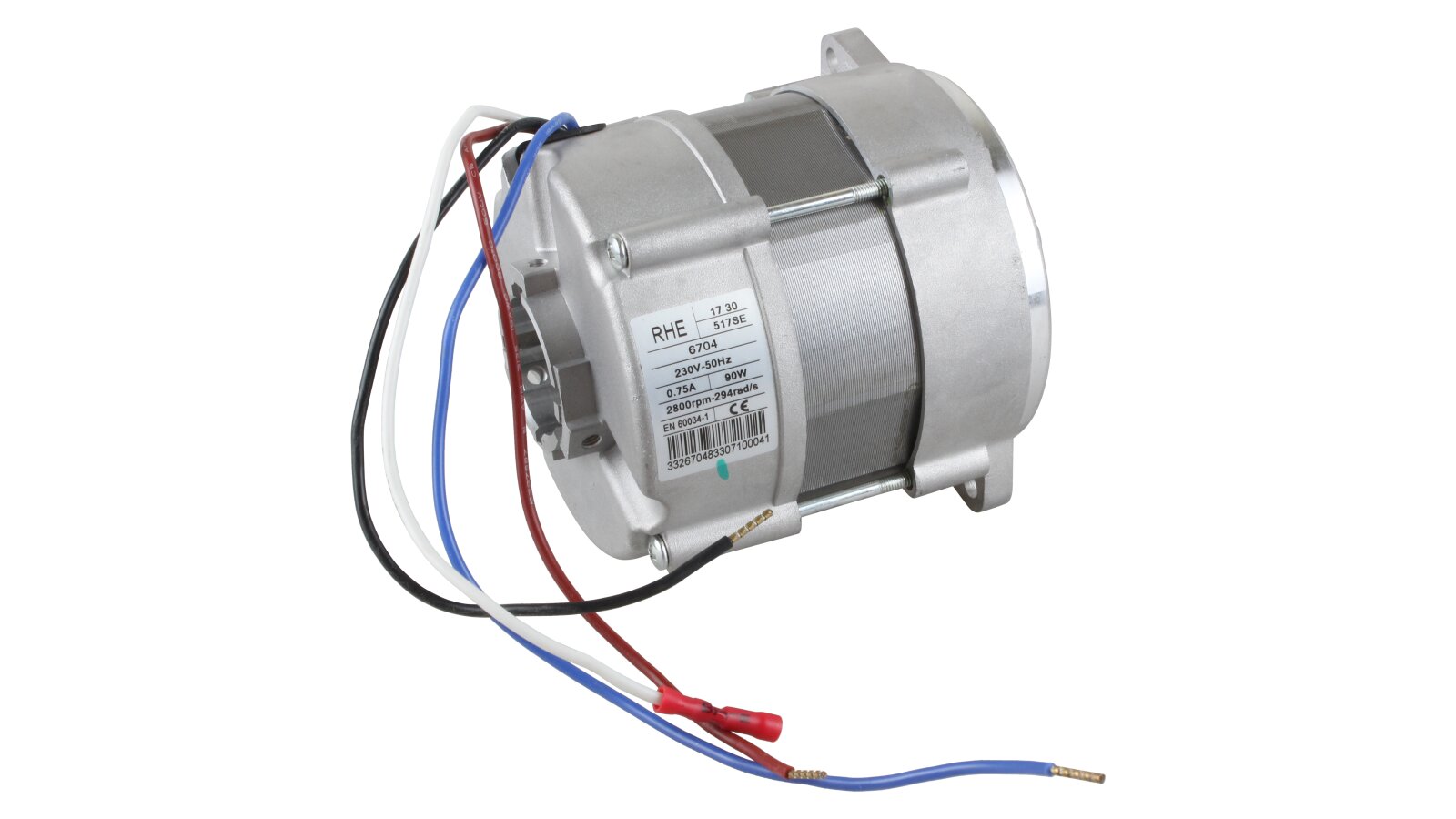

Motor Riello 517SE 6704

The single-phase asynchronous open-type electric motor RHE 517SE with a power consumption of 90 W is used as a power drive for liquid fuel burners with supercharging. The motor with a squirrel-cage rotor operates from a 230 V network with a frequency of 50/60 Hz. A distinctive feature of RHE devices is wear resistance, increased service life of windings, ease of mechanical installation and electrical connection, as well as low operating costs.

Technical features:

• Model 517SE has one of the highest energy efficiency rates in its class. The device also has acceptable overload capacity values ​​and an optimal ratio of starting torque to rated torque.

• The electric motor housing is made of aluminum alloy and, therefore, has a low dead weight.

• Impregnation of rotor and stator windings with resin and their insulation with a layer of enamel provides reliable protection against overheating, short circuits and oxidation.

• The motor can be operated using a frequency converter.

The manufacturer's recommended motor operating mode is S1. Optimal performance and high energy efficiency are ensured during long-term operation with a constant load at nominal speed. The recommended connection diagram is via a power contactor with line protection by a device with a thermal and magnetic release. The device must be used indoors. Operation in dusty places or with possible water ingress onto the motor body is not allowed.

High reliability is achieved by a proven classic design in combination with high-quality components and strict adherence to the electric motor manufacturing technology. The unit is manufactured in accordance with European quality standards ISO 9001.
